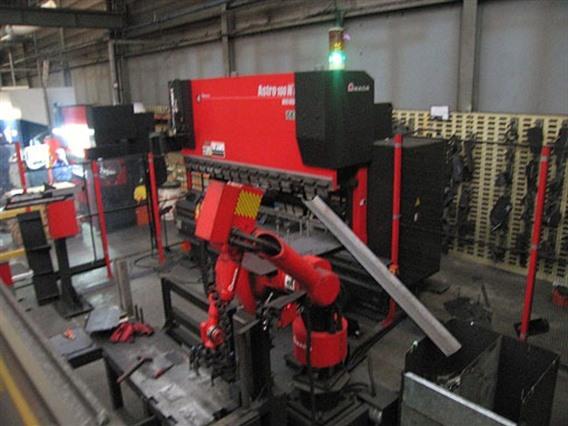

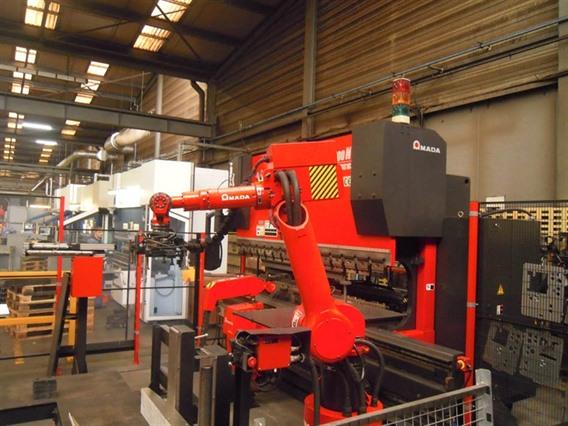

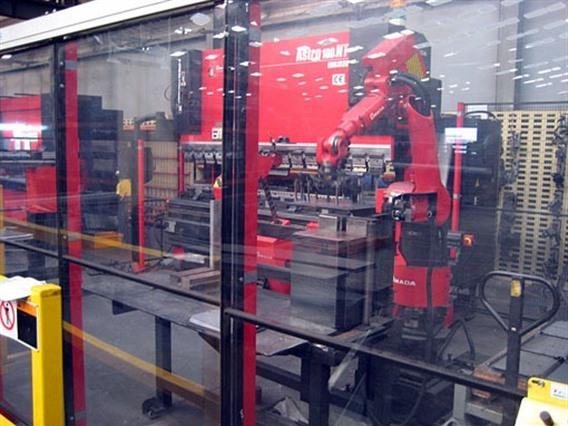

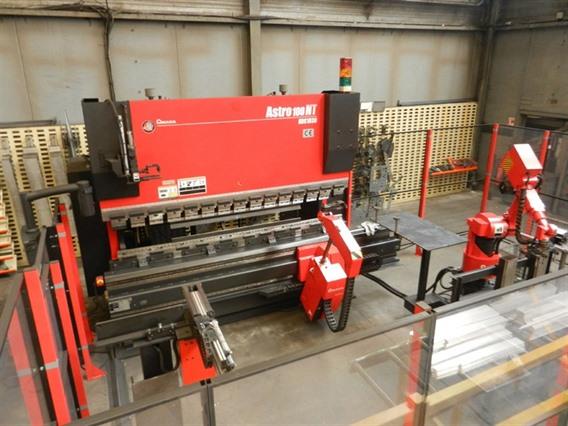

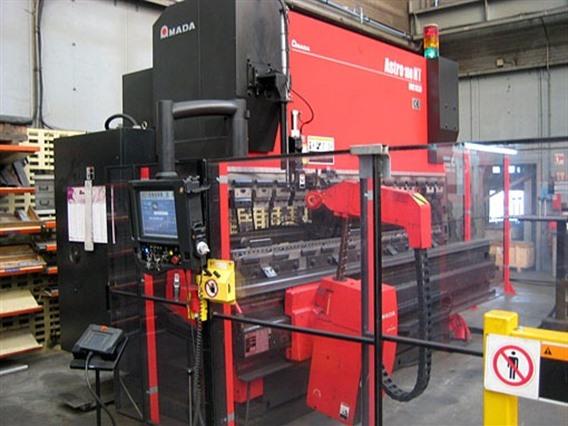

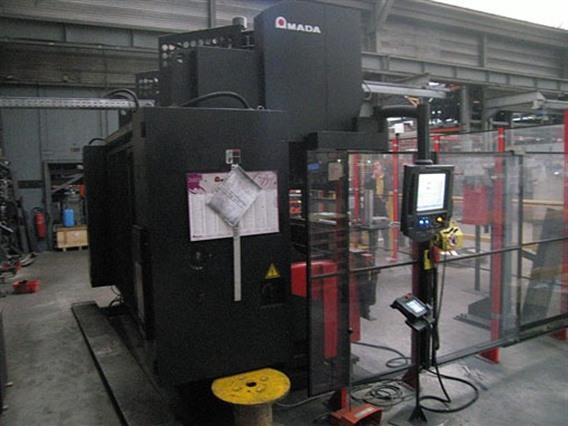

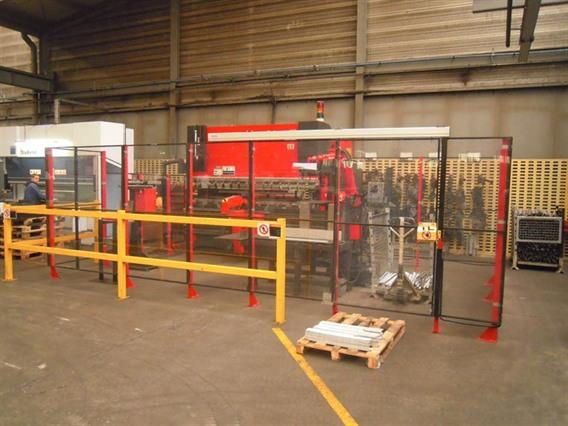

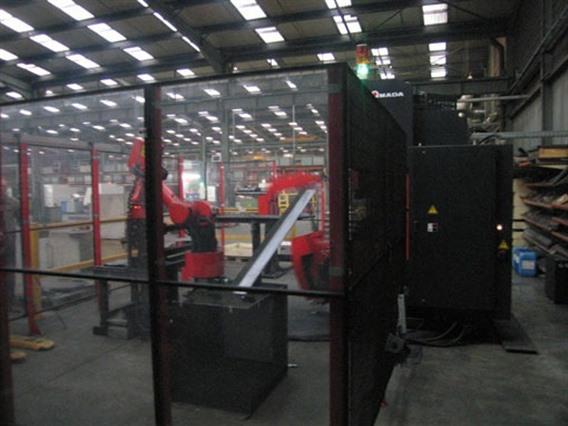

Amada Astro 100T x 3220 CNC Robot bending Cell

Produkt dodany do ulubionych

» Poprosić o indywidualną wycenę

Specyfikacja

Capacity x Max length100T x 3220 mm

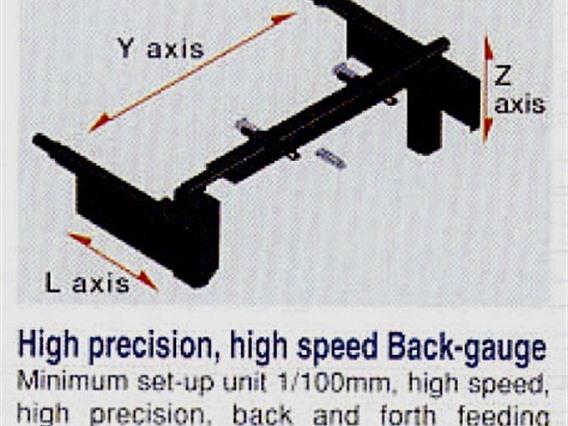

BackgaugeCNC

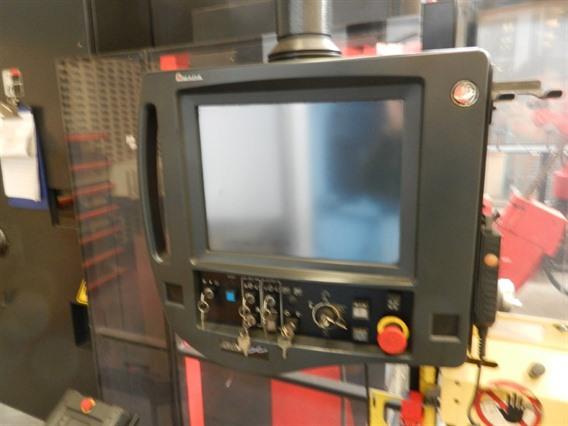

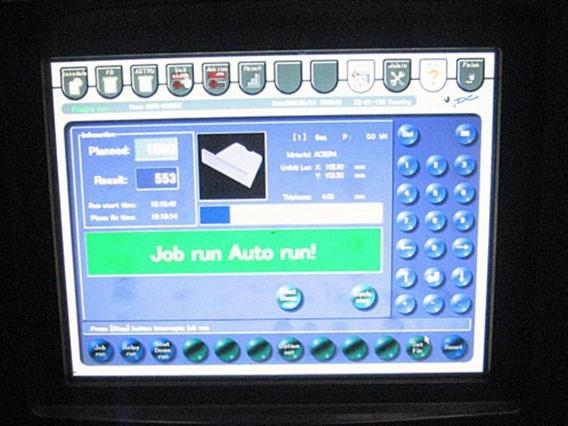

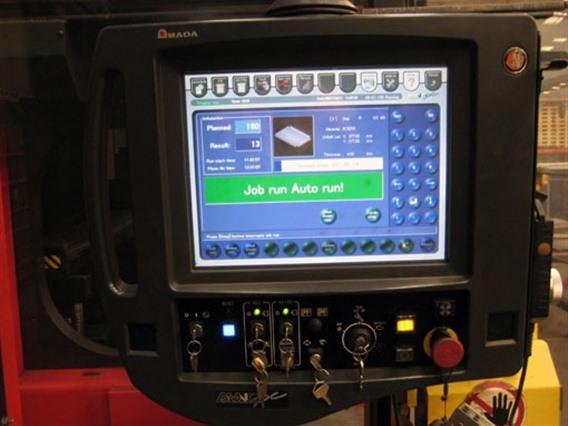

ControlAstro Cam II
Passage between uprights2700 mm
Max stroke200 mm

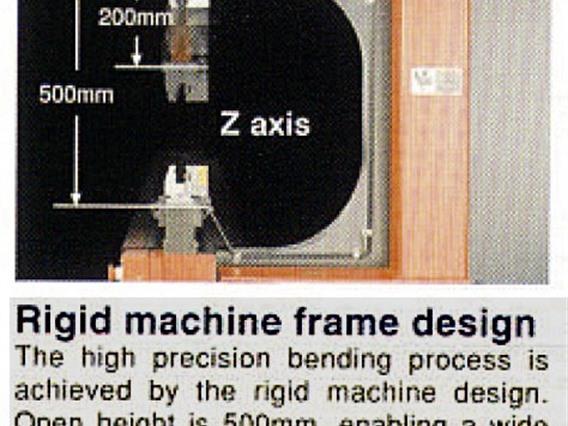

Max distance between table -- ram500 mm
Depth of throat420 mm
Table width180 mm
Locking speed200 mm/s
Working speed20 mm/s
Returning speed200 mm/s

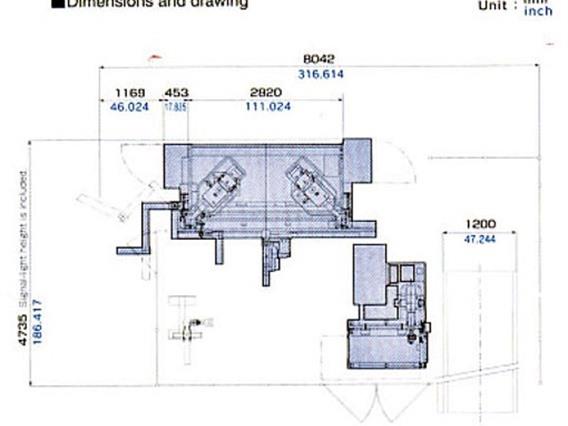

Length 8042 mm
Depth4735 mm
Height3194 mm

Dodatkowe informacje

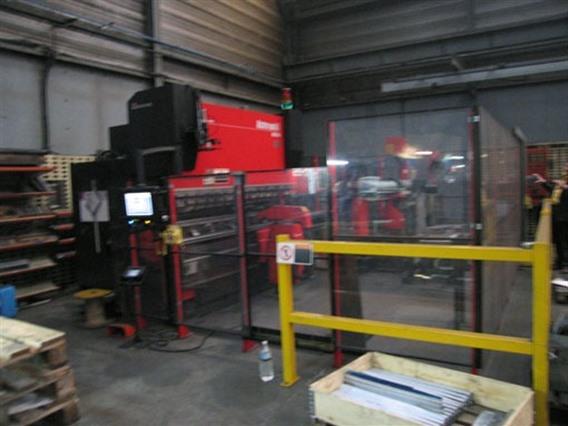

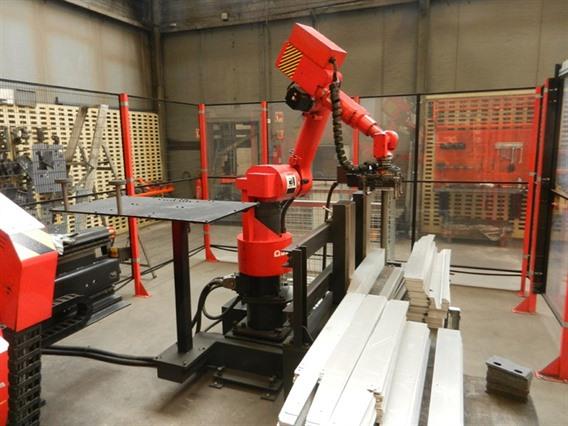

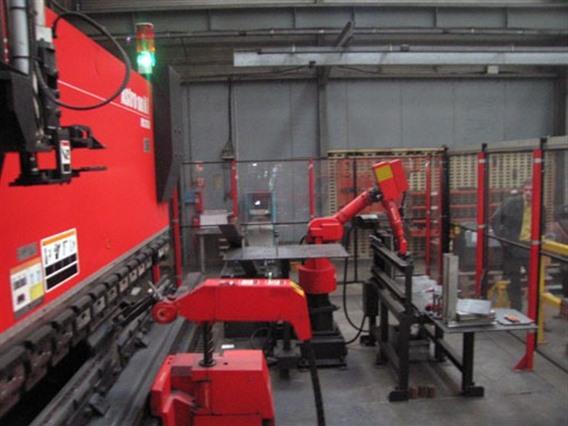

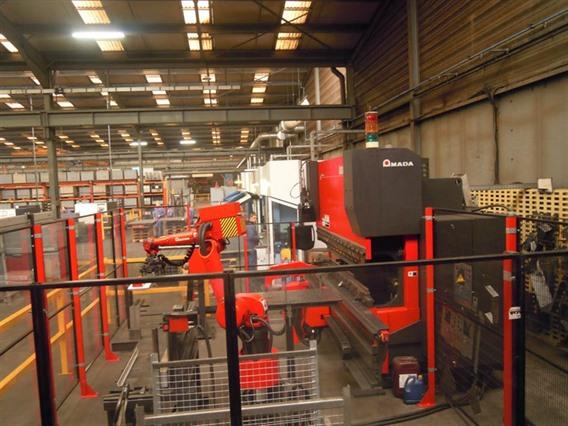

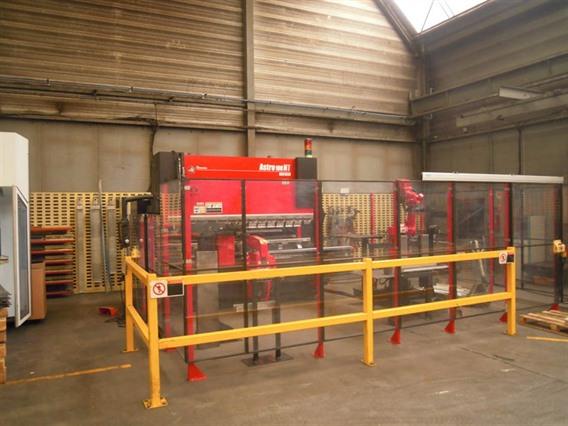

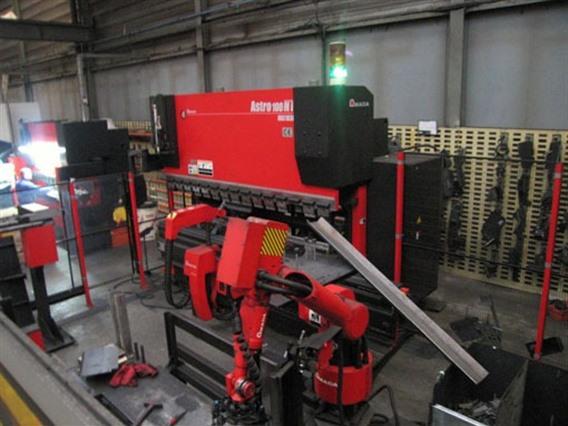

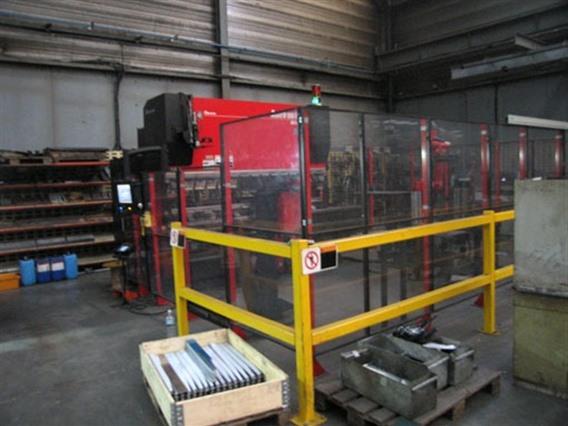

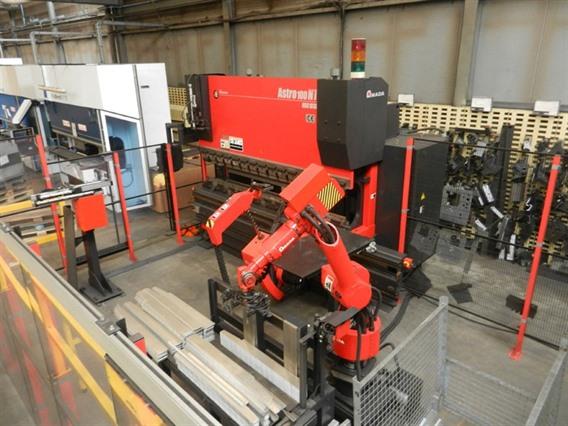

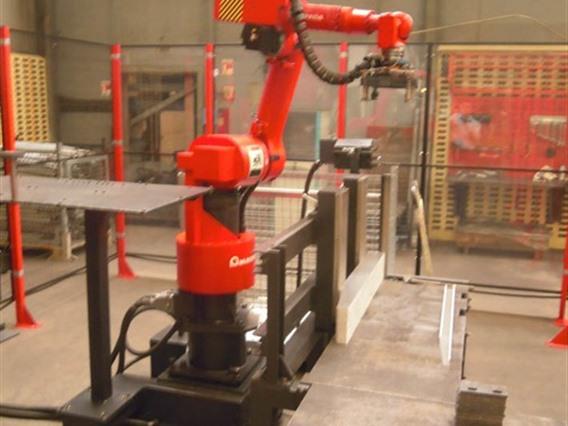

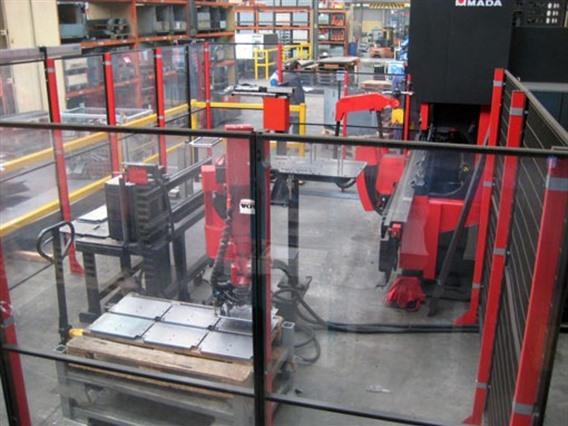

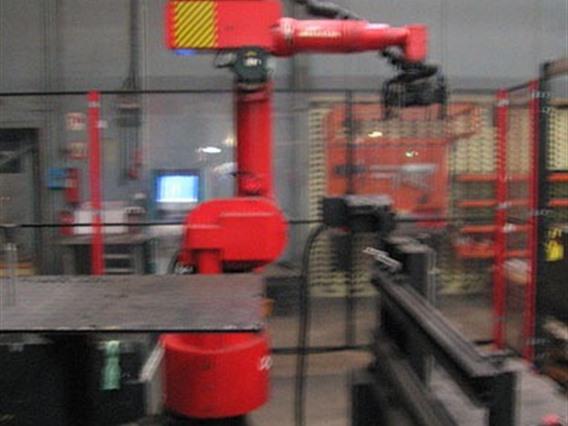

CNC Automatic bending Cell Full Loading & Unloading

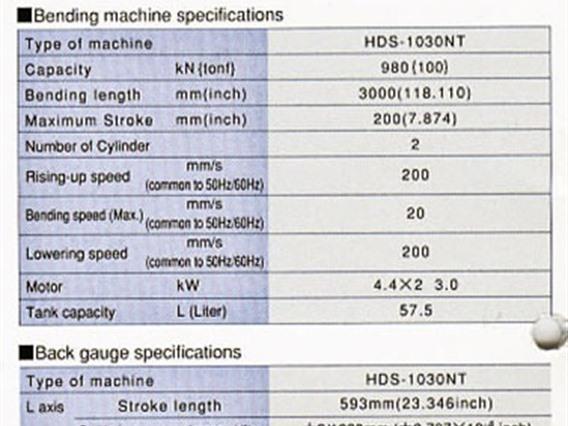

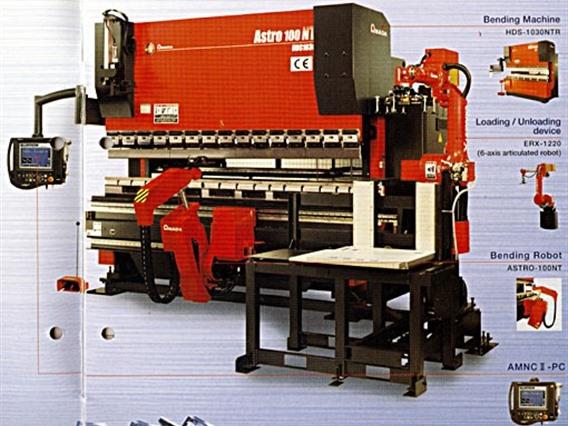

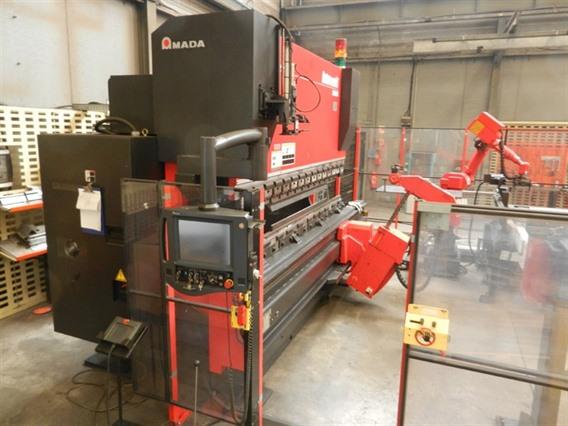

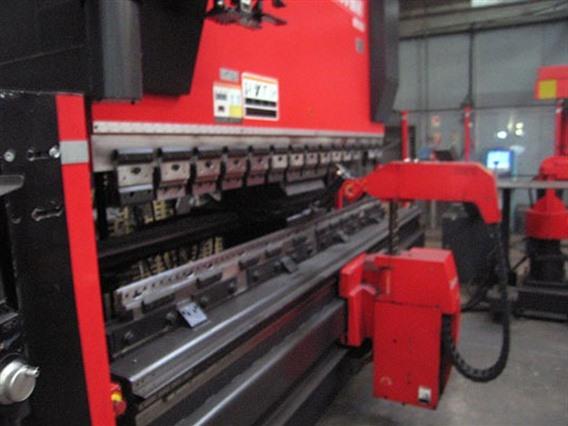

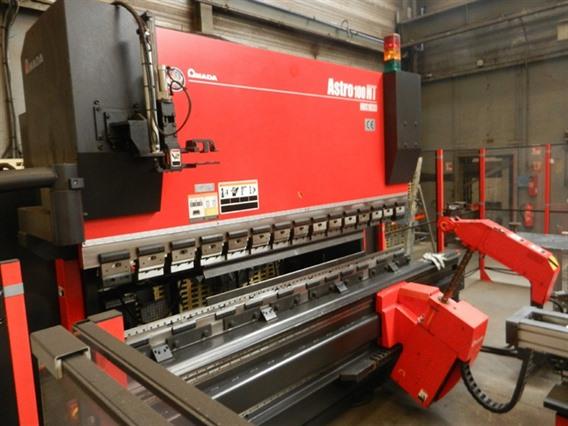

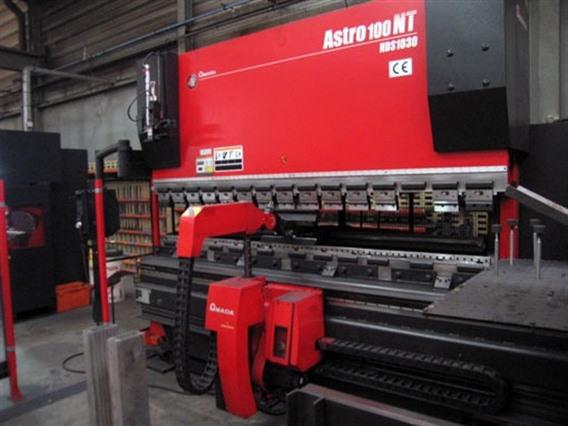

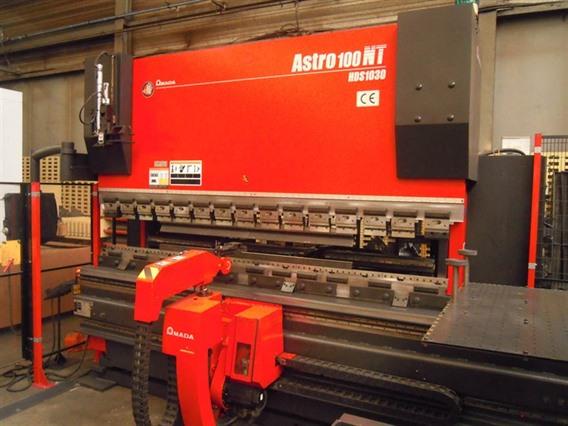

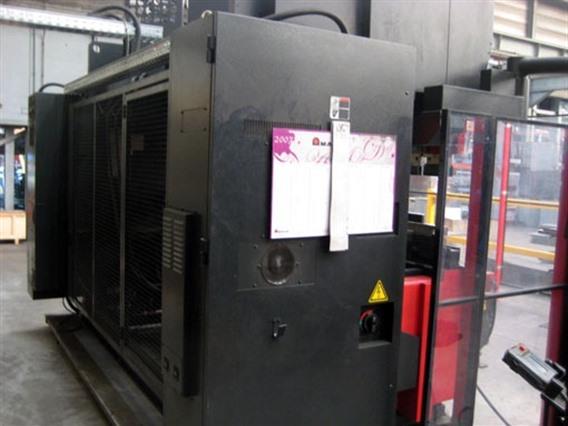

Pressbrake HDS 1030NT

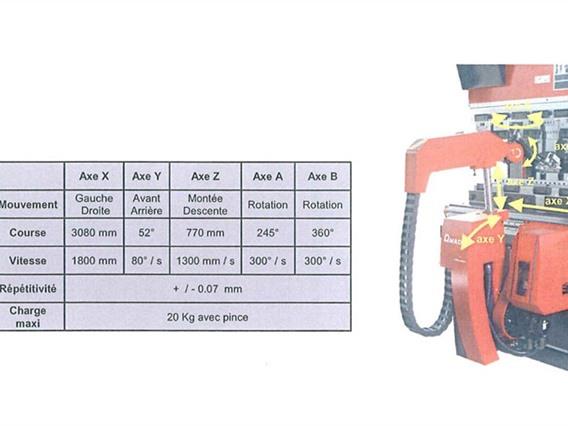

- 9 axes controlled

- X1/X2: 600 mm

- R: 250 mm
Typ/Model: Astro 100T x 3220 CNC Robot bending Cell
Stocknumber: O.01 4282
Kategoria główna: [O] Giętarki, Prostownice, Wycinarki, Maszyny do cięcia laserowego, Maszyny do cięcia gazowego i Linie walcujące
Sub kategorii: [O.01] Krawędziowe prasy hydrauliczne
Marka: Amada

» Poprosić o indywidualną wycenę

Stocknumber: O.01 4282
