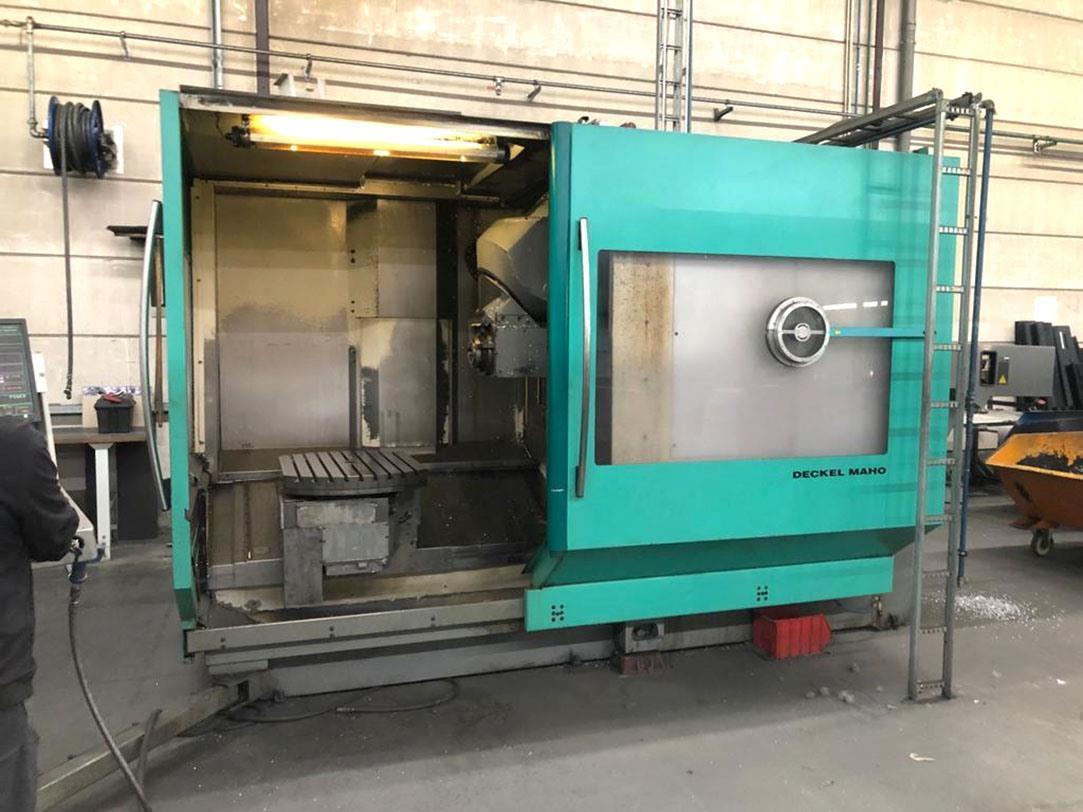

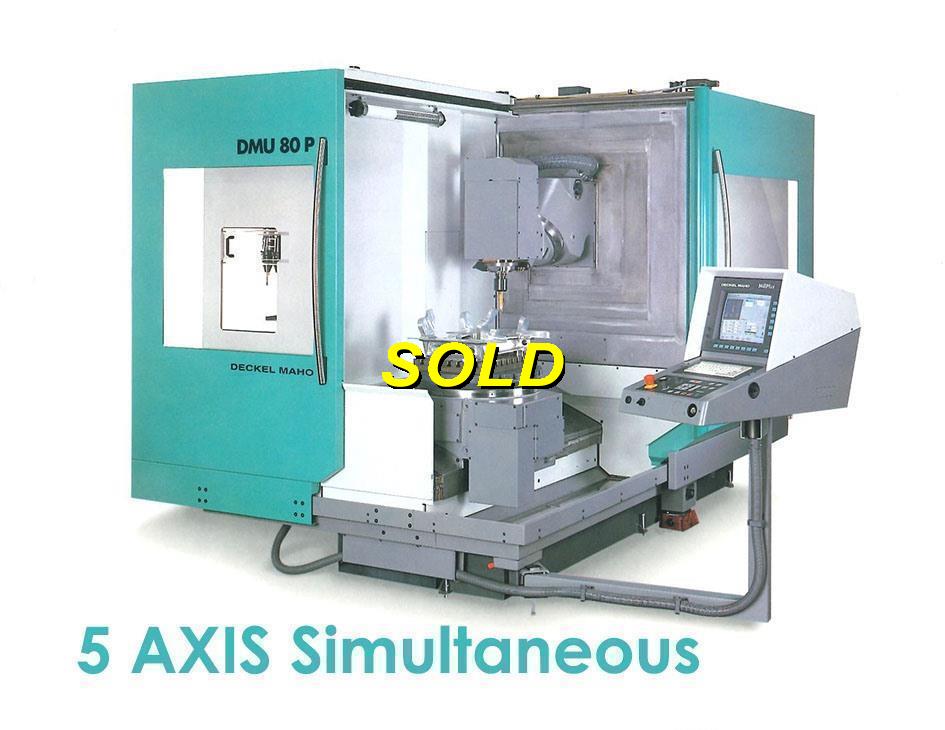

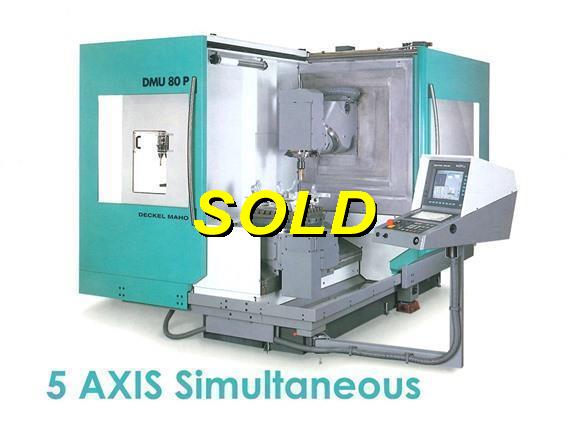

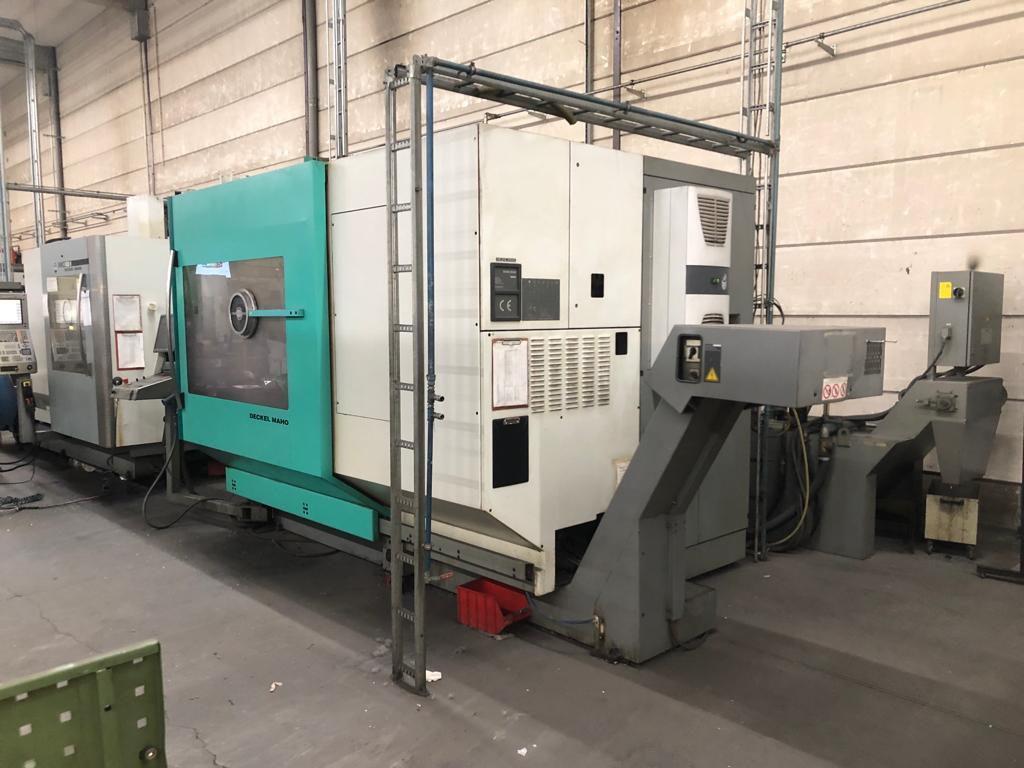

DMG Deckel-Maho DMU 80P X: 800 - Y: 600 - Z: 700 mm CNC
Specyfikacja
- Max longitudinal travel X-axe800 mm
- Max cross-travel Y-axe700 mm
- Max travel Z-axe600 mm

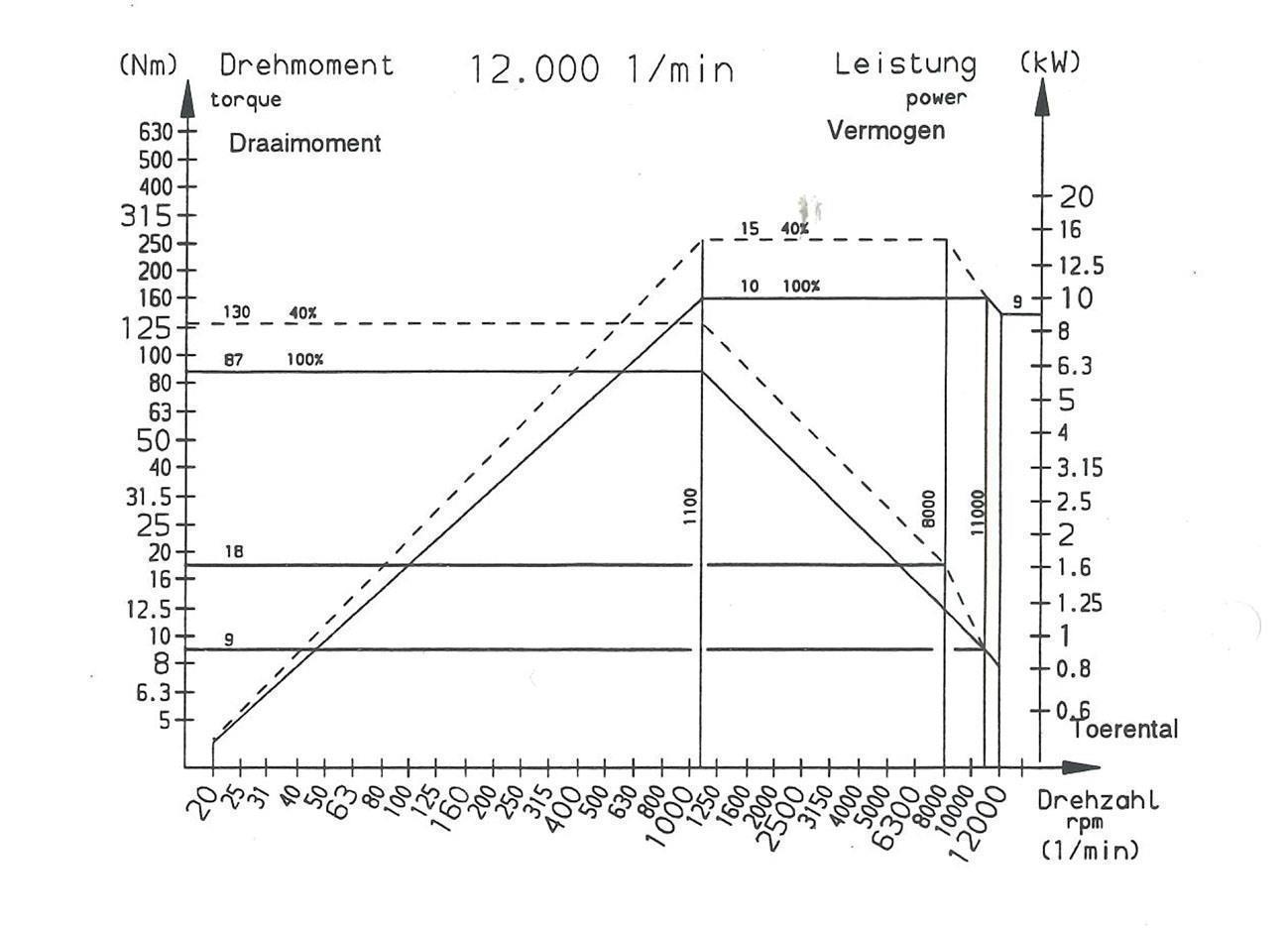

- Power on spindle16 kW

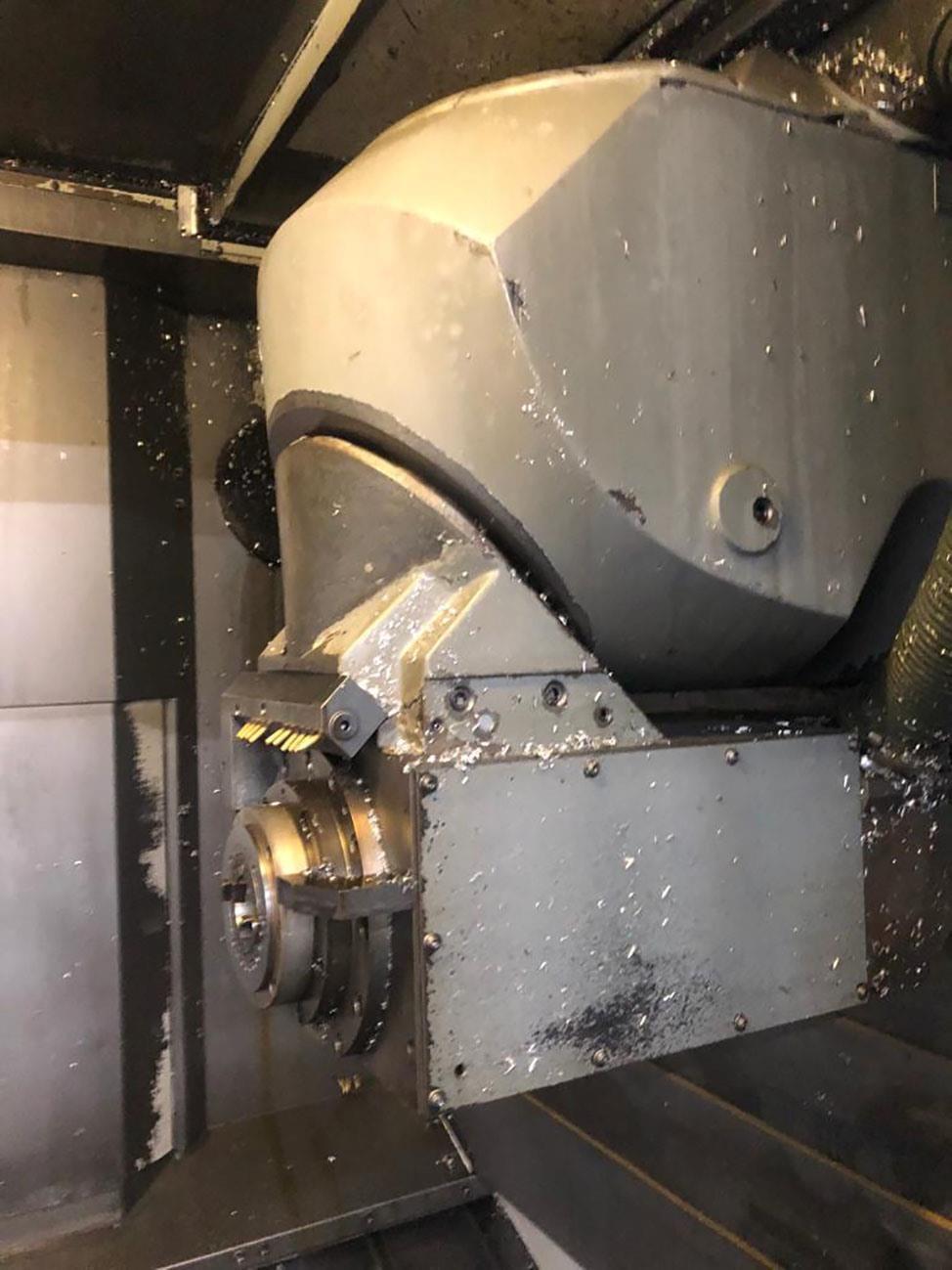

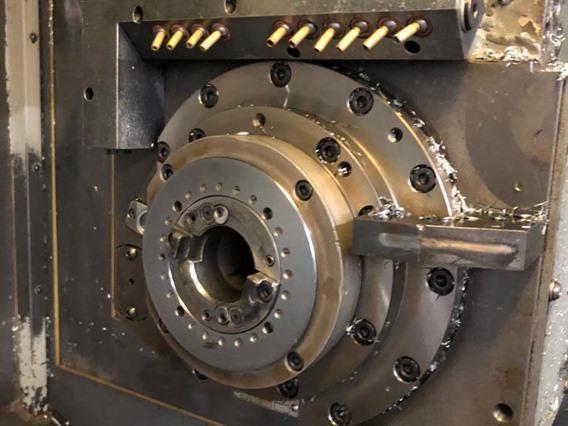

- Type of millingheadSK40

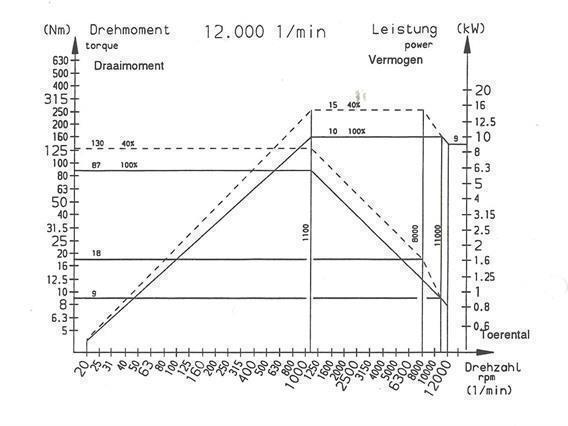

- Spindlespeeds10 > 12 000 rpm

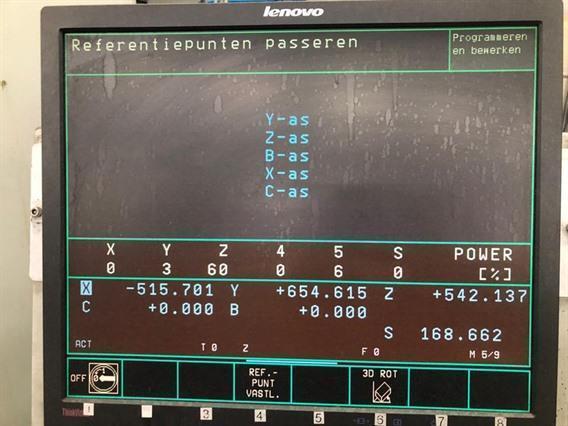

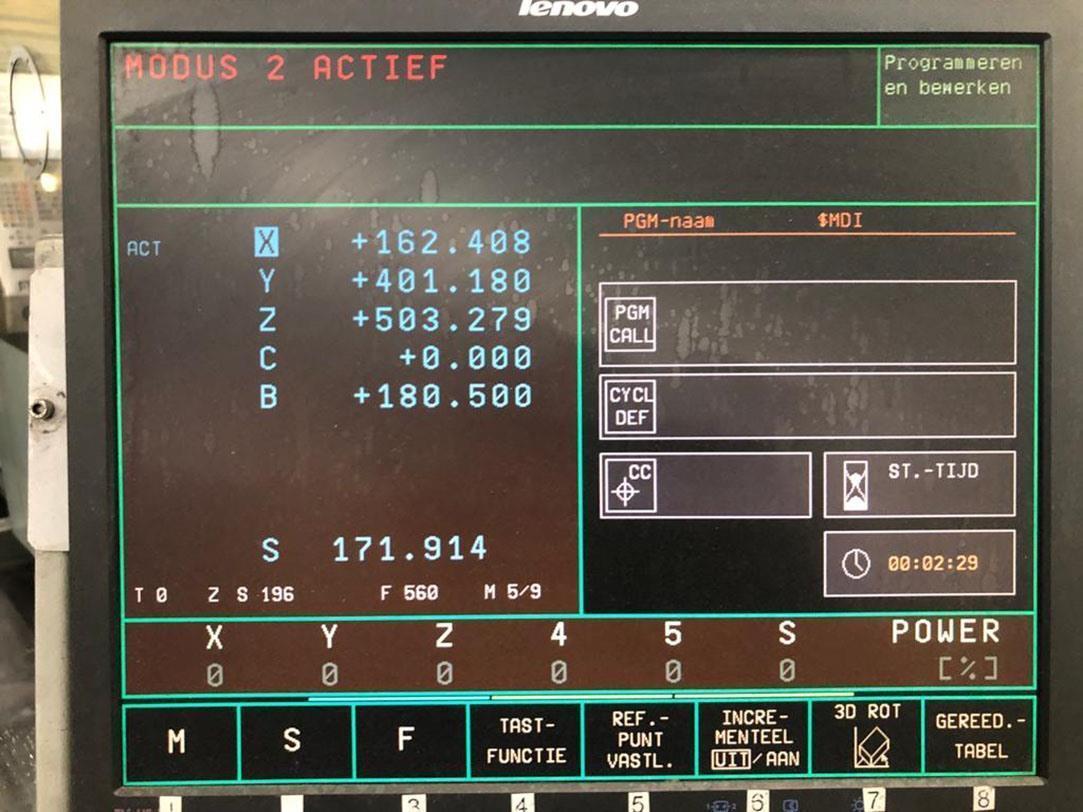

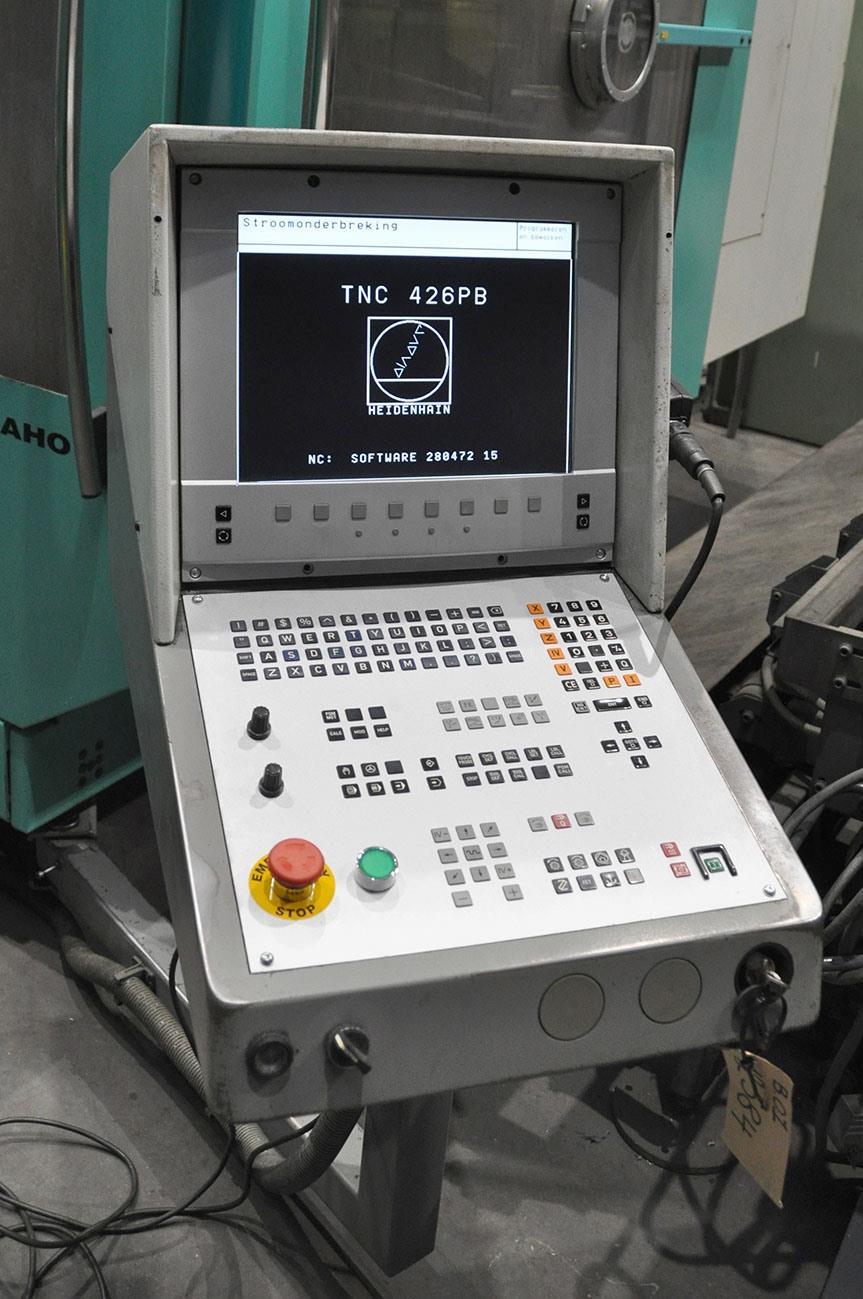

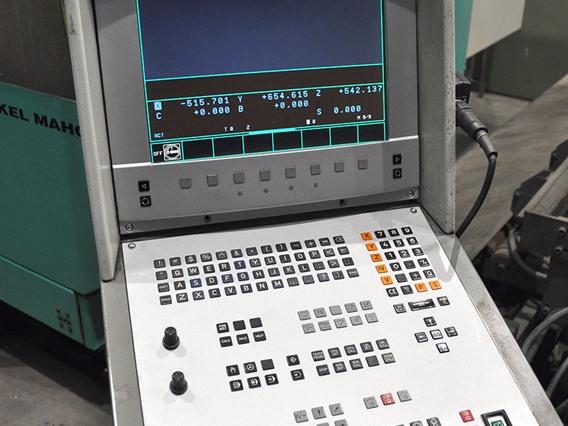

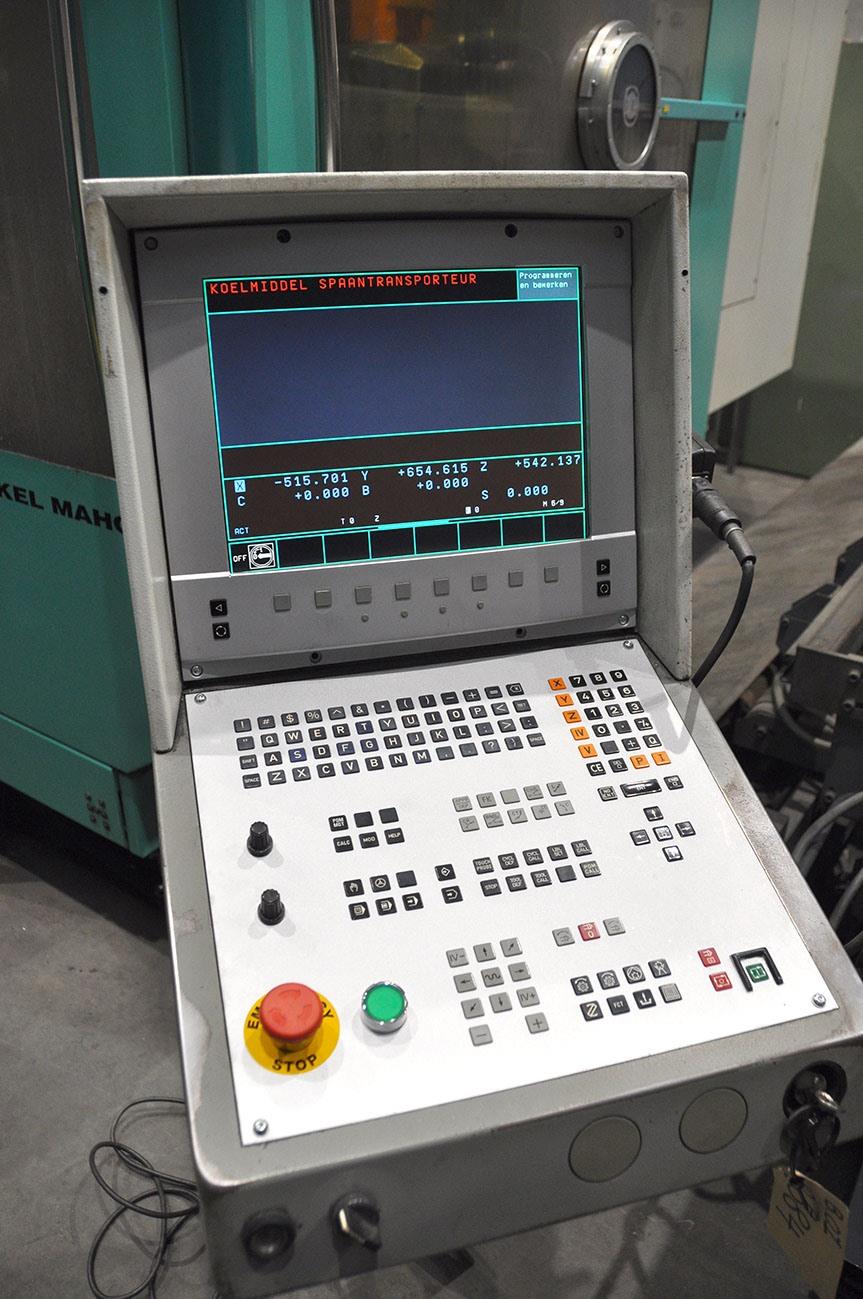

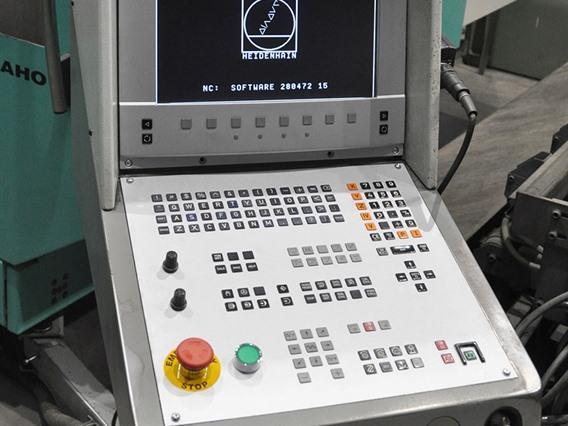

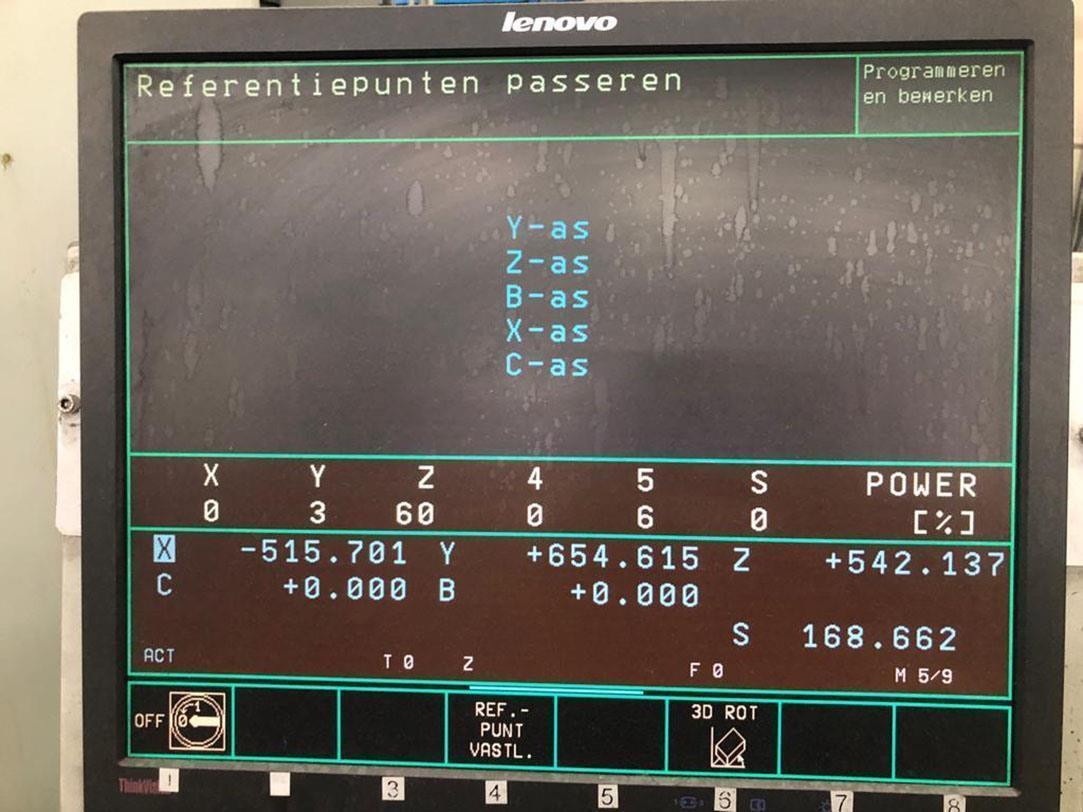

- ControlHeideenhain TNC 426

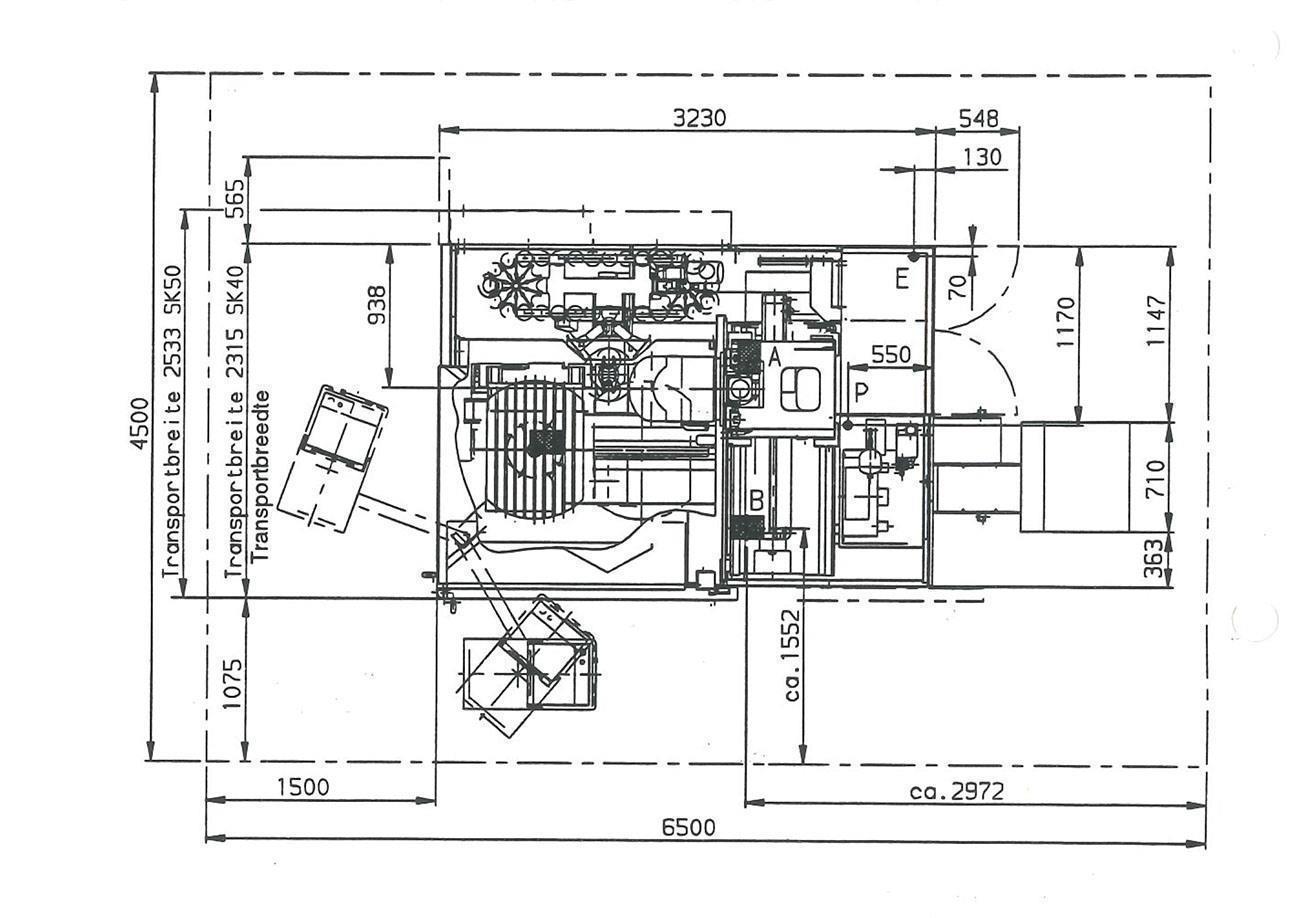

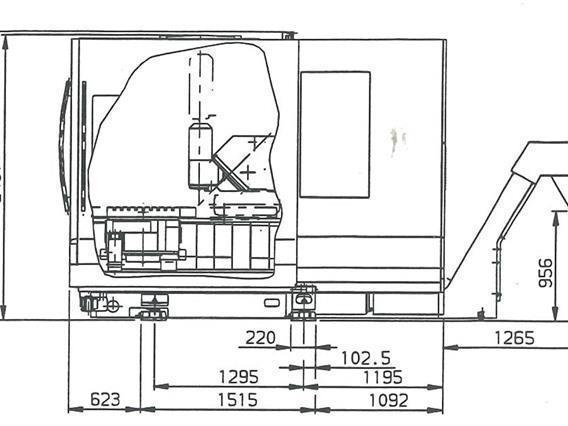

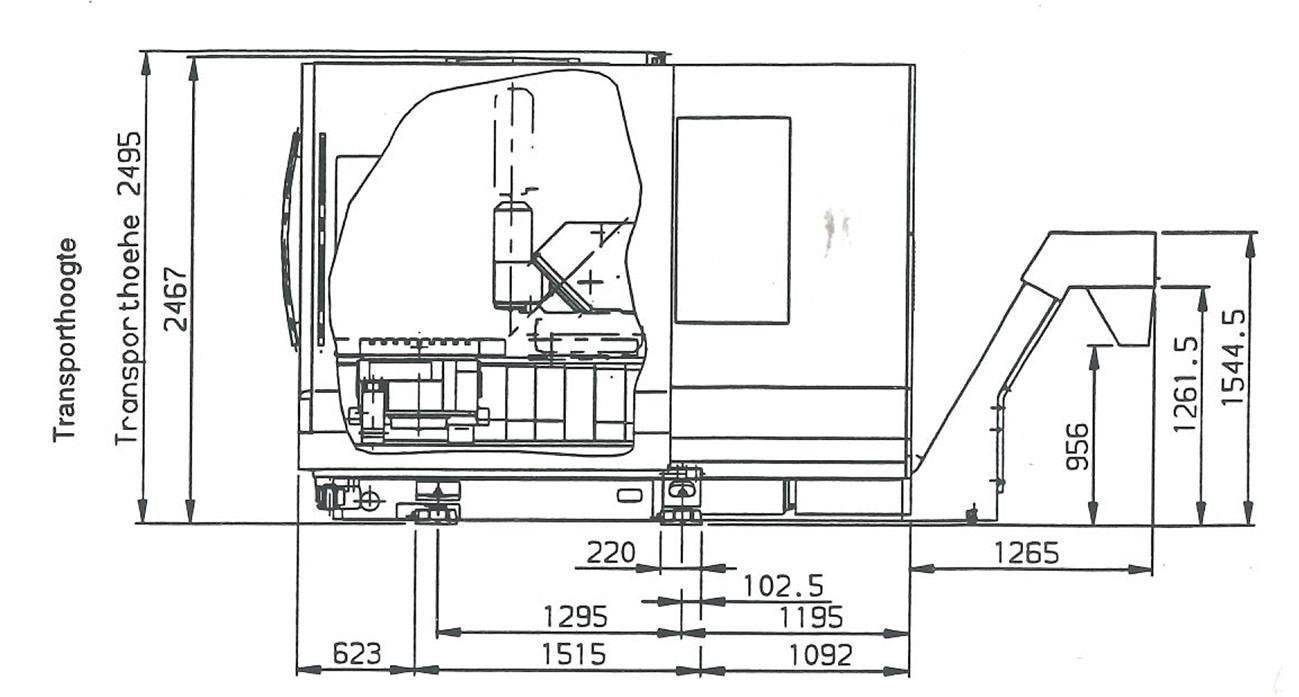

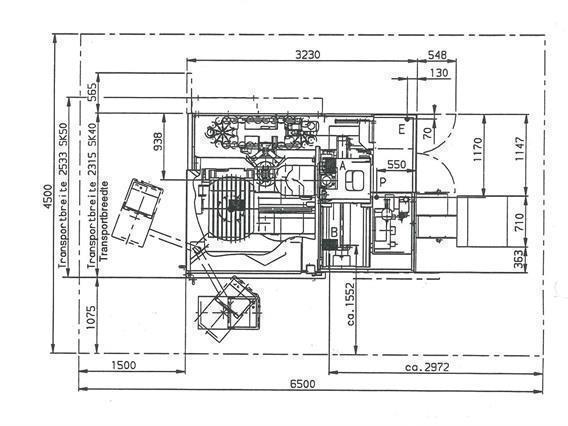

- Length L -- R4500 mm
- Depth Fw -- Bw2400 mm
- Height2500 mm
- Weight9000 kg
- Toolholderyes
- Number of tools30 positions
Dodatkowe informacje

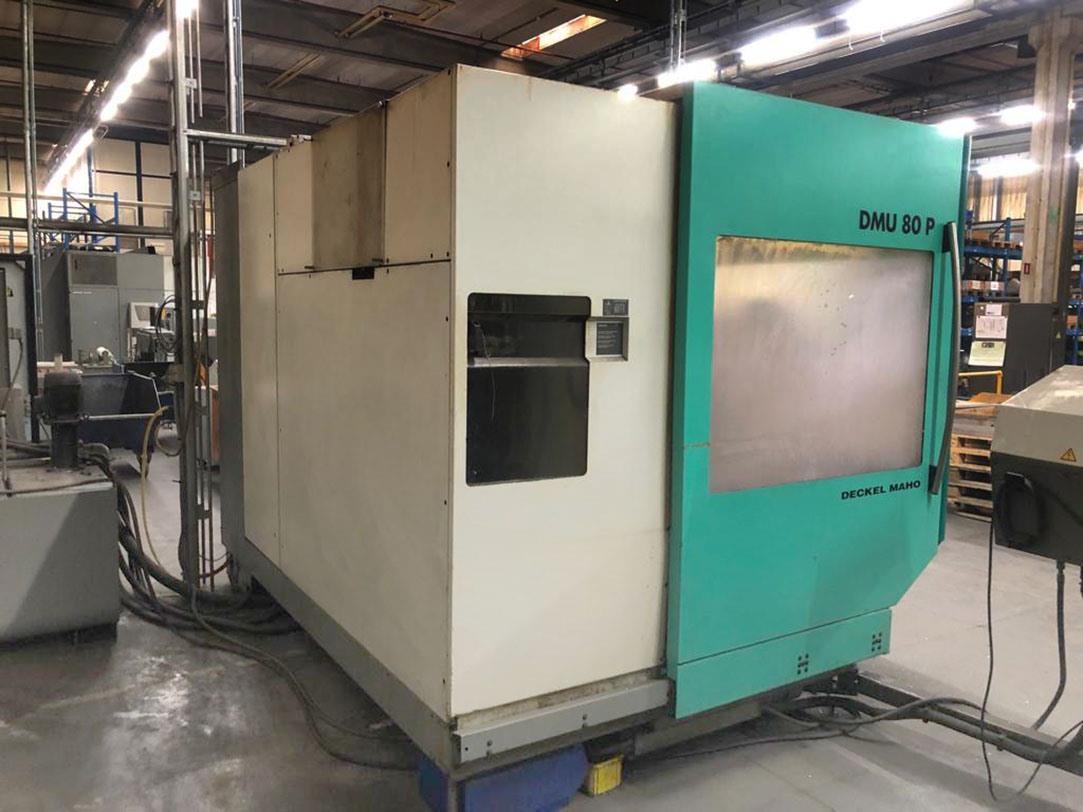

- Type: DMU 80 P
max dia of workpiece: 1200 mm

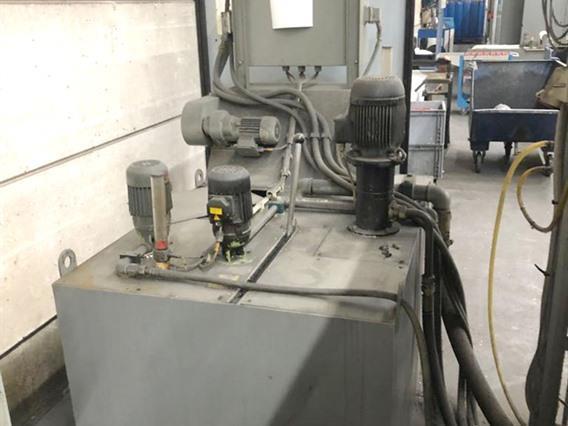

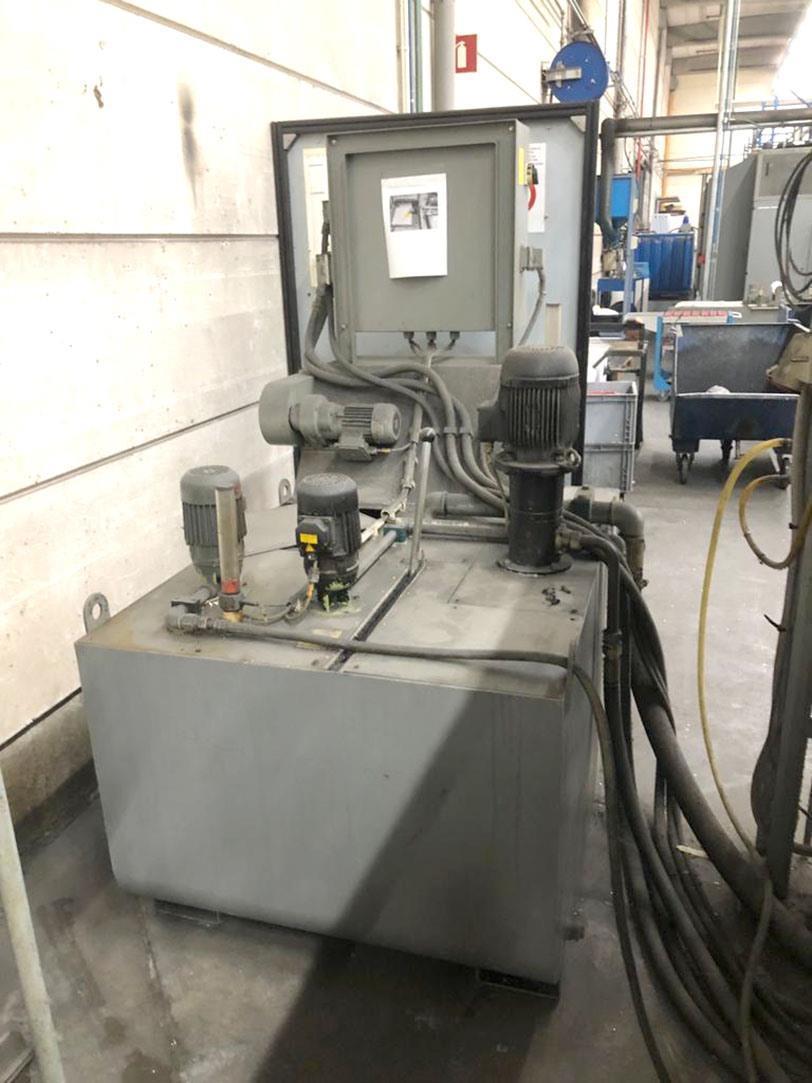

cooling through spindle

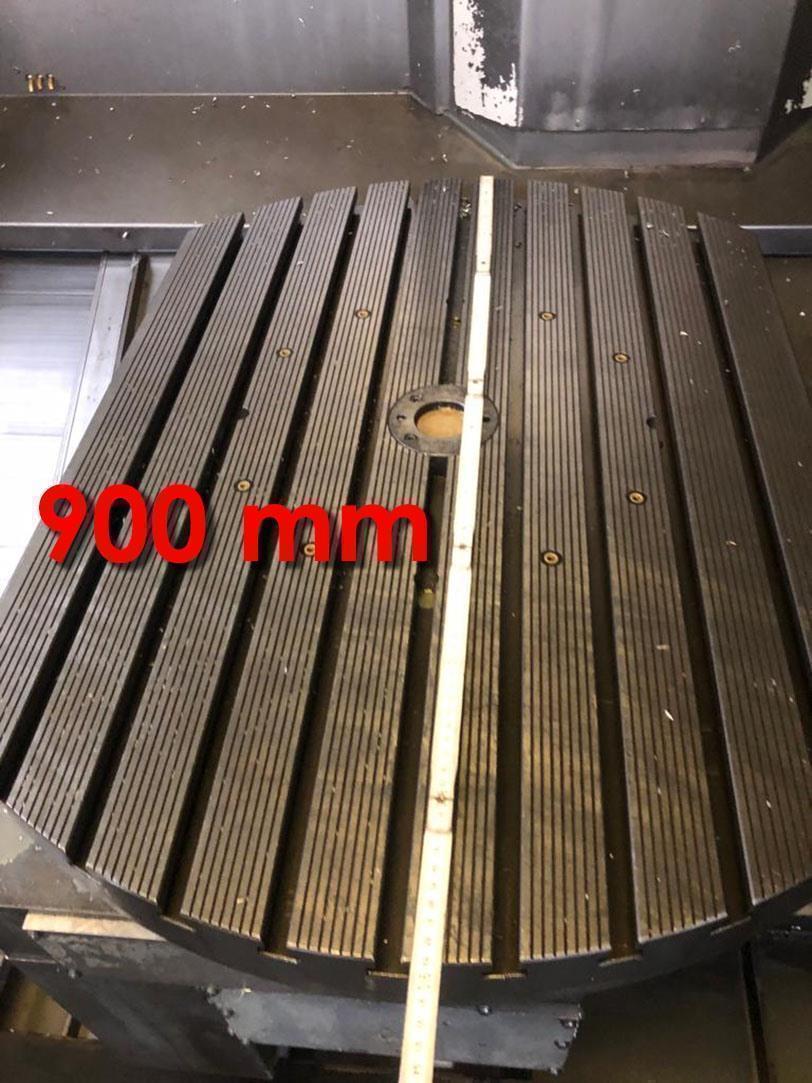

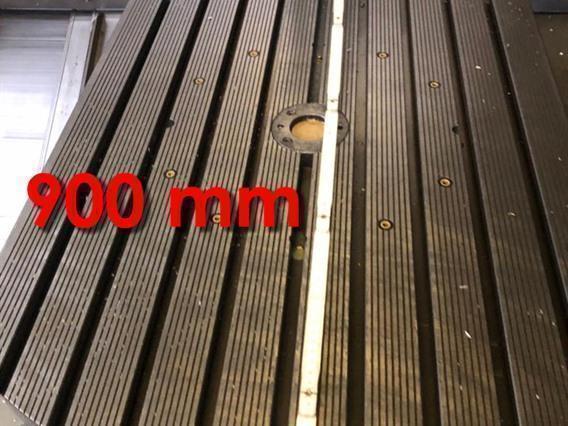

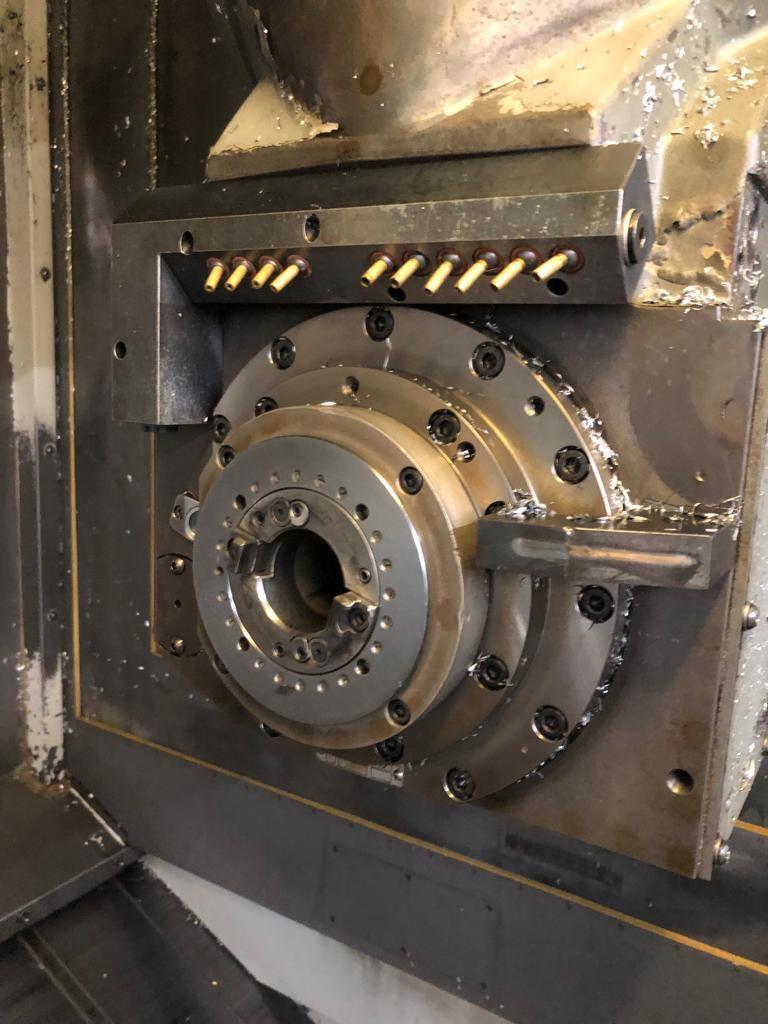

tabledia: 900 mm

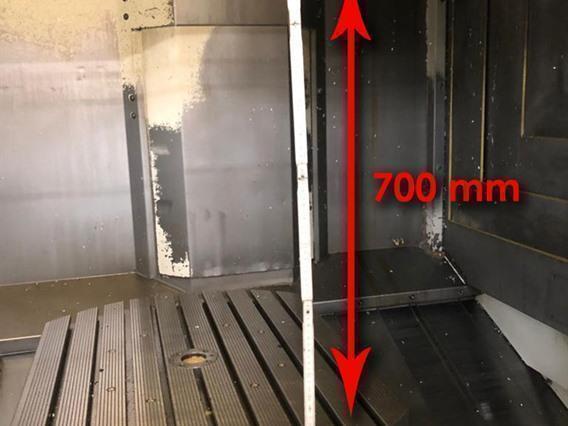

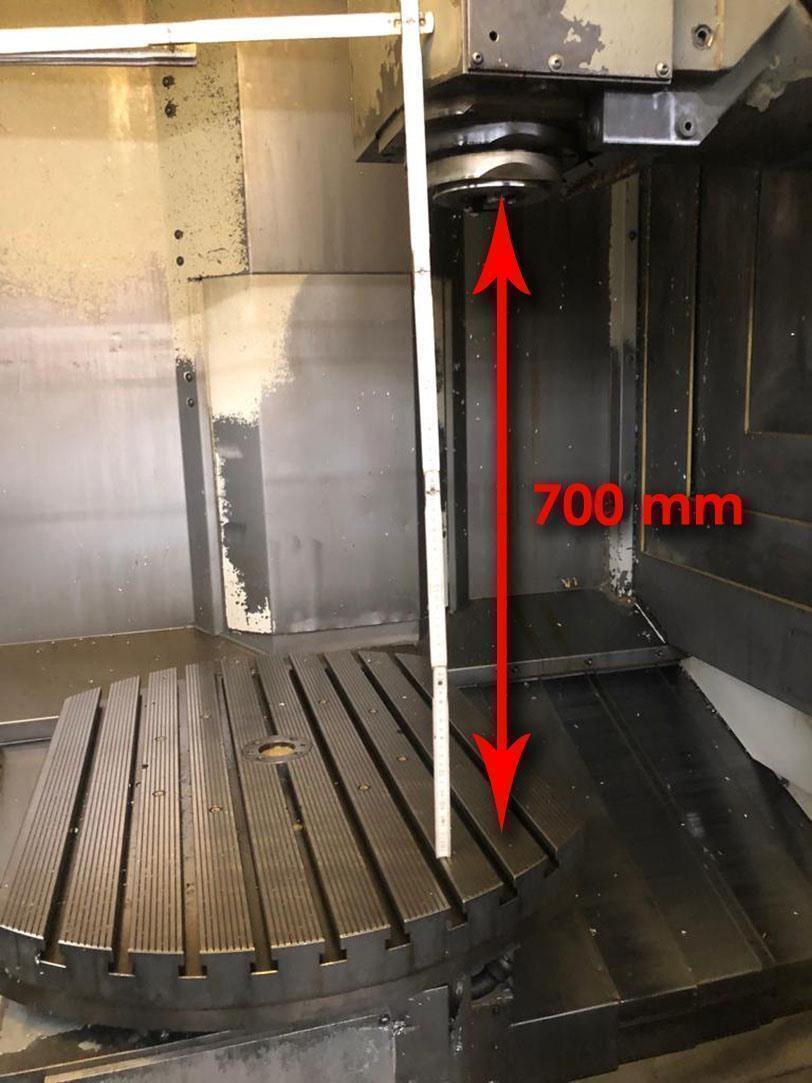

max height of workpiece: 700 mm
toolchanger with 30 positions
- Typ/Model: DMU 80P X: 800 - Y: 600 - Z: 700 mm CNC
- Stocknumber: B.01 12584
- Kategoria główna: [B] Frezarki
- Sub kategorii: [B.01] Frezarki uniwersalne i CNC
- Marka: DMG Deckel-Maho
