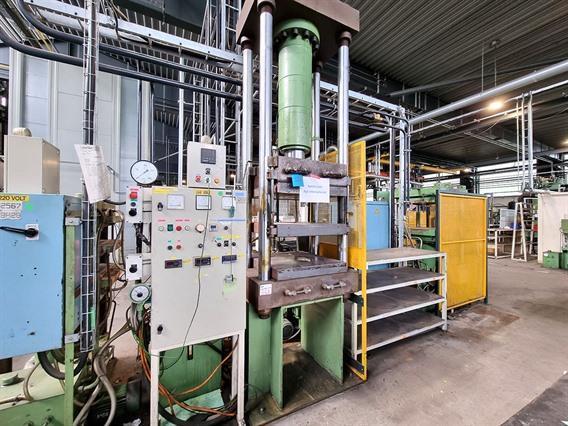

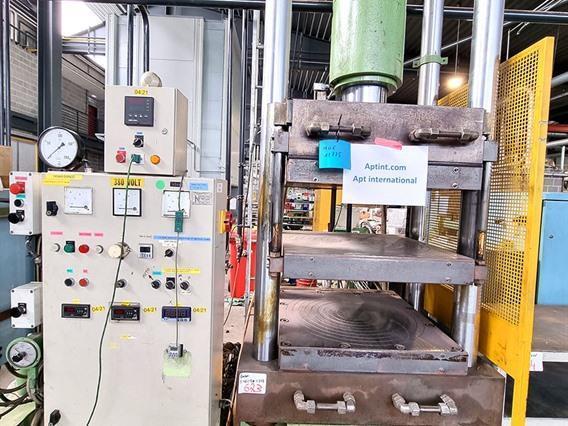

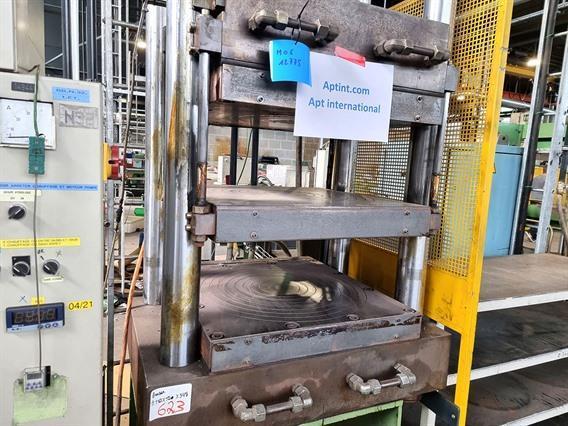

Diamant Boart 150 ton heated
Technische gegevens
- Capaciteit150 ton
- Doorgang tussen de steunen670 mm
- Max regelbare slag600 mm
- Max hoogte tussen tafel -- stempel in600 mm
- Tafelafmetingen 670 x 670 mm
- Lengte L -- R1120 mm
- Breedte V --A1200 mm
- Hoogte (totaal)3600 mm
Extra info
Press which can be used for manufacturing seals / (resin) composite parts / compression molding / circular sawblades / abrasive products / pressing from (metal)powder to parts / ...

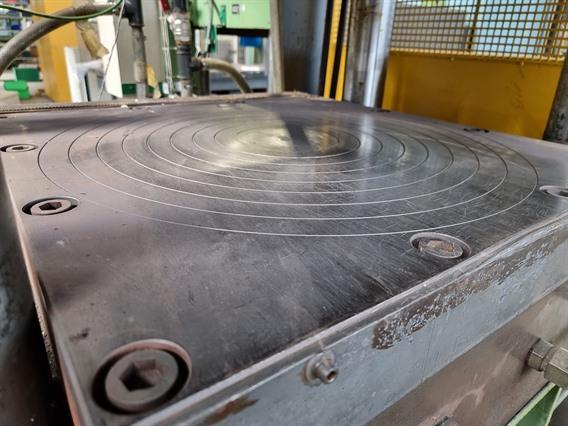

with 3 heated tables + 2 watercooled tables
max 300° C
Press has been developed to be able to remain under pressure
for 24 hours!

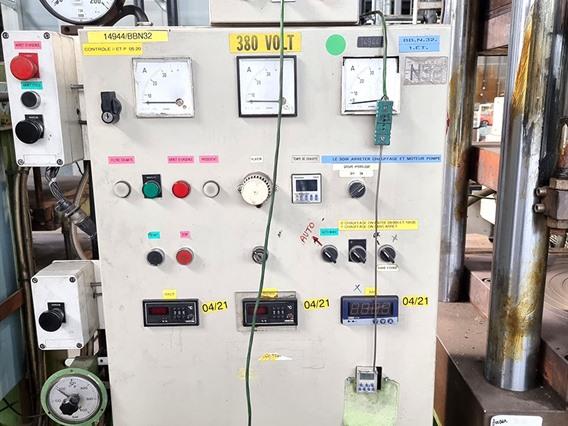

Possible to program:
- different temperatures
- holding time of press under pressure
- multiple cycles
Capacity: 150 ton
Passage between uprights: 670 mm
Max stroke: 600 mm
Distance between table -- ram: 600 mm
Table: 670 x 670 mm
Length: 1120 mm
Depth: 1200 mm
Height: 3600 mm
Compression press / Grinding wheel press / Vulcanizing press / Elastomer press
Kompressionspresse / Schleifscheiben Presse / Vulkanisierpresse / Elastomer Presse
- Type/Model: 150 ton heated
- Stocknummer: M.06 12775
- Kies een Categorie: [M] Hydraulische persen
- Subcategorie: [M.06] Vierkolomspersen – Enkelslag
- Merk: Diamant Boart
StockNr: M.06 12775
Bekijk video werkende machine
