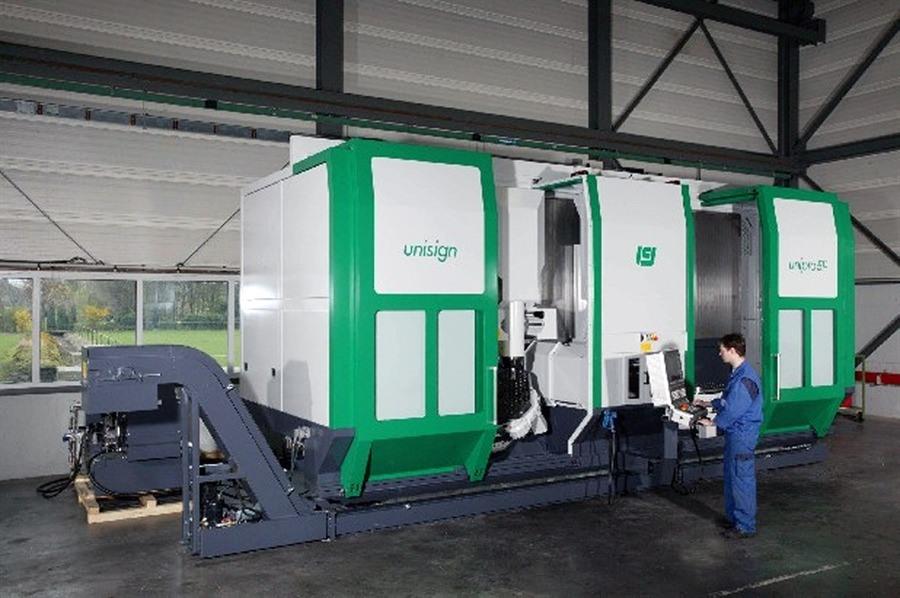

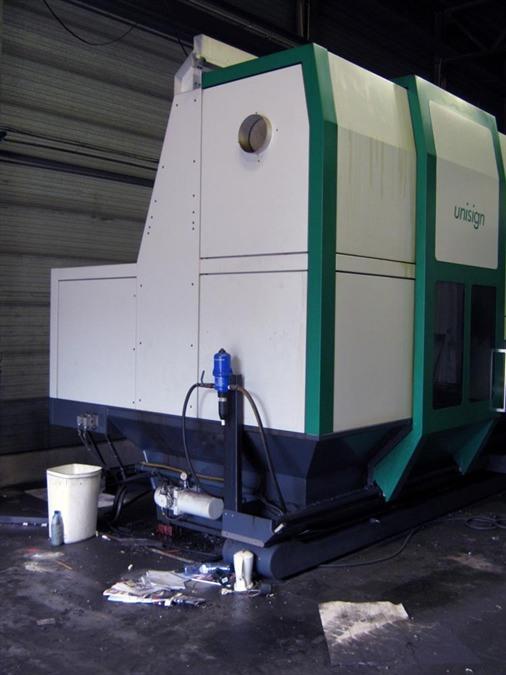

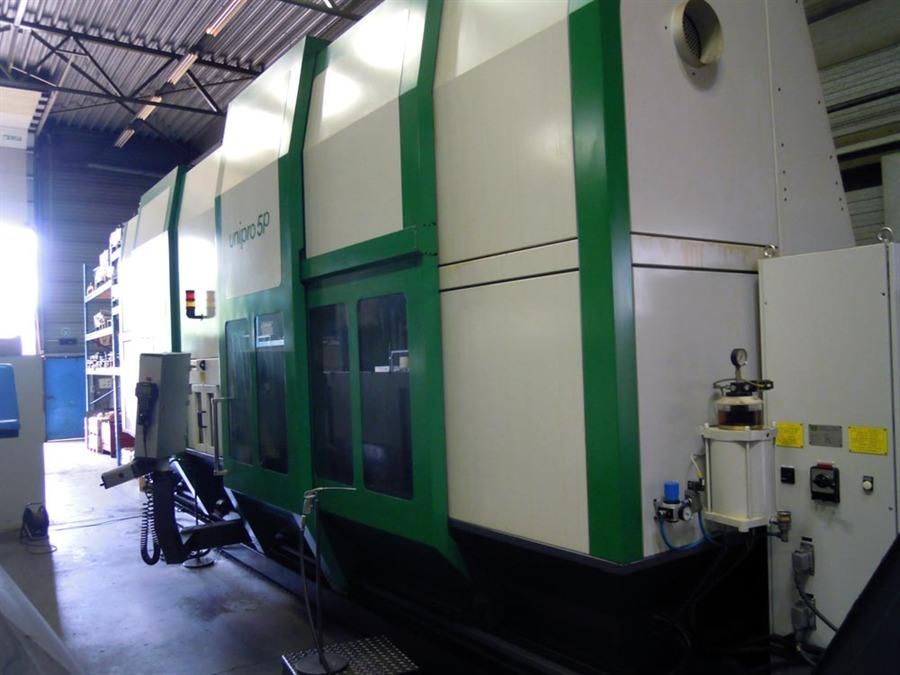

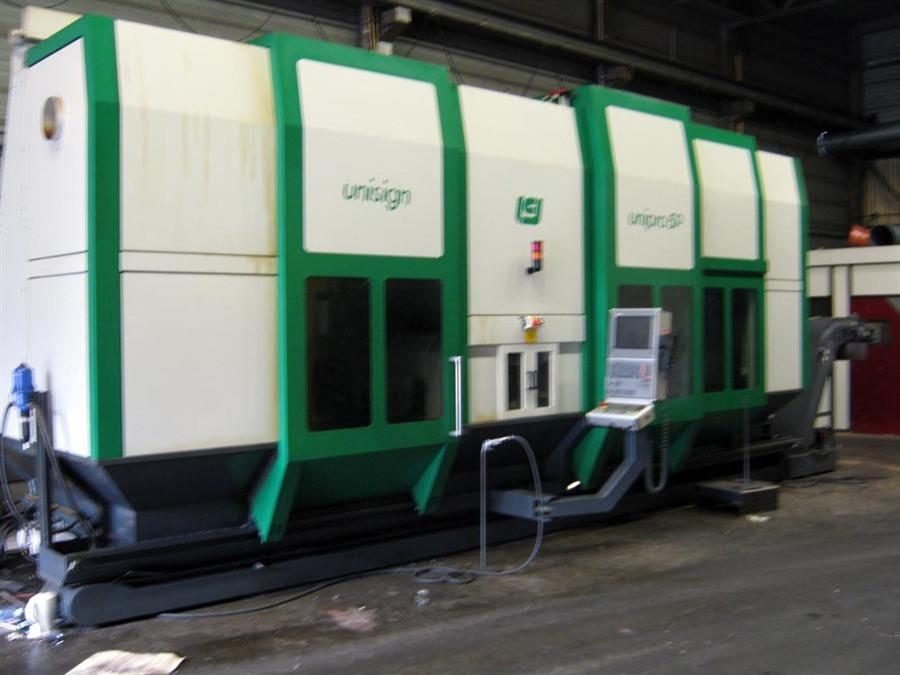

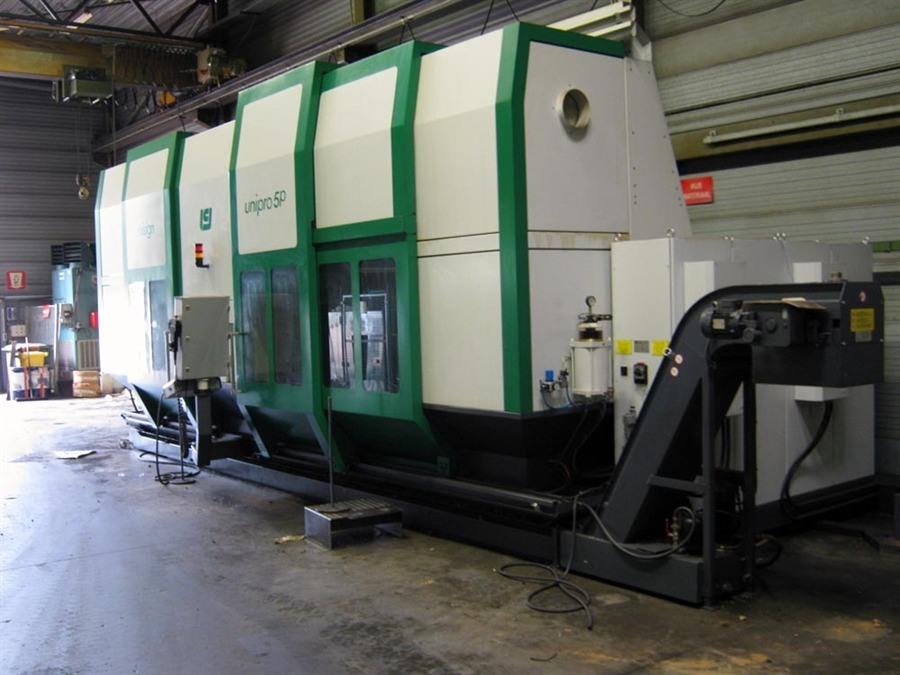

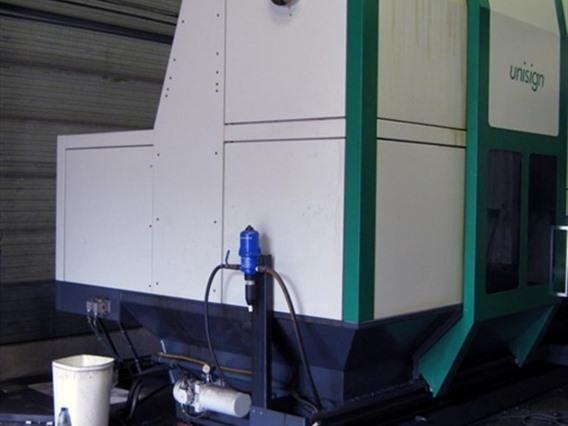

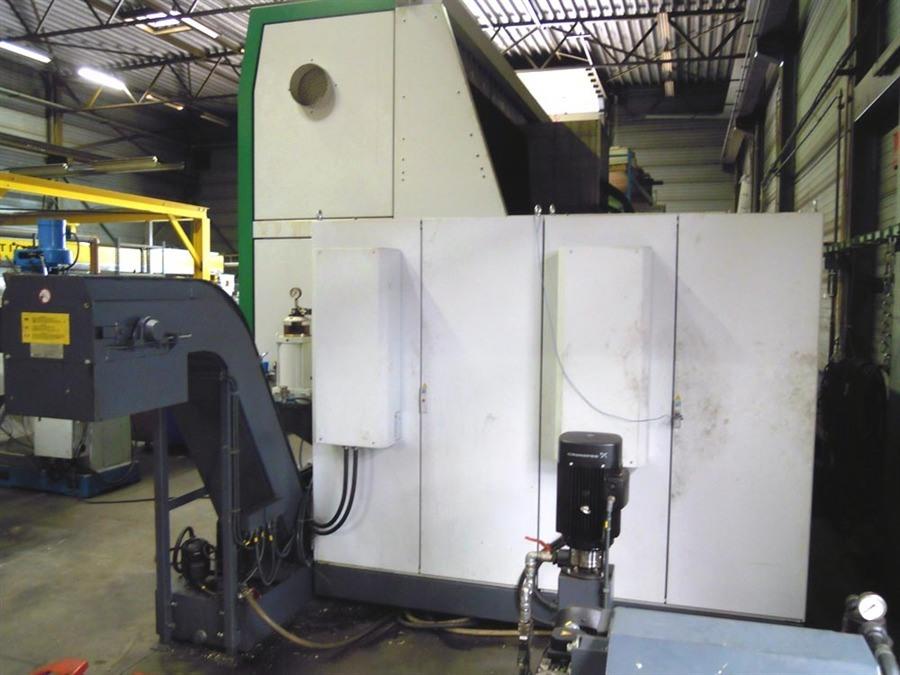

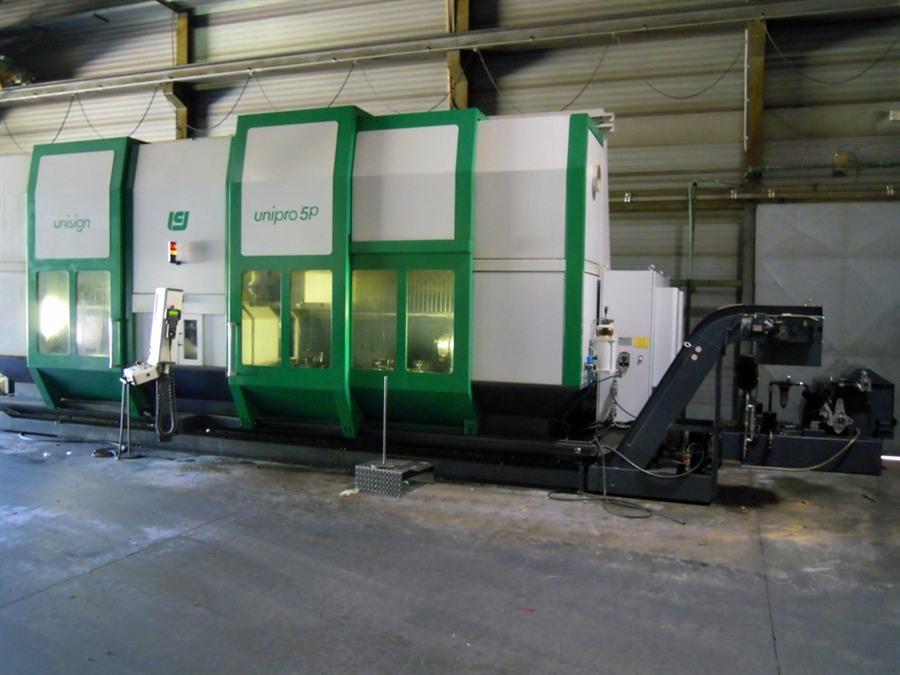

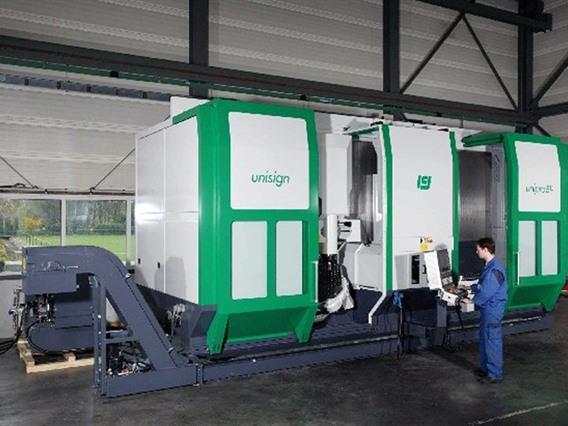

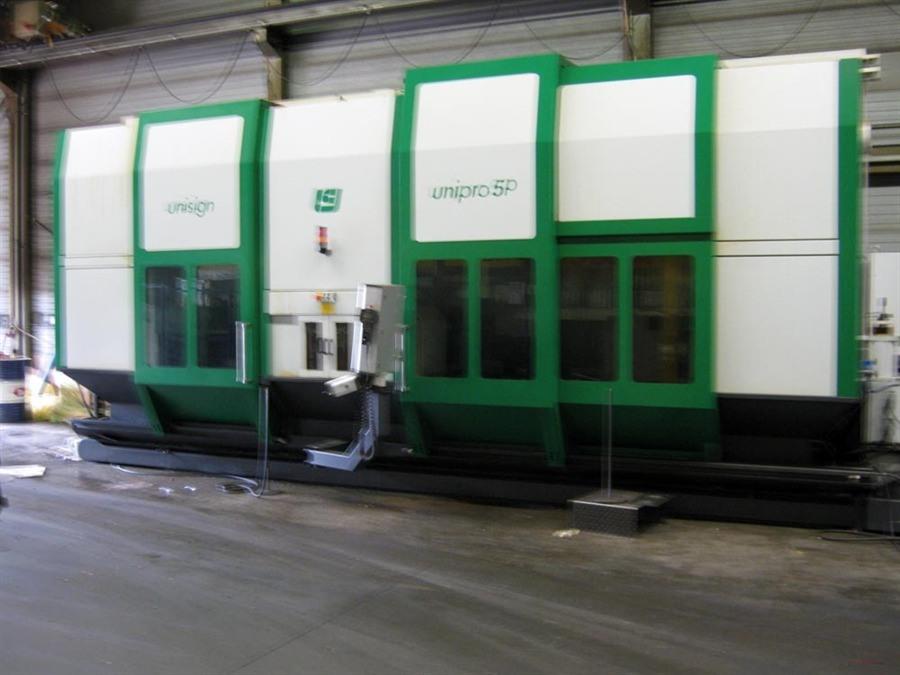

Vertikale bewerkingscentra CNC Unisign Unipro 5P CNC

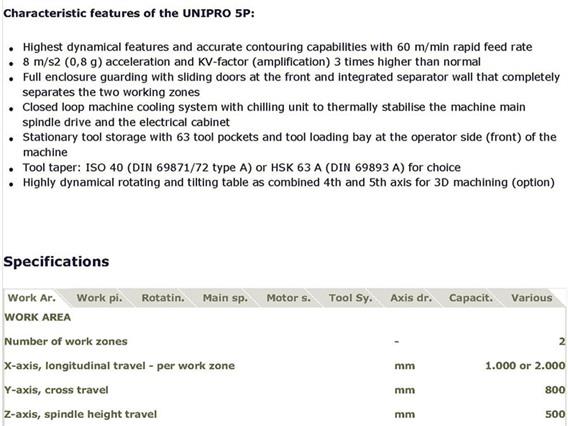

Technische gegevens
- Langsverplaatsing tafel (X-as)2000 mm
- Dwarsverplaatsing kop (Y-as)800 mm
- Hoogteverplaatsing kop (Z-as)500 mm

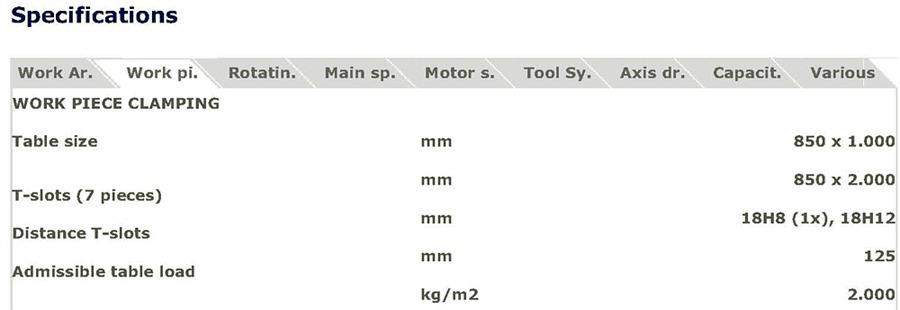

- Tafelafmetingen (LxB)2000 x 850 mm
- Max gewicht op de tafel2000 kg
- Spindelopname (ISO)HSK 63 A

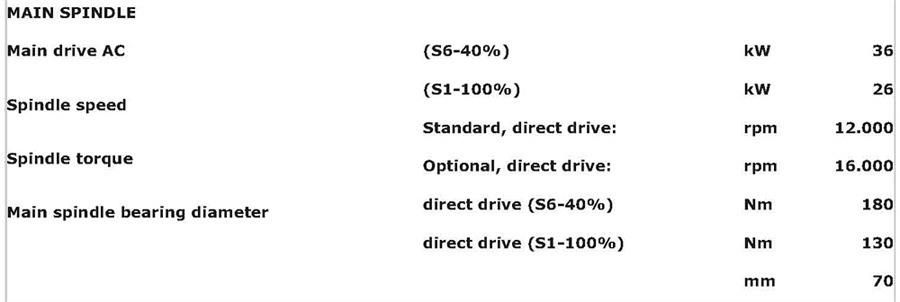

- Vermogen op spindel36 kW

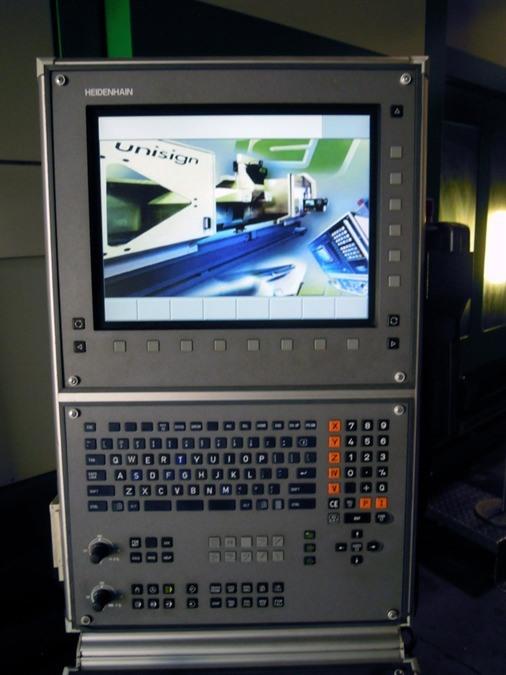

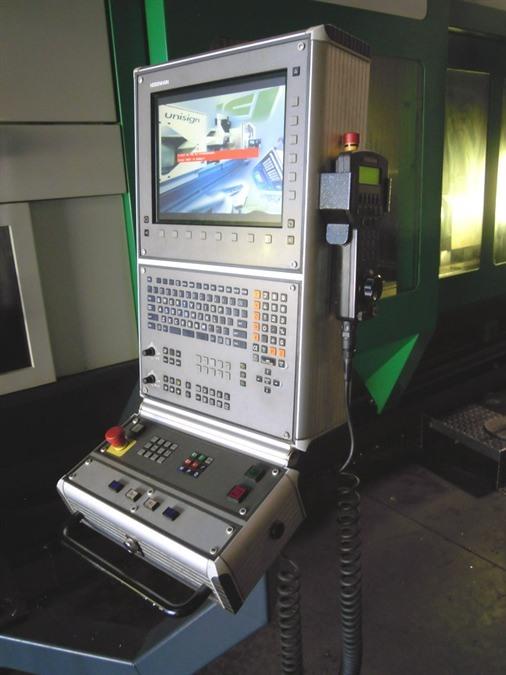

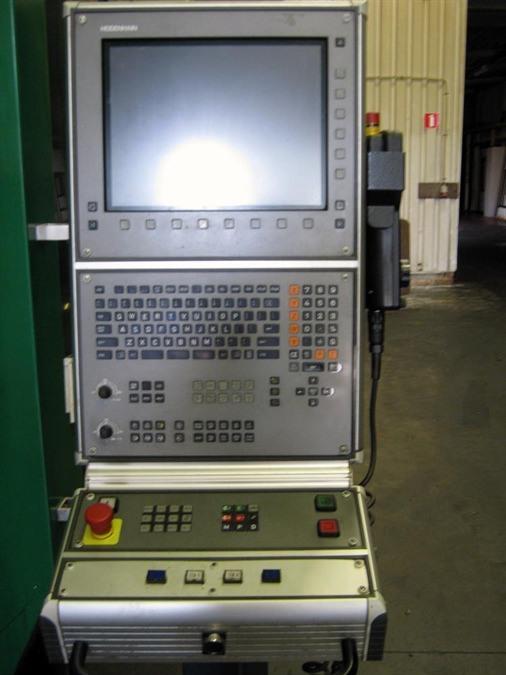

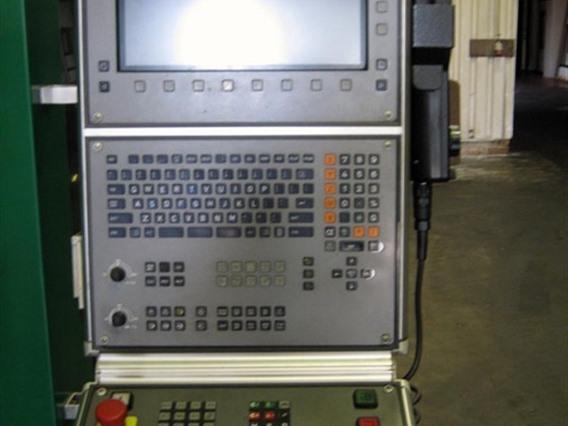

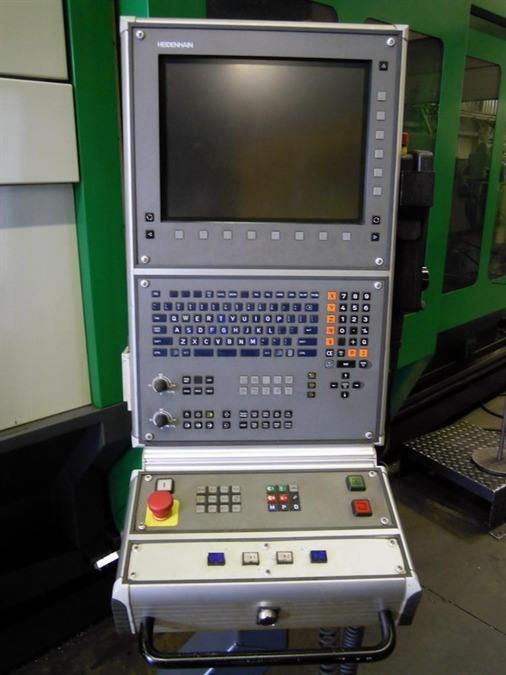

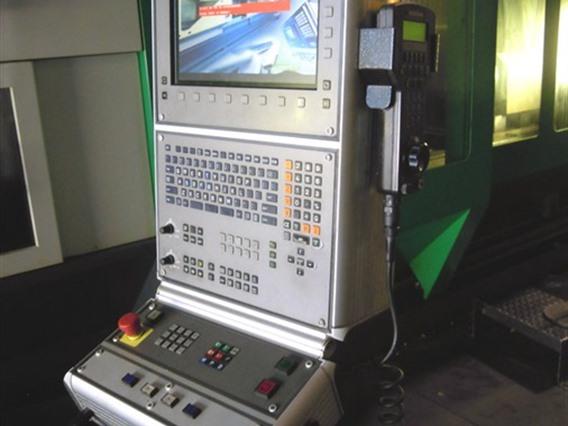

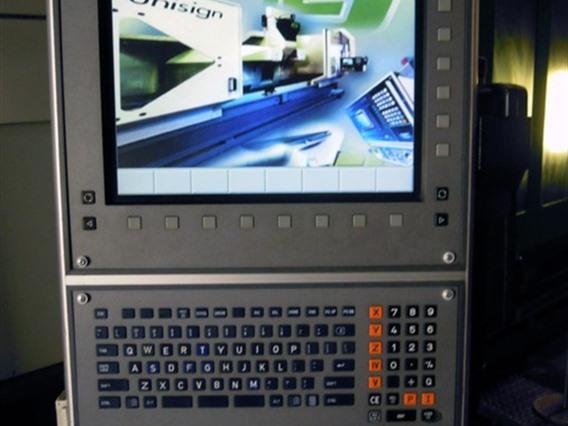

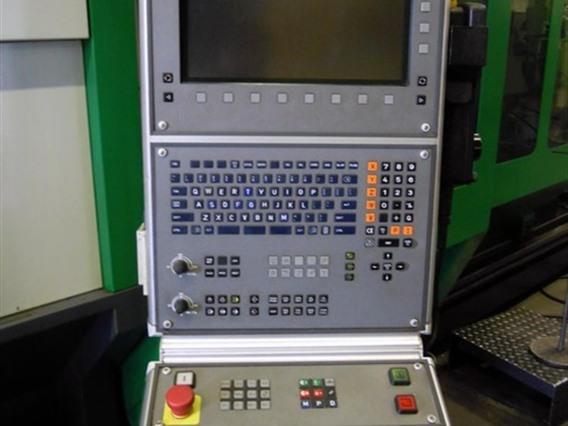

- BesturingstypeHeidenhain CNC
- GereedschapswisselaarYes
- Aantal gereedschapshouders63 positions
- Toerenaantal max 12000 rpm
Extra info

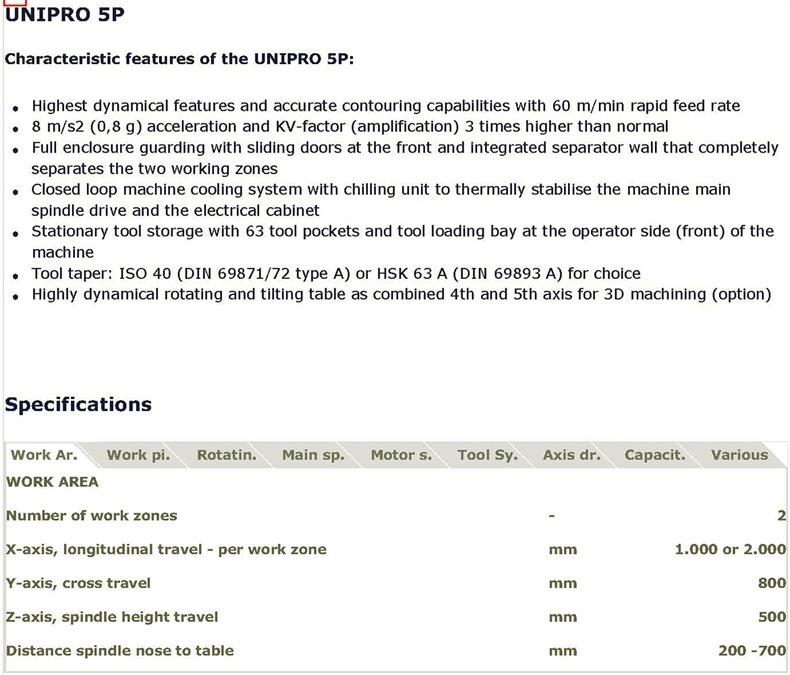

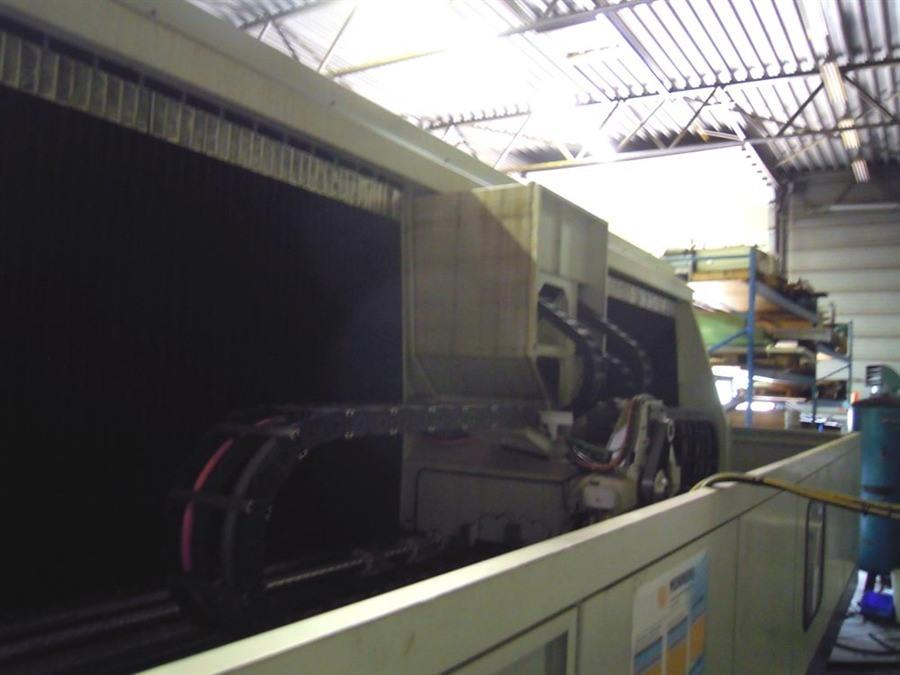

- 5 axes simultaneous milling machine equipped with highdynamic table + movable column

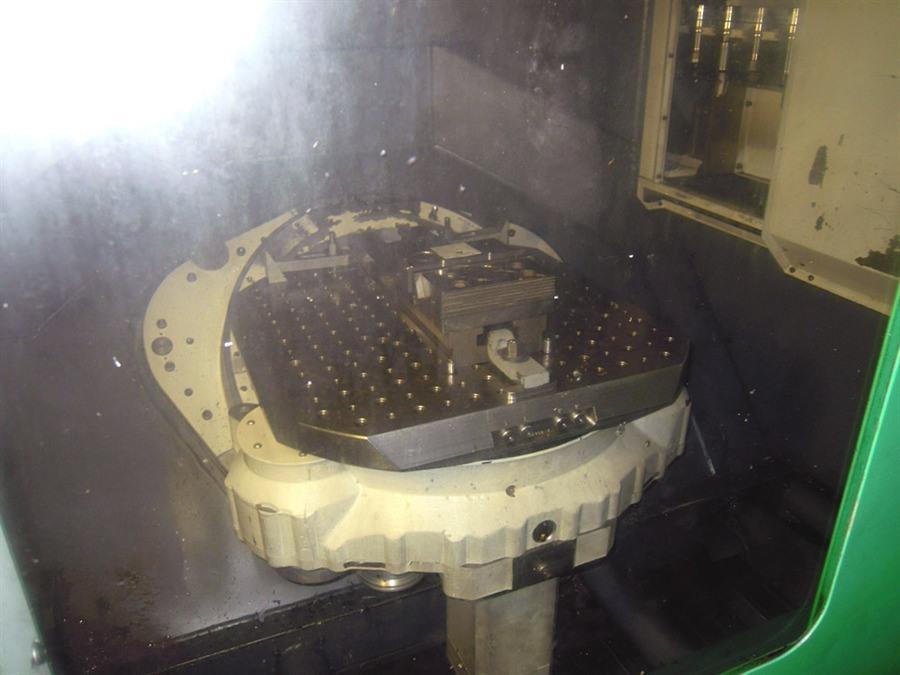

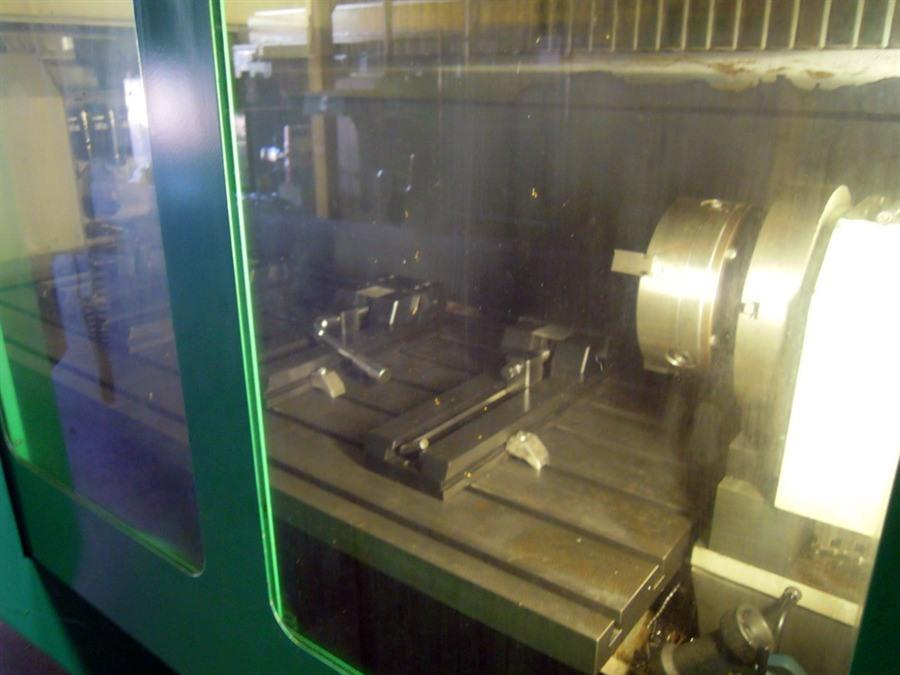

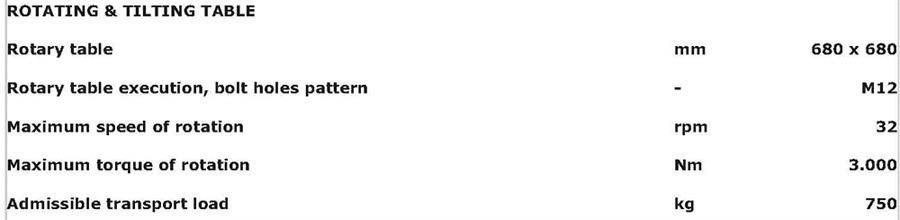

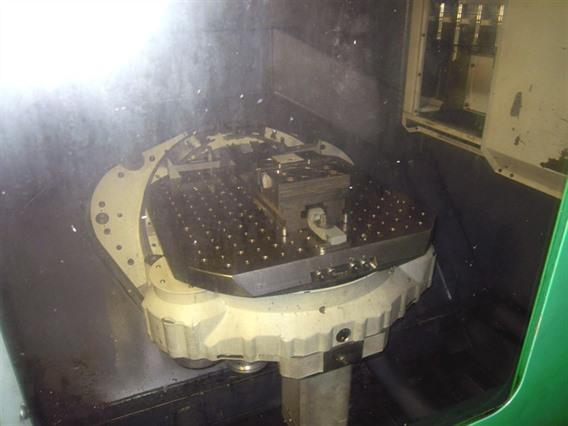

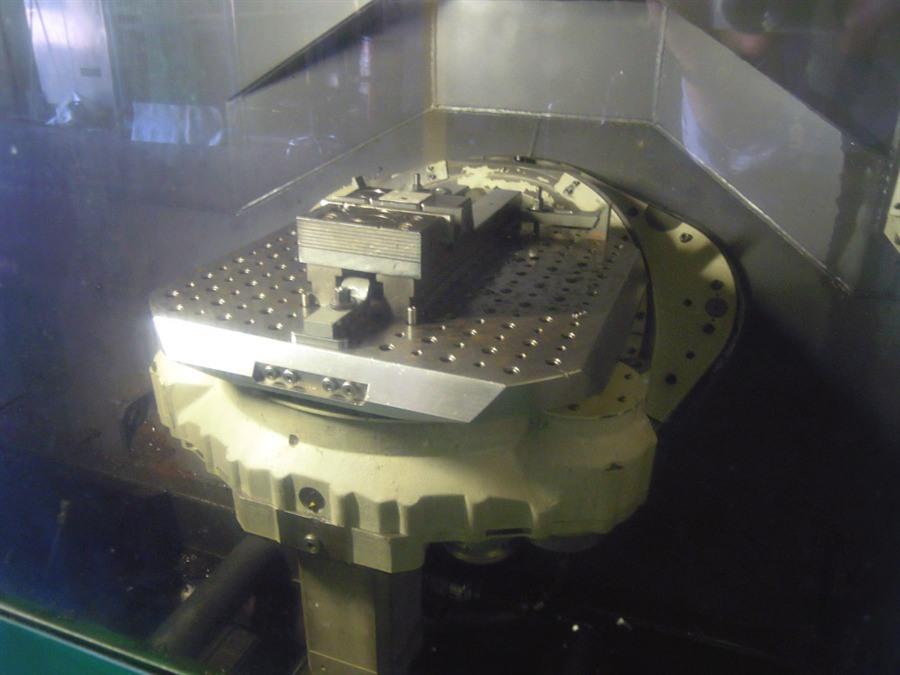

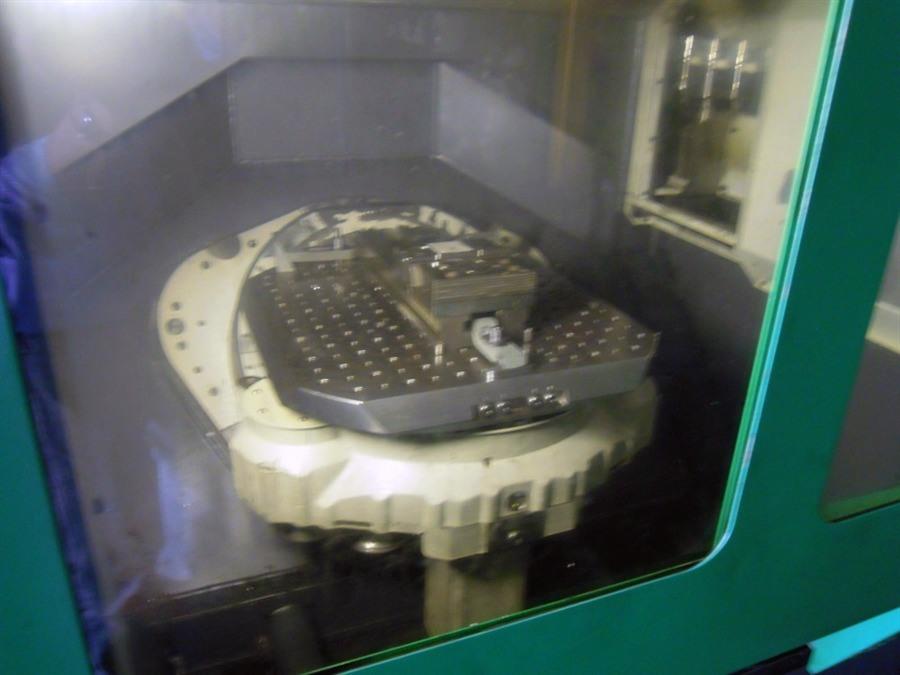

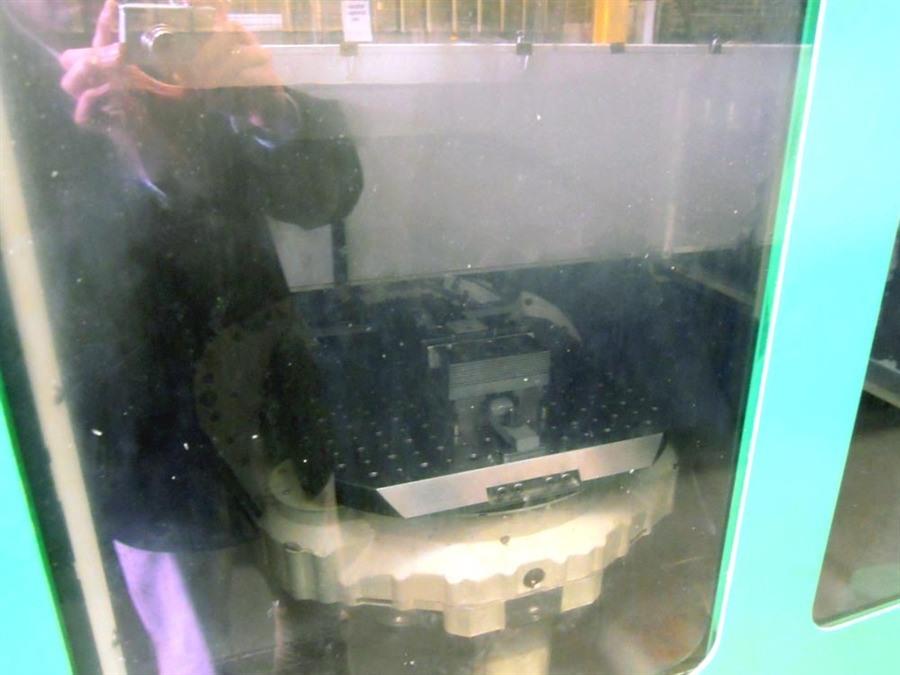

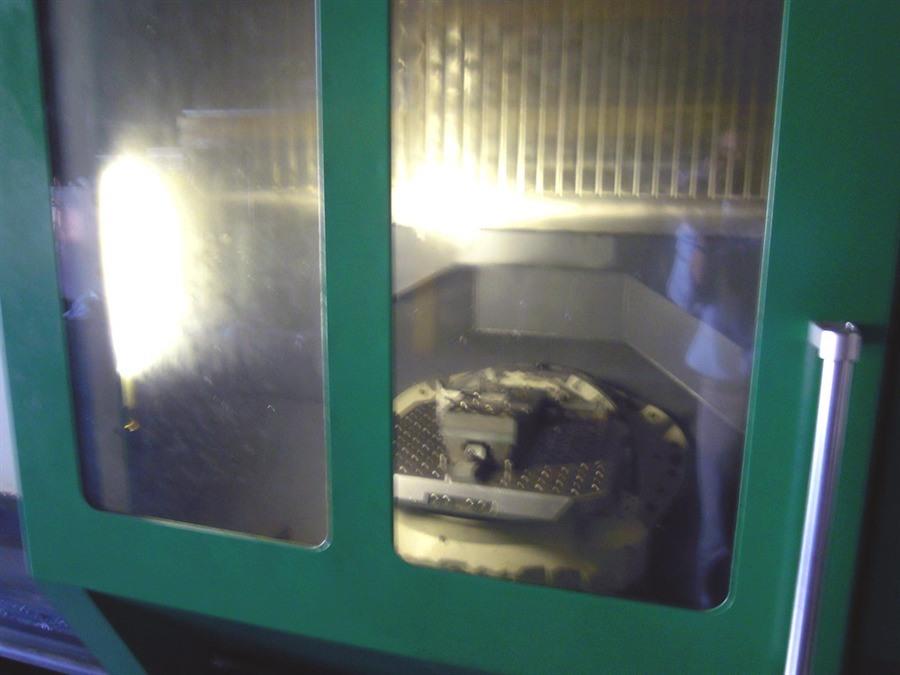

5 axis table from 650 x 650 mm
Incl 4th axis on table

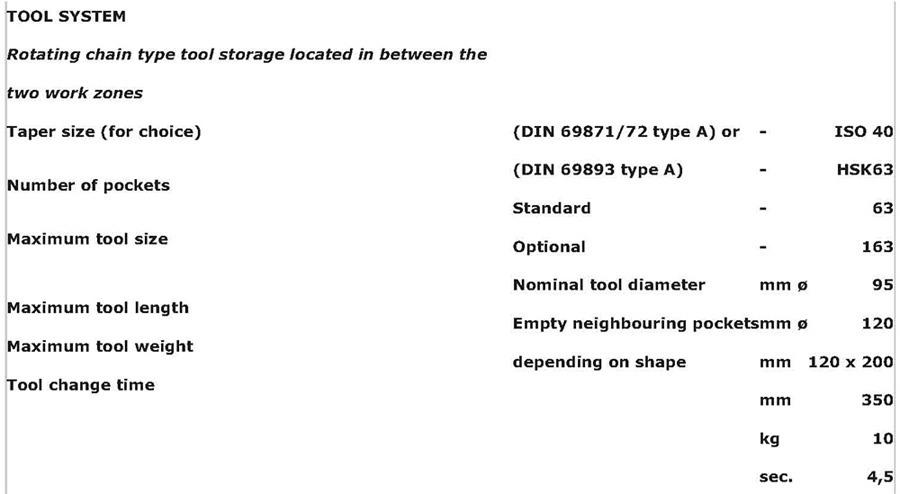

Toolturret with 63 positions
max height workpiece: 700 mm
- Type/Model: Unipro 5P CNC
- Stocknummer: D.01 5631
- Kies een Categorie: [D] Bewerkingscentra
- Subcategorie: [D.01] Vertikale bewerkingscentra CNC
- Merk: Unisign
