Union PU 130 X: 6000 - Y: 2000 - Z: 800 mm CNC
Technische gegevens
- Langsverplaatsing X-as6000 mm
- Dwarsverplaatsing Y-as (tafel/kolom)800 mm
- Hoogteverplaatsing Z-as2000 mm
- Spindelverplaatsing W-as750 mm
- SpindelopnameISO 50
- Vermogen op spindel51 kW
- Spindel dia -- Spindelboring130 mm
- Spindelsnelheden5 > 3000 rpm

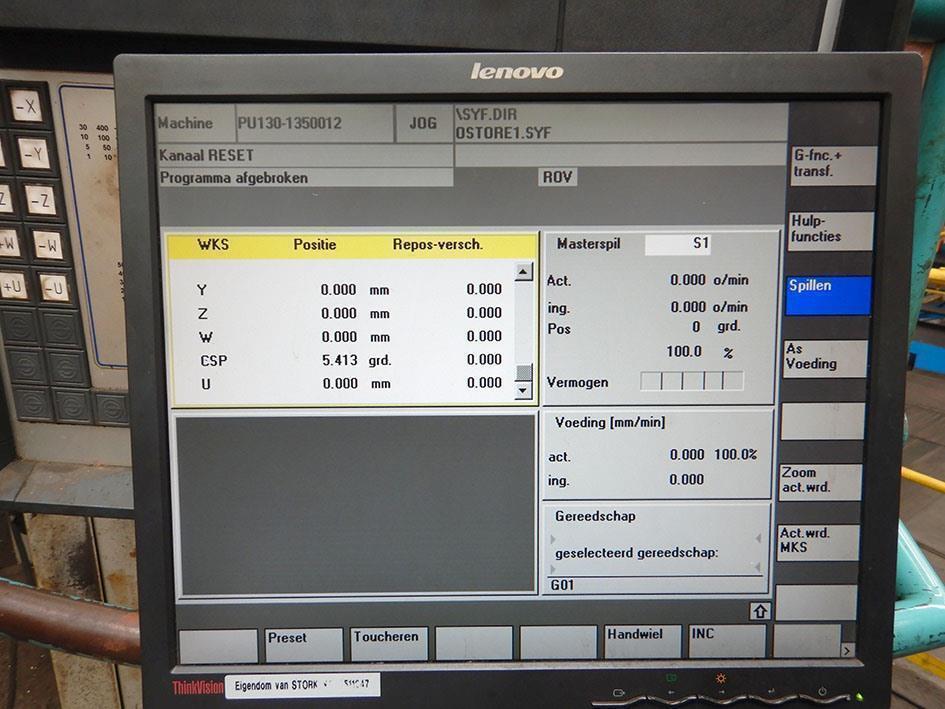

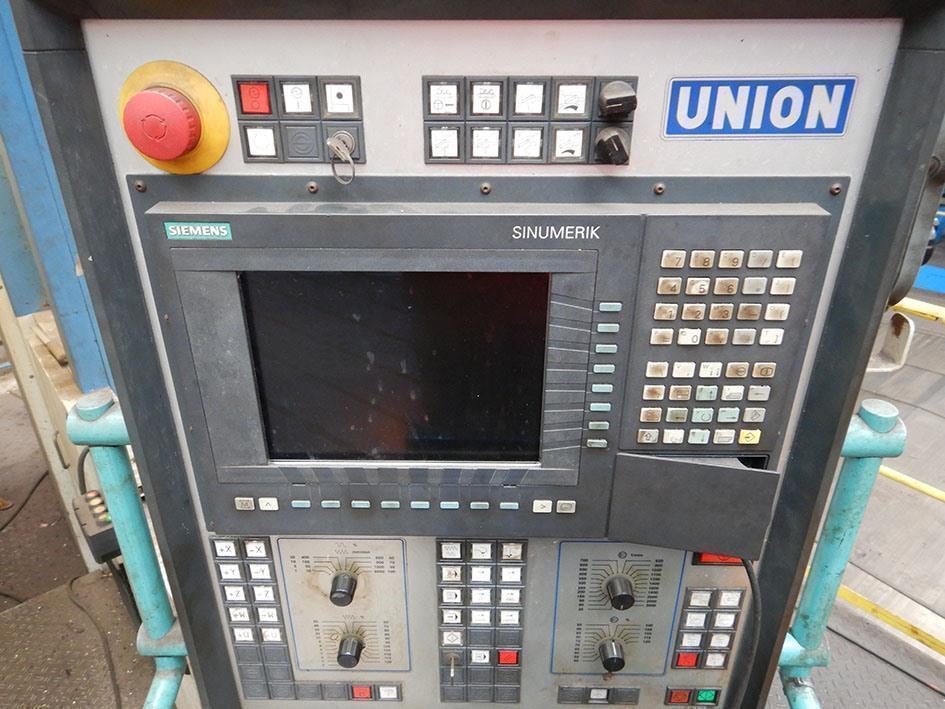

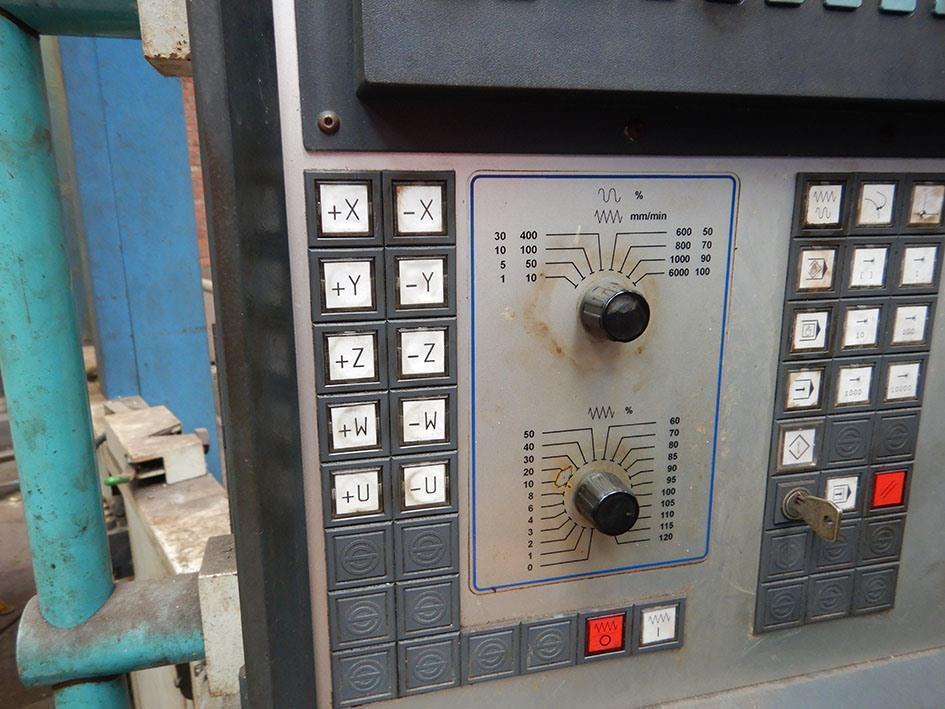

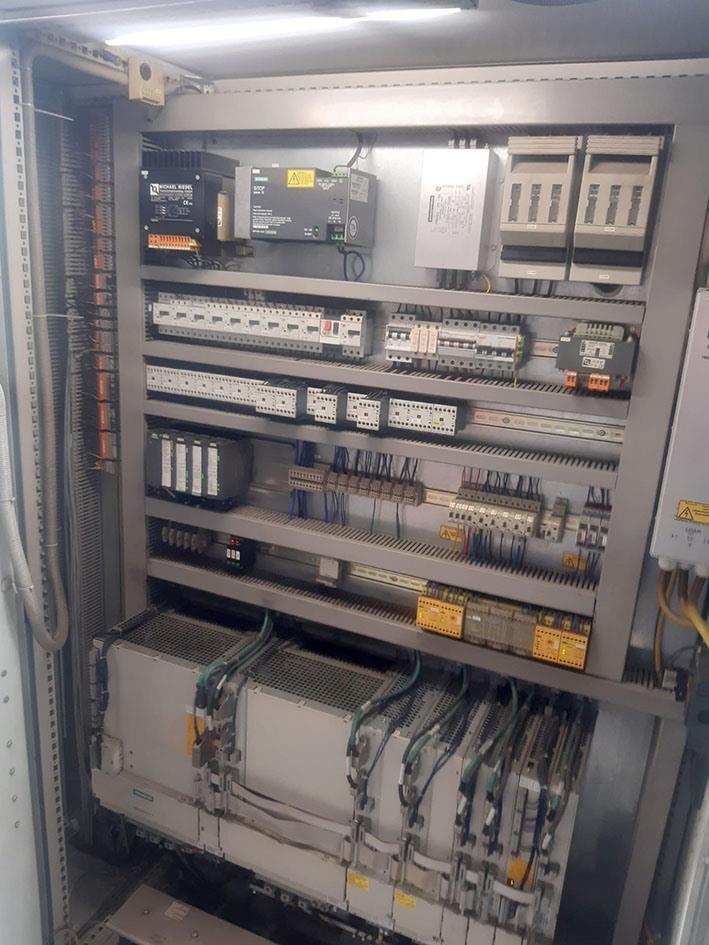

- Digitale uitlezing(1) CNC (2)Siemens Sinumerik 840D
- Gewicht30 ton
Extra info

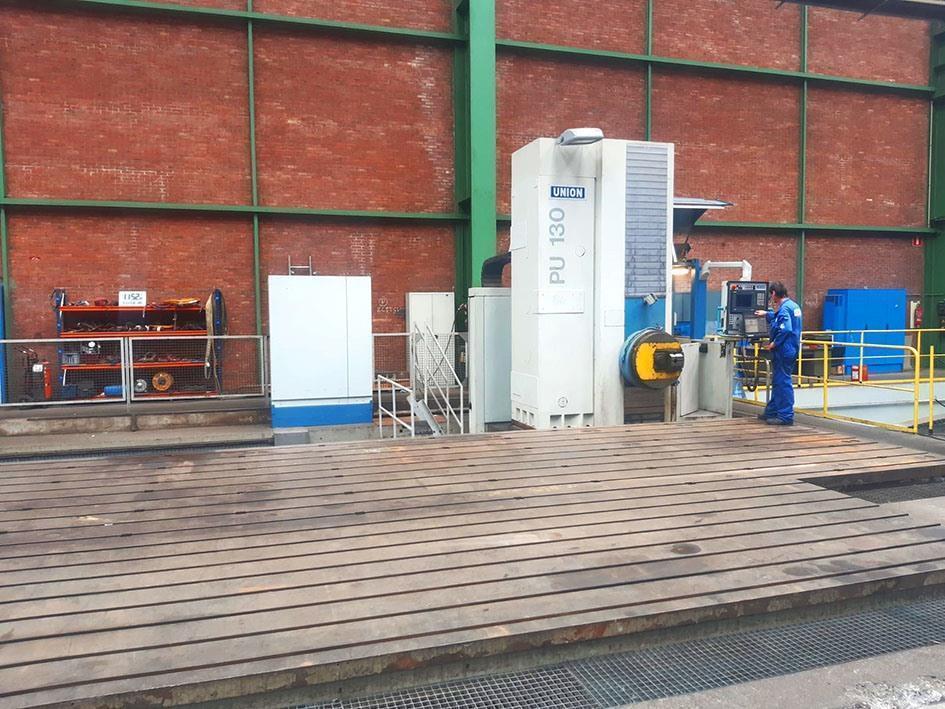

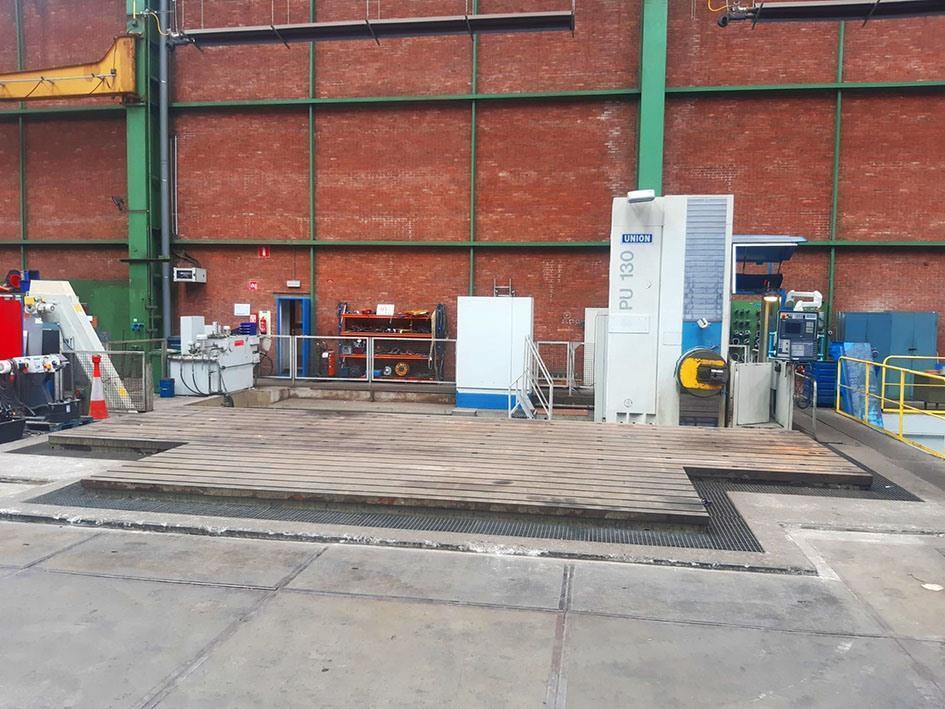

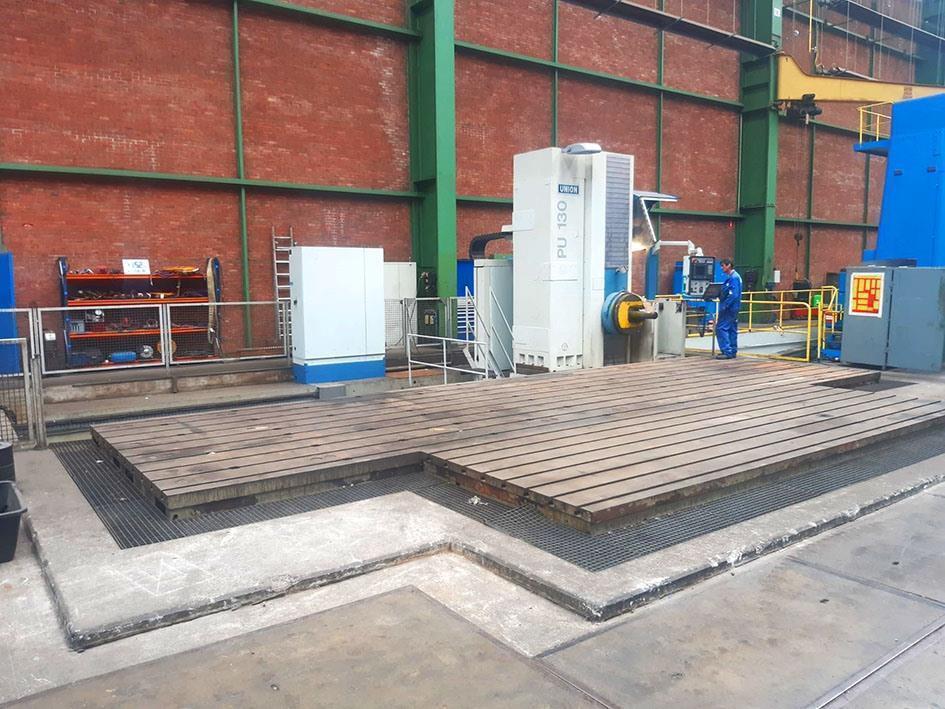

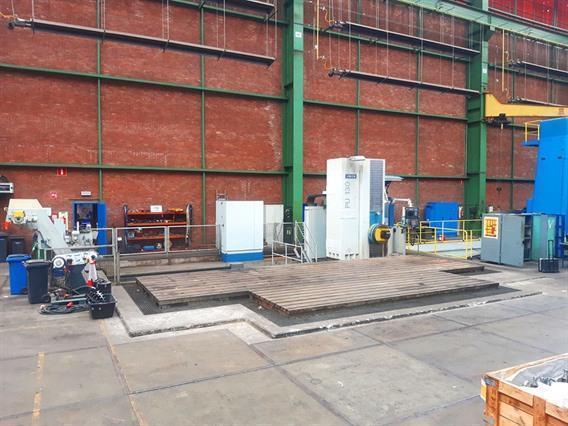

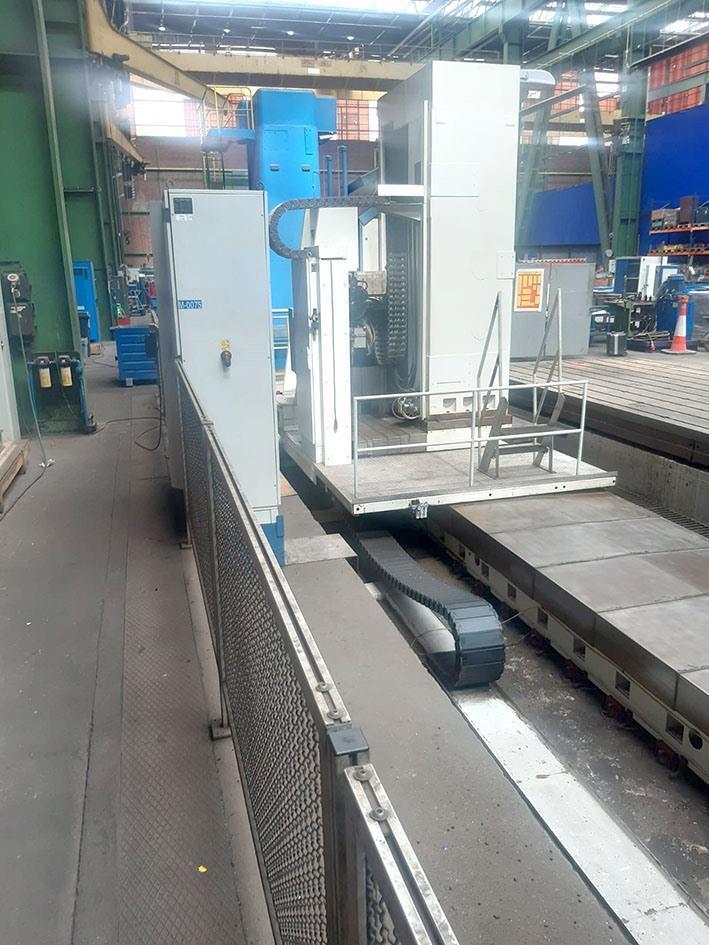

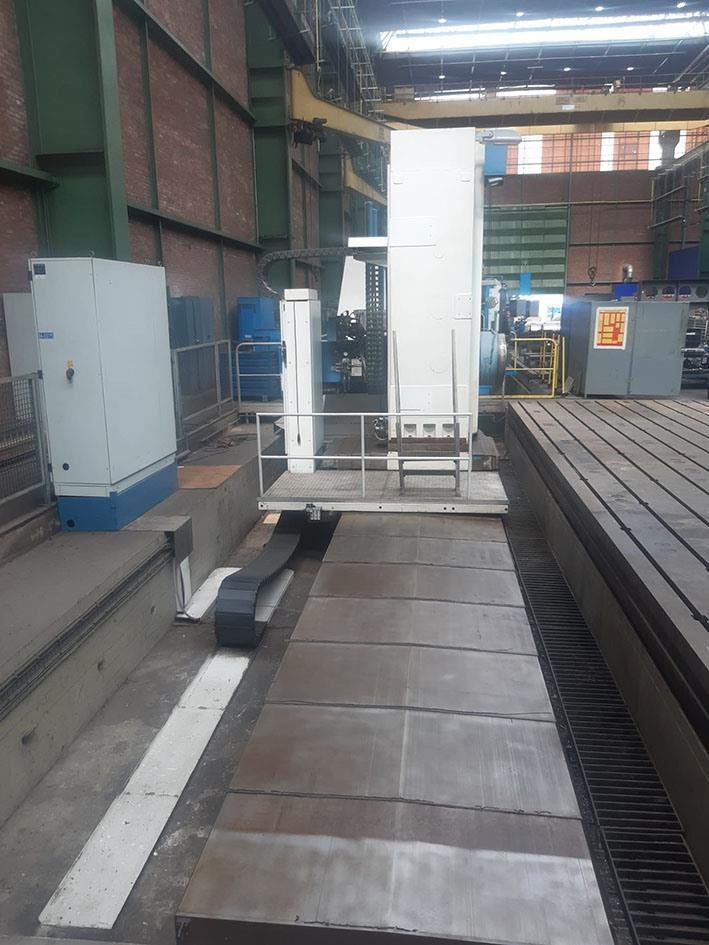

- CNC floor type borer with facing & boring head

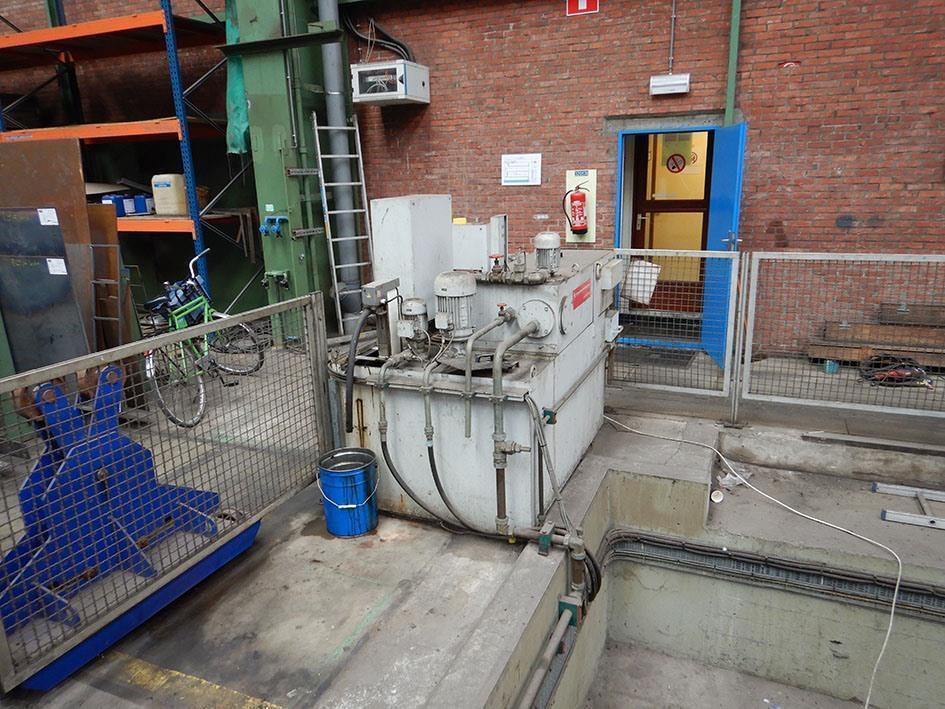

with cooling through spindle 20 bar

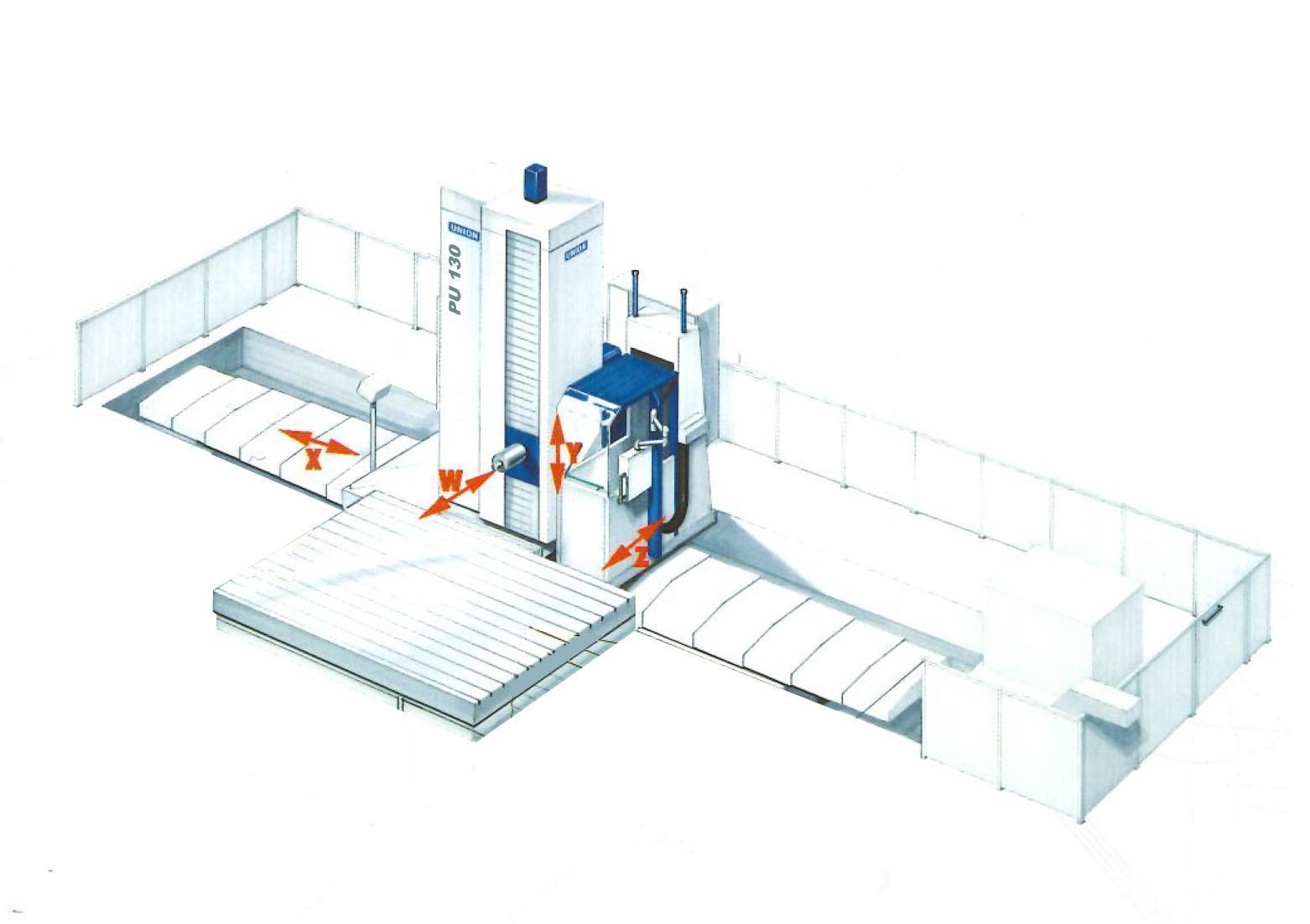

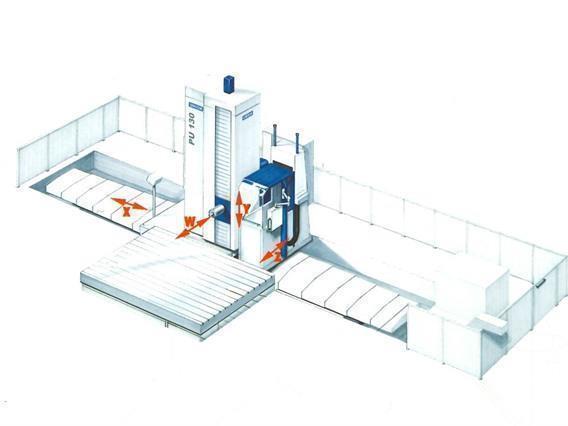

5 axes: X / Y / Z / W / U

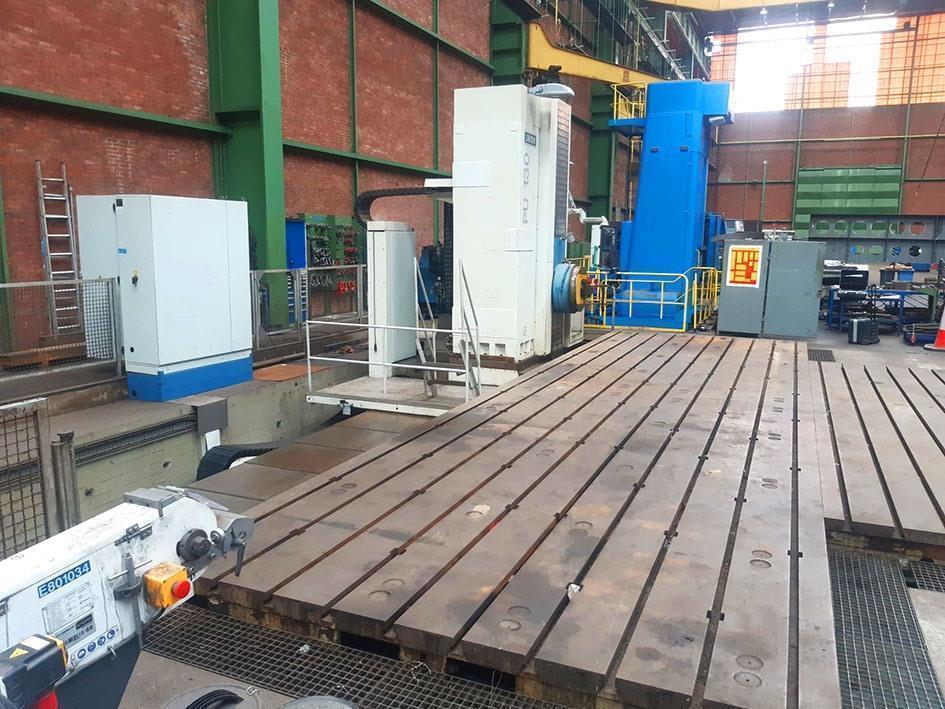

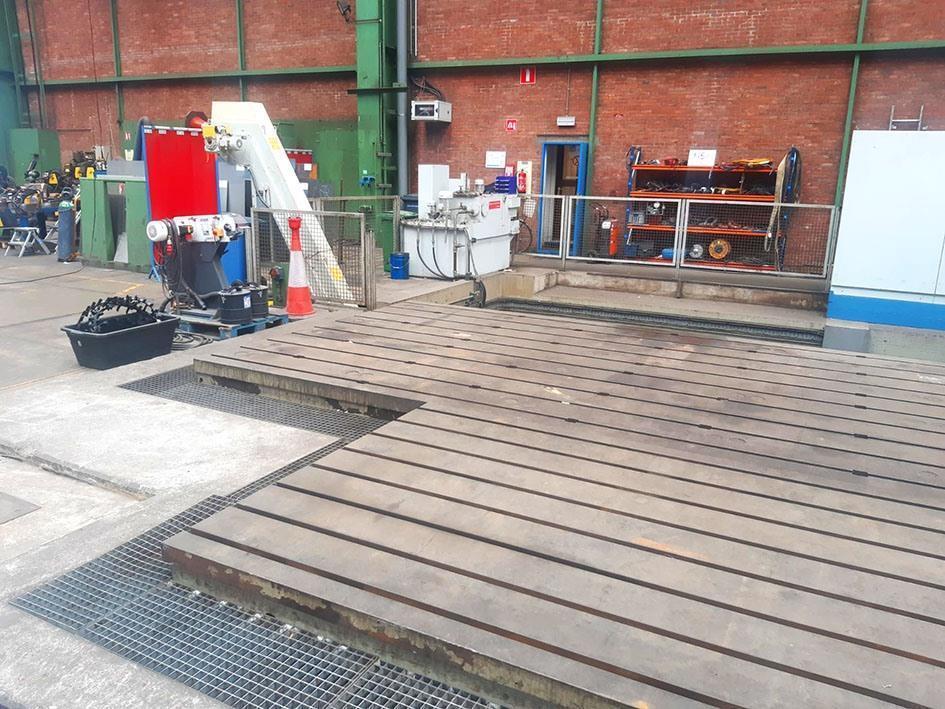

4 t-slot tables 5000 x 1500 x 300 mm
Chipconveyor

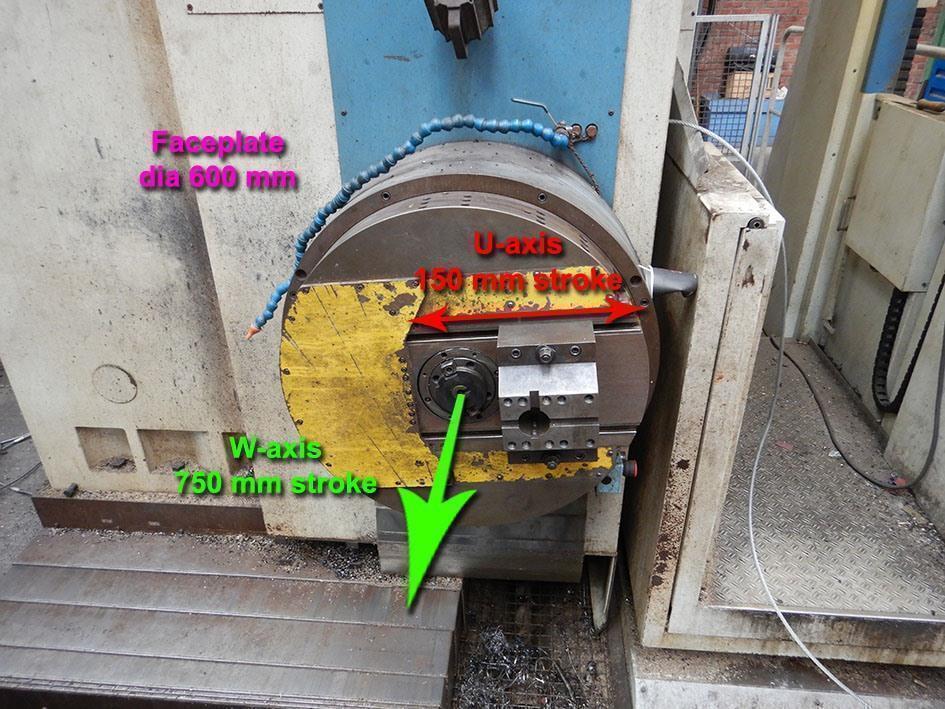

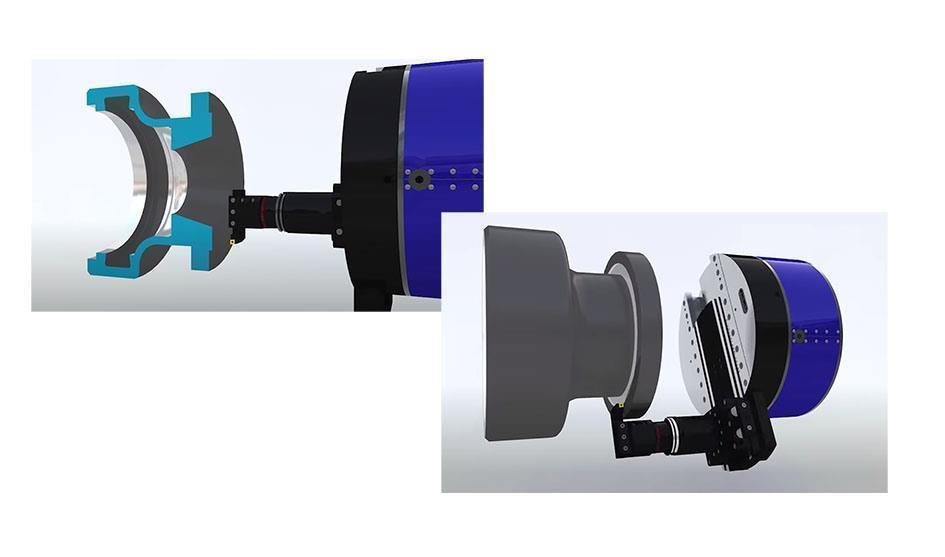

with CNC controlled cross slide (U-axis) of 150 mm - see video below thumbnails:

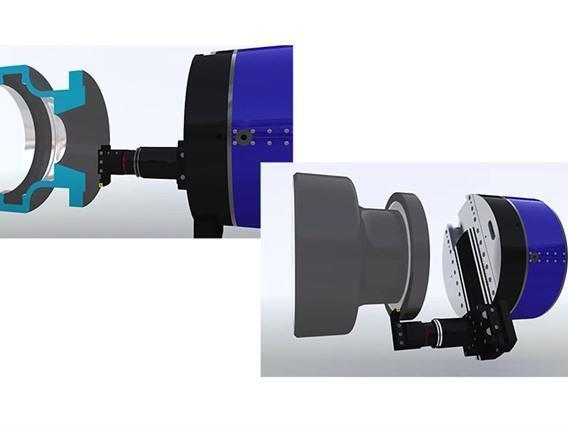

>> the controlled plan support that is firmly integrated in the spindle system enables the machining of large external and internal contours, ring grooves, cones and also threadcutting. In automatic mode, the controlled cross slide, in combination with the other axes, offers a wide range of technical uses for contour machining. Independent of the built-in plan support, the drilling spindle can be used in the entire speed range of the machine.
- Type/Model: PU 130 X: 6000 - Y: 2000 - Z: 800 mm CNC
- Stocknummer: F.02 11280
- Kies een Categorie: [F] Kotterbanken & Draaitafels
- Subcategorie: [F.02] Kotterbanken met beweegbare kolom – Vloertype
- Merk: Union
StockNr: F.02 11280
Bekijk video werkende machine
