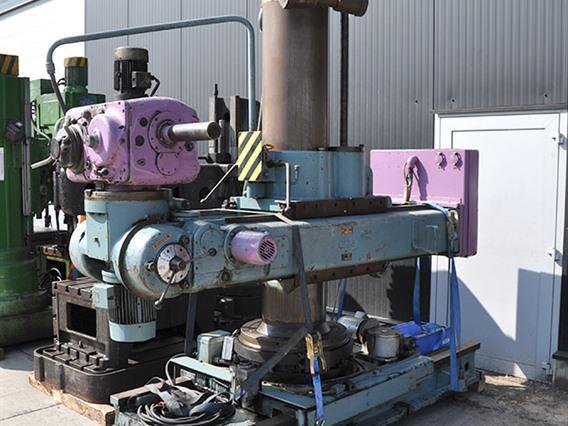

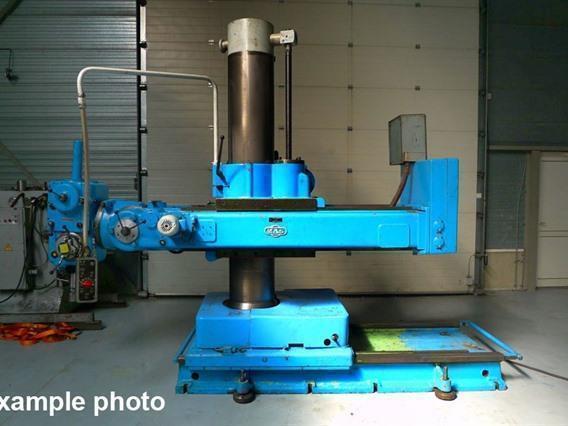

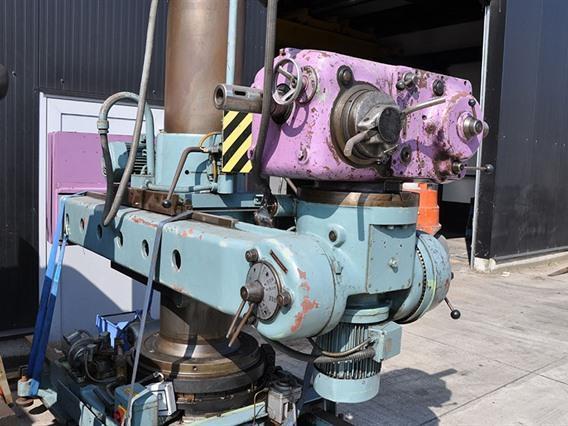

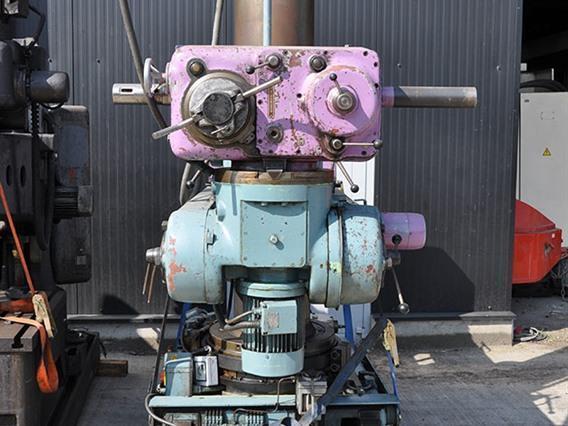

Kovosvit VRM 50A

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Admission in drilling-spindle (morse)Mk 4/5
Max drilling capacity50 mm
Longitudinal travel drilling-head (X-axis)1200 mm
Height-travel arm (Y-axis)1250 mm
Min dist. round column--drillingsp (X-axis)1170 mm
Max dist.round column -- drillingspindle2070 mm
Dia spindle70/75 mm
Max drilling-depth350 mm

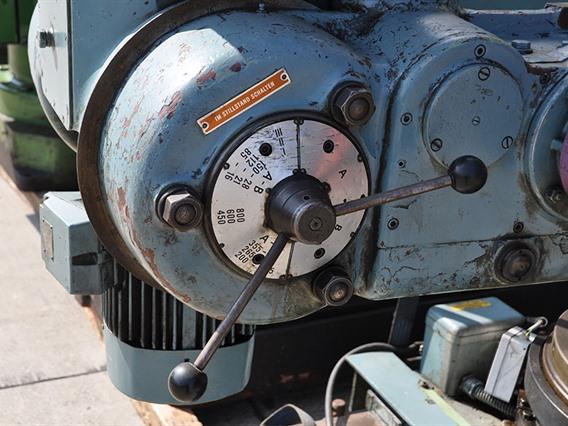

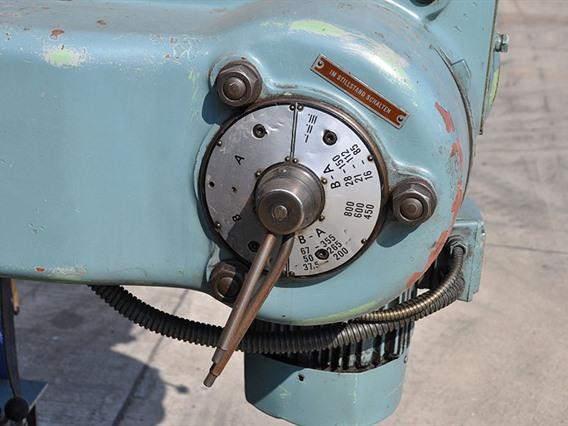

Speeds16 > 800 rpm
Power on the spindle4 kW
Weight6,5 ton

Informazioni supplementari

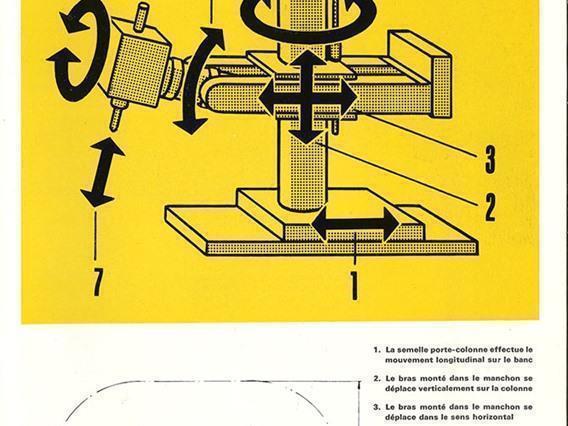

Column can turn 360°

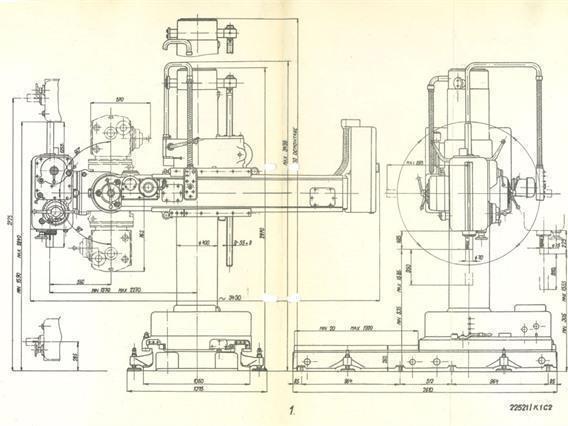

Length: 3450 mm
Width: 1720 mm
Height: 2970 mm
Tipo/Modello: VRM 50A
Numero di magazzino: C.02 10394
Categoria: [C] Trapanatrici
Sottocategoria: [C.02] Trapani radiali
Il marchio: Kovosvit

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: C.02 10394

Scaricare tutte le foto in ZIP
