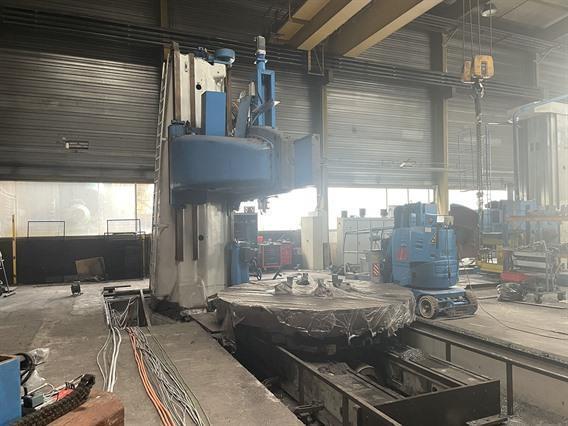

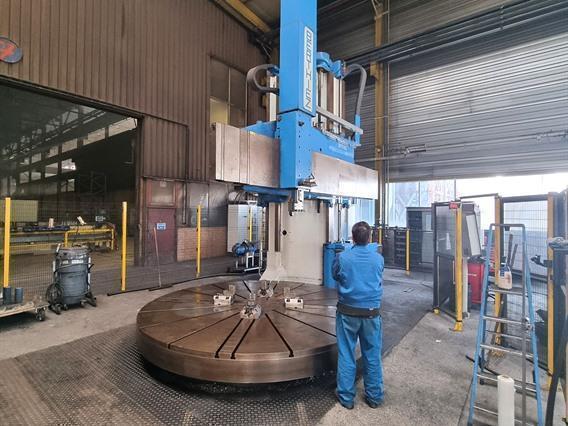

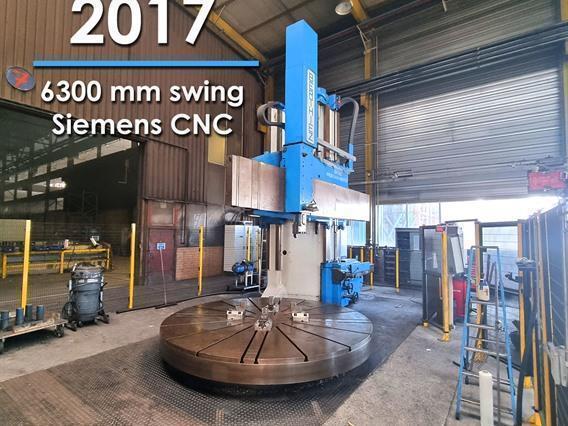

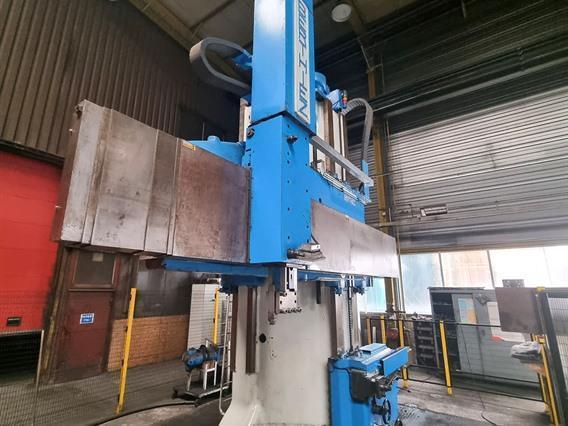

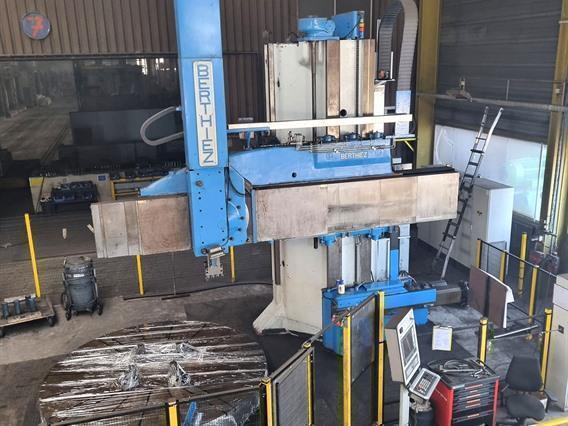

Berthiez Ø 6300 mm CNC

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

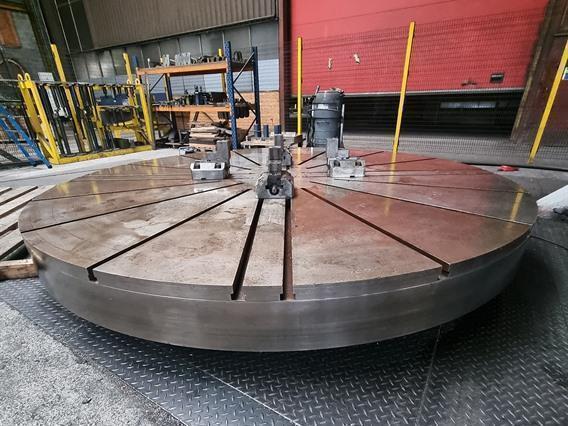

Chuck dia.3300 mm
Max turningdia -- passage6300 mm
Power on the spindle75 kW
Max hight of workpiece Z-axis2600 mm

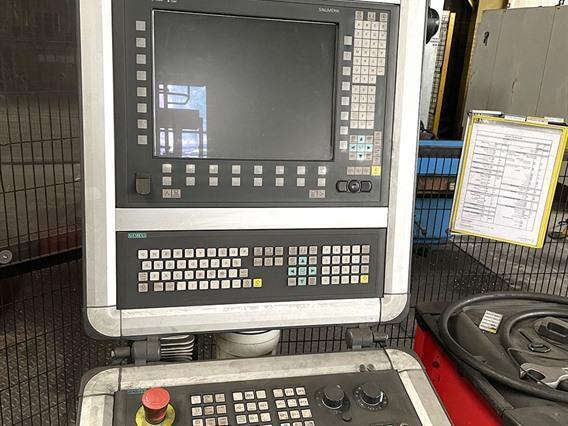

CommandSiemens 840D
Number of speeds13 / 36 / 100 rpm
Weight93 ton
TOOLINGyes

Informazioni supplementari

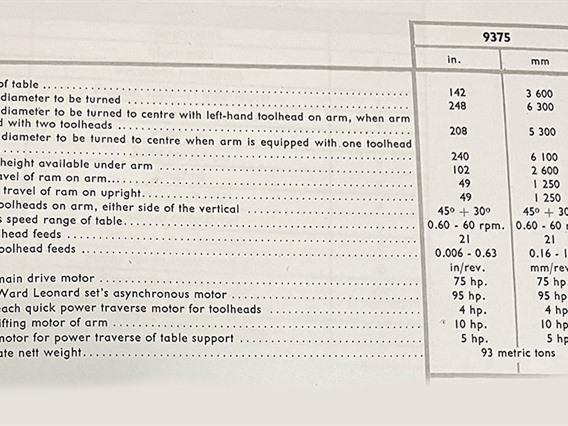

Type: 9375

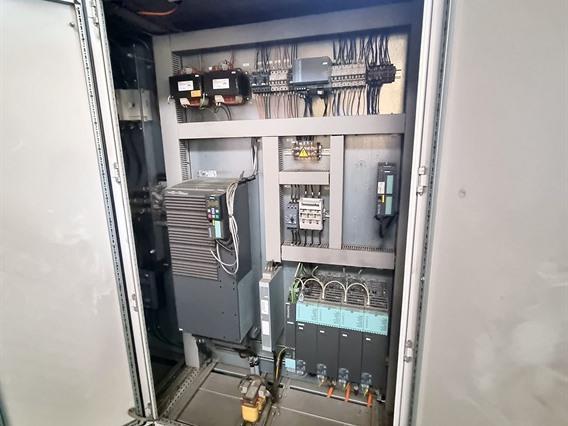

Retrofitted in 2017 with Siemens 840D

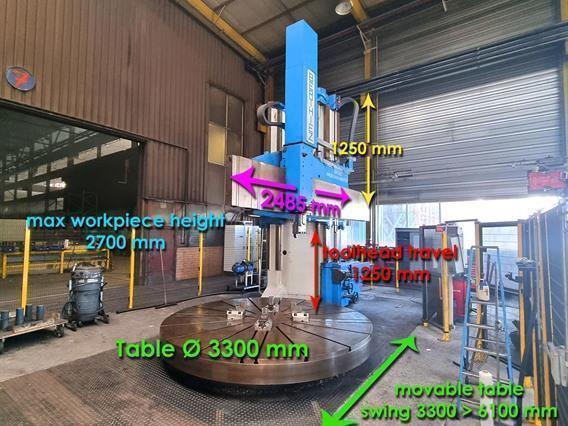

- max diameter to be turned to centre: 6100 mm
- max workpiece height under arm: 2700 mm
- vertical travel of ram: 1250 mm
- vertical travel of toolhead: 1250 mm
- horizontal travel of blue toolhead: 2485 mm

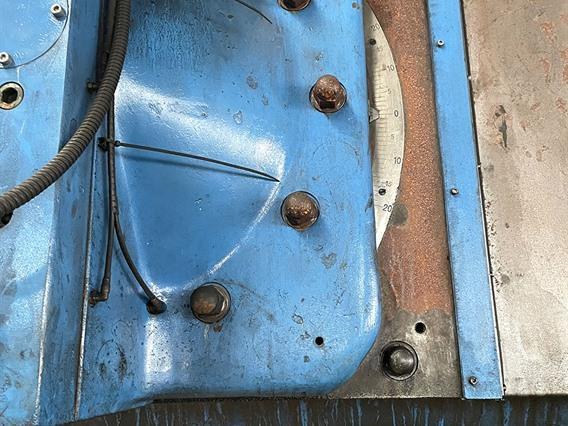

- swivelangle of tooldhead: 45° + 30°

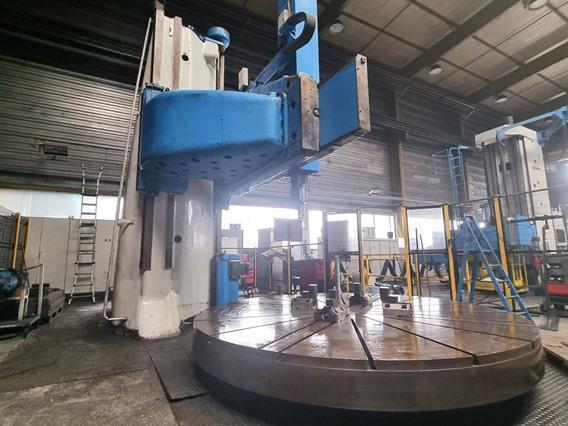

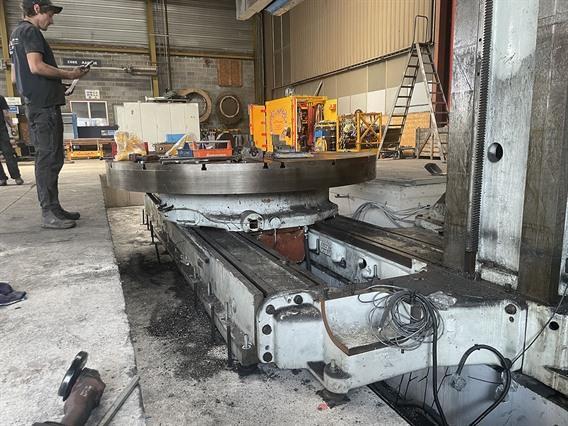

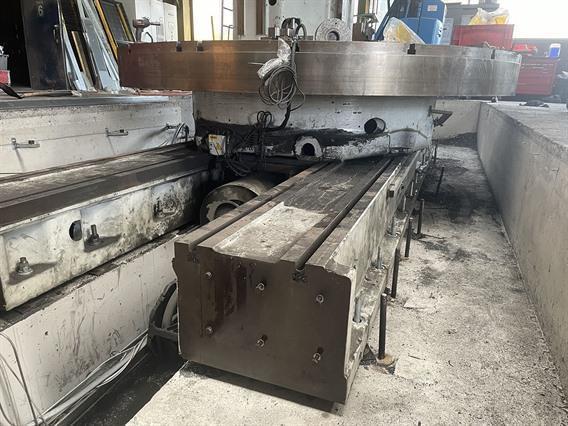

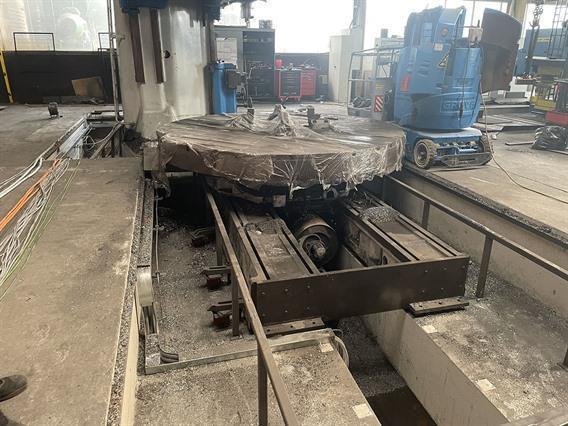

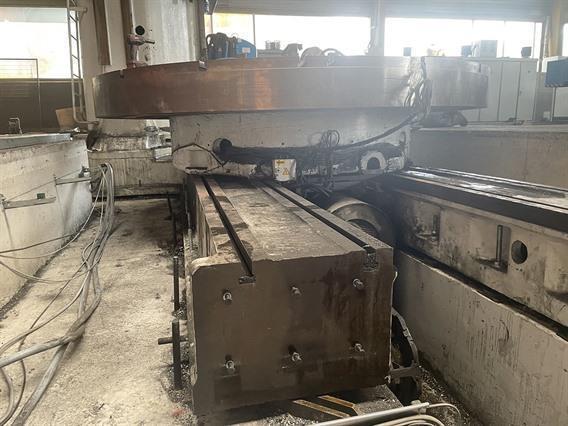

- turntable is movable in order to accomodate workpieces up to 6 meter in diameter
- max load on table: 50 ton
- power on table: 75 kW
- 3 variable speeds of table (CNC controlled): 1 > 13 rpm / 14 > 36 rpm / 37 > 100 rpm
- positioning of the table is done by two buttons, once the correct position is reached the position can be nulled on the digital readout
Tipo/Modello: Ø 6300 mm CNC
Numero di magazzino: A.12 12972
Categoria: [A] Torni
Sottocategoria: [A.12] Torni verticali, tradizionali e CNC
Il marchio: Berthiez
