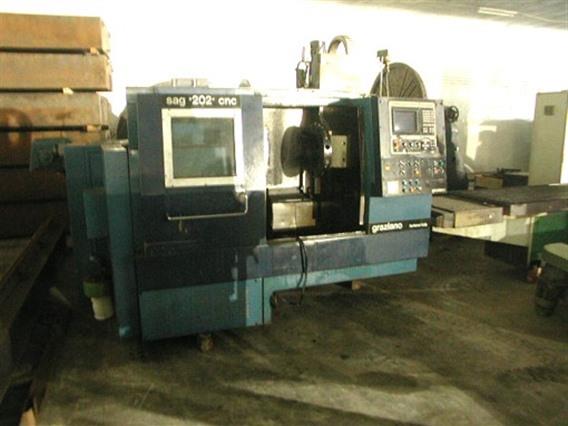

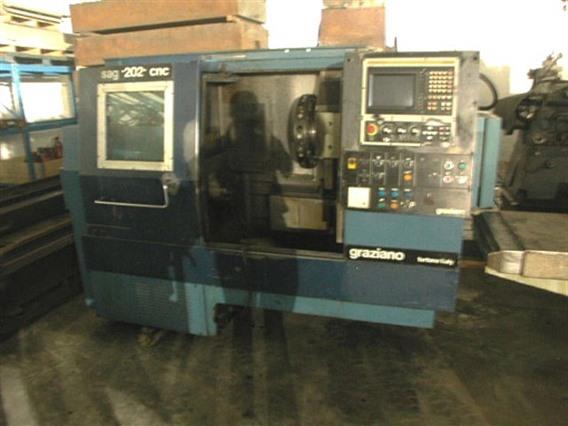

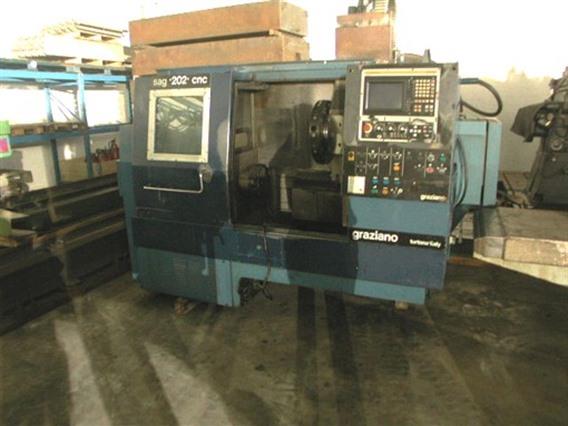

Torni CNC Graziano SAG 202 cnc
Informazione tecniche
- Swing over beddraaidia300 mm
- Max longitudinal travel Z-axis500 mm
- Max cross travel X-axis240 mm
- Power on the spindle14 - 17,5 kW
- Number of speeds250 - 4800 rpm
- CommandSiemens 3 T

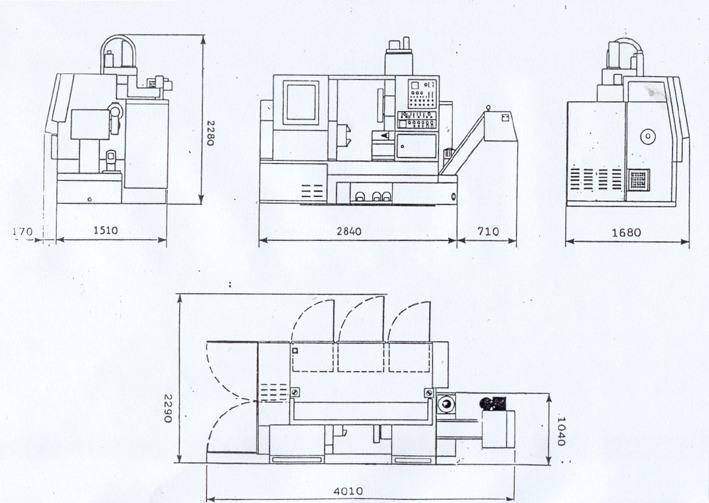

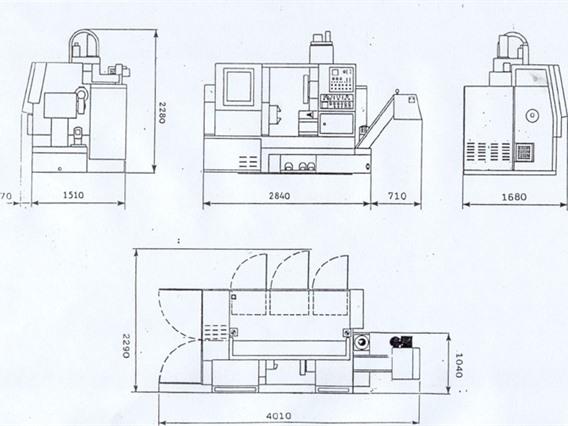

- Length3350 mm
- Width1680 mm
- Height2280 mm
- ACCESORIES*
- Chuckdia 250
Informazioni supplementari
- sr 18269
Gereedschapskop met 12 posities zonder aangedreven gereedschap
Totaal vermogen 30 kW
- Tipo/Modello: SAG 202 cnc
- Numero di magazzino: A.07 1395 *04
- Categoria: [A] Torni
- Sottocategoria: [A.07] Torni CNC
- Il marchio: Graziano
