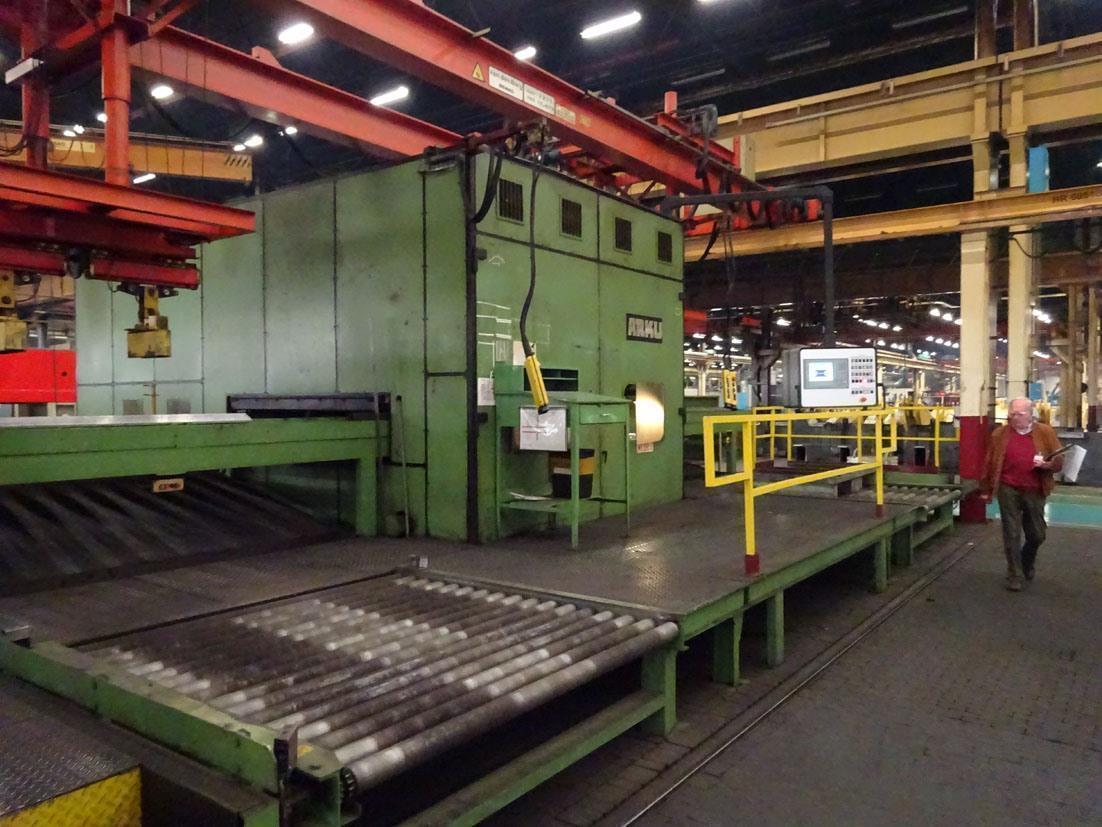

Arku/Kohler part straightener 2000 x 40 mm CNC

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Max sheetwide50 > 2200 mm
Max sheetthickness5 > 75 mm

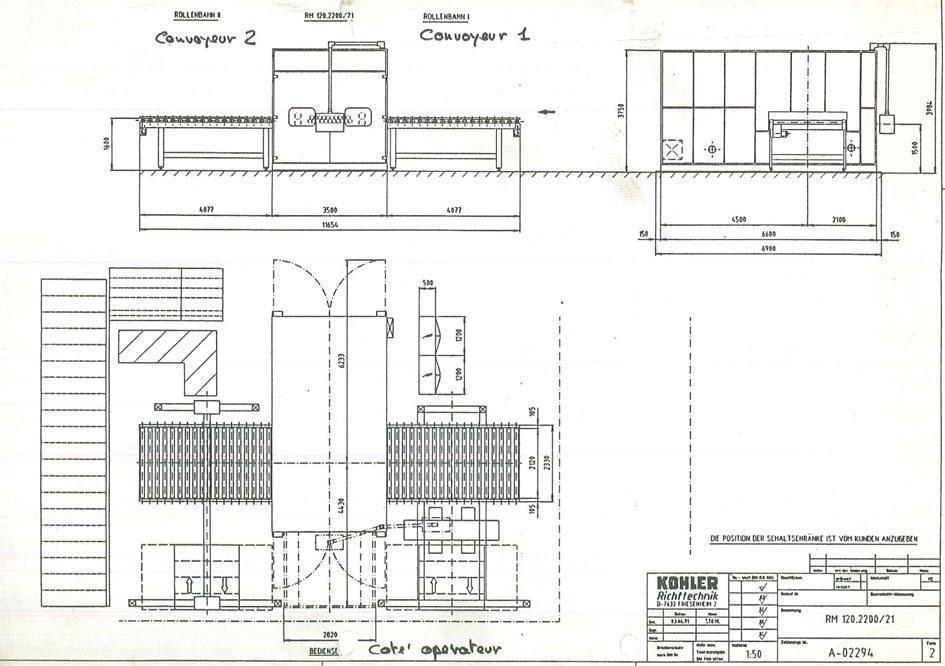

Length11 400 mm
Depth3000 mm
Hight4000 mm

Informazioni supplementari

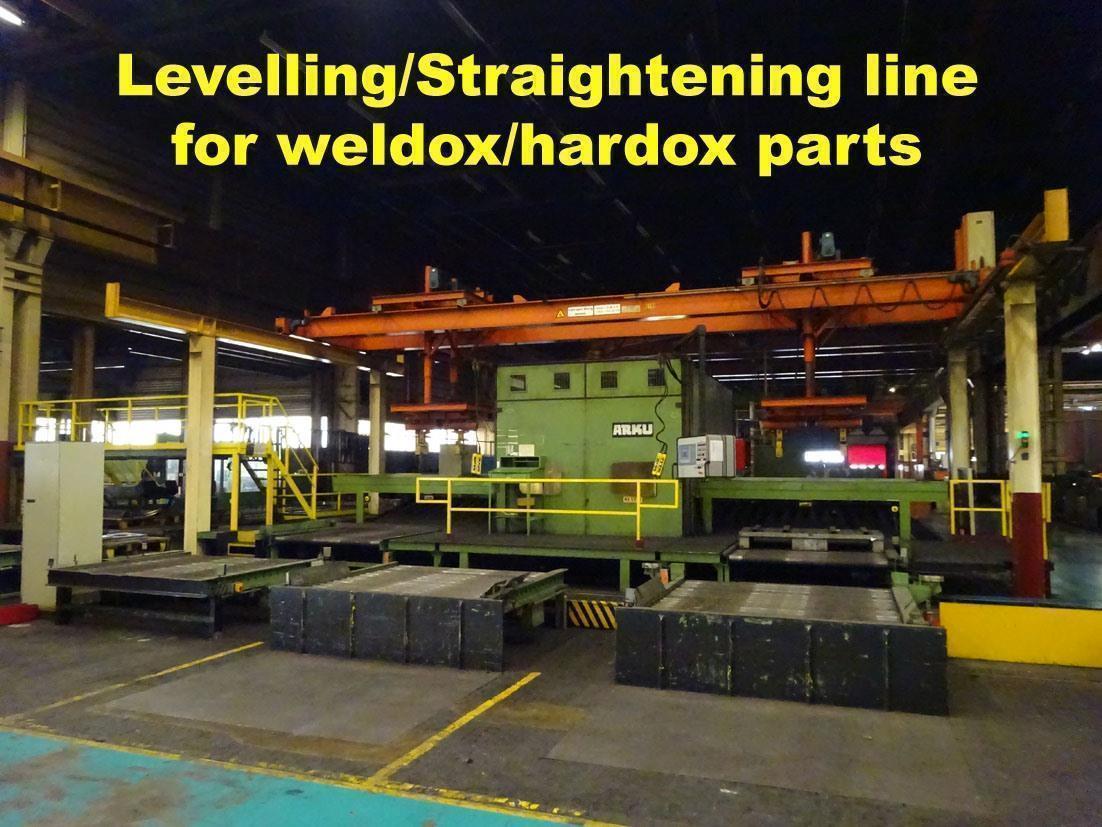

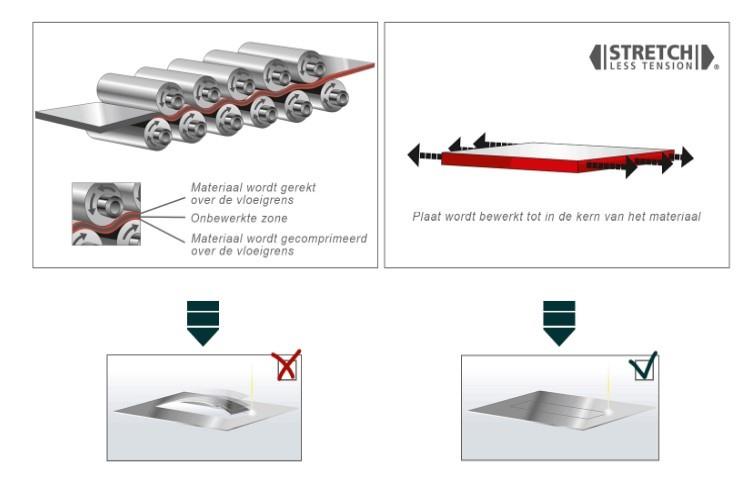

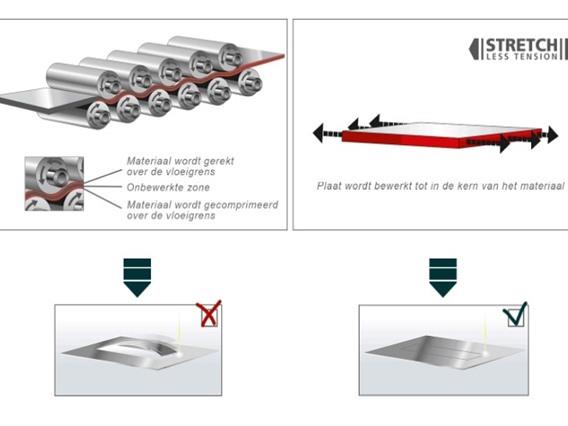

Fine levelling / high strength machine to stress-relieve laser- and plasmacut parts (steel/weldox/hardox)

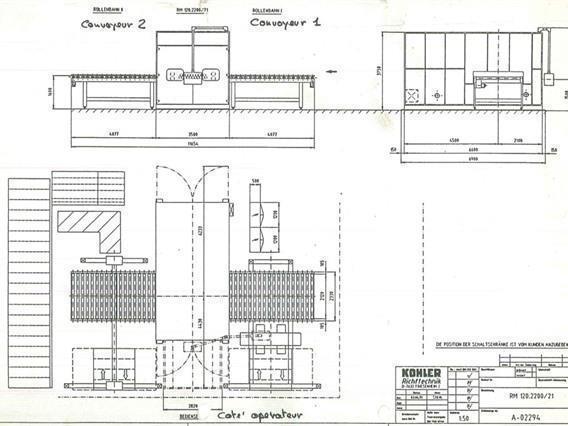

Type KRM120.2200/21T

max workpiece width: 2000 mm

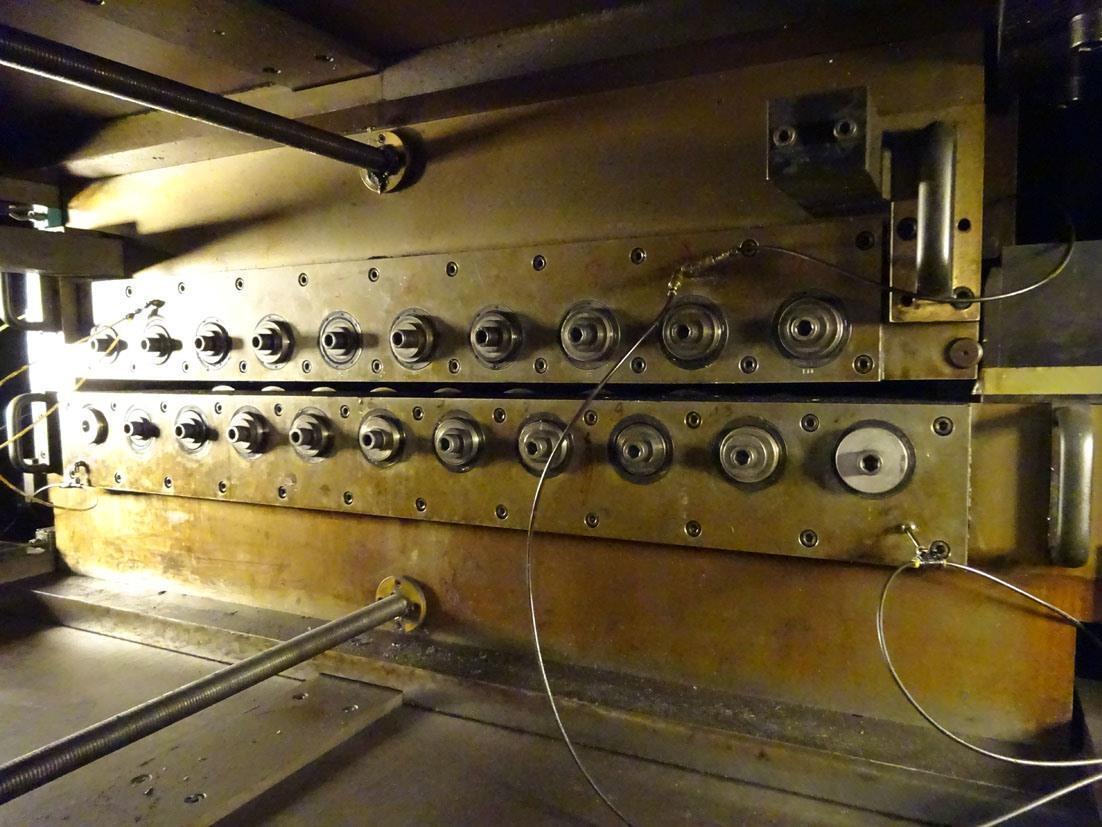

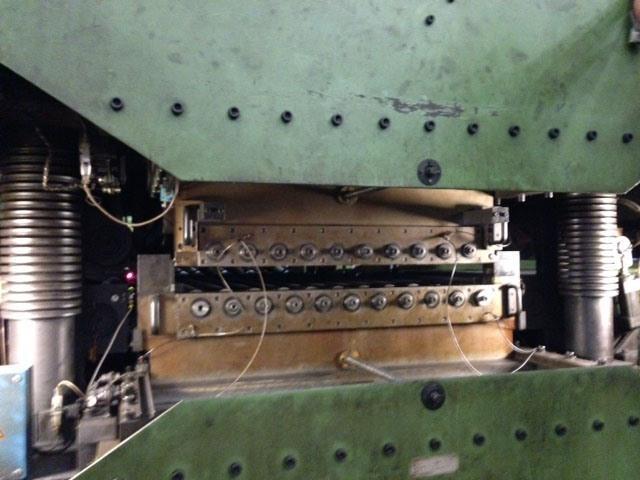

21 rolls - rolldia: 120 mm

cassette changing system for rolls

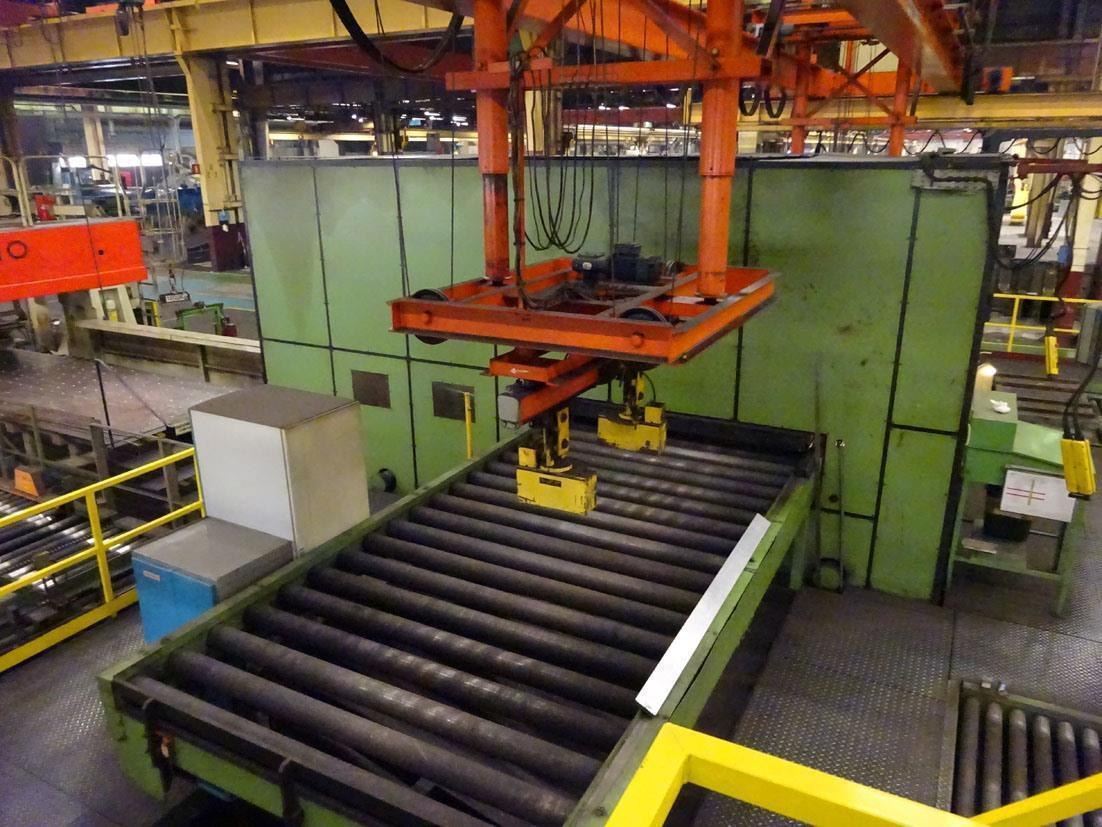

magnetic (un)loader

power main motor: 74 kW

cap @ 2000 mm: 40 mm

cap @ 1000 mm: 75 mm

max speed: 10 m/min

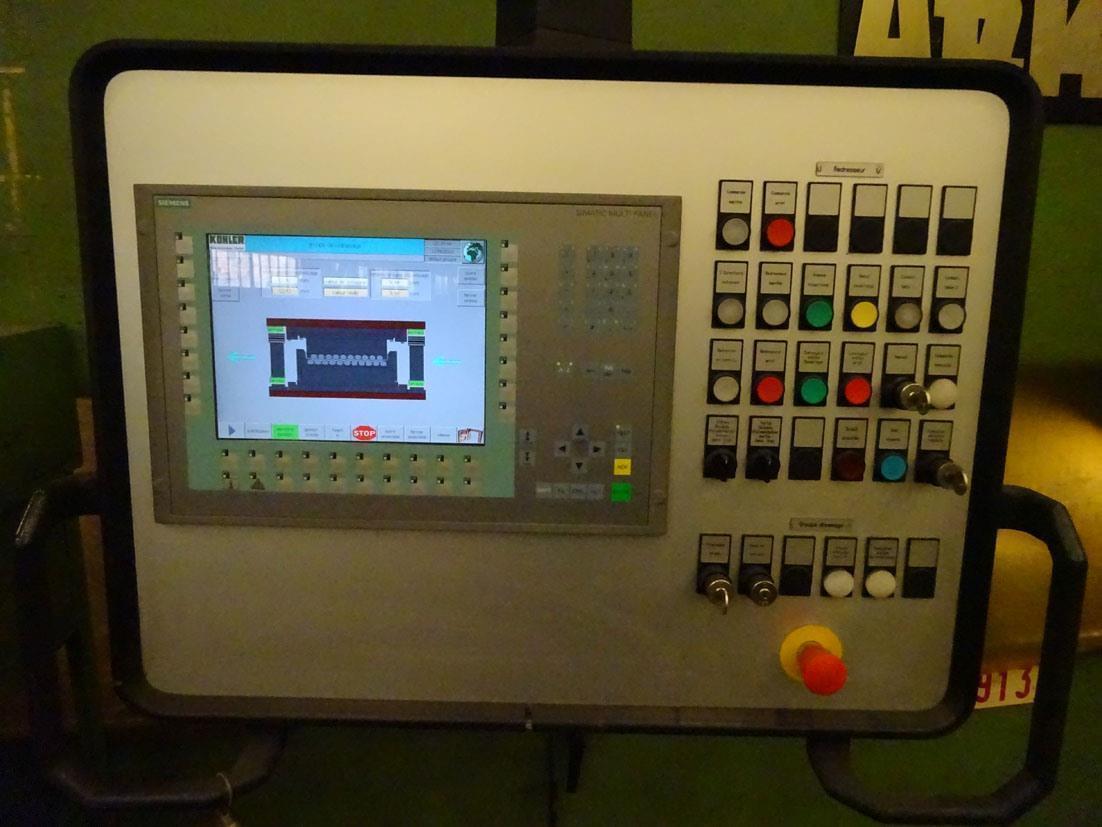

full cnc control Siemens - renewed in 2012!

levelling length: 350 - unlimited
including 2 tables - table size: 4000 x 2000 mm
Tipo/Modello: part straightener 2000 x 40 mm CNC
Numero di magazzino: O.09 8382
Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
Sottocategoria: [O.09] Spianatrici per materiali in bobina
Il marchio: Arku/Kohler

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: O.09 8382

+++BekijkVideoWerkendeMachine+++

Arku/Kohler part straightener 2000 x 40 mm CNC

Scaricare tutte le foto in ZIP
