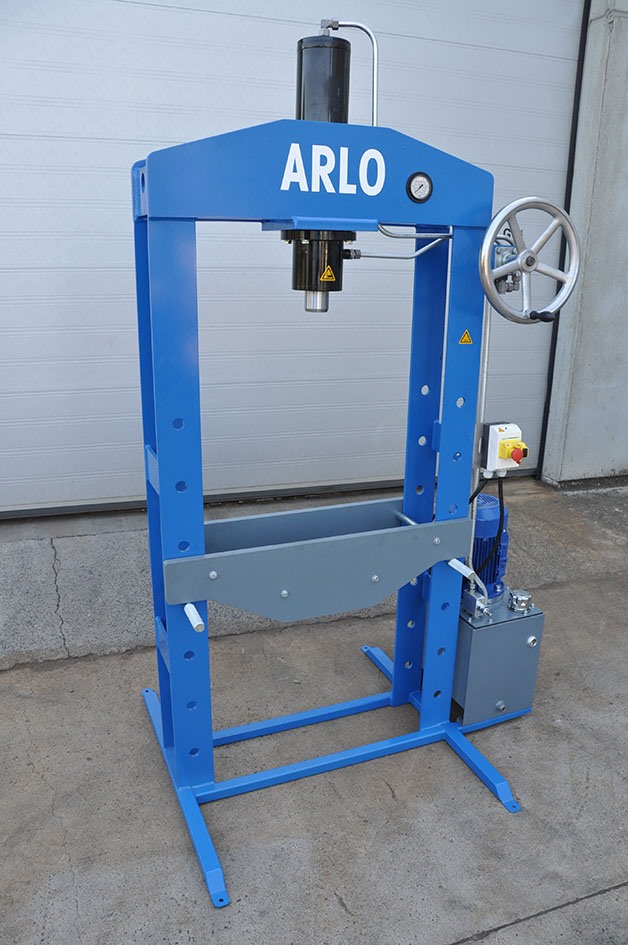

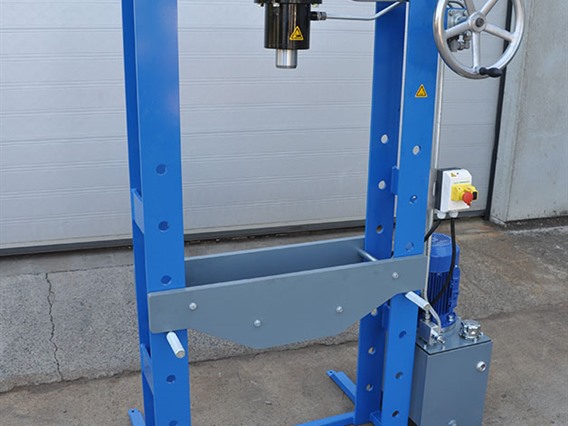

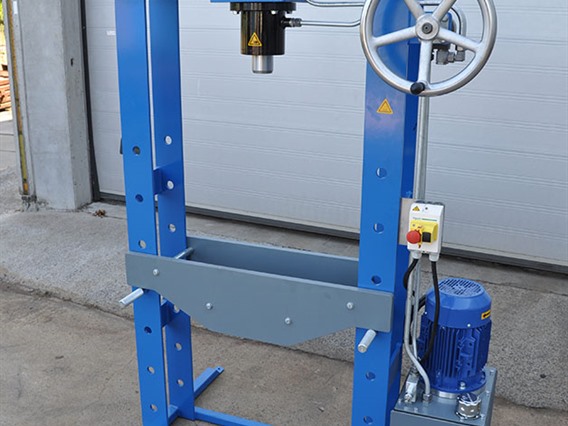

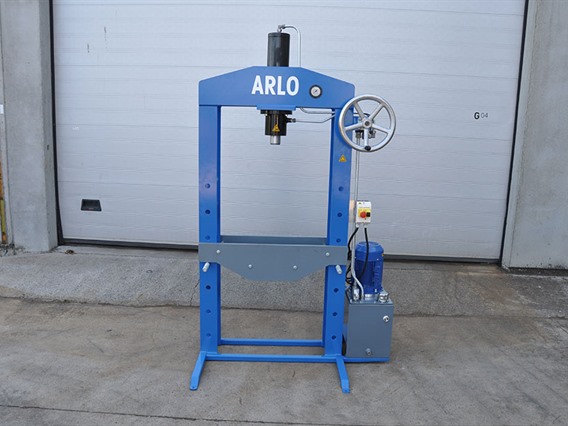

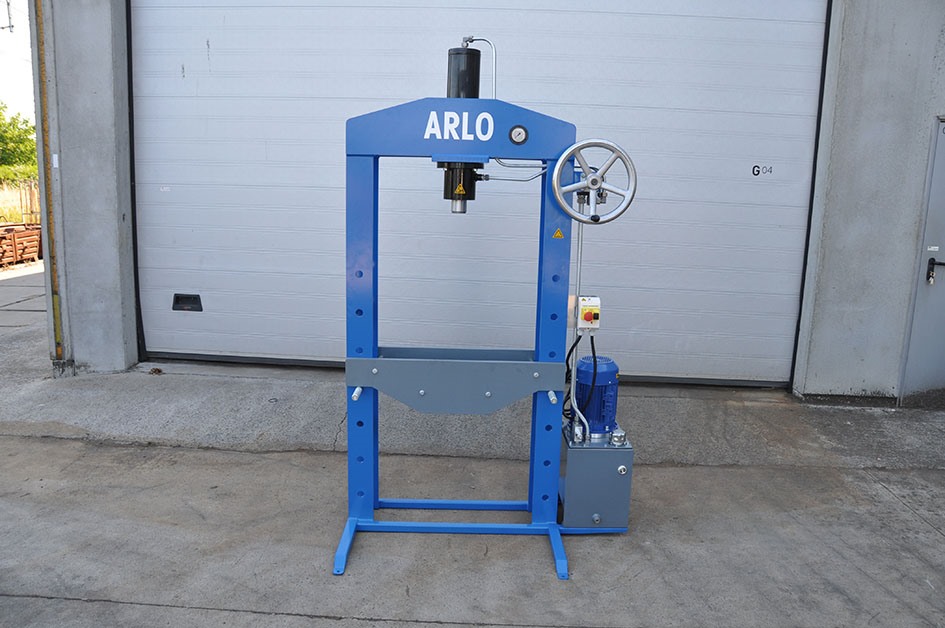

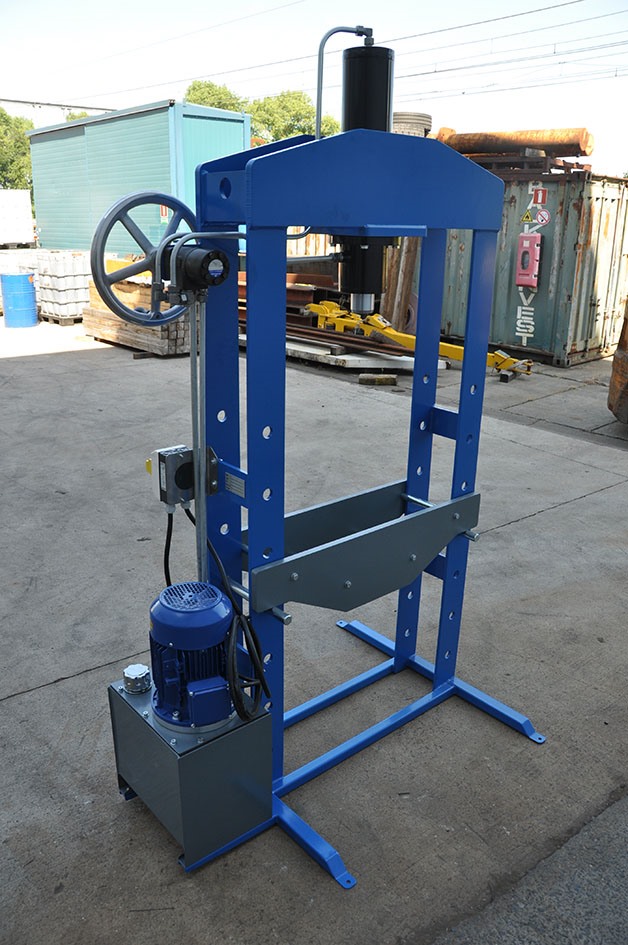

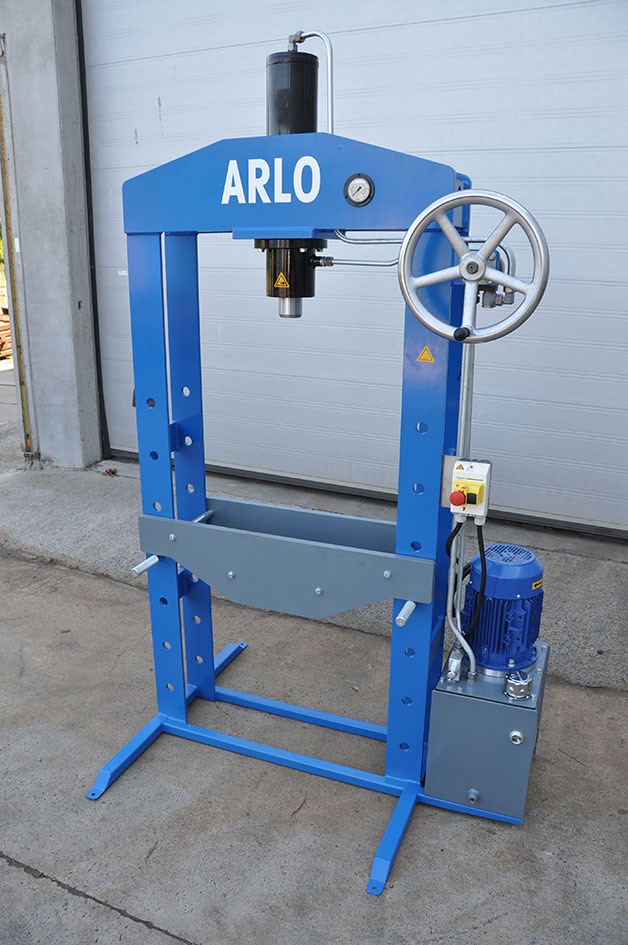

Arlo HP 25 ton

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Capacity25 ton
Max ram adjustment400 mm
Control (feet/double hand)orbital
Passage between uprights750 mm
Max distance between table -- Ram1050 mm
Dimensions of the table750 x 280 mm
Tableheight: fixed (1) / sliding (2)adjustable 360 -> 1250 mm

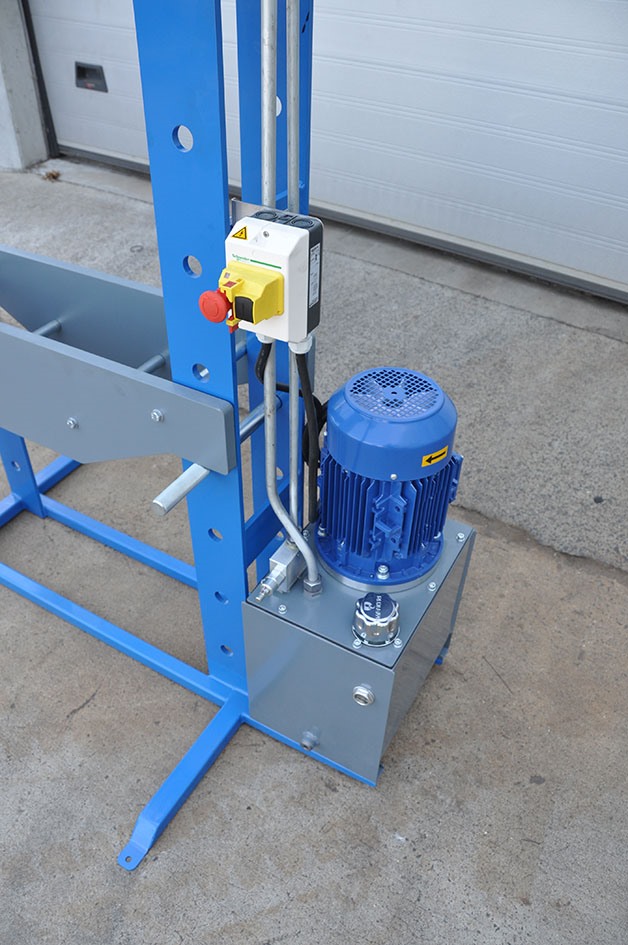

Motor Power4 kW
Lenght L -- R1400 mm
Depth F -- B900 mm
Height2300 mm
Weight530 kg

Informazioni supplementari

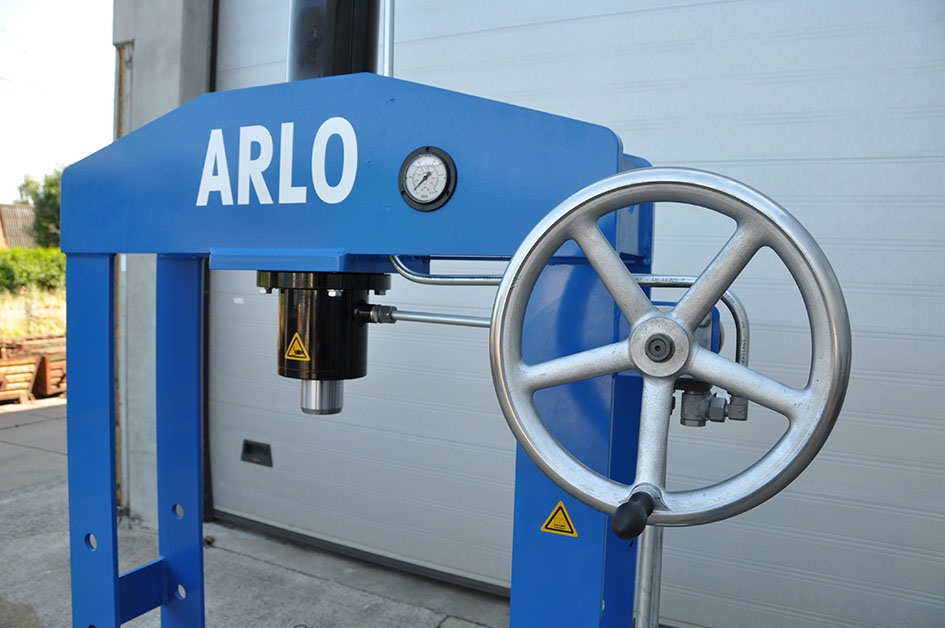

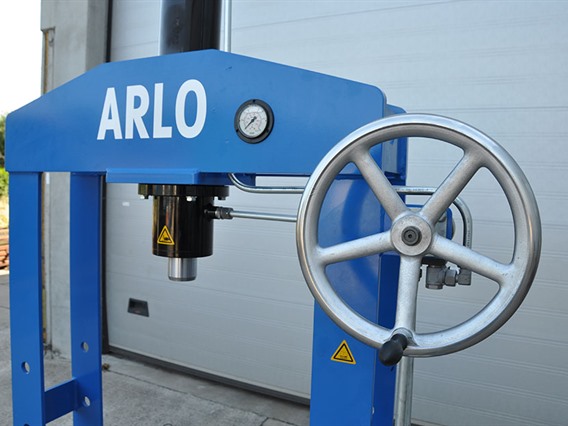

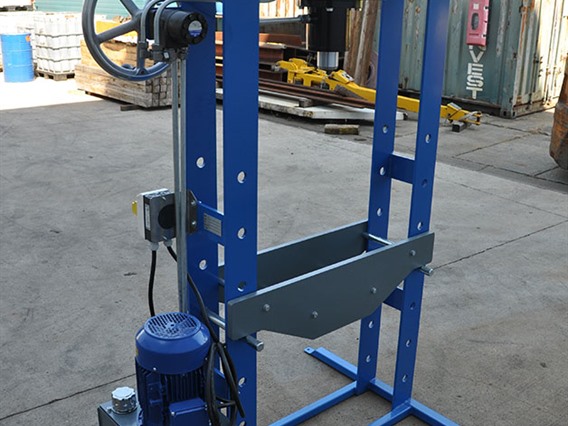

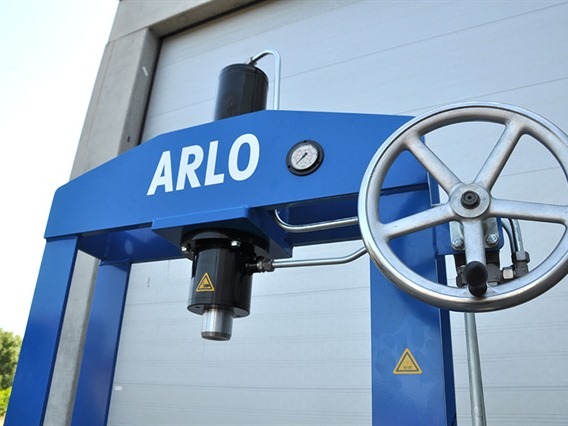

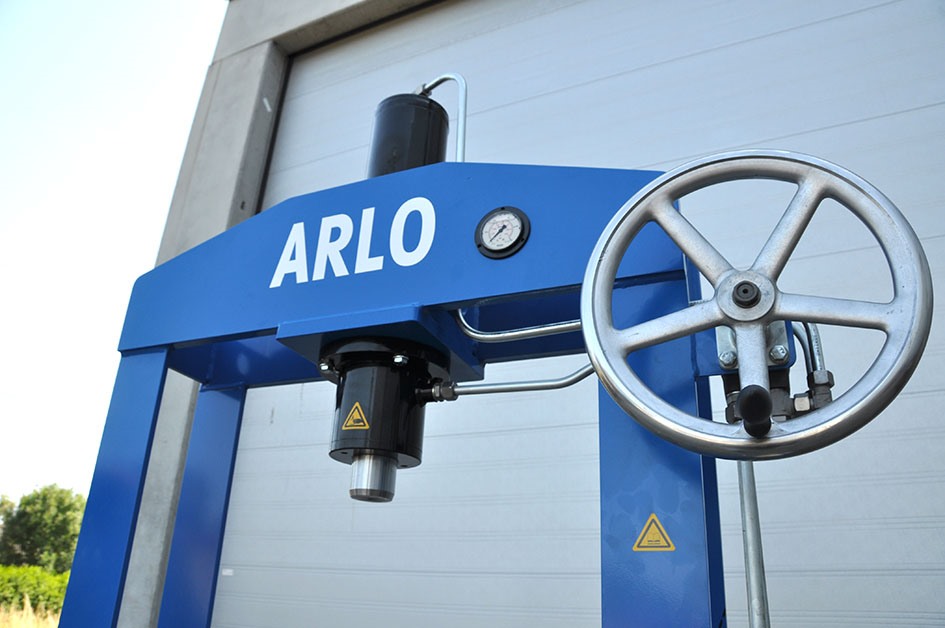

Control via handwheel which uses the same principle as a power steering system. The force can be applied variably, so it's possible to clamp an egg betwee the table and the piston.

Can be used for straightening, installing bearings, broaching, punching, bending, folding,...
Tipo/Modello: 25 ton
Numero di magazzino: M.05 11131
Categoria: [M] Presse idrauliche
Sottocategoria: [M.05] Raddrizzatrici mobili
Il marchio: Arlo HP

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: M.05 11131
