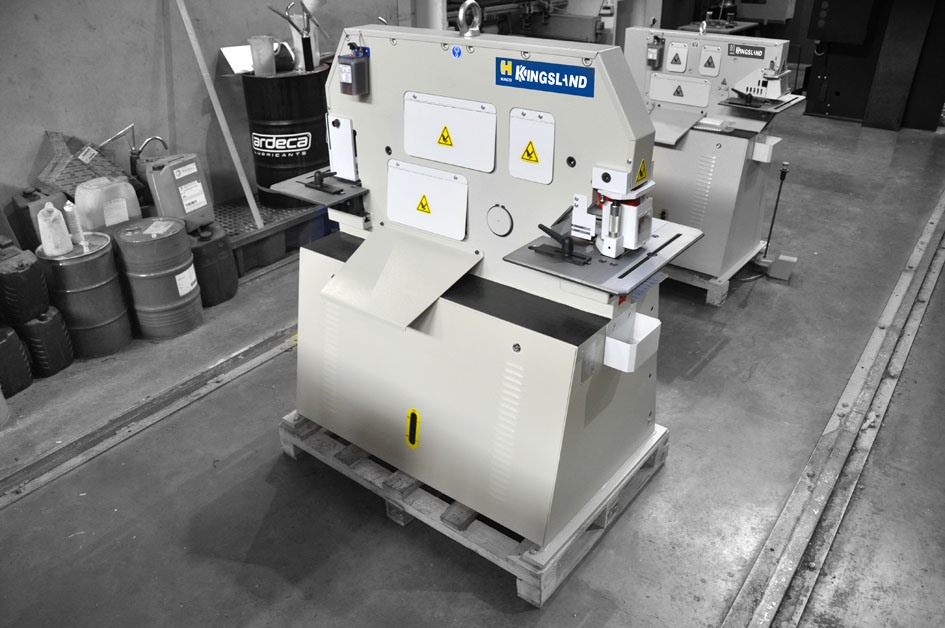

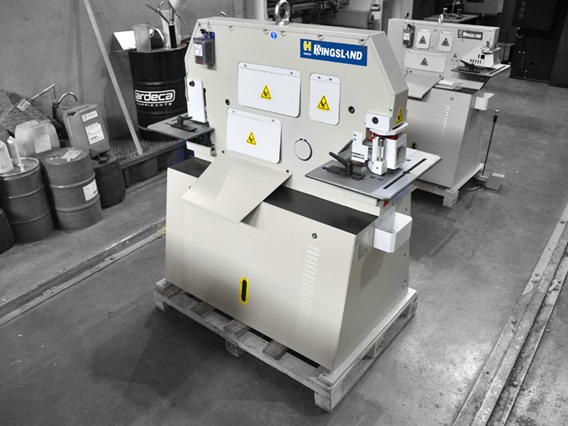

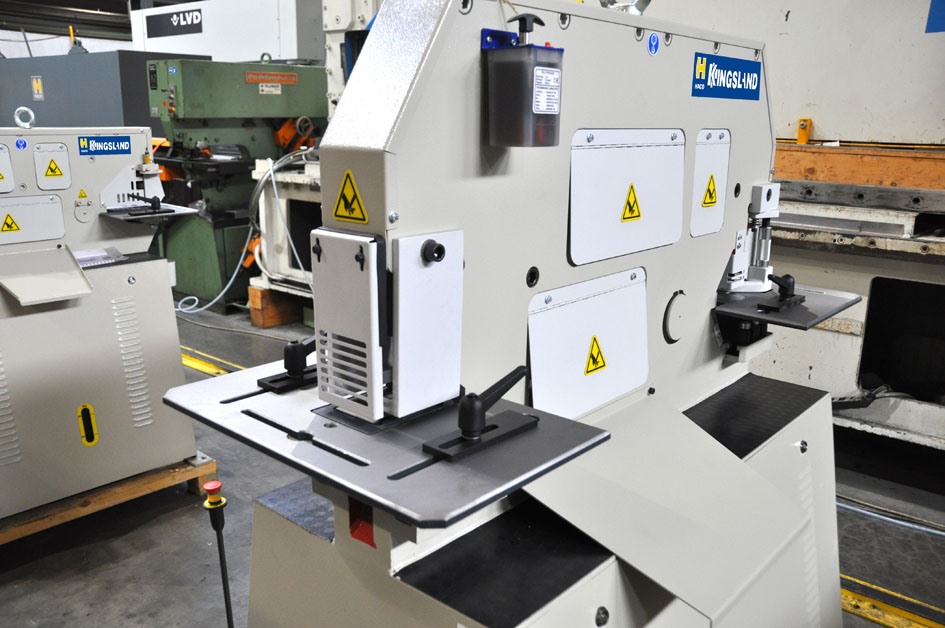

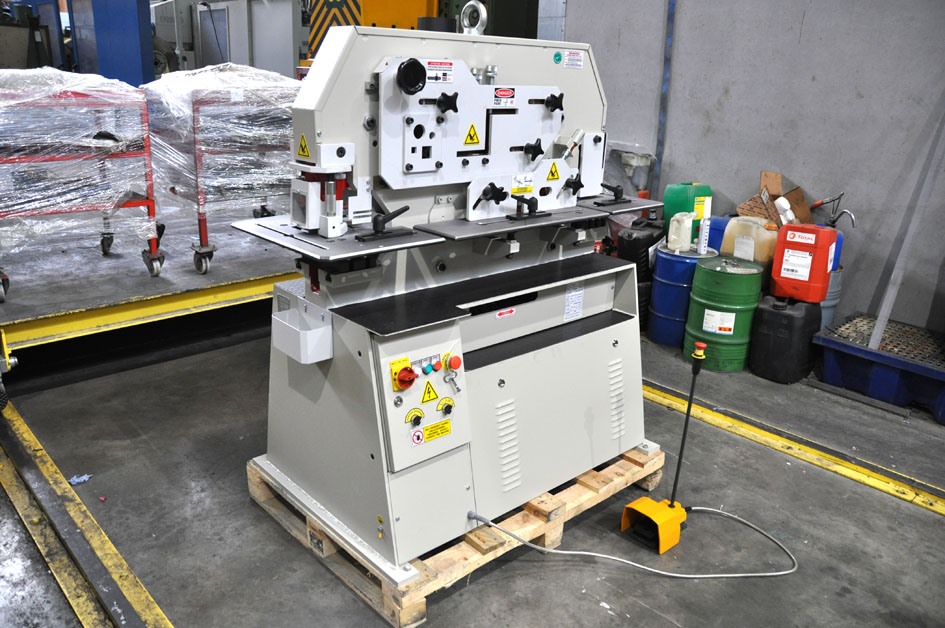

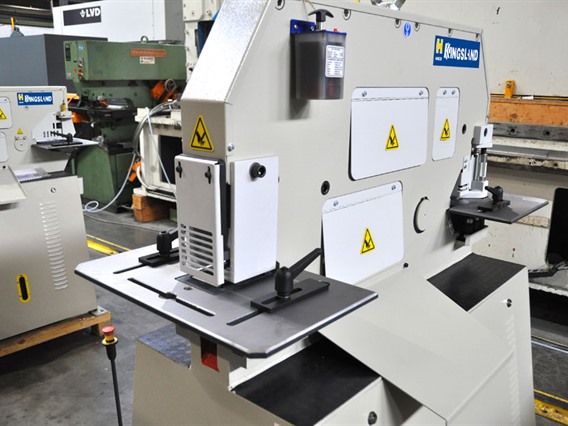

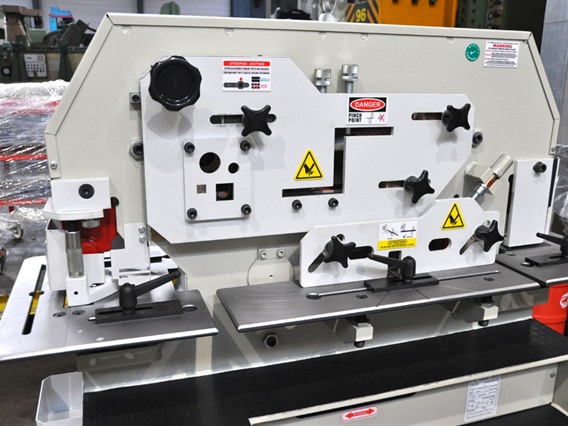

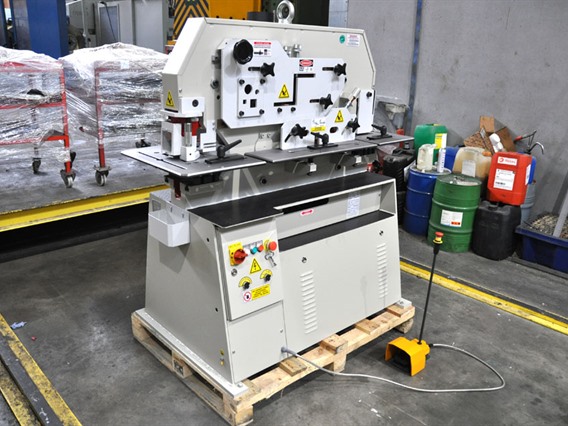

Kingsland 60 Compact

Prodotto aggiunto al suo preferiti

Informazione tecniche

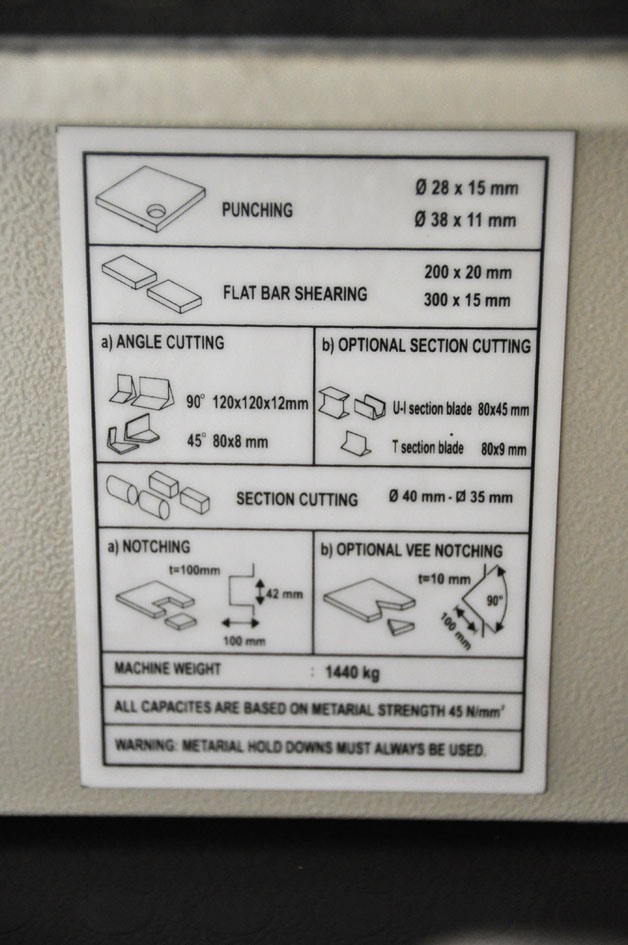

Punchingcapacity60 T
Dia x sheetthickness28 x 15 mm
Max course55 mm
Strokes/min26 str/min
Depth of throat220 mm
Max hole dia.110 mm
Worklevel940 mm

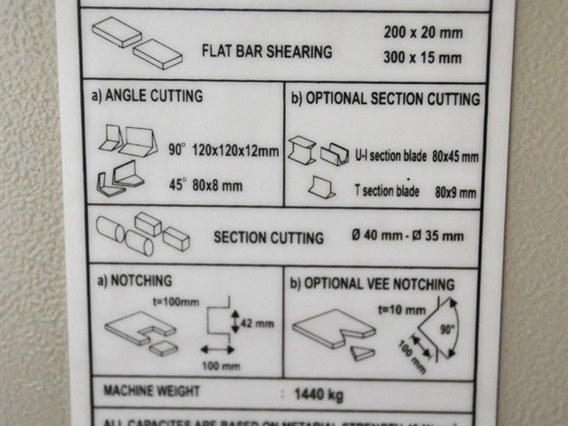

Max cutting-thickness in plate300 x 20 / 375 x 15 mm

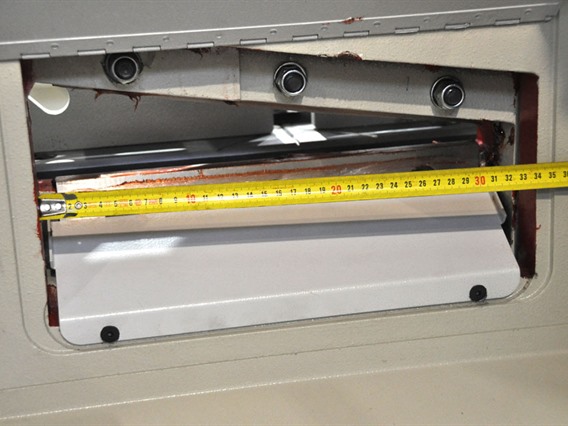

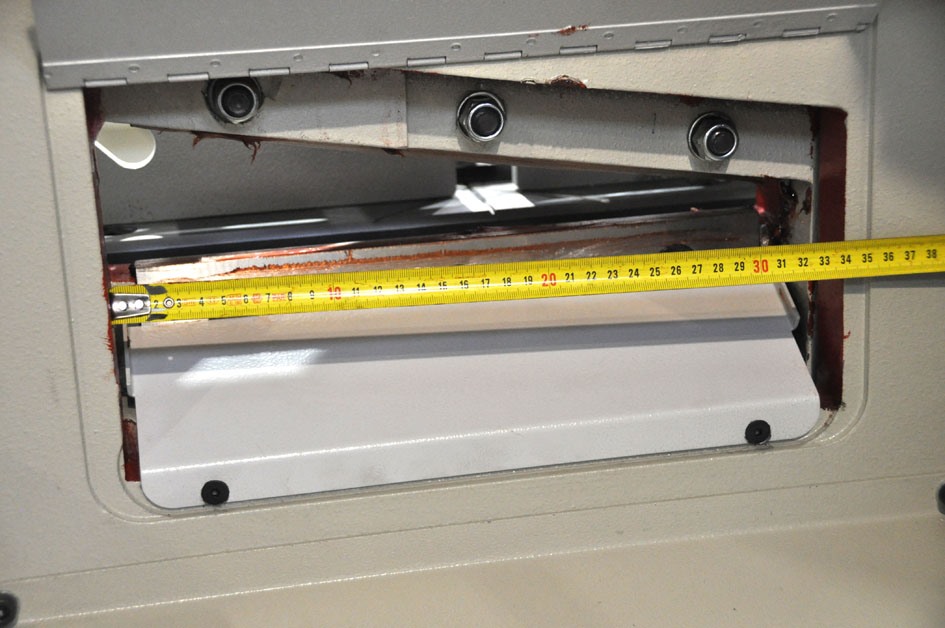

Bladelength380 mm
90°-cut120 x 120 x 12 mm
45°-cut80 x 8 mm
Worklevel1140 mm
Cut to length round/square40 / 35 mm
Cut to length UFN/IPN profiles102 x 51 mm
Cut to length Profile T80 x 10 mm

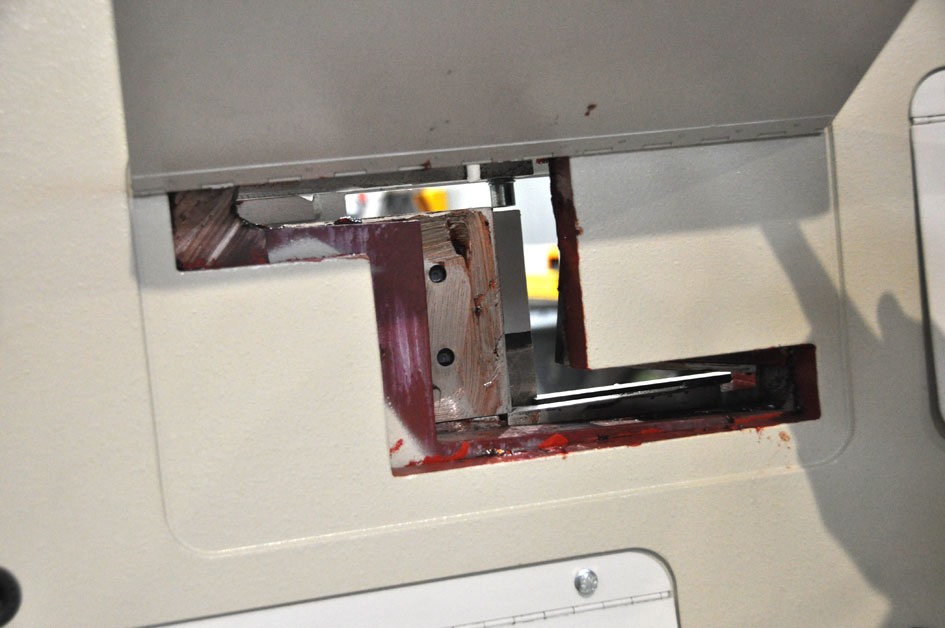

Max material -thickness by notching10 mm
Max wide by notching42 mm
Depth V-profile / rectangle100 mm
Electric motor (power)4 kW
Length 1510 mm
Depth 590 mm
Height1570 mm
Weight1250 kg

Informazioni supplementari

Tooling is the same as Geka / Kingsland
Standard punch is dia 22 mm

Bending examples with bending dia (optional): 250 x 15 mm / 500 x 3 mm
Tipo/Modello: 60 Compact
Numero di magazzino: P.13 0655
Categoria: [P] Cesoie, punzonatrici universali, linee di taglio trasversale e longitudinale, Lockformer e segatrici a nastro
Sottocategoria: [P.13] Punzonatrice universale
Il marchio: Kingsland

Numero di magazzino: P.13 0655
