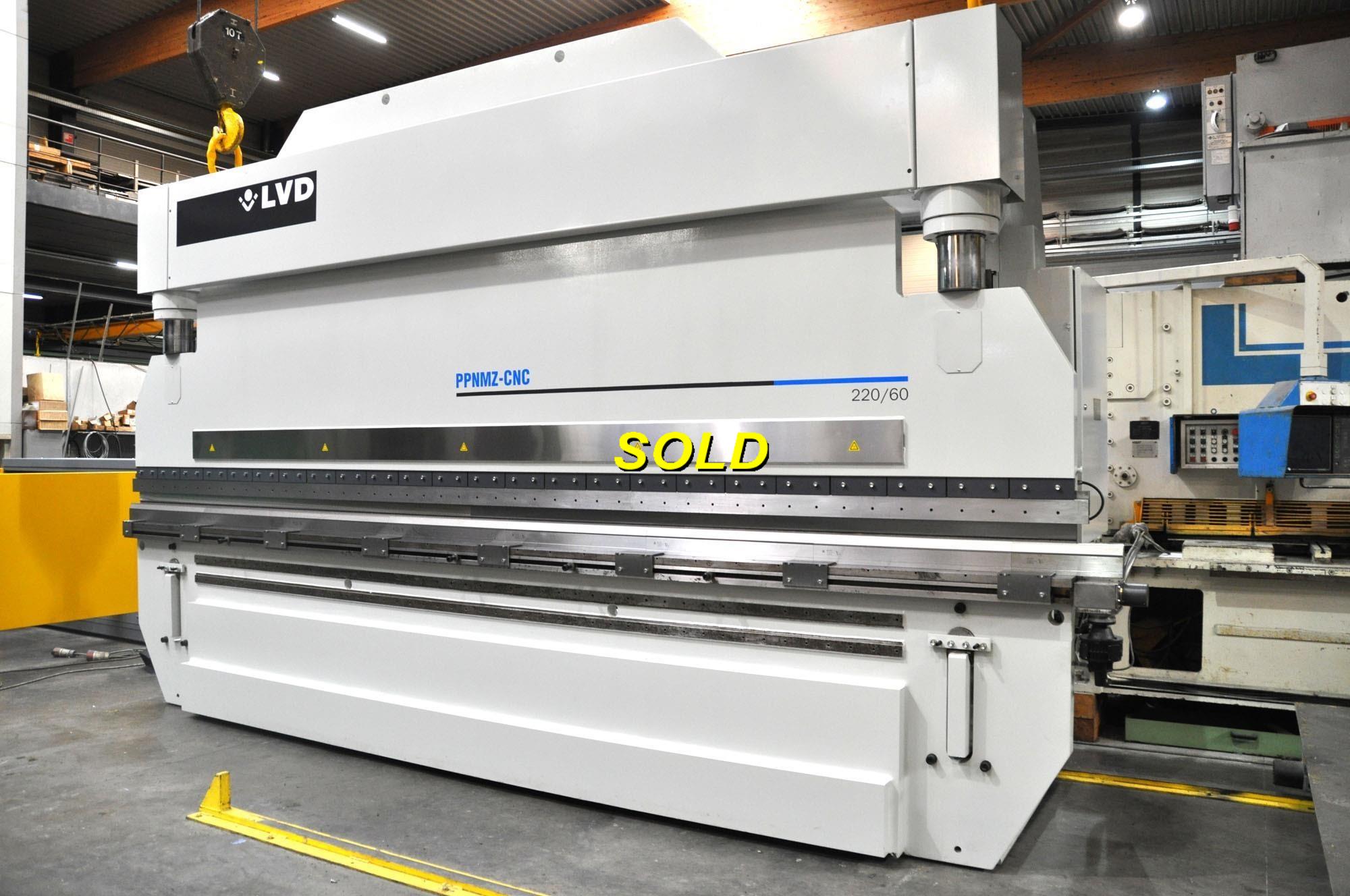

LVD PPNMZ 220 ton x 6100 mm CNC
Informazione tecniche
- Capacity220 ton x 6100 mm
- BackgaugeCNC
- Controltouchscreen graphic
- Passage between uprights5050 mm
- Max stroke250 mm
- Max distance between table -- ram500 mm
- Depth of throat300 mm
- Table width250 mm
- Locking speed80 mm/sec
- Working speed8 mm/sec
- Returning speed45 mm/sec
- Electric motor (power)15 kW
- Length6100 mm
- Height3710 mm
- Weight33,4 ton
Informazioni supplementari
Numero di magazzino: O.01 12844
-
Venduto
