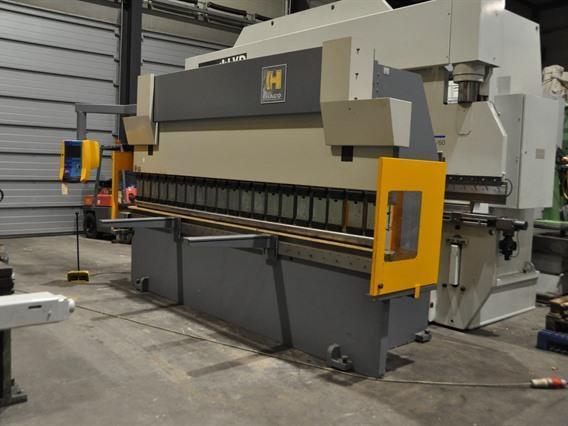

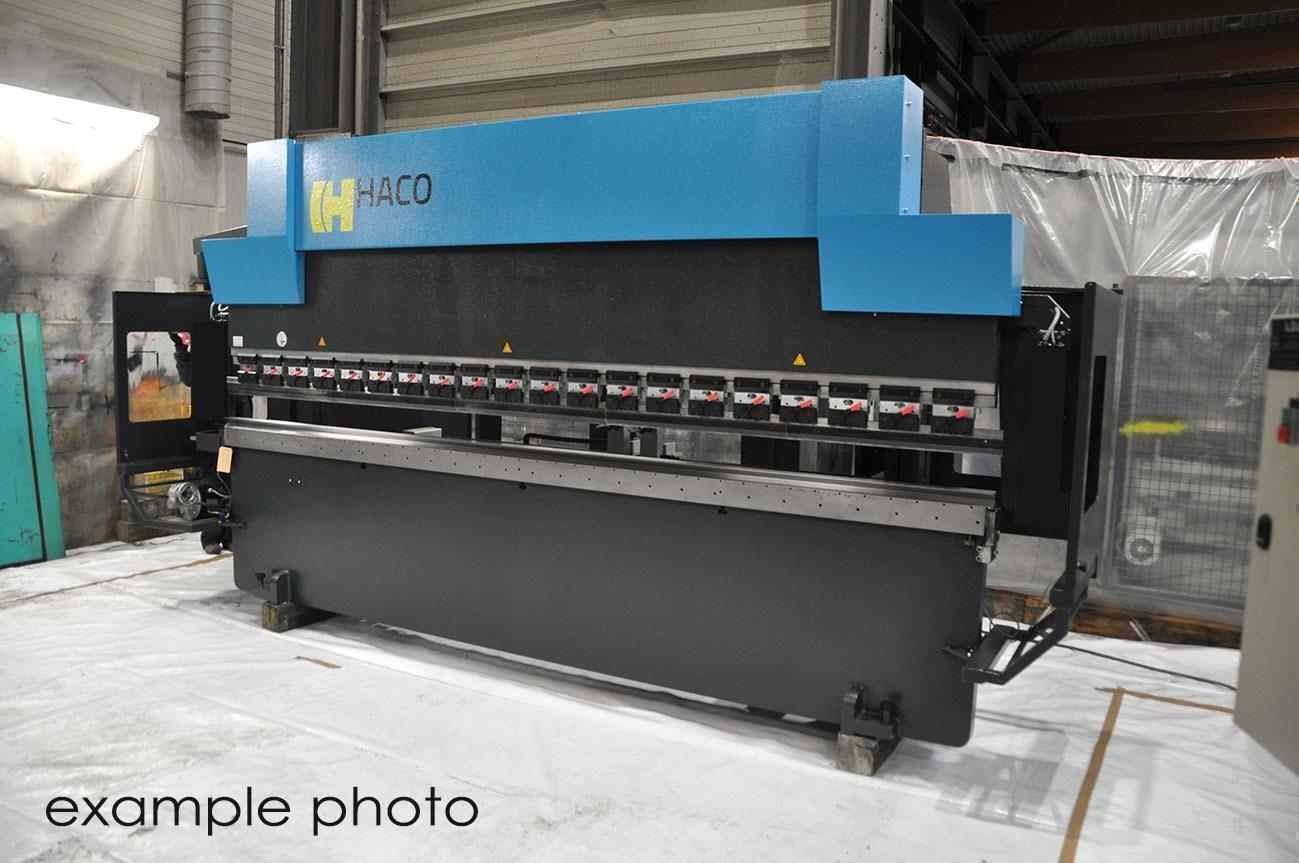

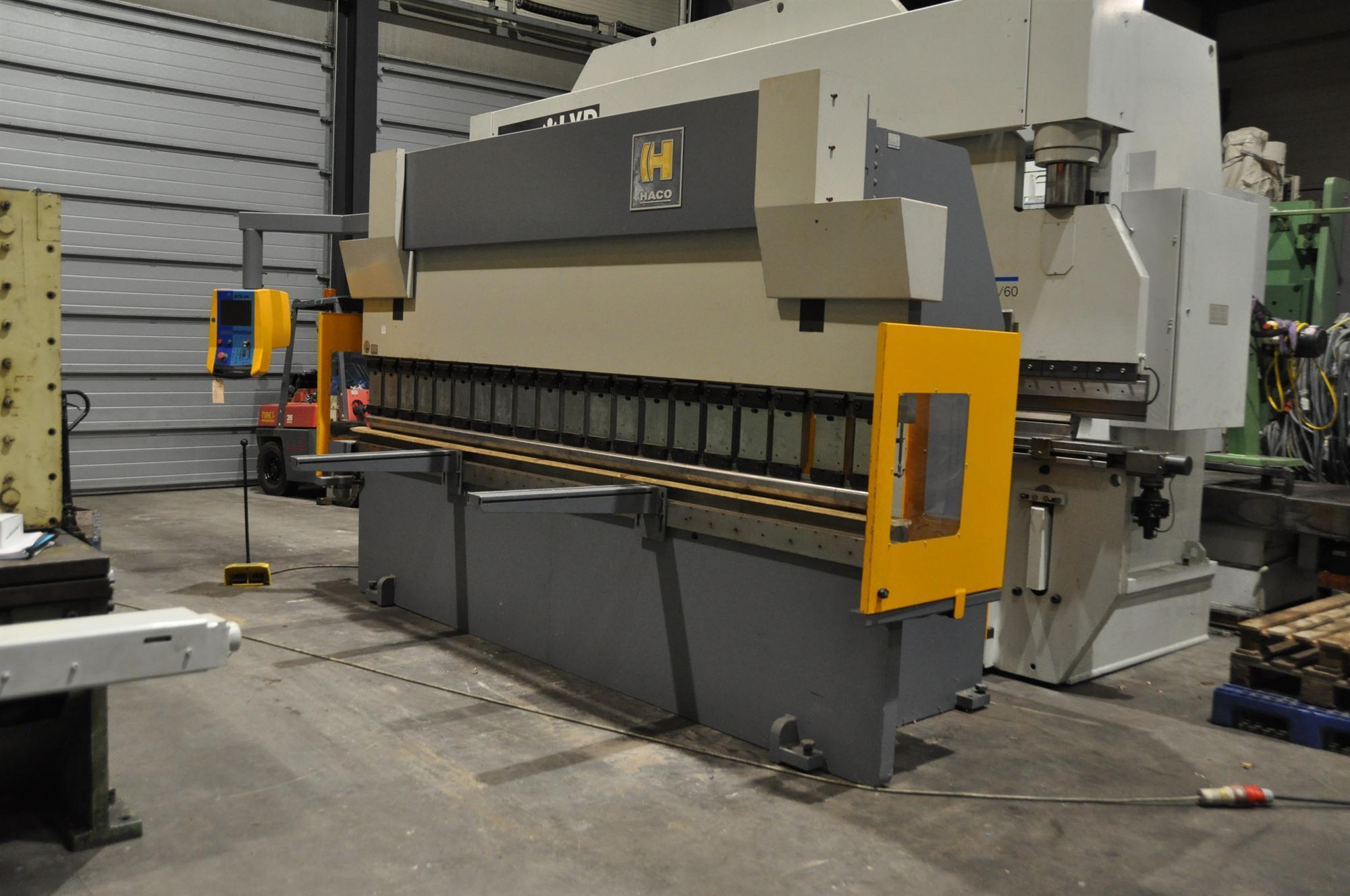

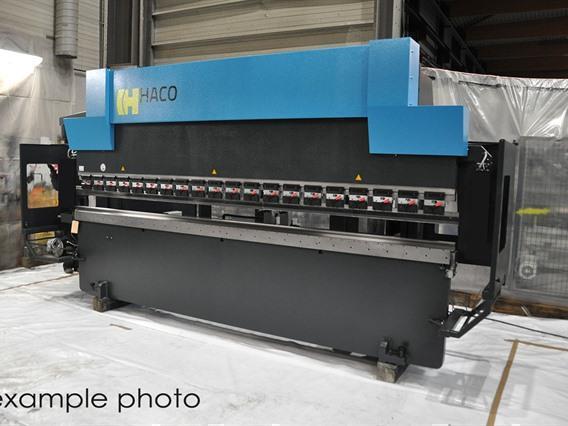

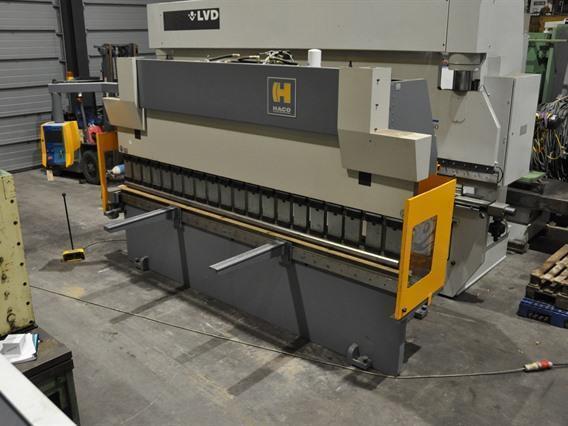

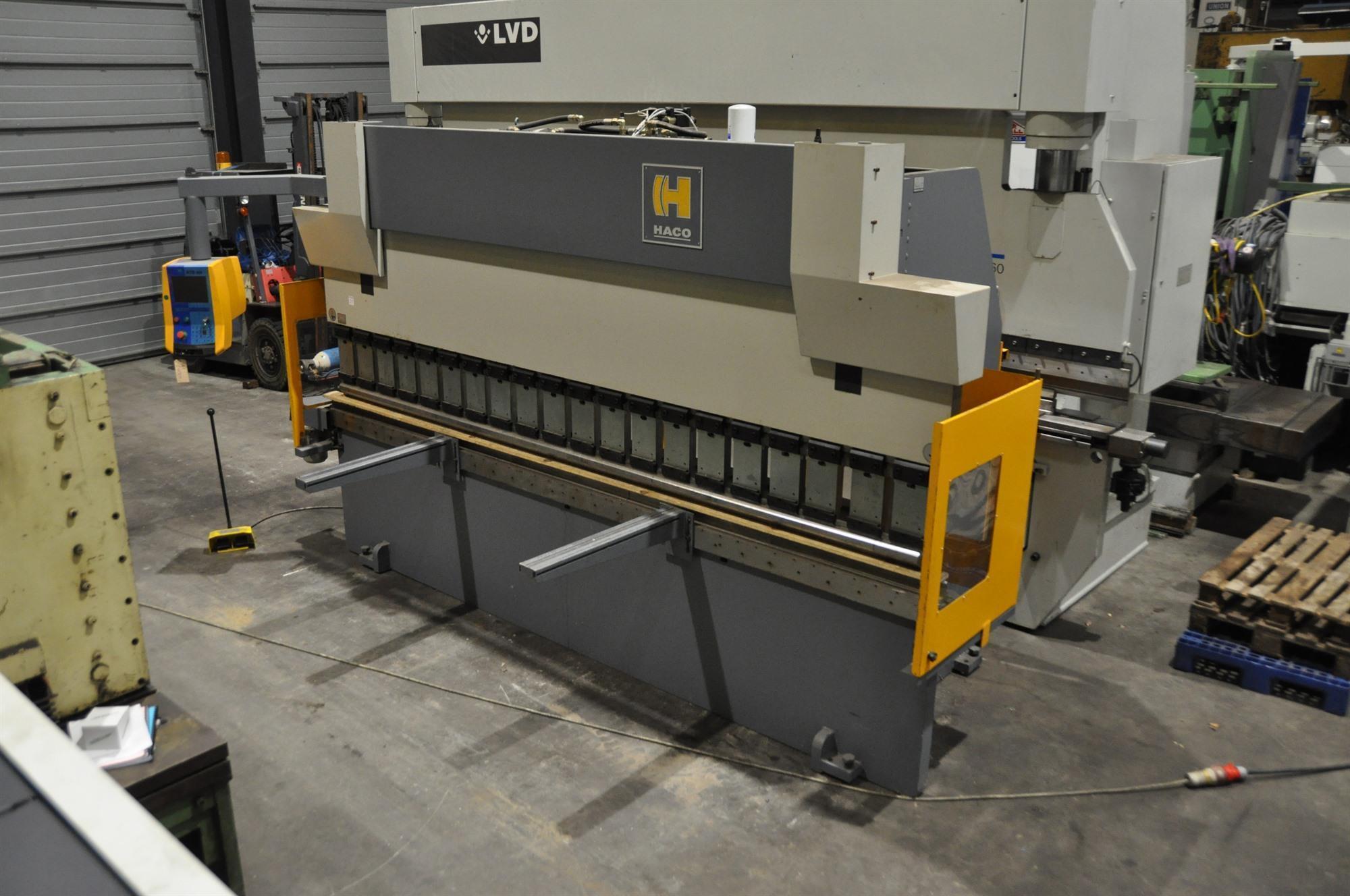

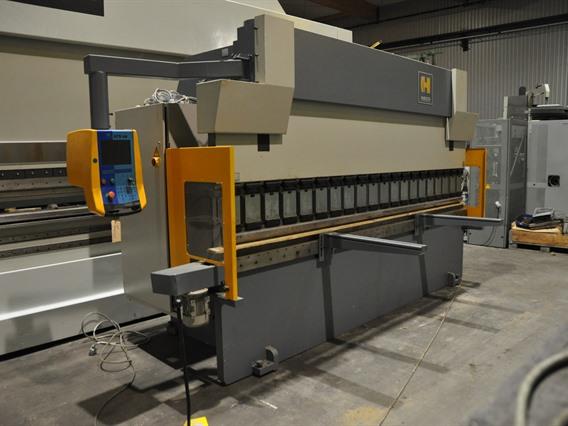

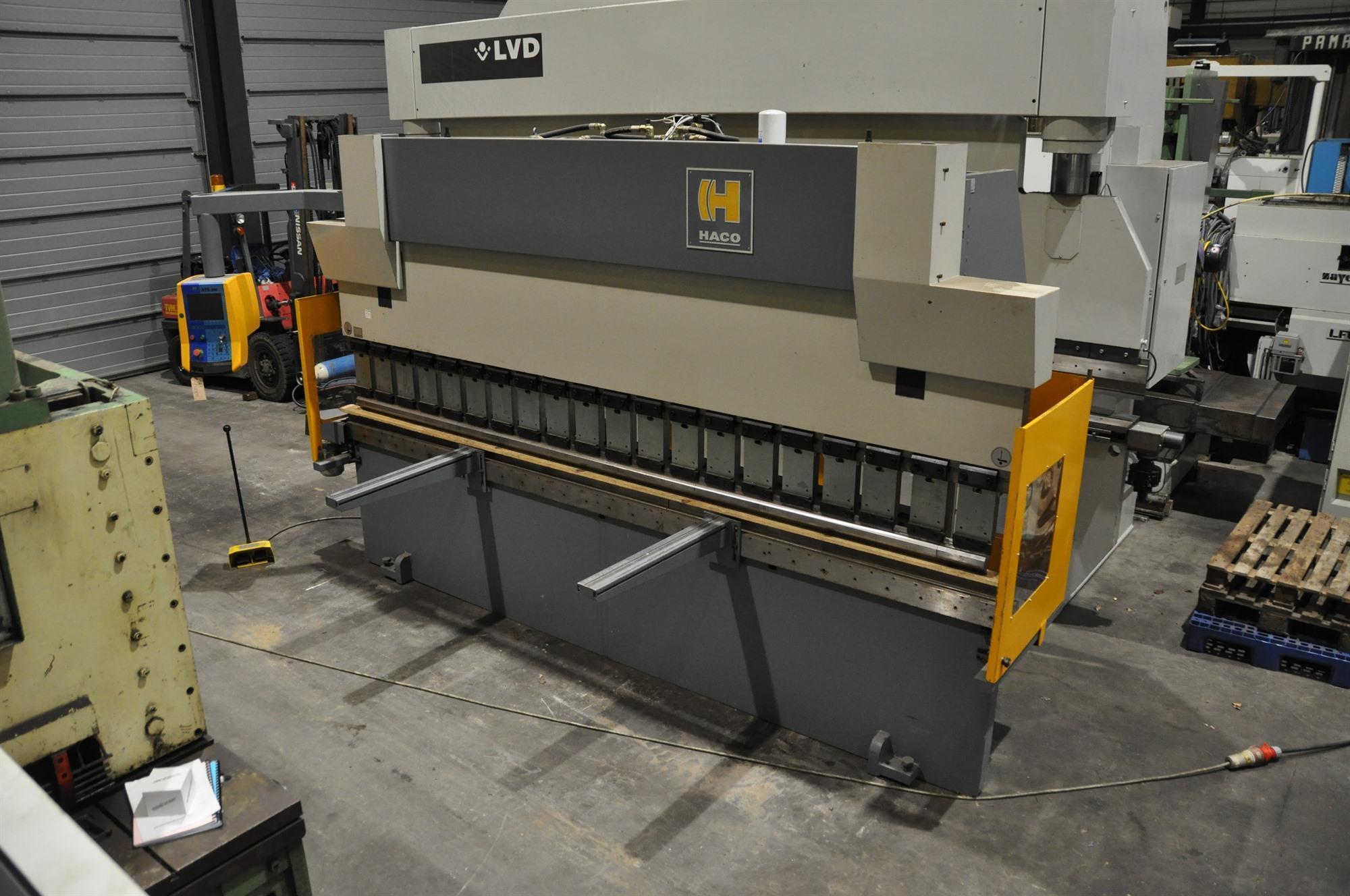

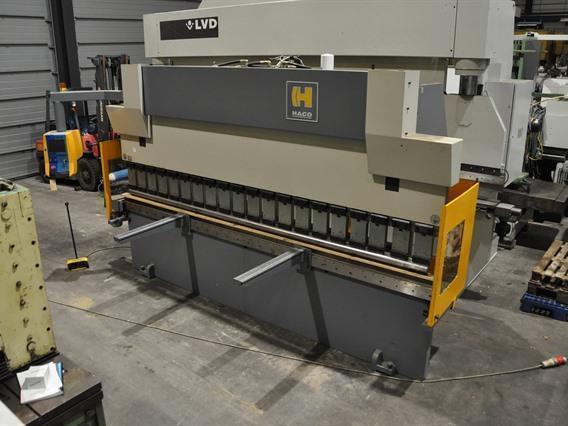

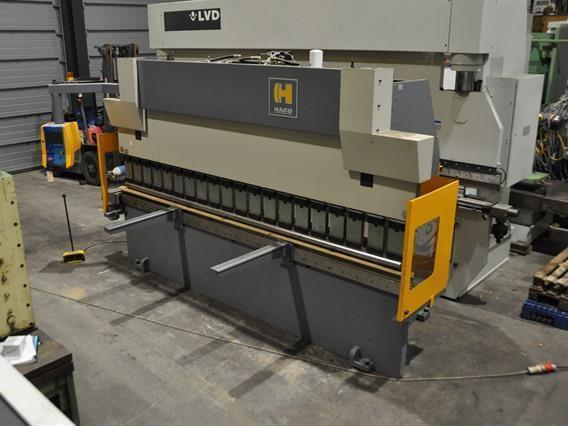

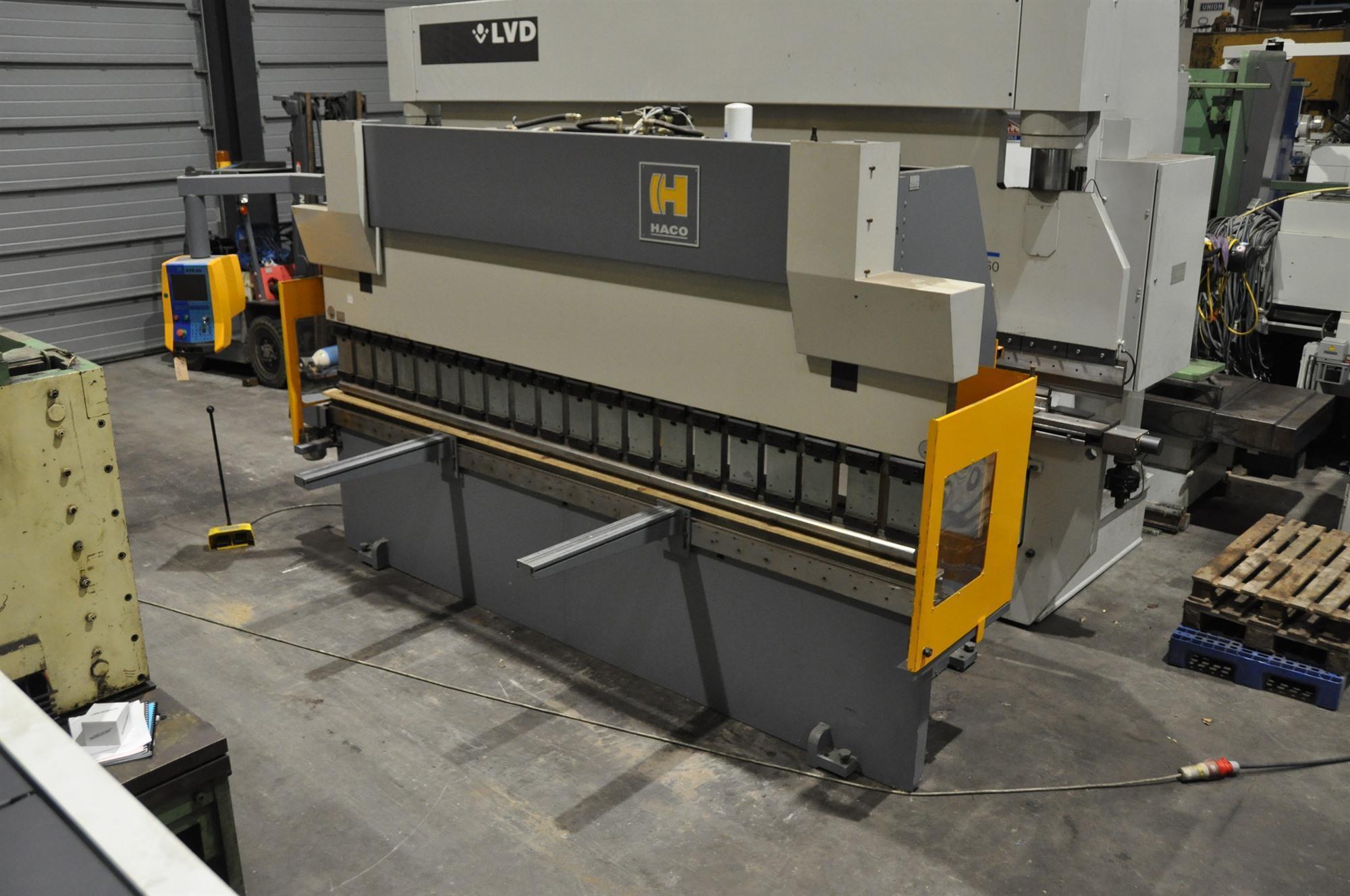

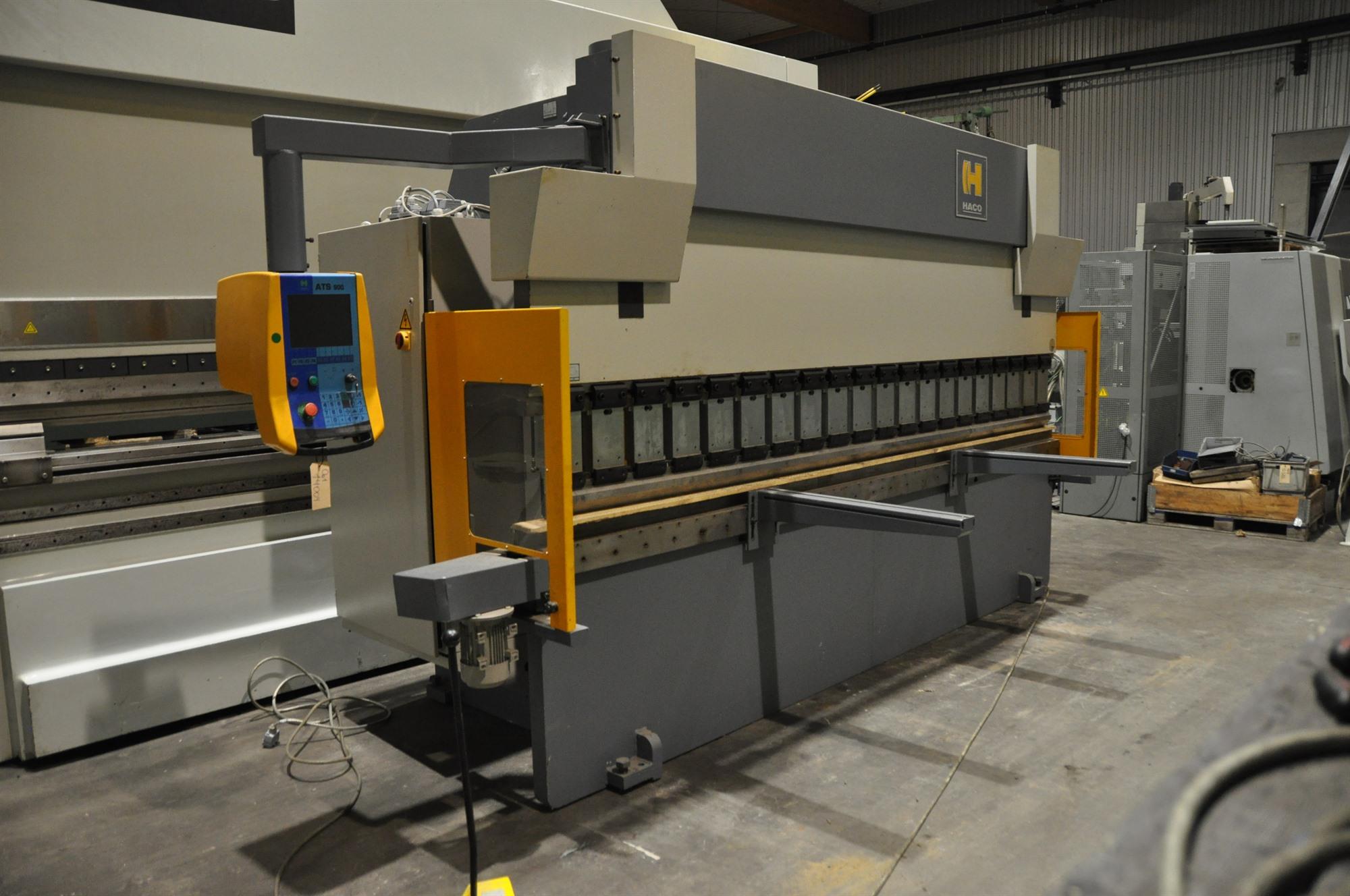

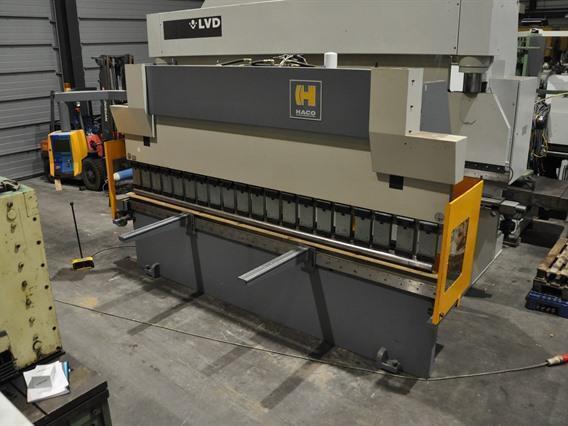

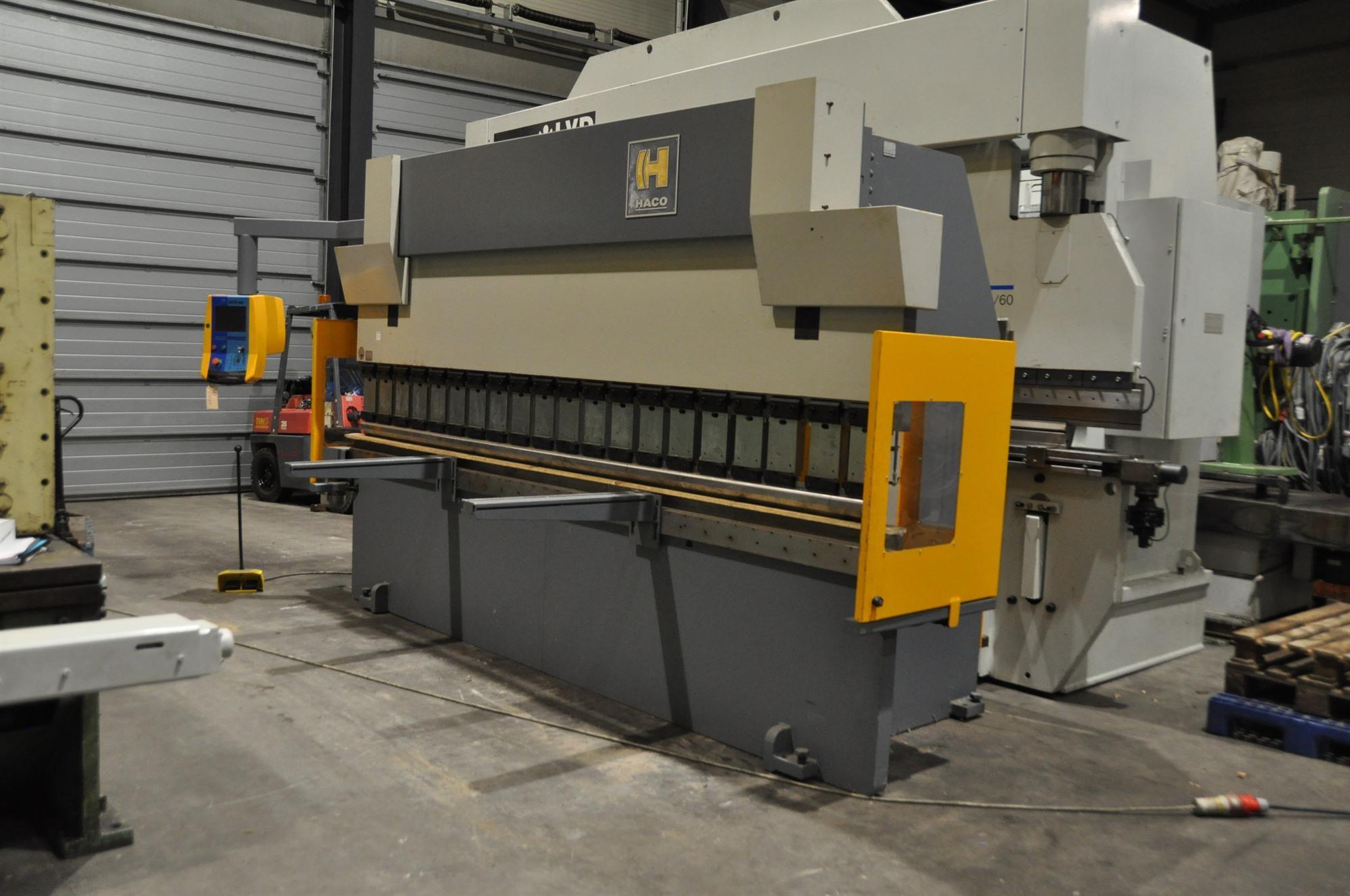

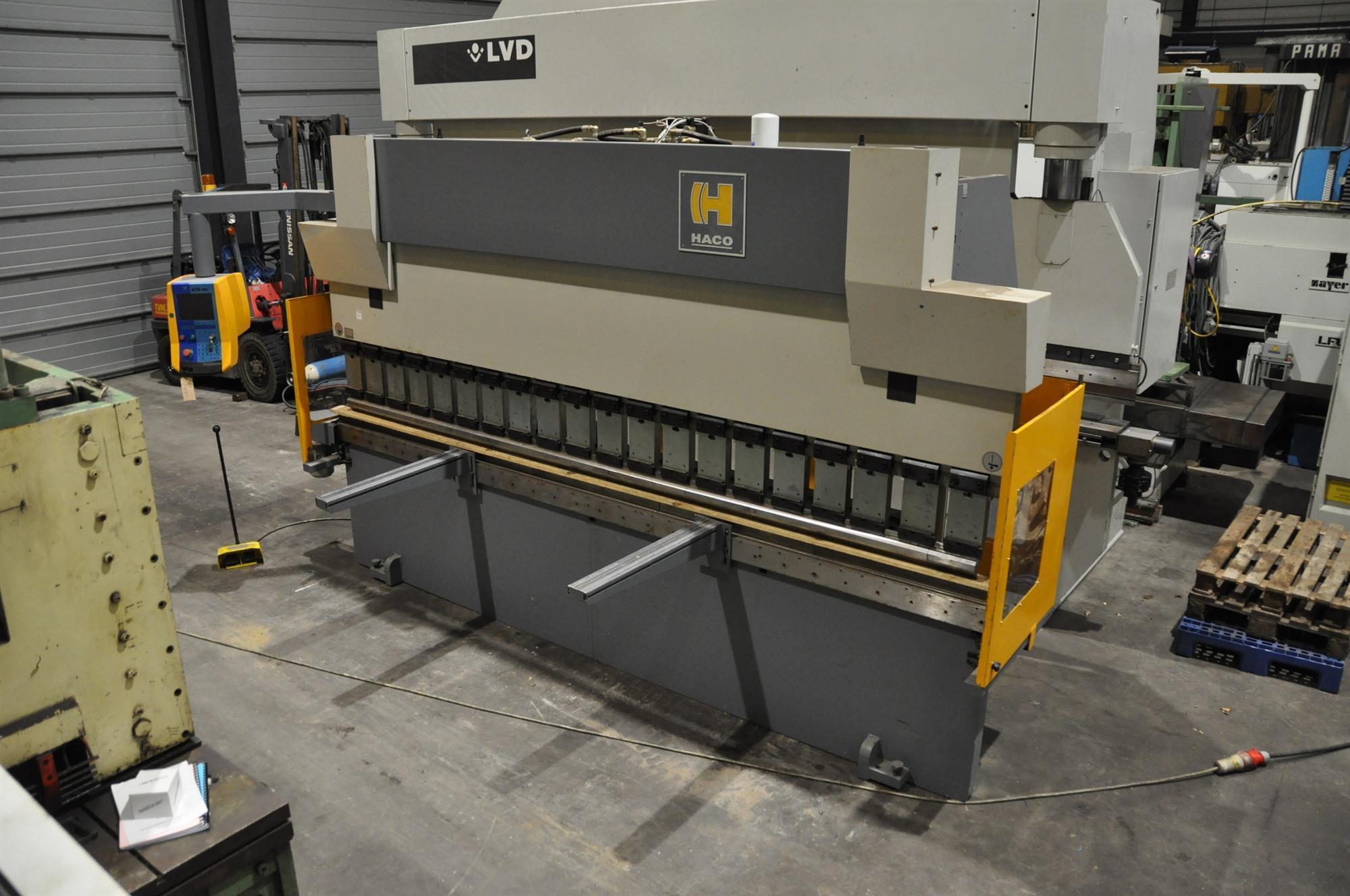

Haco ERMS 100 ton x 4100 mm CNC

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Capacity100 ton x 4100 mm

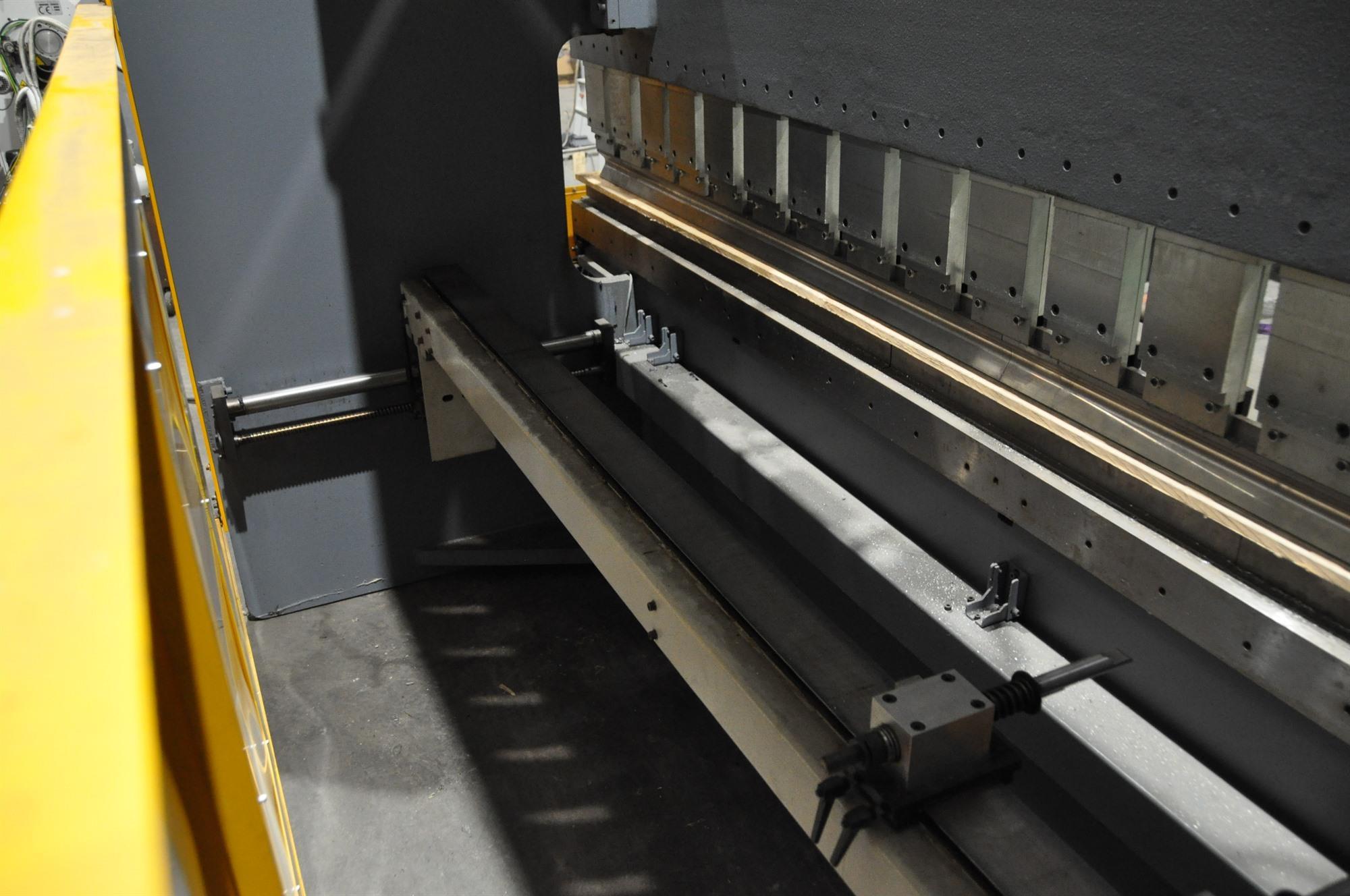

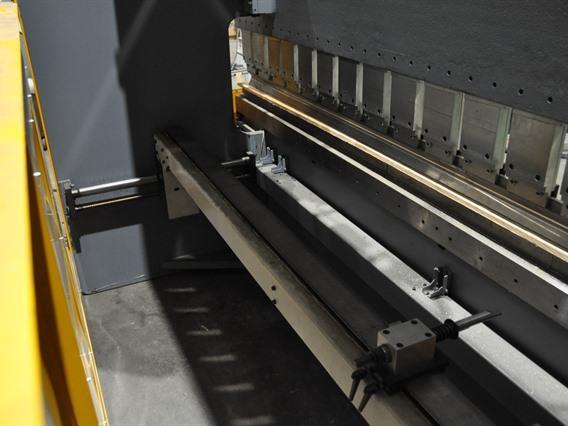

BackgaugeCNC

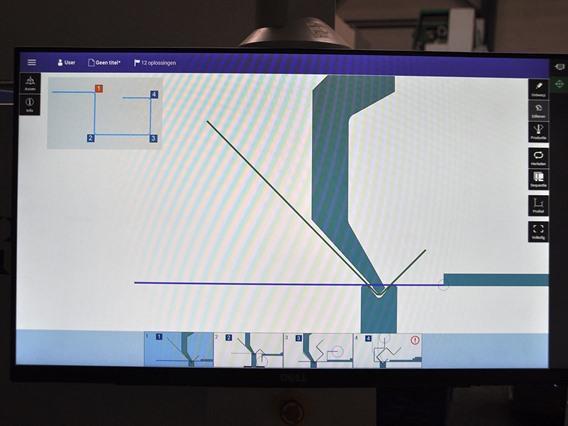

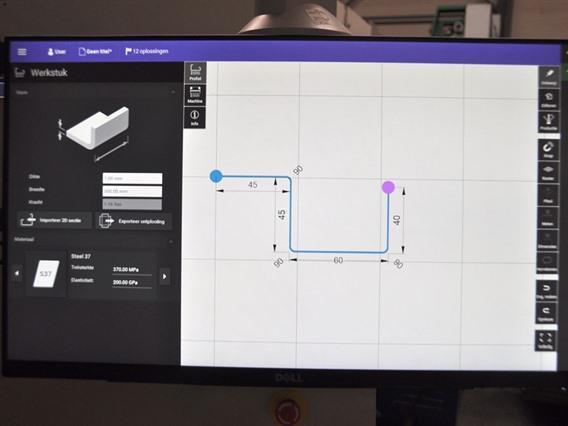

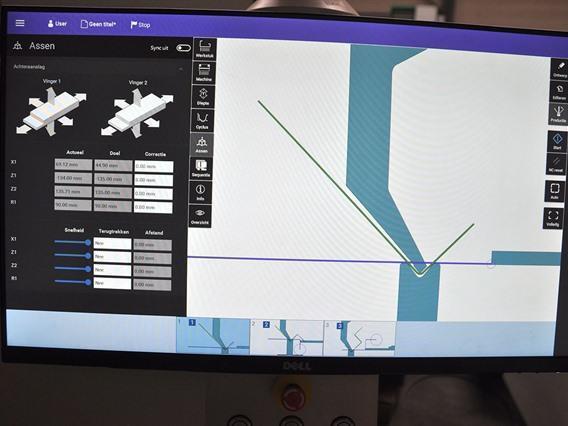

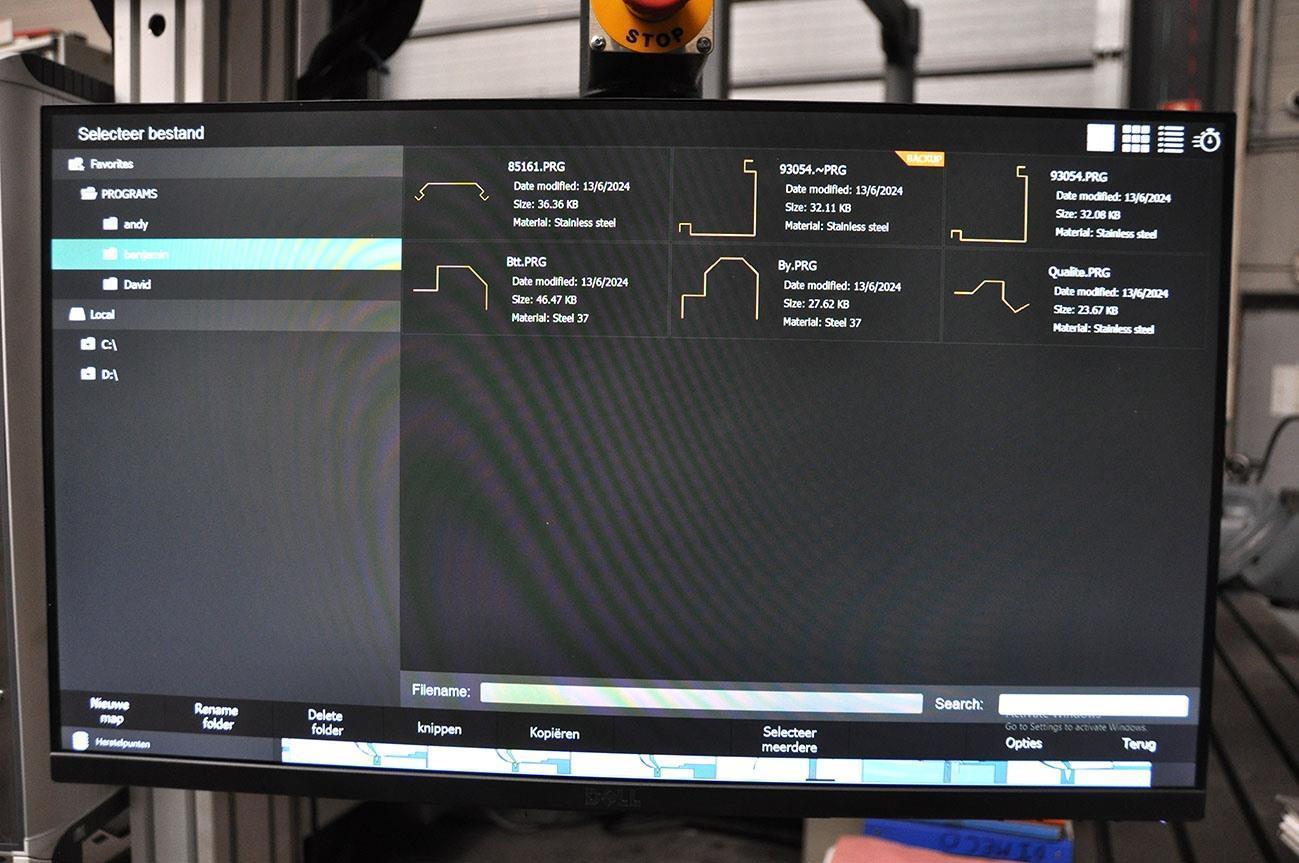

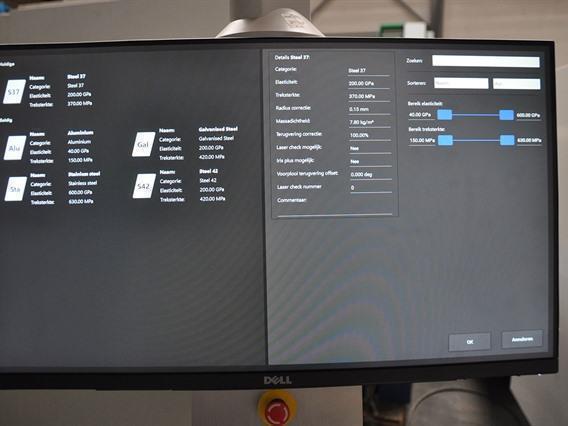

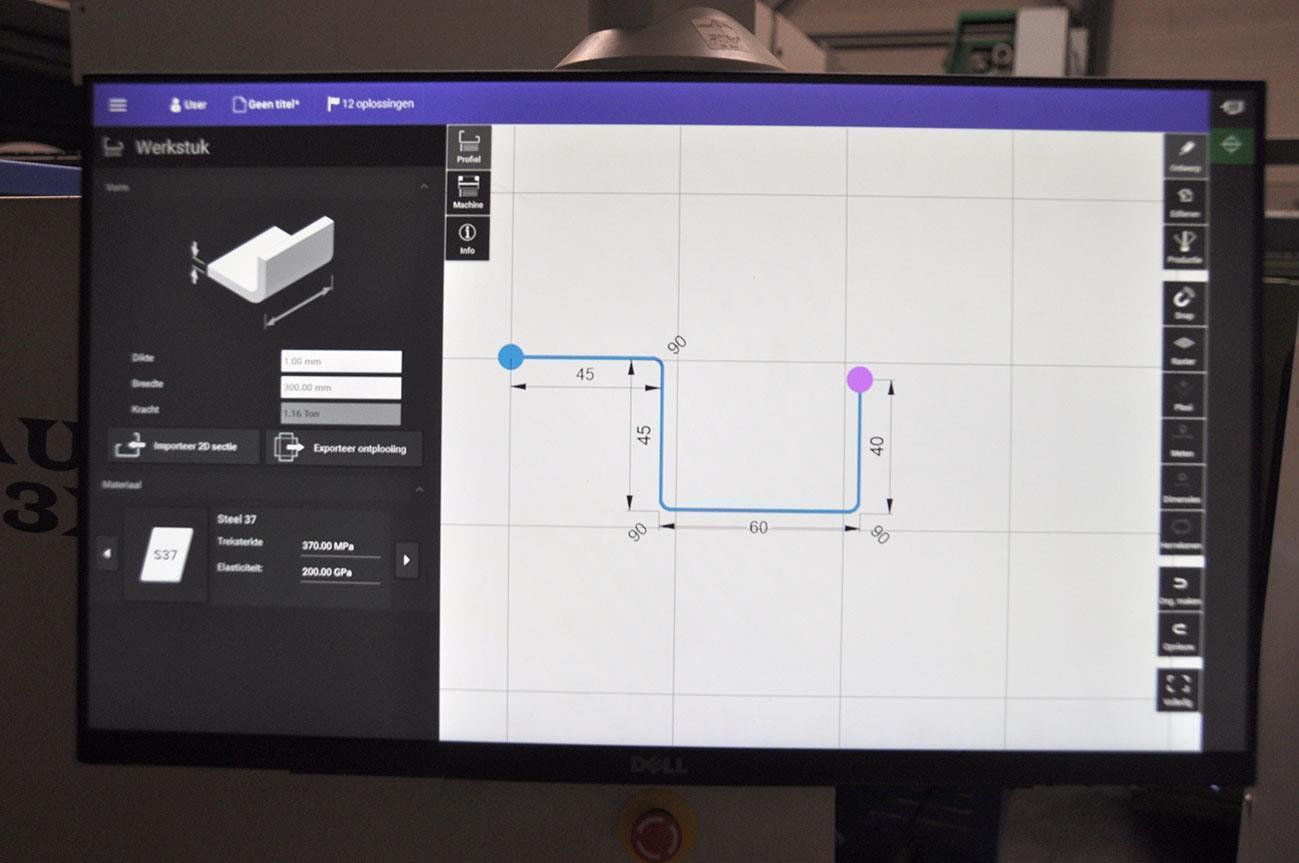

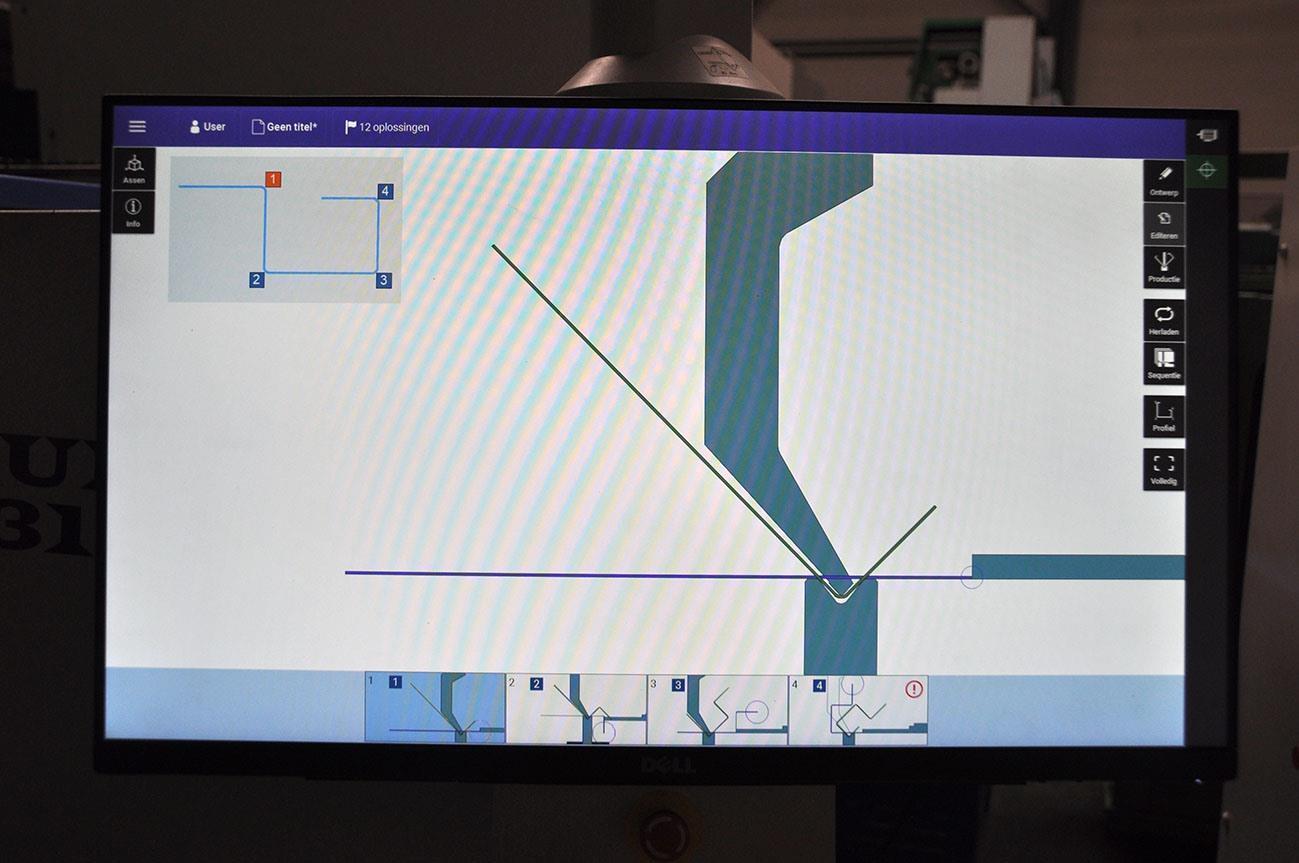

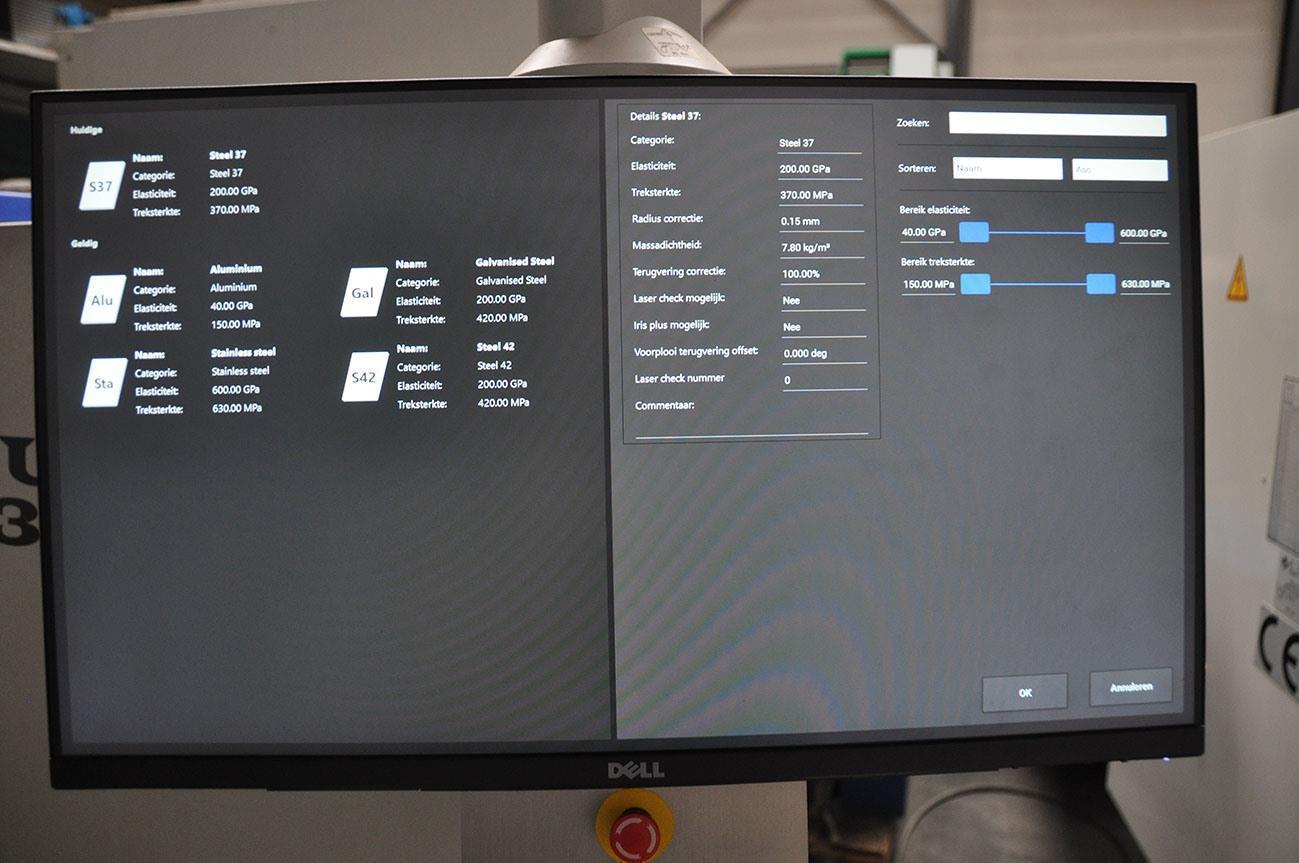

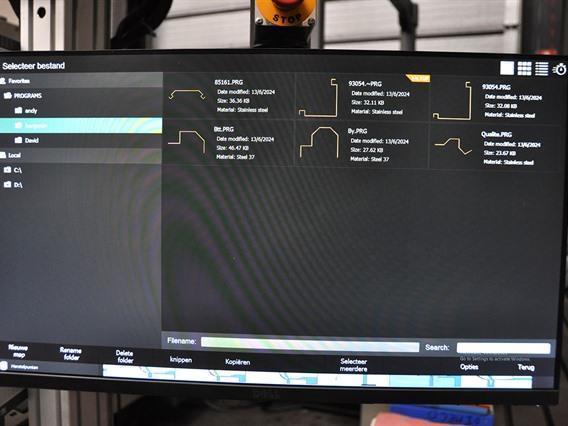

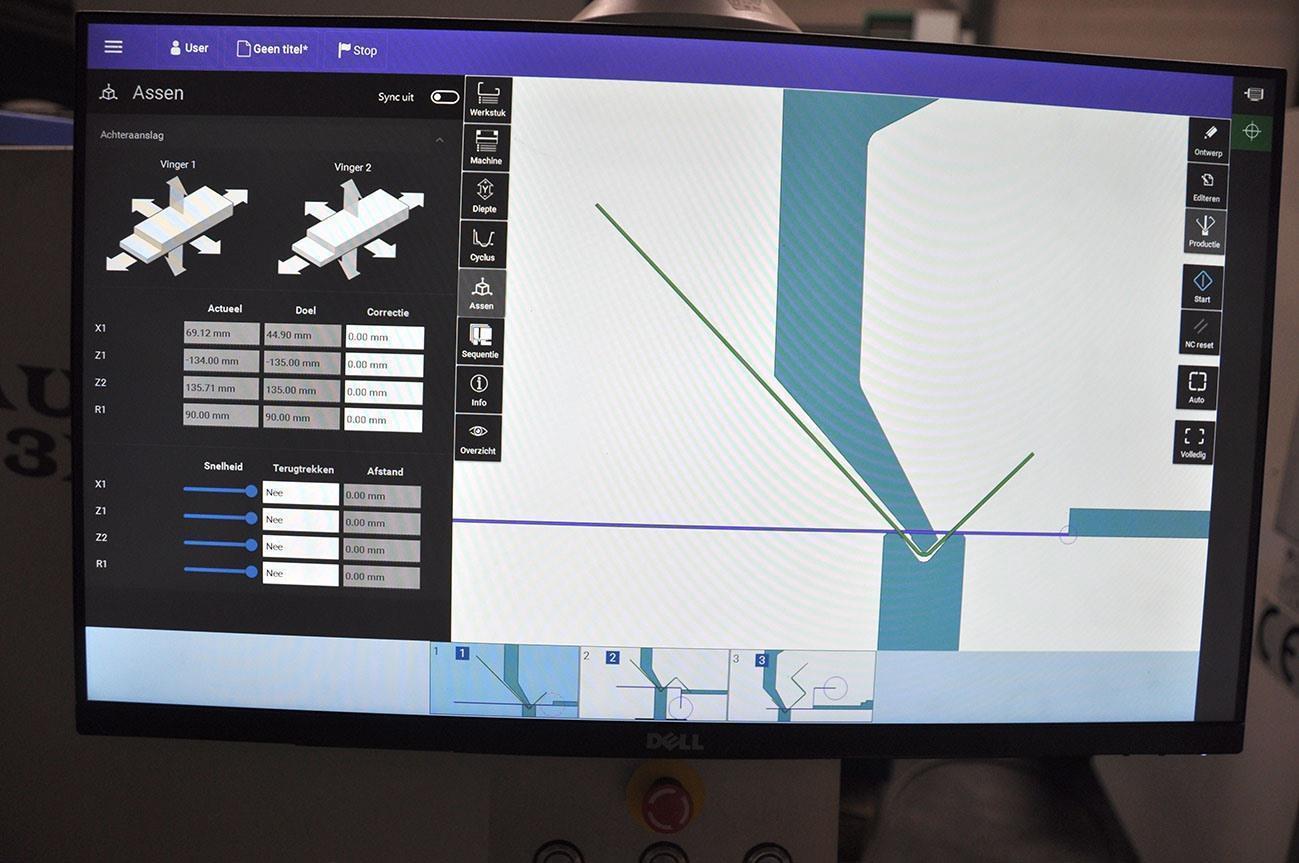

Control2D Touch
Passage between uprights3150 mm
Max stroke200 mm
Max distance between table -- ram590 mm
Depth of throat250 mm
Locking speed100 mm/sec
Working speed10 mm/sec
Returning speed100 mm/sec
Electric motor (power)11,4 kW
Length4700 mm
Depth1600 mm
Height2650 mm
Weight9,1 ton

Informazioni supplementari

5 axes: Y1 / Y2 / X / R / V
Option > enlarged opening: 590 mm (standard 400 mm)
Tipo/Modello: ERMS 100 ton x 4100 mm CNC
Numero di magazzino: O.01 14004
Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
Sottocategoria: [O.01] Presse piegatrici idrauliche
Il marchio: Haco

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: O.01 14004
