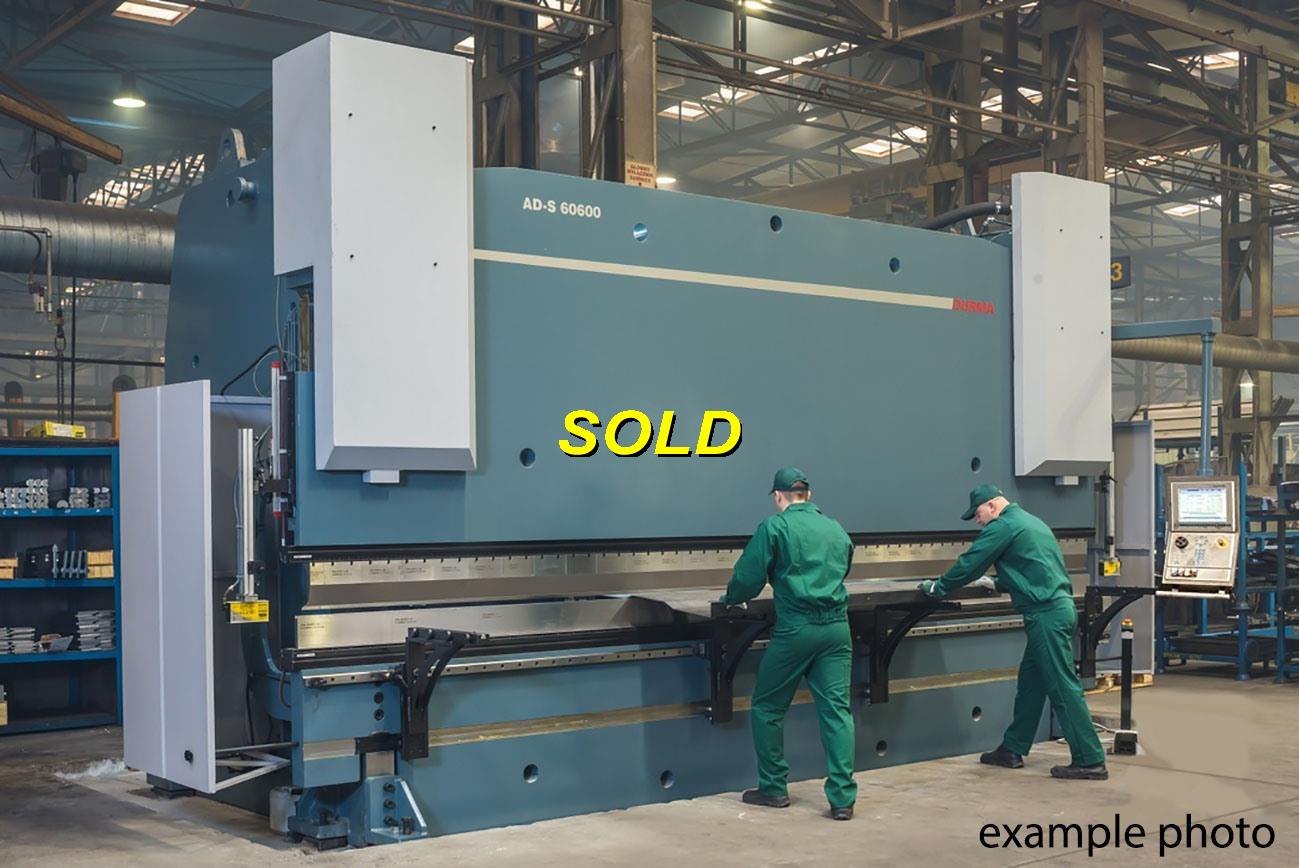

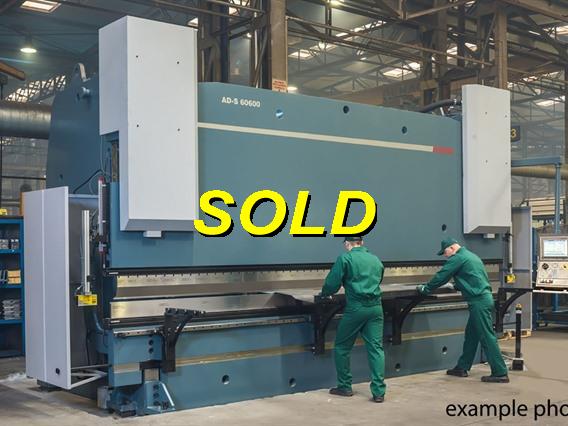

Durma AD-S 600 ton x 6050 mm CNC

Prodotto aggiunto al suo preferiti

Informazione tecniche

Capacity600 ton x 6050 mm
BackgaugeCNC
ControlDelem DA-66W
Passage between uprights5100 mm
Max stroke365 mm
Max distance between table -- ram700 mm
Depth of throat750 mm (option !)
Locking speed120 mm/sec
Working speed10 mm/sec
Returning speed100 mm/sec
Electric motor (power)60 kW (option !)
Length7600 mm
Depth3400 mm
Height4000 mm
Weight68 ton

Informazioni supplementari

5 axes Y1 / Y2 / X / R / V
Type: AD-S 60600
backgauge with 4 fingers
4 movable plate supports
Main chassis on top of grond
Table sits 1000 mm below floorlevel
laser security
Amada system lower tooling

Features enlarged depth of throat: 750 mm (standard: 510 mm)
Features bigger pump of 60 kW for higher bending speeds (standard: 45 kW)

Available in early summer 2023!

Optional:
> can be retrofitted to latest Delem control
Tipo/Modello: 600 ton x 6050 mm CNC
Numero di magazzino: O.01 12914
Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
Sottocategoria: [O.01] Presse piegatrici idrauliche
Il marchio: Durma AD-S

Numero di magazzino: O.01 12914

Venduto
