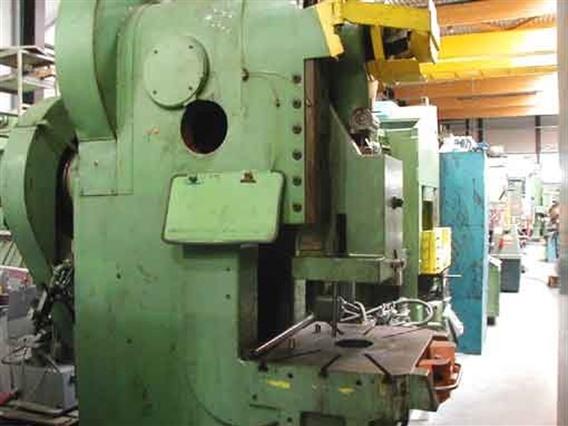

Presse eccentriche a portale ARAL 160 ton
Informazione tecniche
- Capacity160 T
- ClutchLamellen
- Deph of throat400 mm
- Max adjustable stroke10 > 325 m
- Workingspeed50 str /min
- Passage between uprights440 mm
- Controldouble hands
- Distance between table -- ram475 mm
- Table area940 x 700 mm
- Dia table hole270 - 400 mm
- Table fixed / sliding860 mm
- Ram area (L x D)600 x 400 mm
- Punchholder dia58 mm
- Max ram adjustment100 mm
- Electric motor (power)15 pk
- Courant needed380 v
- Length L -- R1300 mm
- Depth F -- B2400 mm
- Hight3400 mm
- Weight12000 kg
Informazioni supplementari
Numero di magazzino: N.05 1205
