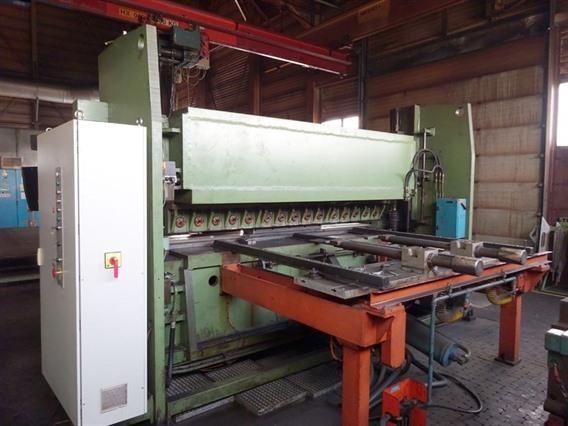

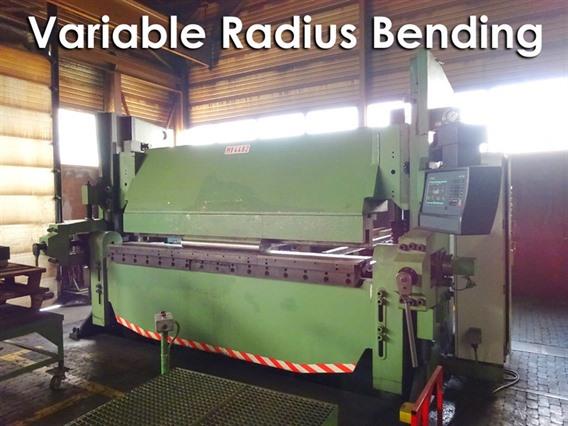

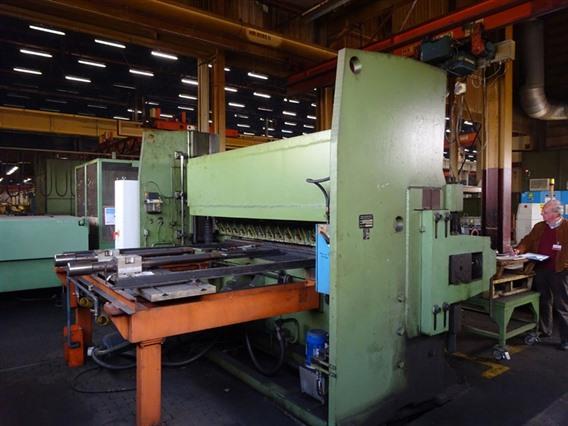

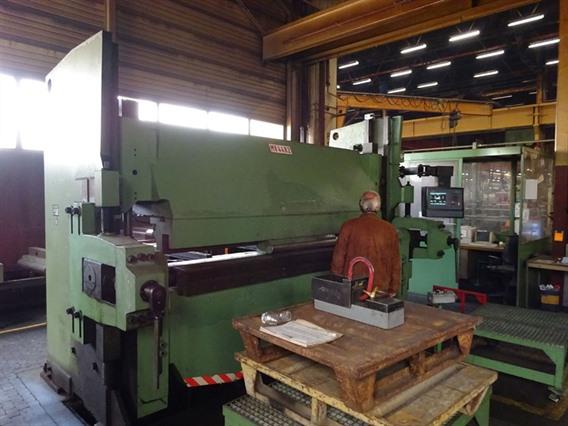

Favrin PHLS 3100 x 30 mm CNC

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Typehydraulic
Max worklength3100 mm
Eletric motor (power)75 HP
Courant needed380V
Weight32 ton

Informazioni supplementari

Machine was previously used to bend Hardox workpieces.

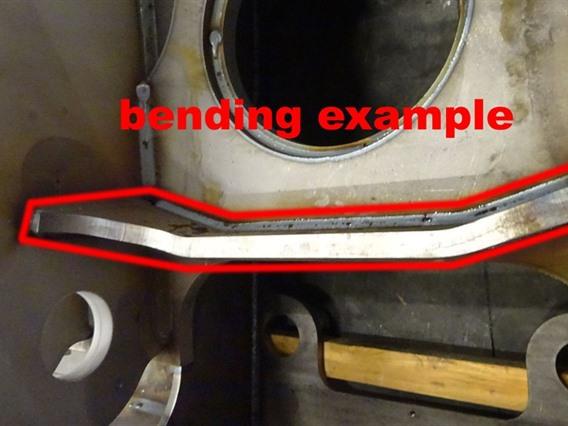

bending capacities examples:

- 3100 x 25 mm > multi stage bending for large radiuses

- 2500 x 30 mm > multi stage bending for large radiuses

- 3100 x 17 mm > single stage bending

- 2500 x 25 mm > single stage bending

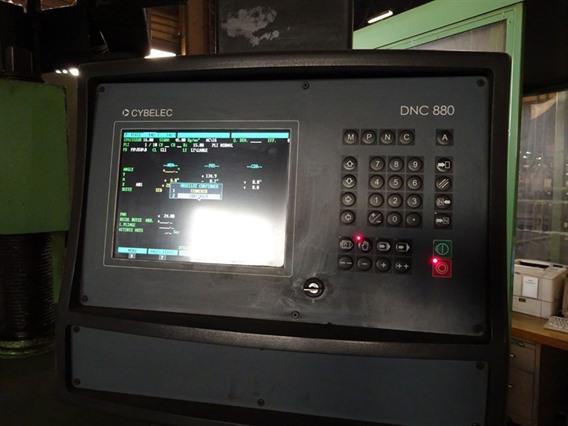

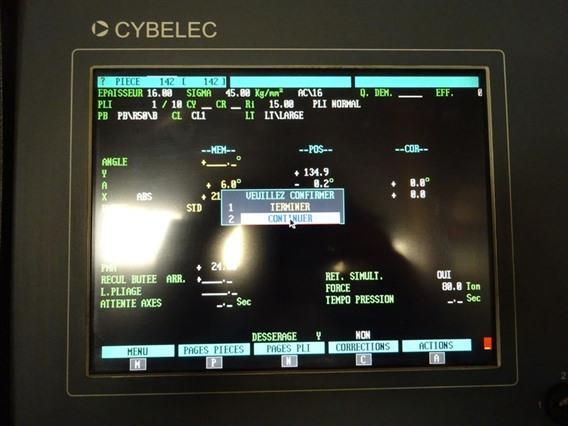

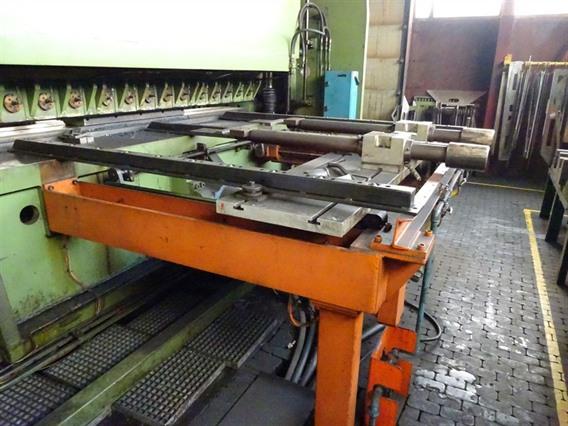

full CNC corner + backgauge control

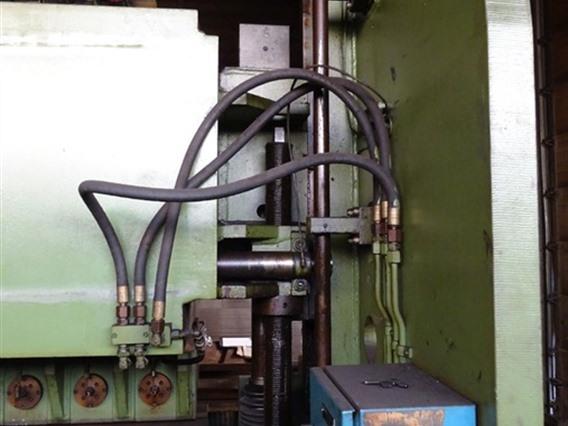

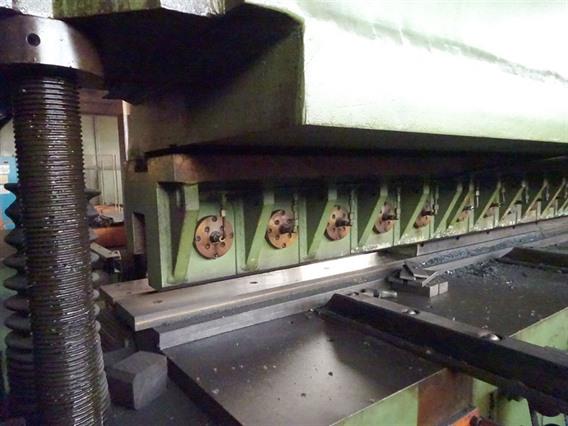

upper hydraulic clamping of tools
clamping force: 220 ton
max bending angle: 110°

max open: 500 mm

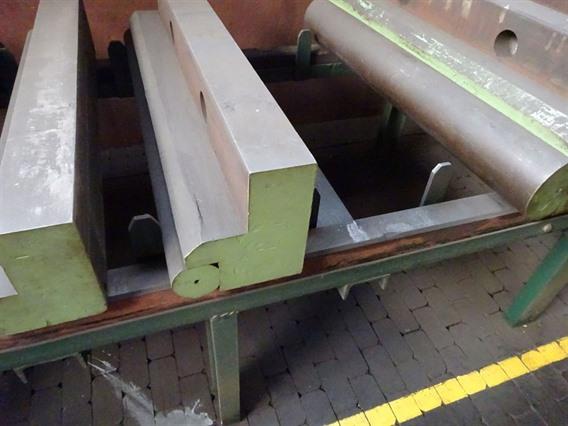

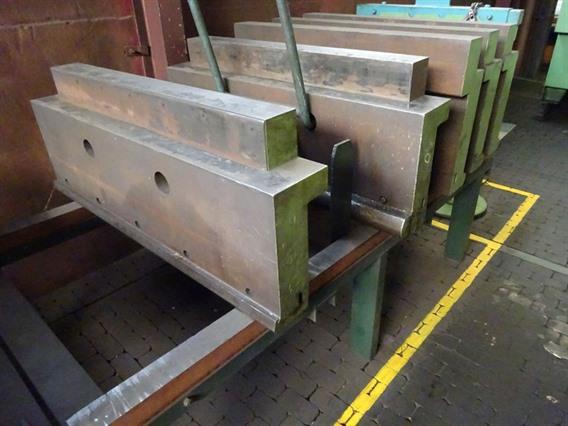

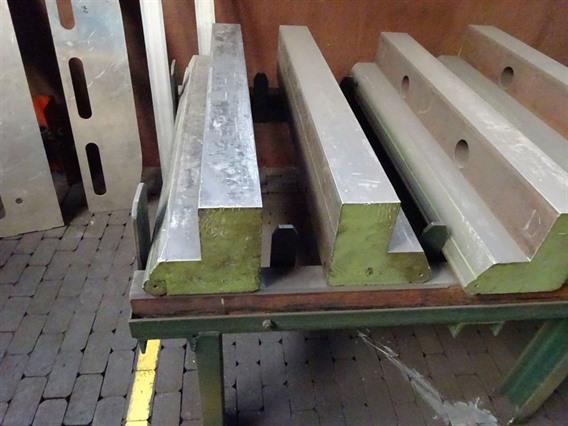

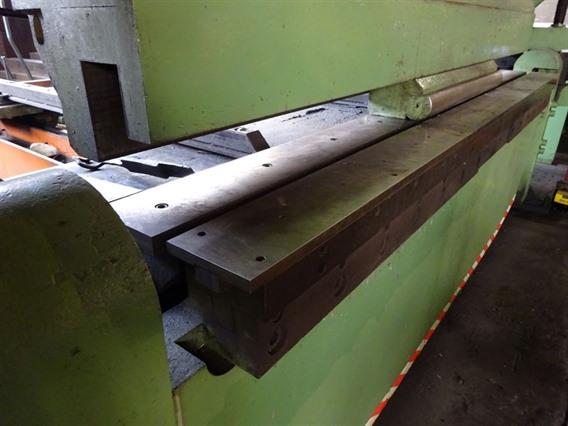

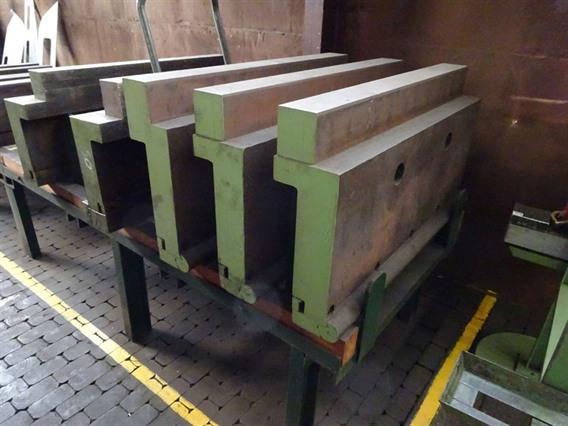

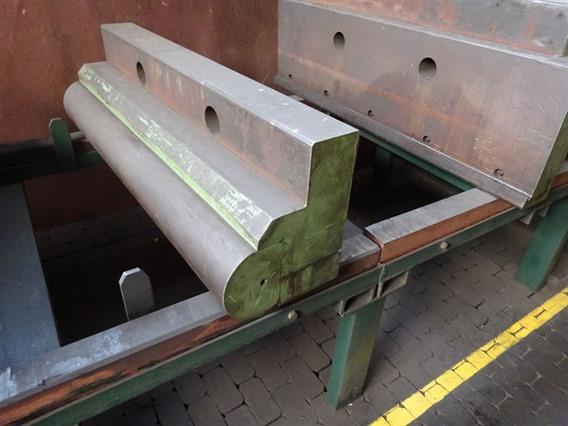

Tooling included for radius bending

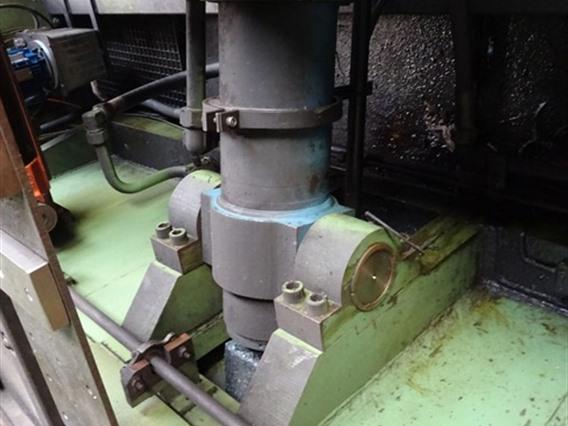

Also 2 new extra cilinders included
Tipo/Modello: PHLS 3100 x 30 mm CNC
Numero di magazzino: O.04 8401
Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
Sottocategoria: [O.04] Presse curvatrici idrauliche e meccaniche
Il marchio: Favrin

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: O.04 8401

+++BekijkVideoWerkendeMachine+++

Scaricare tutte le foto in ZIP
