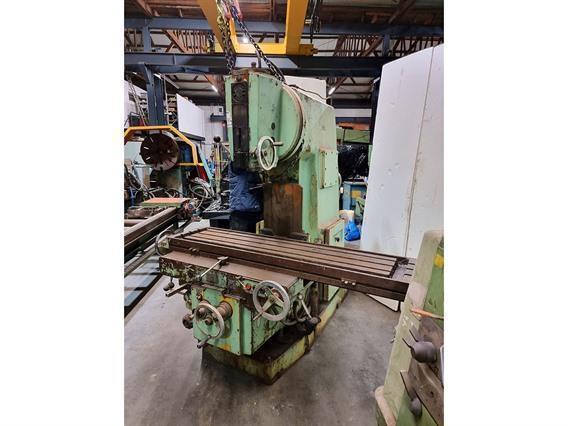

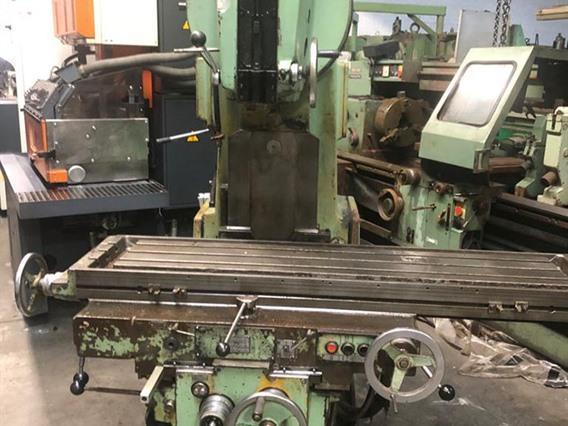

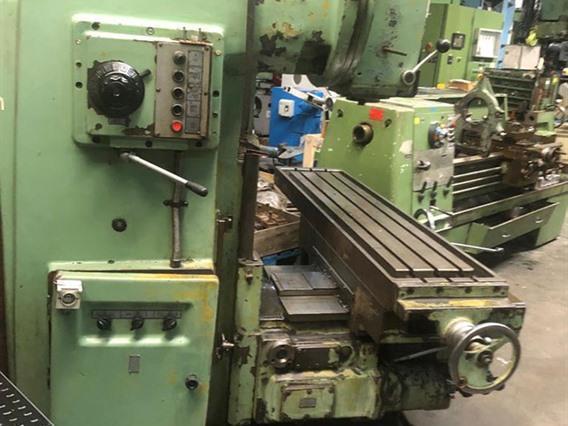

Stanko X: 1000 - Y: 320 - Z: 410 mm
Informazione tecniche
- Max longitudinal travel X-axe1000 mm
- Max cross-travel Y-axe320 mm
- Max travel Z-axe410 mm
- Max height workpiece500 mm
- Power on spindle7,5 kW
- Max quill travel Z'80 mm
- Admission in boring head (ISO)ISO 50
- Spindlespeeds1450 rpm

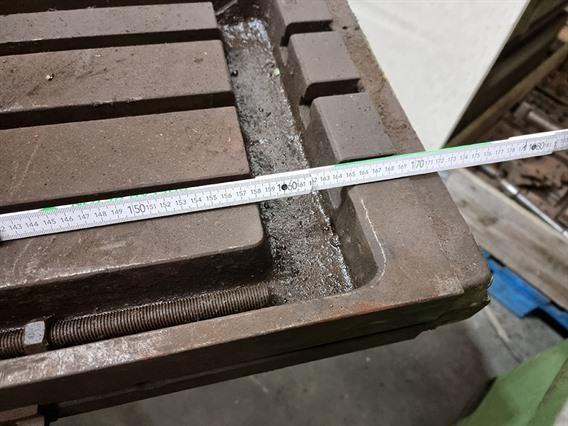

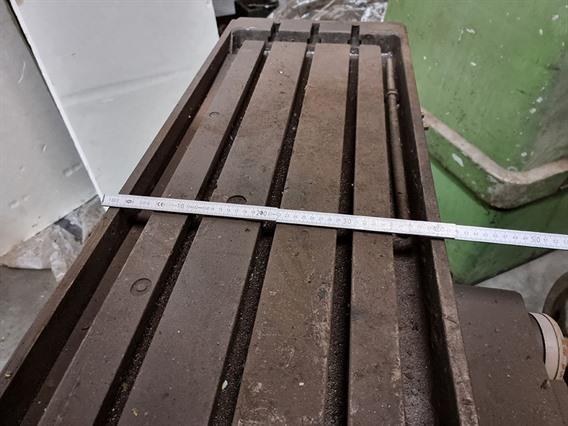

- Table size1700 x 400 mm
- Length2560 mm
- Depth 2260 mm
- Height2120 mm
- Weight4,2 ton
Informazioni supplementari
Numero di magazzino: B.01 12677
