Gambin Alcera X: 1565 - Y: 725 - Z: 600mm CNC

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Max longitudinal travel X-axe1565 mm
Max cross-travel Y-axe725 mm
Max travel Z-axe600 mm
Power on spindle10 kW
Admission in boring head (ISO)ISO40
Spindlespeeds3000 rpm
Table size2000 x 540 mm

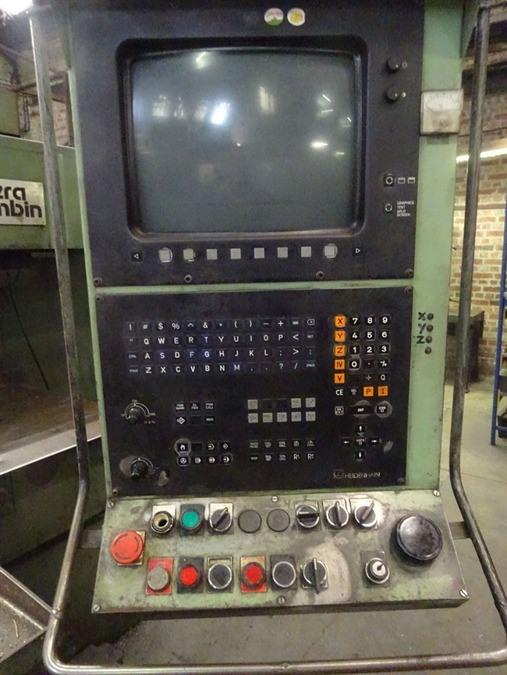

ControlHeidenhain 407
Power needed20 kVa
Length4765 mm
Depth 2800 mm
Height2650 mm
Weight6000 kg

Informazioni supplementari

Type 160C - horizontal and vertical

max distance between vertical spindle and table: 688 mm

max distance between horizontal spindle and table: 838 mm

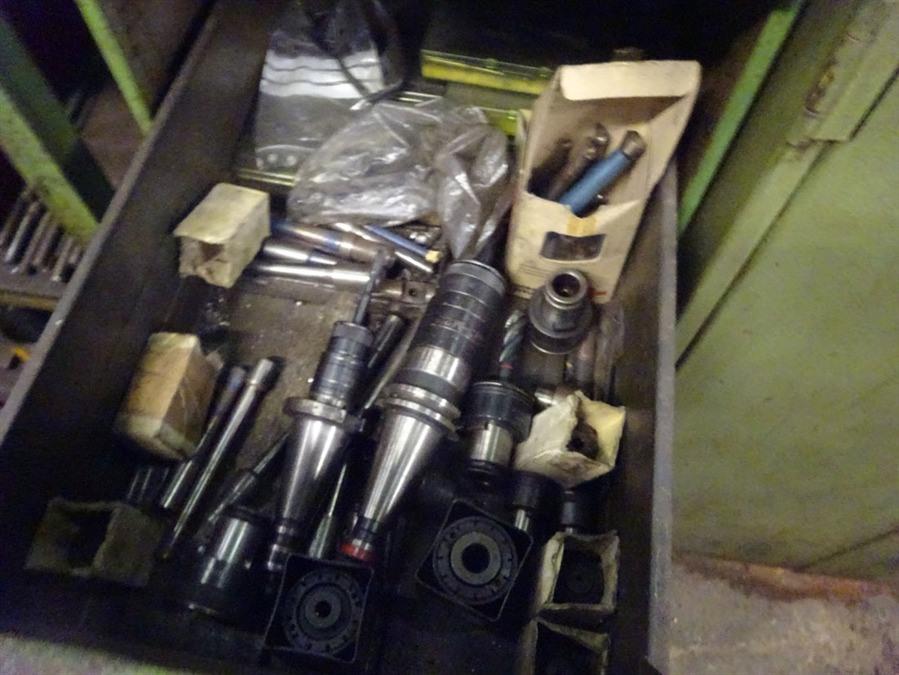

tooling included
Tipo/Modello: X: 1565 - Y: 725 - Z: 600mm CNC
Numero di magazzino: B.01 8769
Categoria: [B] Fresatrici
Sottocategoria: [B.01] Fresatrici universali e CNC
Il marchio: Gambin Alcera

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: B.01 8769

+++BekijkVideoWerkendeMachine+++

Gambin Alcera X: 1565 - Y: 725 - Z: 600mm CNC

Scaricare tutte le foto in ZIP
