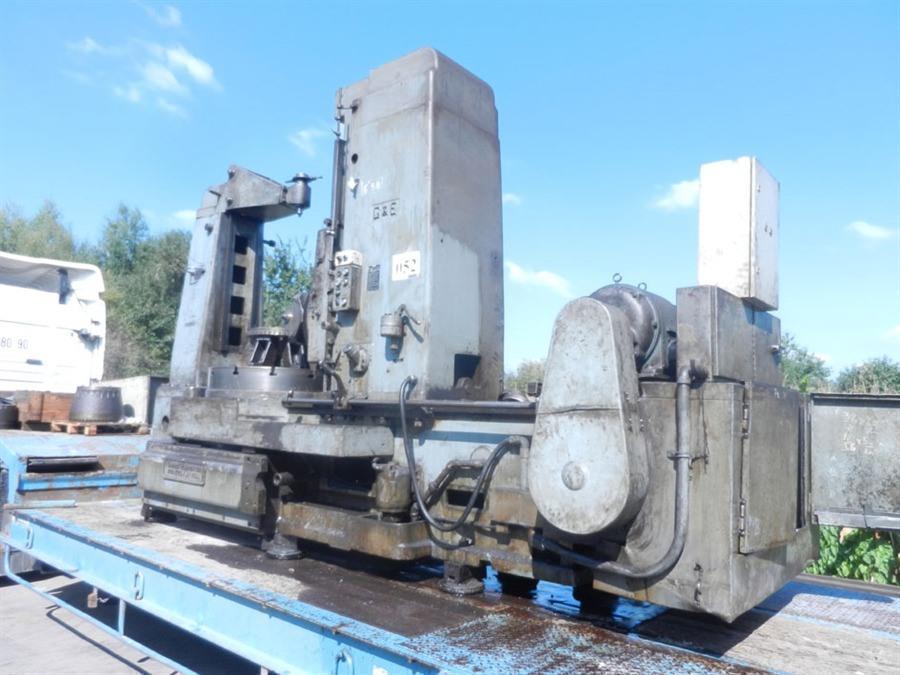

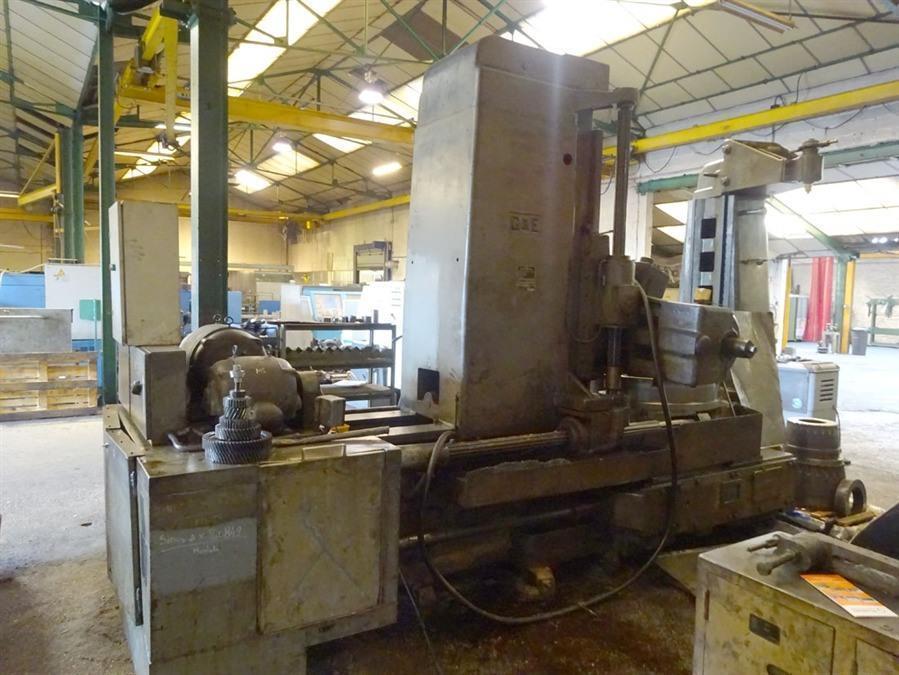

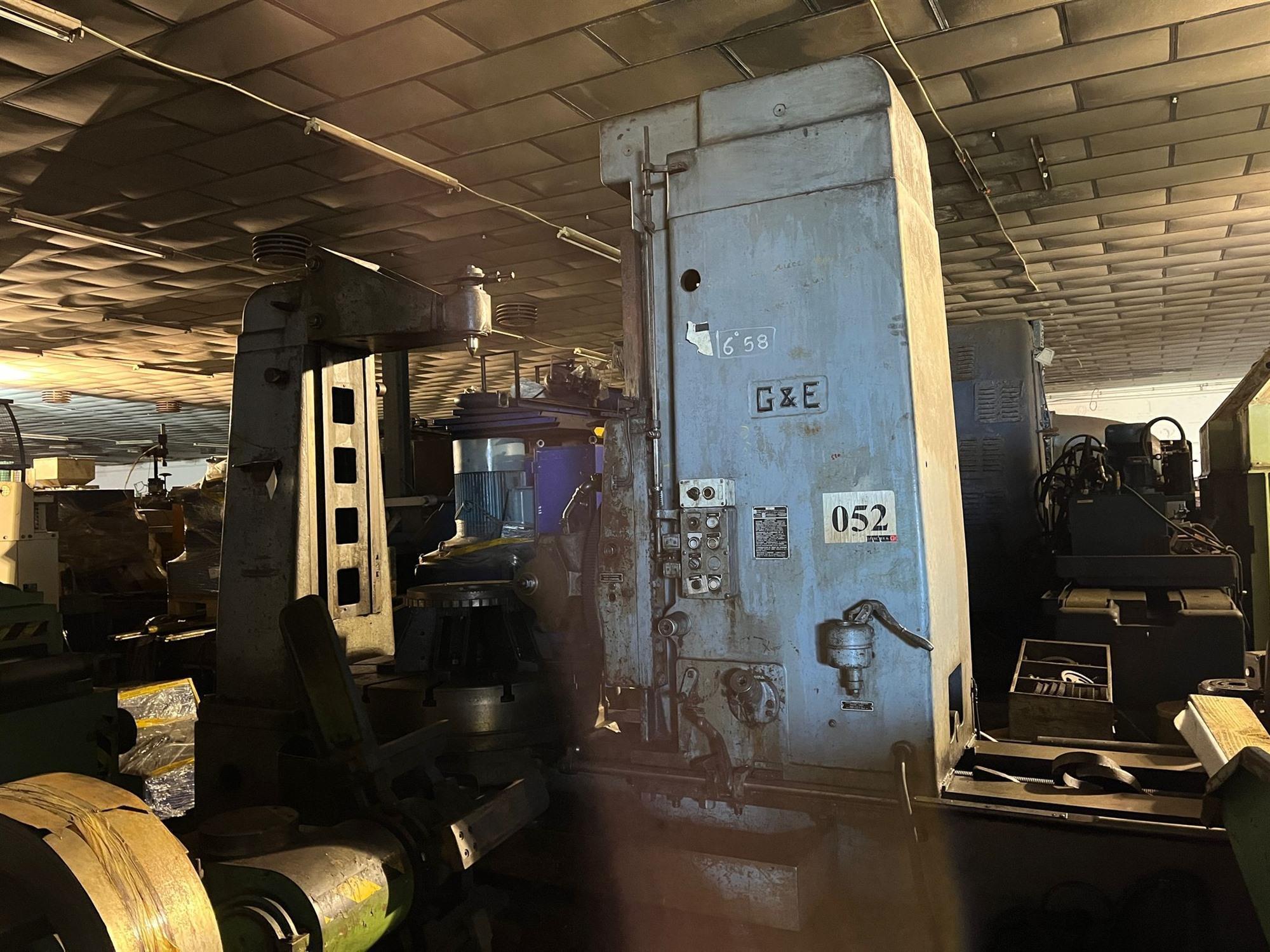

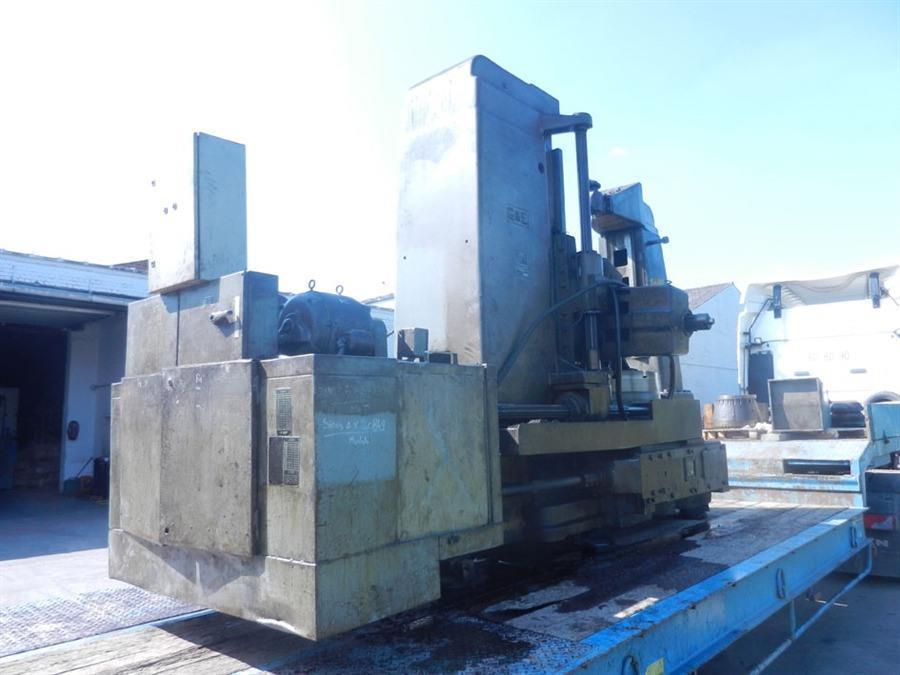

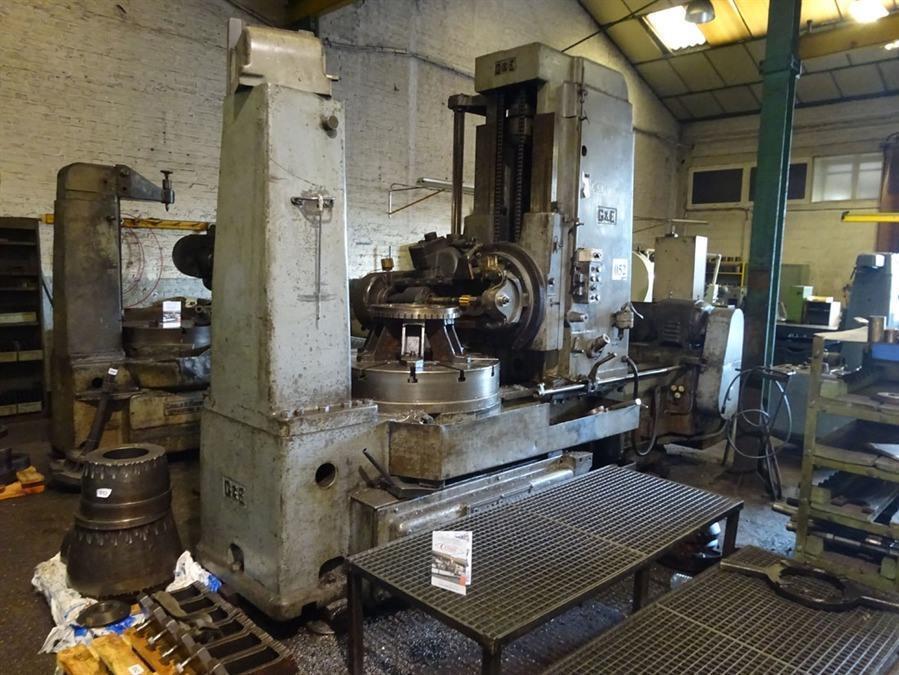

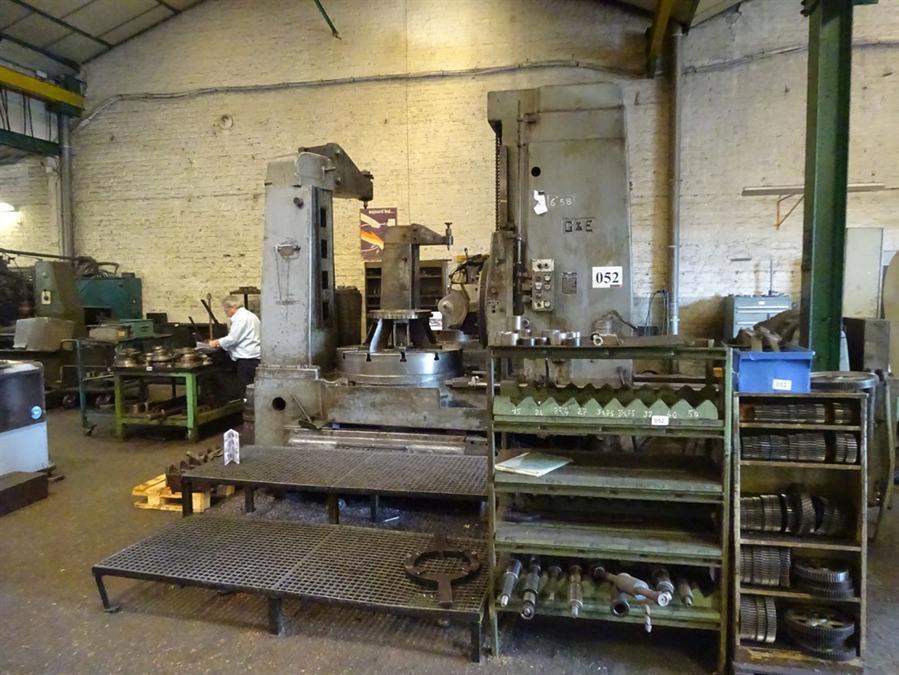

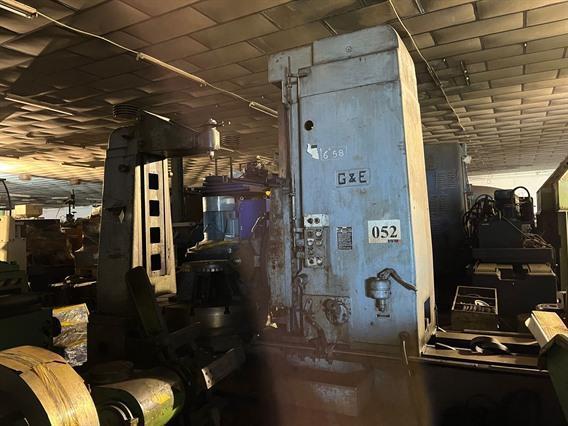

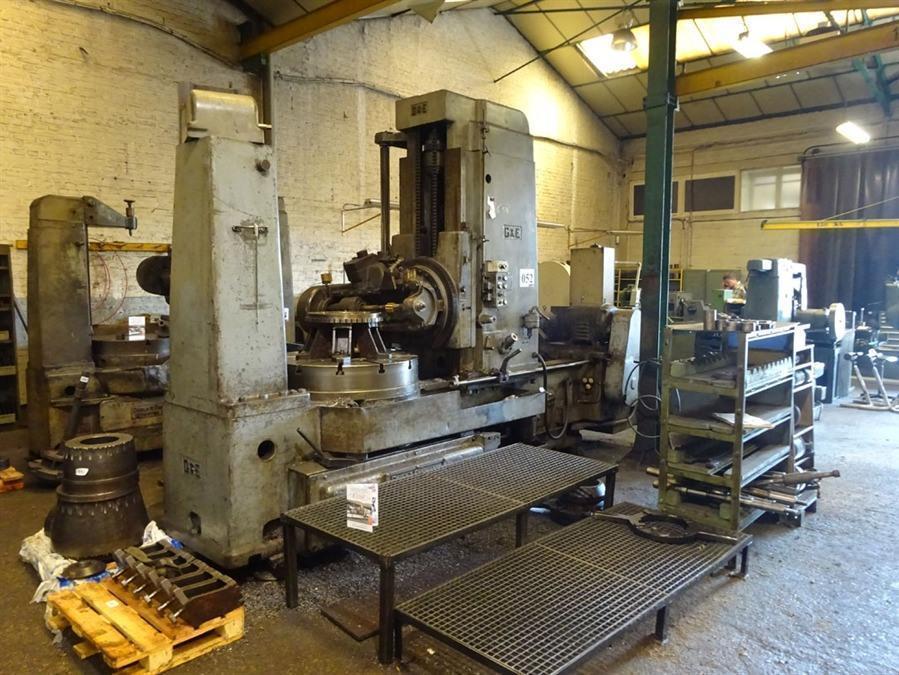

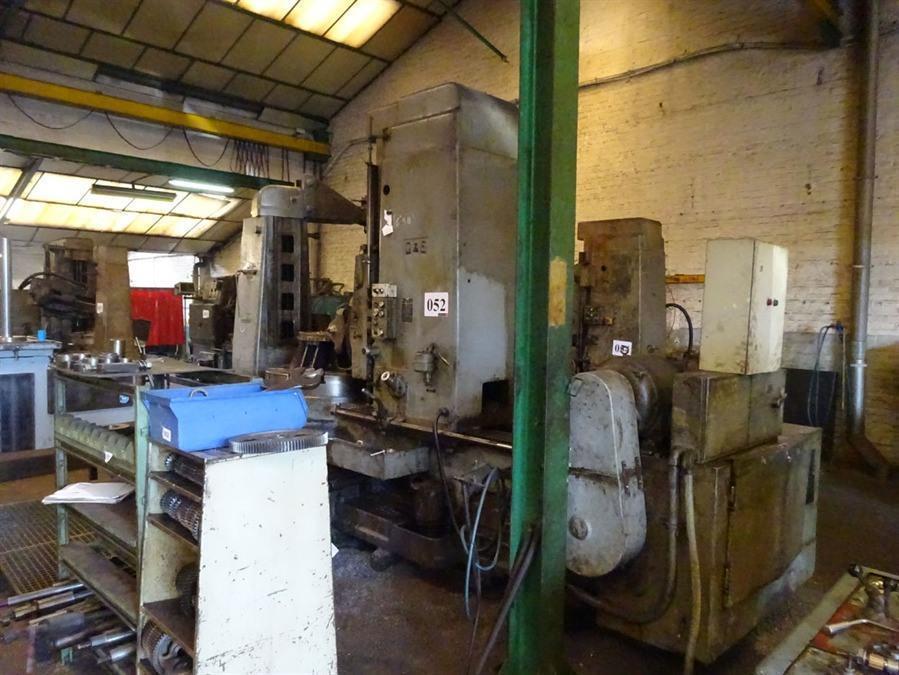

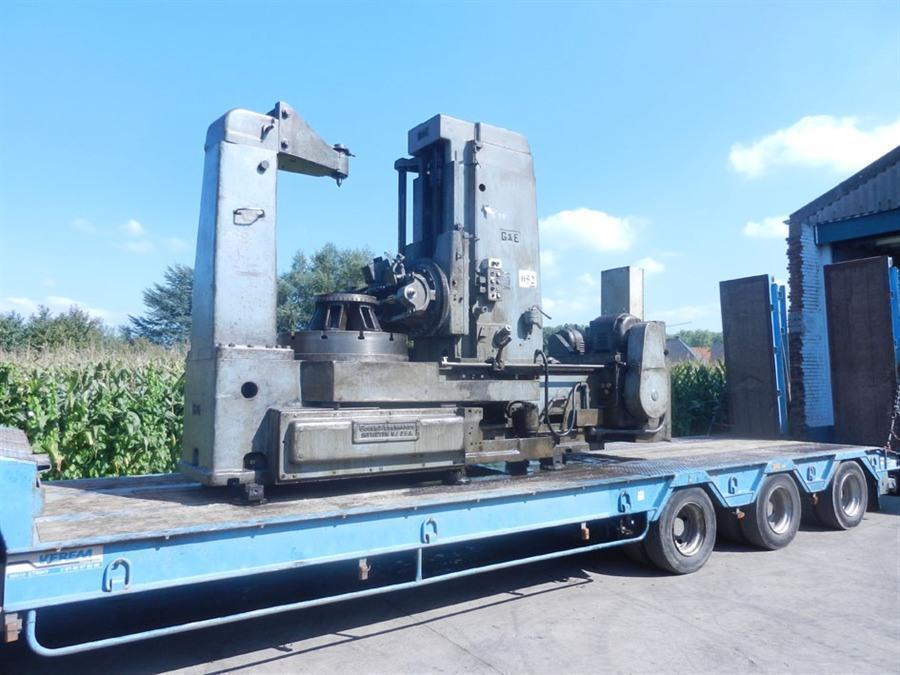

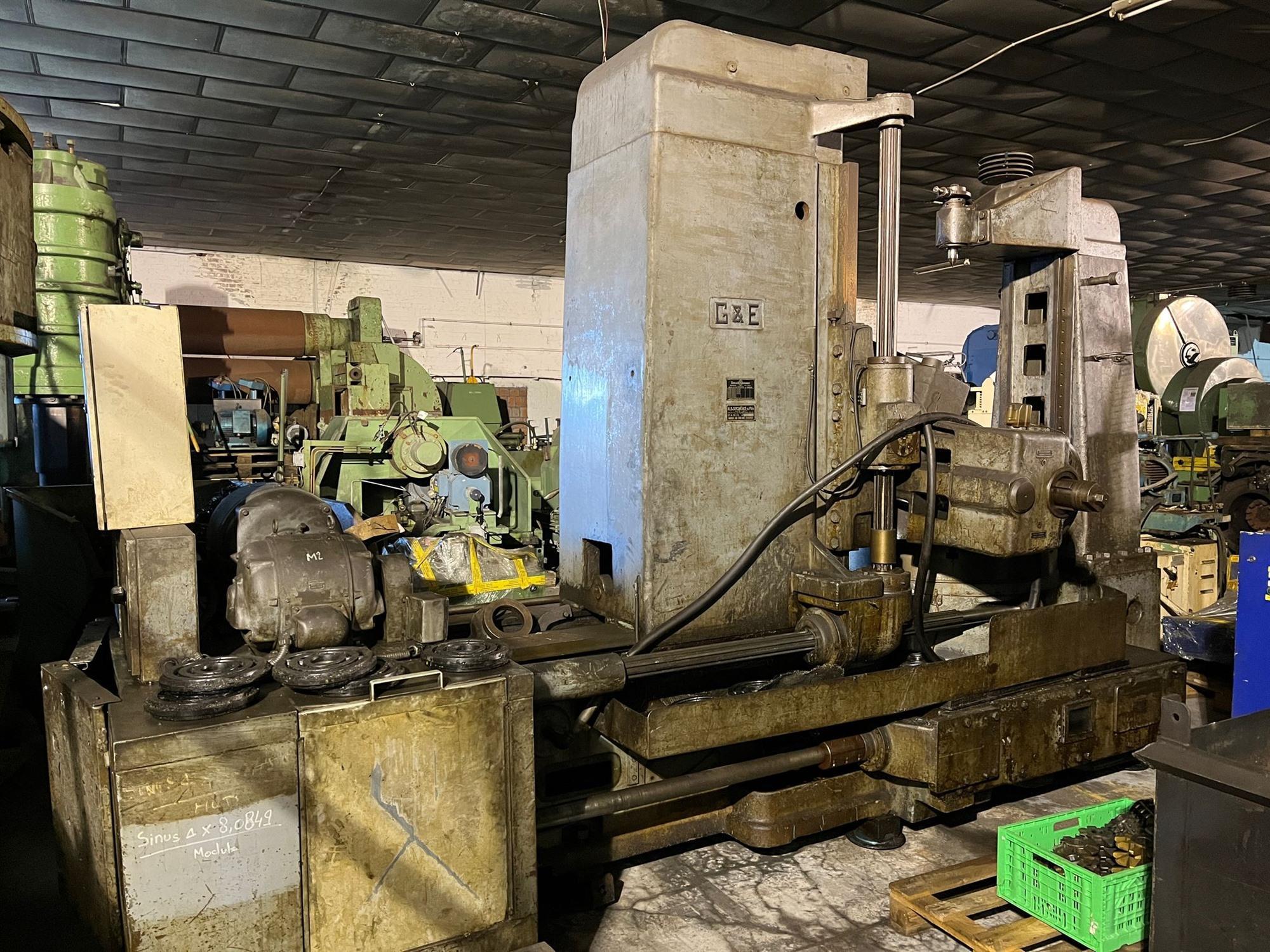

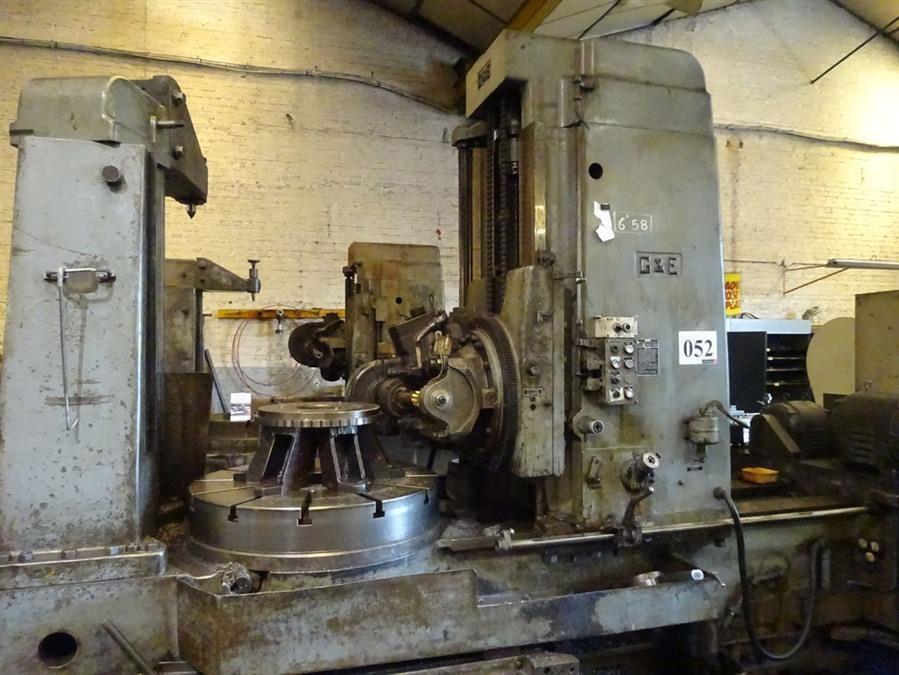

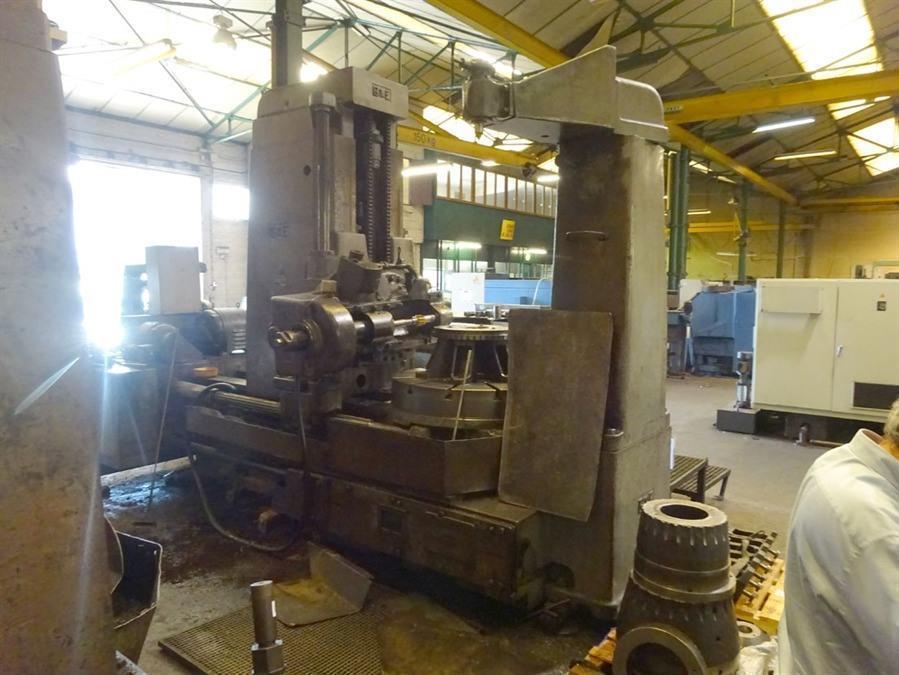

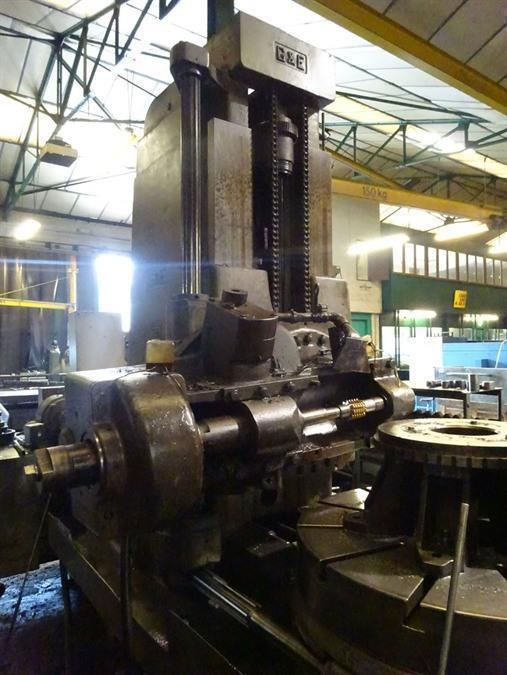

Dentatrici a creatore Gould & Eberhardt 72H spur & helical gears
Informazione tecniche
- Max. Modul34
- Max. Dia2286 mm
- Dimensions4700 x 1920 x 3060 mm
- Weight17,5 ton
Informazioni supplementari

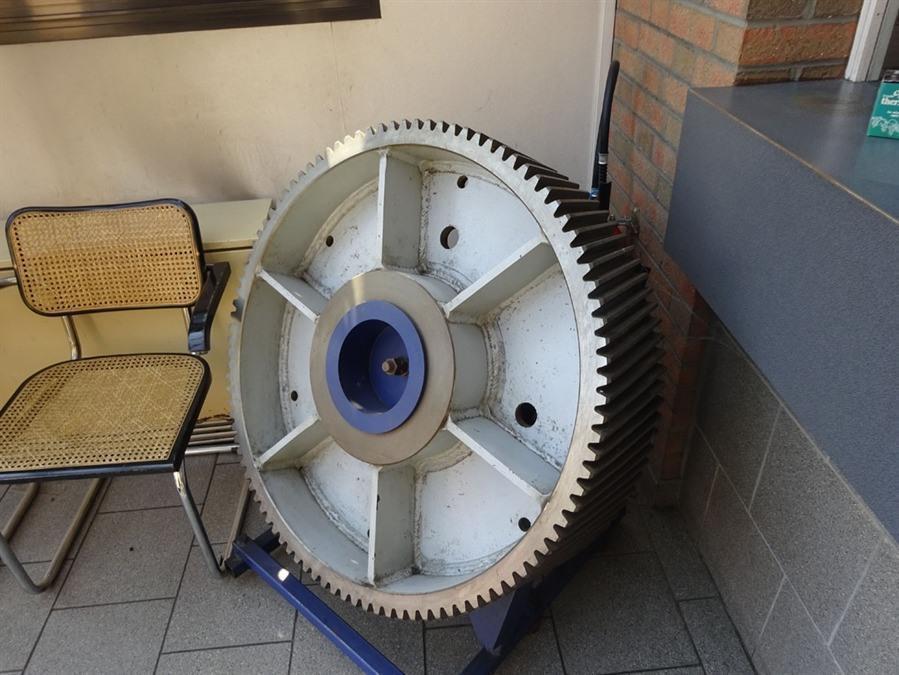

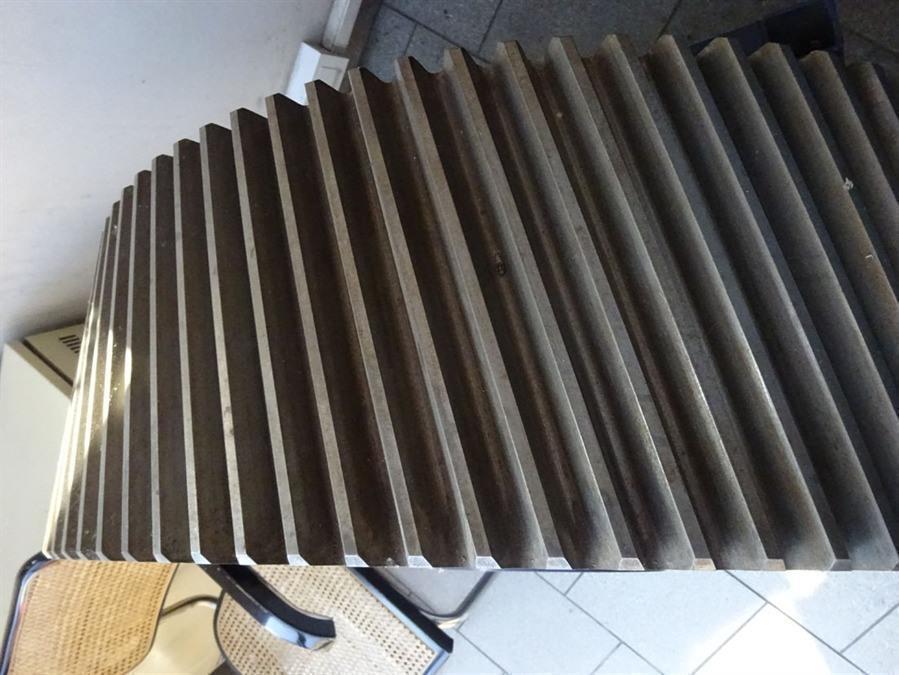

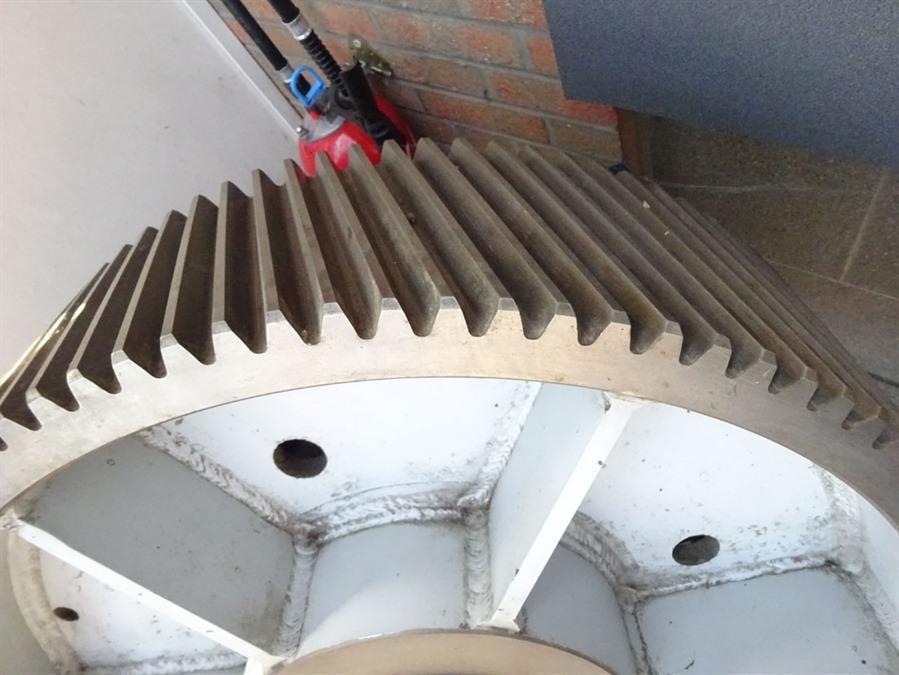

- Spur & helical gears

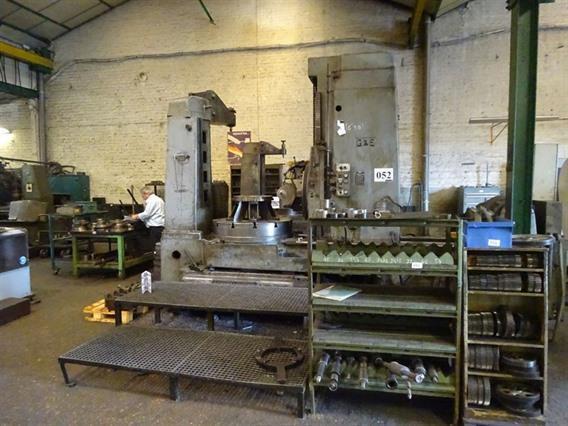

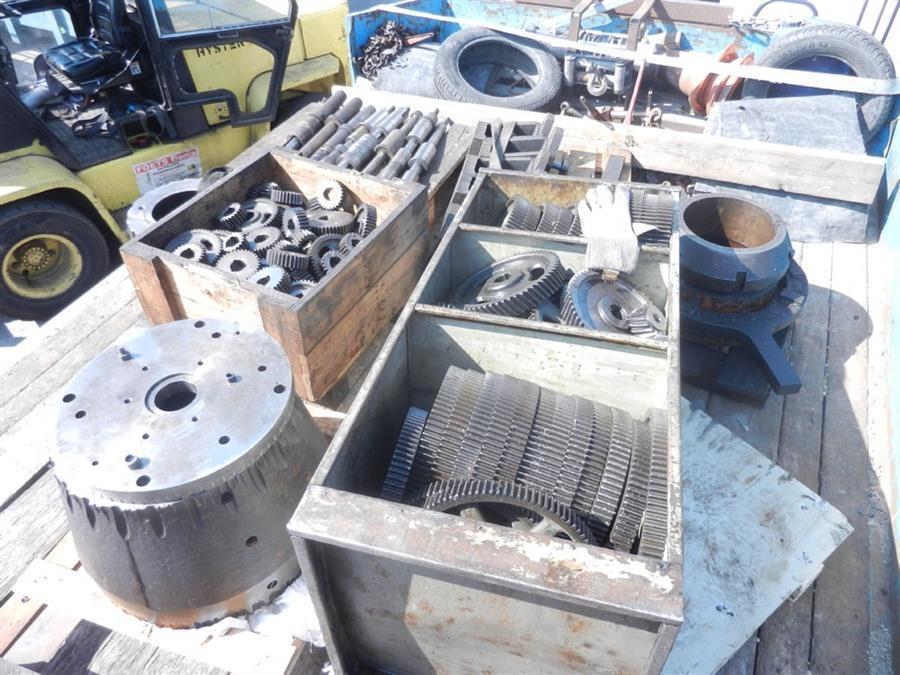

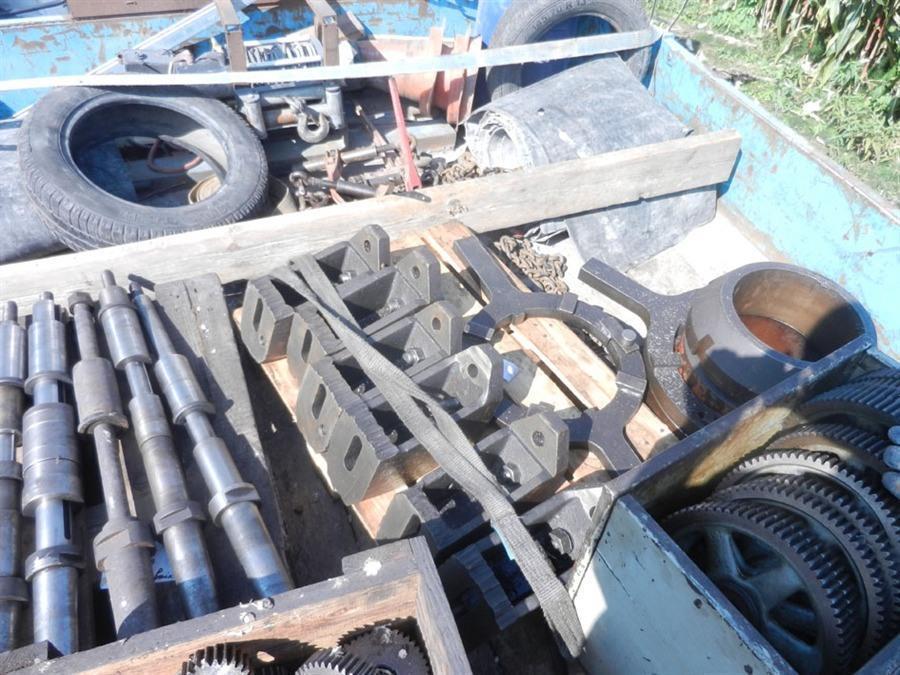

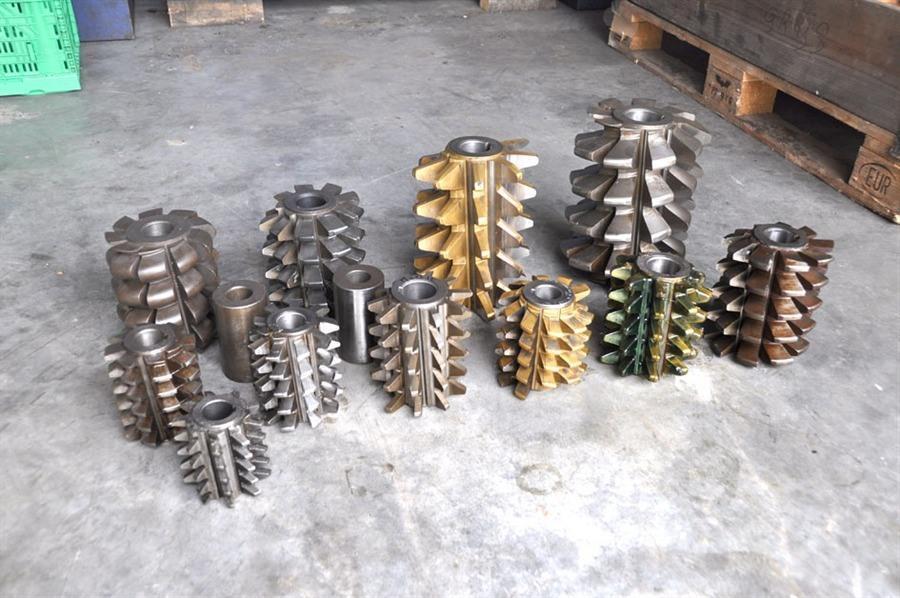

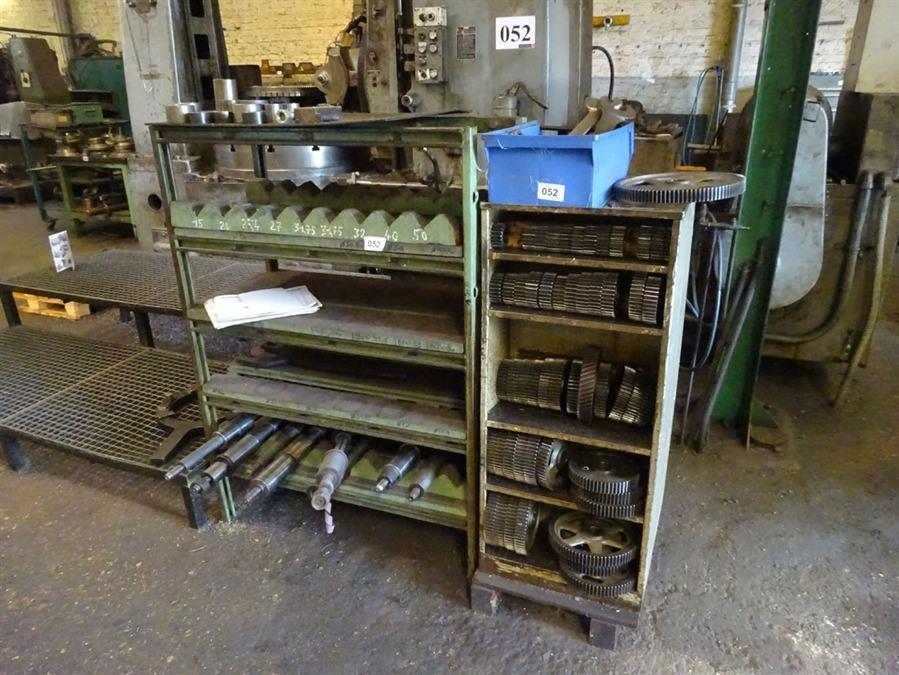

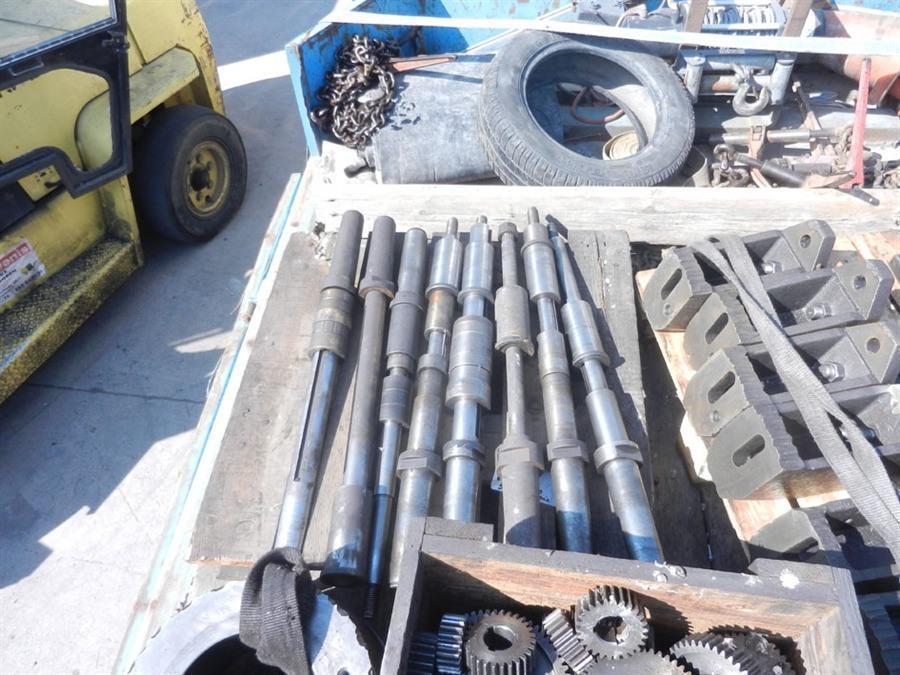

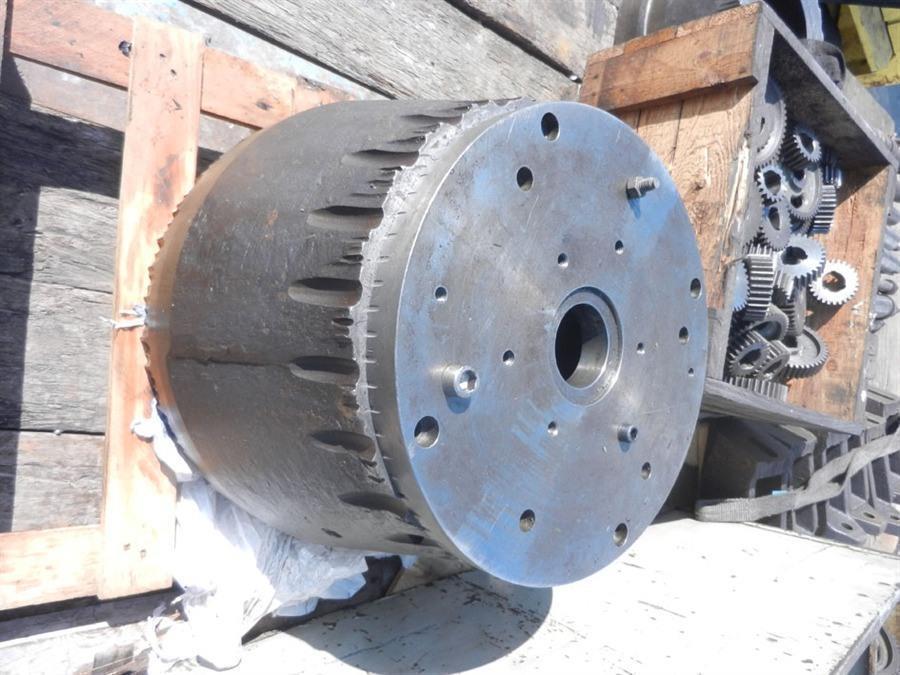

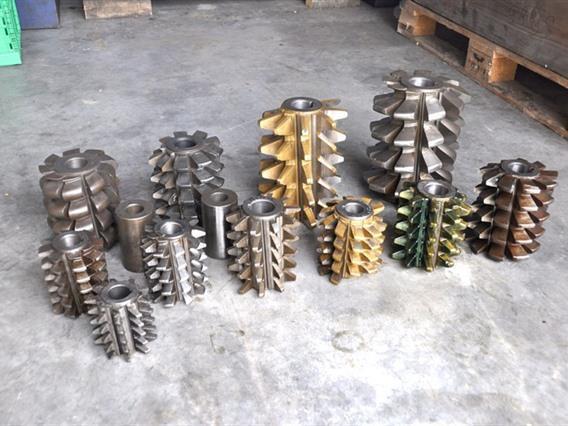

lot's of tooling included
max height: 650 mm
max dia hobs: 273 mm
tabledia: 1016 mm
number of teeth: 100 > 400
speed: 6 > 100 rpm
Maximum DP in Steel: 1.5 DP
Face Capacity Spur Pinions and Gears: 30" ( 750 mm)
Face Capacity 45 Degree Helical Gears: 18" (450 mm)
Maximum Diameter Spur Gear With Support: 48" (1200 mm)
Maximum Diameter Spur Gear Without Support: 90" (2286 mm)
Maximum Diameter Helical Gear w/o Sup (45 Degrees): 72" ( 1800 mm)
Minimum Centers Work & Hob Arbors: 4" (10 mm)

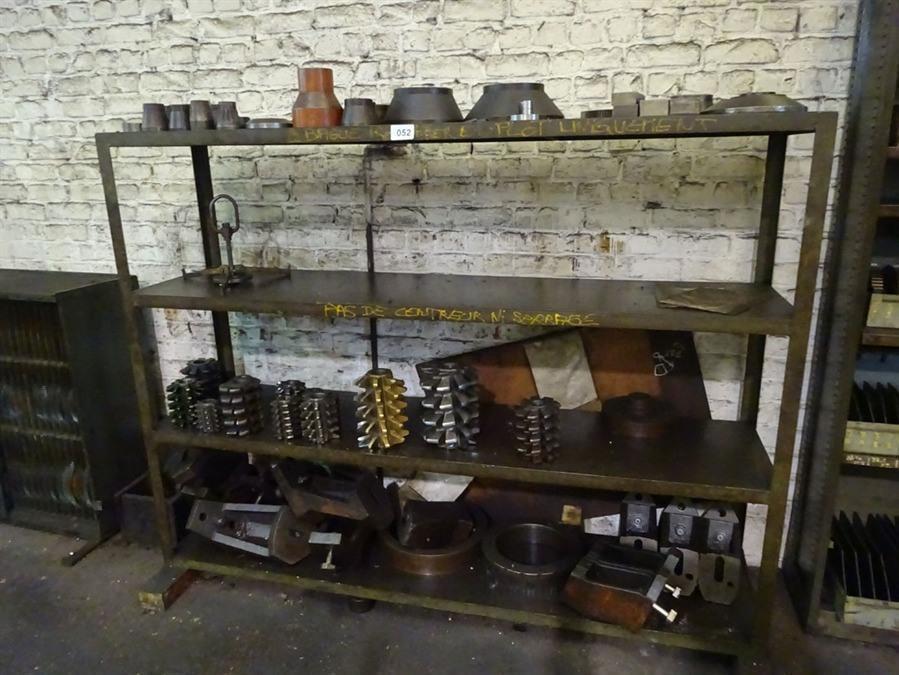

Maximum Diameter Hob: 10.75"
Diameter of Work Table: 40"
Diameter of Index Worm Gear: 48"
Index Range Including Primes: 15 - 100
Index Range Excluding Primes: 100-400
Number of Hob Speeds: 14
Hob Speed Ranges: 6-100 RPM
Drive Pulley: 600 RPM
Number of Feeds: 12
Feed Range: .03 - .200"
Motor HP Requirements, Machine: 15 HP
Motor HP Requirements, Traverse: 5 HP
Motor HP Requirements, Coolant: 3/4 HP
- Tipo/Modello: 72H spur & helical gears
- Numero di magazzino: K.01 8485
- Categoria: [K] Dentatrici
- Sottocategoria: [K.01] Dentatrici a creatore

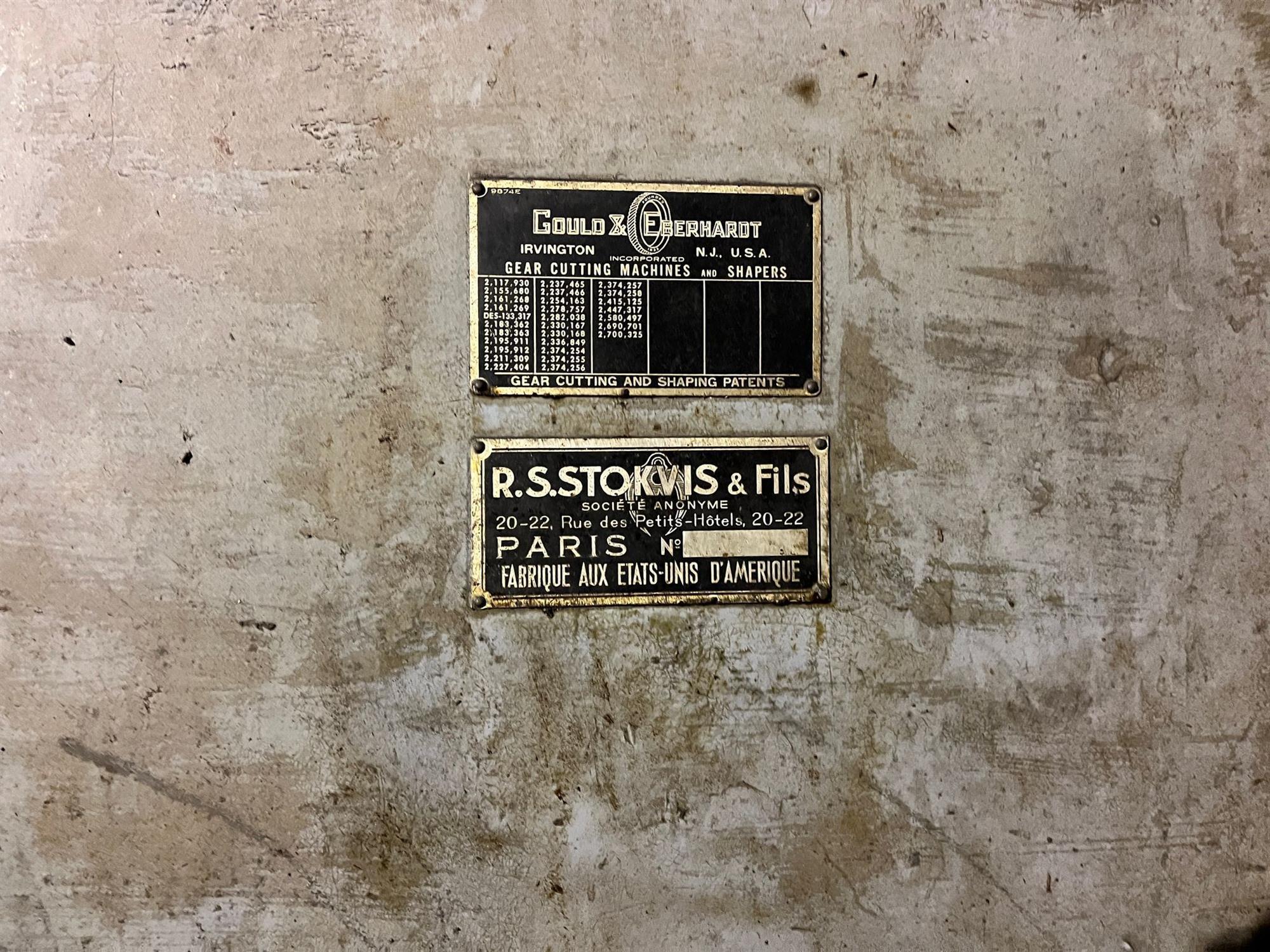

- Il marchio: Gould & Eberhardt
Numero di magazzino: K.01 8485
