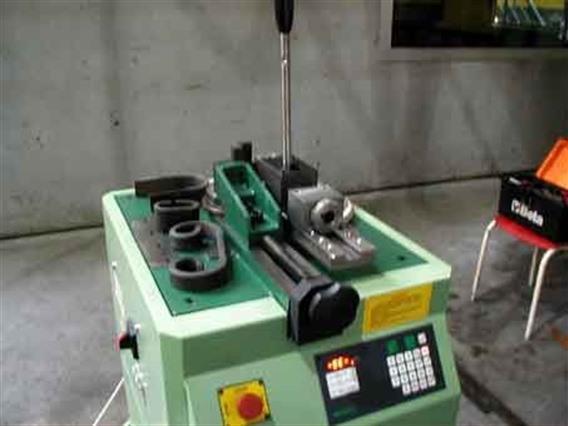

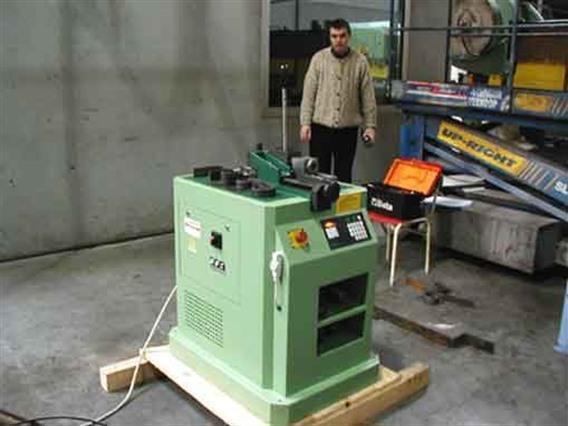

Curvatubi Memoli ETM 42 CE/CN CNC
Informazione tecniche
- Max dia tube x thicknessØ 48 x 2 mm
- Min bendingradiusR= 2 x Ø tube
- Max bendingradius180 mm
- Back stop max tubelength*
- Interior die mandrel - hydr (1)-- hand(2)fixed
- Driven axes(2) CNC
- Motor power3 kW
- Voltage380 V
- Length620 mm
- Depth850 mm
- Height980 mm
- Weight220 kg
- ACCESSORIES*
- Bending dieall kinds
Informazioni supplementari

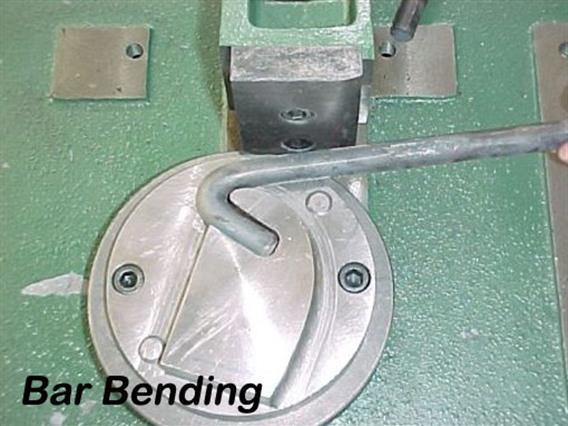

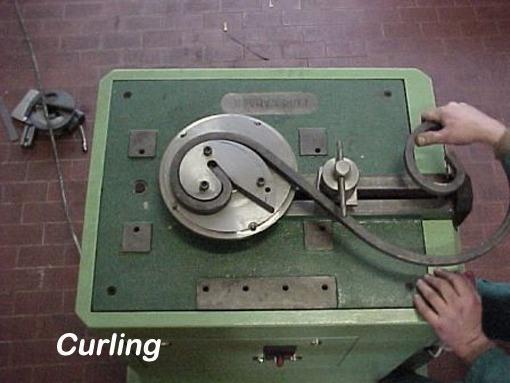

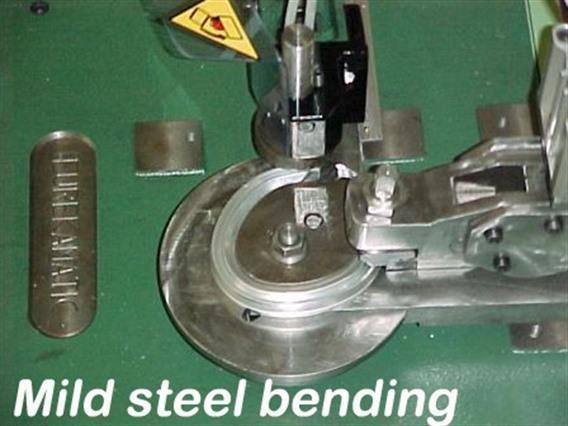

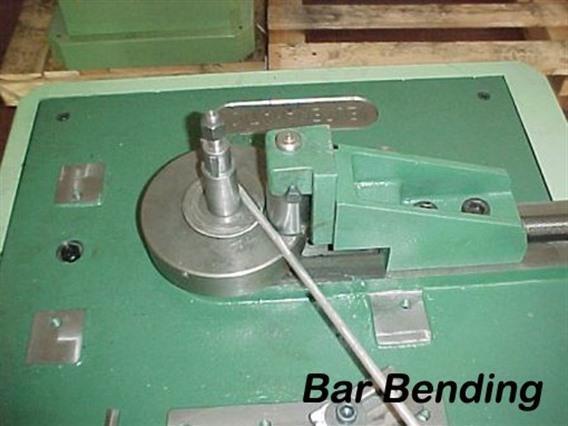

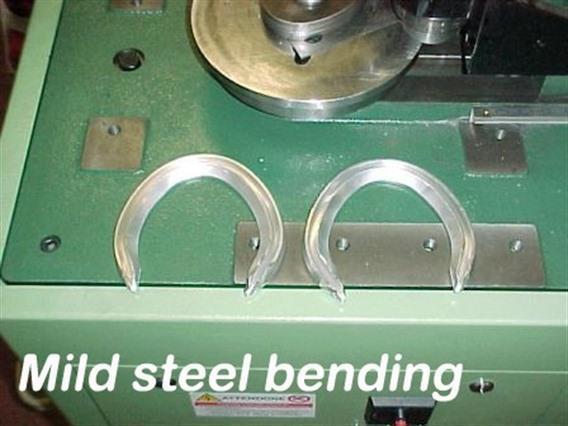

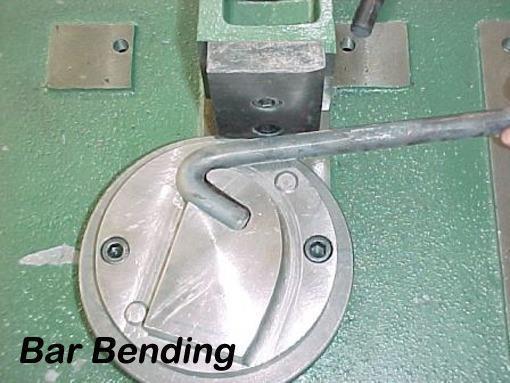

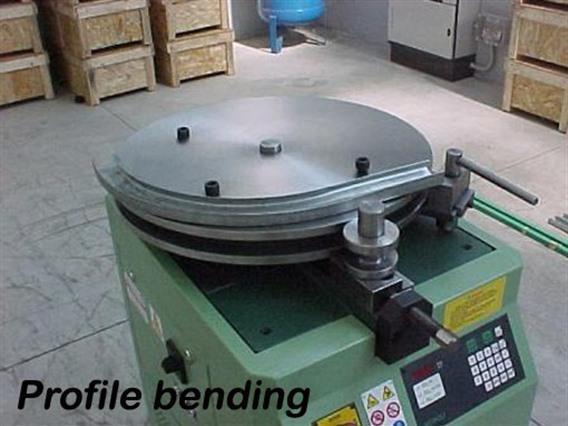

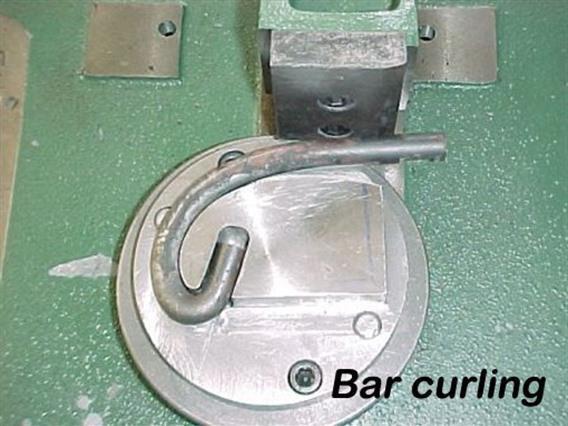

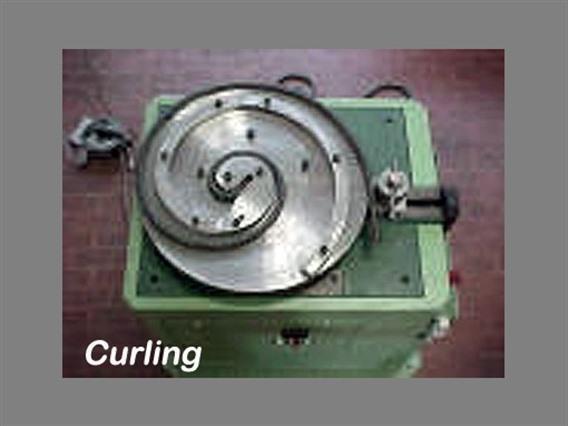

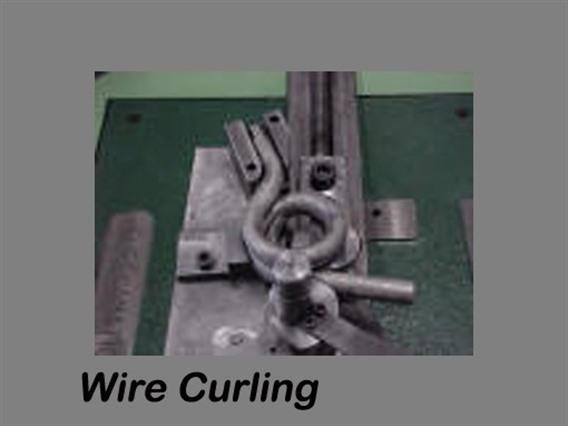

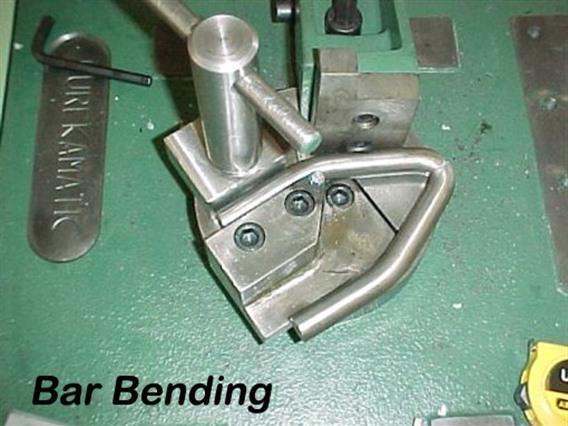

- Universal bendingmachine * Bars - Wire - Flat - Tubes* Standard with fast coupling and foot pedal
Speed: 7 rpm

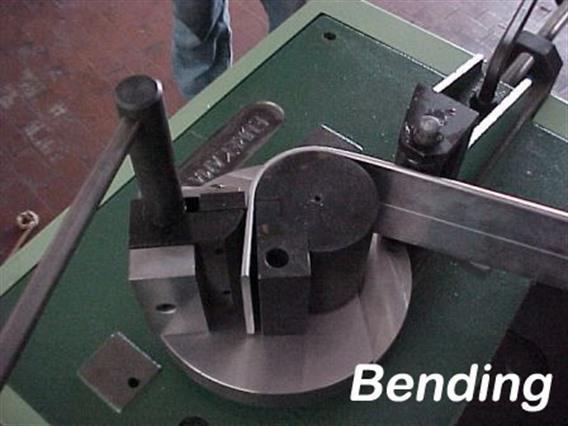

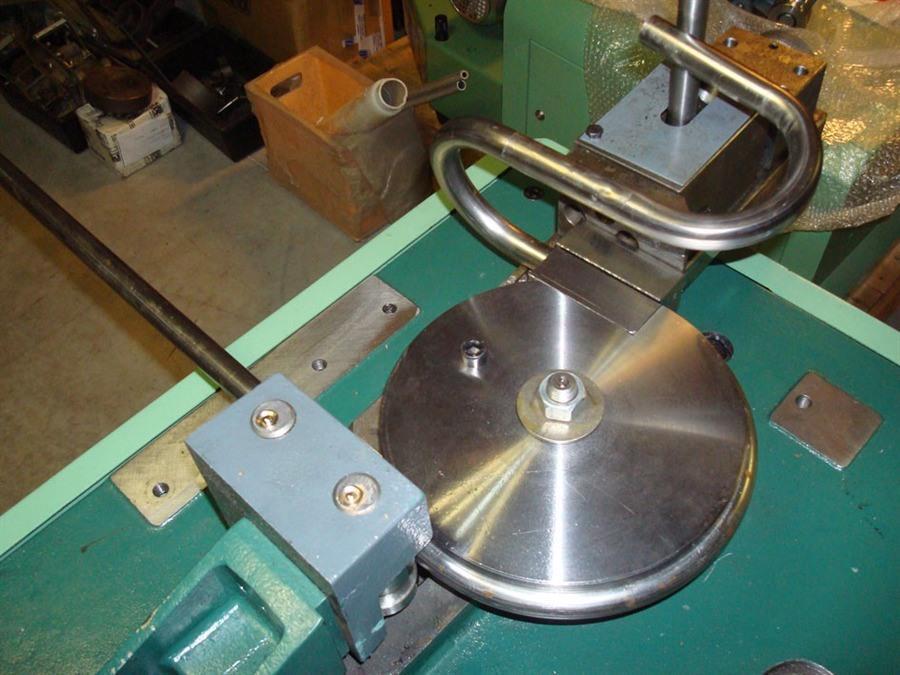

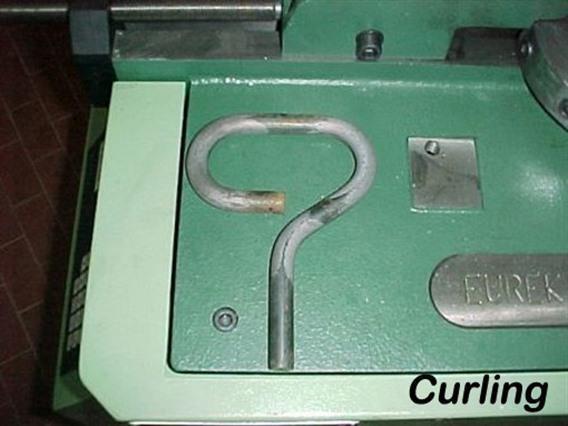

Possibility for bending and twisting For thin (with mandrel) and thicker tubes.

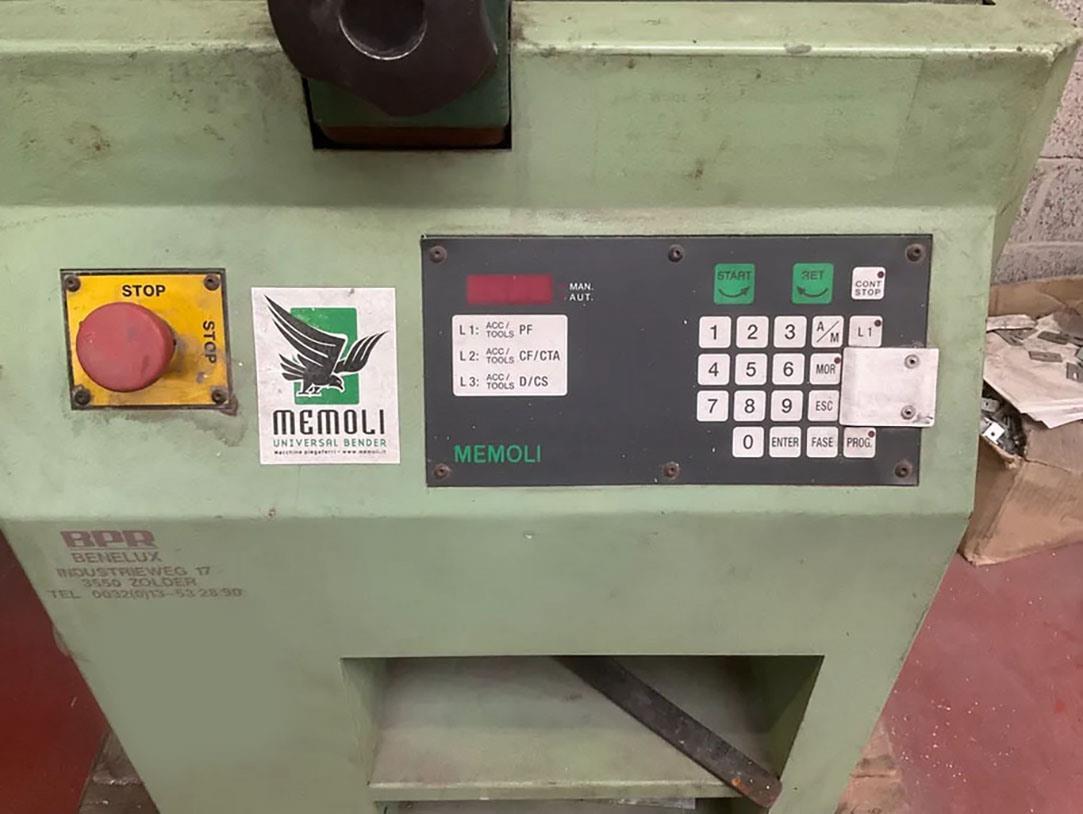

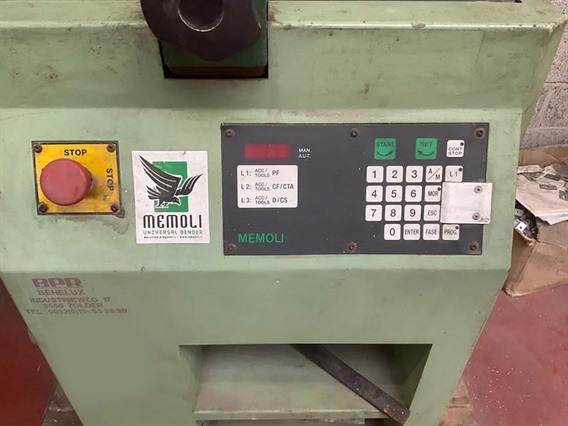

CNC cornerprogrammation
R01 1217 & S05 1217
- Tipo/Modello: ETM 42 CE/CN CNC
- Numero di magazzino: Q.01 1217
- Categoria: [Q] Curvatrici, raddrizzatrici e riduttrici
- Sottocategoria: [Q.01] Curvatubi
- Il marchio: Memoli
