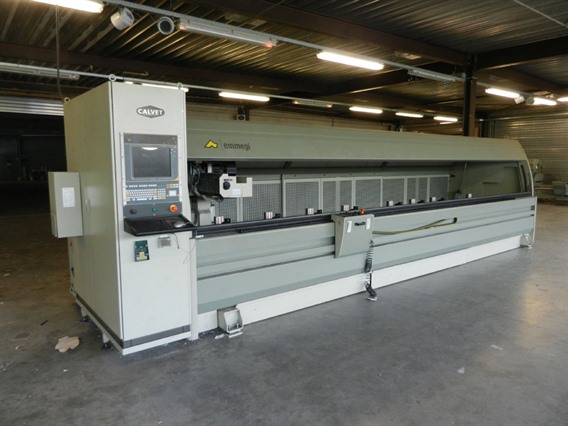

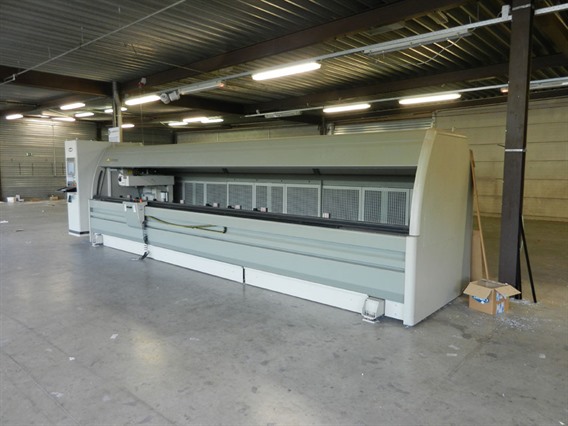

Emmegi Comet Isola

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

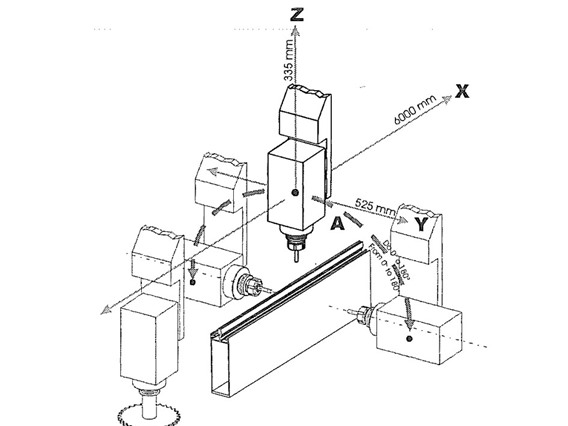

X-axis6300 mm
Y-axis525 mm
Z-axis335 mm

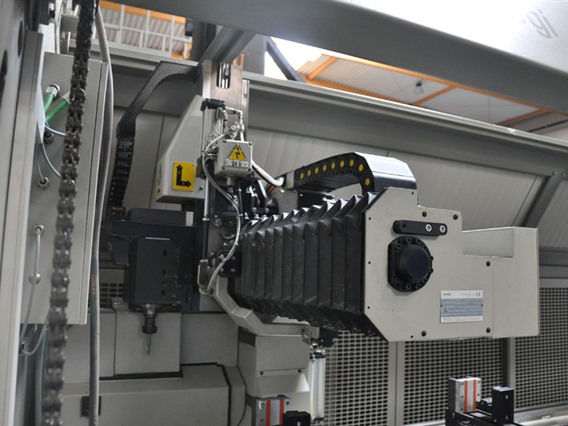

Admission in spindle (ISO)HSK-40E
Power on the spindle5,5 kW

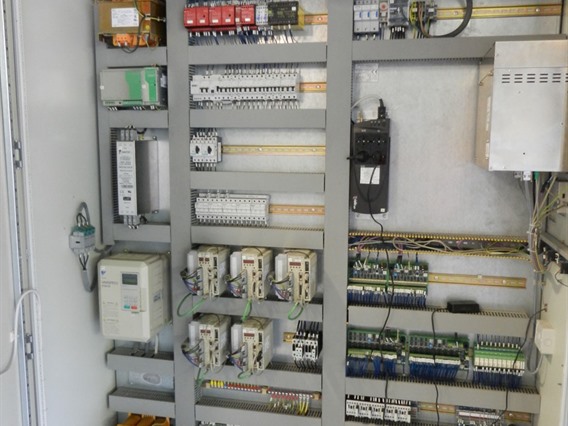

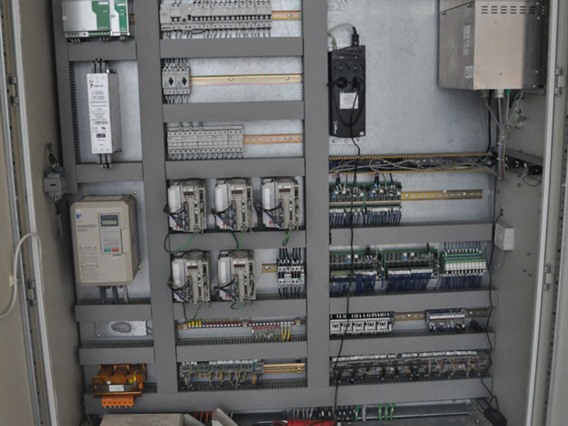

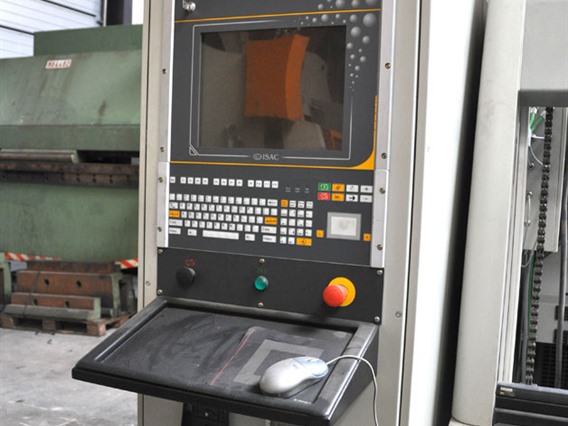

Control CNC-PC
Number of toolholders8 + 1 tools
Number of rotations24 000 rpm
Power principal motor 23 kW
Length8210 mm
Depth2065 mm
Height2120 mm
Weight4800 kg

Informazioni supplementari

4 axes - suitable for alu/pvc/steel
Cam editor version 3.63 / Drill version 3.9

max workpiece size machinable on 1 face, gripped in standard vice with tool length 35 mm + toolholder length 105 mm >> 240 x 170 x 7500 mm

max workpiece size machinable on 3 faces, gripped in standard vice with tool length 35 mm + toolholder length 105 mm >> 195 x 170 x 6300 mm

tapping capacity: M10

manual positioning/unloading

workpiece reference stop with N/C positioning

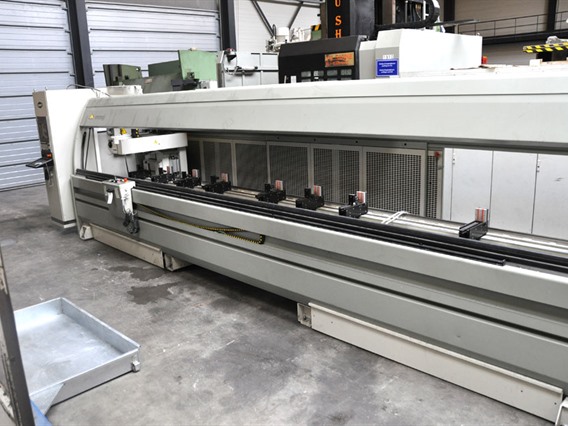

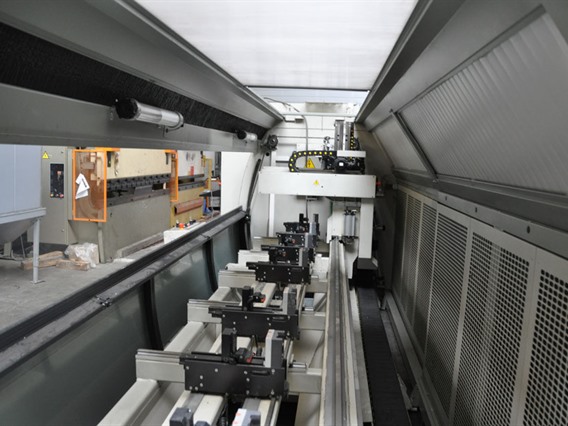

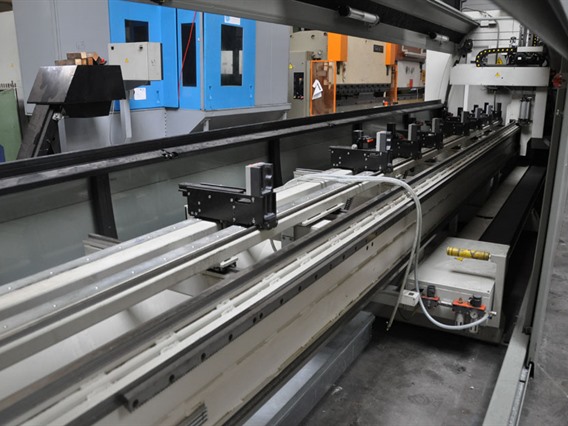

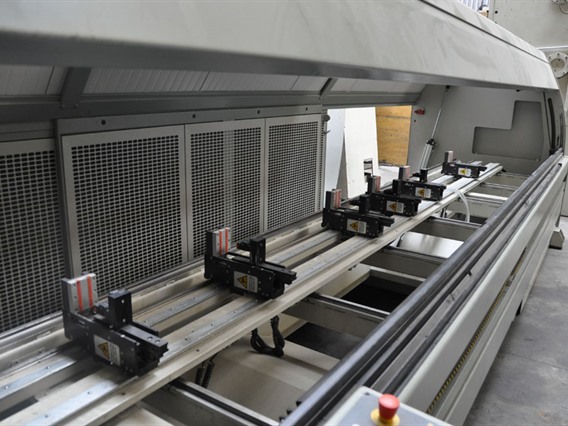

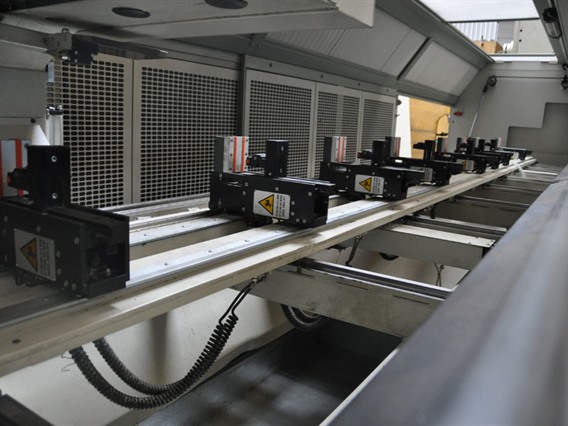

8 pneumatic vices

automatic vice positioning through X-axis
Tipo/Modello: Comet Isola
Numero di magazzino: D.01 7087
Categoria: [D] Centri di lavorazione
Sottocategoria: [D.01] Centri di lavorazione verticali
Il marchio: Emmegi

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: D.01 7087

Scaricare tutte le foto in ZIP
