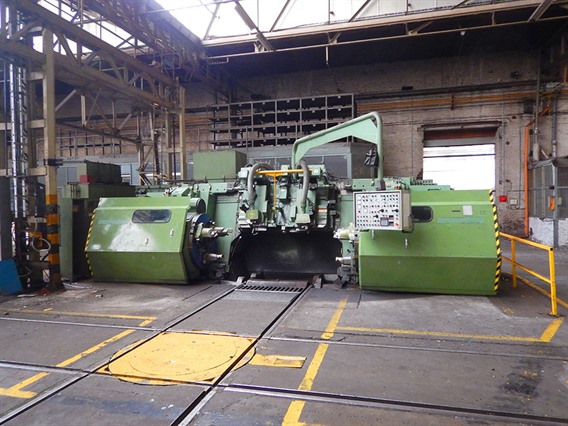

Hegenscheidt MFD 165 Portal Wheelset Lathe
Information technique
- Puissance sur la broche60 kW on each chuck
- Nombre de vitesses de la broche9 > 180 m/min cutting speed
- Poids54 ton
Informations complémentaires
Portal Wheelset Lathe
center height: 630 mm
track width: 1435 mm
largest possible clampable shaft length: 2400 mm
smallest possible clampable shaft length: 1650 mm
largest possible span circle: dia 1100 mm
smallest possible span circle: dia 550 mm
center point angle: 90°
max workpiece weight: 3500 kg

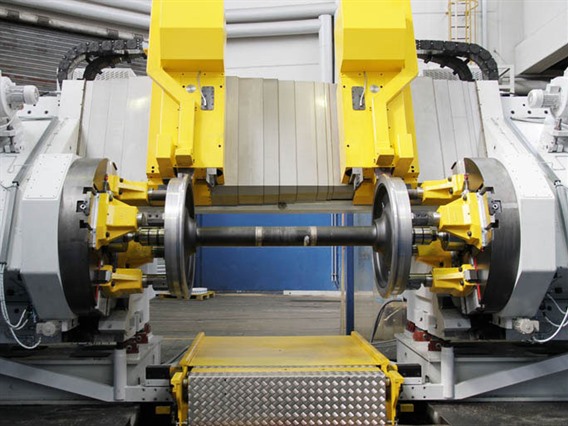

The Hegenscheidt-MFD portal wheel lathe is a high production wheel lathe that is easy to operate and maintain. Its portal design allows for wheel sets to roll through the lathe on shop rails. The mechanical elements and drive system are designed for cutting performance up to 32 mm² per tool post. This allows for a short floor-to-floor time for re-profiling, even for extreme wheel wear conditions.

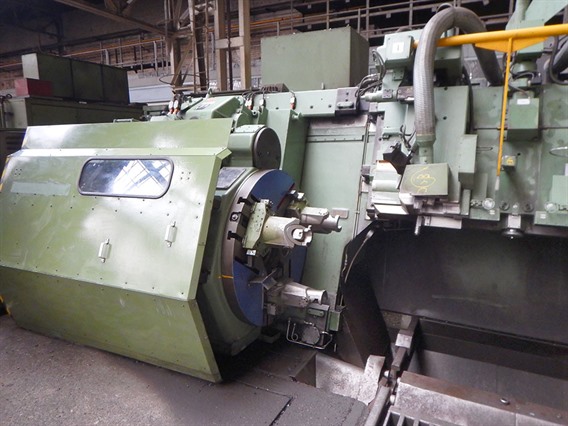

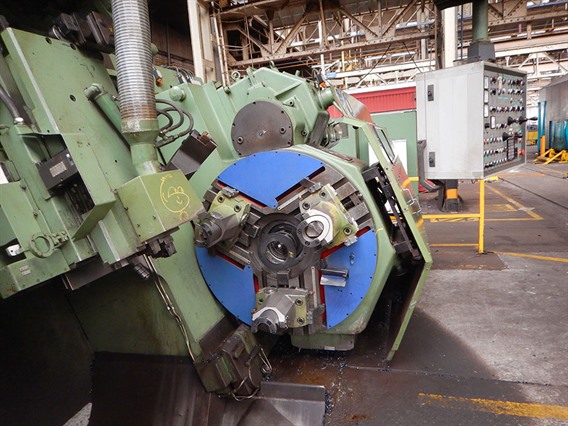

Mounted to each side of the portal type bed are the headstocks, with integrated drivers, centers and a main drive system fitted to each headstock. Both headstocks are movable for ease of the load and unload functions.
Working Range
Machining of new and worn wheelsets

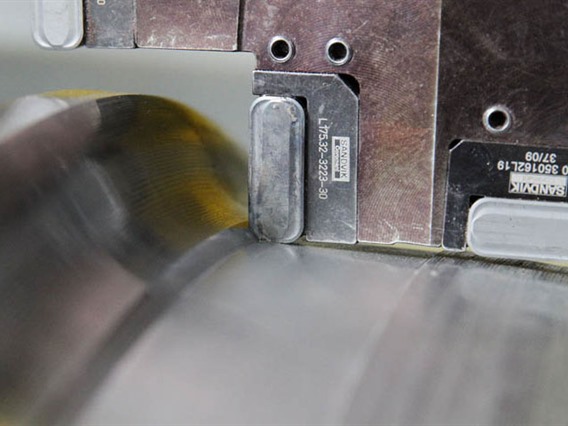

Wheel profile machining
Machining of freight wheel set rims
Equipment make-up
High performance machine capable of
medium and heavy depth of cuts

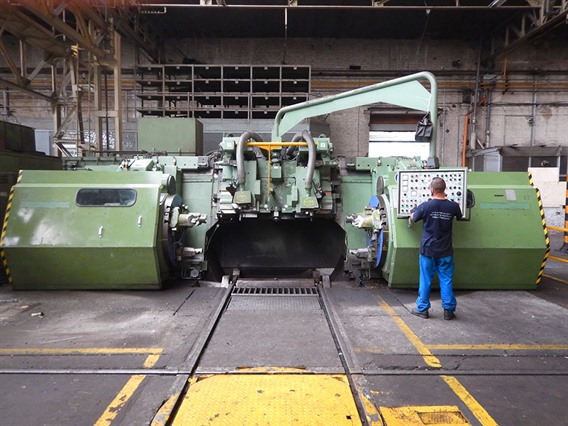

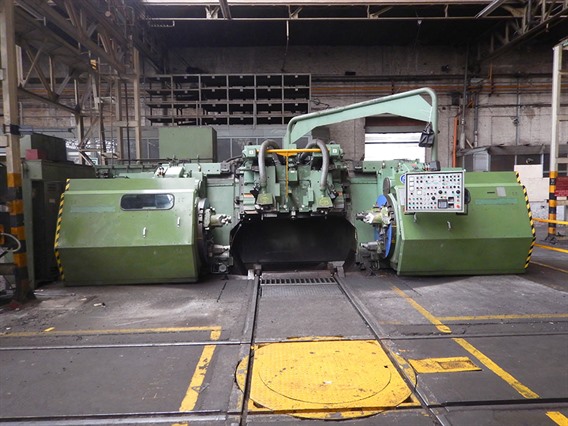

Portal type bed allowing roll-through of wheel sets

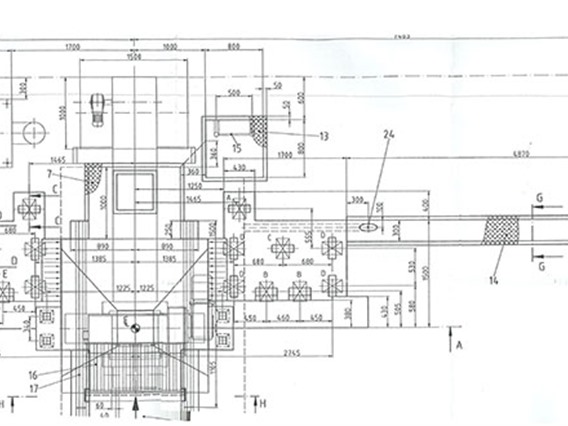

Equipment installation on shop floor level

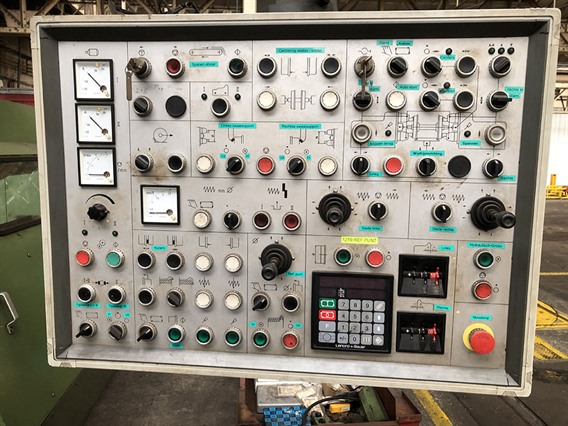

Fully automatic machine control system
train wheel lathe - Portal radsatzdrehmaschine - portal wheelset lathe - Портальный колесотокарный станок
Rail set lathe / Railway lathes / Rail lathe
- Type/Modèle: MFD 165 Portal Wheelset Lathe
- Numéro de Stock: A.01 10806
- Catégorie principal: [A] Tours
- Subcatégorie: [A.01] Tours paralleles
- Marque: Hegenscheidt
Numéro de Stock: A.01 10806
