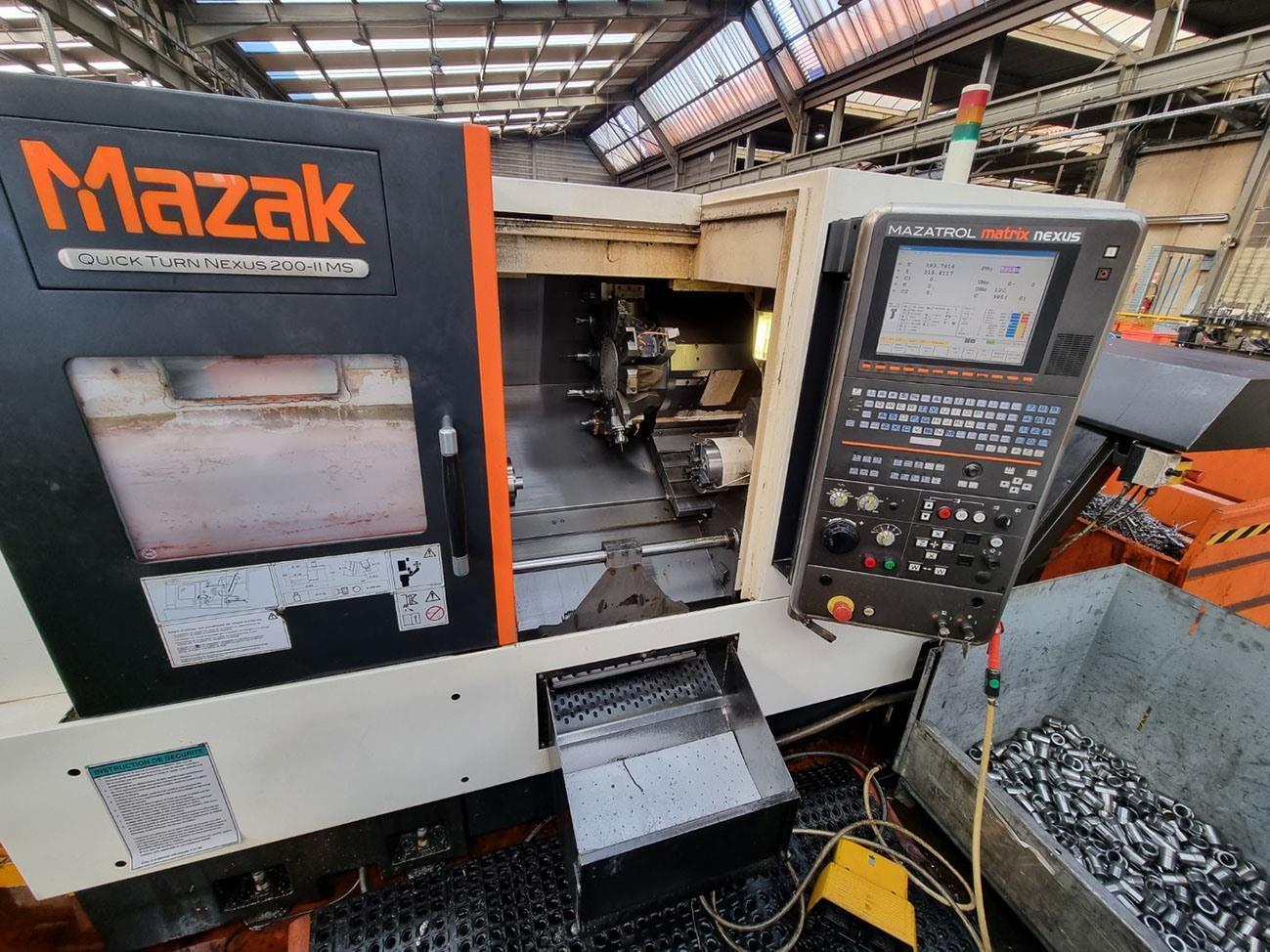

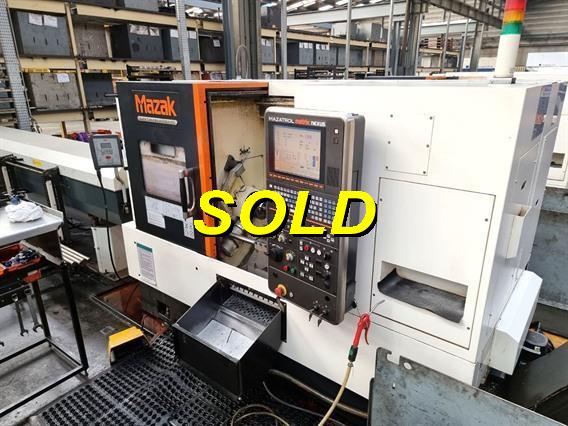

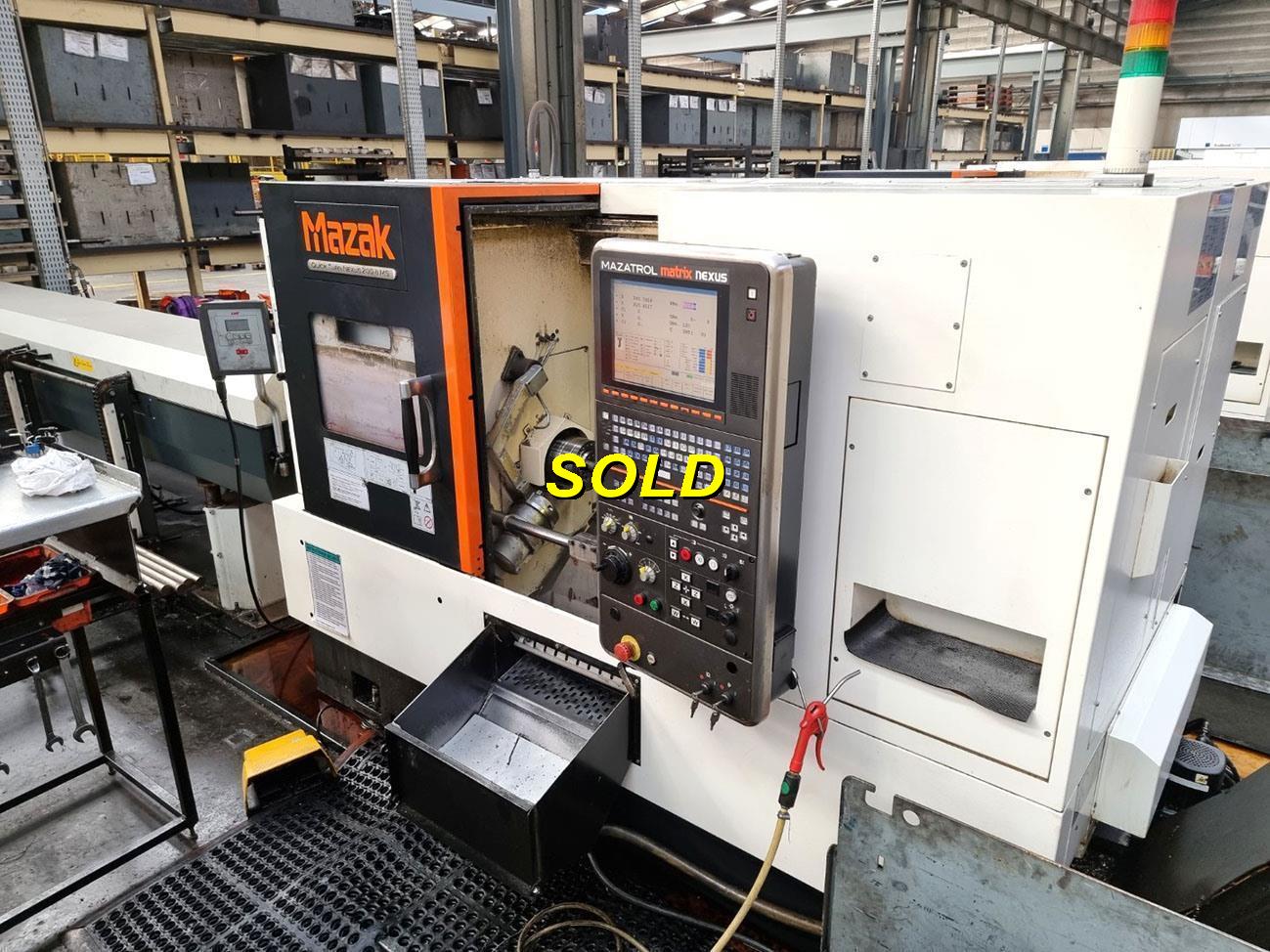

Mazak Quick Turn Nexus 200-II MS Ø 380 mm CNC

Produit ajouté à vos favoris

» Demandez un devis personalisé

Information technique

Passage max au-dessus du banc380 mm
Passage max au-dessus du chariot350 mm
Déplacement longitudinal axe Z575 mm
Déplacement transversal axe X230 mm
Passage dans la broche76 mm
Puissance sur la broche26 kW
Nombre de vitesses5000 rpm

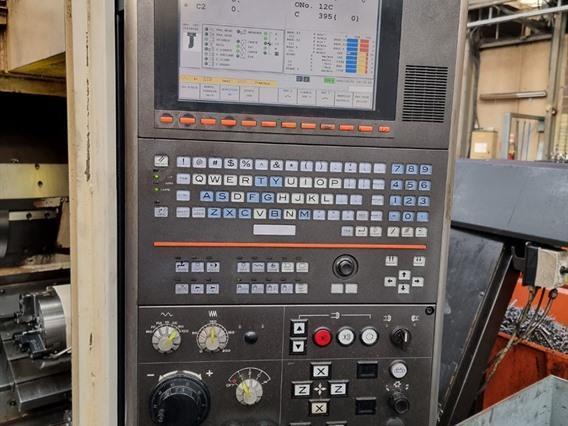

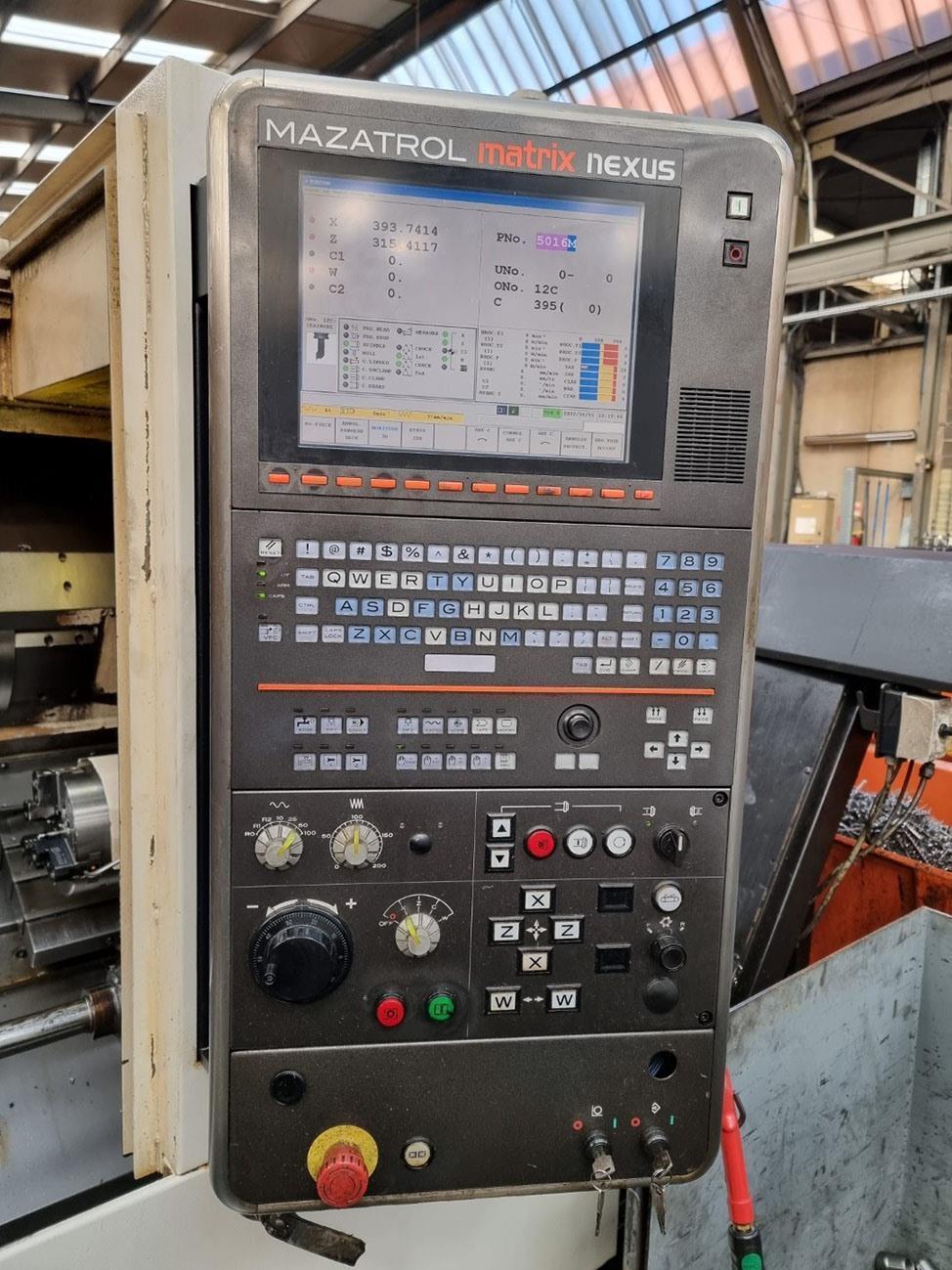

CommandeMazatrol Matrix Nexus
Puissance nécessaire46,9 kVa
Courant nécessaire380v
Longueur G -- D2765 mm
Largeur Av -- Ar1978 mm
Hauteur 1840 MM
Poids5,3 ton
douille de serrageyes
Changeur porte-outils12 positions

Informations complémentaires

Main spindle: 26 kW - 5000 rpm
Subspindle: 11 kW - 6000 rpm

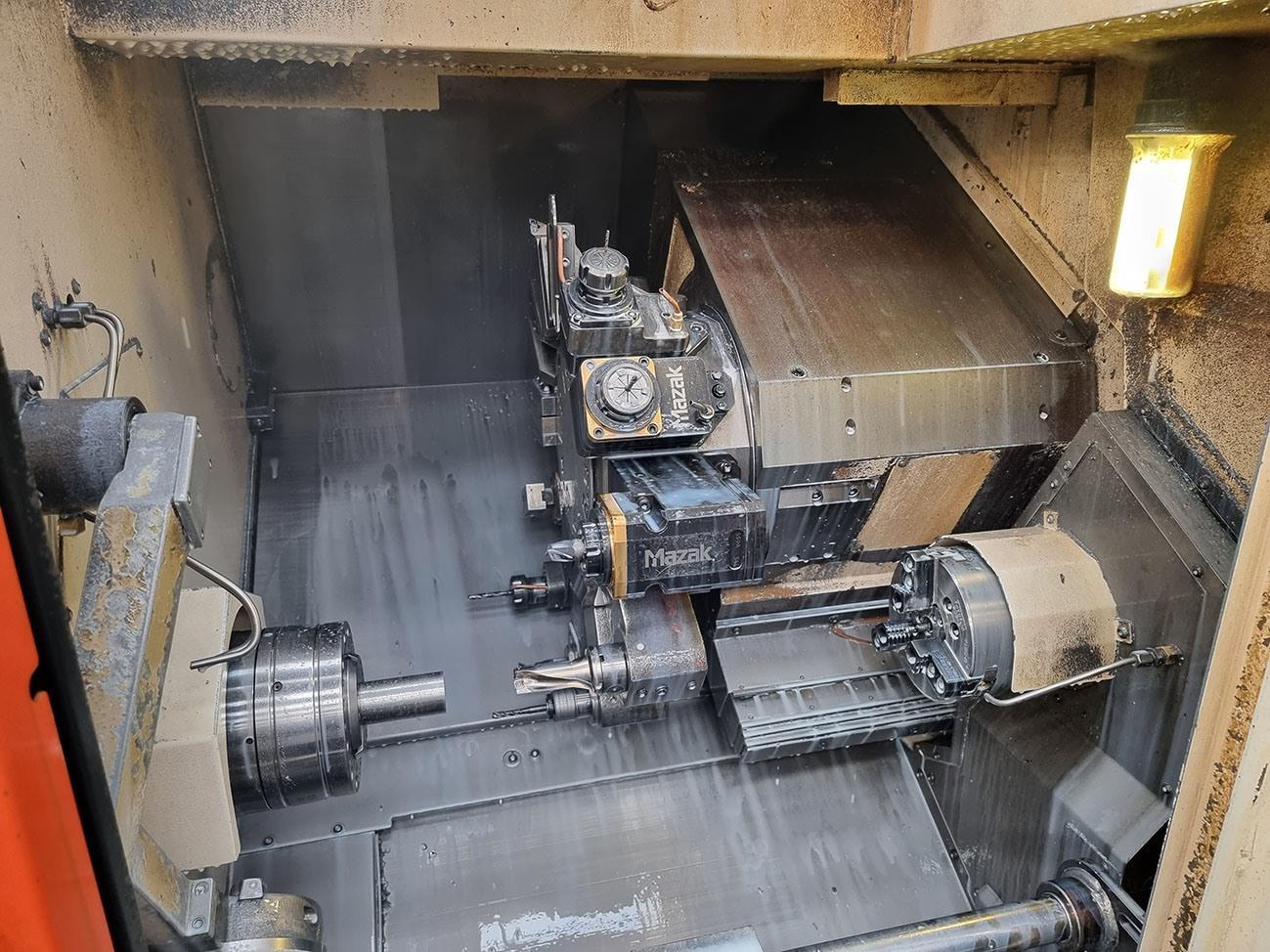

Driven tools
Automatic tool eye
Partscatcher

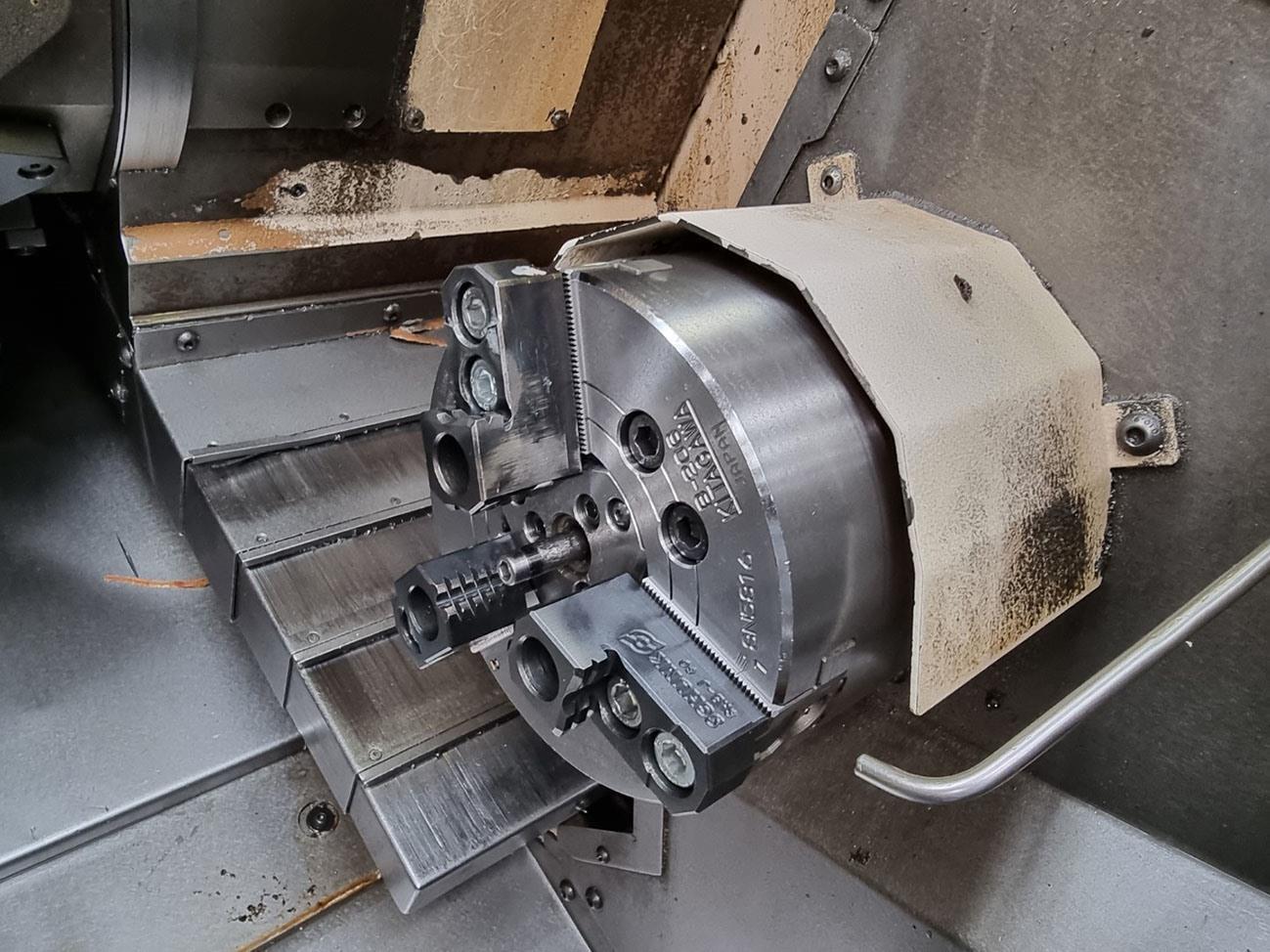

Chuck airblast
High pressure cooling 1,1 kW
Chipconveyor included

Barfeeder NOT INCLUDED
Type/Modèle: Quick Turn Nexus 200-II MS Ø 380 mm CNC
Numéro de Stock: A.07 12882
Catégorie principal: [A] Tours
Subcatégorie: [A.07] Tours CNC
Marque: Mazak

» Demandez un devis personalisé

Numéro de Stock: A.07 12882
