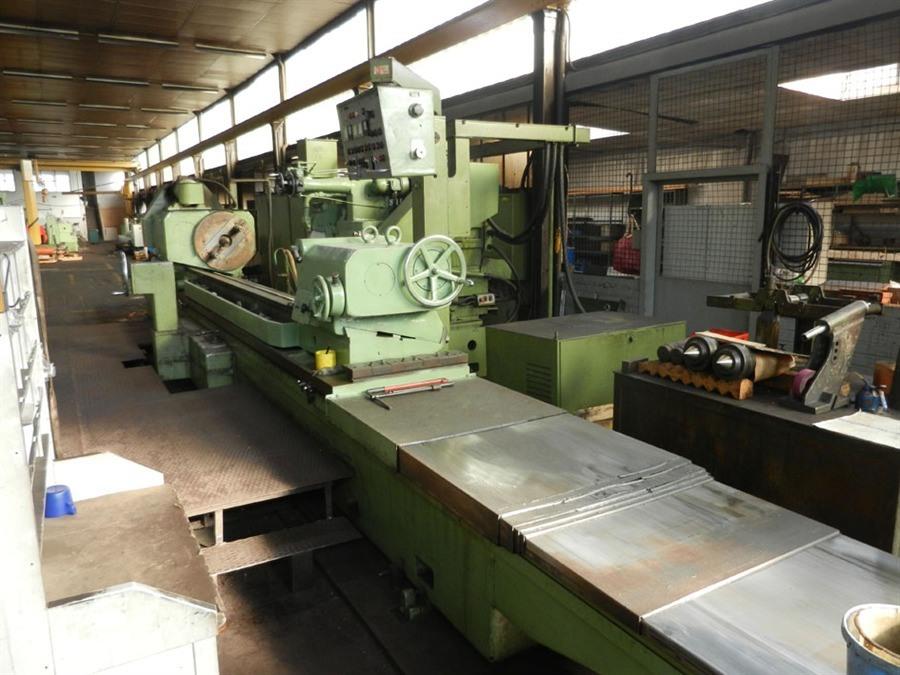

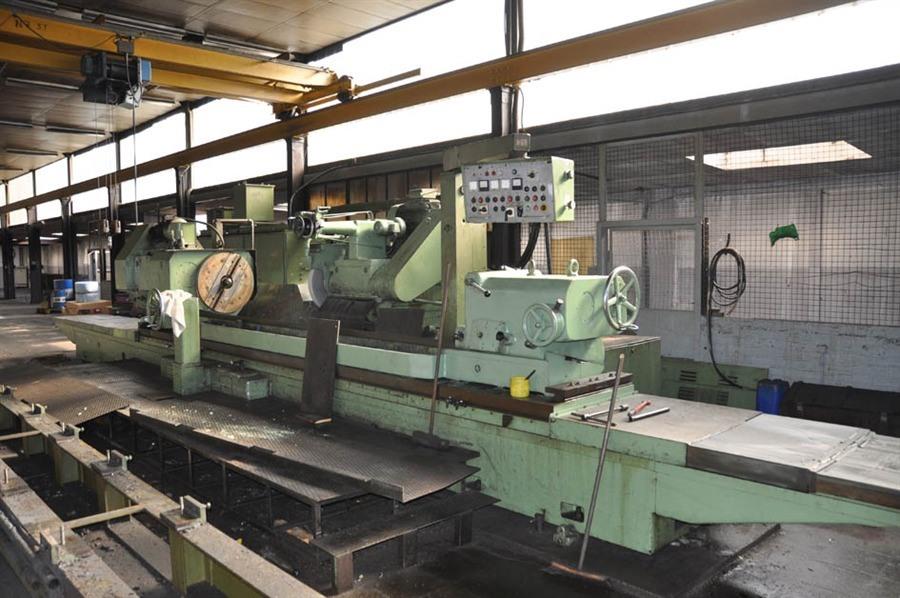

Rectifieuses cylindriques Stanko Ø 800 x 4000mm
Information technique
- Distance entre pointes4000 mm
- Dia maximale800 mm
- Hauteur de pointe410 mm
- Nombre de rotations de la meule1500 rpm

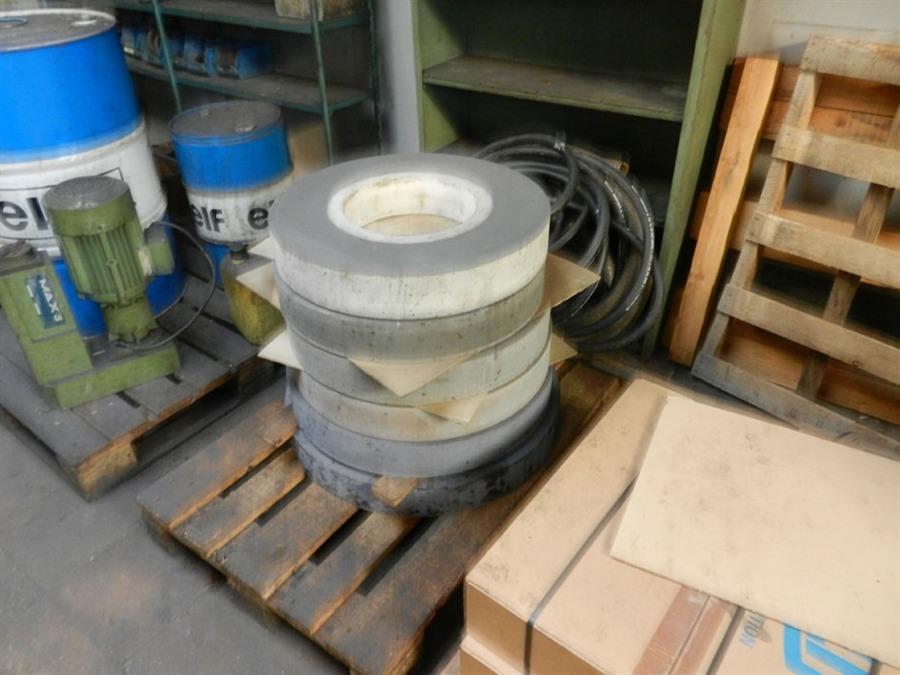

- Dia. de la meuleØ 750 x 100 mm
- Longueur G -- D47,5 kW

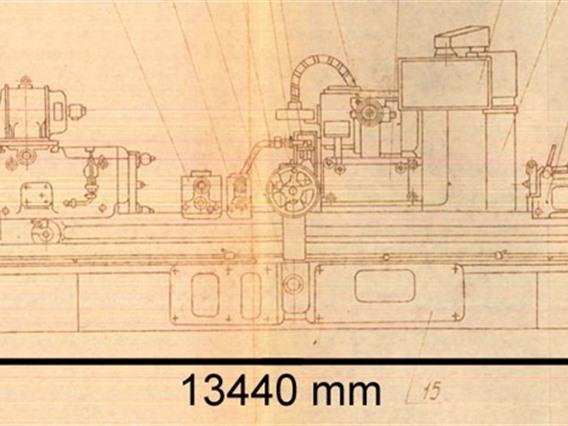

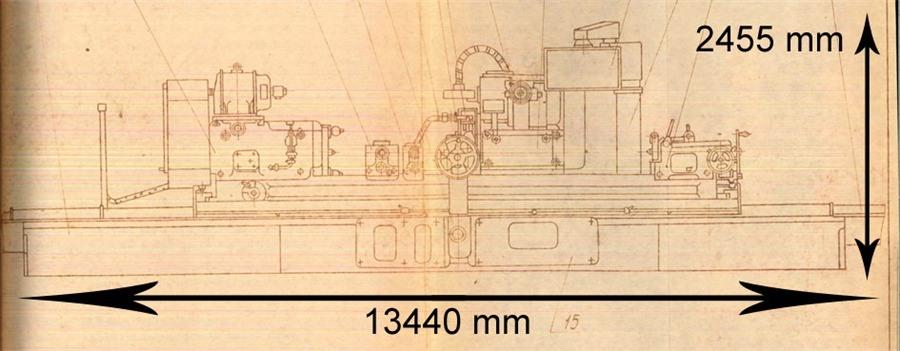

- Largeur Av -- Ar13440 mm
- Hauteur4485 mm
- Poids2455 mm
- ACCESSOIRES38 ton
Informations complémentaires

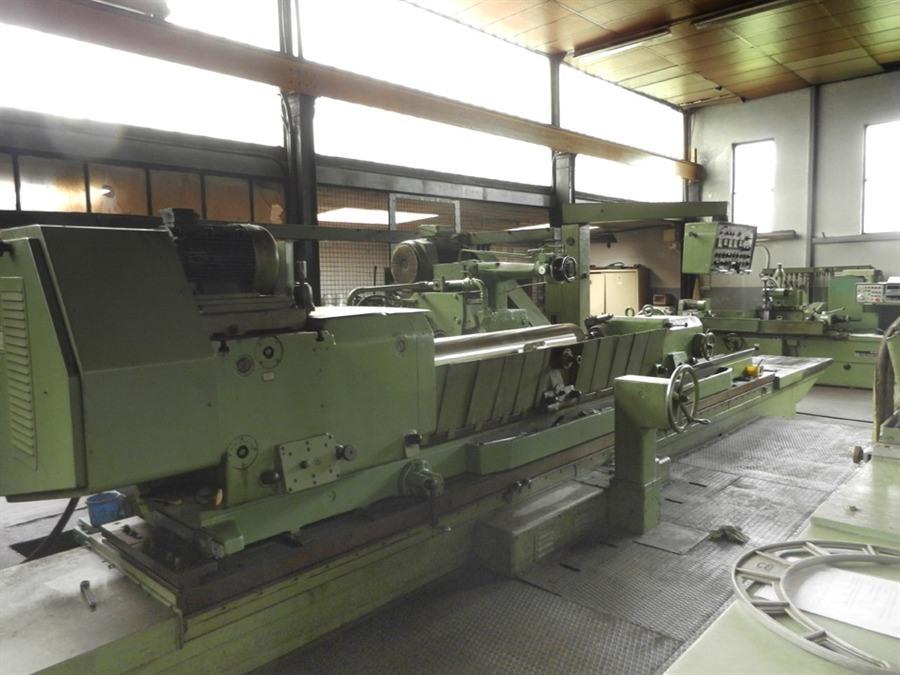

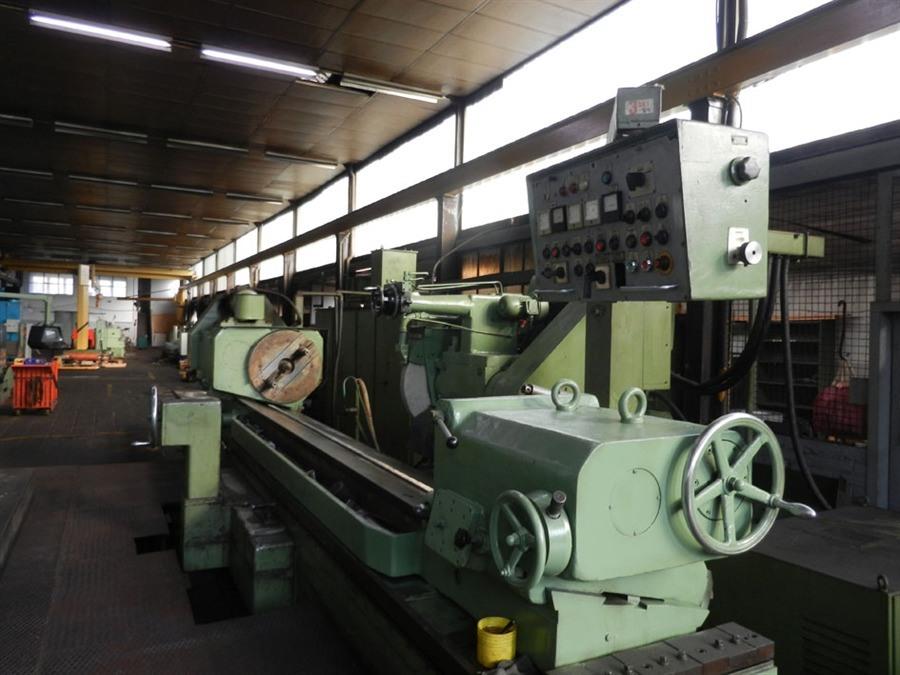

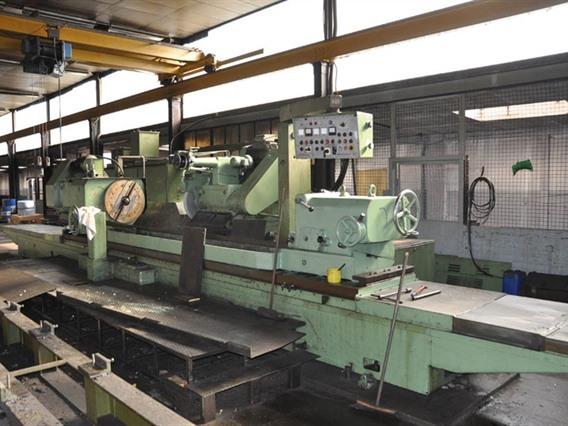

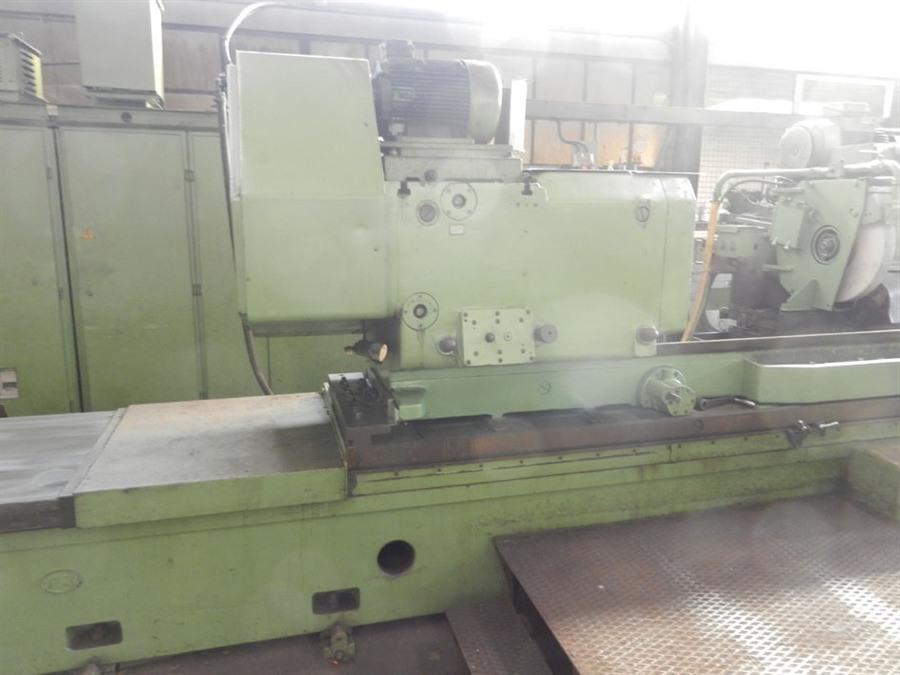

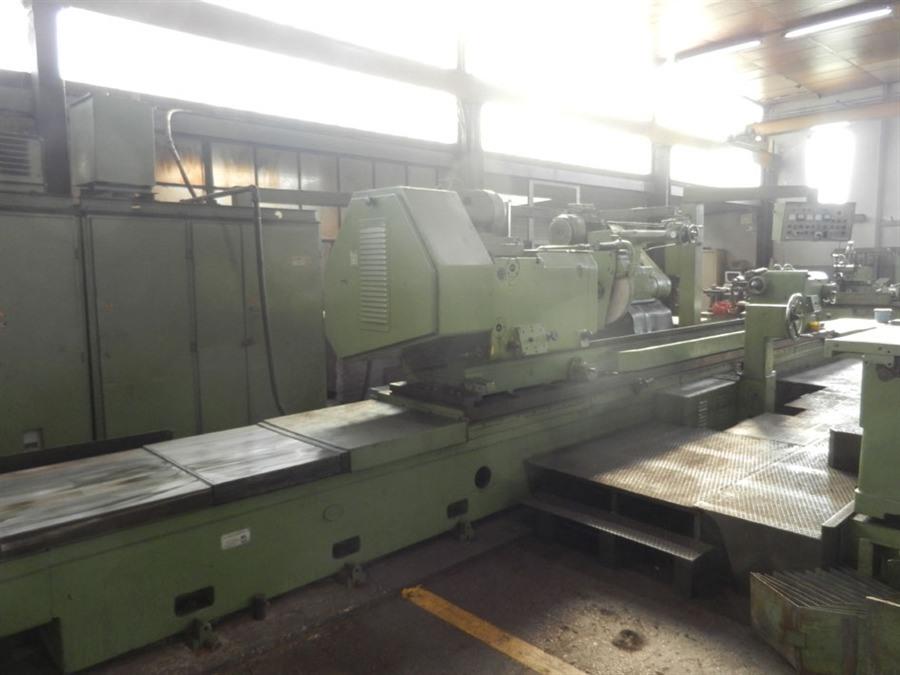

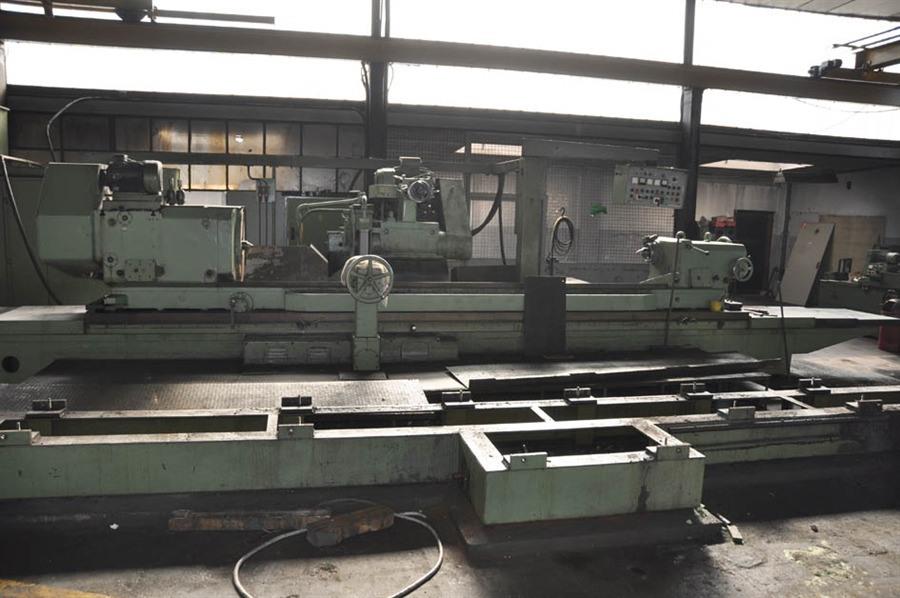

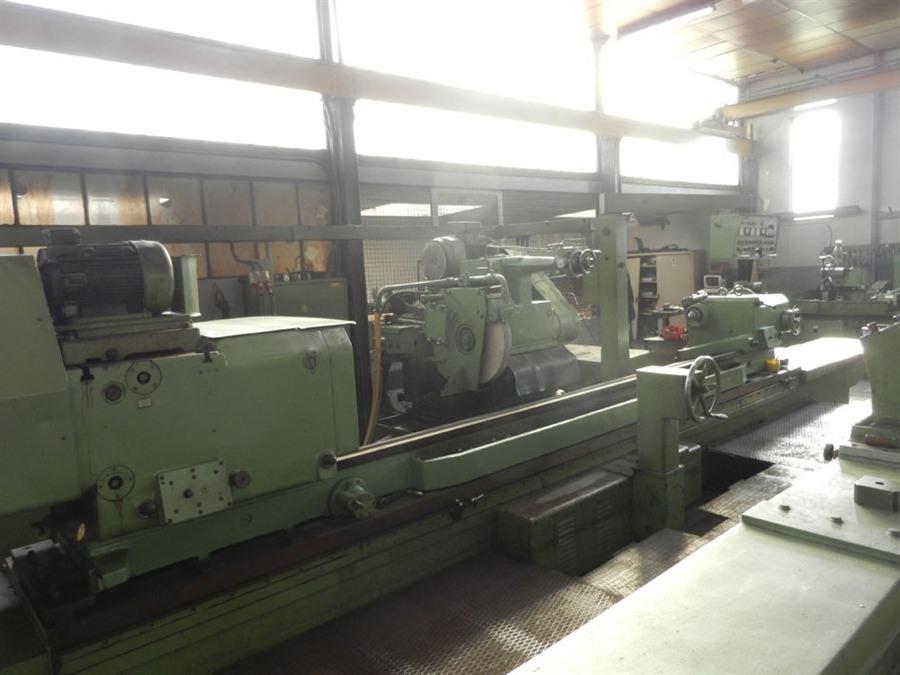

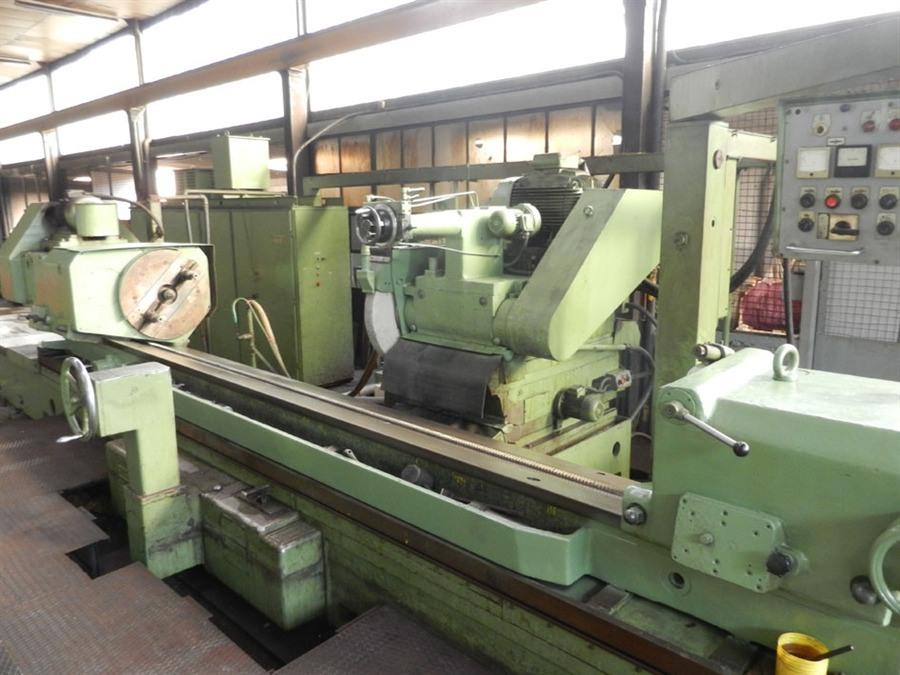

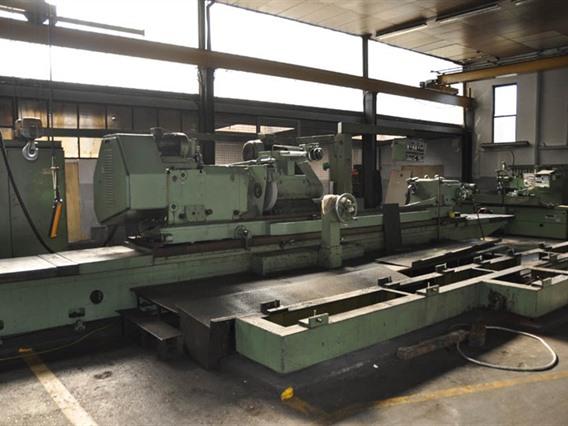

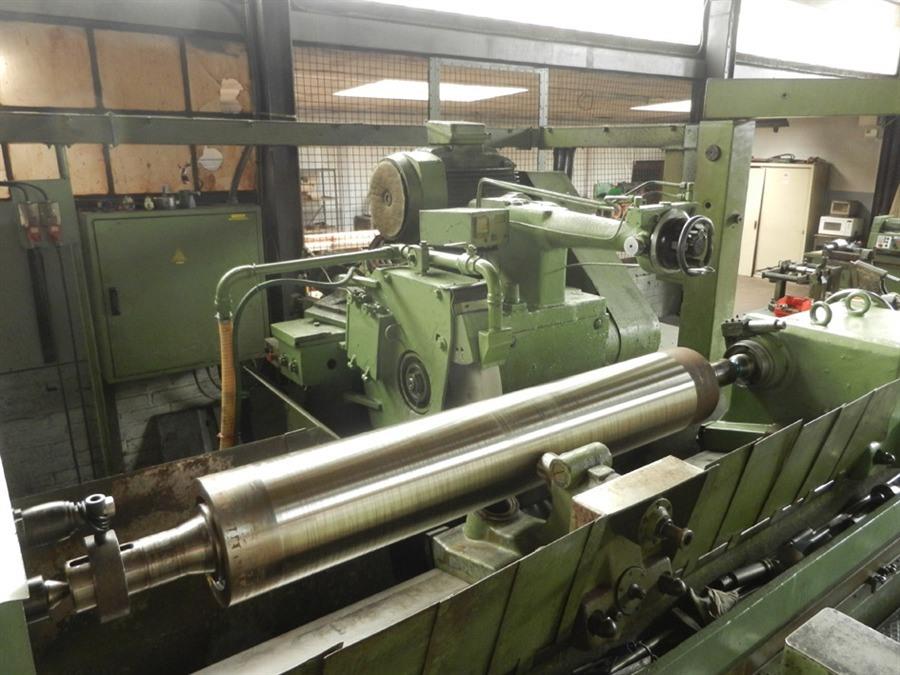

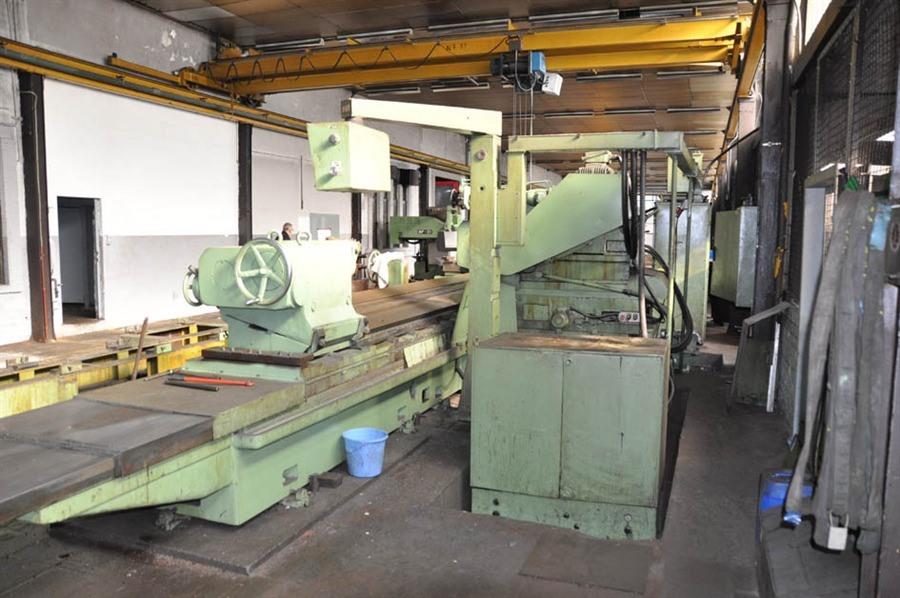

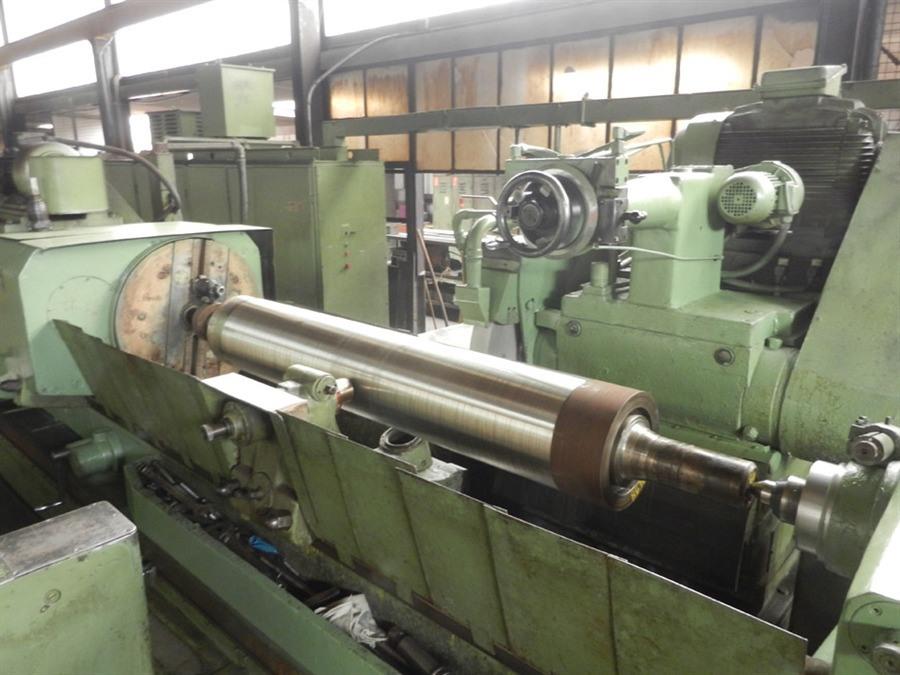

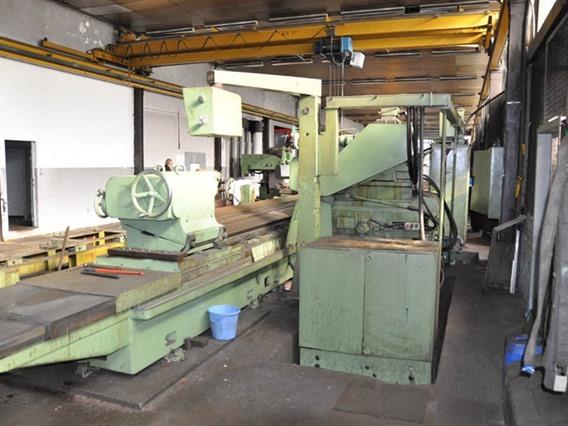

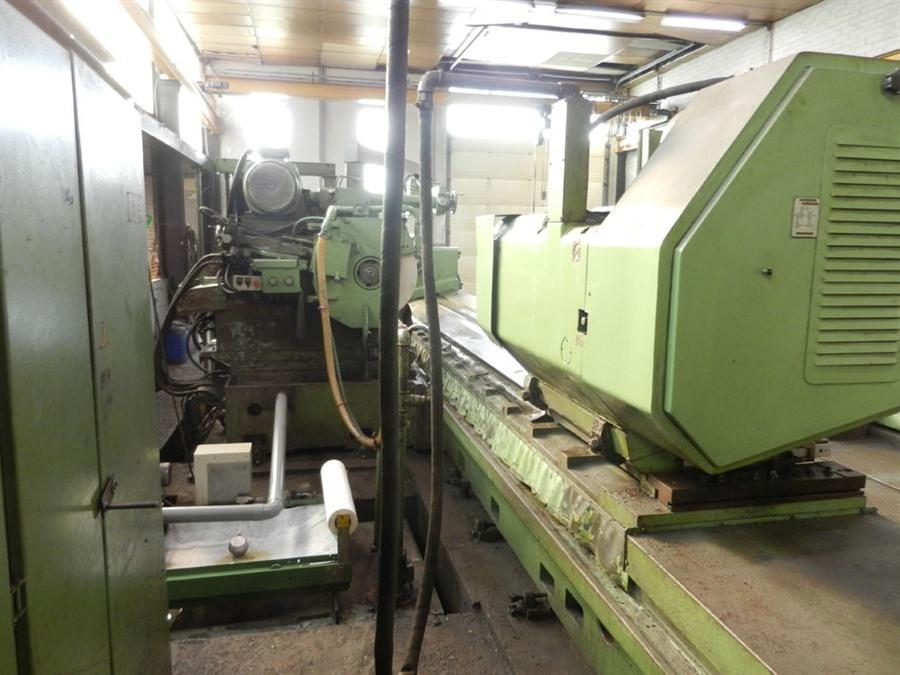

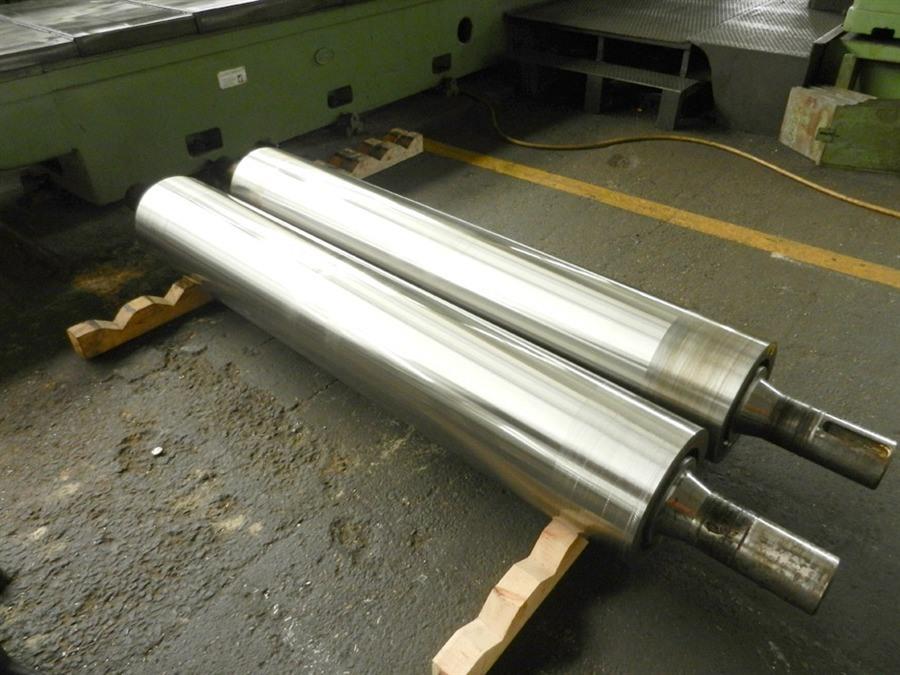

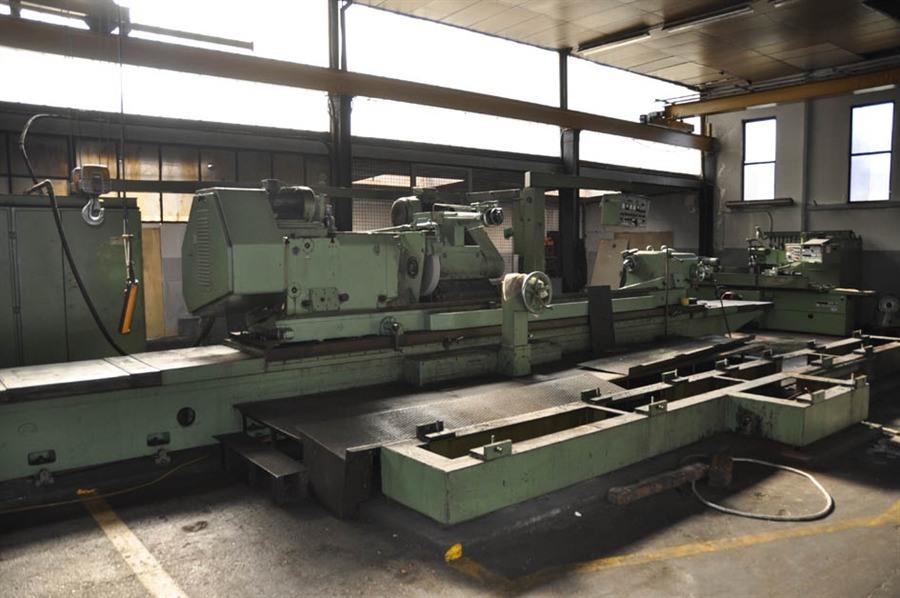

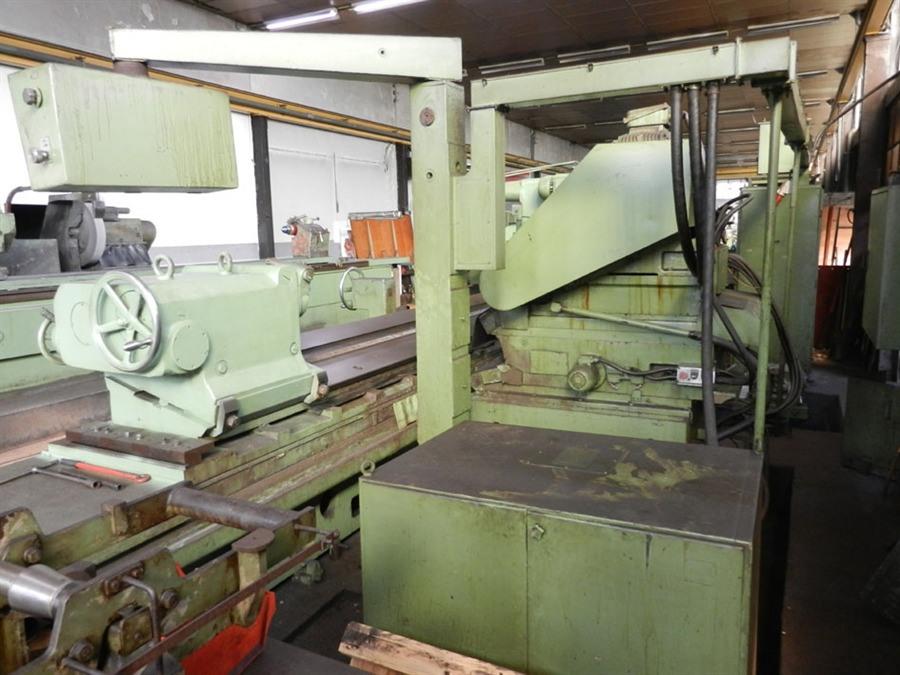

Roll grinder Stanko Ø 800 x 4000mm - was previously used to manufacture hydraulic cilinders

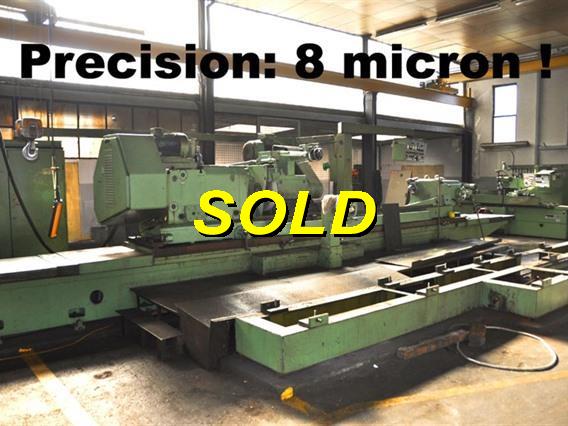

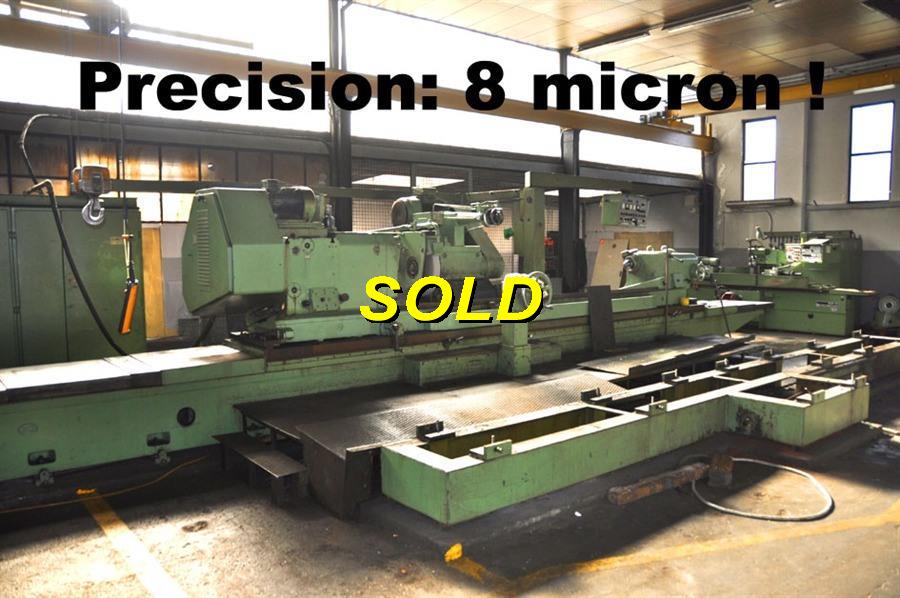

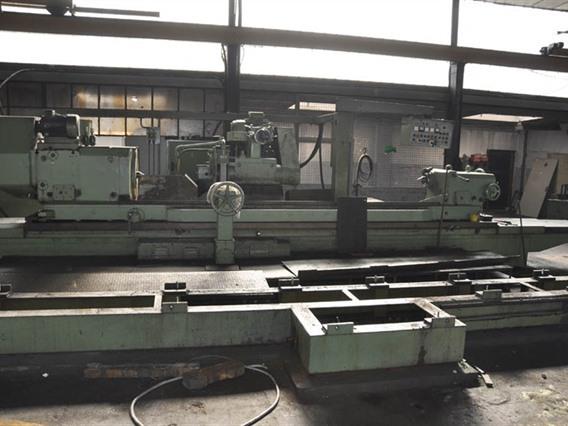

High level of accuracy: 8 microns!! due to the stirdy build of the machine in combination with the considerable foundation which is required.

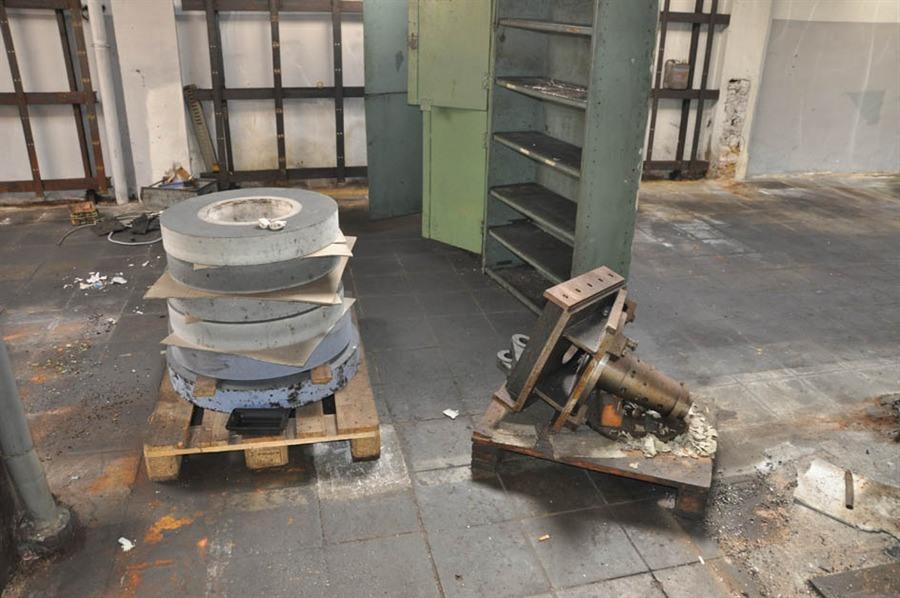

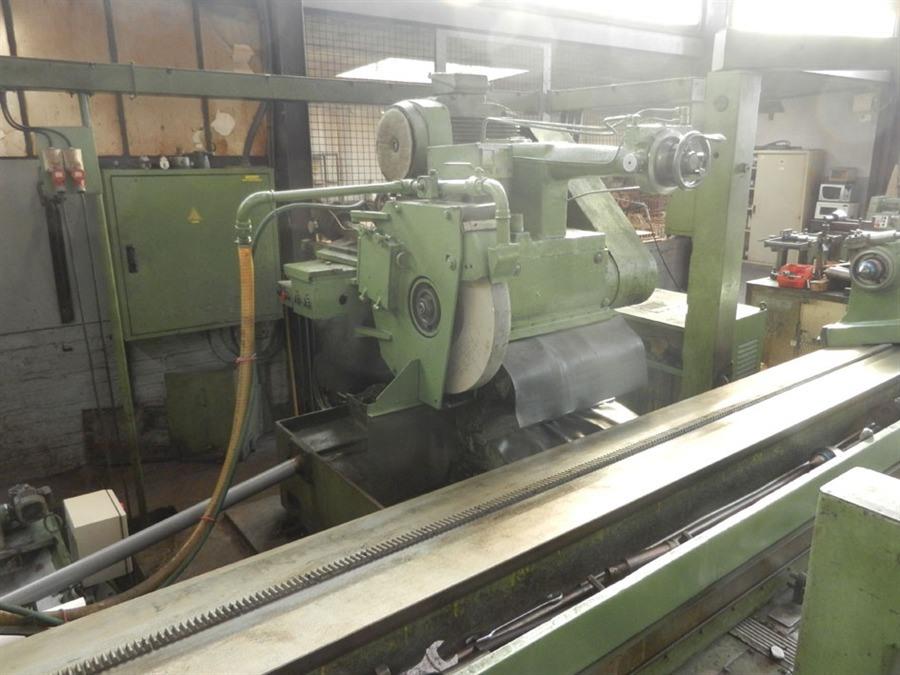

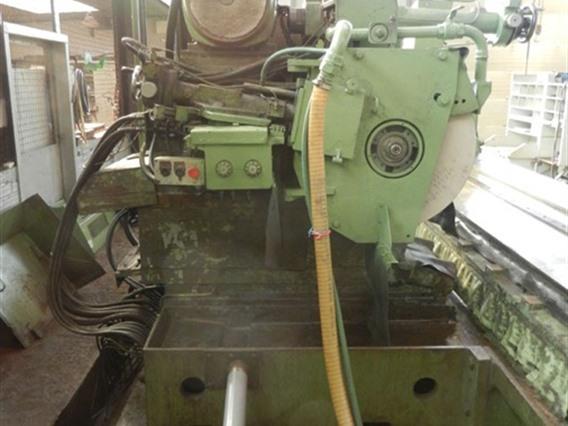

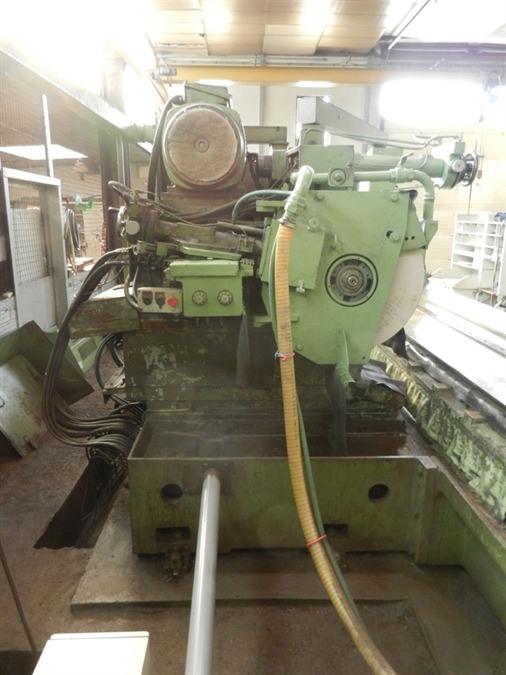

Equipped with system for grinding the wheel with a diamond tool.
max workpiece length: 4000 mm
max workpiece weight: 10 ton
max workpiece in steadie: 450 mm
max workpiece without steadie: 800 mm
min workpiece in steadie: 80 mm
min workpiece without steadie: 80 mm
centerheight: 410 mm
movement of table: 4300 mm
- Type/Modèle: Ø 800 x 4000mm
- Numéro de Stock: G.03 7785
- Catégorie principal: [G] Rectifieuses
- Subcatégorie: [G.03] Rectifieuses cylindriques
- Marque: Stanko
