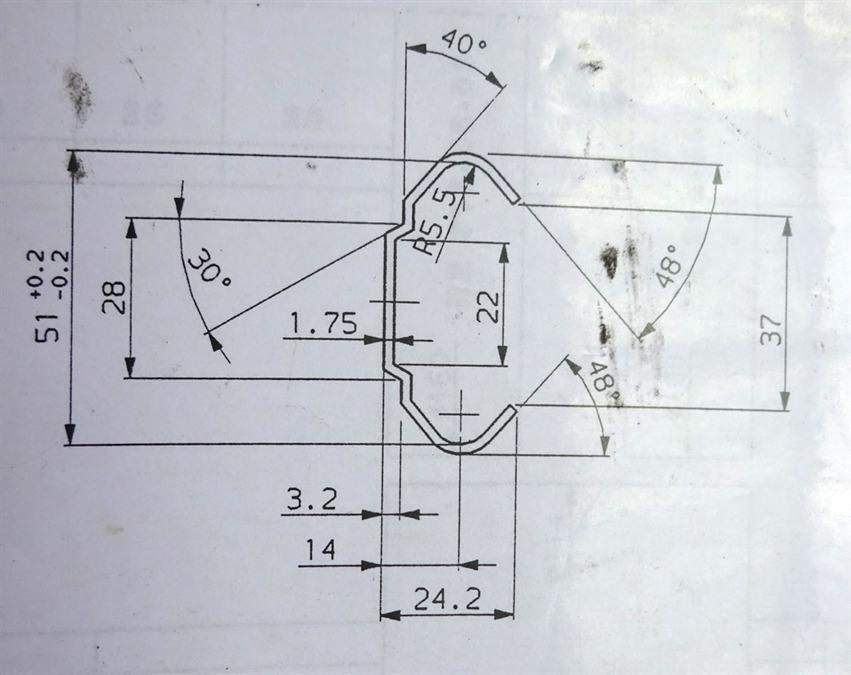

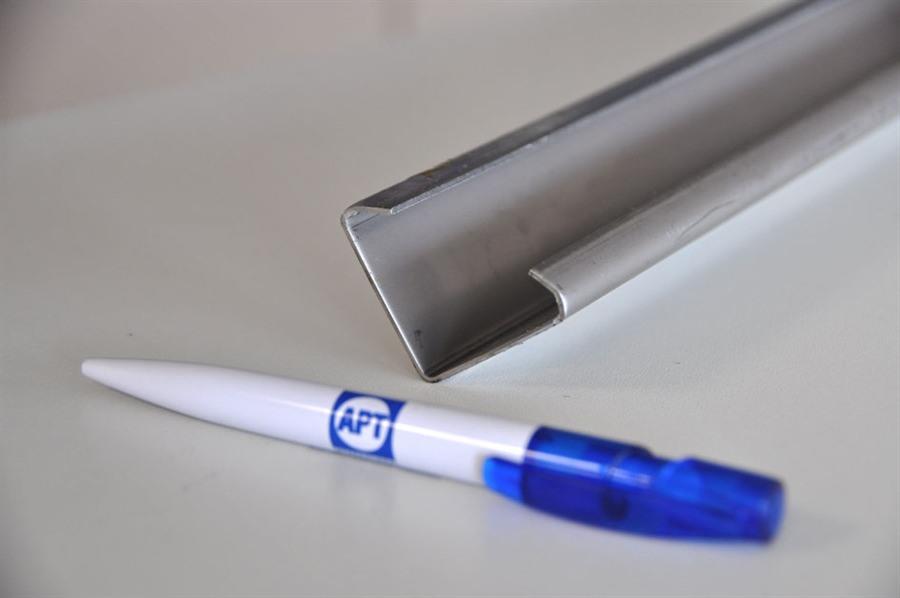

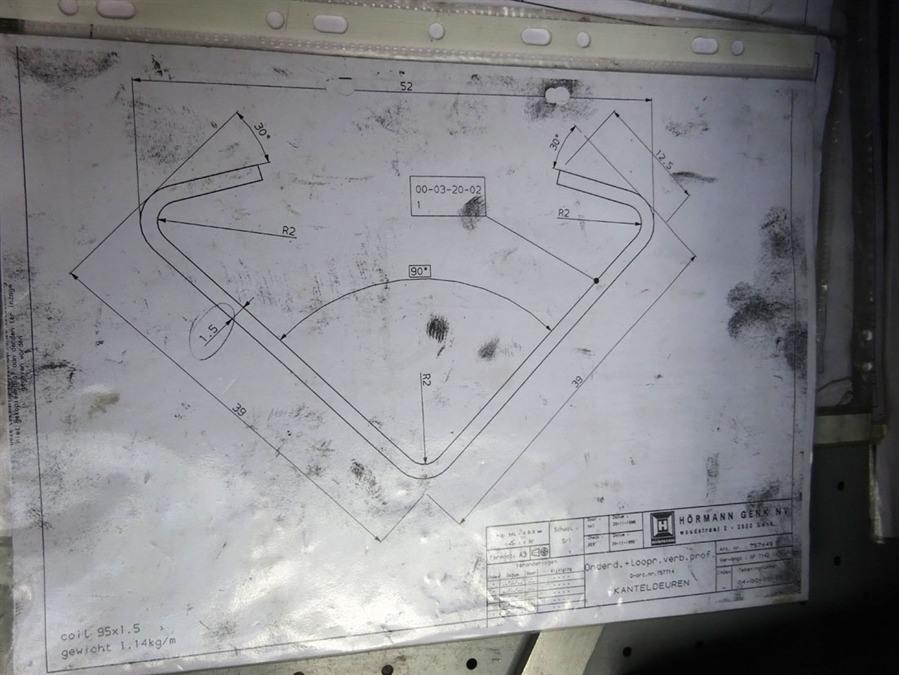

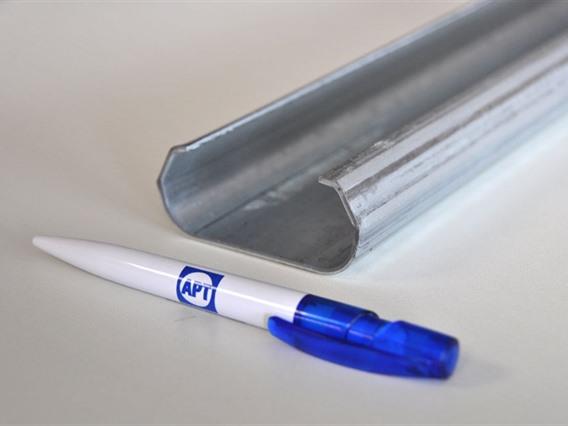

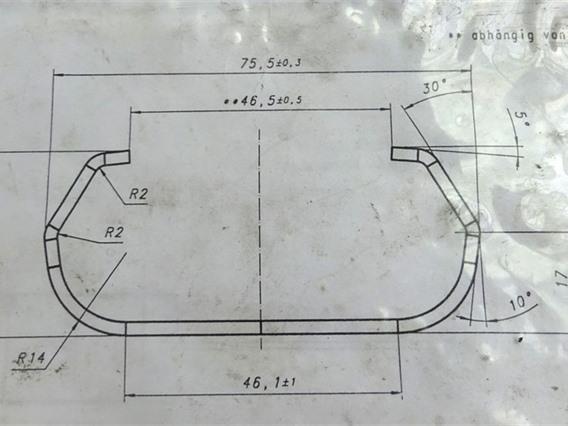

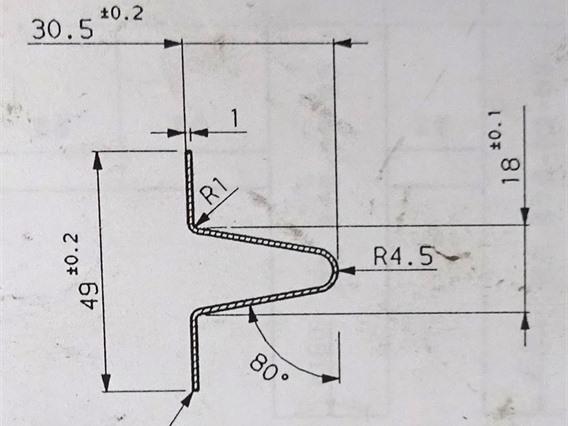

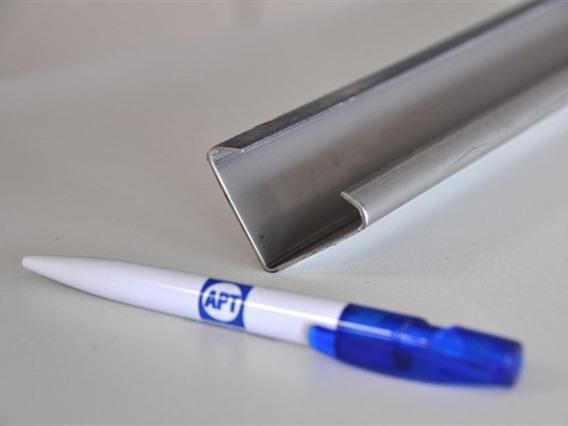

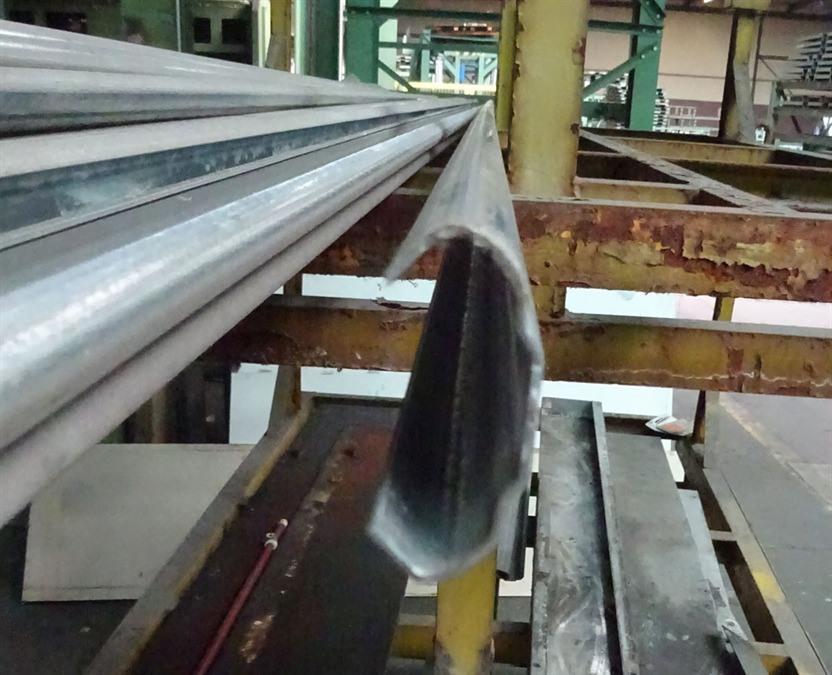

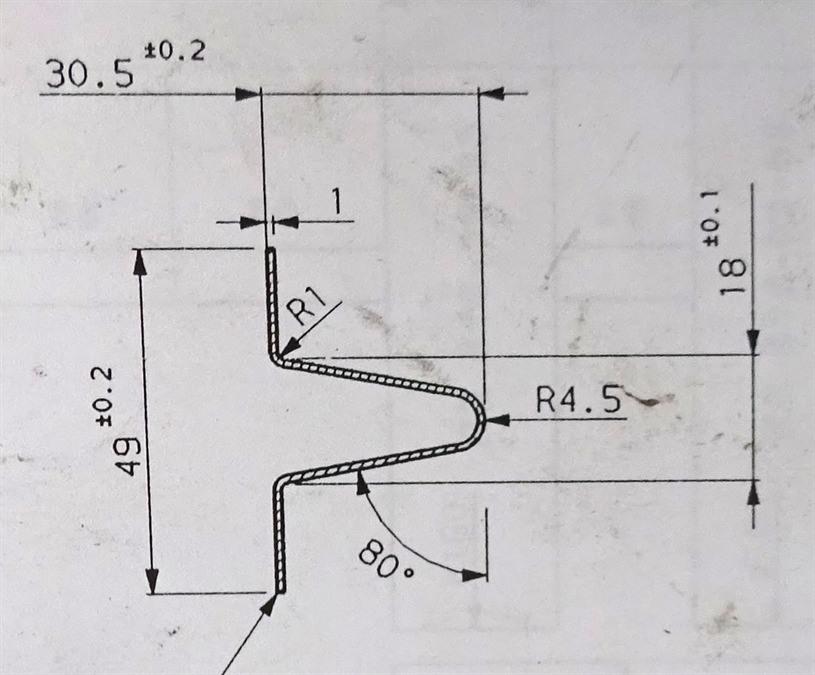

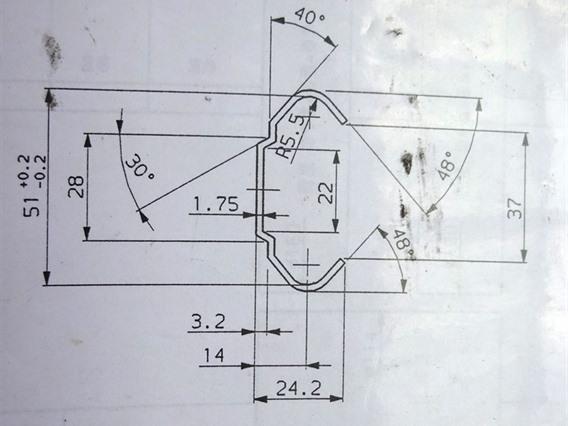

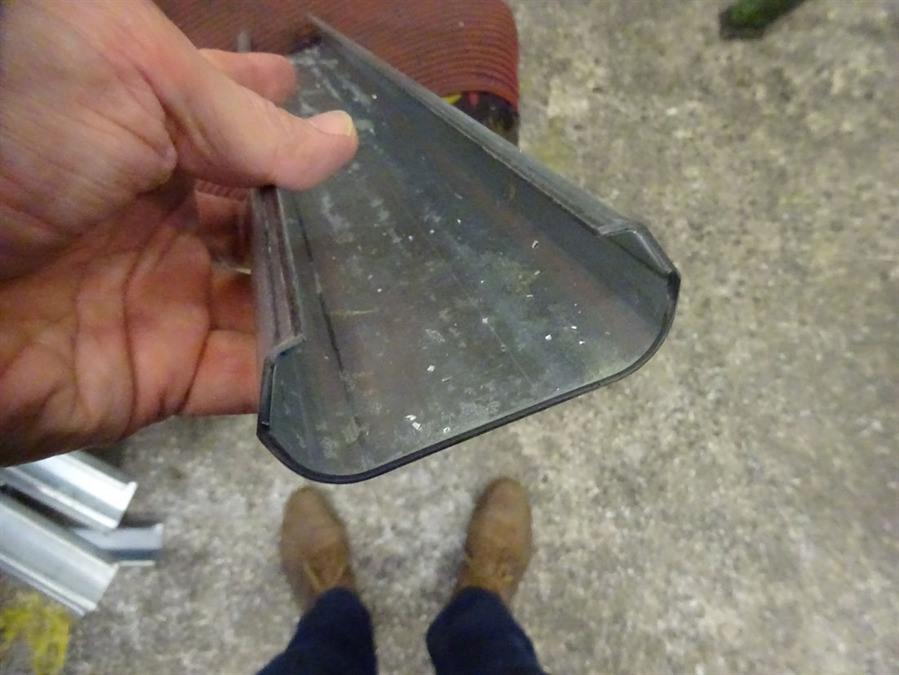

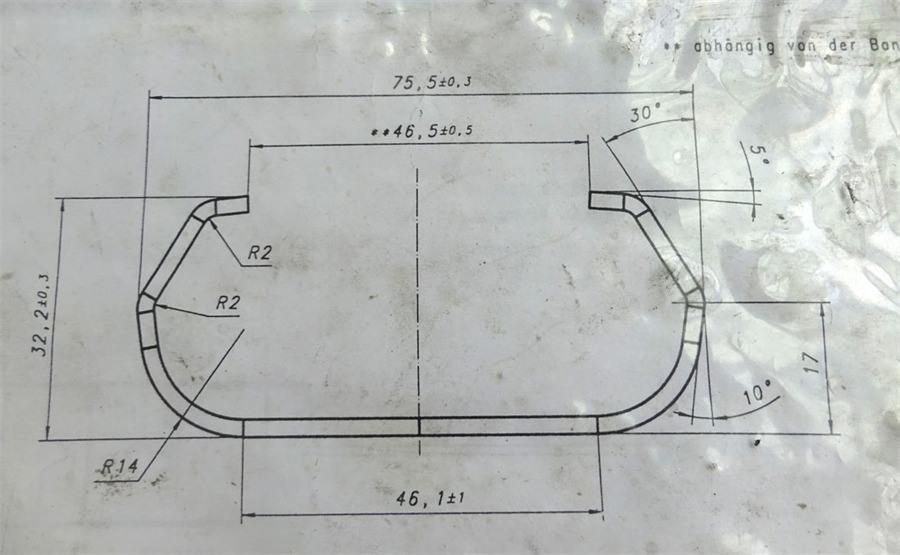

Lignes de deroulage + / ou profilages Dreistern for C-profiles CNC

Produit ajouté à vos favoris

Informations complémentaires

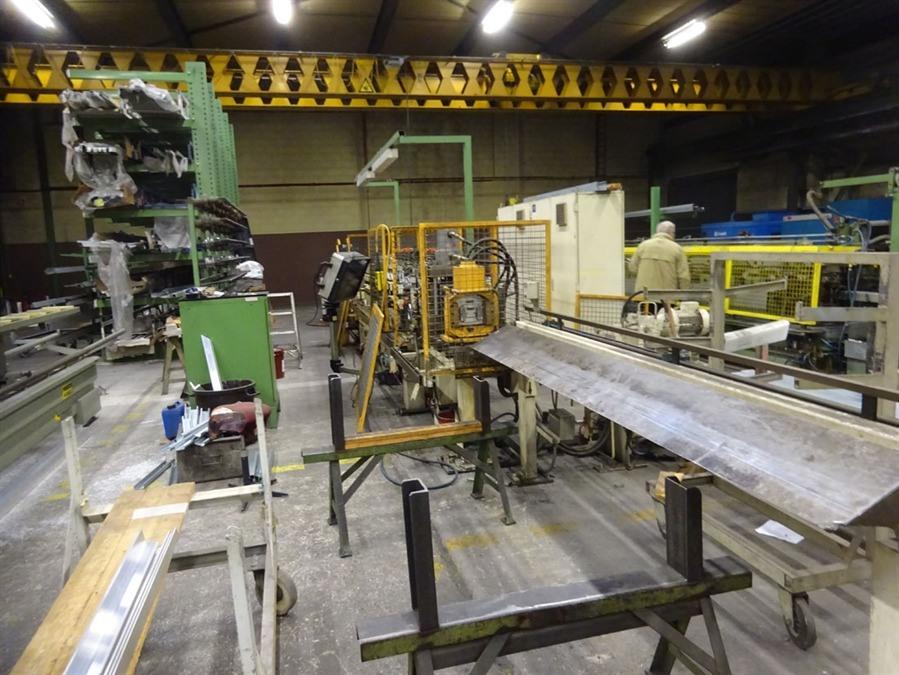

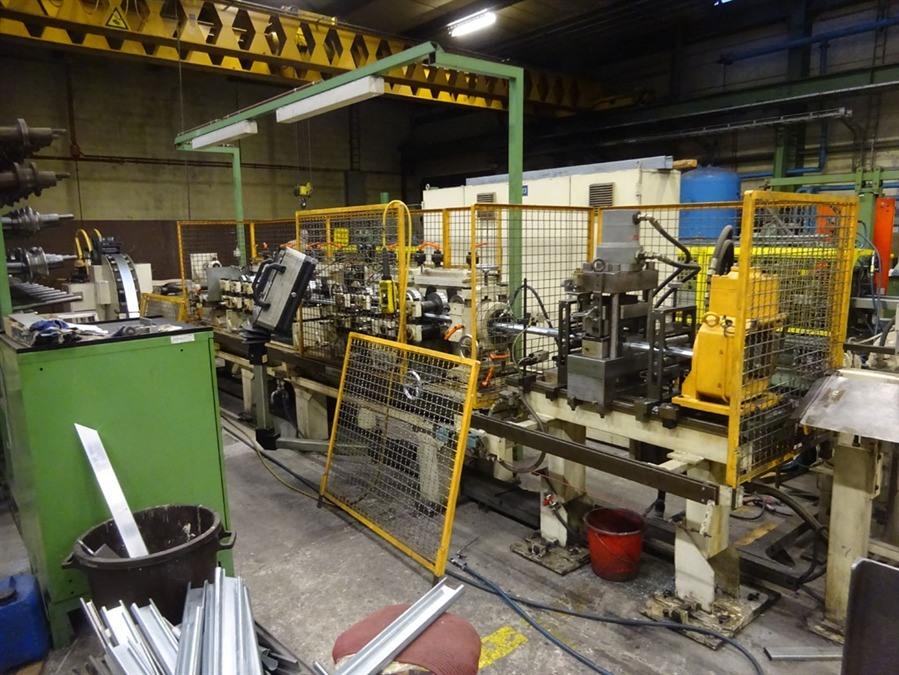

Consists of:

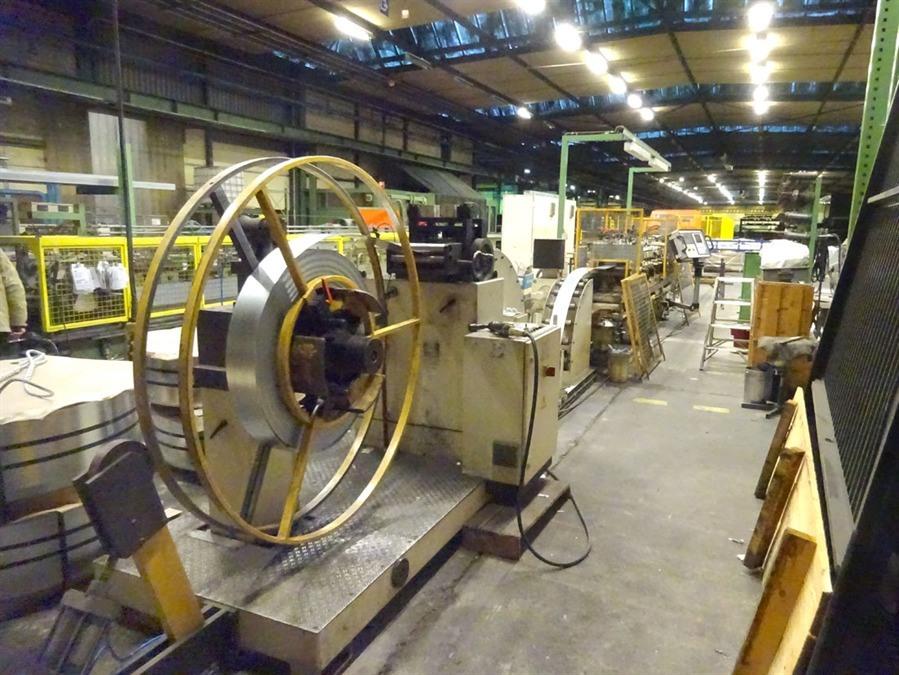

> Decoiler 2 ton

- max width: 200 mm

- max outerda of coil: 1400 mm

- speed: 0,1 > 45 m/min

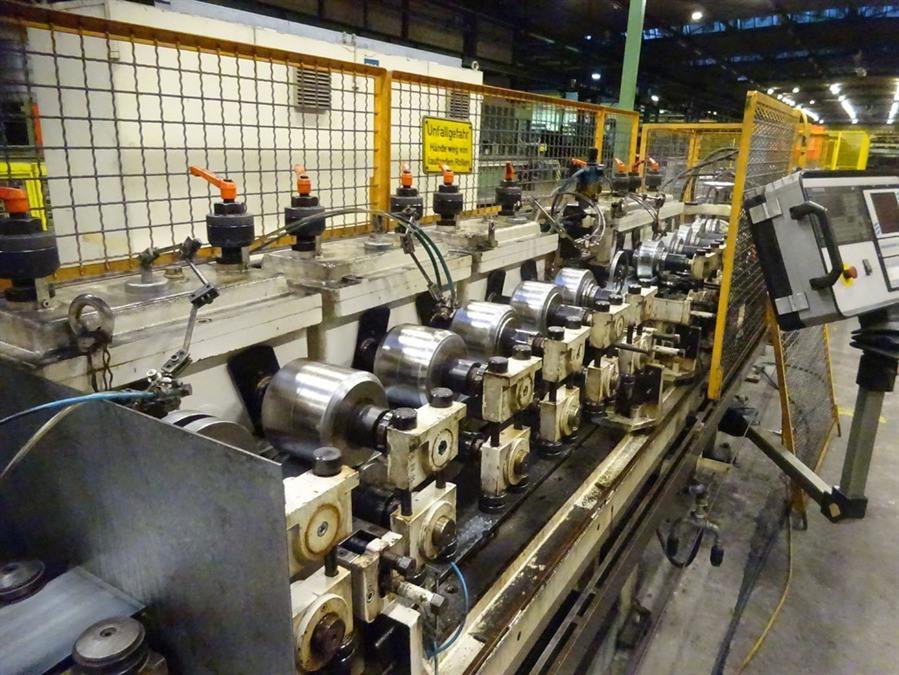

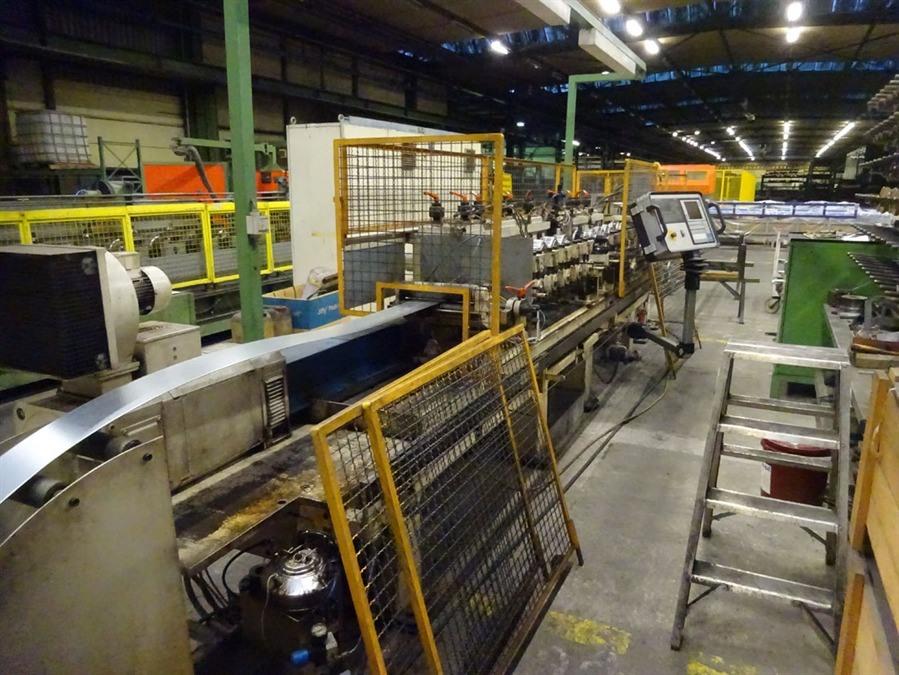

> Rollforming unit P1212 with 12 stations

- max width: 200 mm

- max thickness: 1 mm

- axledia: 50 mm

- speed: 40 m/min

- 25 kW

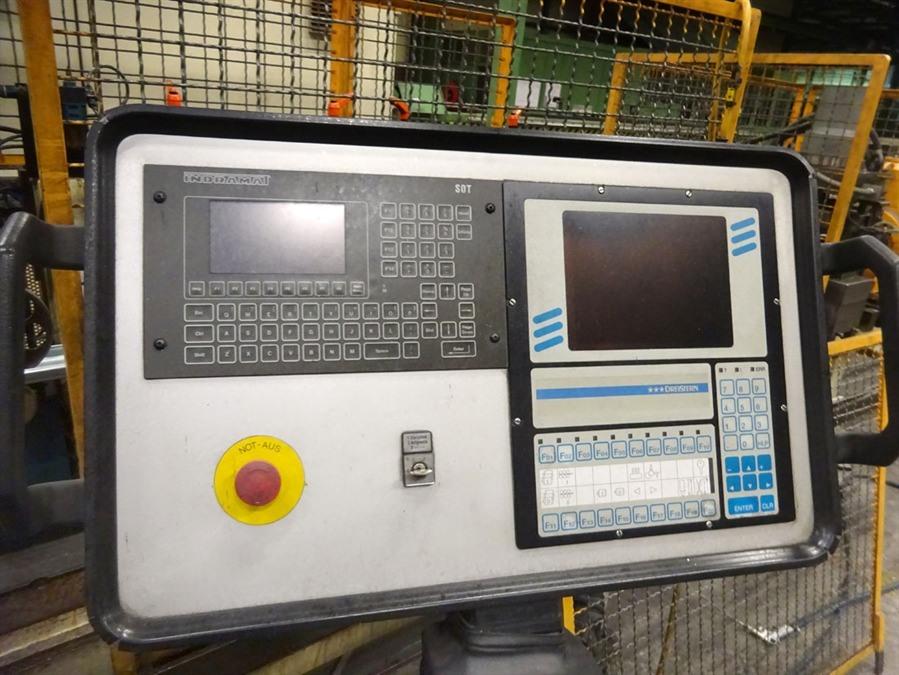

- CNC control

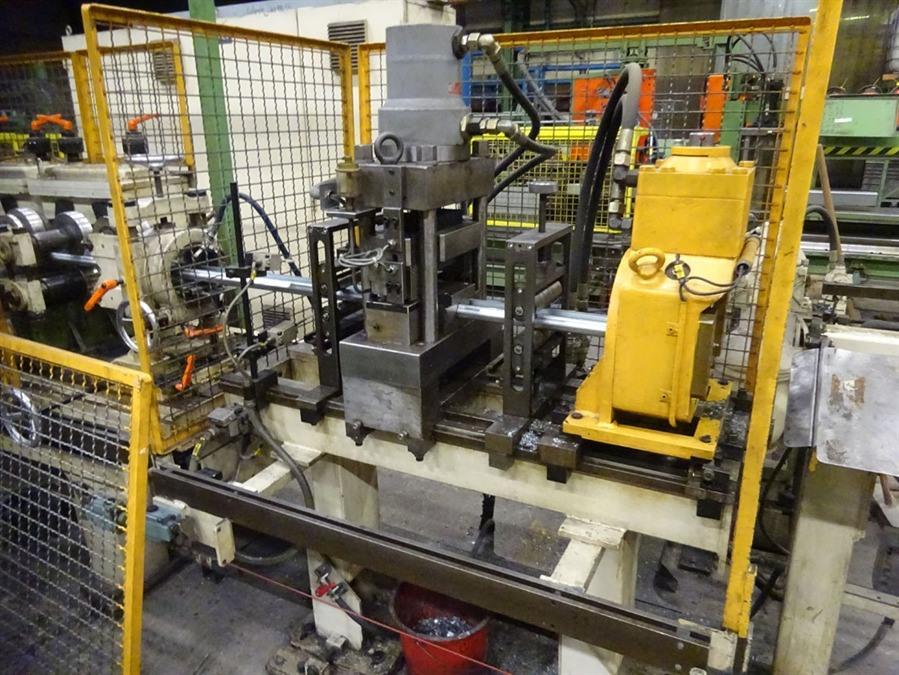

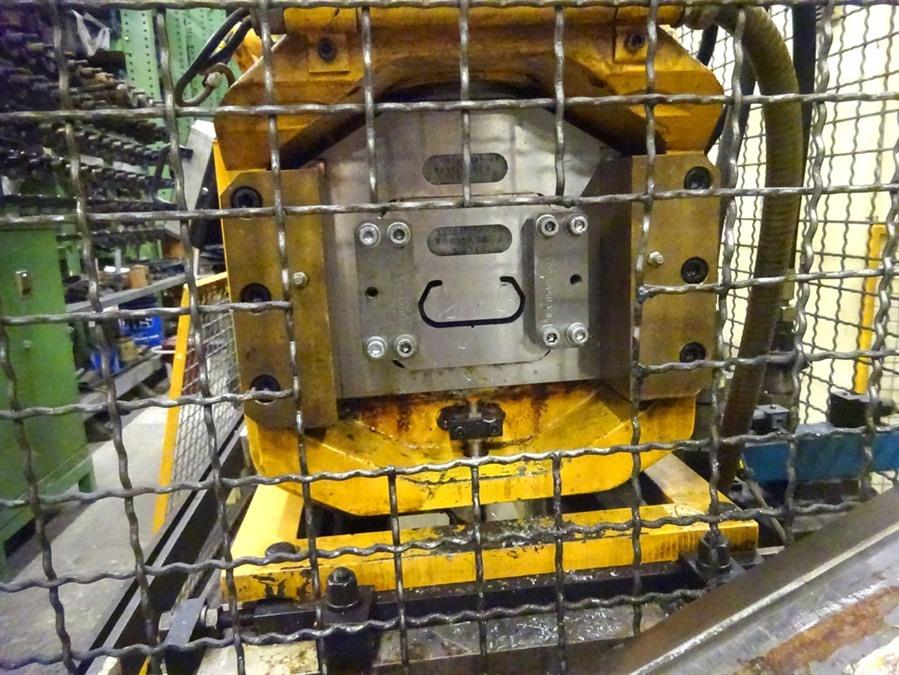

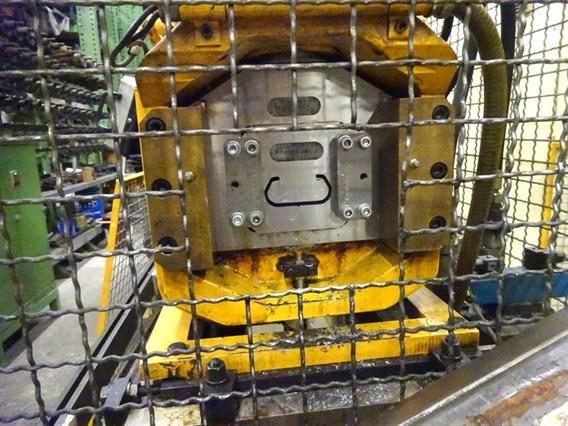

> Hydraulic cutting/shaving unit

- cap: 16 ton

- max 24 strokes/min

- pivoting range: +- 45°

- max workpiece width: 175 mm

- max workpiece height: 60 mm

- 2,2 kW

55 kVa

productionspeed:

workpiece length 400 mm = 24 pieces per minute

workpiece length 3000 mm = 7,5 pieces per minute

Newprice was 250 000€
Type/Modèle: for C-profiles CNC
Numéro de Stock: O.27 9405
Catégorie principal: [O] Presses Plieuses, Machines à Plier, Machines à Dresser, Machines à Cintrer, Machines a Oxycouper, Machines Laser, Poinconneuses et lignes aprofiler
Subcatégorie: [O.27] Lignes de deroulage + / ou profilages
Marque: Dreistern

Numéro de Stock: O.27 9405
