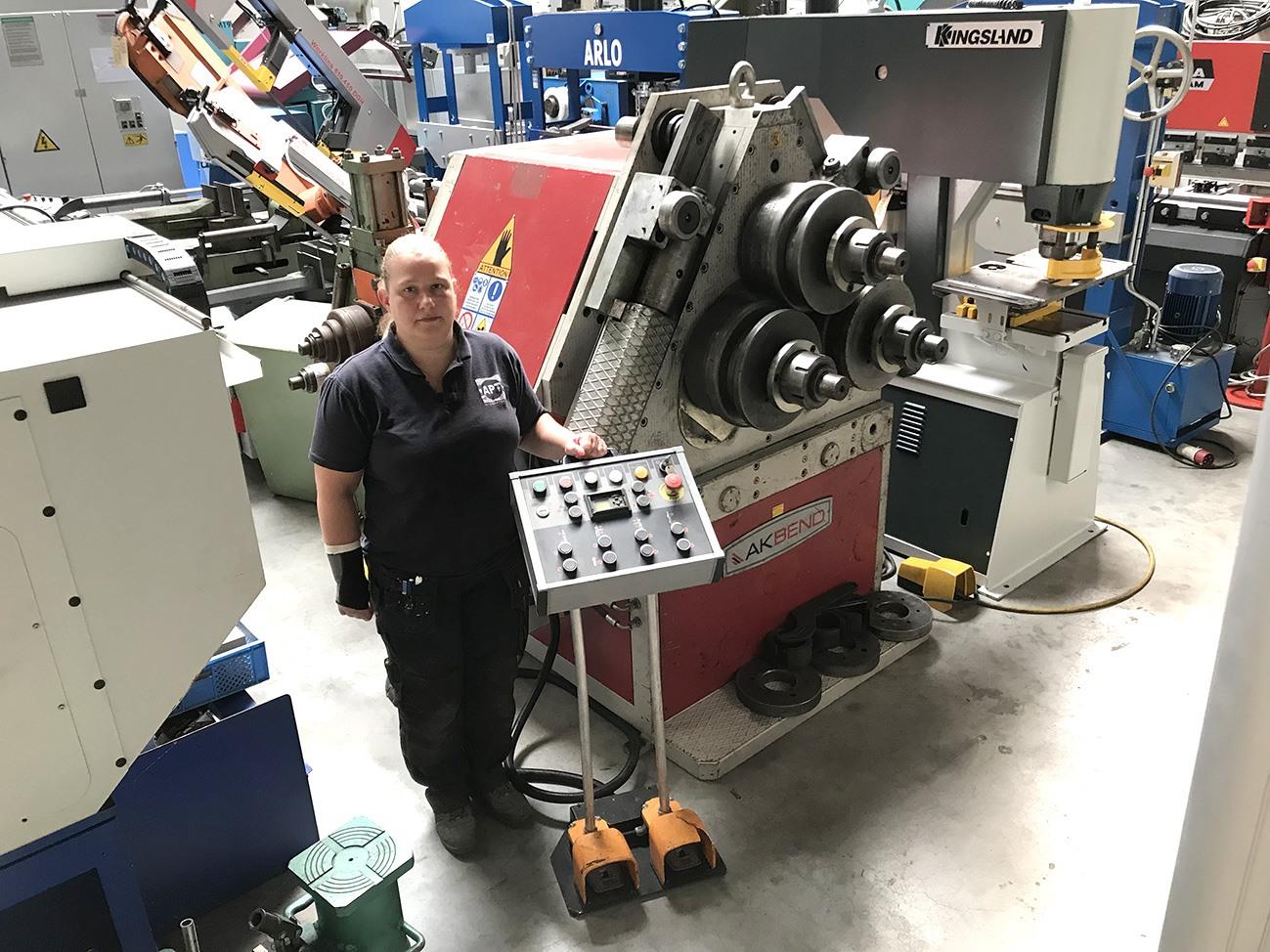

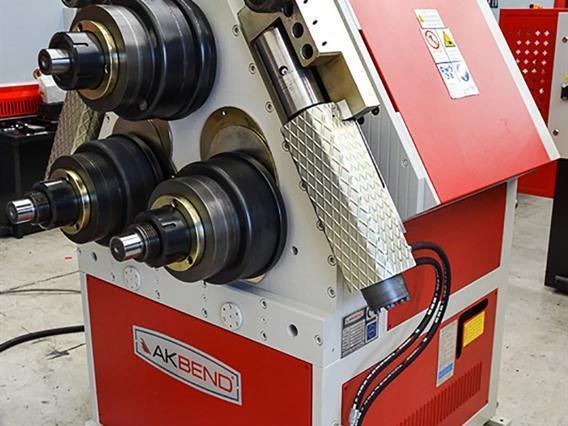

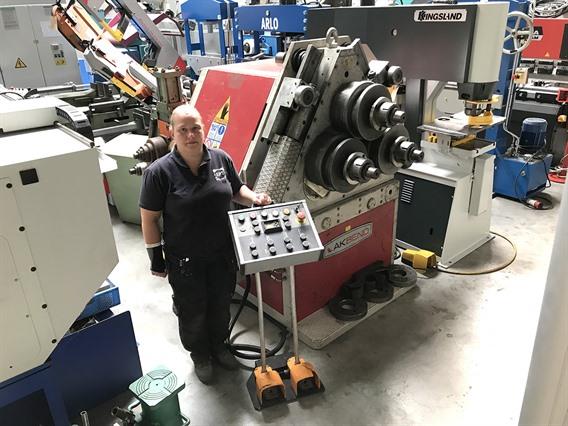

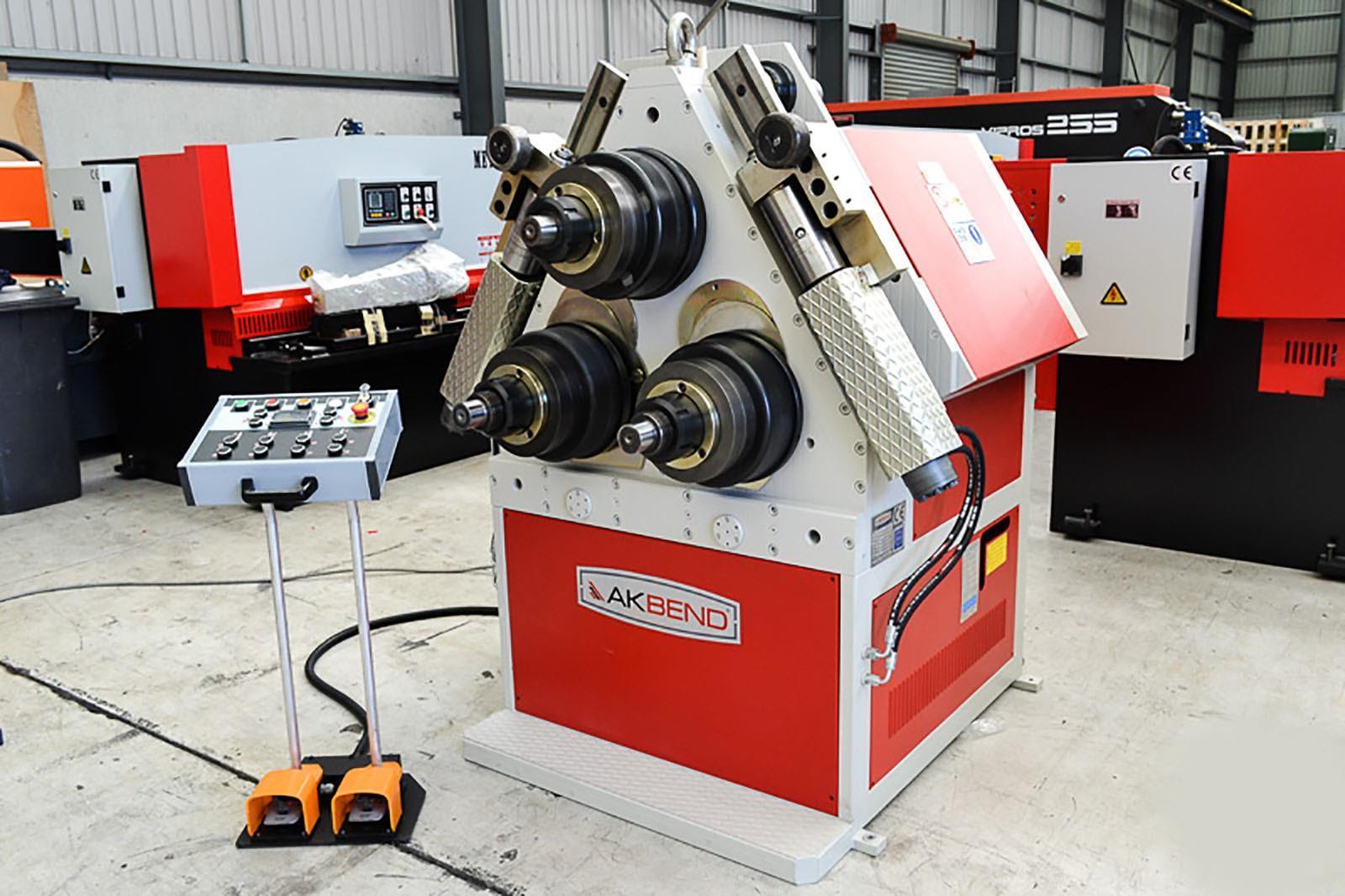

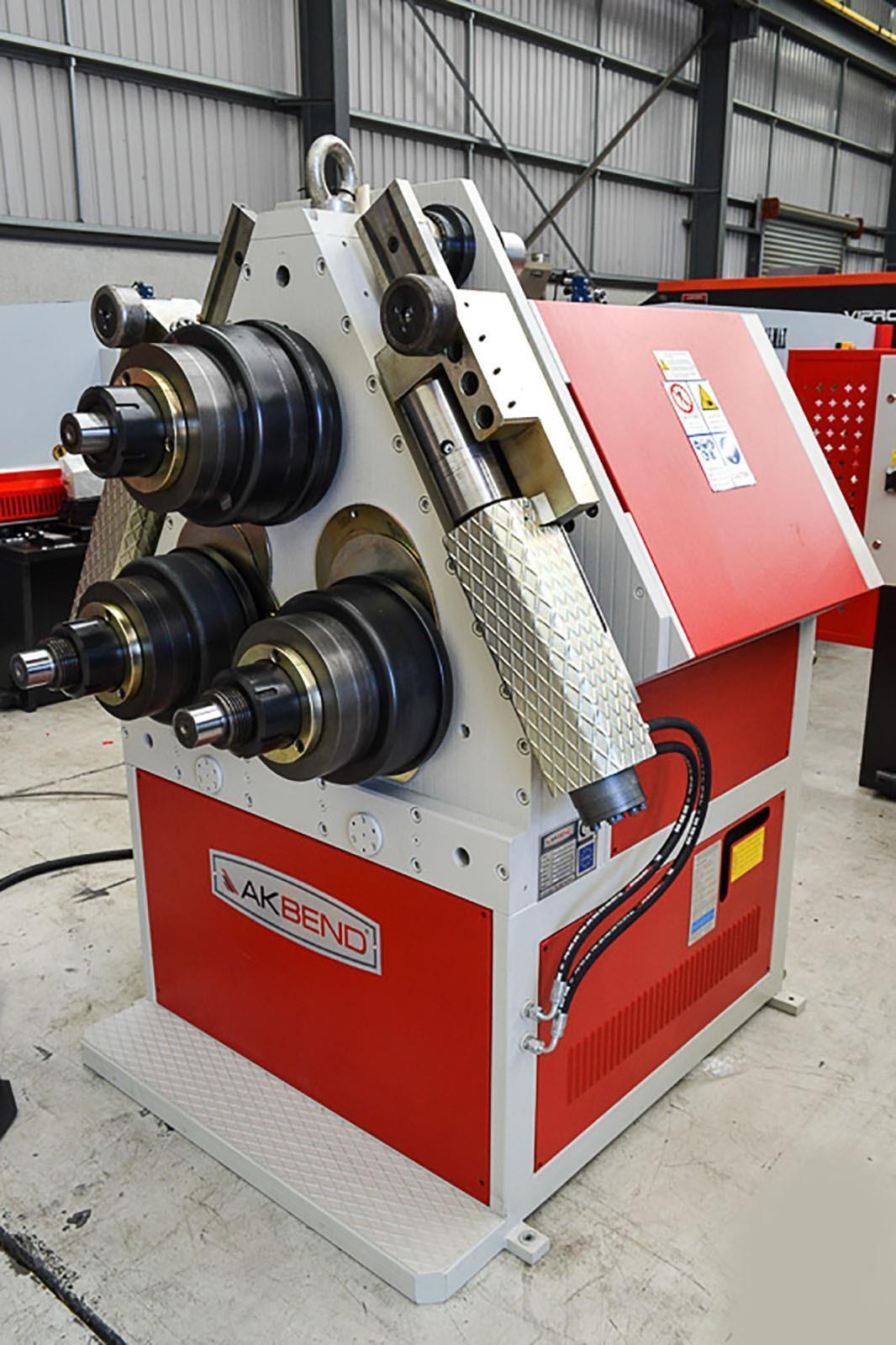

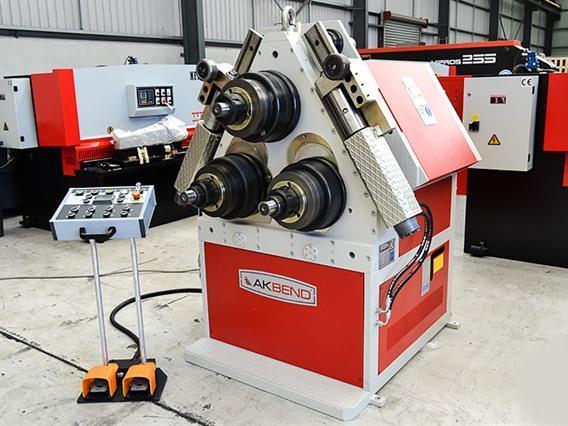

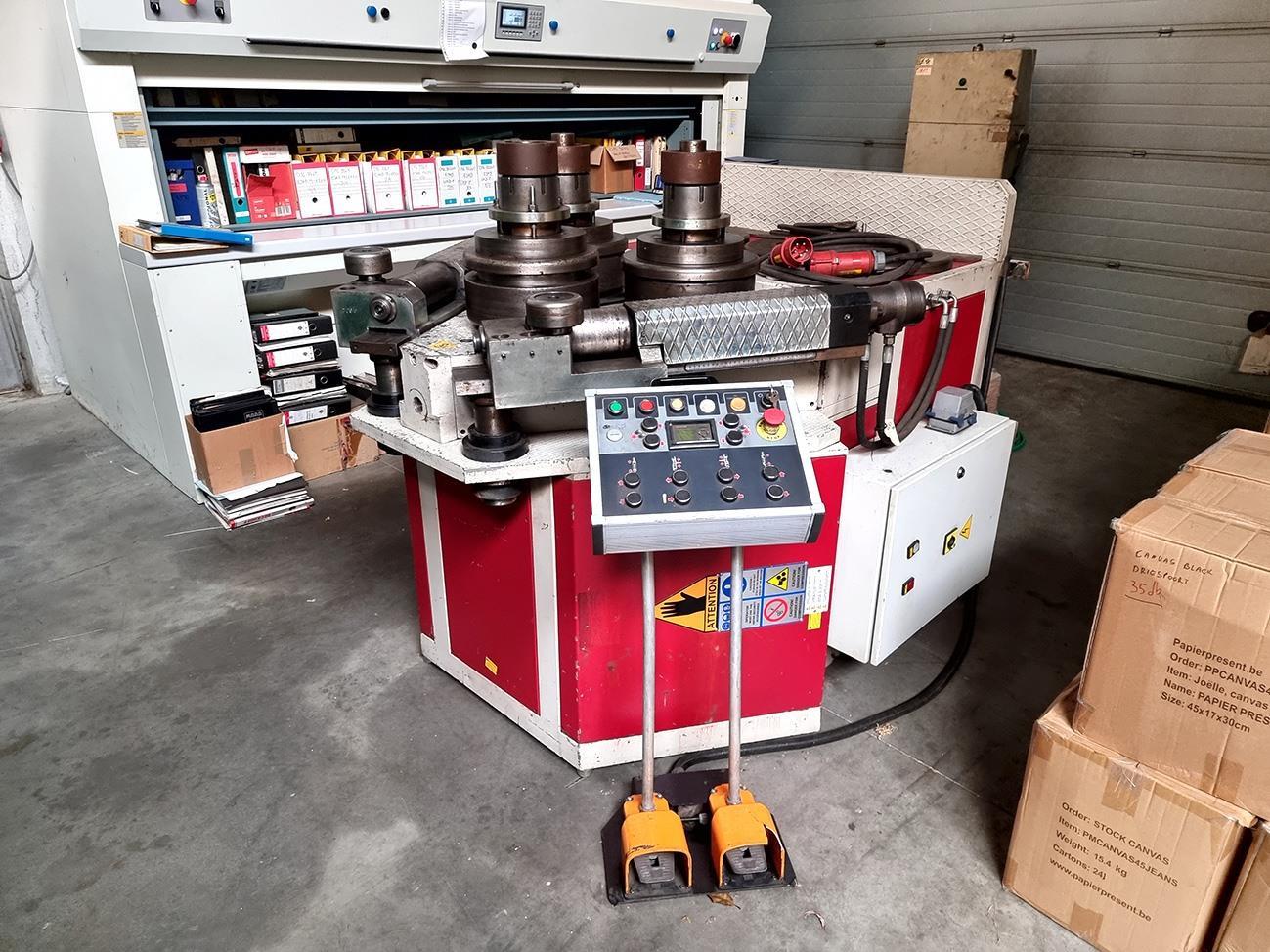

Laminoirs hor+vert a anneaux / Profilage Akyapak APK 101

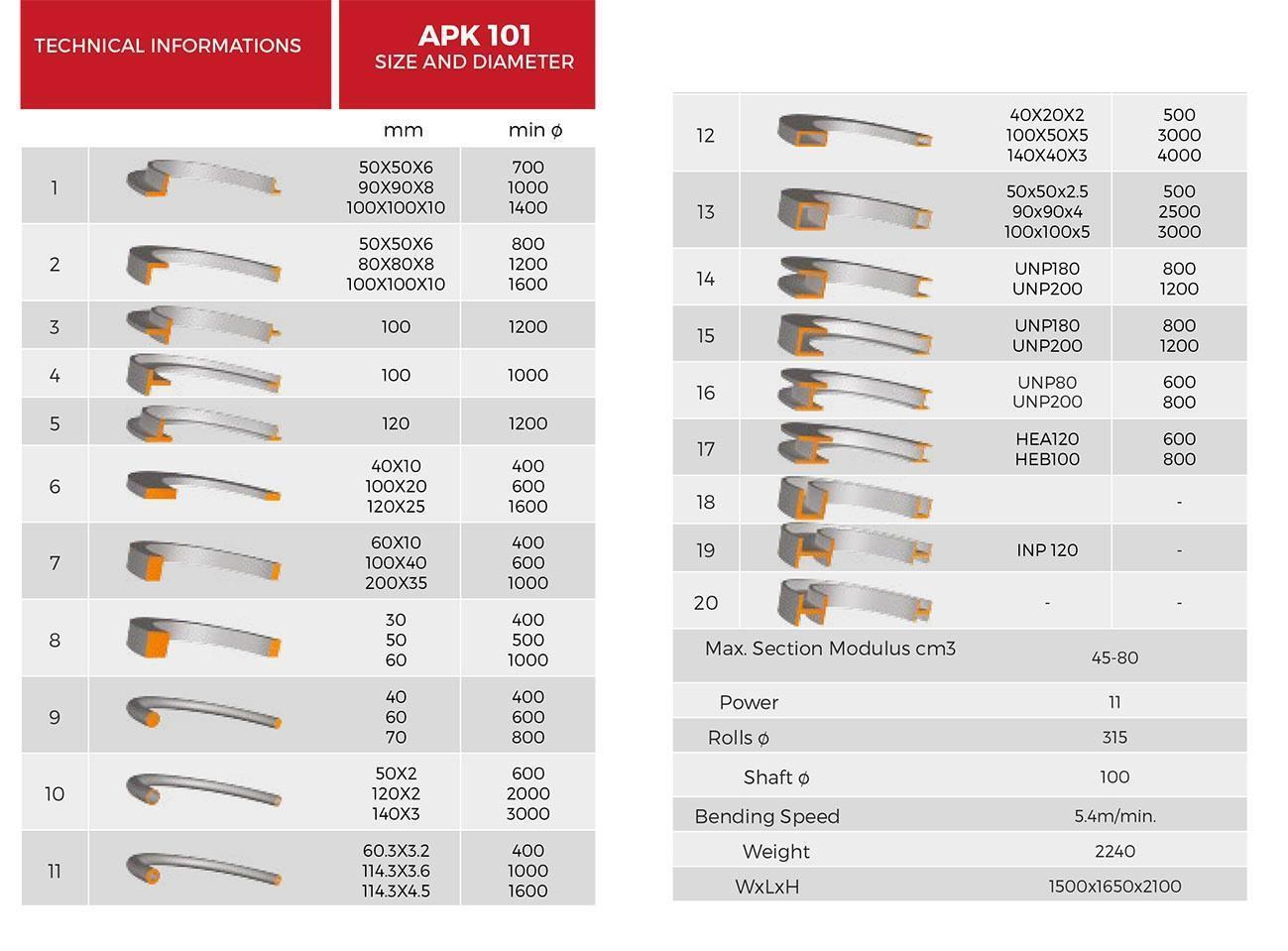

Information technique
- Affichageyes
- Dia des rouleaux315 mm
- Dia du mandrin100 mm
- Vitesse de rotation5,4 m/min
- Puissance moteur11 kW
- Longueur G -- D1500 mm
- Largeur Av -- Ar1650 mm
- Hauteur2100 mm
- Poids2240 kg
Informations complémentaires
- max section cm3: 45 > 80
• Steel (St-52) construction body
• The rolls are driven by a hydraulic motor, planetary gearbox and gears.
• Shafts are made of special steel, hardened and grinded.

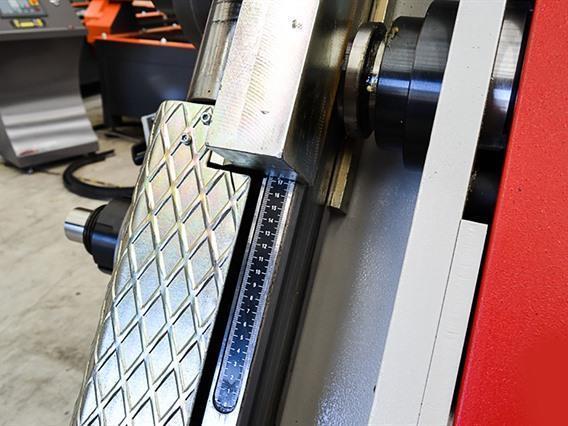

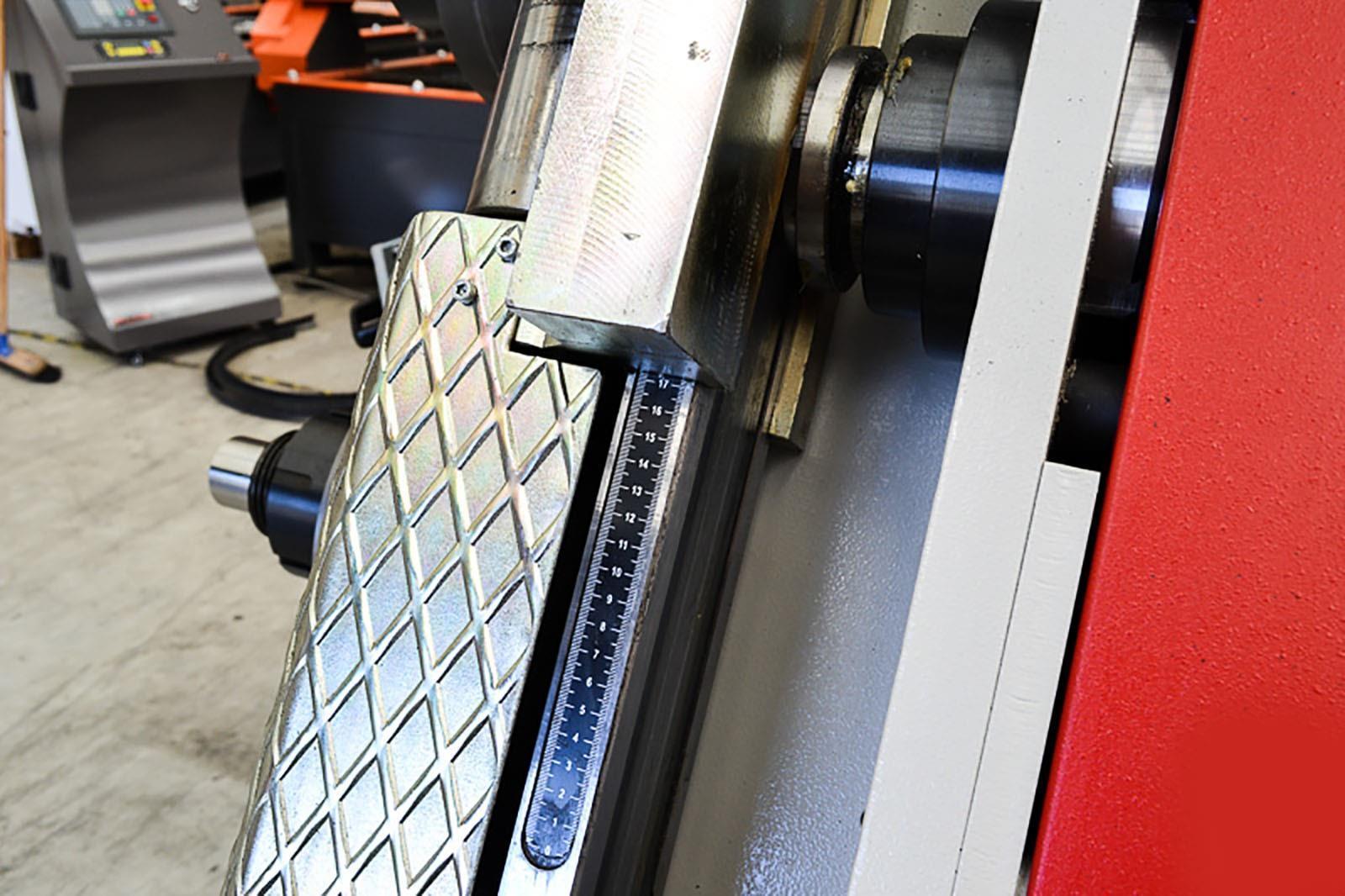

• Guide rolls are adjustable manually in one direction.
• Manual lubrication
• Hydraulically moveable lower rolls up and down.
• Digital display for lower rolls

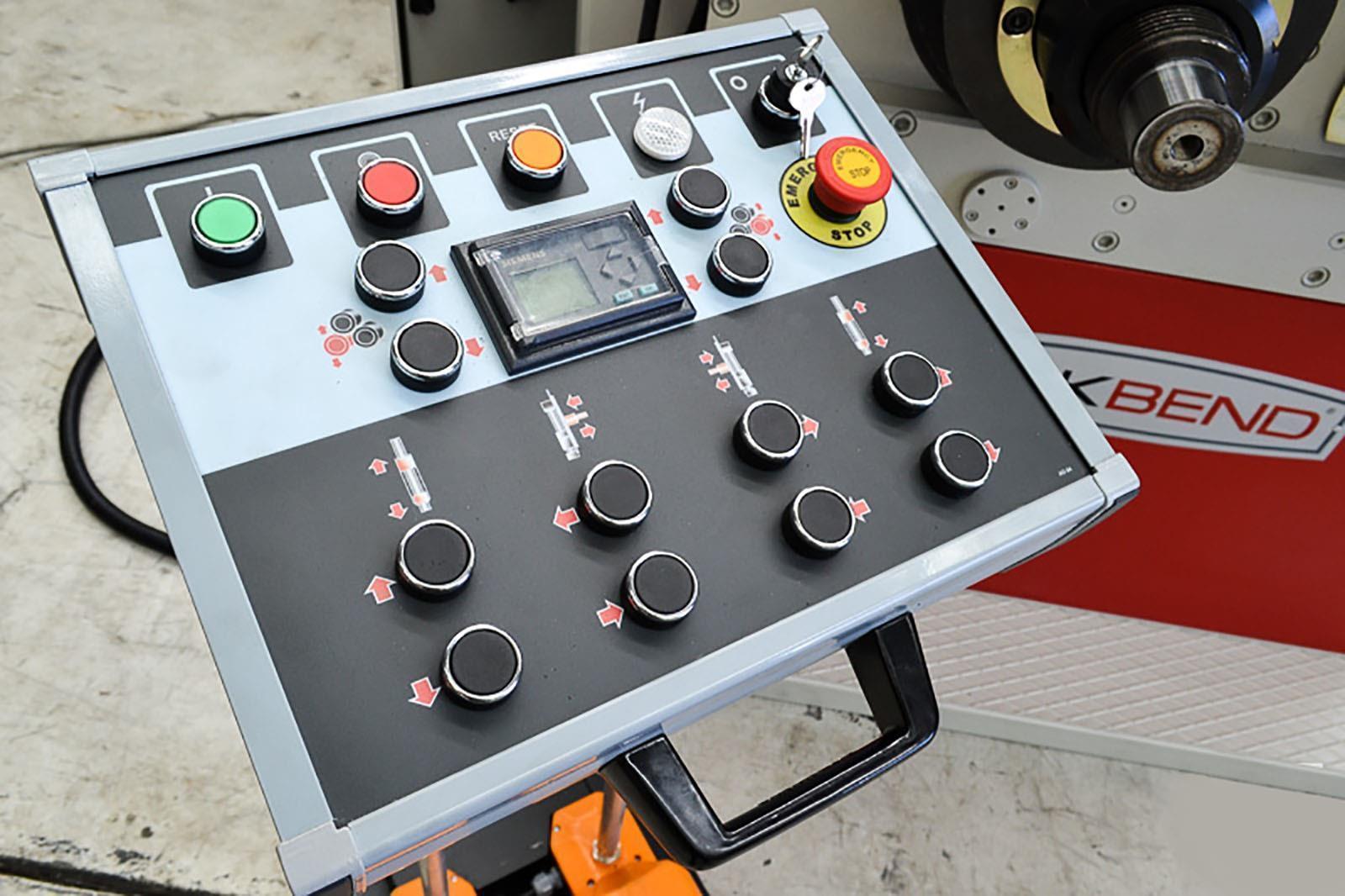

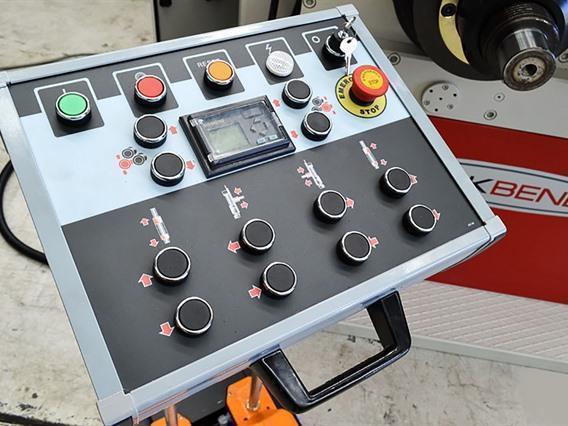

• Separate and moveable control panel
• Horizontal & vertical working
Option fitted: Hydraulic guide rolls
• Variable speed of rotation
• Hydraulically adjustable guide rolls in two directions
• Digital display for hydraulic guide rolls
• NC PIayback Control System
- Type/Modèle: APK 101
- Numéro de Stock: S.05 12895
- Catégorie principal: [S] Marteaux, riveuses, machines à forger et laminoir
- Subcatégorie: [S.05] Laminoirs hor+vert a anneaux / Profilage
- Marque: Akyapak
Numéro de Stock: S.05 12895
