Scharmann N°4 Heavycut 1.3 6 axis milling

Informations complémentaires

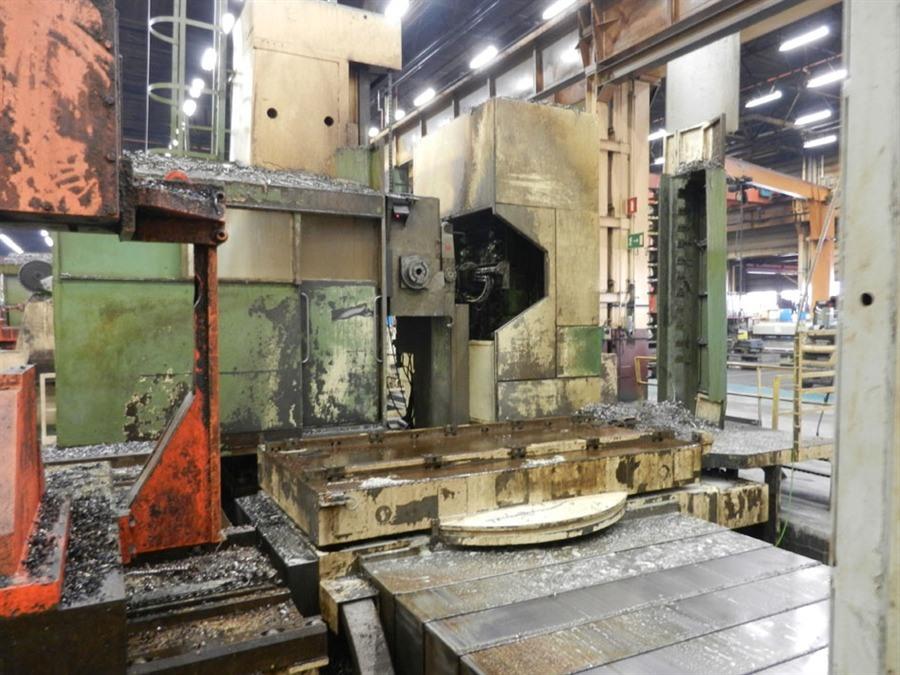

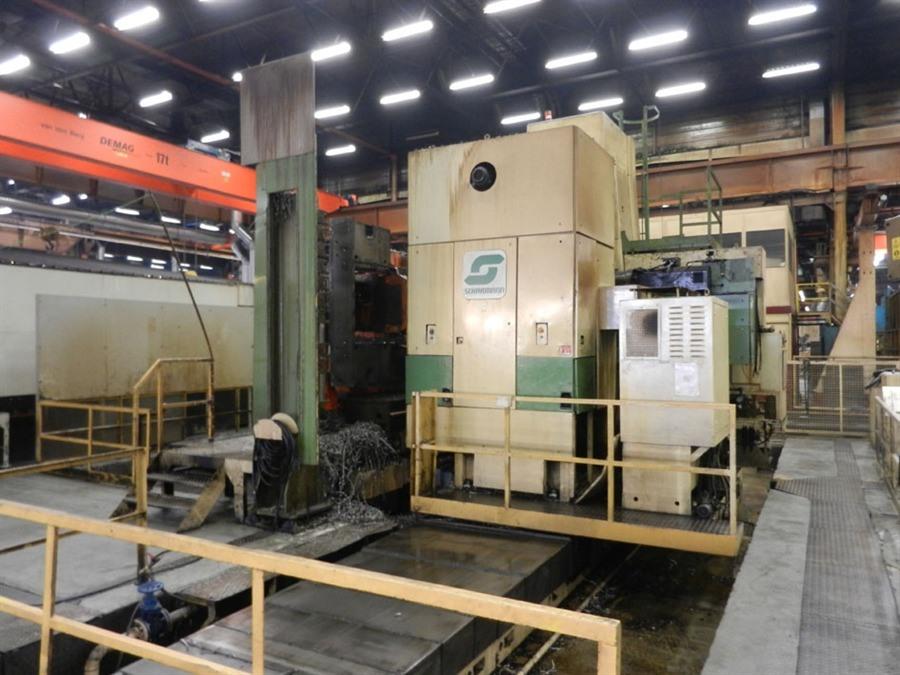

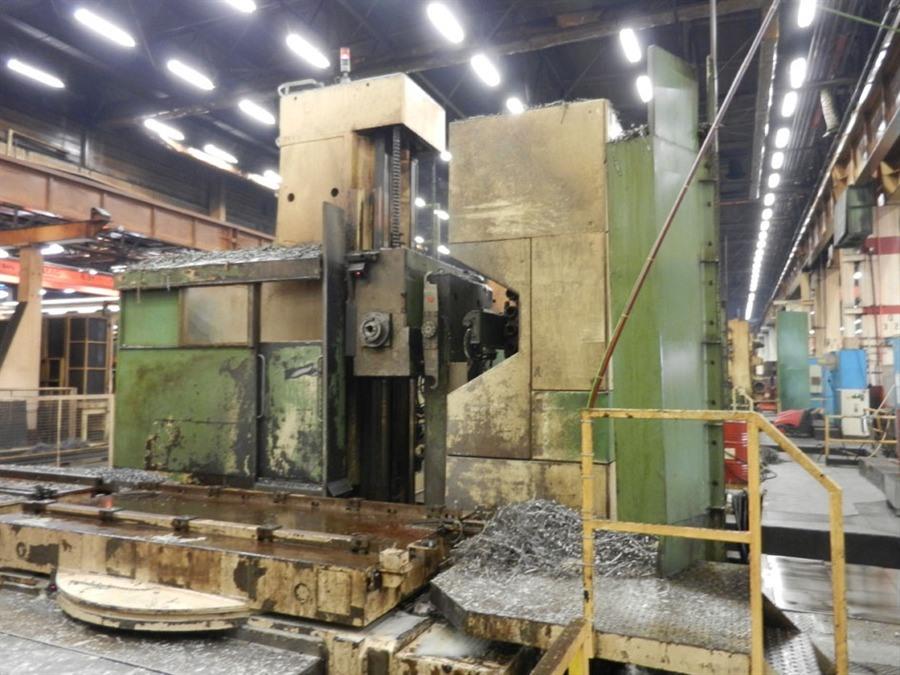

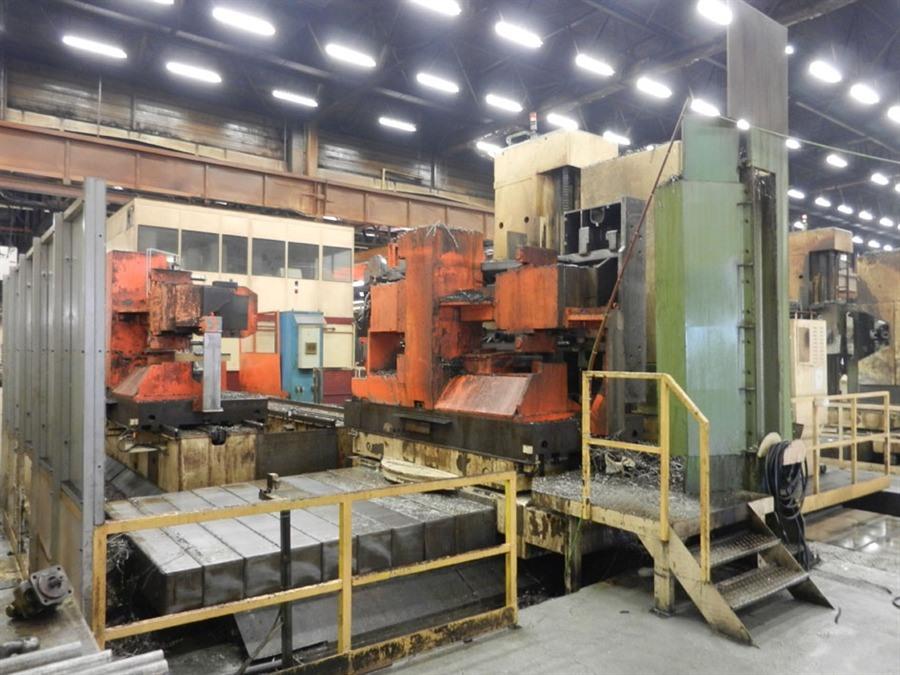

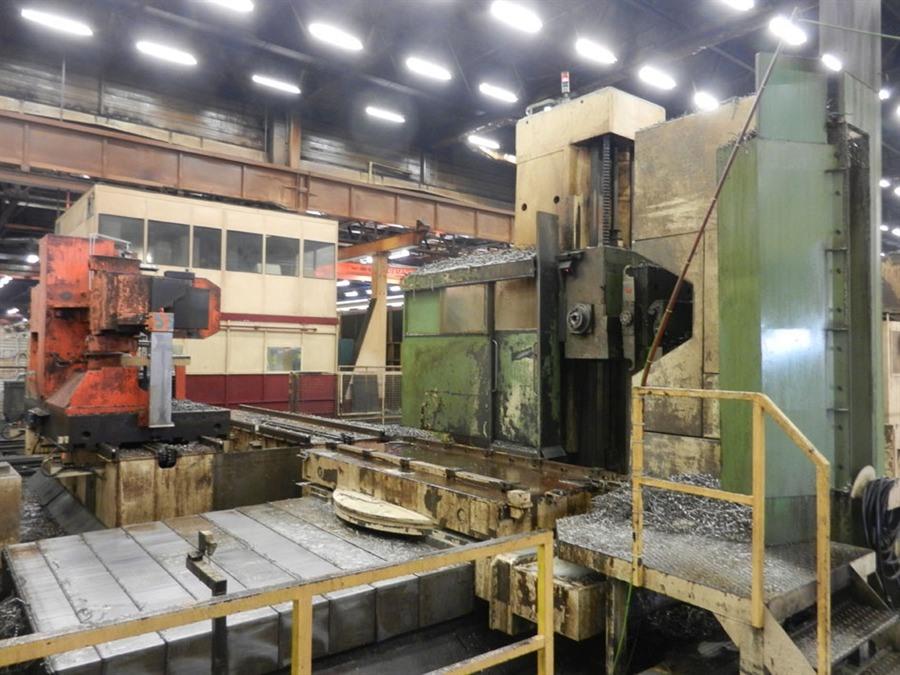

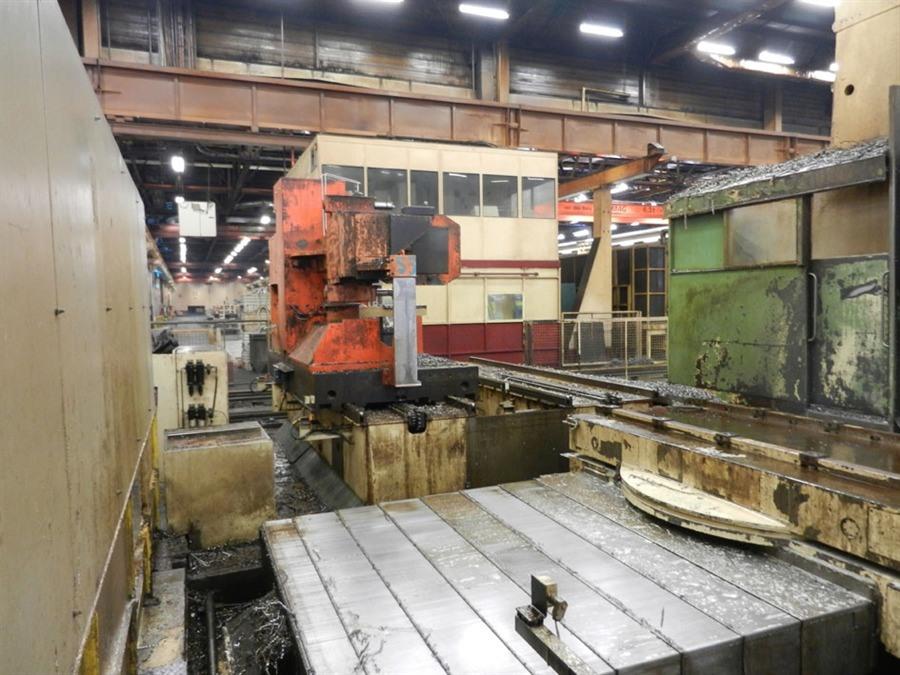

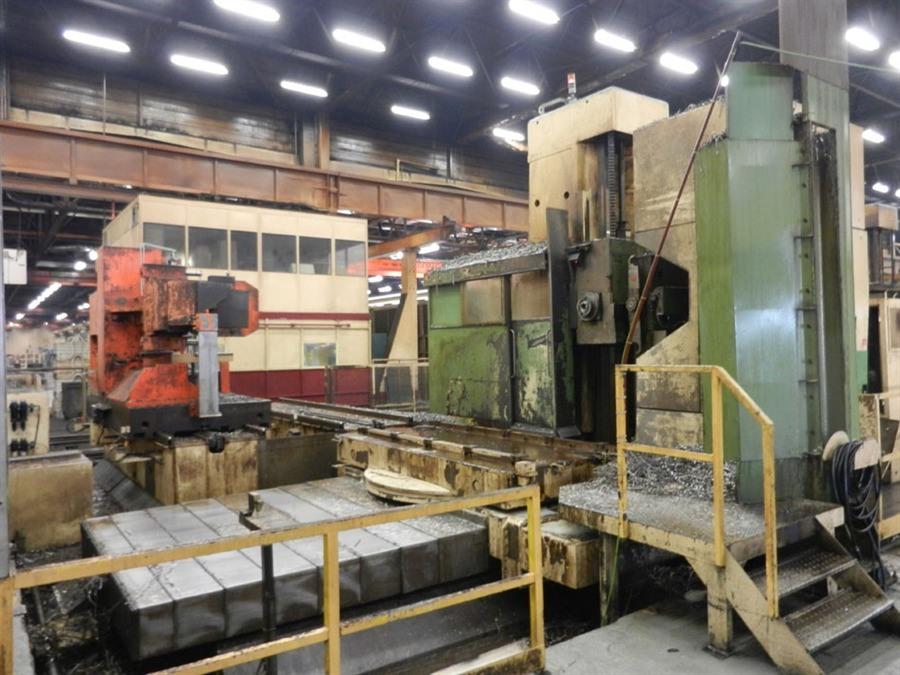

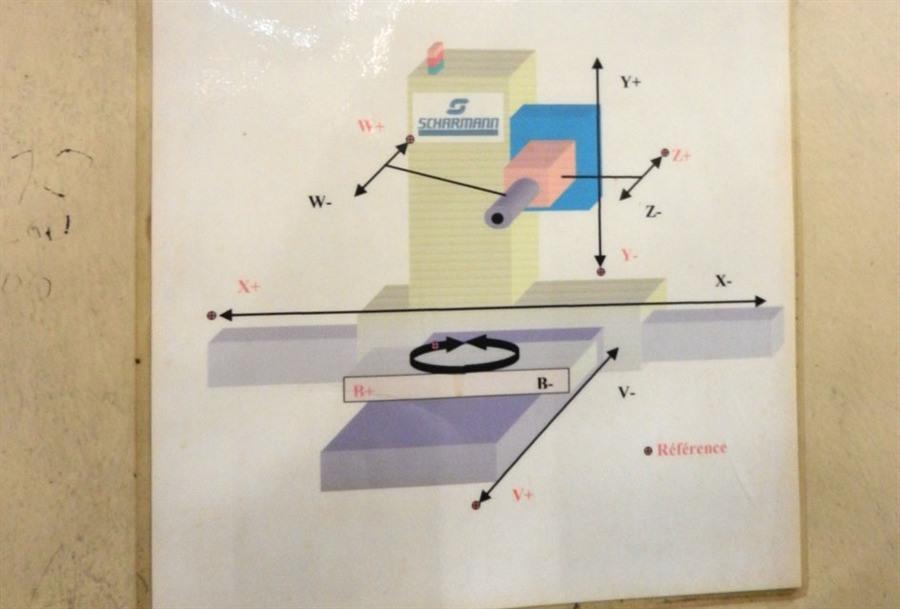

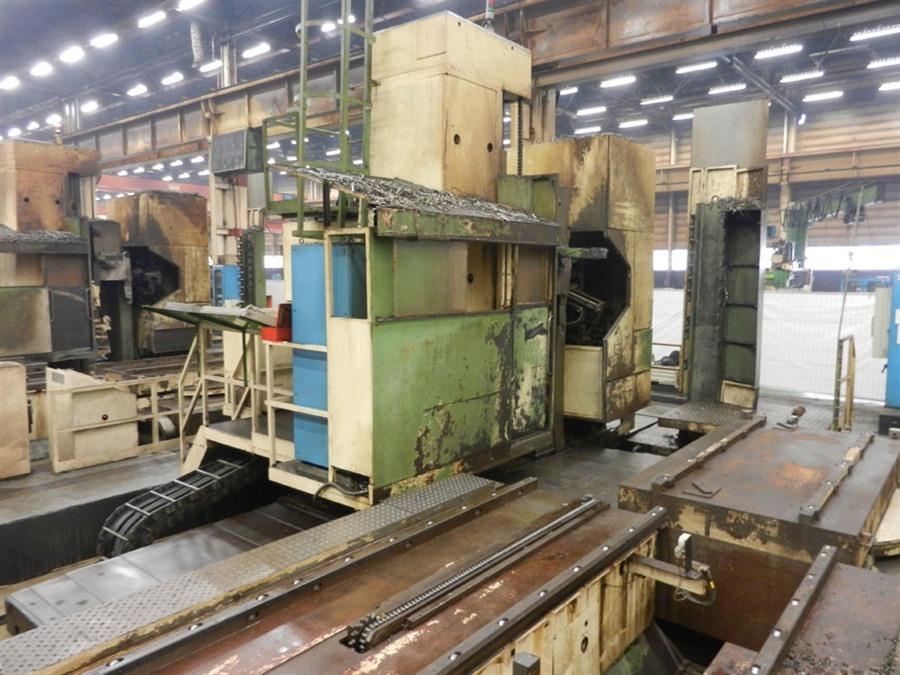

  • CNC Borer with movable column - 6 axis simultaneous
    >> machining of industrial vehicle bodies, boring, drilling, tapping & milling

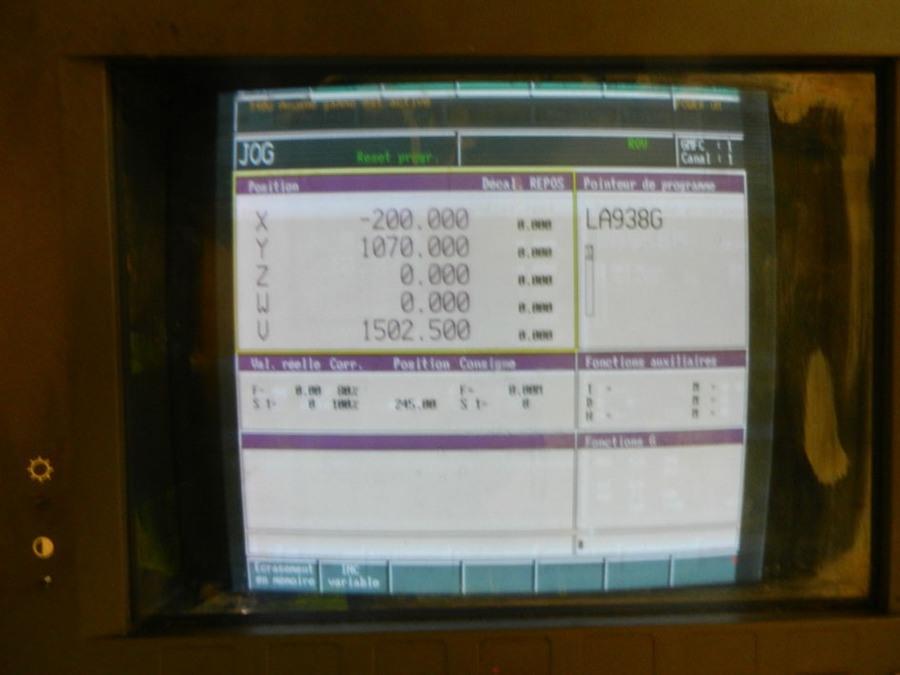

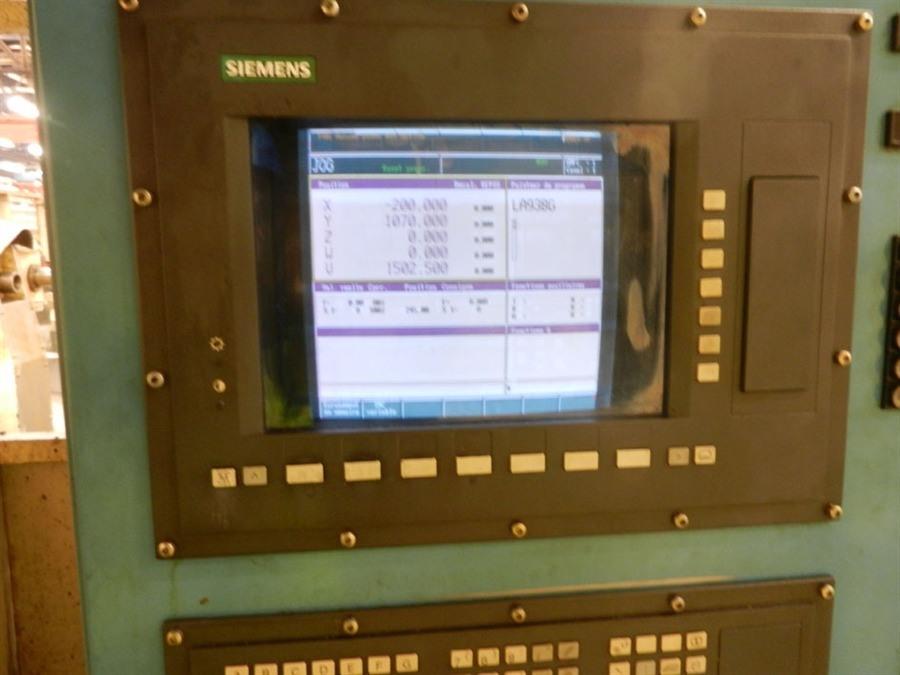

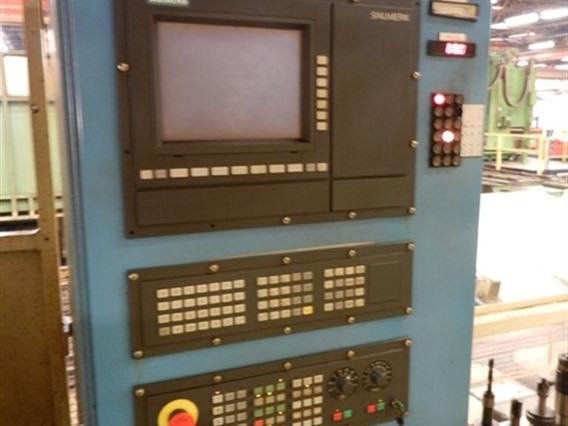

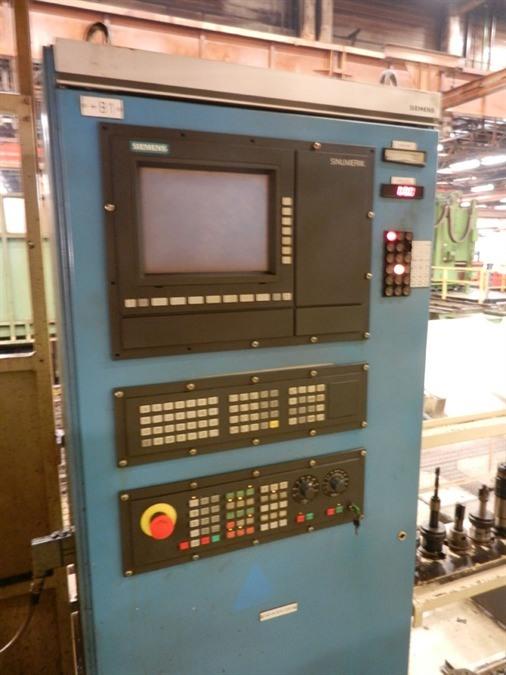

    Hydrostatic guides - Siemens 840C control

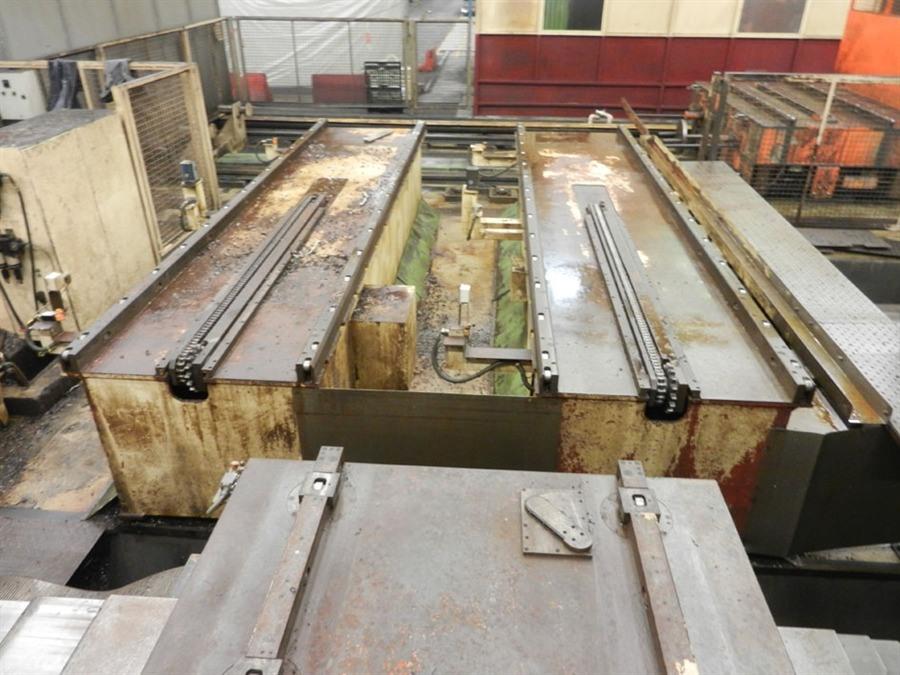

    Automatic changing of table on pallet (2 stations)
    Weight of machine + turntable: 75 ton
    Can be dismantled in different pieces for transport

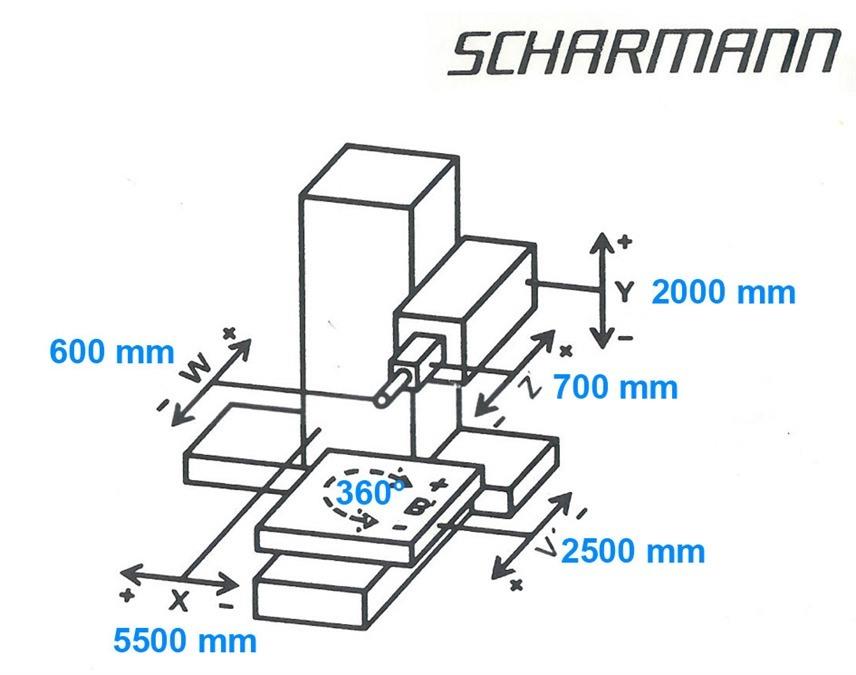

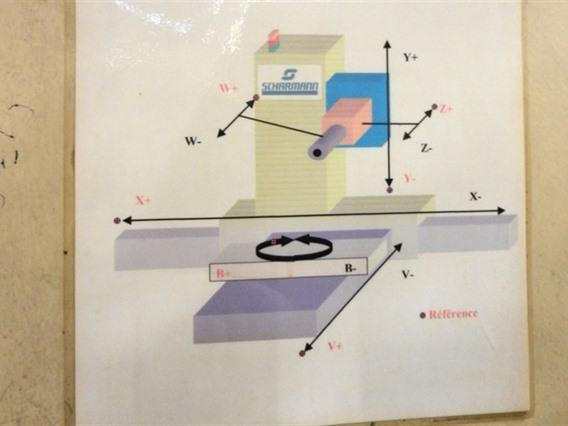

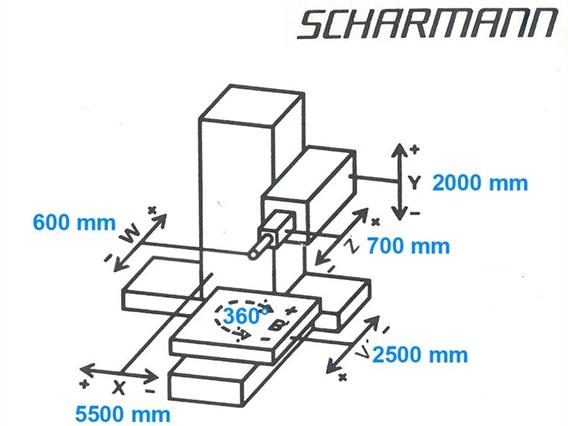

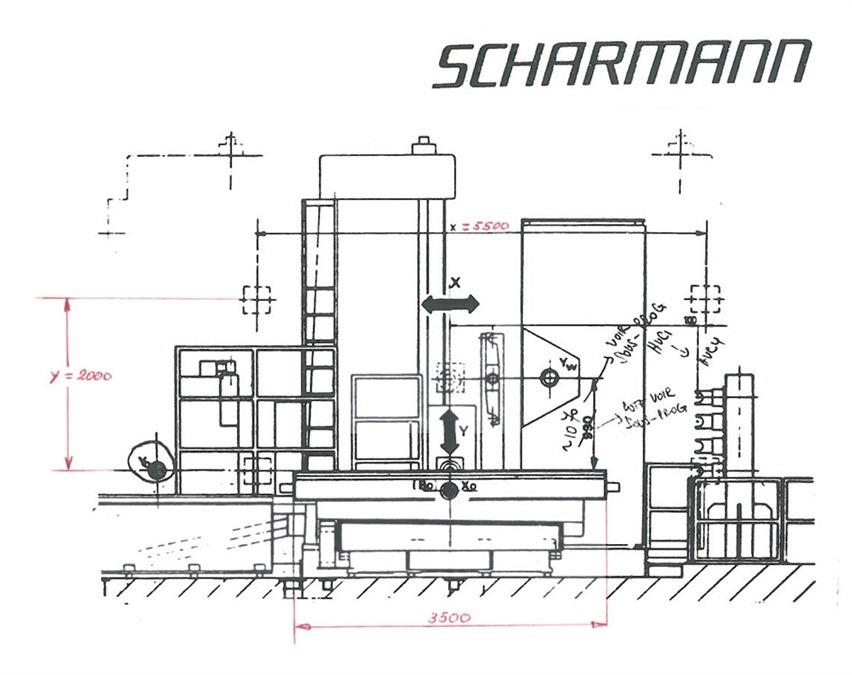

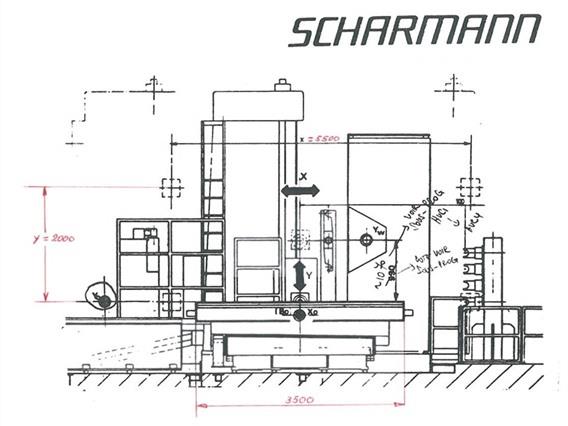

    X-travel: 5500 mm
    Y-travel: 2000 mm

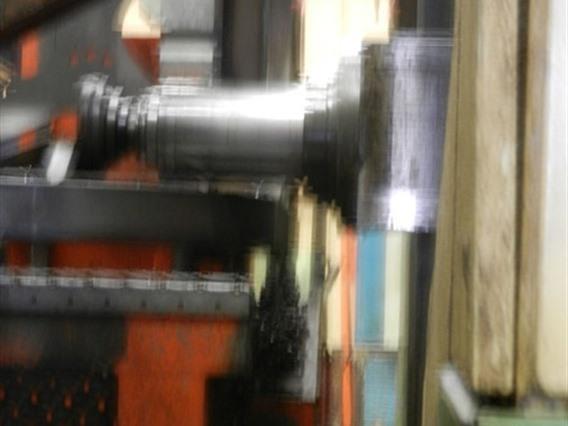

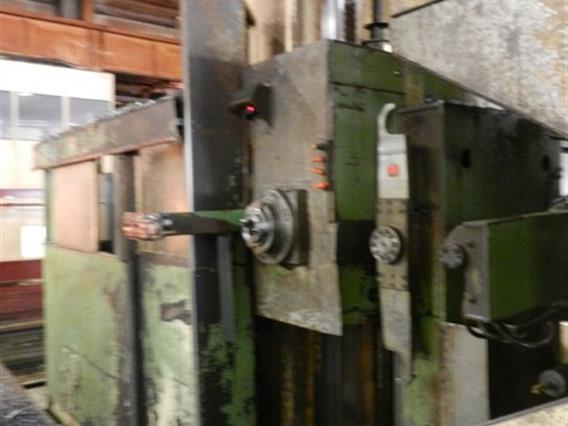

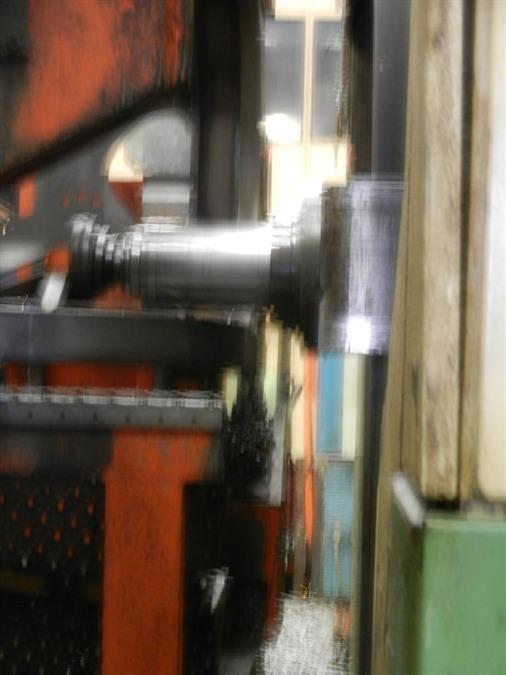

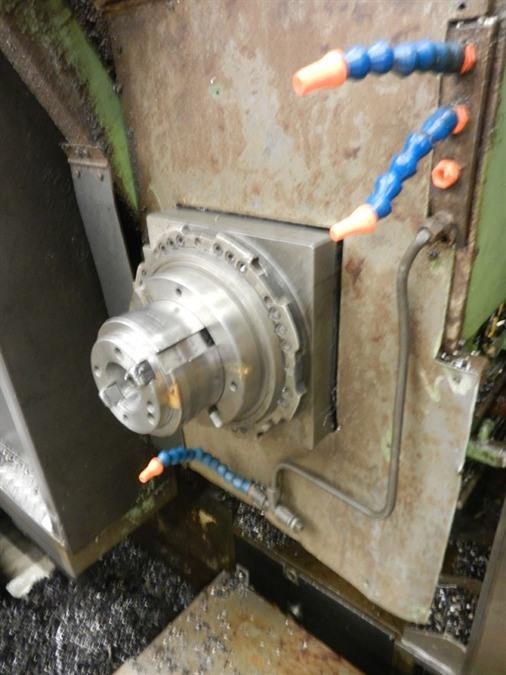

    Spindle
    ISO 50 - 37kW - cooling through spindle - 2800 rpm

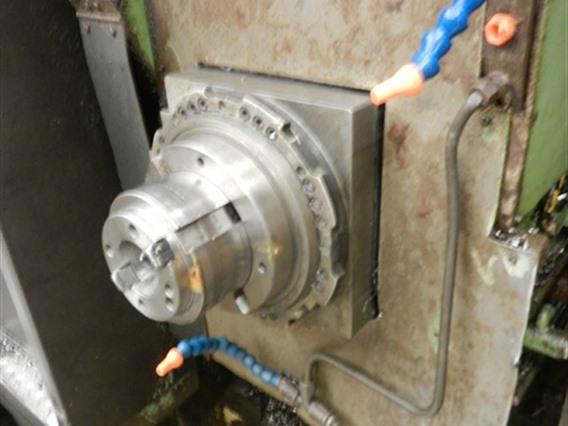

    Automatic CNC indexation on spindle

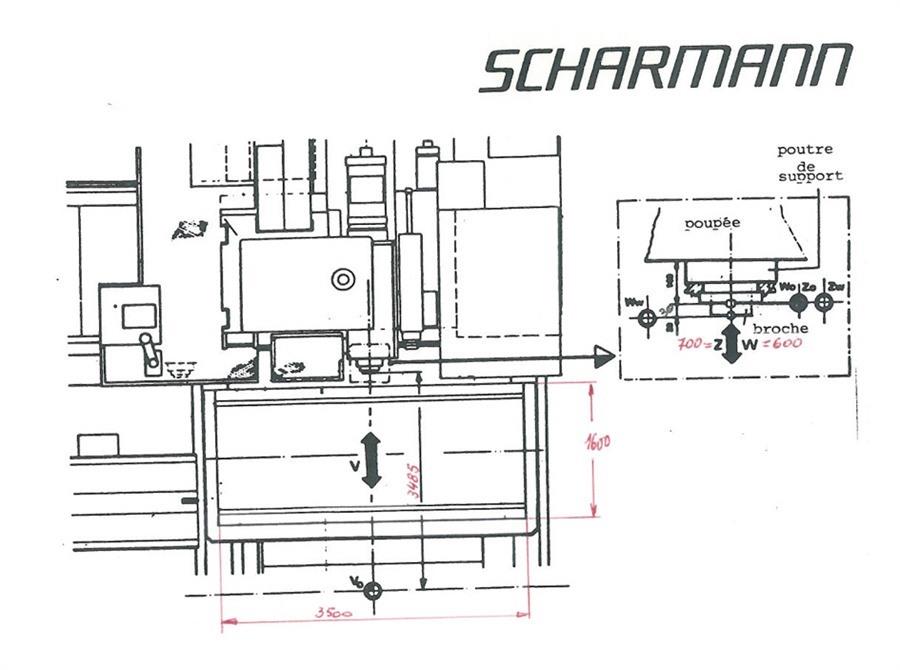

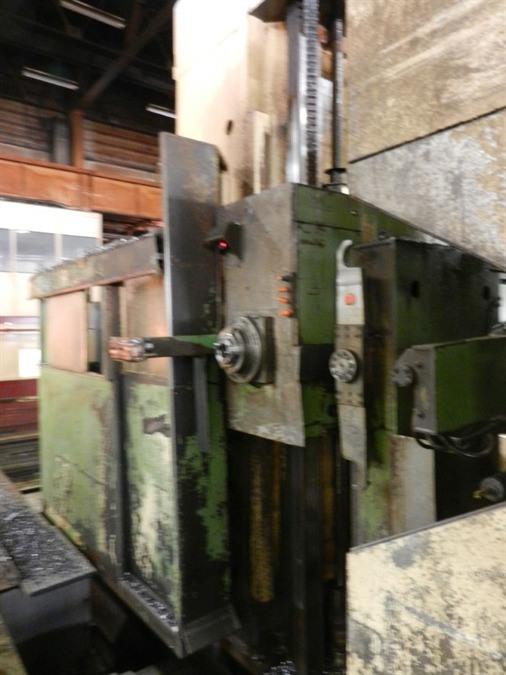

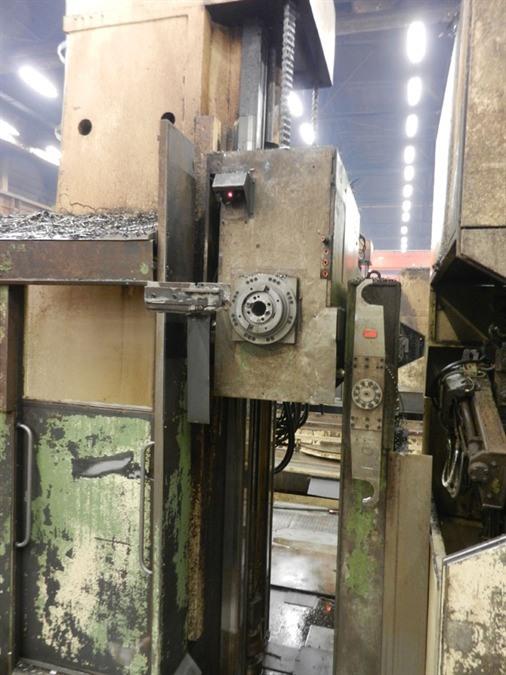

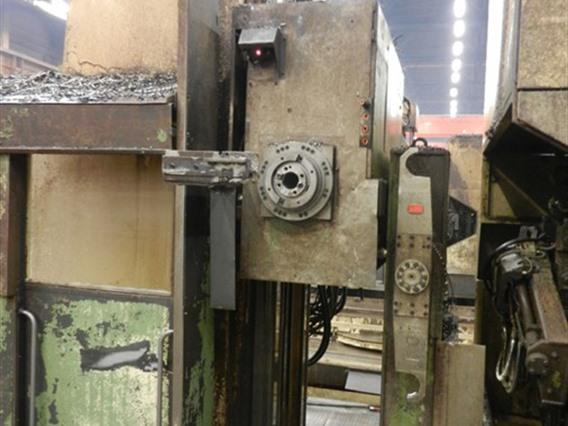

    Ram size: 300 x 300 mm - Z-travel: 700 mm
    Spindledia: 160 mm - W-travel: 600 mm

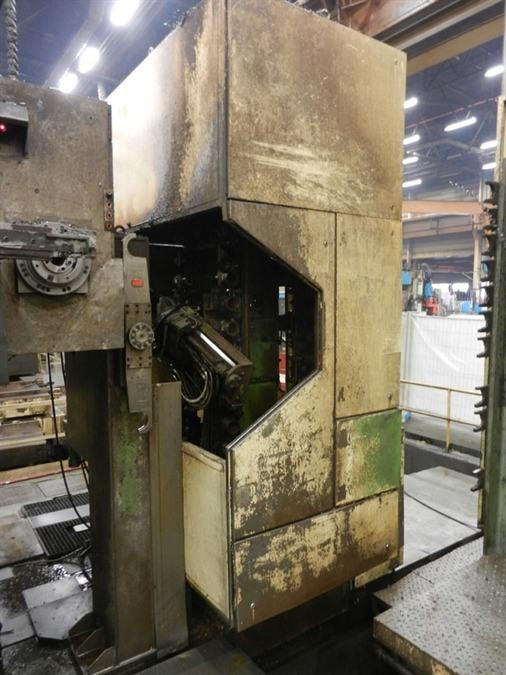

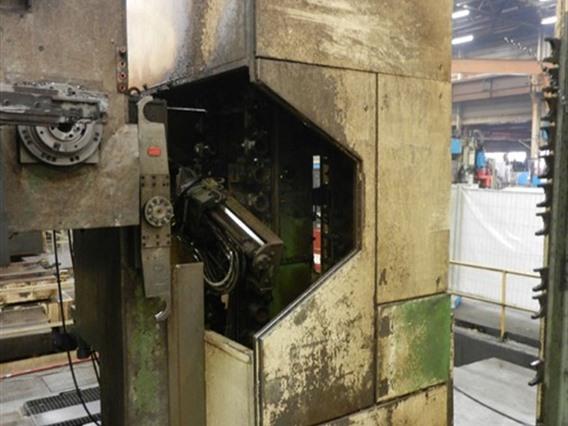

    Toolstorage
    55 tools - max toolweight: 25 kg
    Changingtime: 18,5 sec


    Optional!

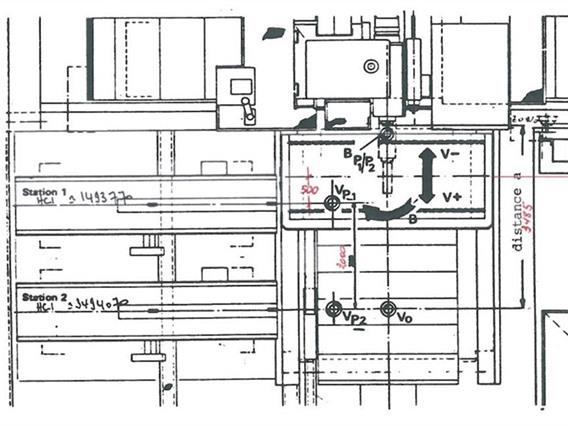

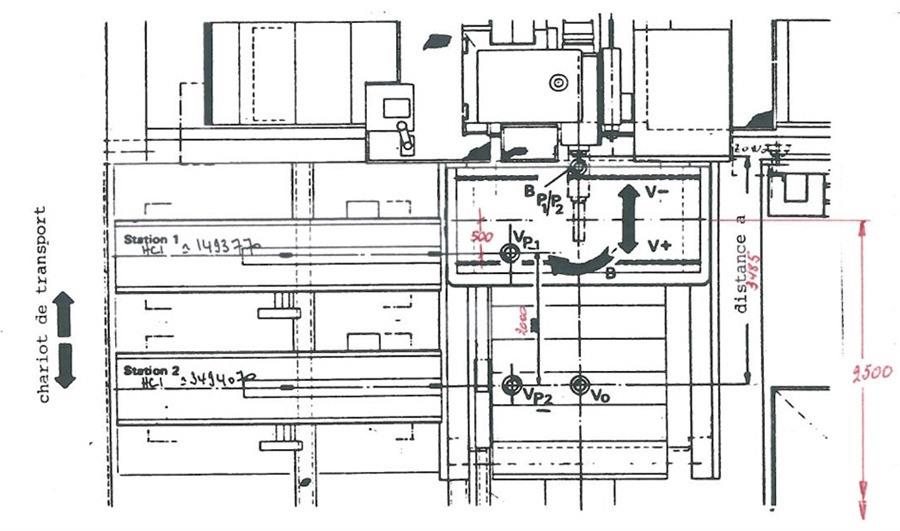

    Transportwagon on rails for loading pallets into the three Scharmann machines and move pallets with finished workpieces to assembly stations (4 in total) click here for details

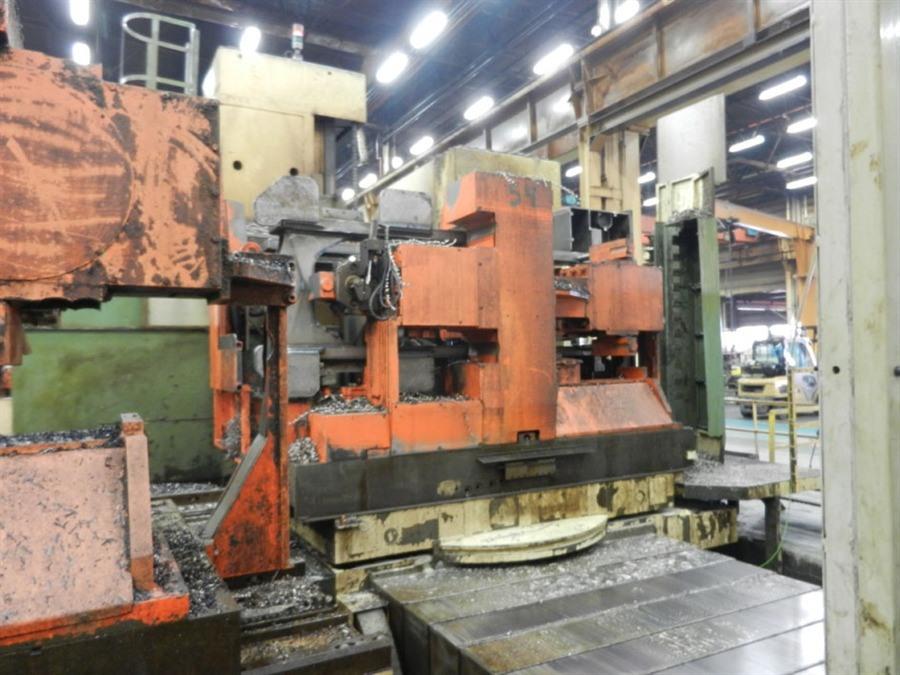

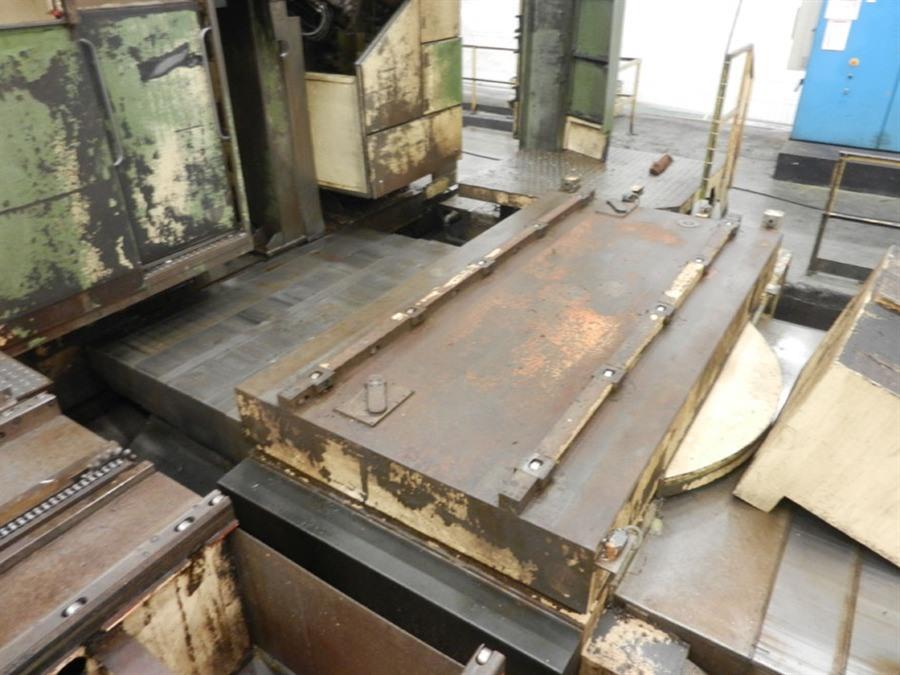

    Turntable
    Dimensions: 1650 x 3500 mm - V-travel: 2500 mm
    max weight on table: 25 ton
    Turningspeed: 2,4 rpm
    full CNC controlled 360° turnable


    T-slot table
    dimensions: 3500 x 1650 mm


  • Type/Modèle: Heavycut 1.3 6 axis milling
  • Numéro de Stock: B.04 7555
  • Catégorie principal: [B] Fraiseuses
  • Subcatégorie: [B.04] Fraiseuses a montant mobile & CNC
  • Marque: Scharmann N°4

Numéro de Stock: B.04 7555
