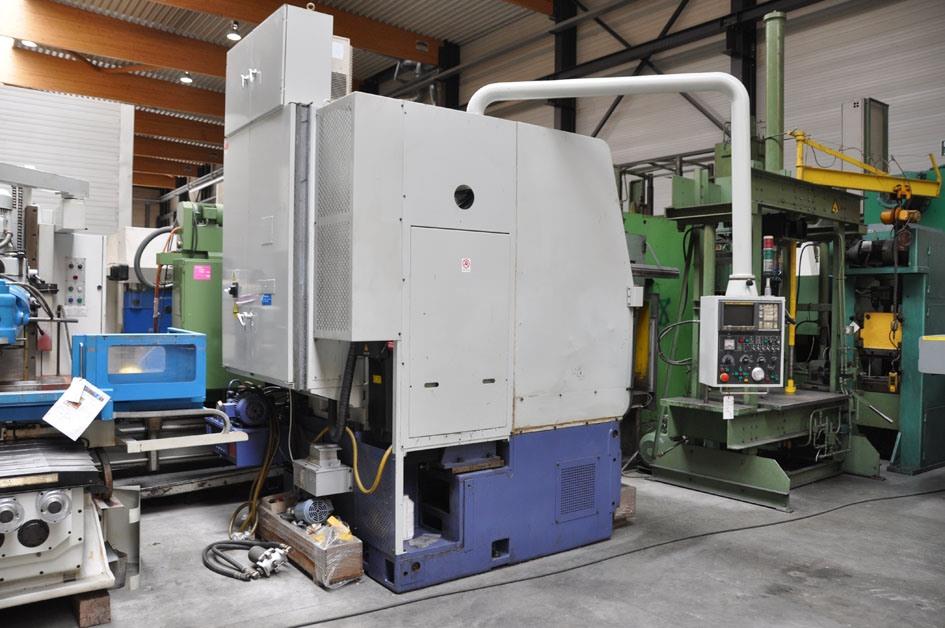

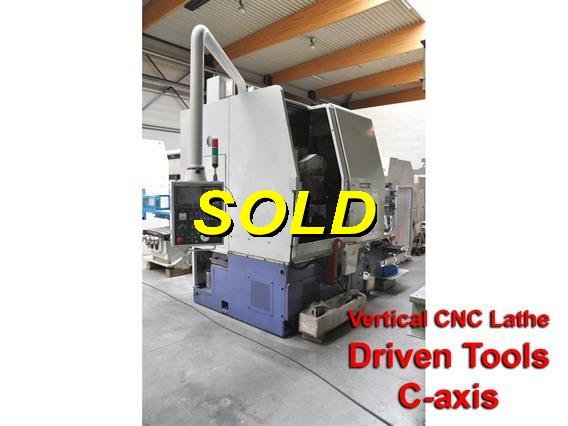

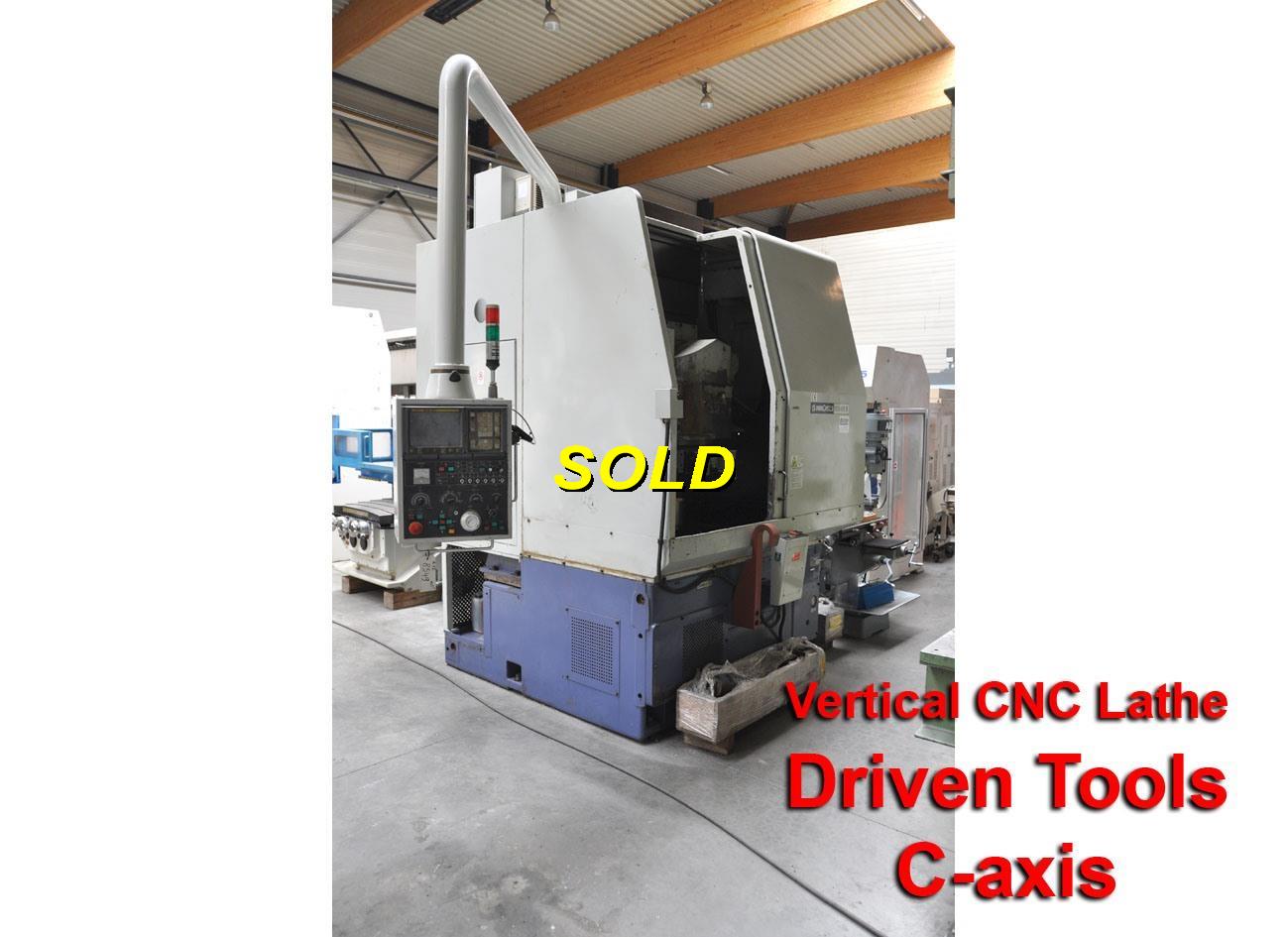

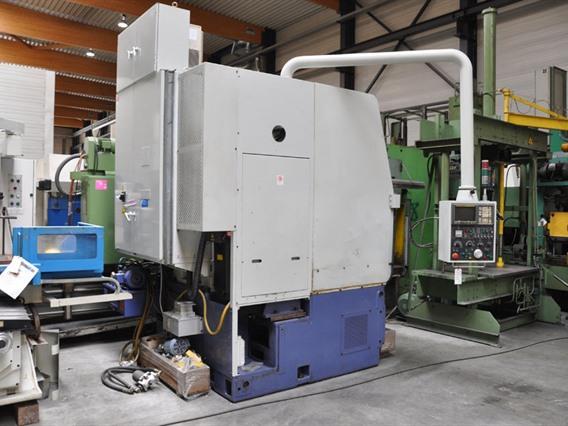

Hwacheon Eco 5VR dia 800 x 550 mm CNC
Información téchnico
- Chuck dia.500 mm
- Max turningdia -- passage550-800 mm
- Power on the spindle25 HP-22kW
- Max longitudinal travel X-axis400 mm

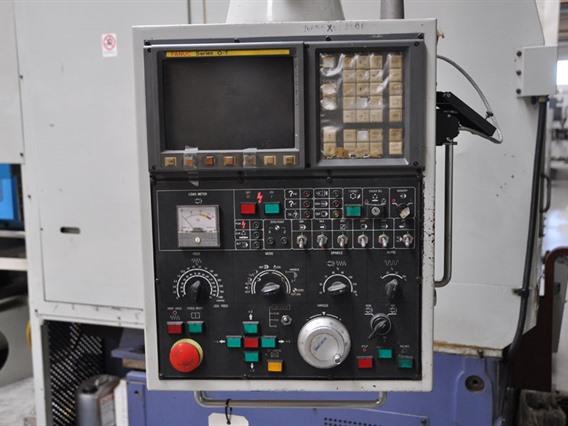

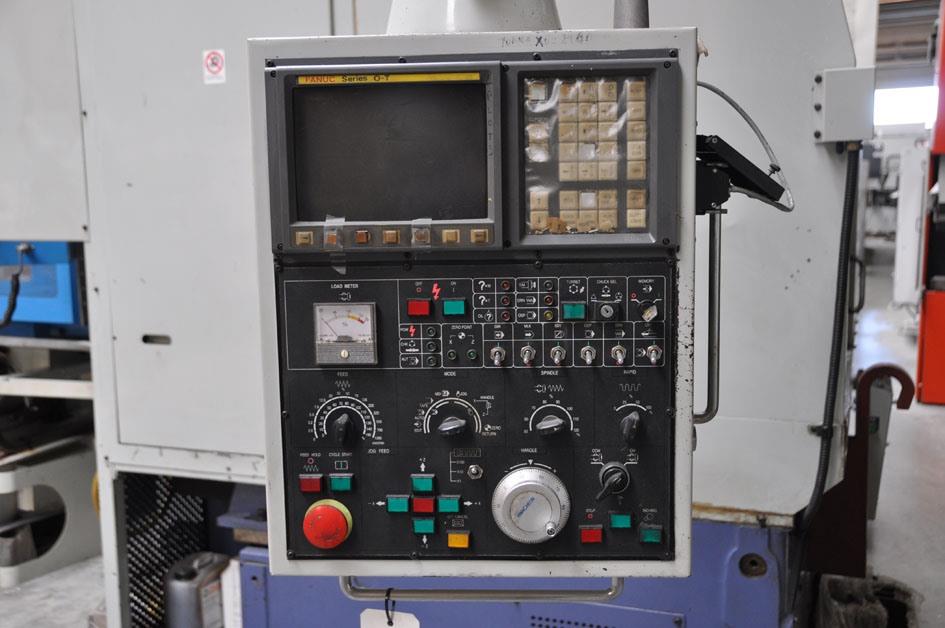

- CommandFanuc
- Number of speeds2000 rpm
- Power needed220/230V
- Long L -- R2800 mm
- Wide Fw -- Bw2220 mm
- Height3520 mm
- Weight10,5 ton
- TOOLINGyes

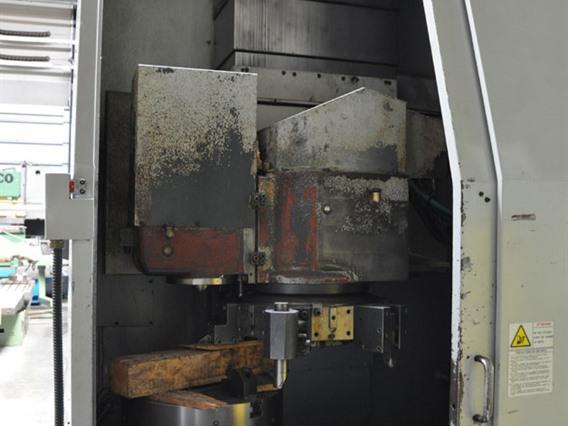

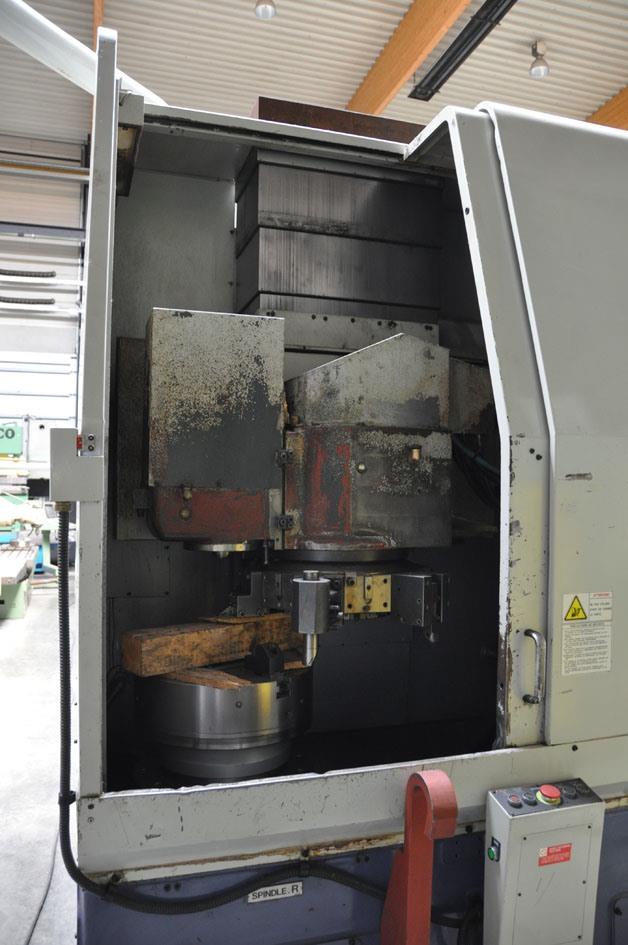

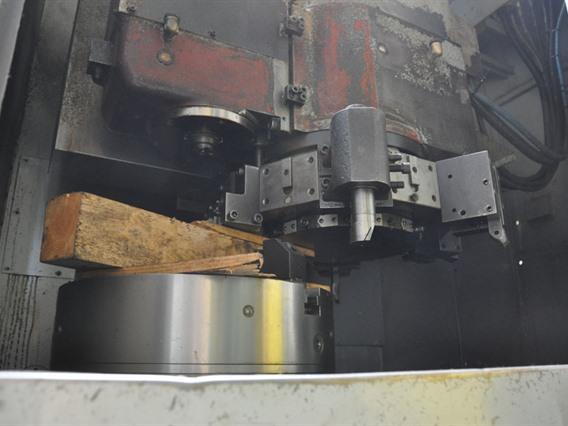

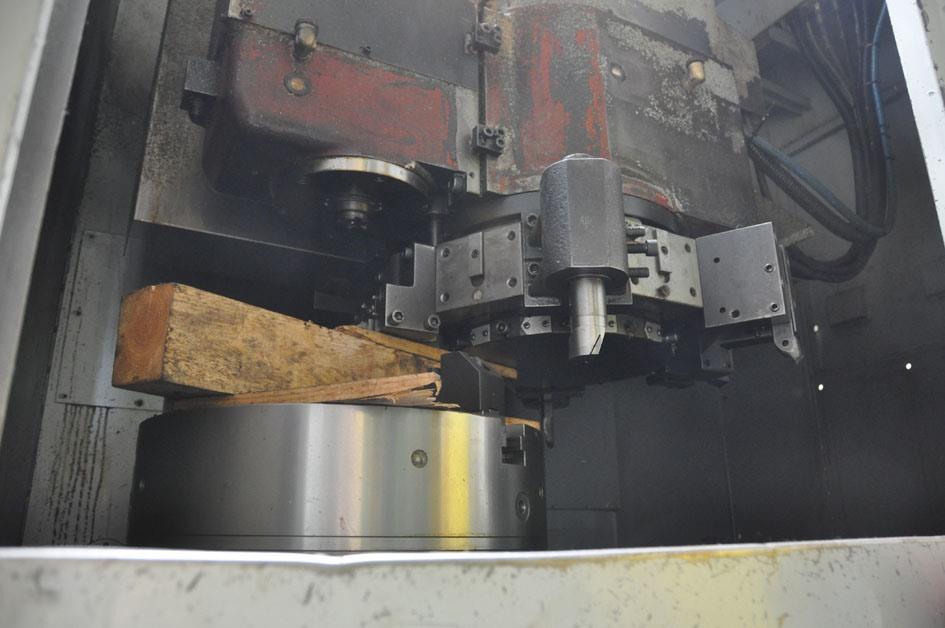

- Turretyes
- Qty Tools12 driven tools - ISO 40
Información adicional

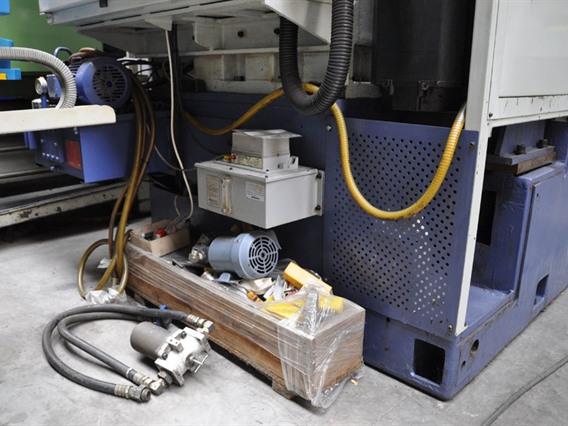

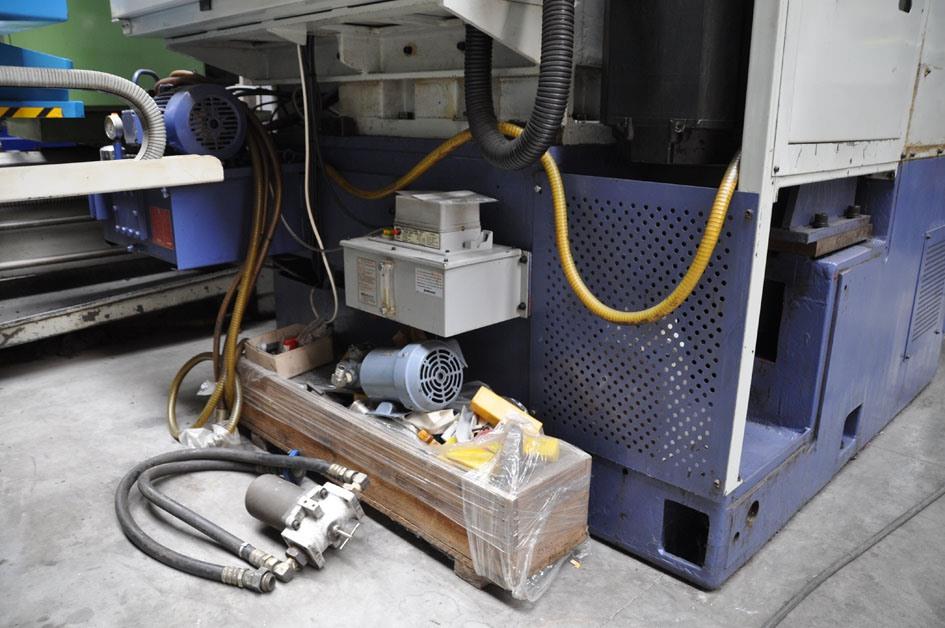

with chipconveyor and driven milling tools

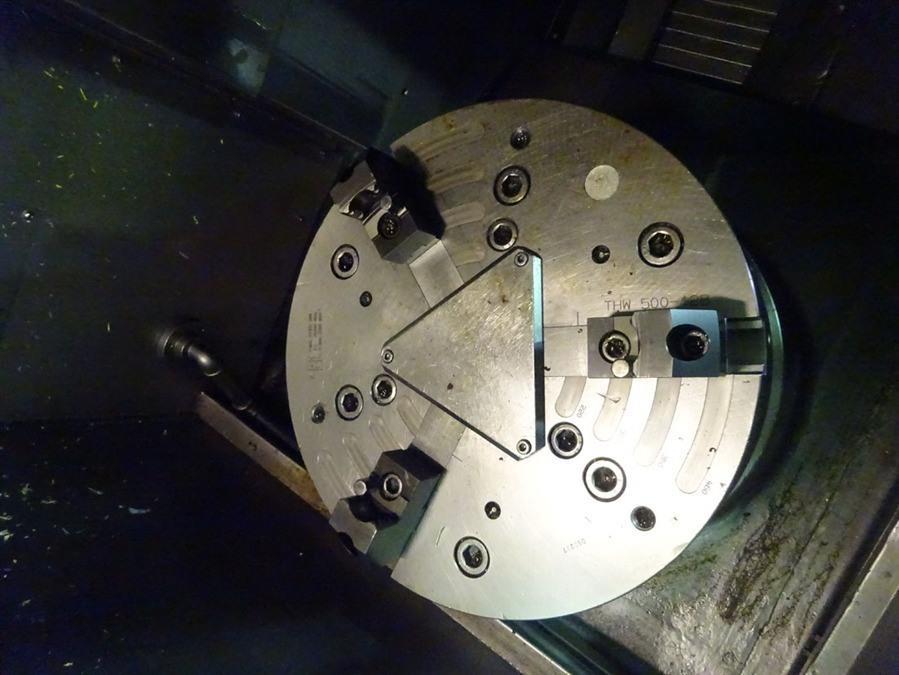

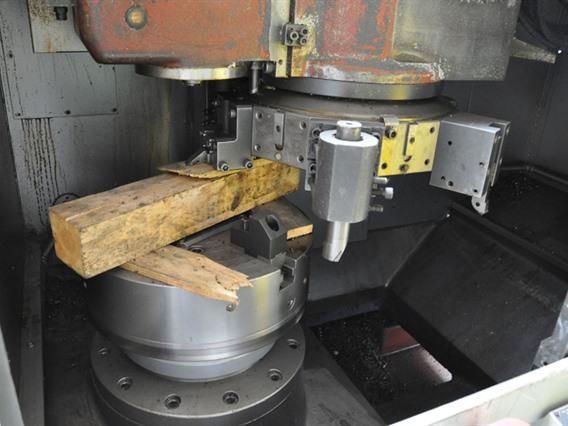

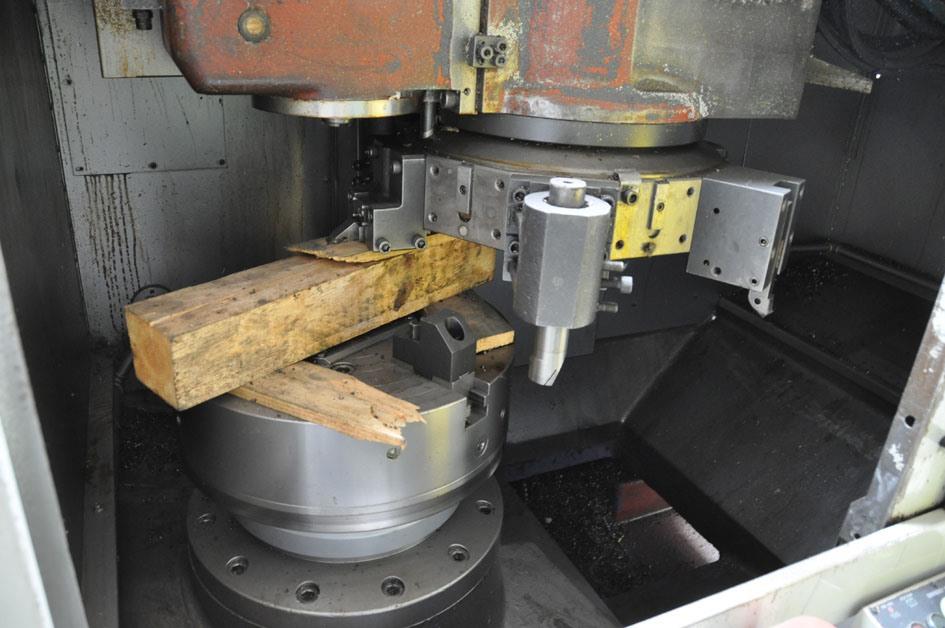

schunck hydraulic chuck THW-500
mm
C-axis indexing every 2,5°

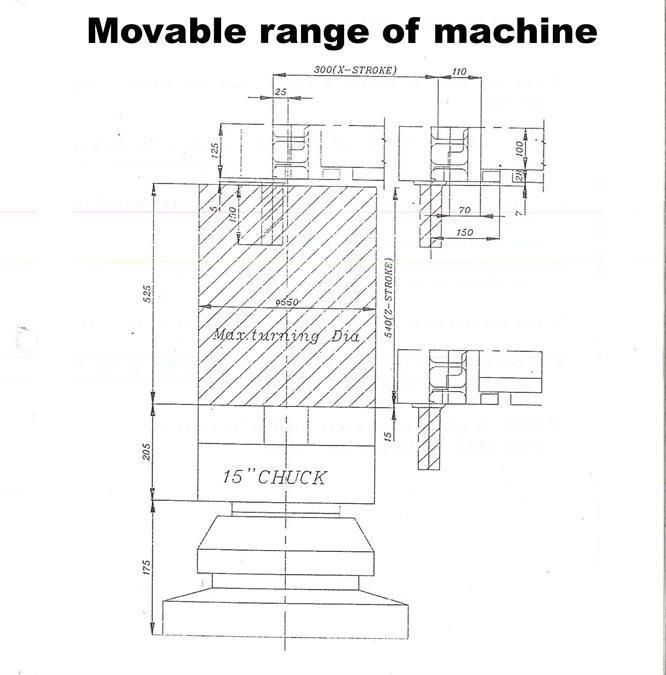

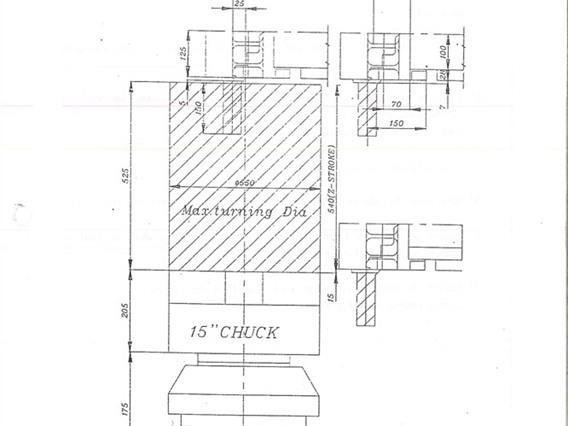

max workpiece dia: 800 mm
max workpiece height: 525 mm

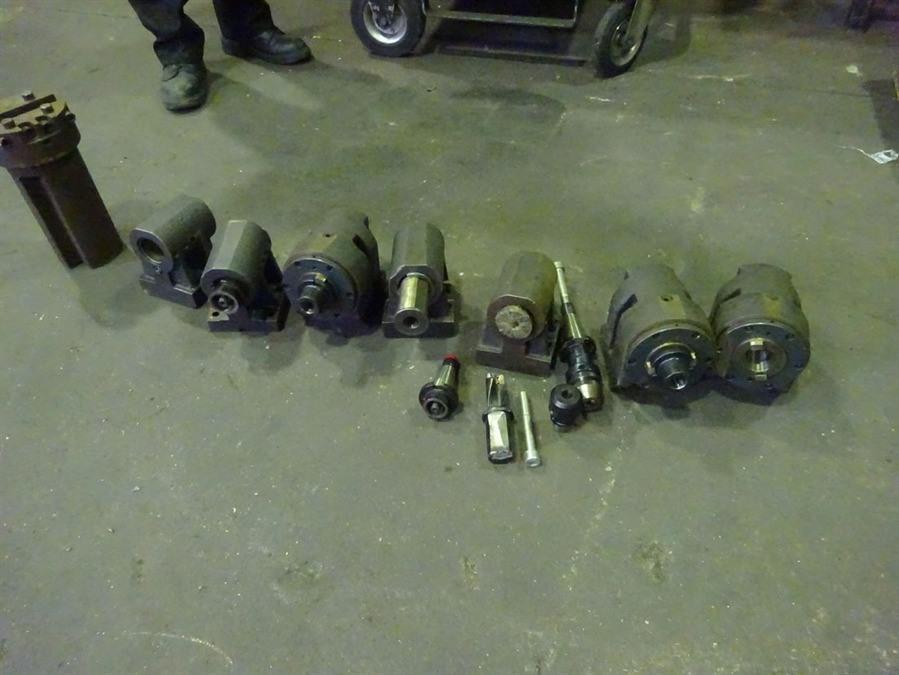

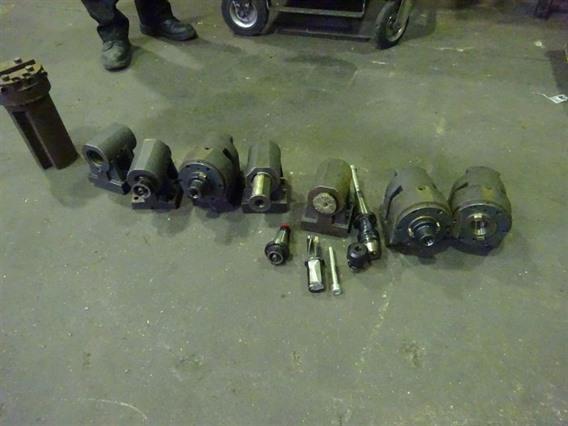

toolholders (driven + non-driven) included
speed of driven tools: 4000 rpm
- Tipo/Modelo: dia 800 x 550 mm CNC
- Numéro stock: A.12 8549
- Categoría principal: [A] Tornos
- Subcategoría: [A.12] Tornos verticales convencionales y CNC
- Marca: Hwacheon Eco 5VR
