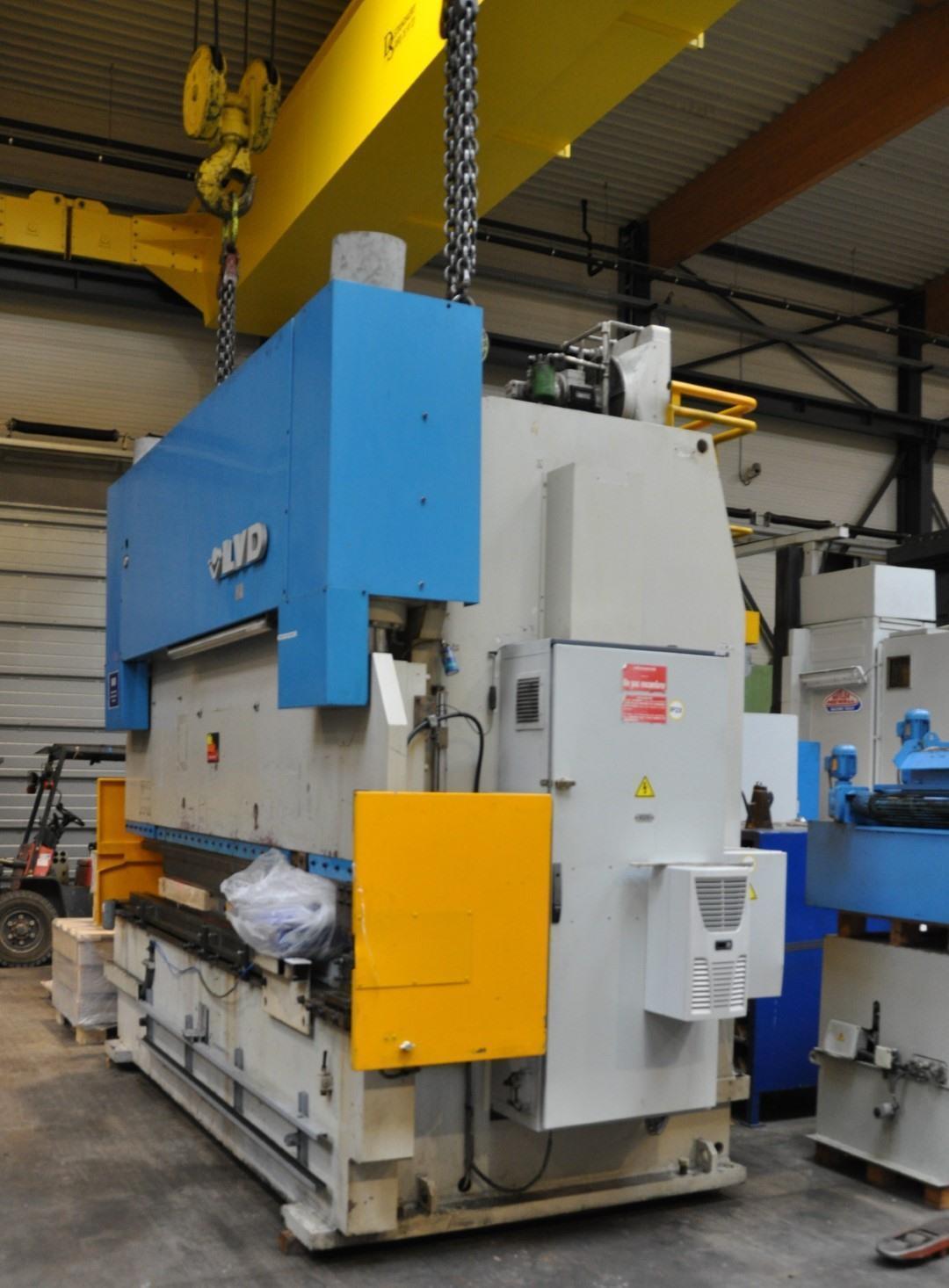

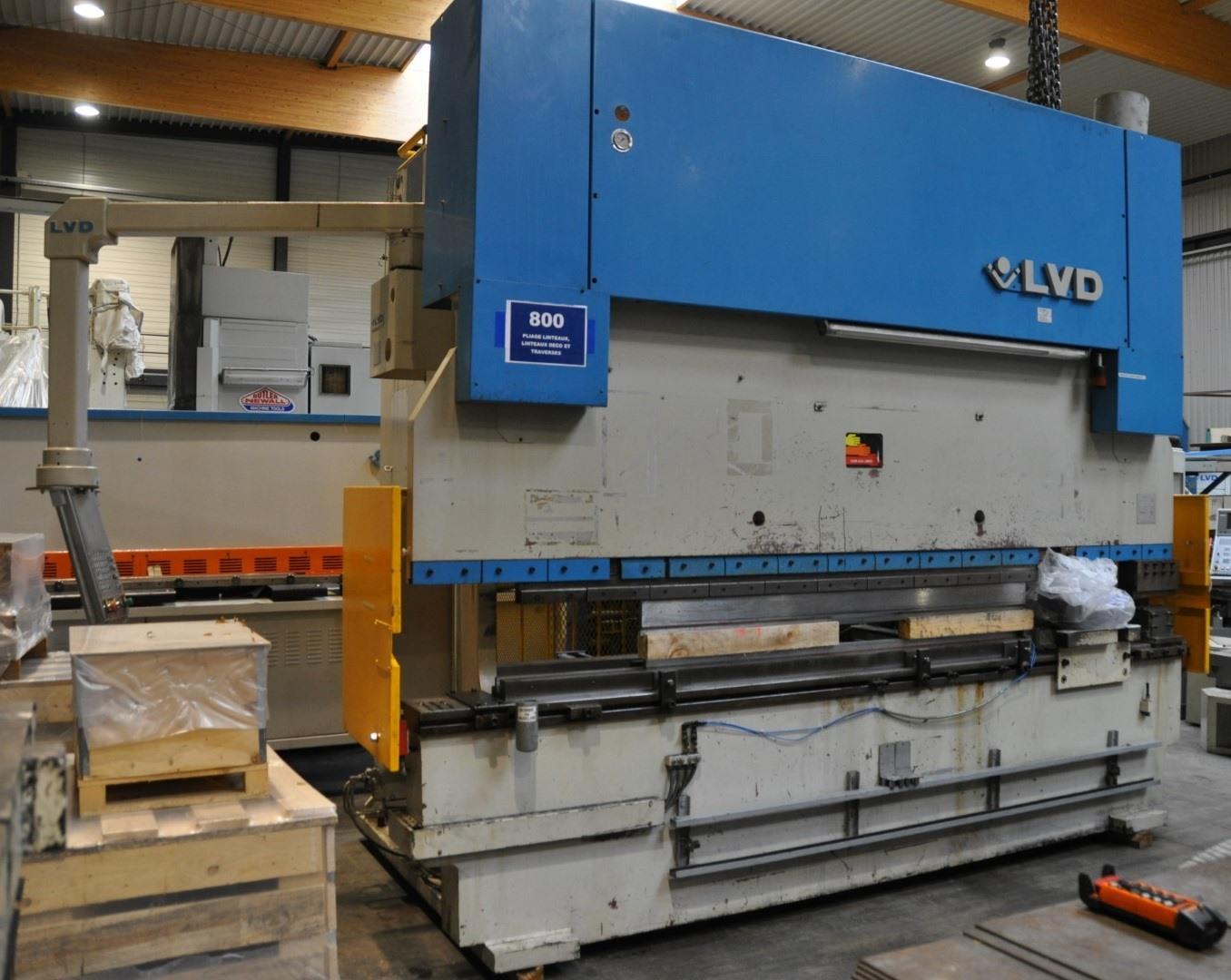

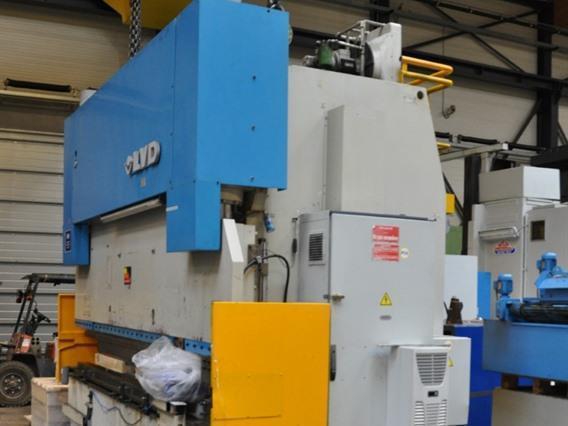

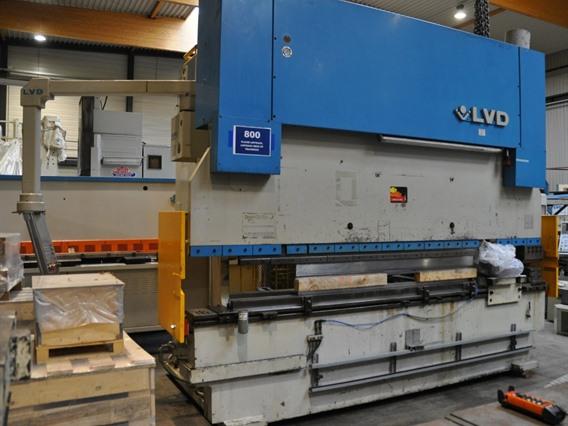

LVD PPCB 250 ton x 4100 mm CNC

Producto agregado a sus favoritos

» Solicitar un presupuesto personalizado

Información téchnico

Capacity x Max length250 ton x 4100 mm

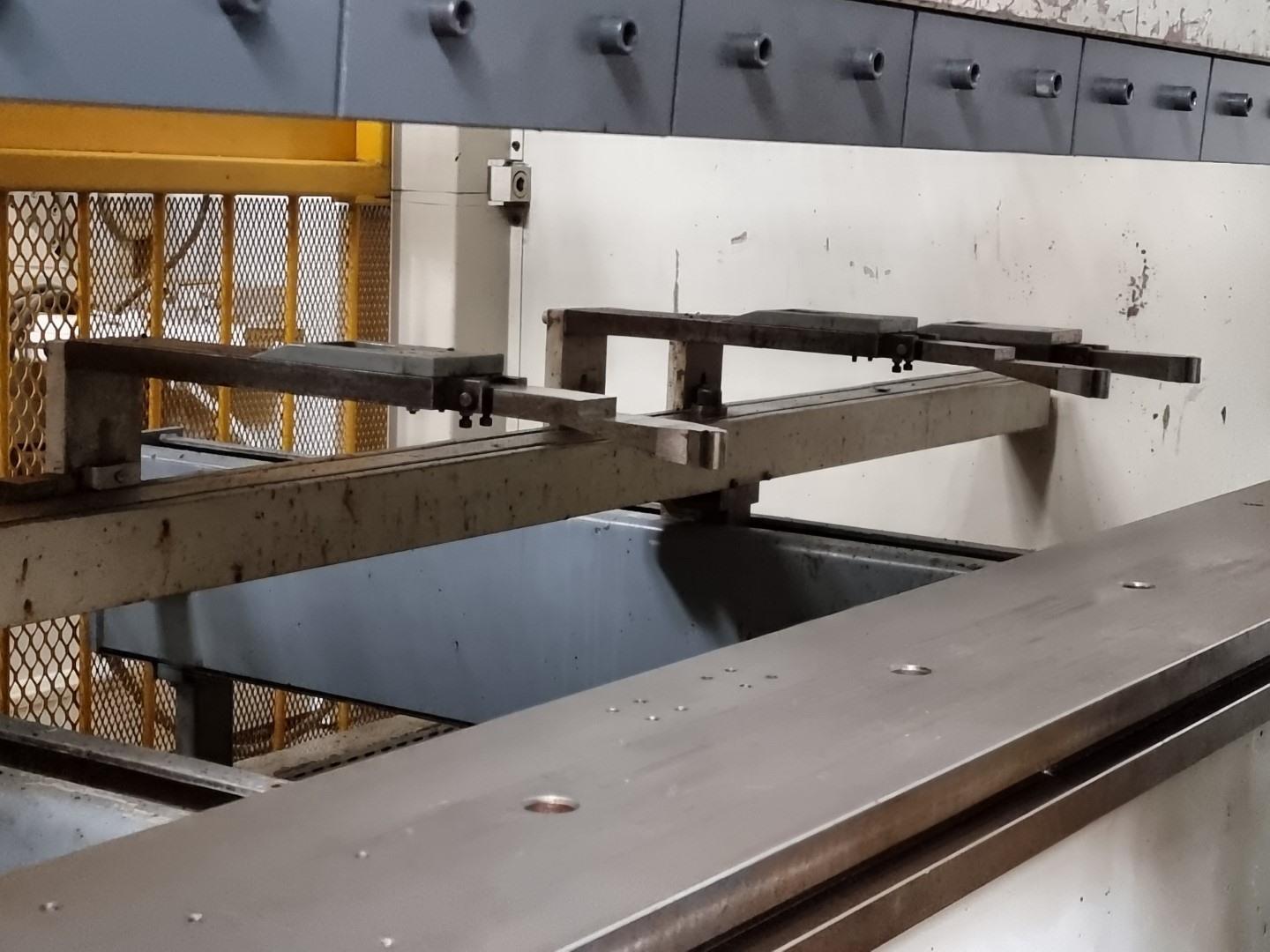

Backgauge CNC

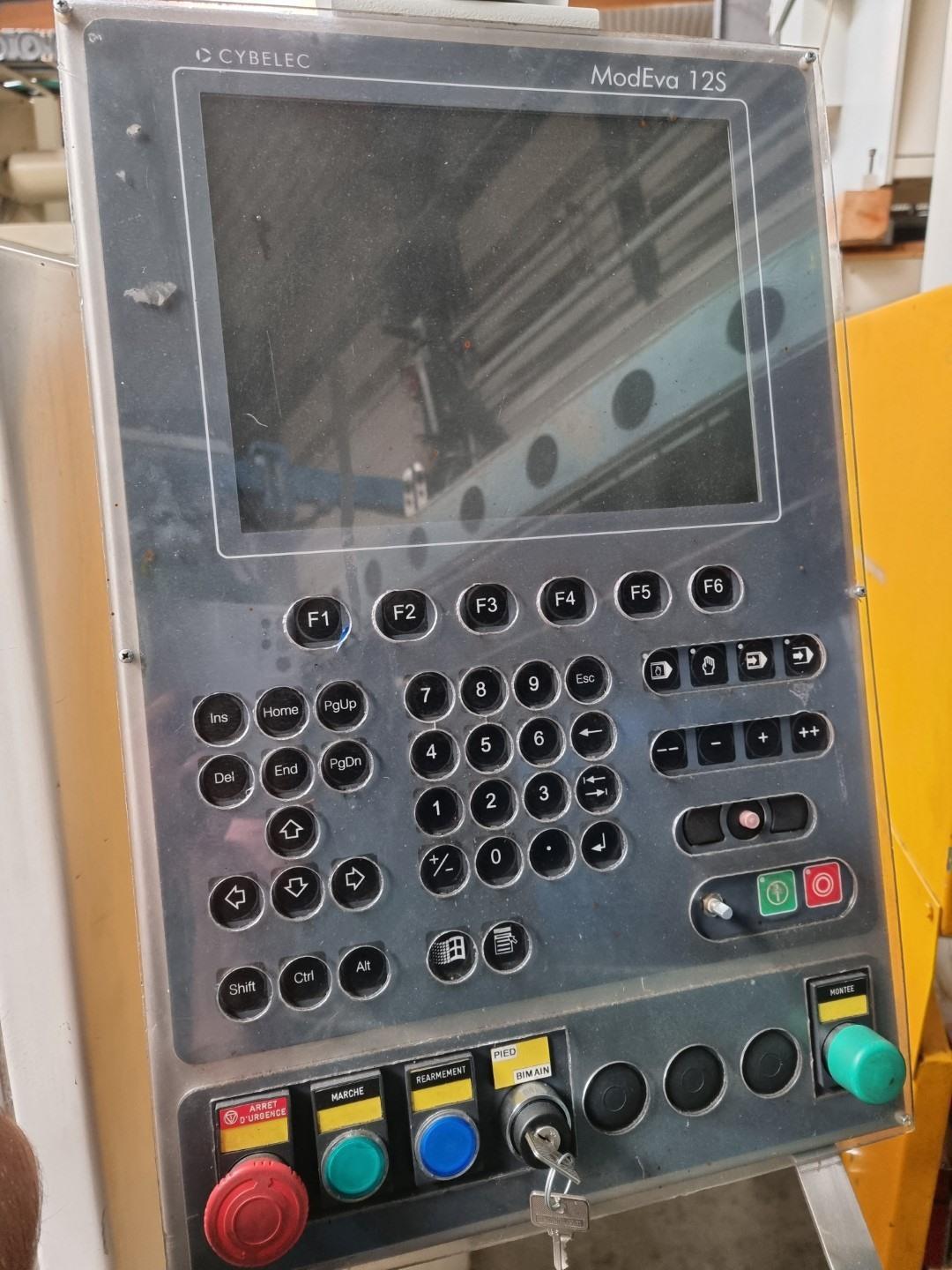

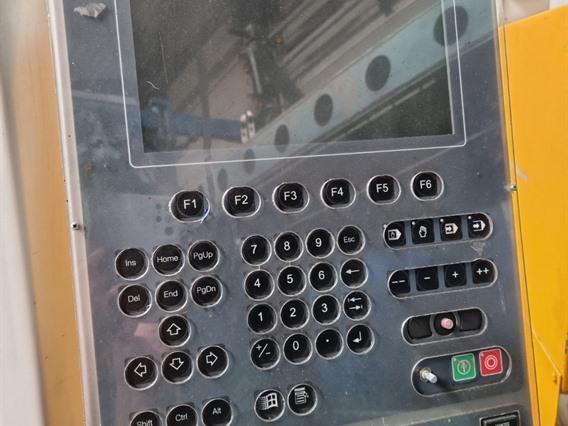

ControlCybelec ModEva 12S
Passage between uprights3150 mm
Max stroke250 mm
Max distance between table -- ram500 mm
Depth of throat300 mm
Table width 250 mm
Locking speed80 mm/sec
Working speed6 mm/sec
Returning speed60 mm/sec
Electric motor (power)33 kW
Power needed380V
Length 5520 mm
Depth 2010 mm
Height3665 mm
Weight19 ton

Información adicional

Y1 / Y2 / X

This machines is equipped with:
- Oil cooler (reduce oil temperature, usefull especially for hot climate areas)
- Enlarged opening
- Enlarged stroke
- Safe Security
Tipo/Modelo: PPCB 250 ton x 4100 mm CNC
Numéro stock: O.01 11294
Categoría principal: [O] Curvadoras, enderezadoras, punzonadoras, máquinas de oxicorte y láser y líneas de conformado
Subcategoría: [O.01] Prensas plegadoras hidráulicas
Marca: LVD

» Solicitar un presupuesto personalizado

Numéro stock: O.01 11294

Descargar todas las imágenes en ZIP
