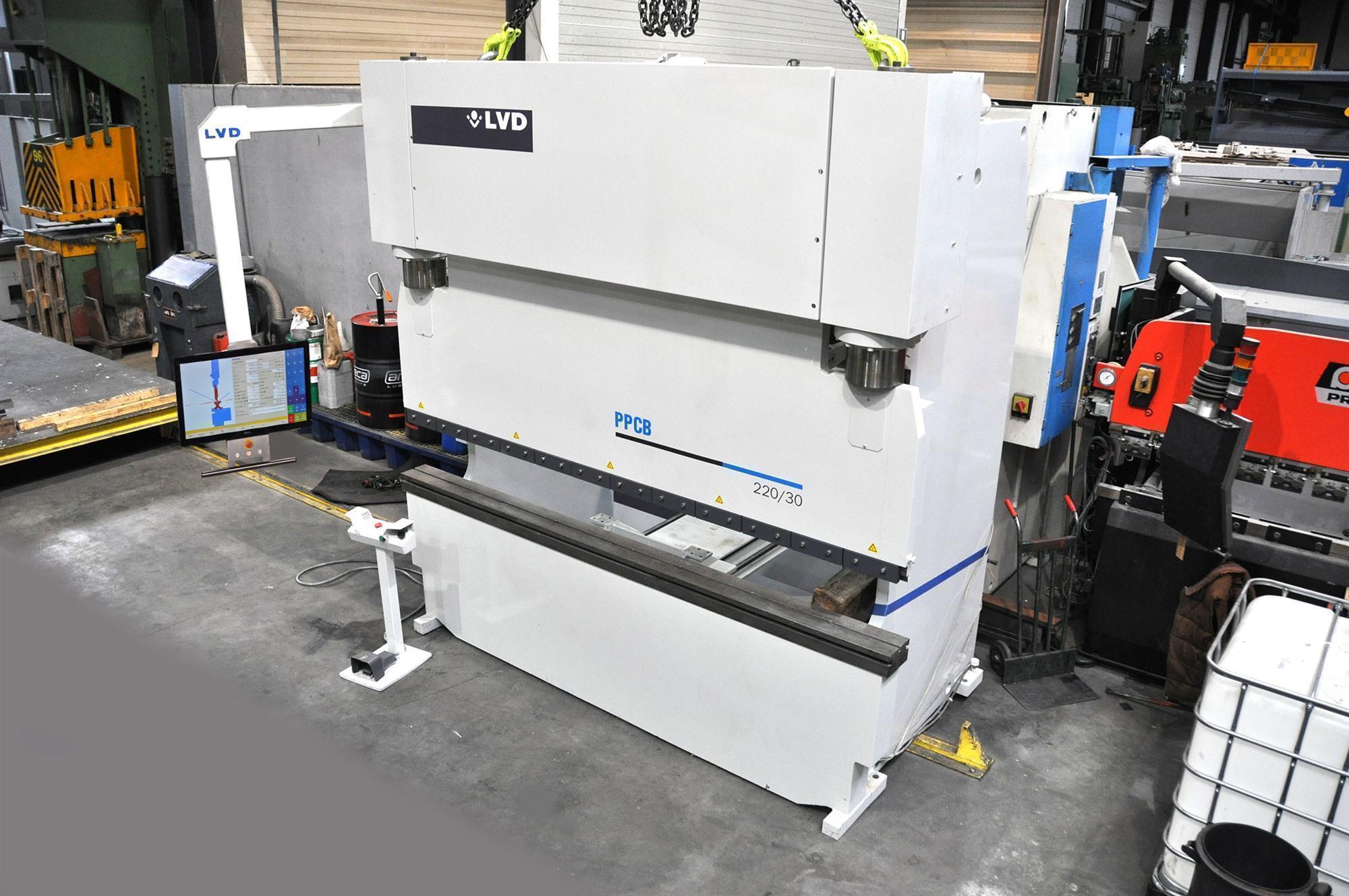

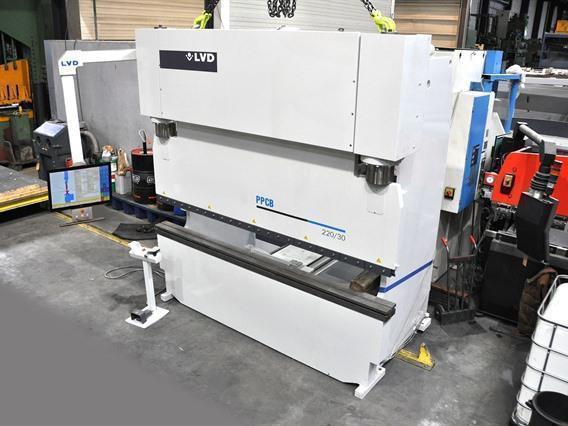

LVD PPCB 220 ton x 3100 mm CNC
Información téchnico
- Capacity x Max length220 ton x 3100 mm
- Backgauge CNC

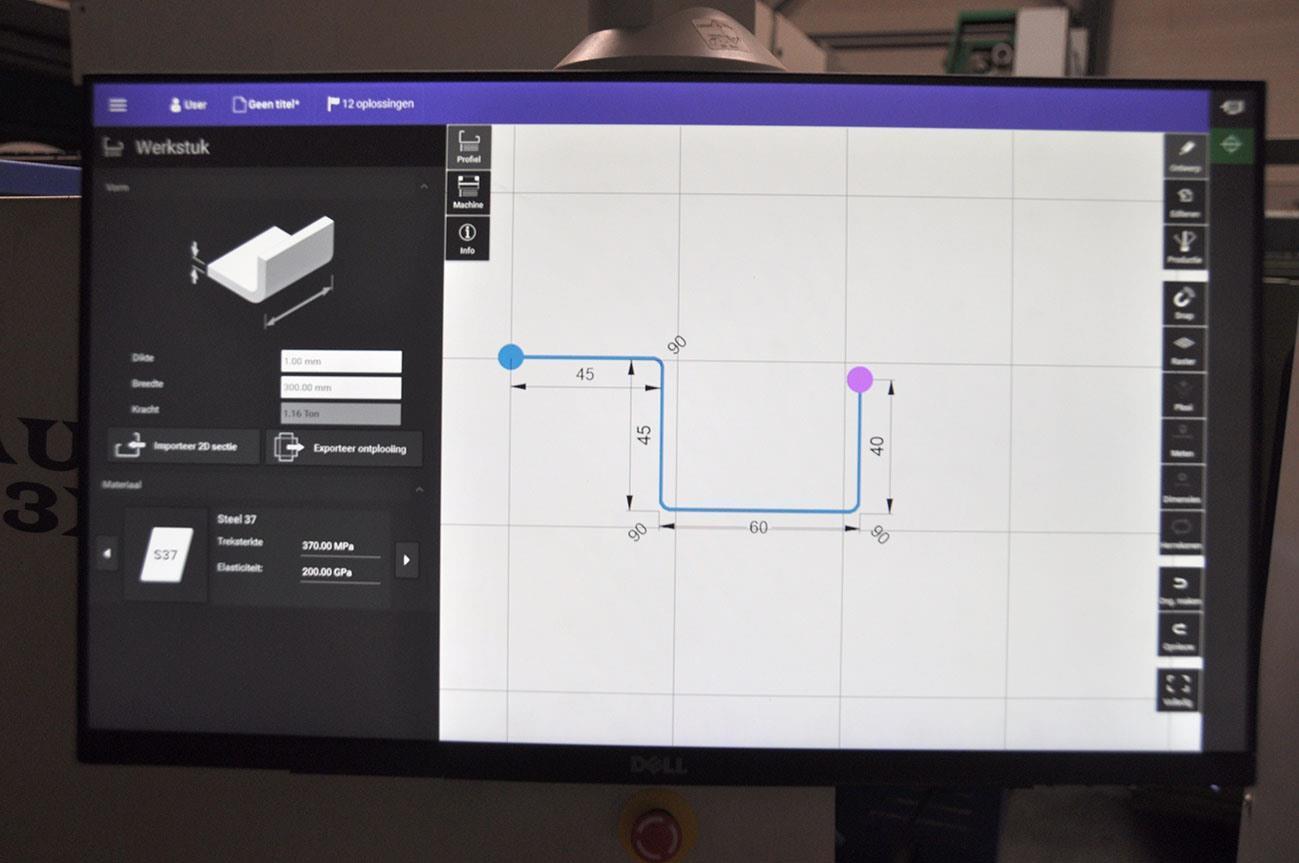

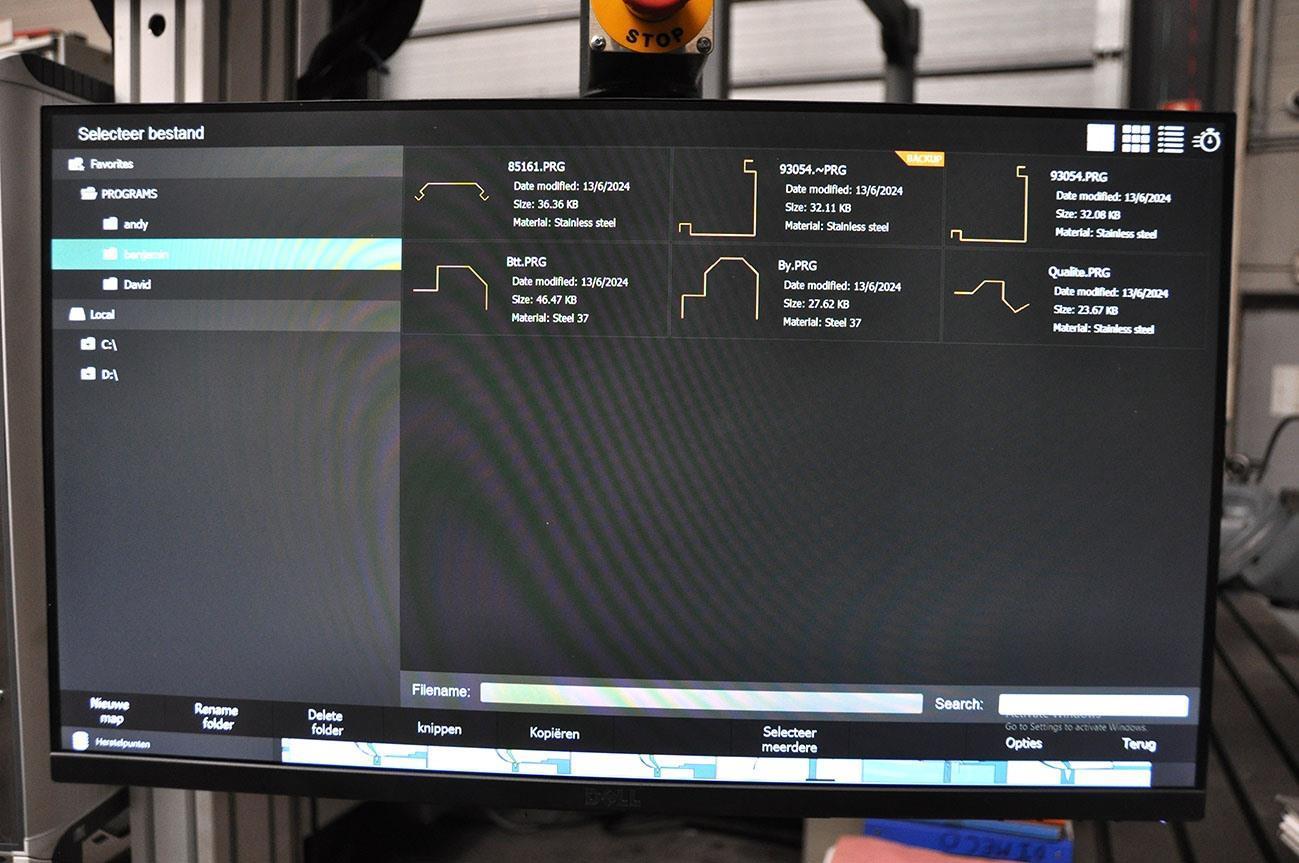

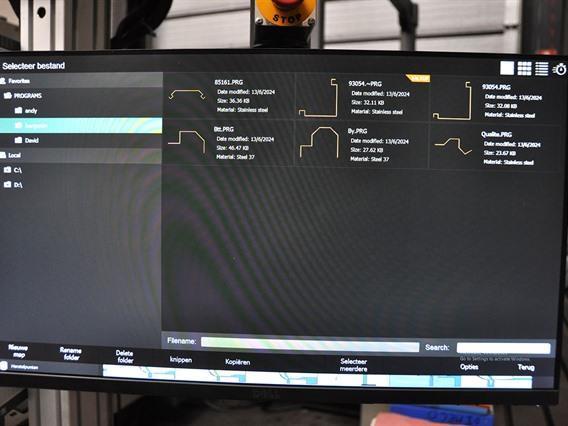

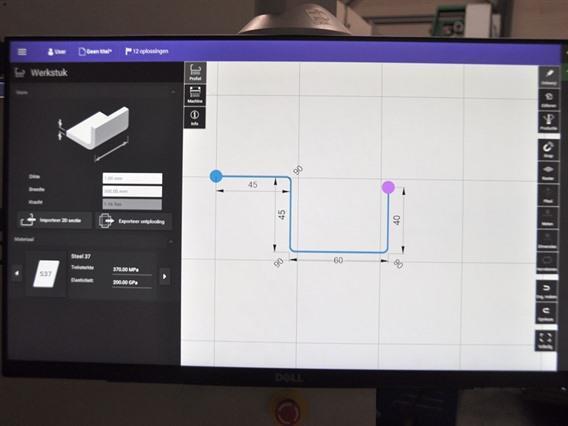

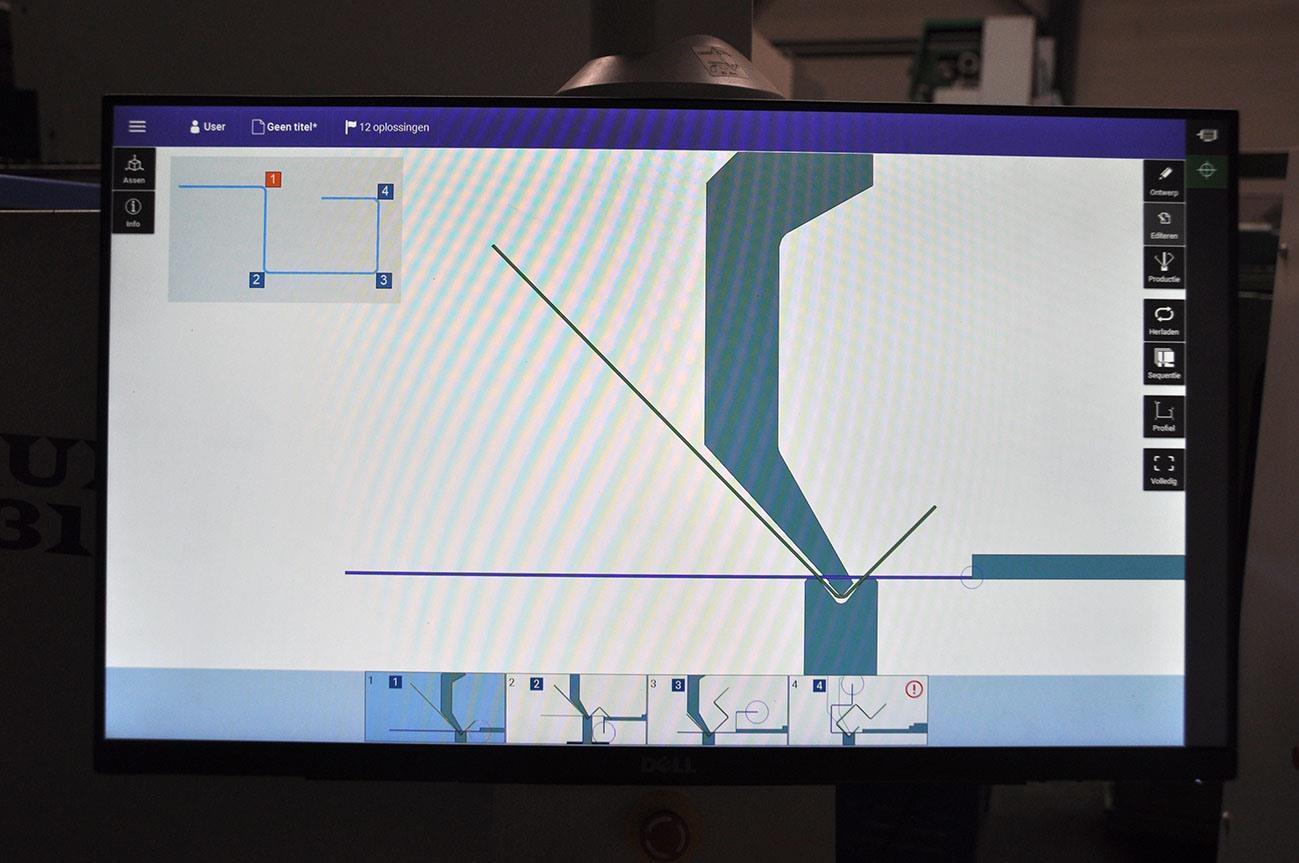

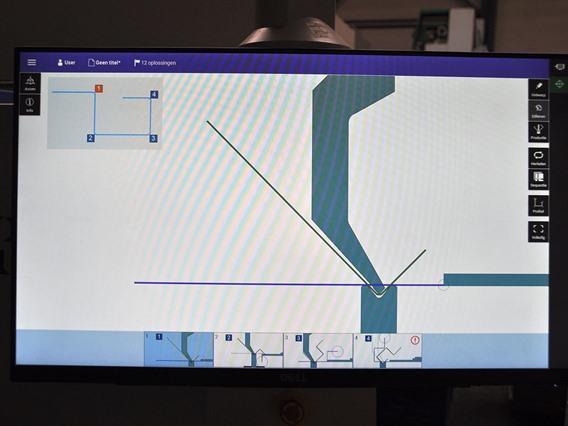

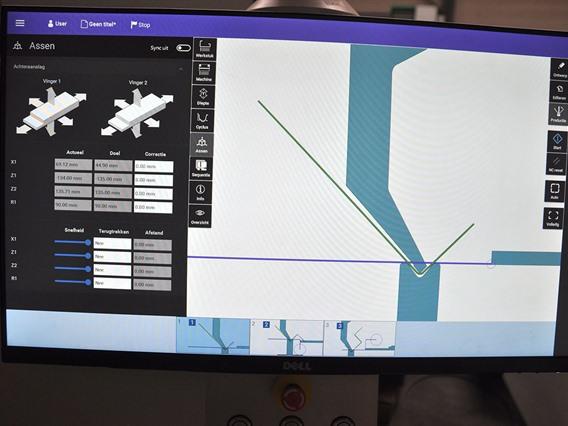

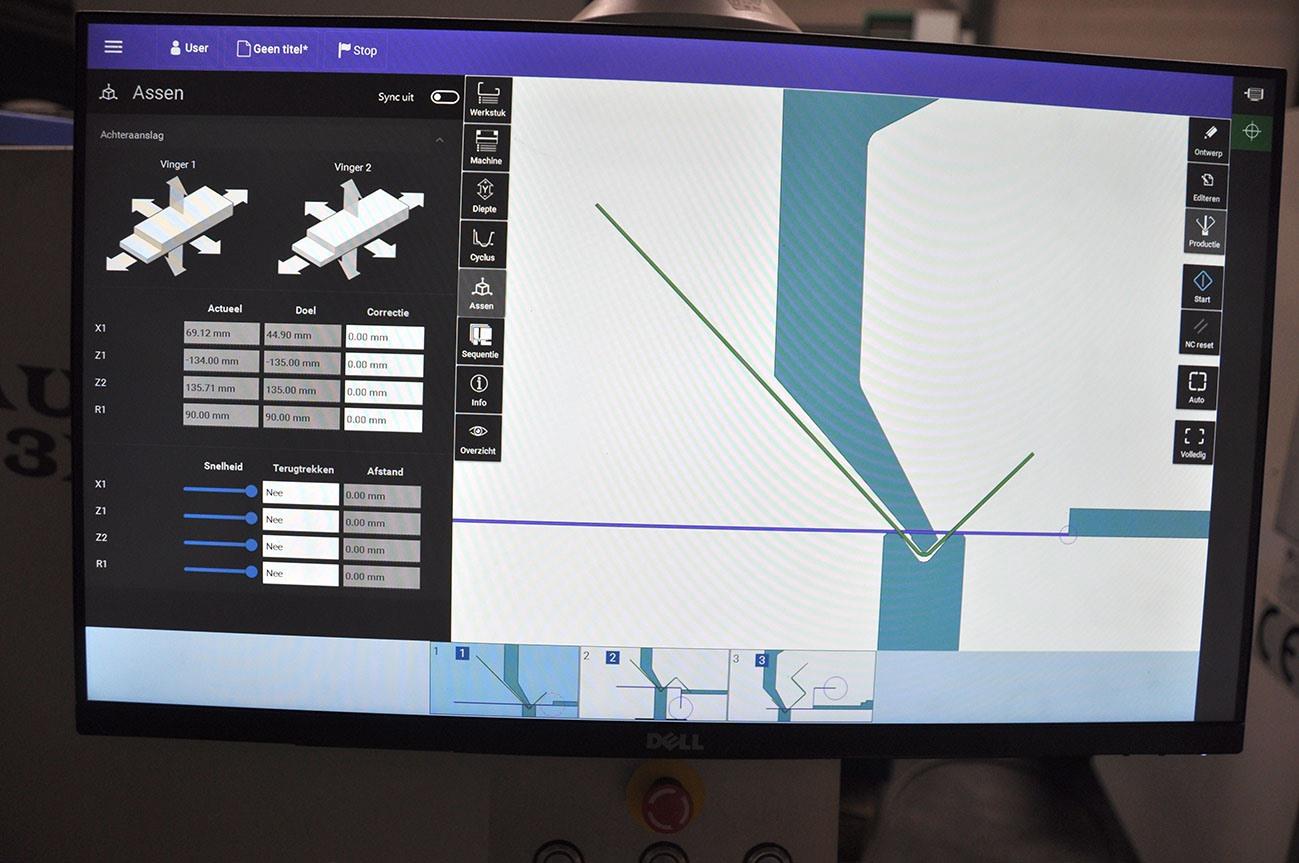

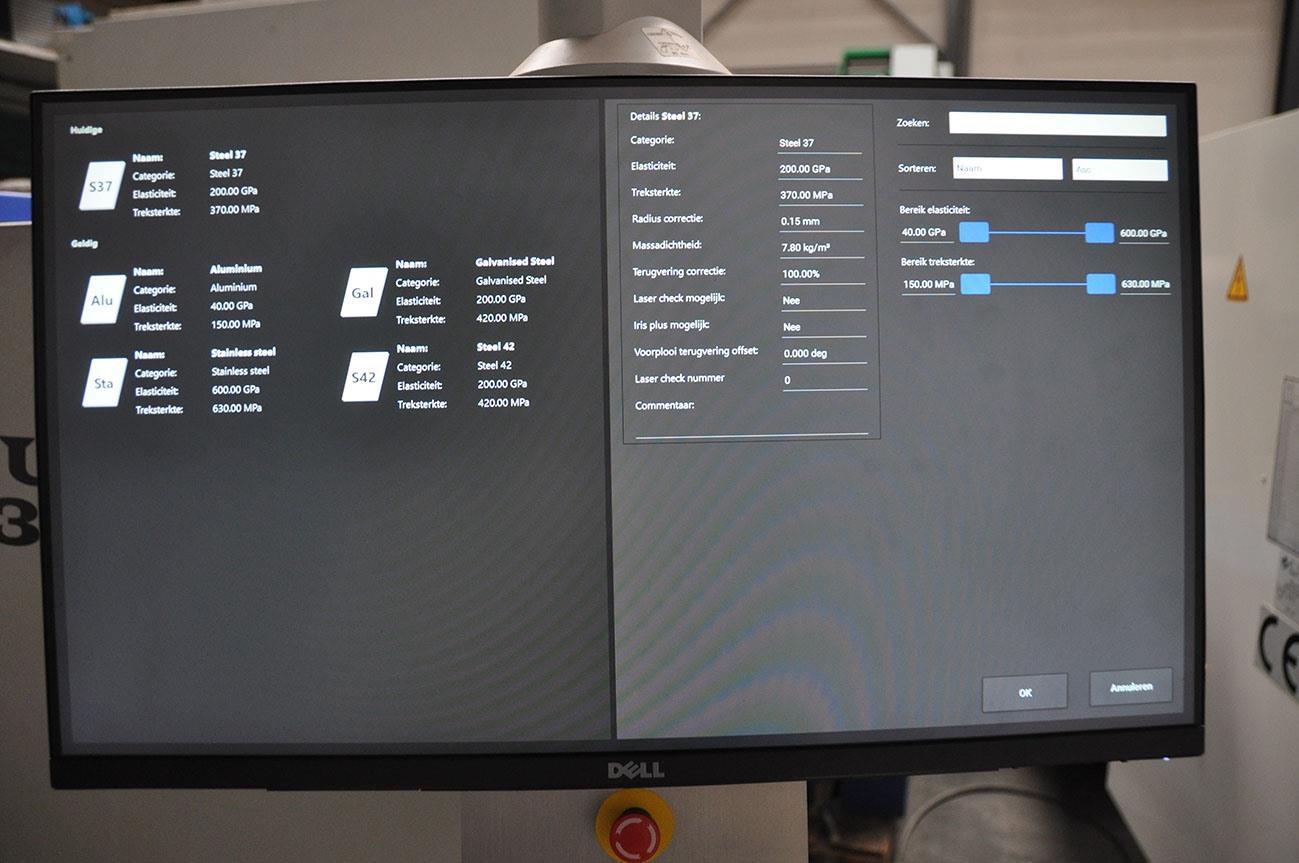

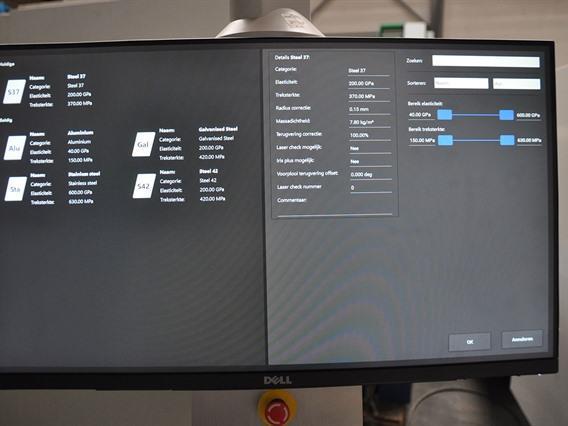

- Control2D touch
- Passage between uprights2550 mm
- Max stroke175 mm
- Max distance between table -- ram425 mm
- Depth of throat250 mm
- Table width 180 mm
- Locking speed80 mm/sec
- Working speed6 mm/sec
- Returning speed55 mm/sec
- Electric motor (power)11 kW
Información adicional
Numéro stock: O.01 9311
