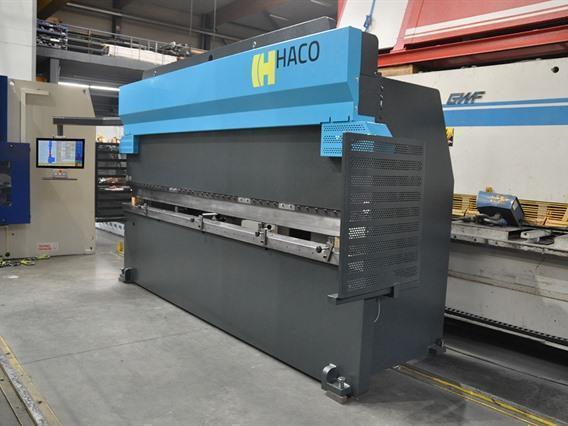

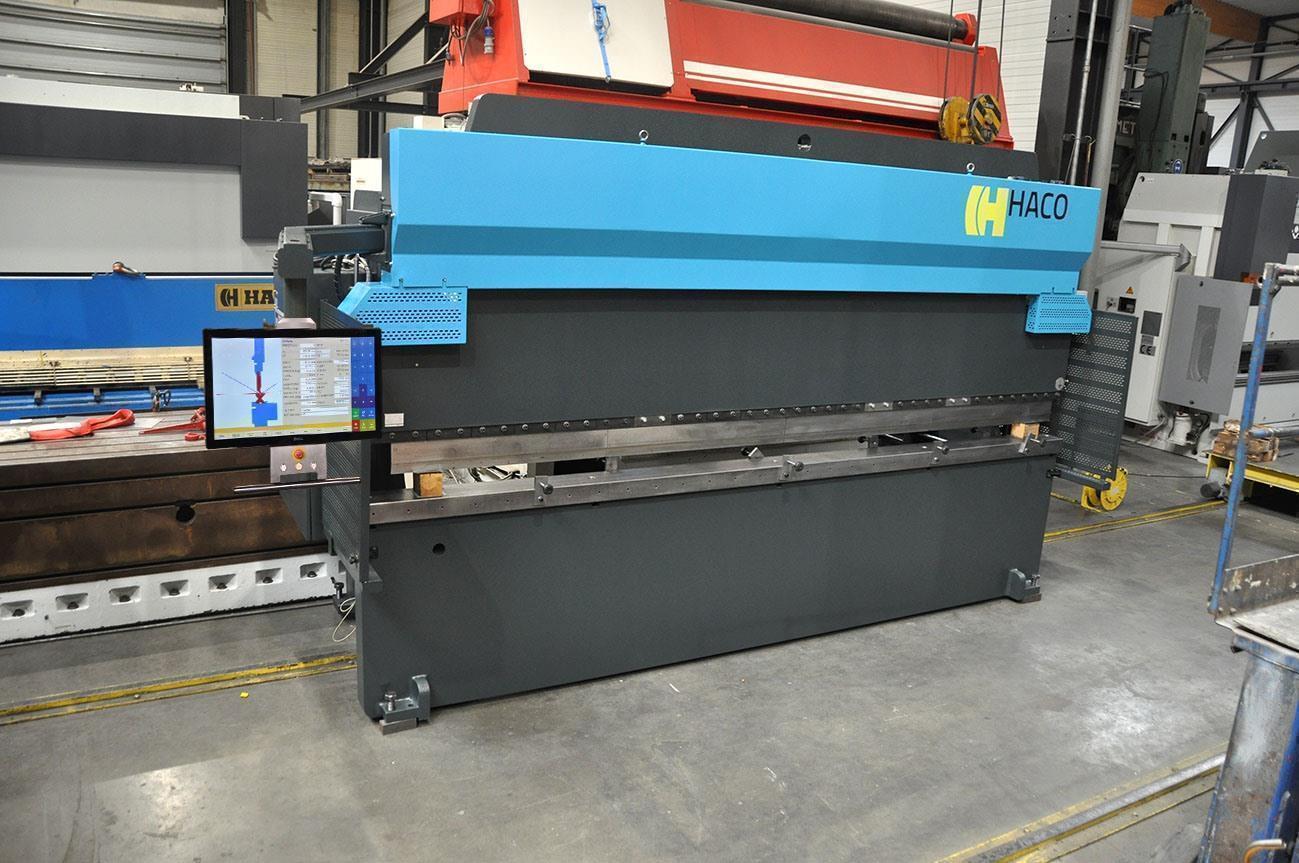

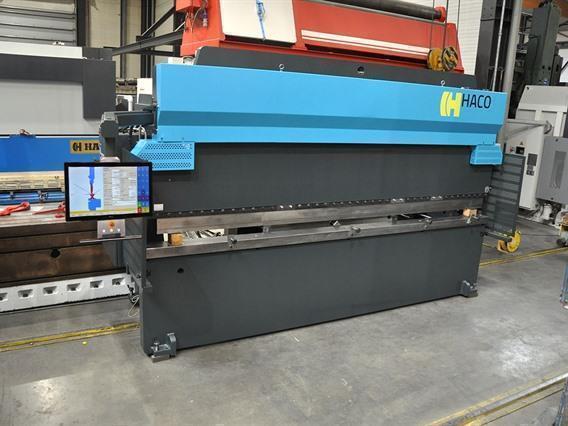

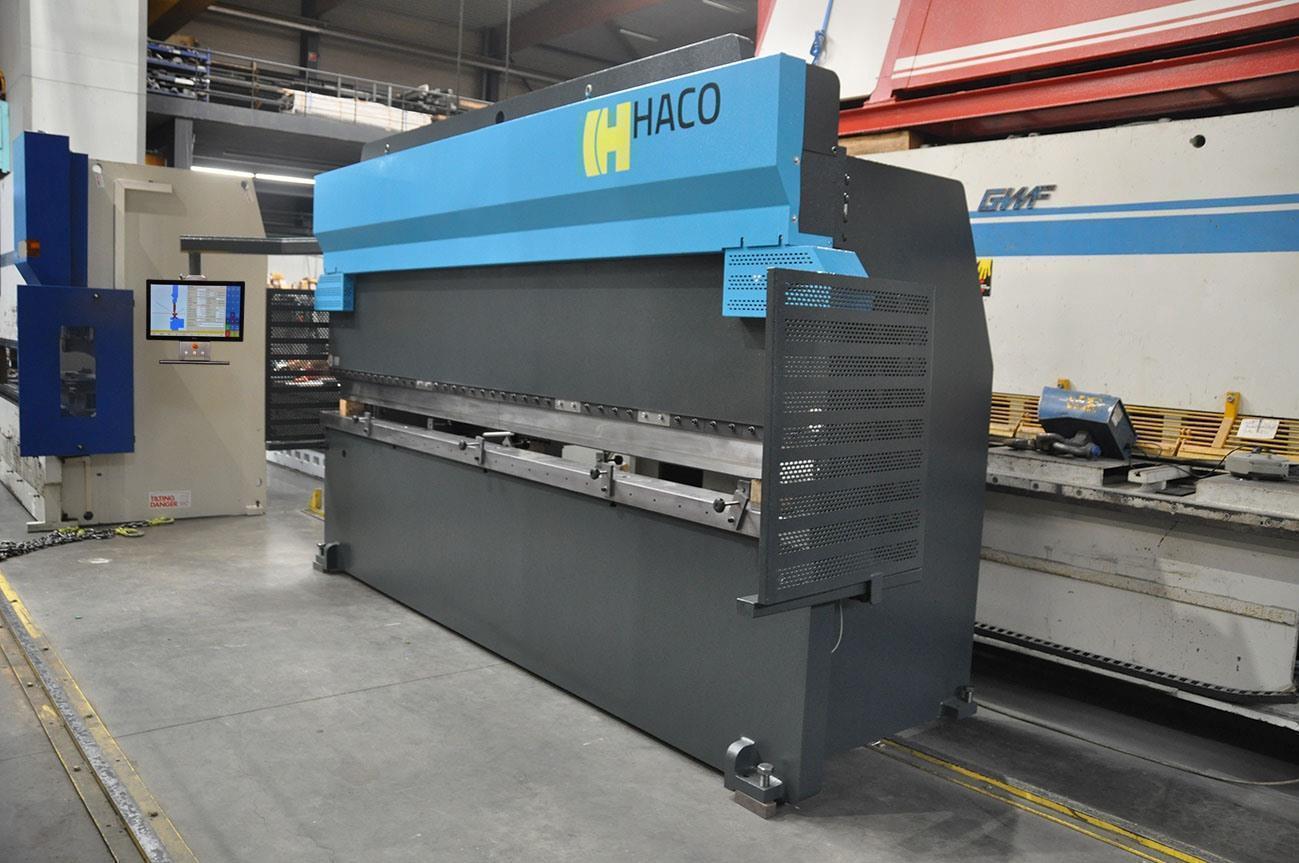

Haco PPM 135 ton x 4300 mm CNC

Producto agregado a sus favoritos

» Solicitar un presupuesto personalizado

Información téchnico

Capacity x Max length135 ton x 4300 mm

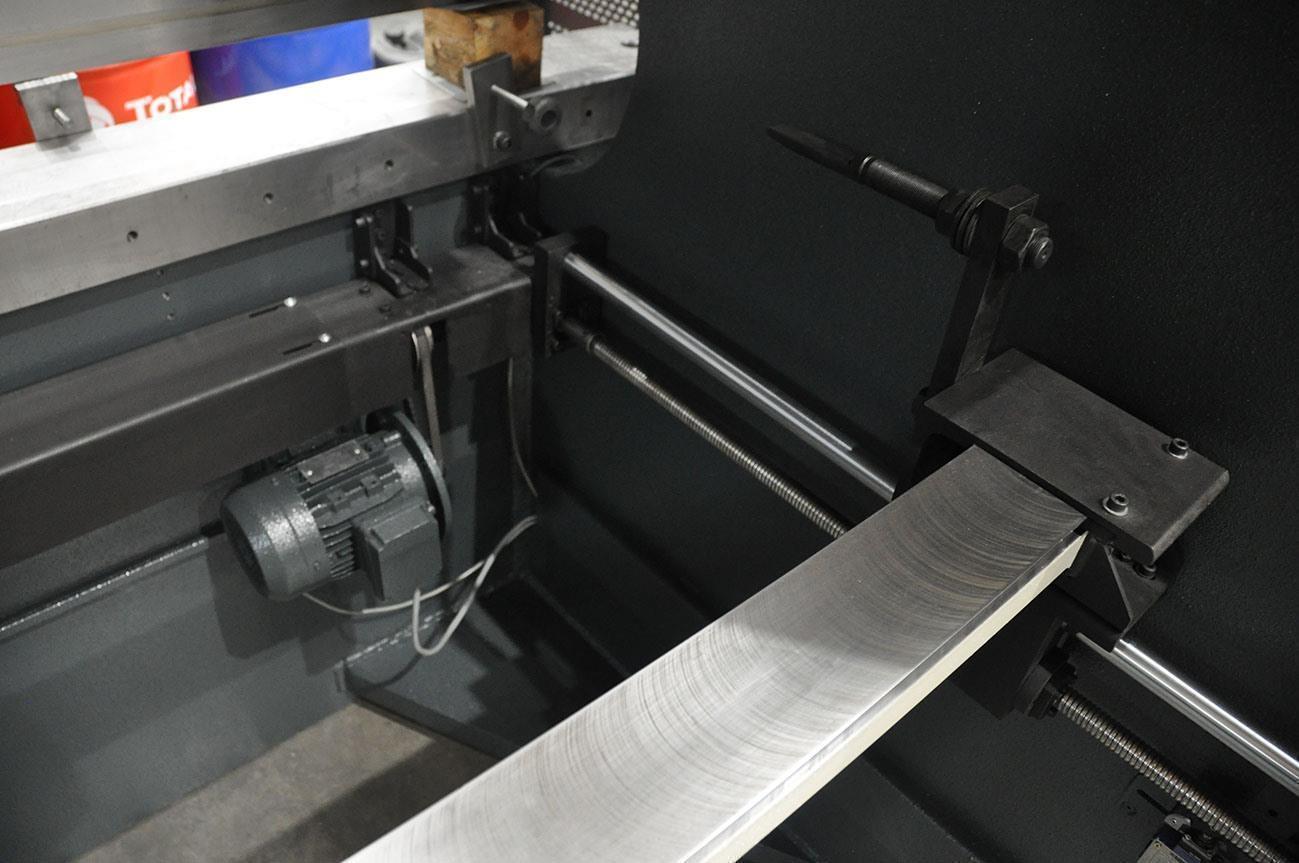

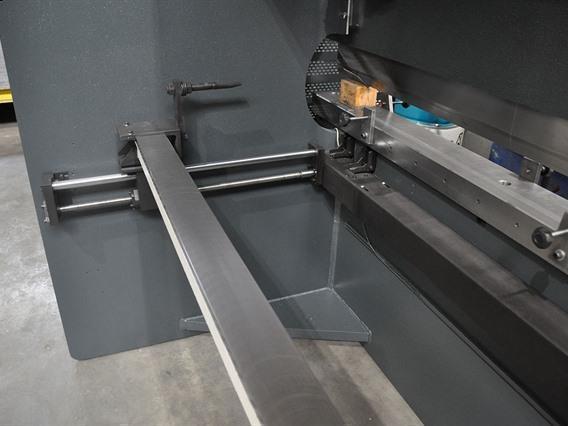

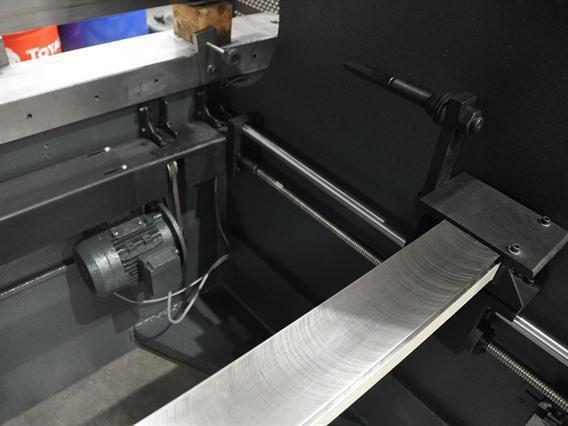

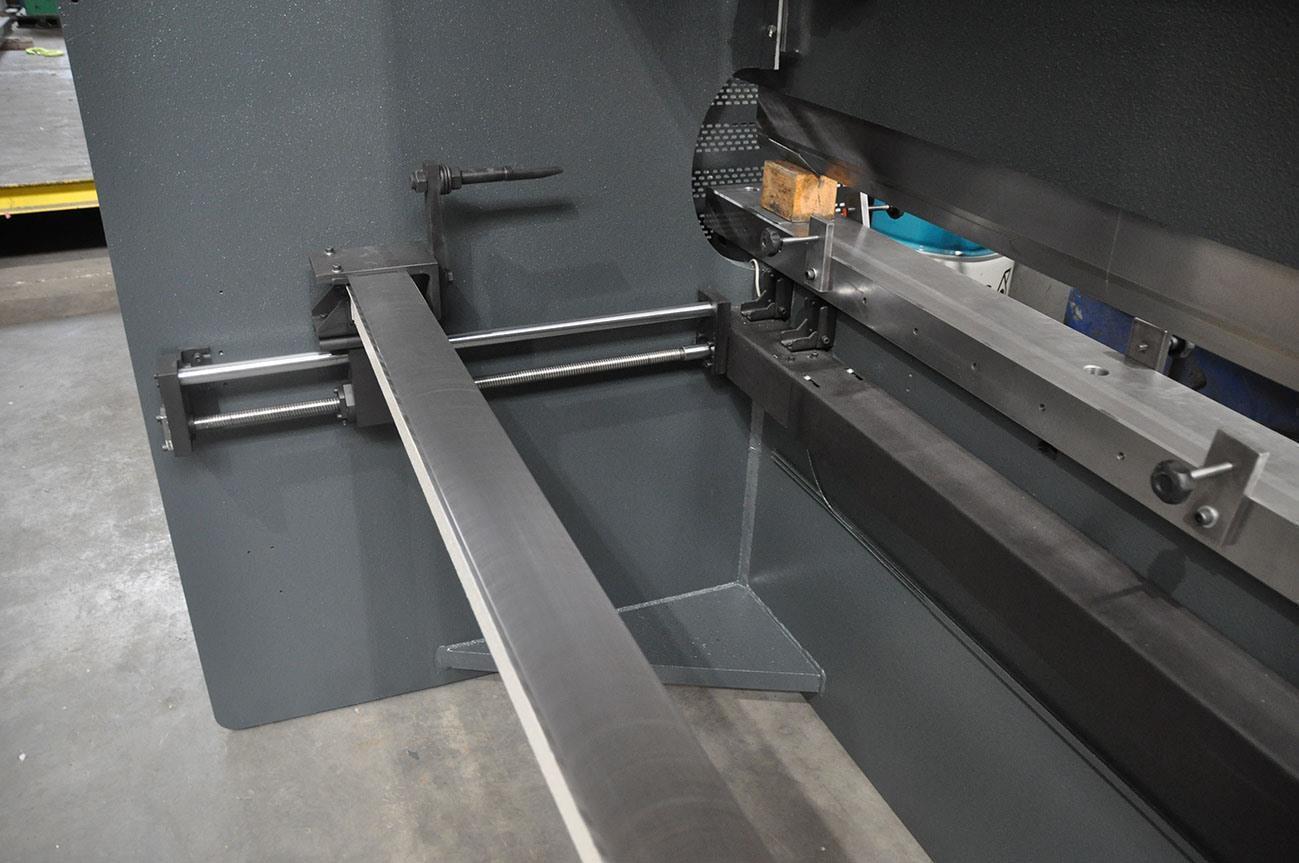

Backgauge CNC

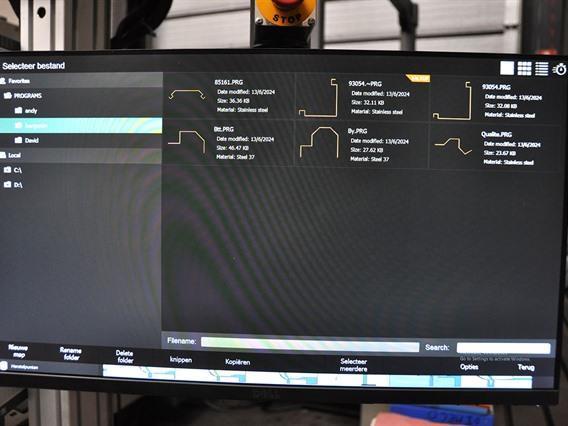

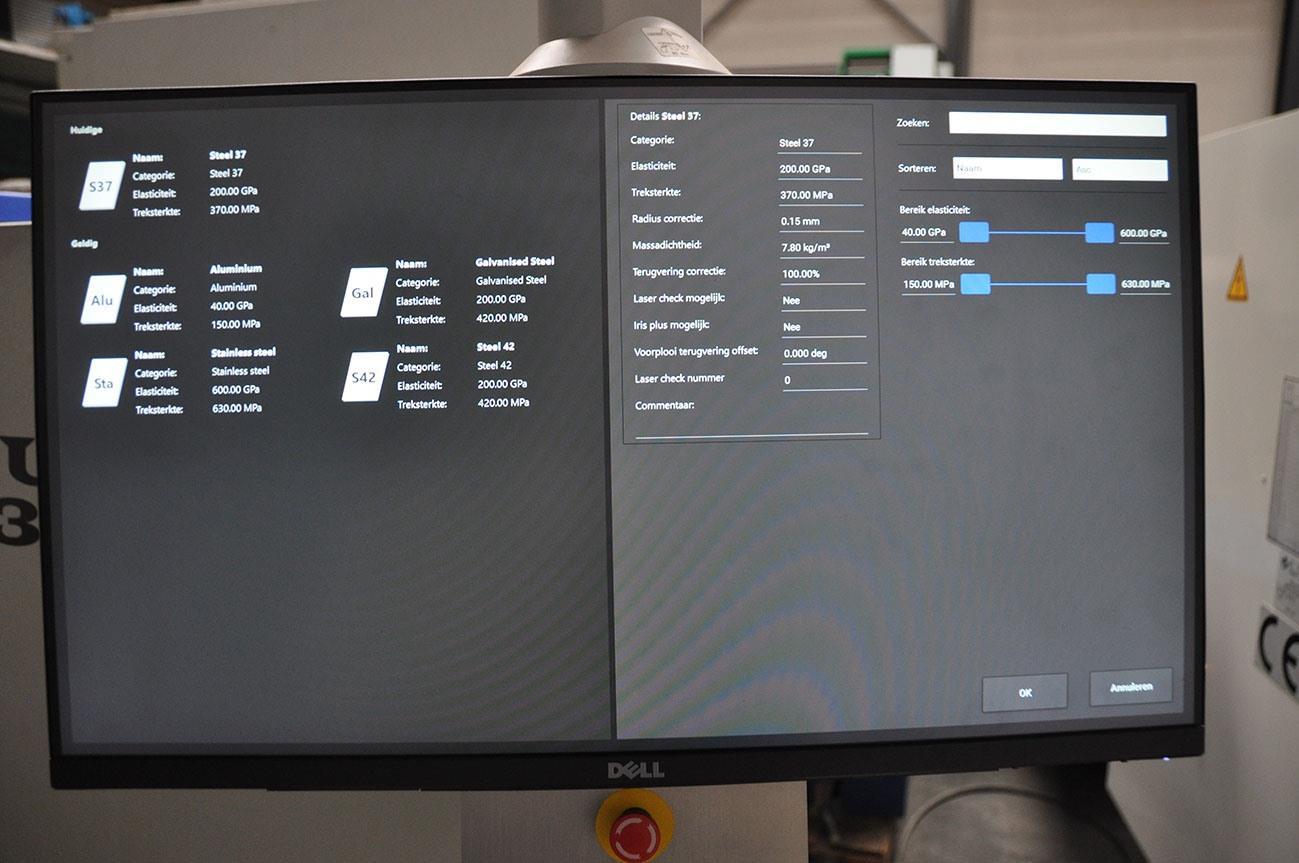

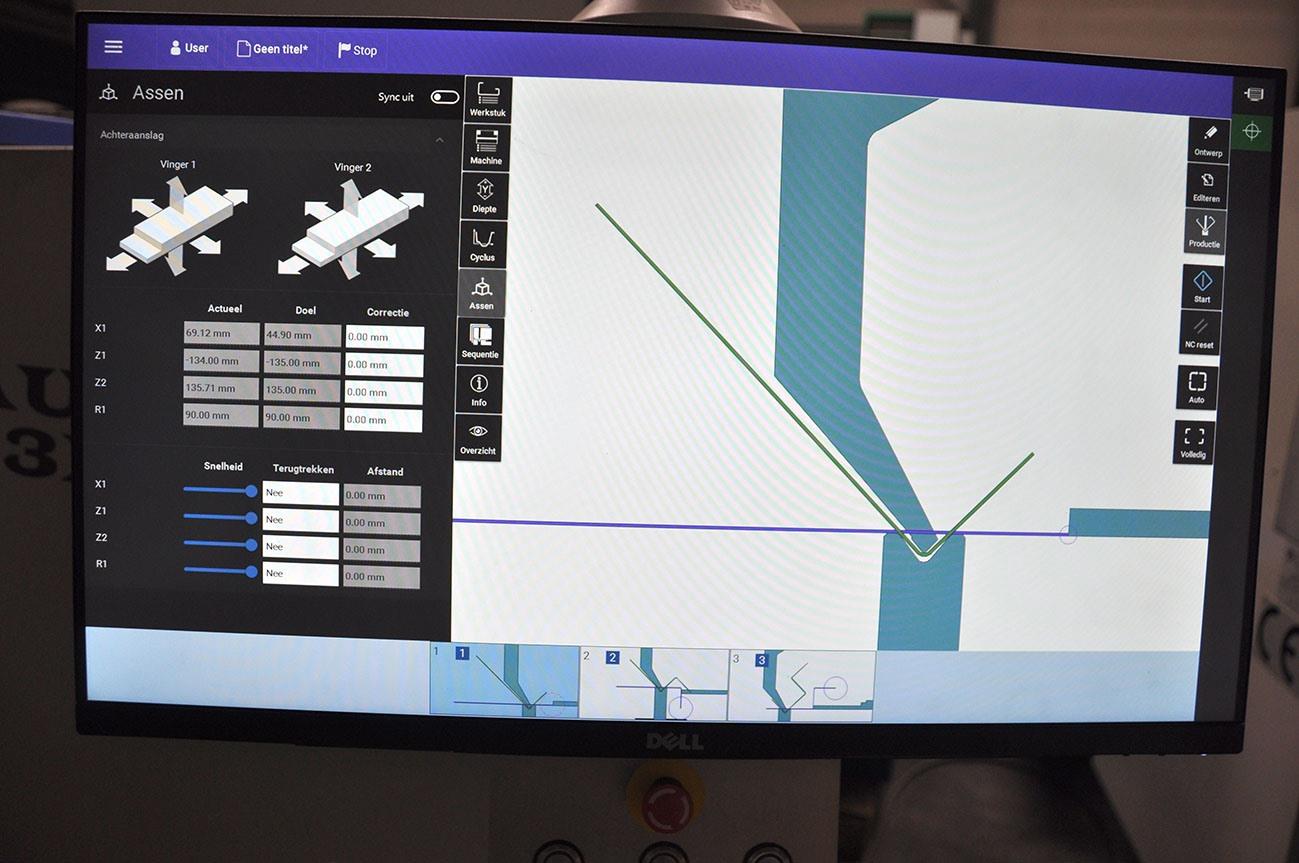

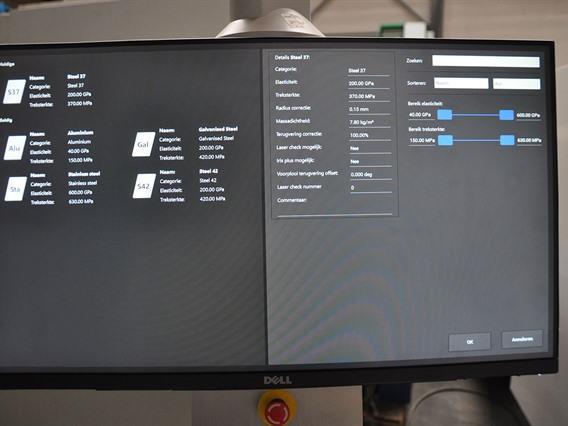

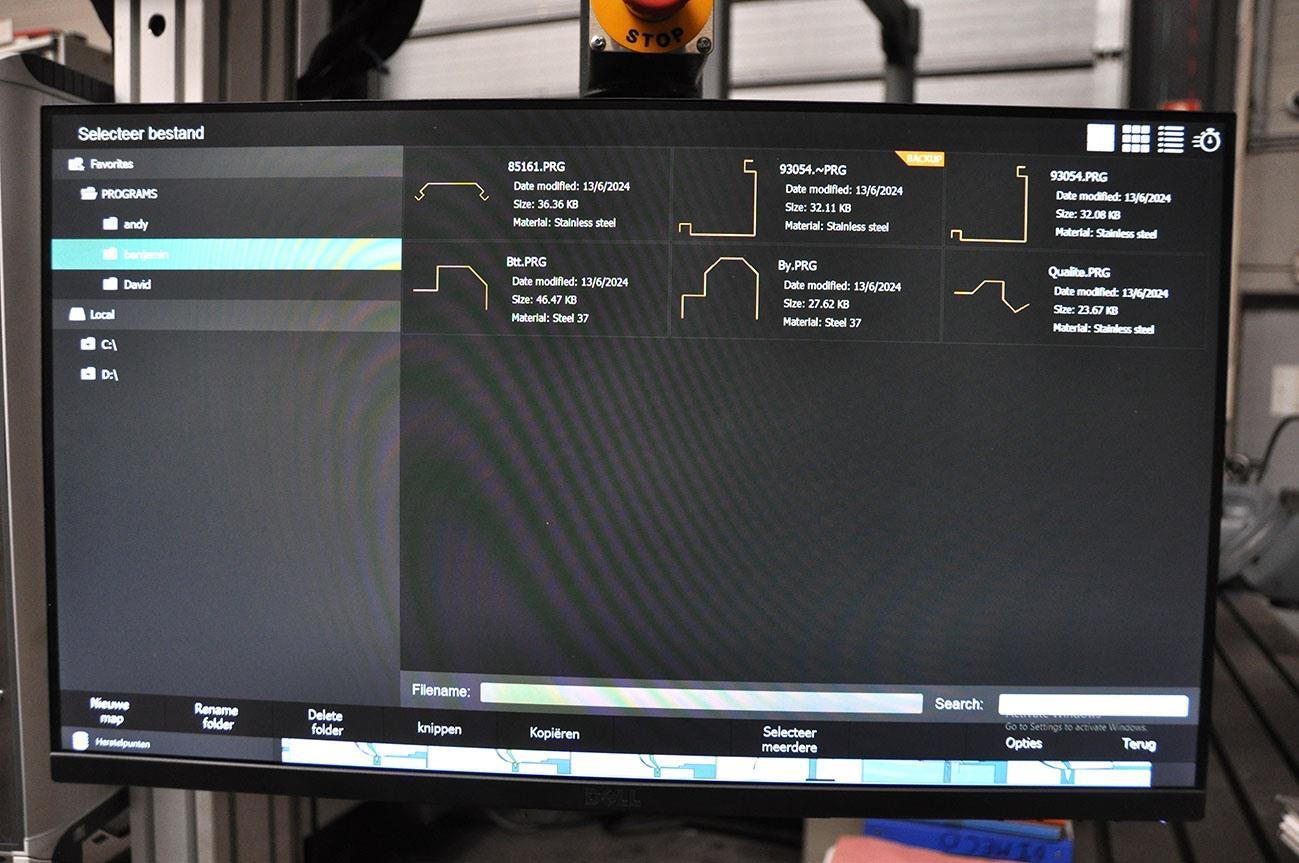

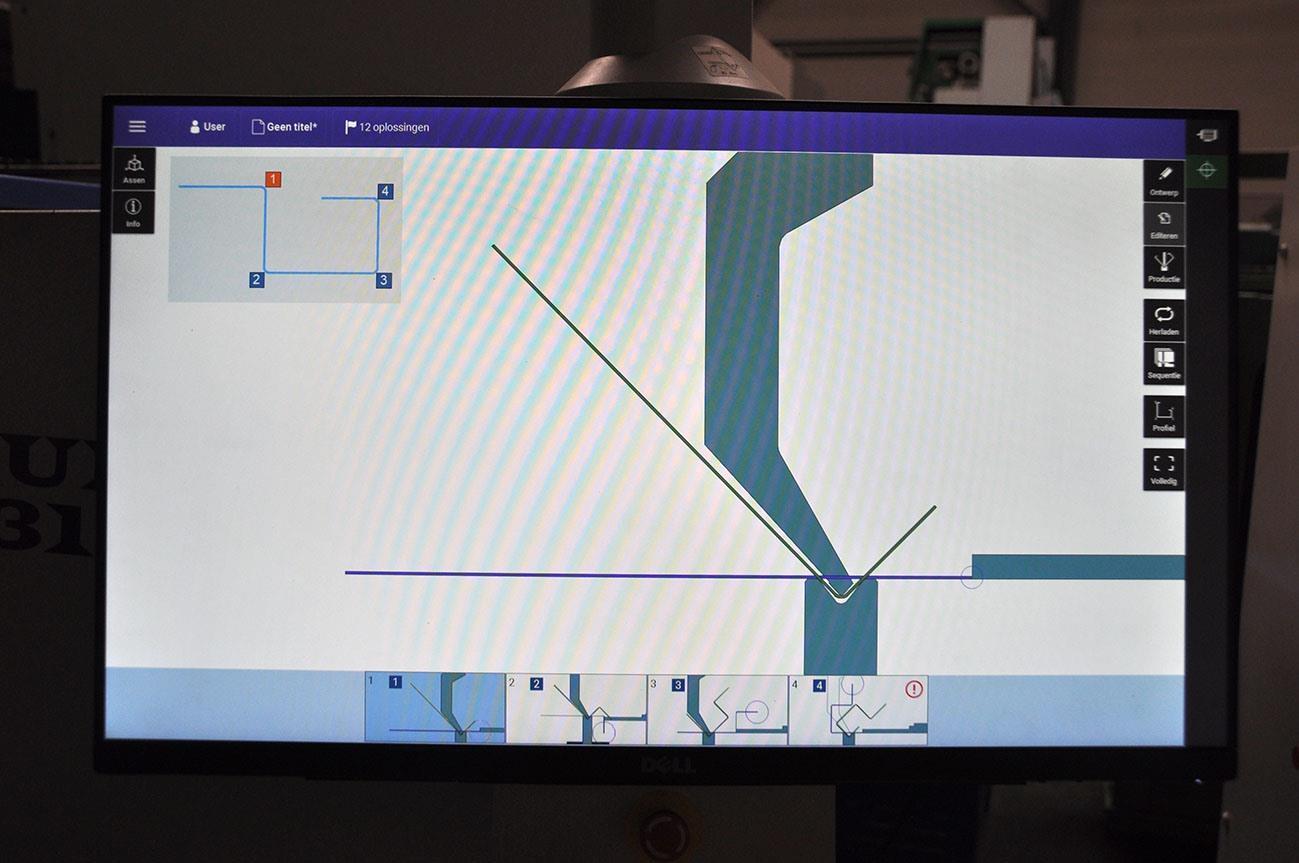

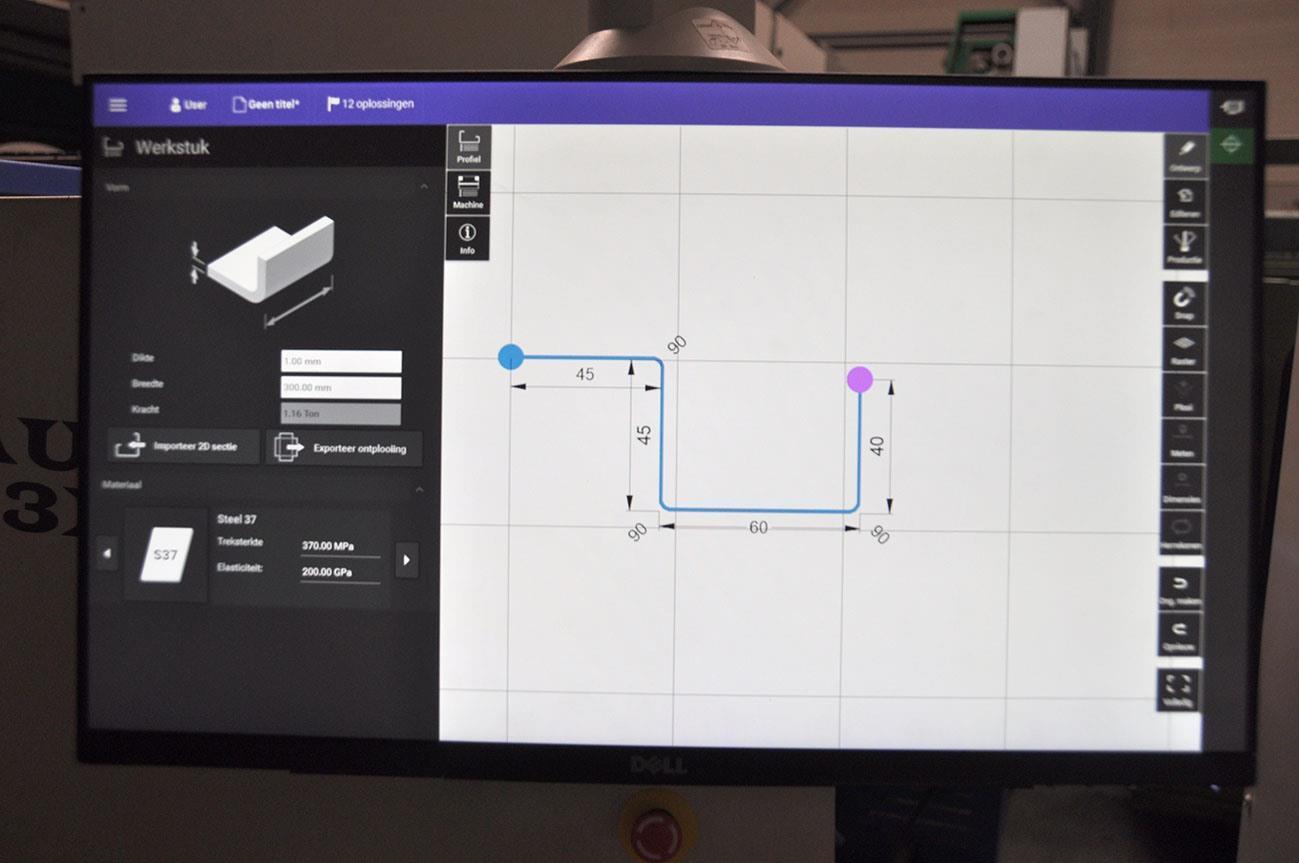

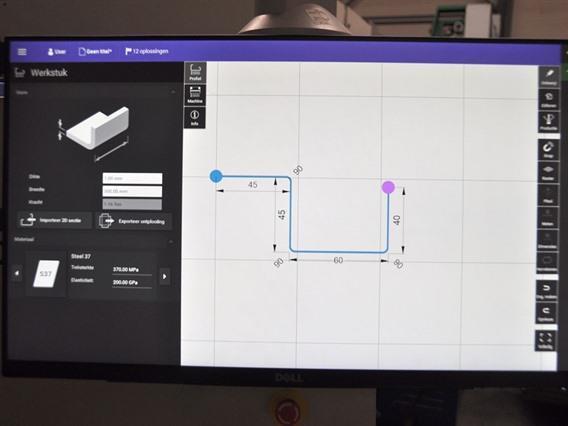

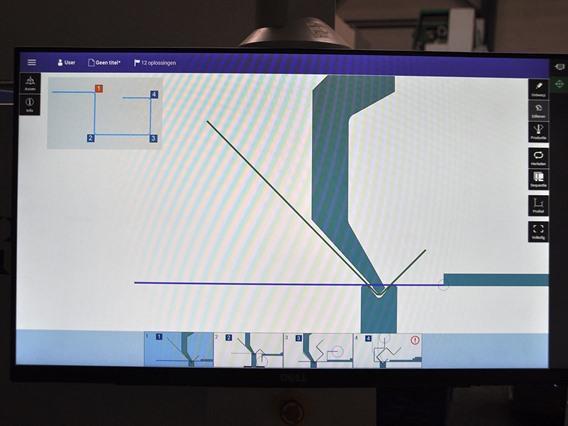

Control2D Touch
Passage between uprights3750 mm
Max stroke120 mm
Max distance between table -- ram325 mm
Depth of throat250 mm
Table width 180 mm
Locking speed70 mm/sec
Working speed6 mm/sec
Returning speed60 mm/sec
Electric motor (power)7,5 kW
Length 4470 mm
Depth 1550 mm
Height2700 mm
Weight10,4 ton

Información adicional

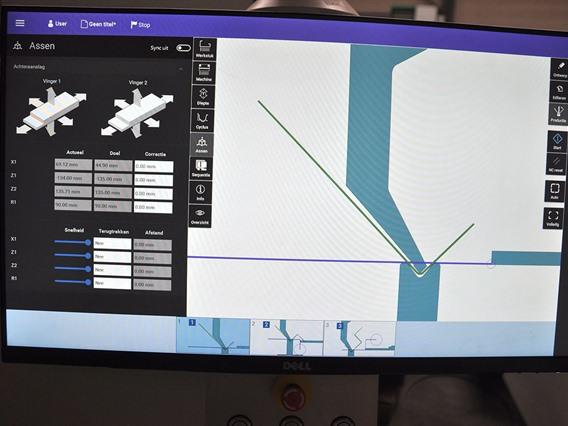

3 axes Y1 / Y2 / X
Tipo/Modelo: 135 ton x 4300 mm CNC
Numéro stock: O.01 12815
Categoría principal: [O] Curvadoras, enderezadoras, punzonadoras, máquinas de oxicorte y láser y líneas de conformado
Subcategoría: [O.01] Prensas plegadoras hidráulicas
Marca: Haco PPM

» Solicitar un presupuesto personalizado

Numéro stock: O.01 12815

Ver video de la maquinaria

Descargar todas las imágenes en ZIP
