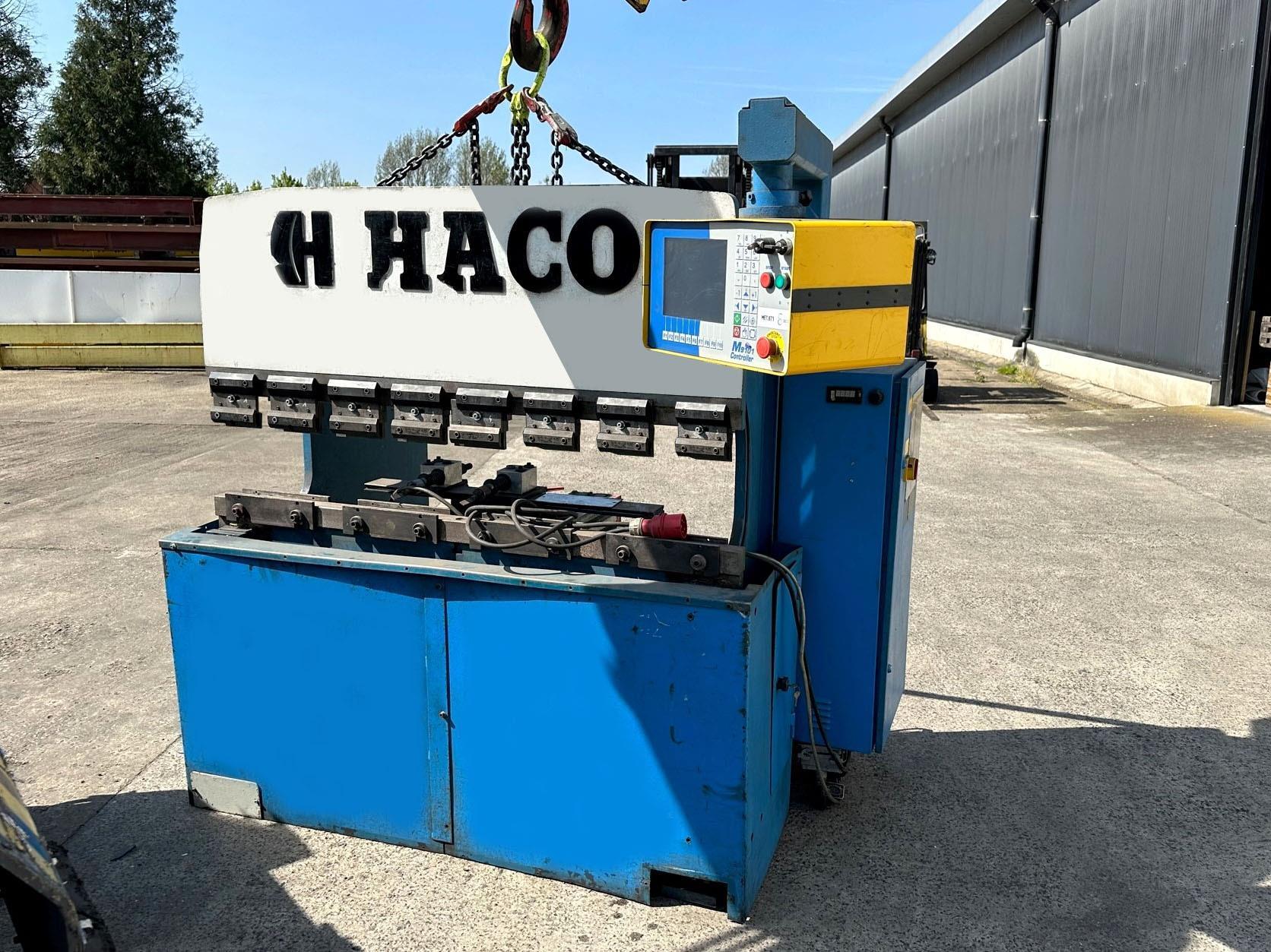

Haco PPEC 35 ton x 1600 mm CNC
Información téchnico
- Capacity x Max length35 ton x 1600 mm
- Backgauge CNC

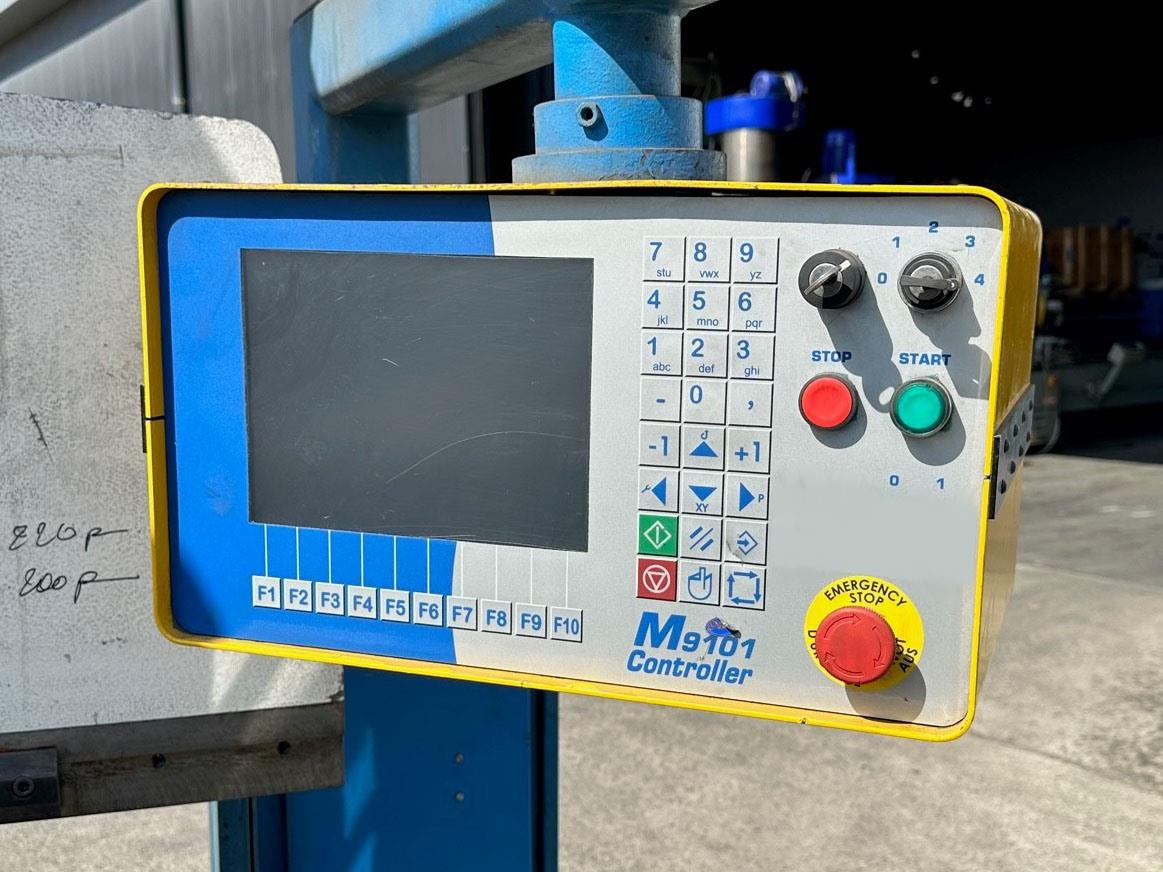

- Control2D touch
- Passage between uprights1100 mm
- Max stroke100 mm
- Max distance between table -- ram295 mm
- Depth of throat195 mm
- Table width 110 mm
- Locking speed80 mm/sec
- Working speed11 mm/sec
- Returning speed70 mm/sec
- Electric motor (power)4 kW
- Length 2600 mm
- Depth 1500 mm
- Height2240 mm
- Weight2500 kg
