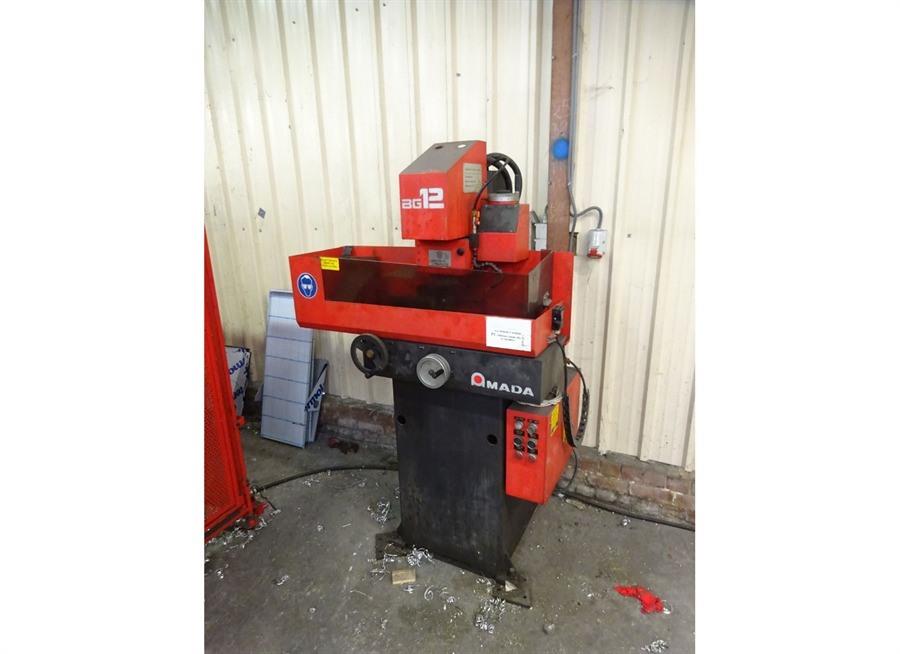

Prensas de estampado y punzonado para chapa fina Amada BG12 punch/tool grinder

Producto agregado a sus favoritos

Información adicional

relief angle: 18° fixed
side cutting edge angle: 0 to 90° / 0 to 45°

max rake angle: 30°

table traverse: 310 mm

crossfeed: 40 mm

wheelfeed: 90 mm

grinding wheel: 180 x 13 x 31,75 mm

speed: 3180 rpm

power on spindle: 0,75 kW

weight: 330 kg

dimensions: 1320 x 714 x 1630 mm
Tipo/Modelo: punch/tool grinder
Numéro stock: O.19 9089
Categoría principal: [O] Curvadoras, enderezadoras, punzonadoras, máquinas de oxicorte y láser y líneas de conformado
Subcategoría: [O.19] Prensas de estampado y punzonado para chapa fina
Marca: Amada BG12

Numéro stock: O.19 9089

Vendido
Vendido
Vendido
Vendido
Vendido

Descargar todas las imágenes en ZIP
