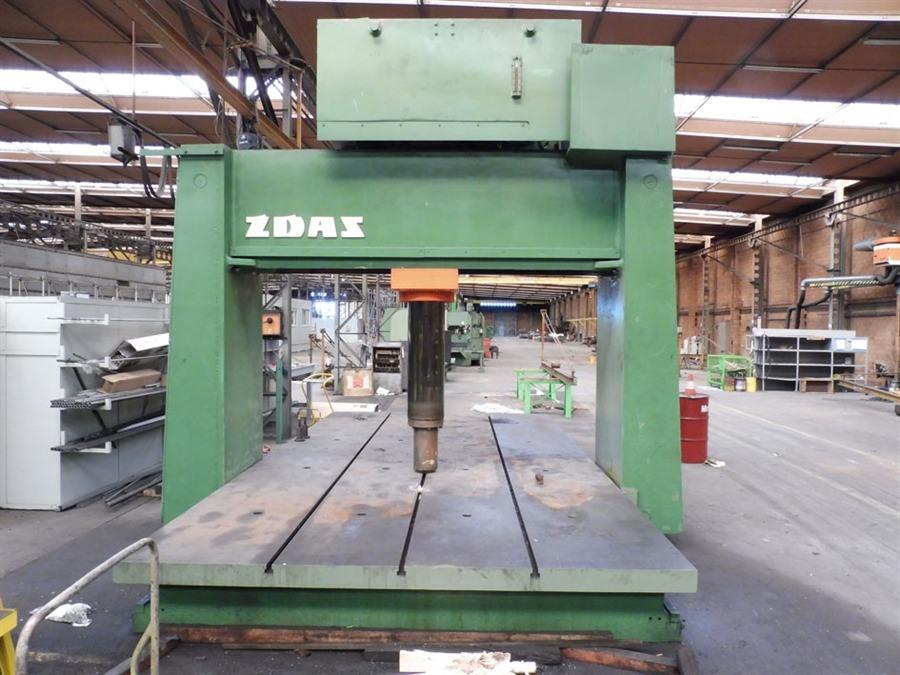

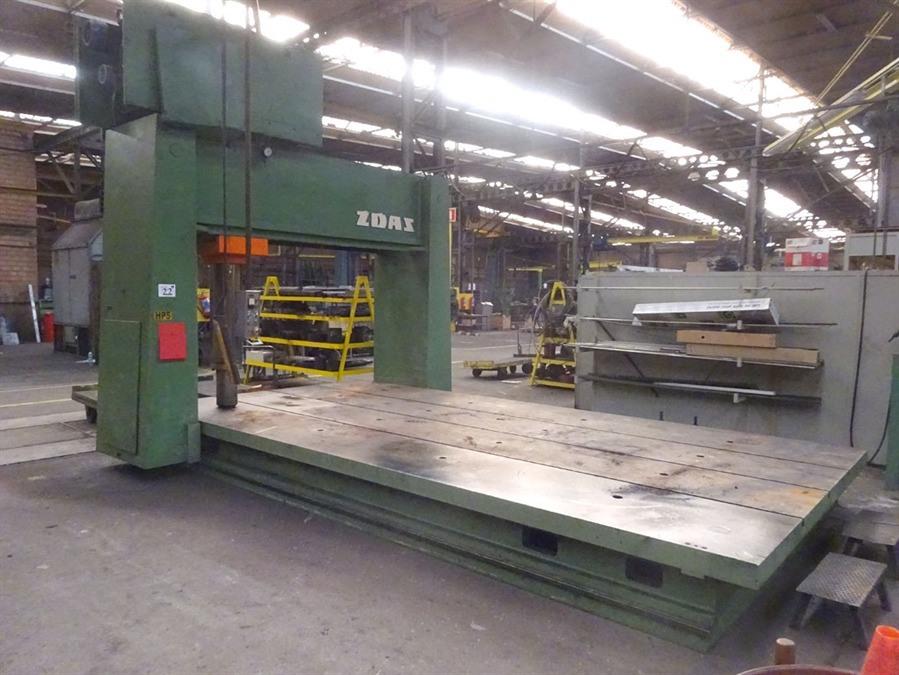

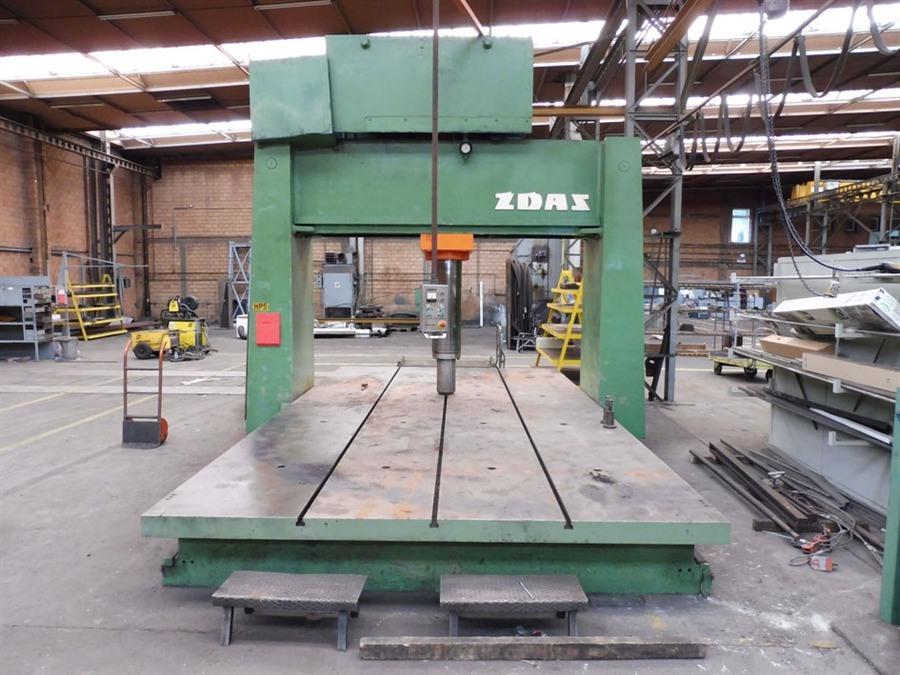

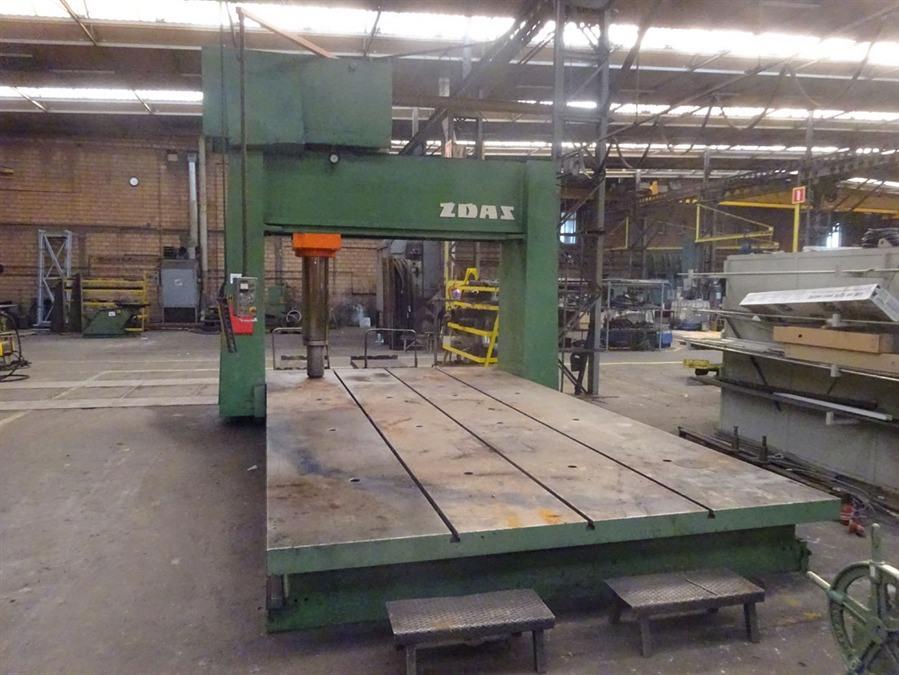

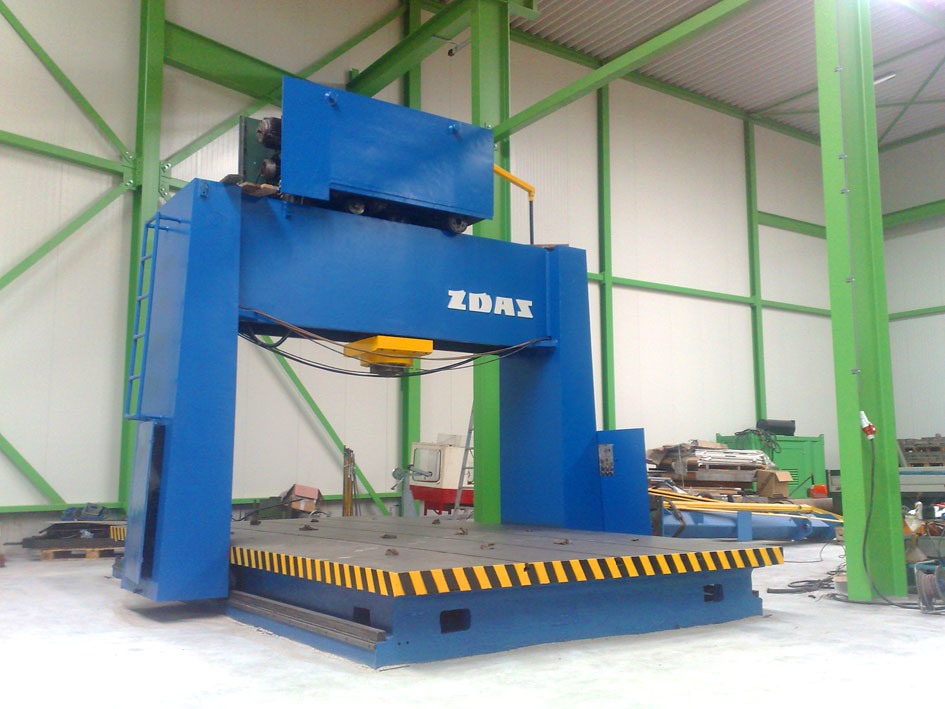

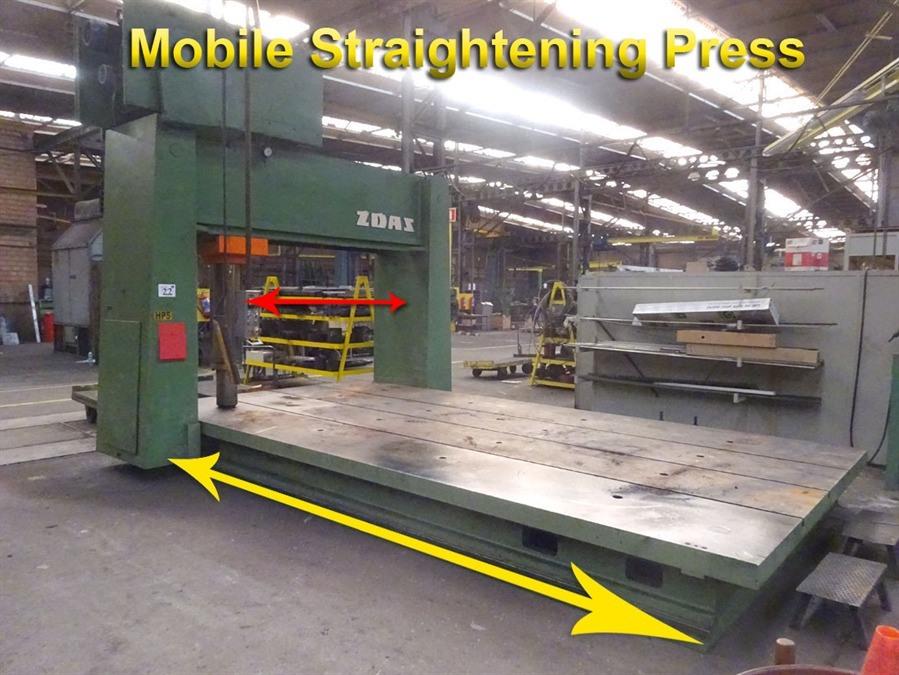

Zdas mobile straightening press 400 ton
Información téchnico
- Capacity400 ton
- Max ram adjustment1000 mm
- Drawningspeed42 mm/sec
- Workingspeed1 mm/sec
- Returningspeed40 mm/sec
- Passage between uprights3100 mm
- Max distance between table -- ram1400 mm
- Dimensions of the table3100 x 6000 mm
- Tableheight fixed (1) -- sliding (2)fixed
- Length L -- R6000 mm
- Depth Fw -- Bw4160 mm
- Height4520 mm
Información adicional
Type: CDN 400-B

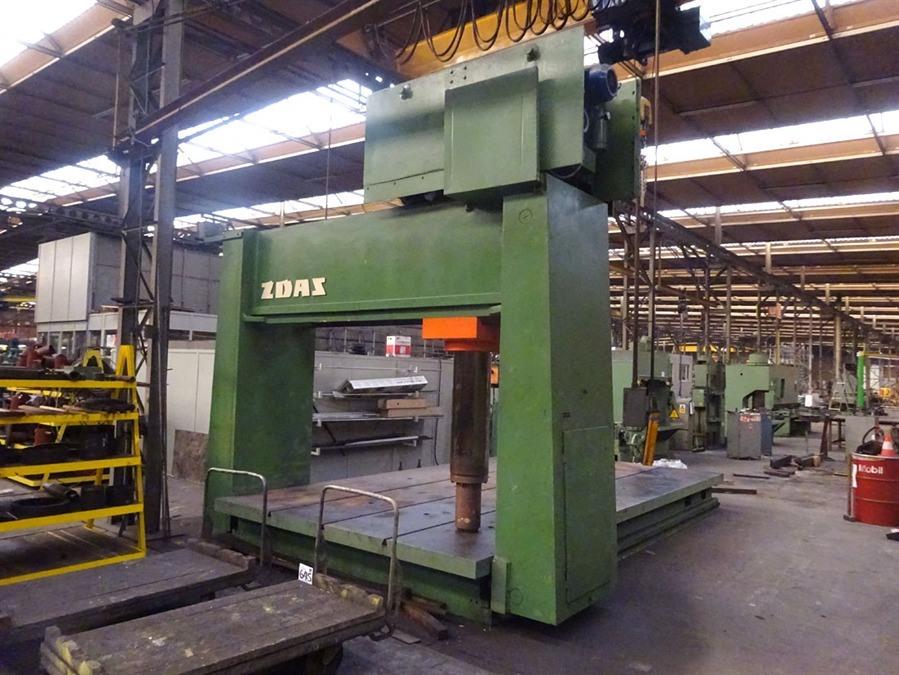

Gantry straightening press
>> For straightening shafts, steels castings, rolled products, open-die forgings, flat steel but also pressing in/out bearings, bushes, shrink rings,...
Cap: 400 ton
Transport dimensions:
Table 6100 x 3100 x 510 mm
Frame 4300 x 1000 x 3030 mm
Cylinder complete 2000 x 1000 x 2300 mm
- Tipo/Modelo: 400 ton
- Numéro stock: M.04 8761
- Categoría principal: [M] Prensas hidráulicas
- Subcategoría: [M.04] Prensas con bastidor en H
- Marca: Zdas mobile straightening press
