Emmegi Quadra ST 7000

Producto agregado a sus favoritos

Información téchnico

SAWING MACHINEYes (blade Ø 600 mm)

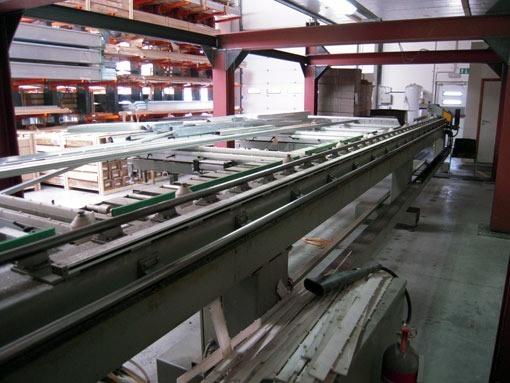

Loading & unloadingstationYes

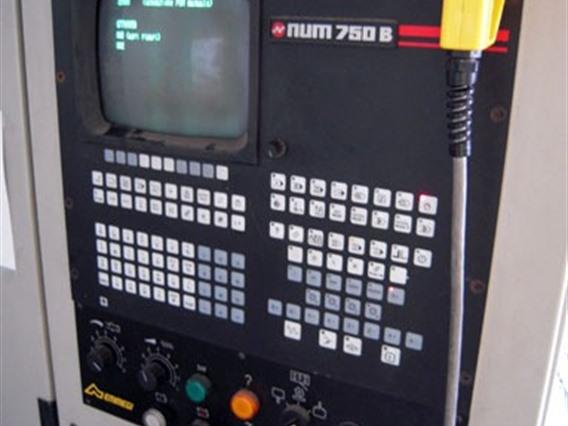

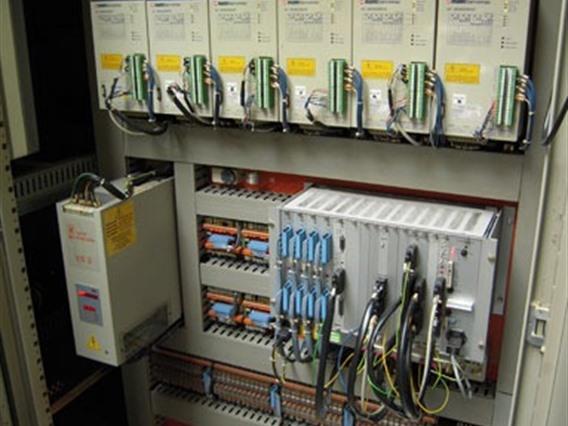

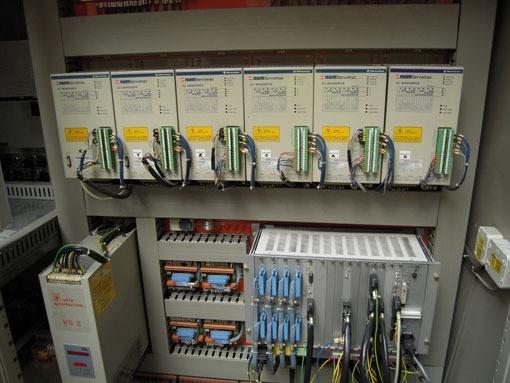

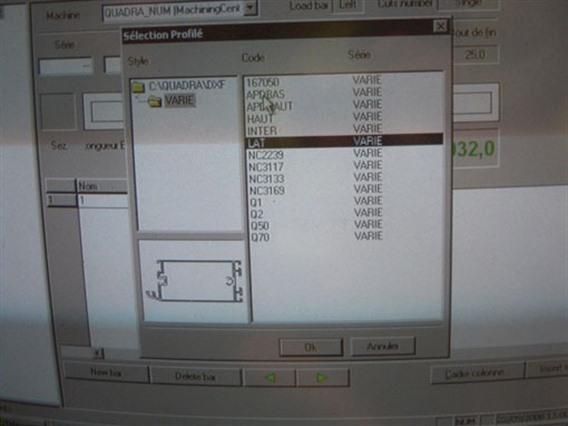

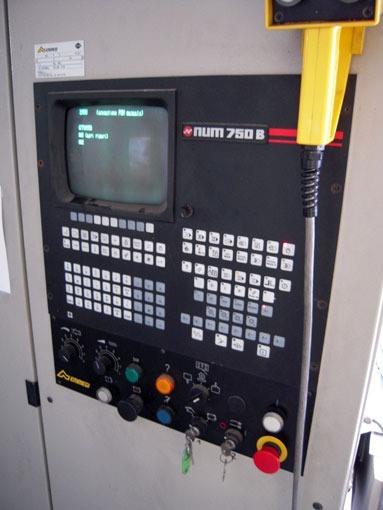

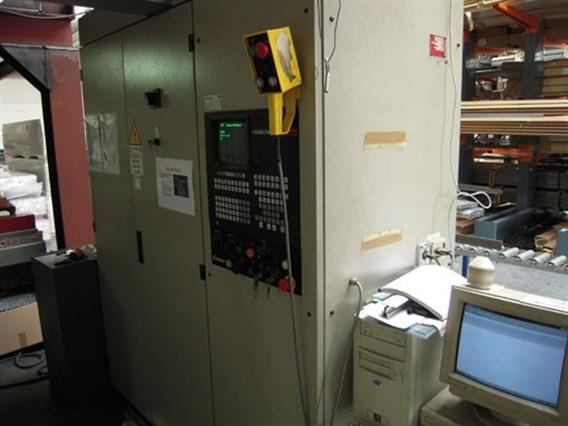

ControlNum 750 B

Información adicional

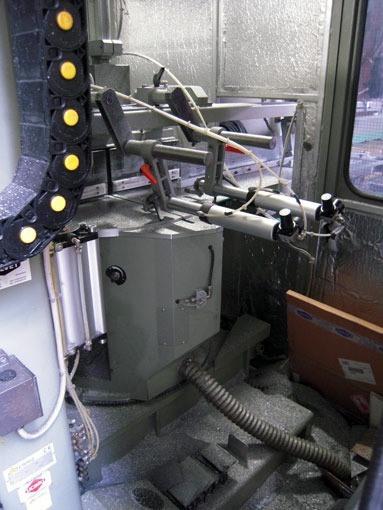

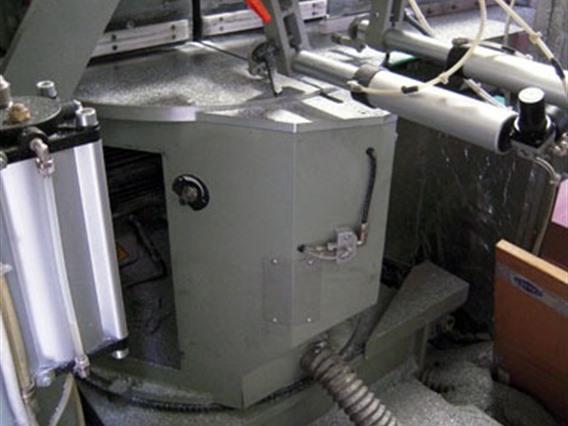

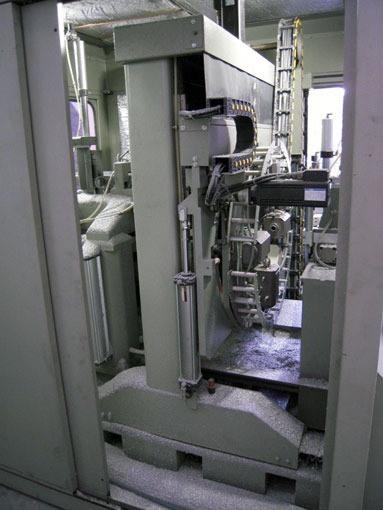

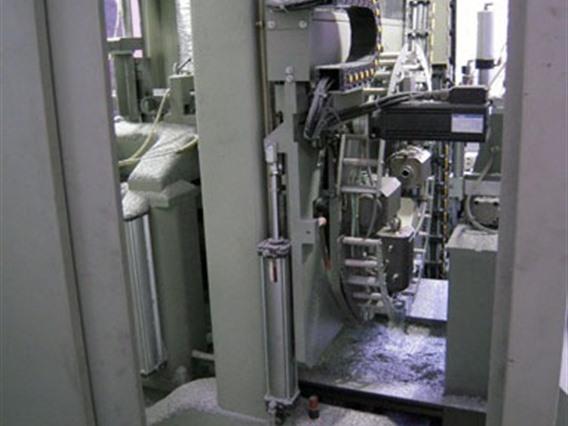

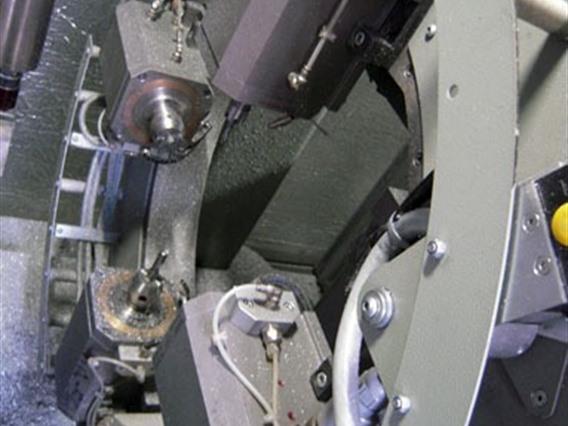

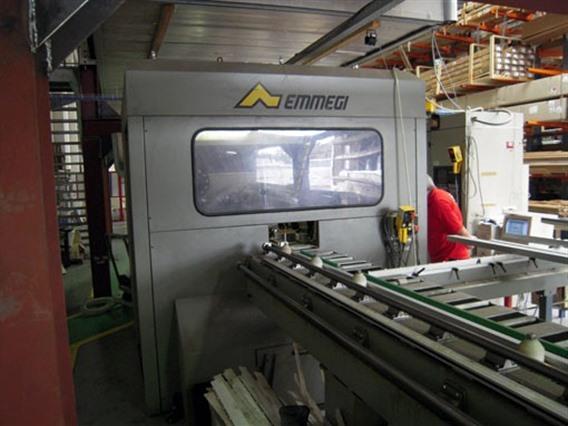

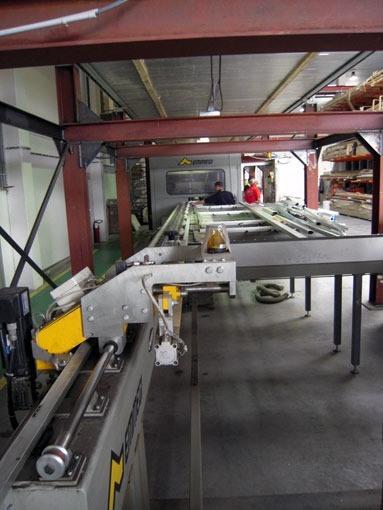

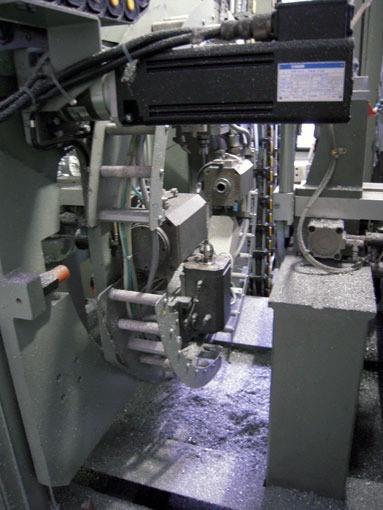

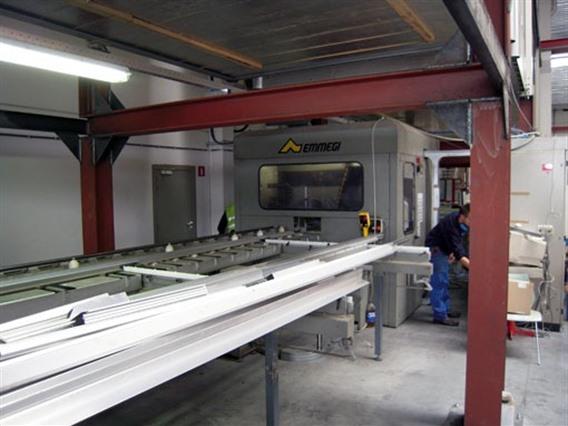

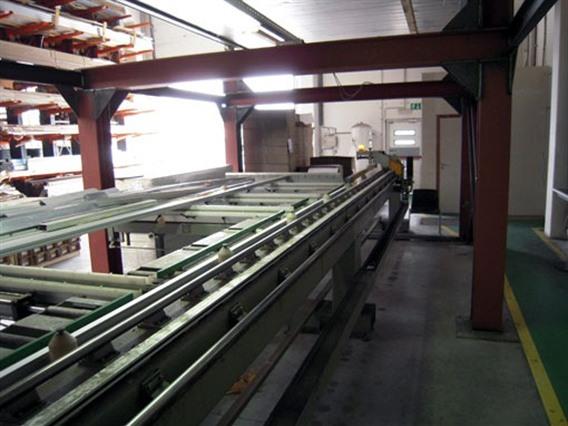

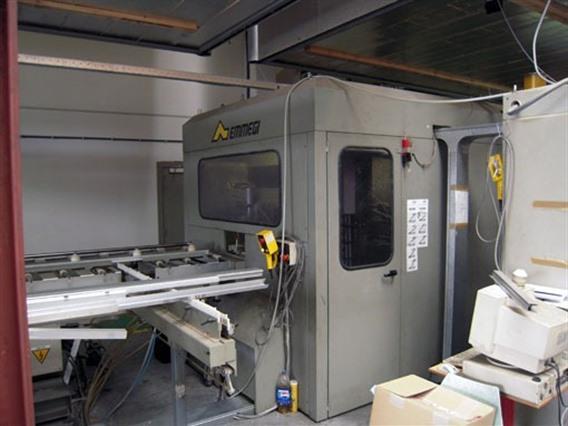

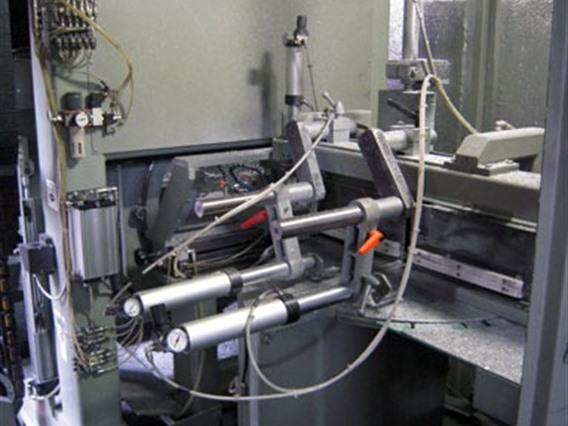

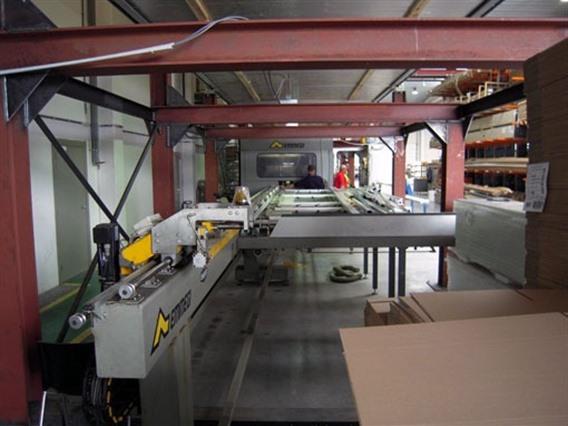

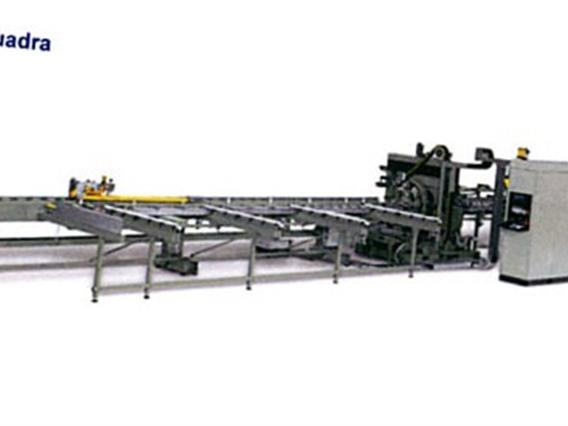

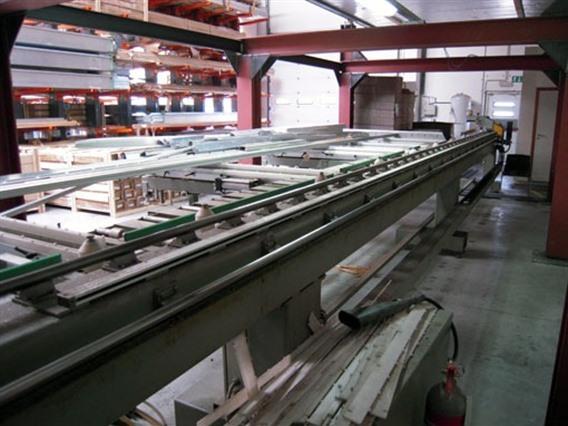

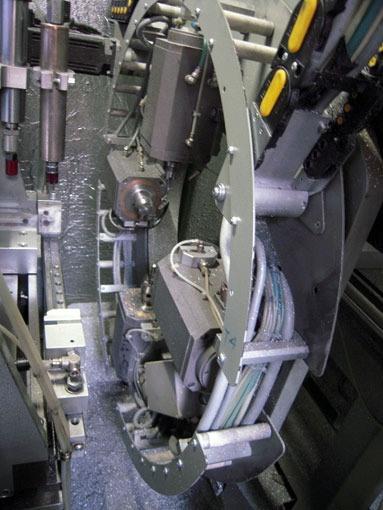

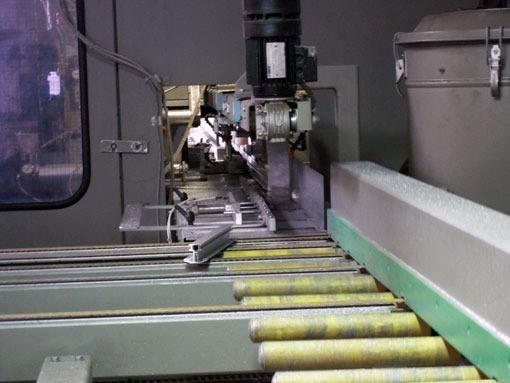

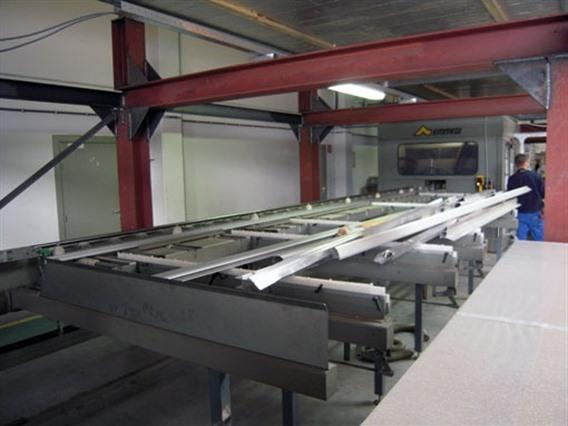

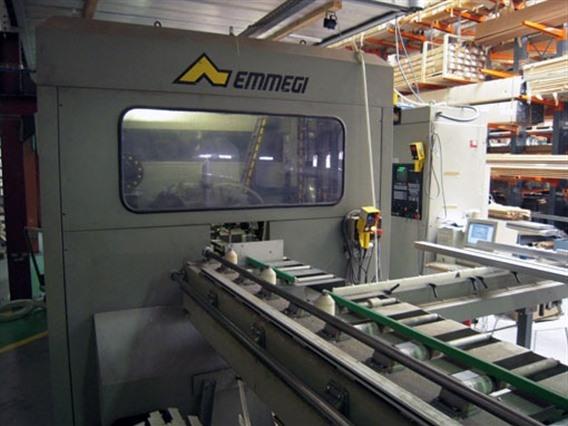

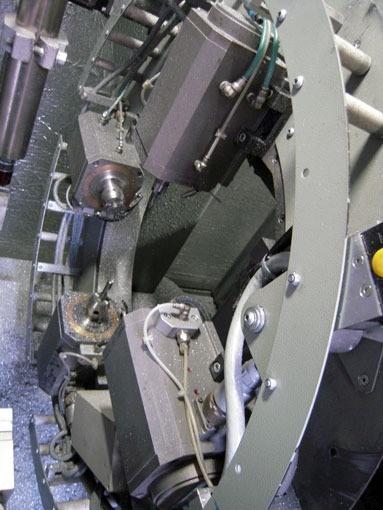

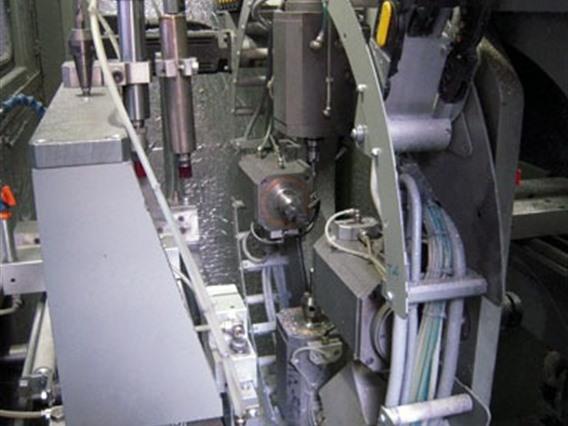

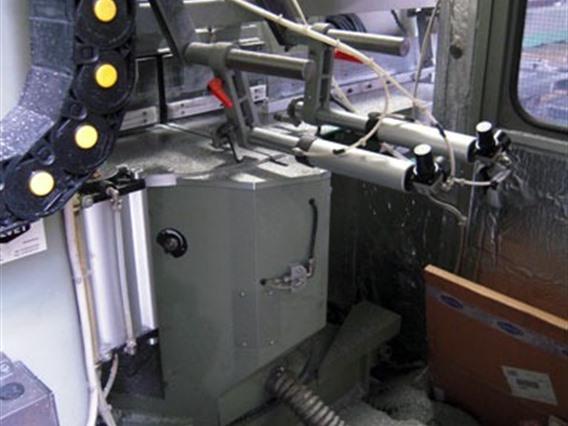

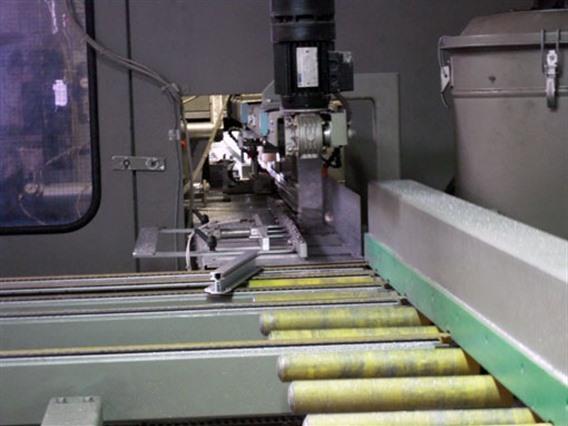

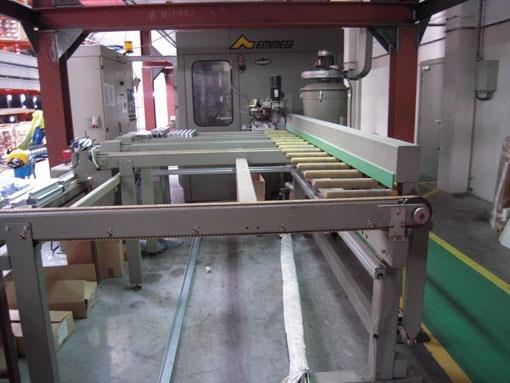

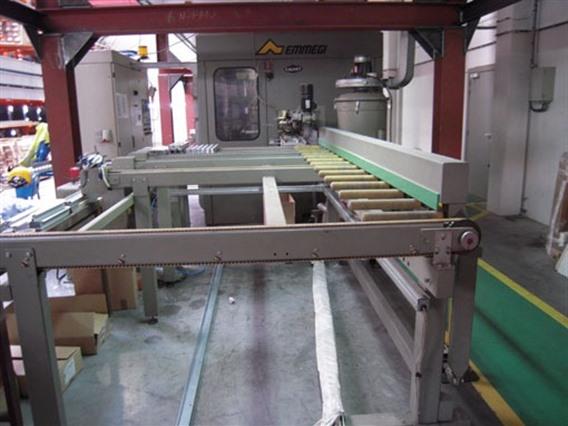

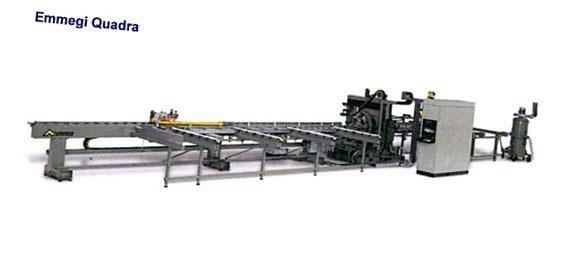

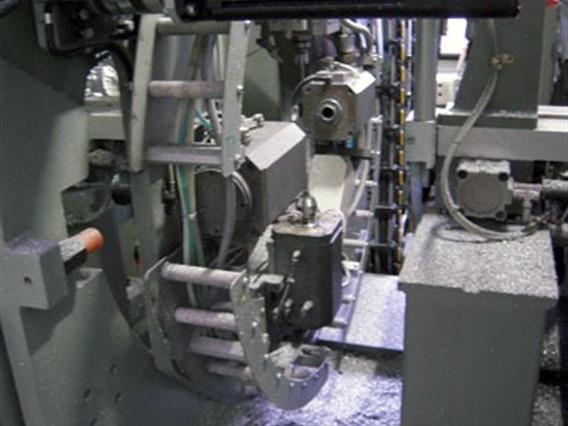

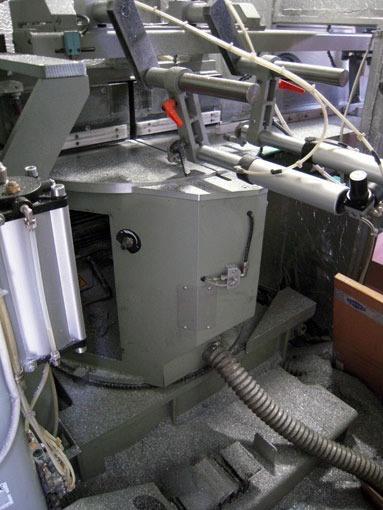

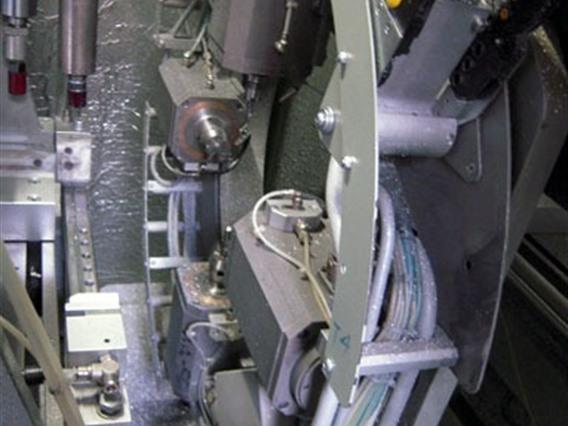

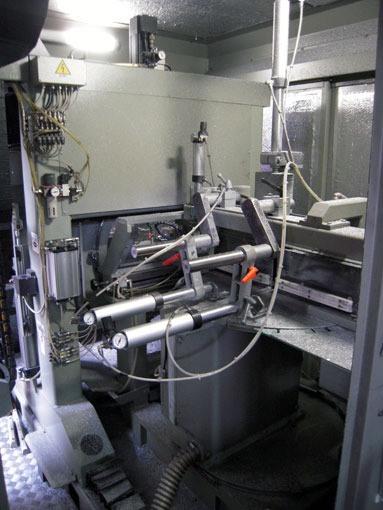

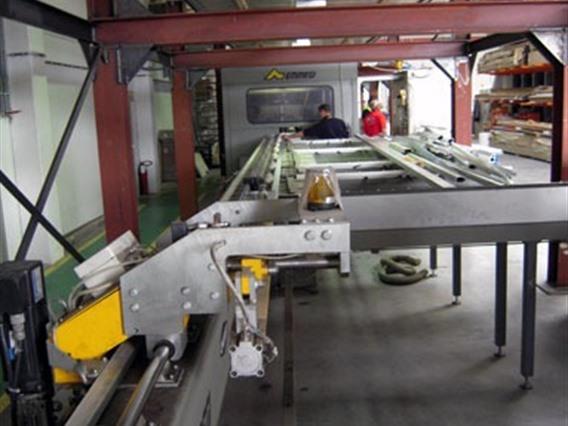

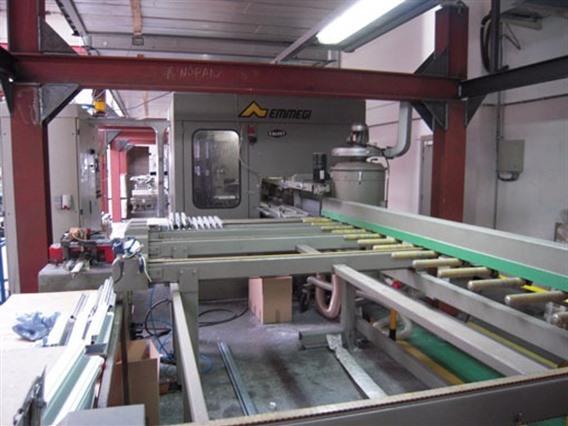

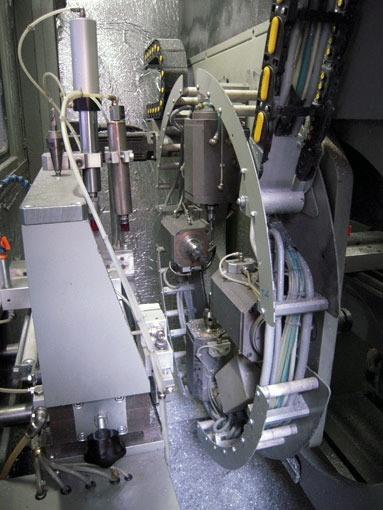

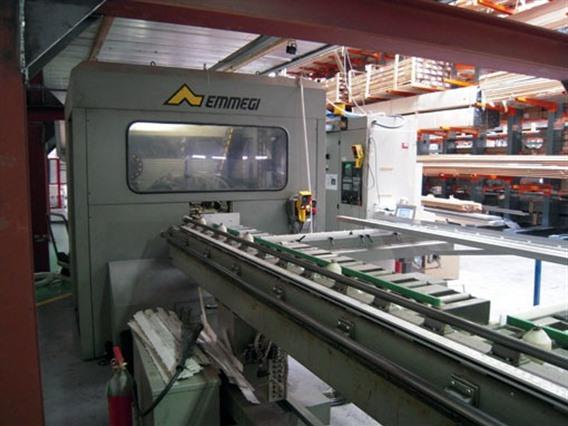

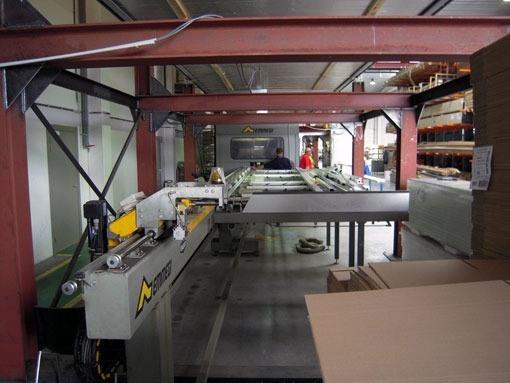

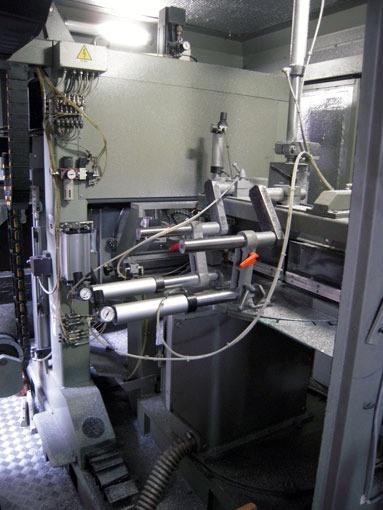

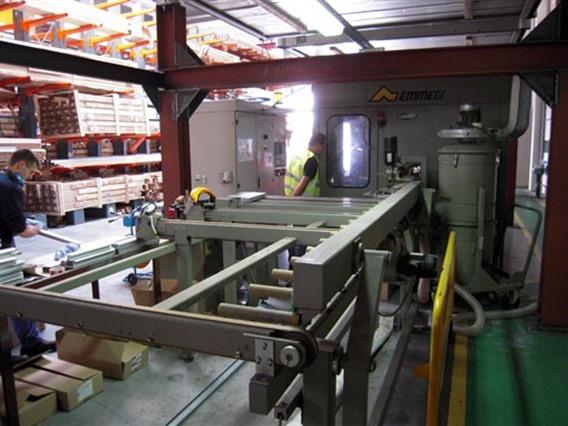

Complete 6-axis CNC machining centre, designed for milling, drilling, thread-cutting and slotting operations on bars or workpieces made of aluminium, PVC, light alloys to in general. It is provided with an automatic magazine for feeding unmachined bars the system without requiring operator attendance. The 4-axis CNC milling module with 4 electro-spindles, located in the centre, is able to machine along the entire contour of the workpiece regardless of its orientation. The N/C cutting module with continuous rotation allows cutting angles in the range 22°30’ and 157°30’ with rising blade dia. 600 mm. The final part of the system consists of a storage unit for finished parts with cross-belt conveyor. The central operating part is provided with a sound- damped enclosure which, besides protecting the operator, also allows reducing the environmental noise impact. Movements: X axis: 240 mm Y axis: 350 mm Z axis: 350 mm A axis: 0° -> 360° B-axis: -22,5° -> 157,5° U axis: 7500 mm
Tipo/Modelo: Quadra ST 7000
Numéro stock: P.14y 4929 *09
Categoría principal: [P] Cizallas, punzonadoras universales, líneas de corte transversal y longitudinal, conformadoras de chapa y líneas de corte
Subcategoría: [P.14y] Línea de perforado y corte
Marca: Emmegi

Numéro stock: P.14y 4929 *09
