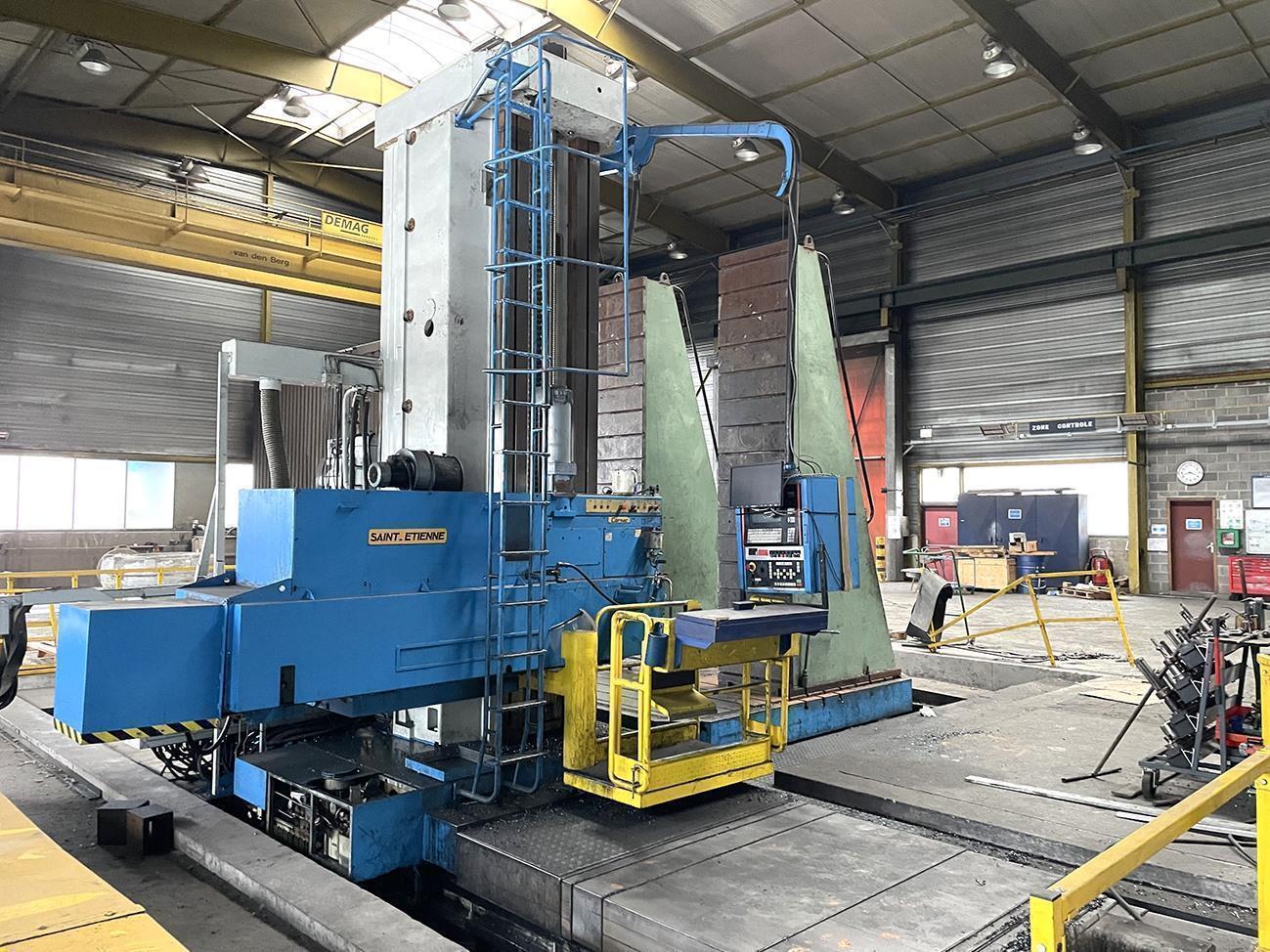

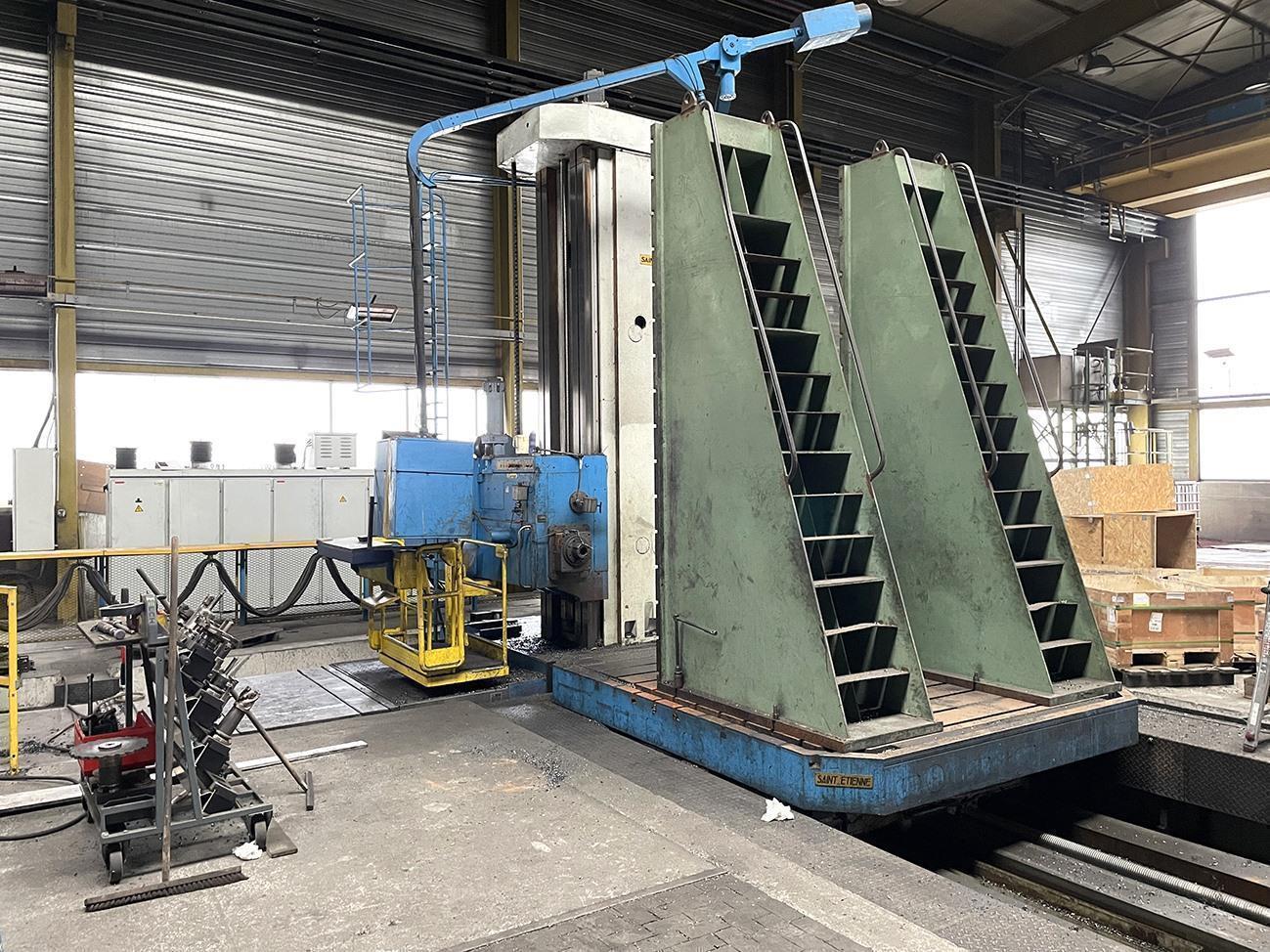

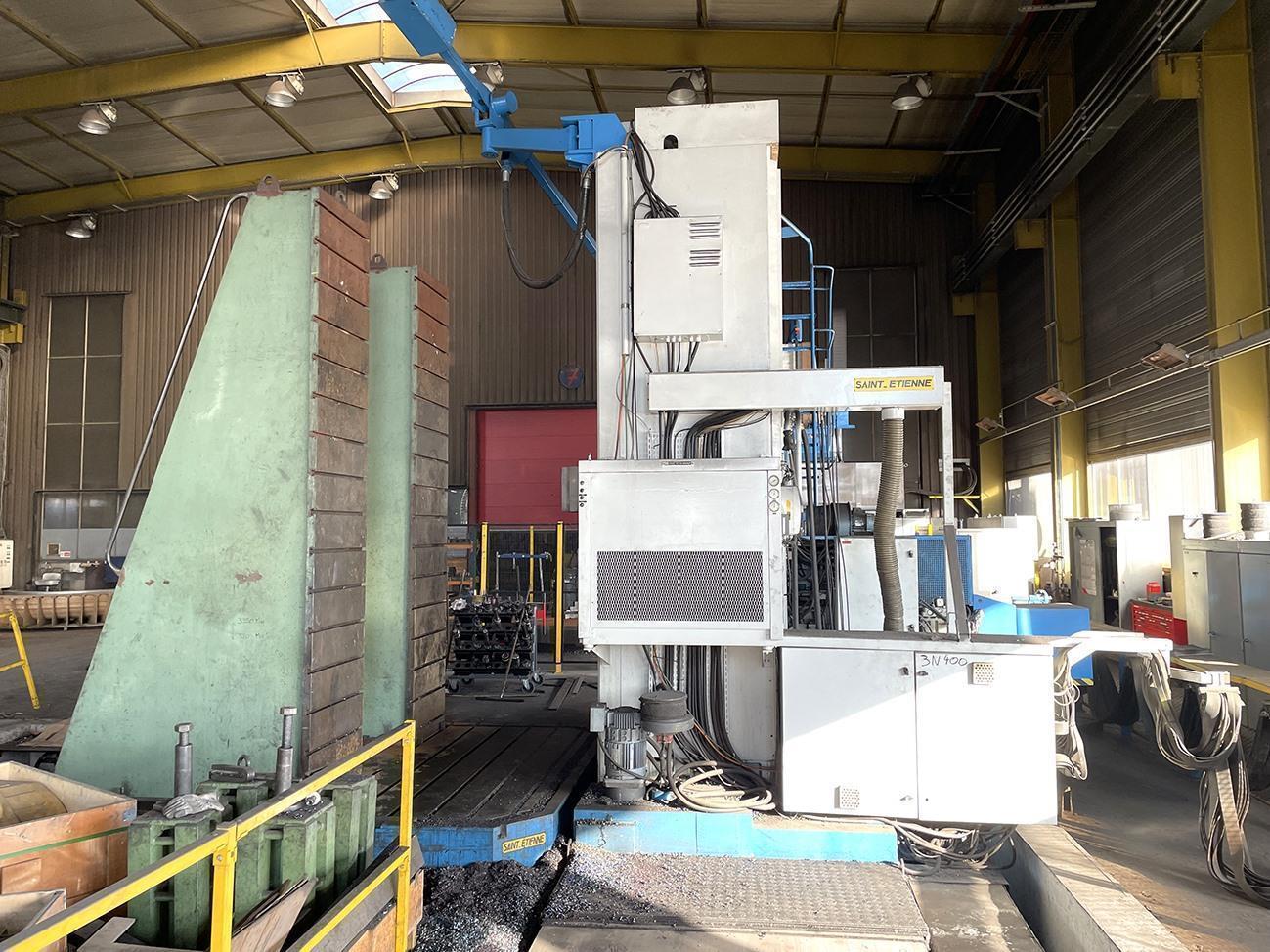

Ernault Somua X: 9250 - Y: 3000 - Z: 800 + 600 mm CNC
Información téchnico
- Longitudinal travel X-axe9250 mm
- Crosstravel Y -axe3000 mm
- Travel Z-axe (Height)800 + 600 mm
- Dimensions clamping space - table3500 x 3000 mm
- Power on spindle45 kW
- Admission in millingheadspindle (ISO)ISO 50
- Max speedrange1 > 800 rpm

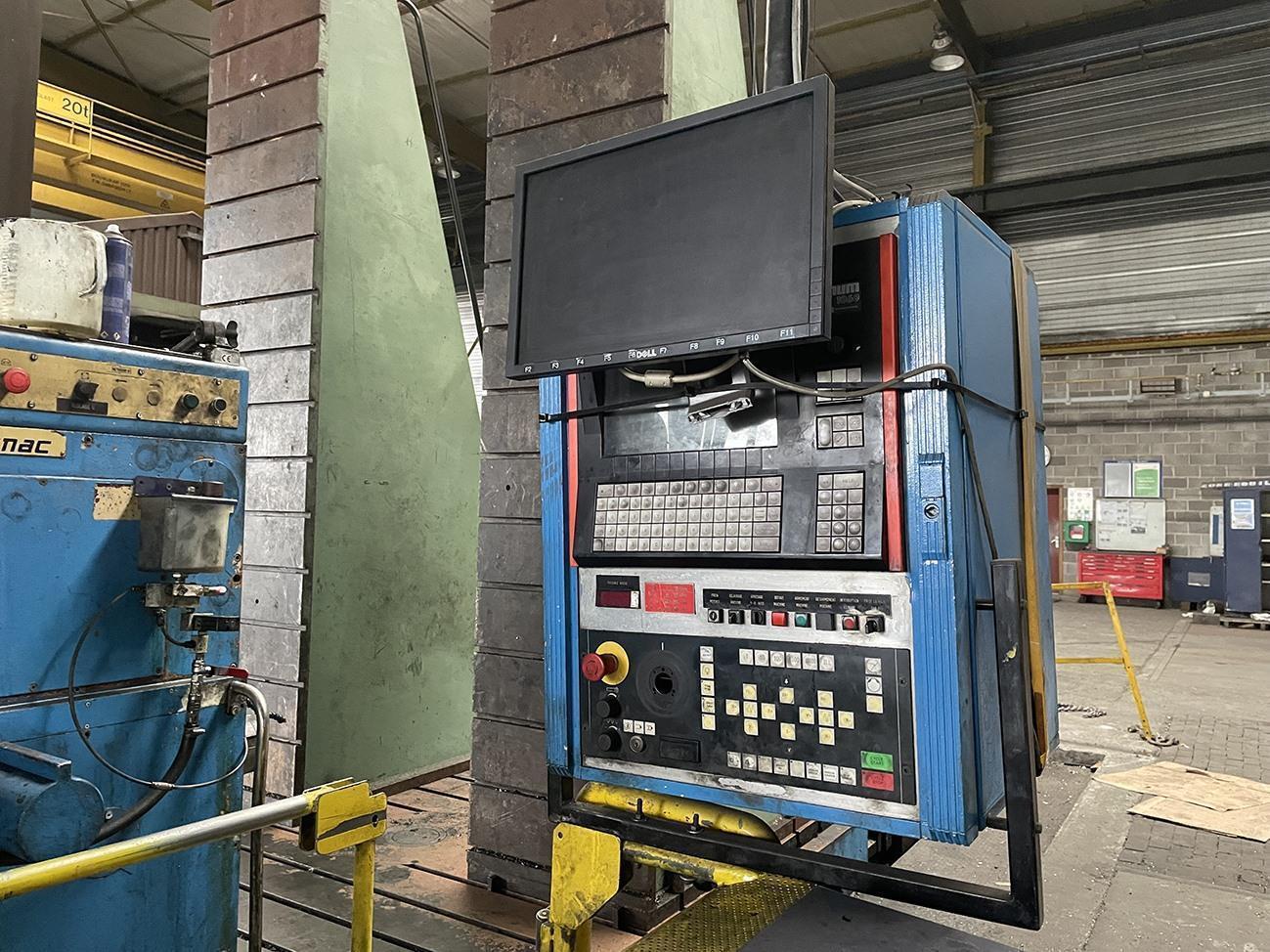

- ControlNum 1060F
- Length L -- R14 175 mm
- Depth Fw -- Bw3660 mm
- Height4500 mm
- Weightmachine 45 ton / table 25 ton
Información adicional
- Type: Mobifor

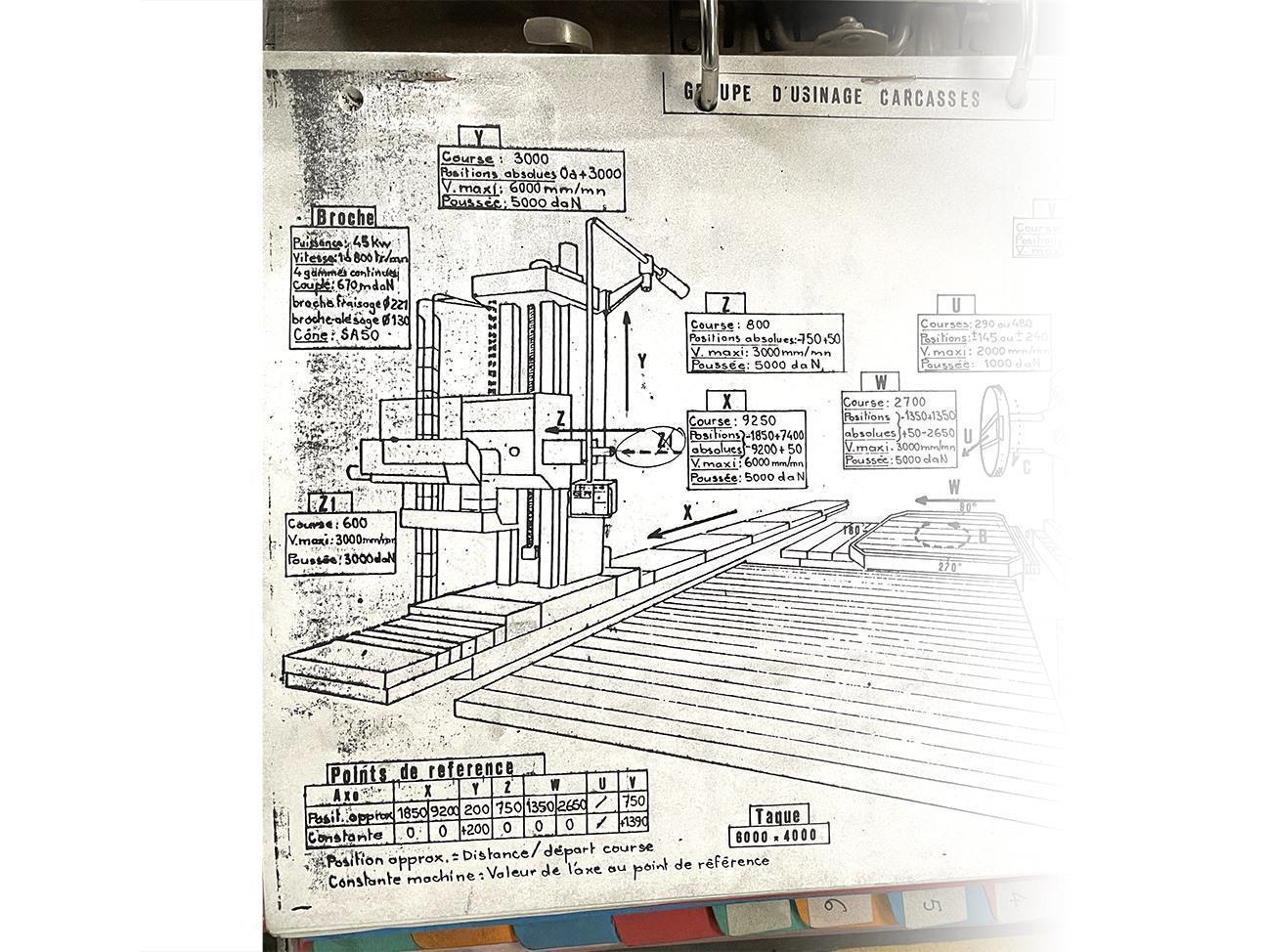

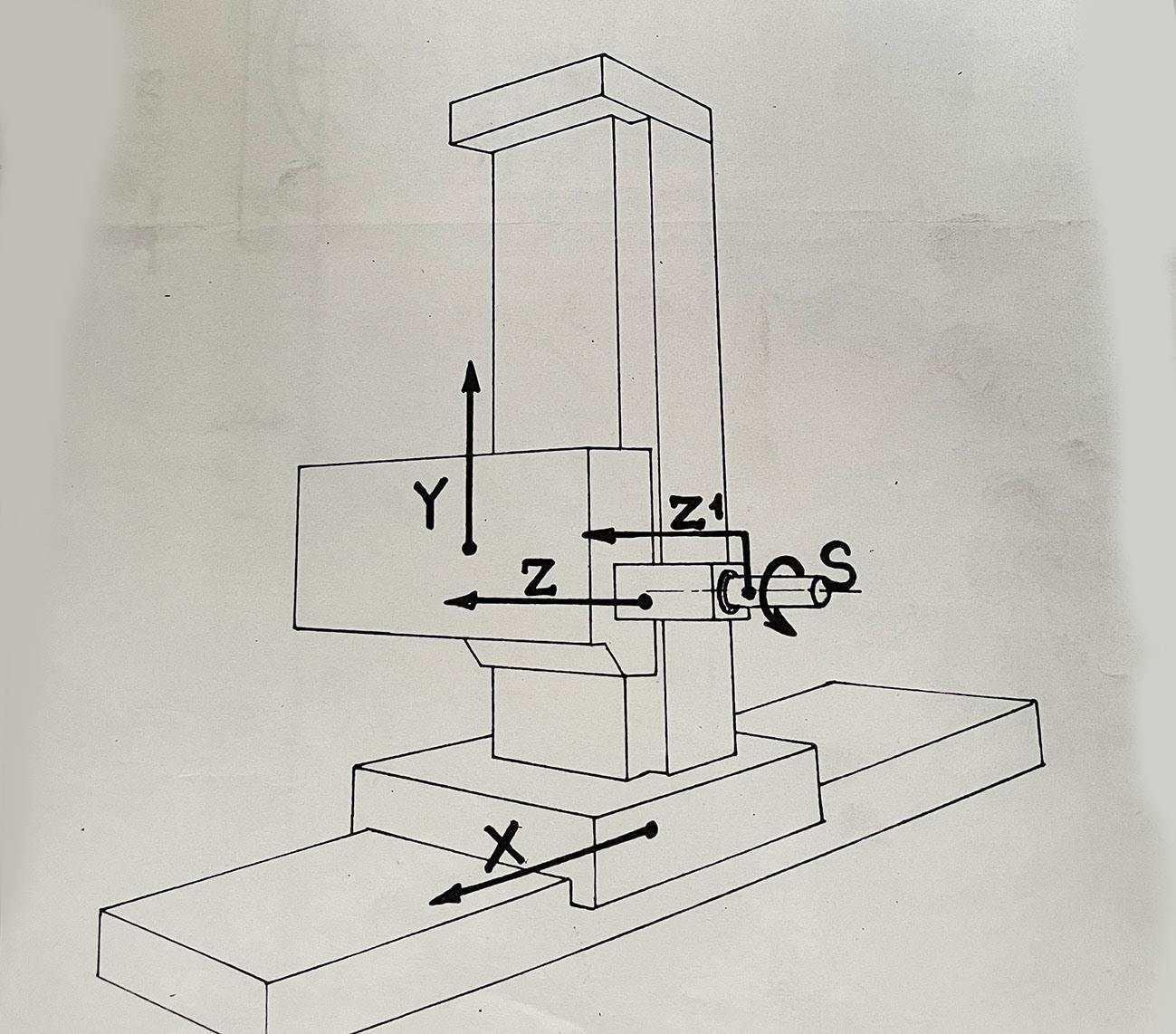

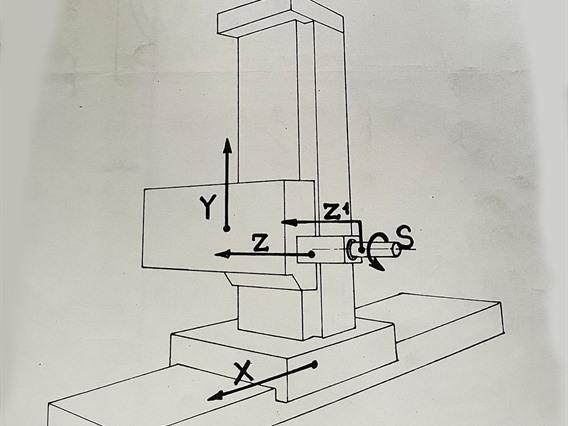

7 CNC controlled axes:
- X: 9250 mm (horizontal travel)
- Y: 3000 mm (vertical travel)
- Z: 800 mm (ram travel)
- Z1 :600 mm (spindle travel)
- S: spindle speed
- B: 360° turning of table
- W: 2700 mm (travel of table)
Ram section: 300 x 325 mm
Spindlediameter: 130 mm
45 kW on spindle

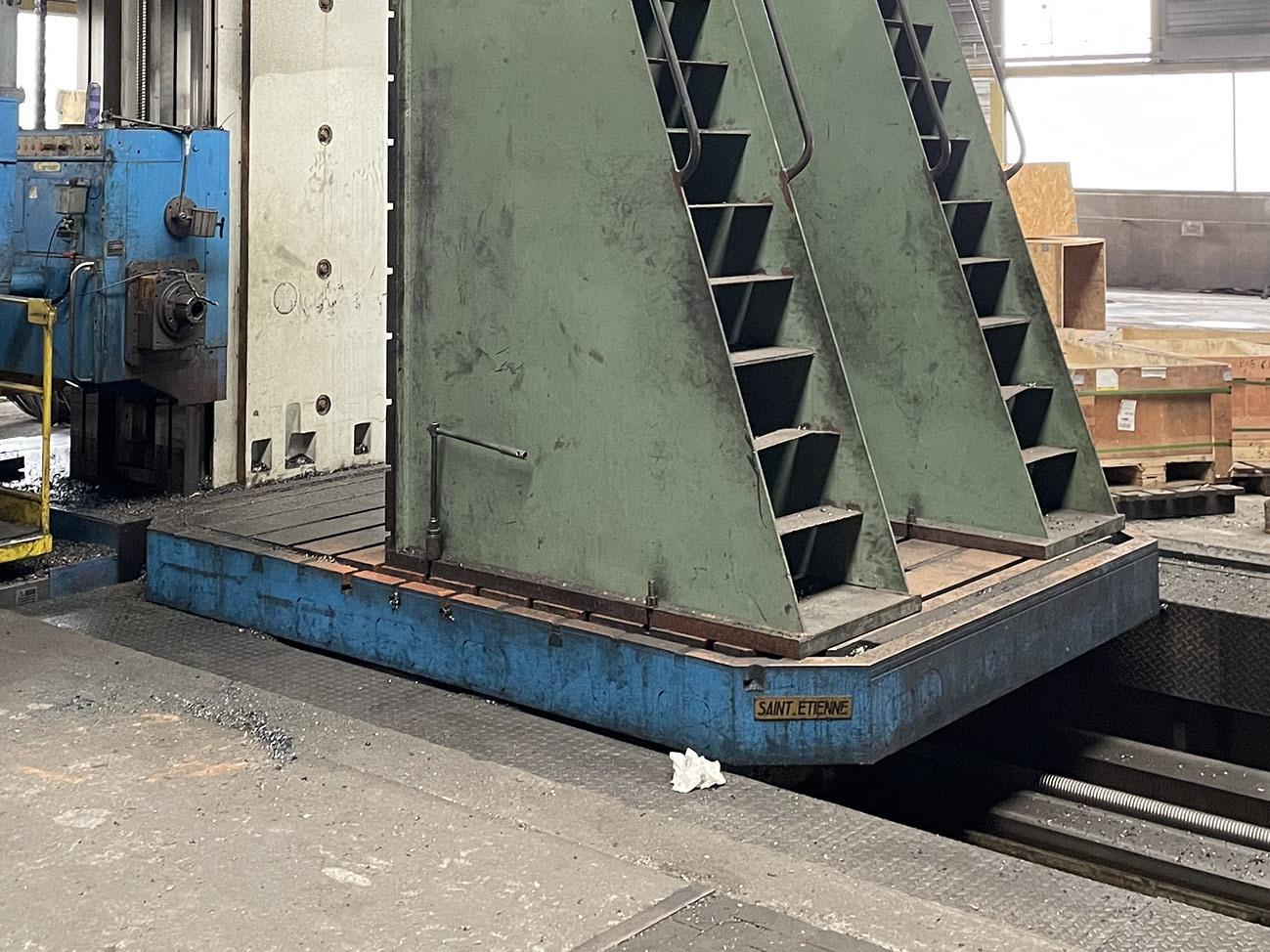

Table: 3500 x 3000 mm
Max load on turntable: 50 ton
Turntable travel: 2700 mm
including Huron milling head
Optional:

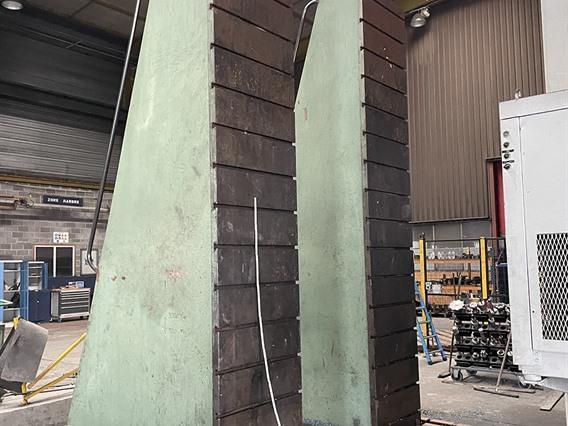

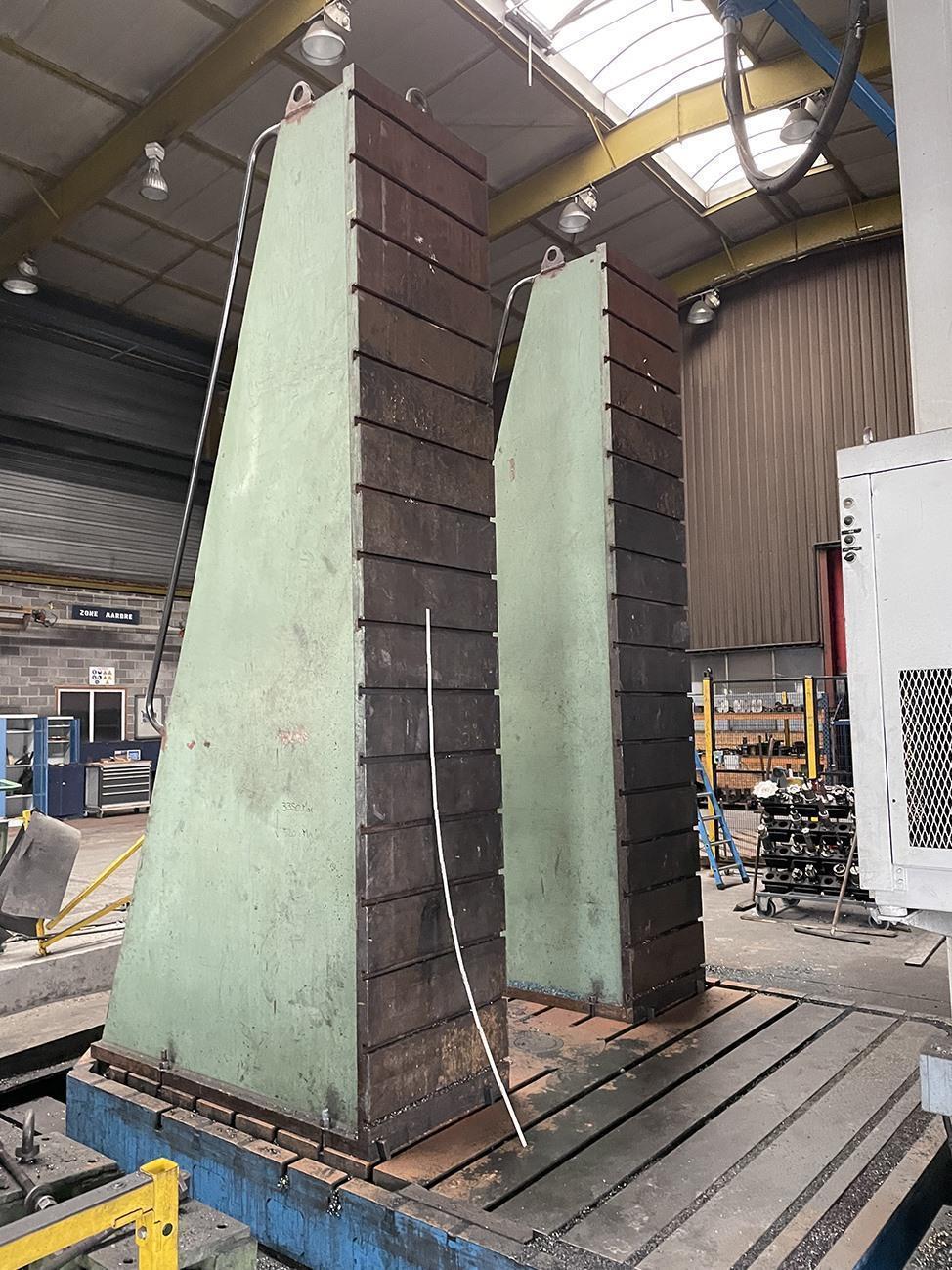

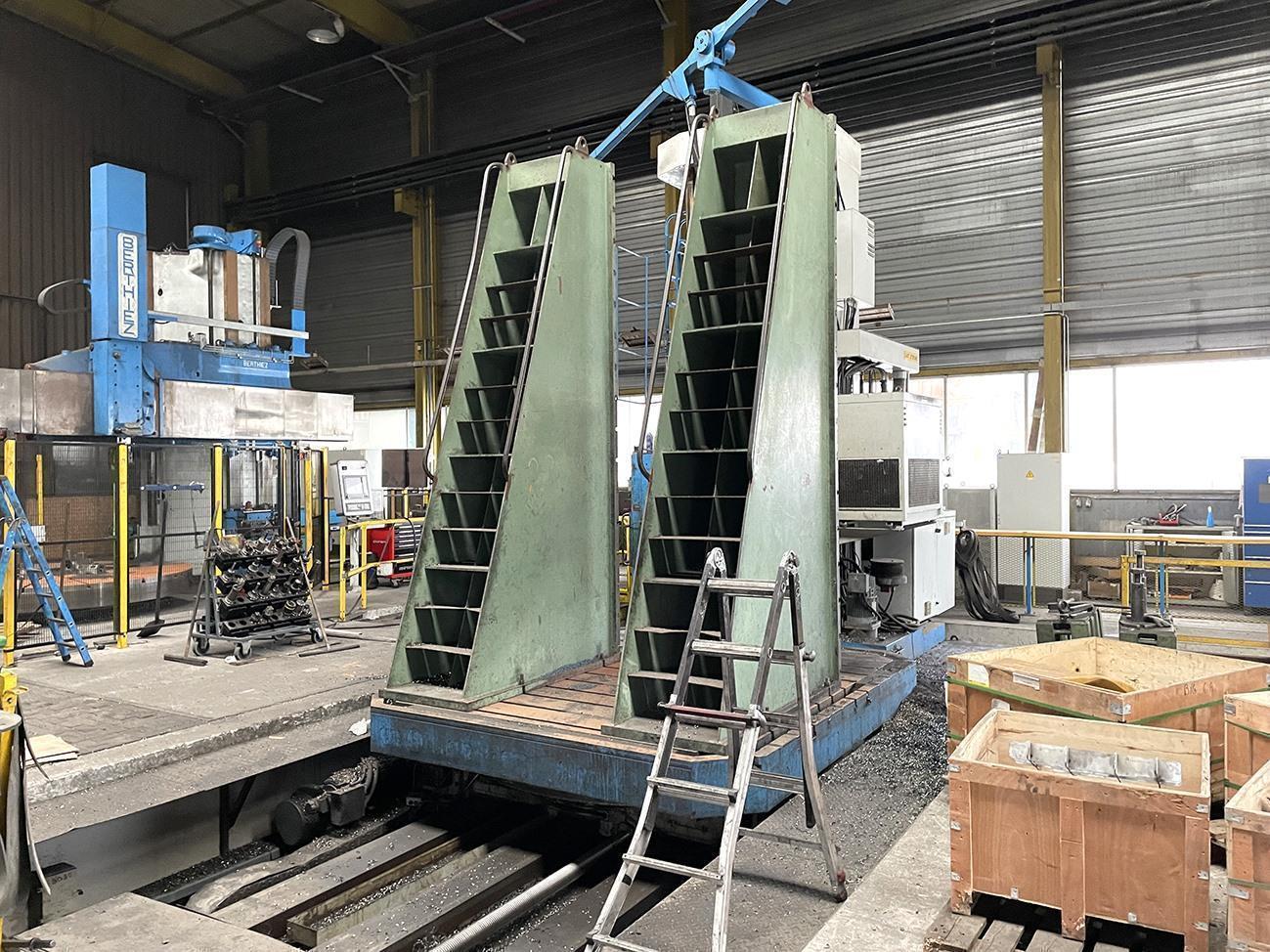

- 2 T-squares of 4 meter high - 1 meter high
- Tipo/Modelo: X: 9250 - Y: 3000 - Z: 800 + 600 mm CNC
- Numéro stock: B.04 12988
- Categoría principal: [B] Fresadoras
- Subcategoría: [B.04] Fresadoras de bancada con columna móvil
- Marca: Ernault Somua
