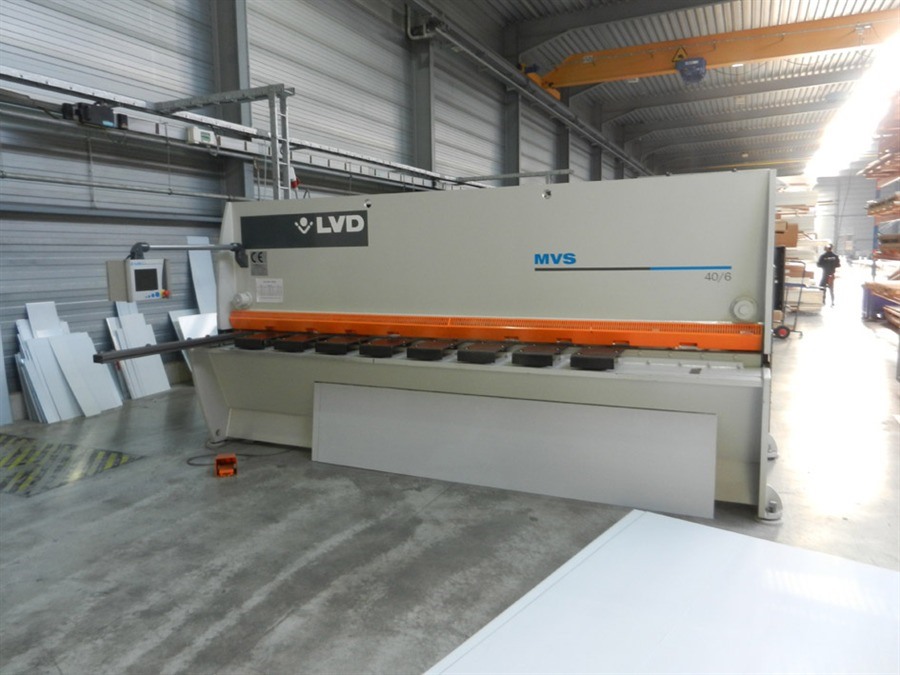

Cizallas hidráulicas de guillotina LVD MVS-TS 4000 x 6 mm CNC

Información téchnico

Longitud de corte 4000 mm
Espesor máximo lamina st 456,35 mm
Profundidad de garganta 150 mm
Golpes por minuto10 - 30
Vanguardia ajustable (de – a --)0,5 -- 2°
Motor eléctrico (potencia) 7,5 kW
Longitud I – D 4530 mm
Profundidad frente – atrás 2140 mm
Altura1750 mm
Peso9 ton
Sistema de mantenimientoyes

Información adicional

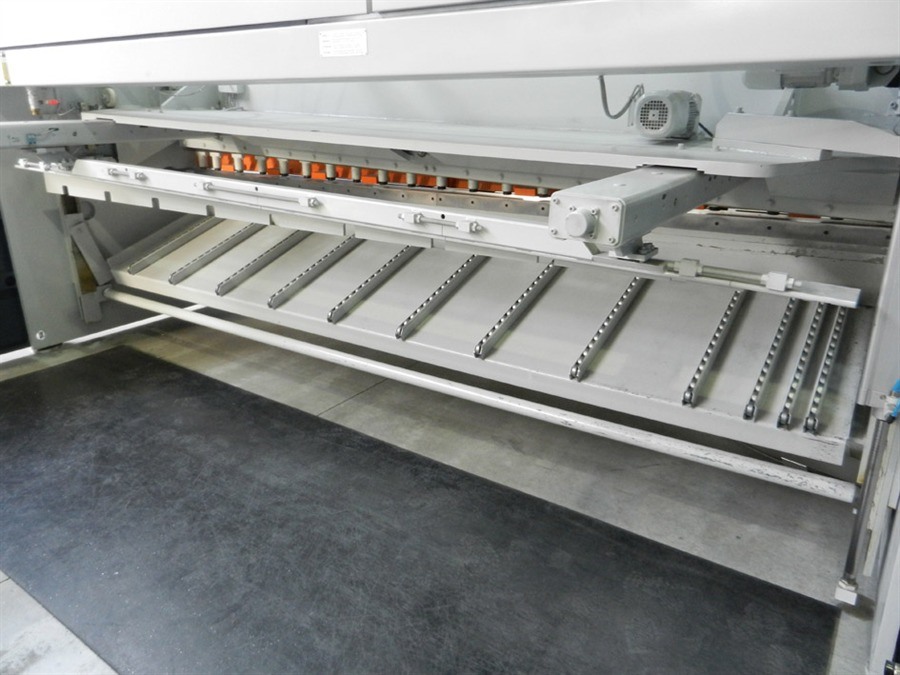

with high hold plate system

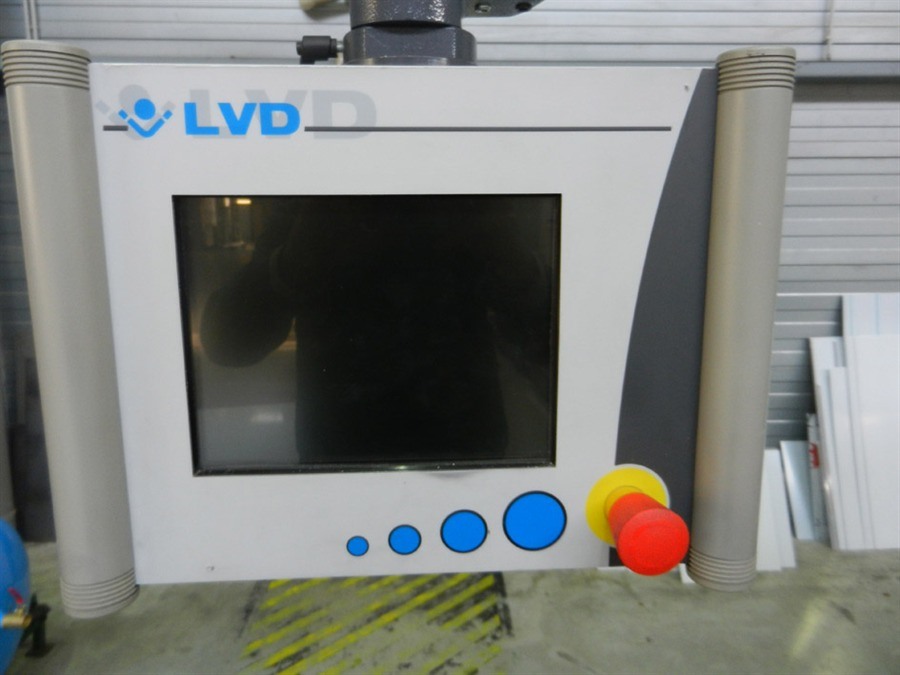

CNC backgauge/cuttingangle/blade tolerance

original newprice in 2008: 72 000€
Tipo/Modelo: MVS-TS 4000 x 6 mm CNC
Numéro stock: P.05 7102
Categoría principal: [P] Cizallas, punzonadoras universales, líneas de corte transversal y longitudinal, conformadoras de chapa y líneas de corte
Subcategoría: [P.05] Cizallas hidráulicas de guillotina
Marca: LVD

Numéro stock: P.05 7102

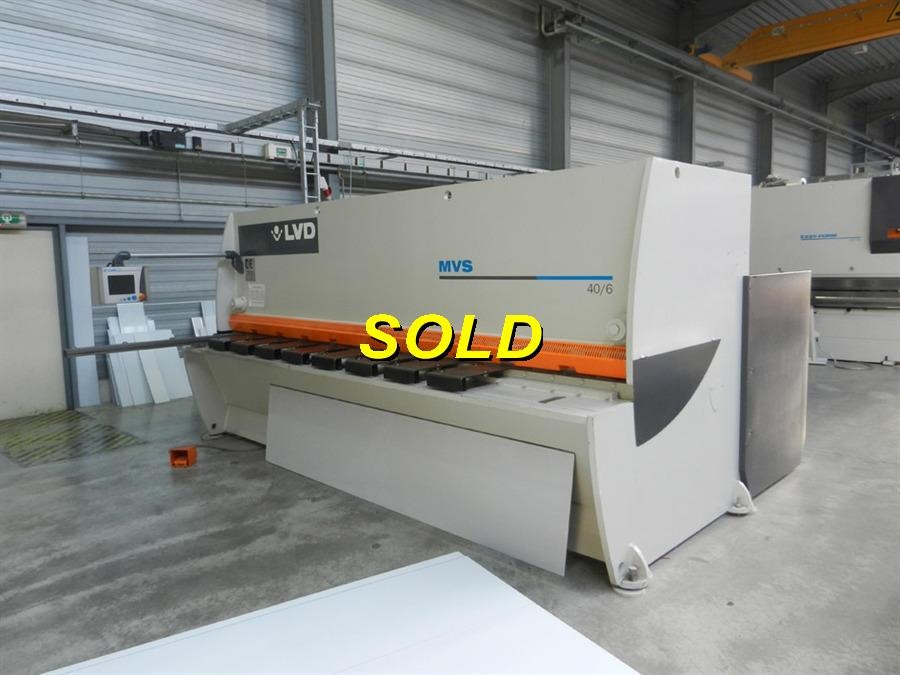

Vendido
Vendido
Vendido
Vendido

Descargar todas las imágenes en ZIP
