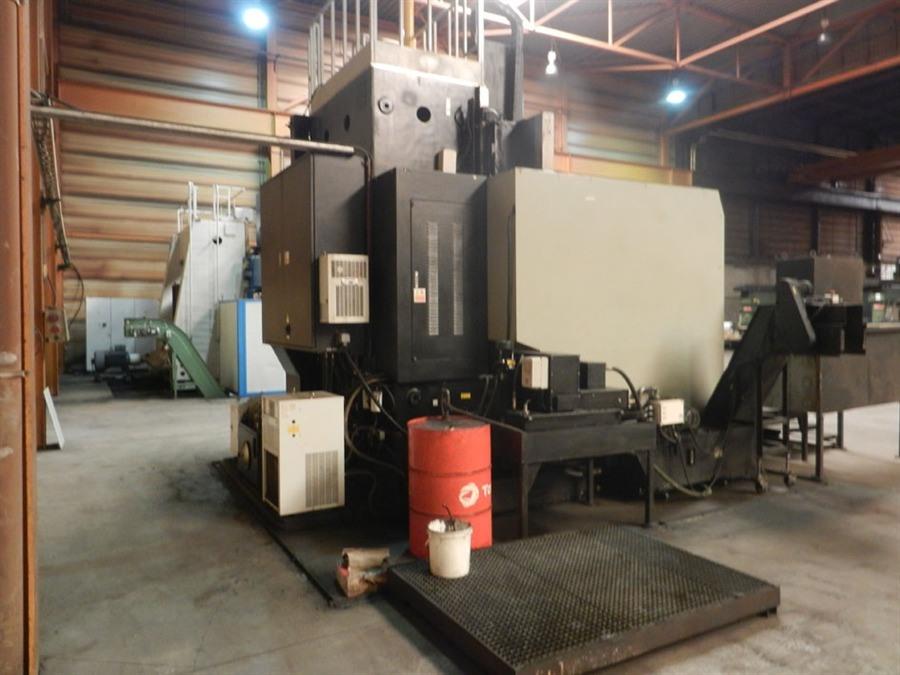

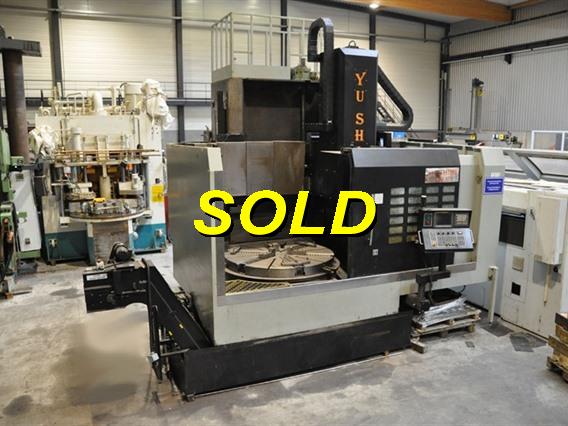

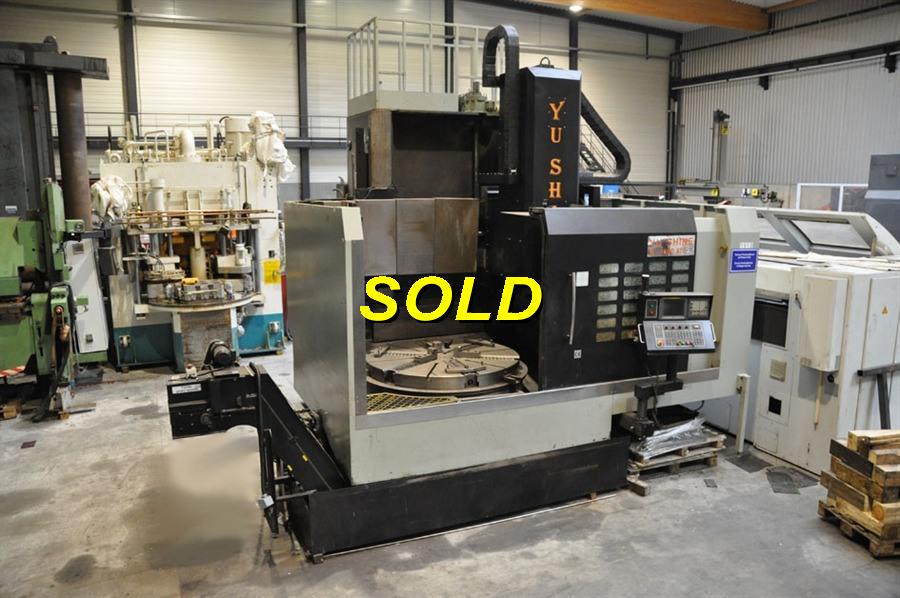

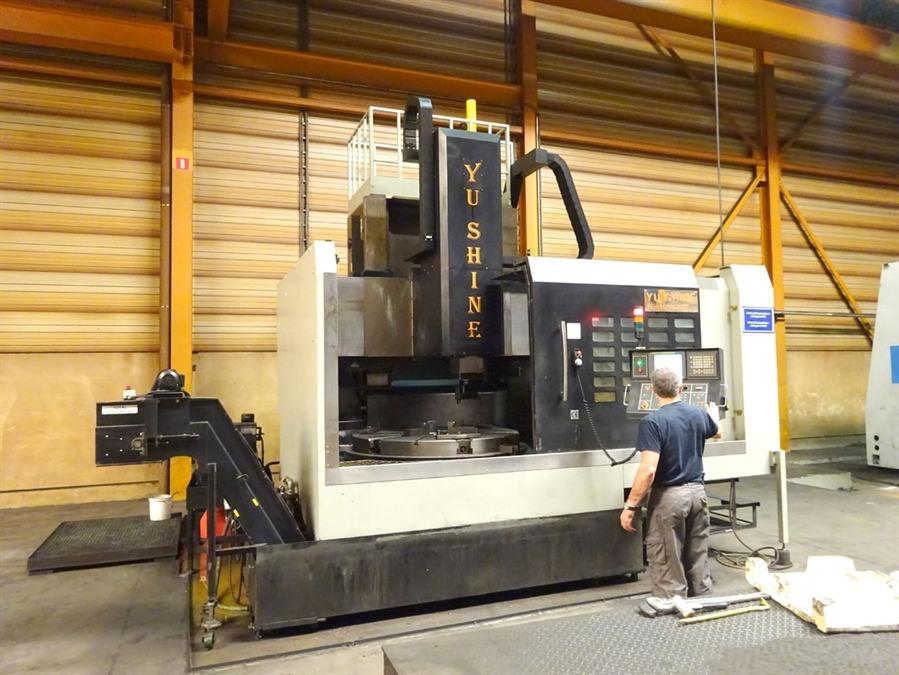

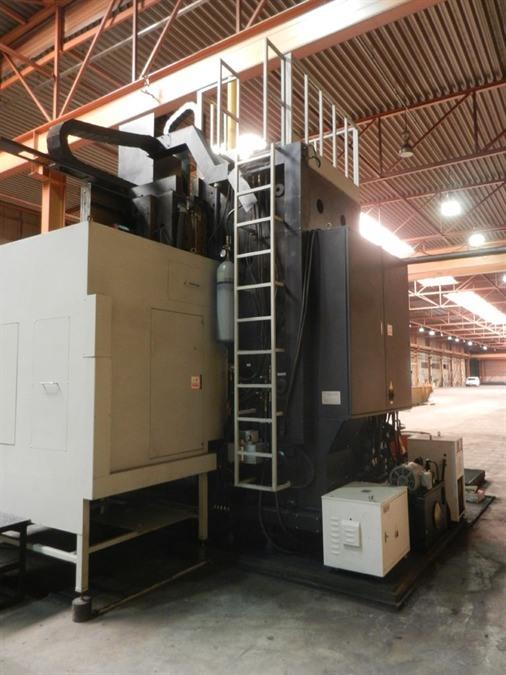

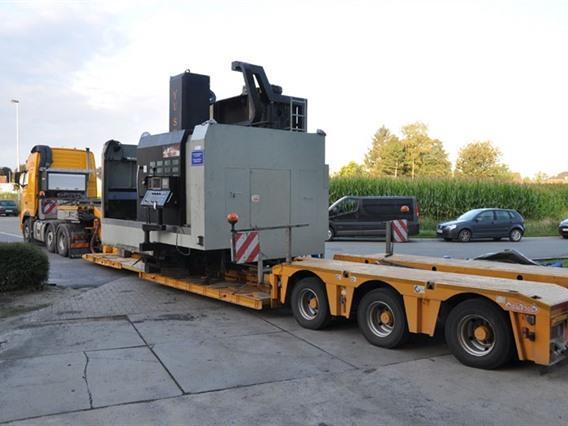

VTL dia 2100 x 1350 mm CNC
Technical information

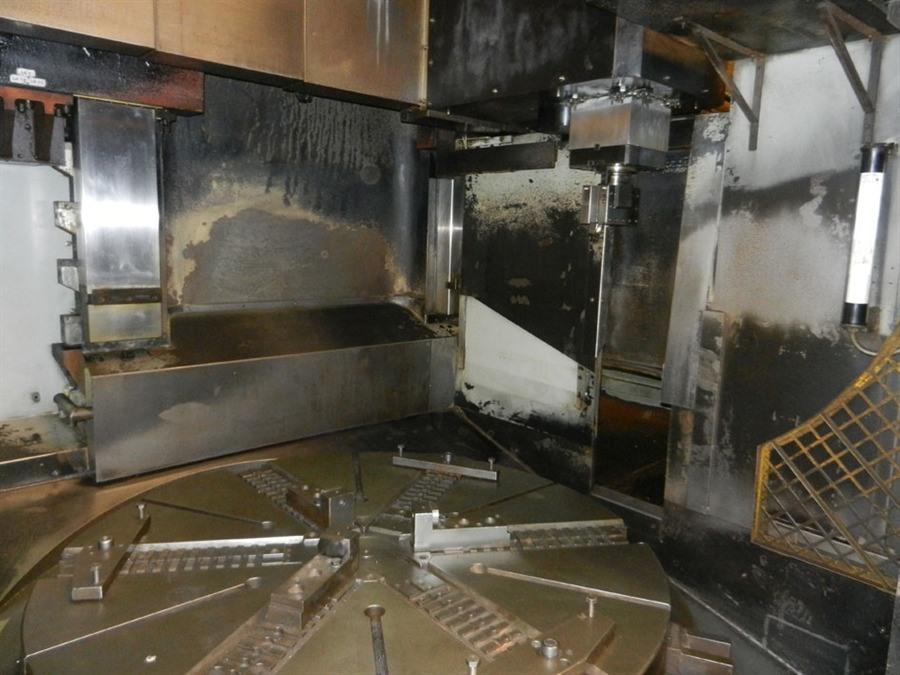

- Chuck dia.1600 mm

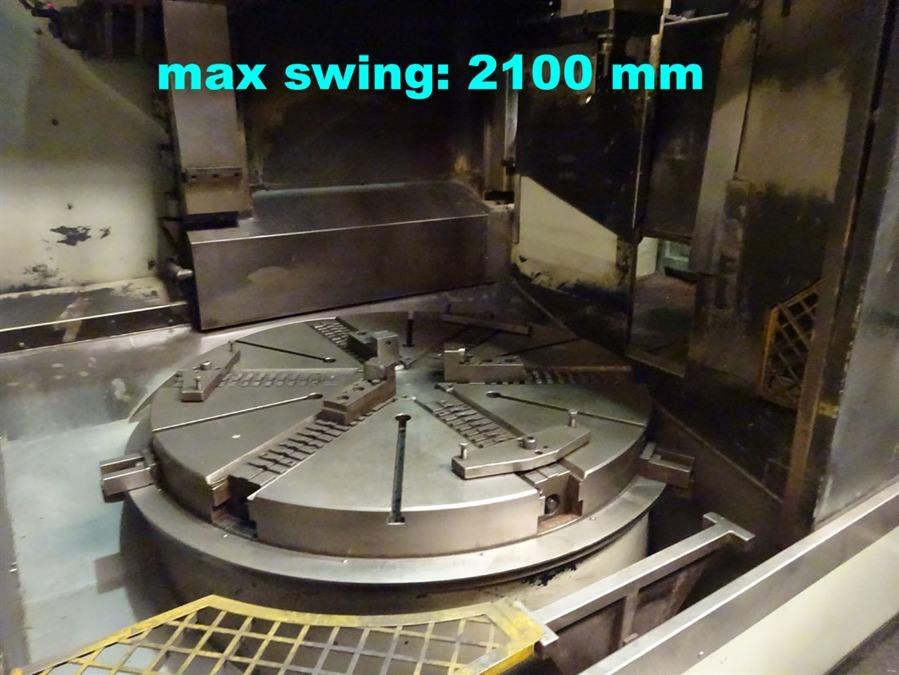

- Max turningdia -- passage2100 mm
- Power on the spindle45 kW

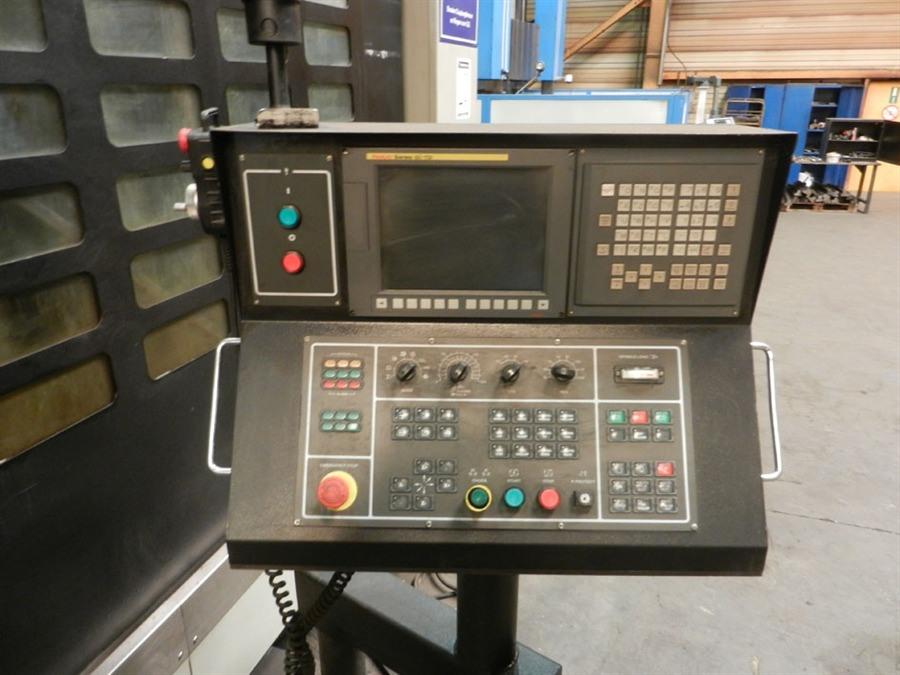

- CommandFanuc Oi
- Number of speeds2 > 256 rpm
- Power needed80 kVa
- Long 5050 mm
- Wide4500 mm
- Height3775 mm
- Weight36 ton

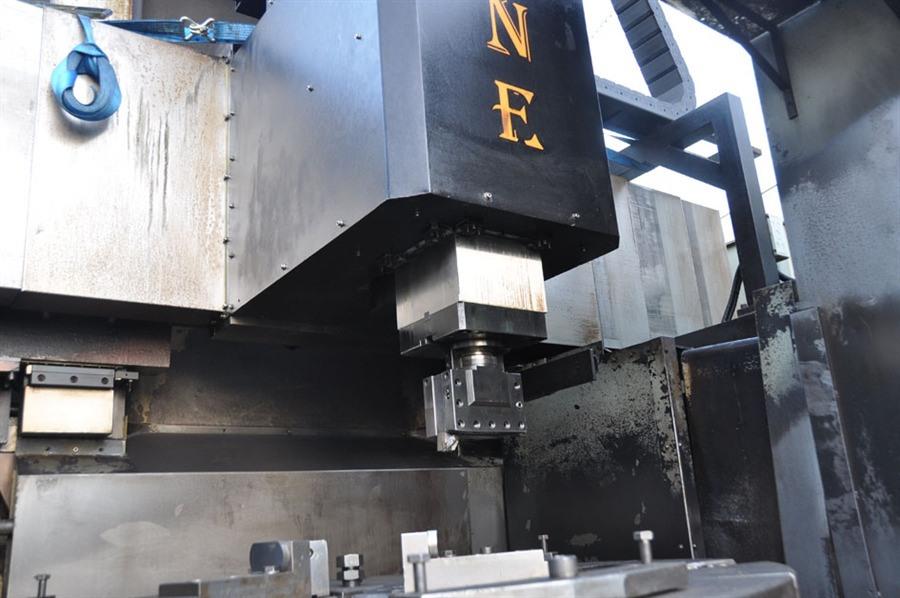

- Turretyes

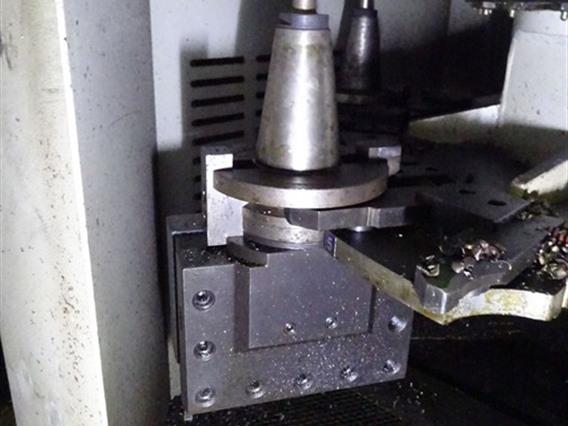

- Qty Tools12x - BT50
Additional info

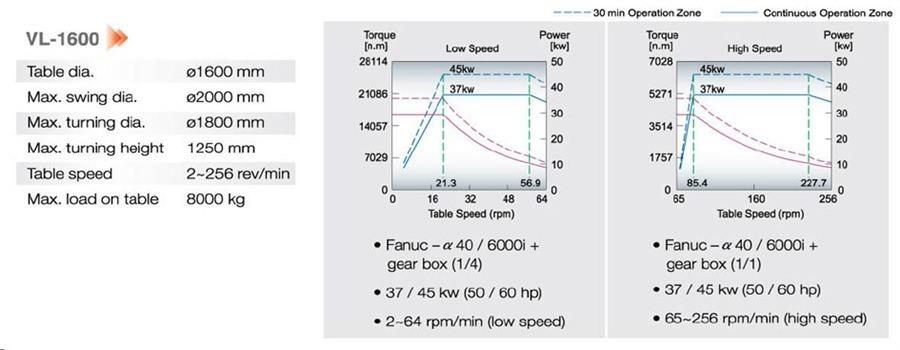

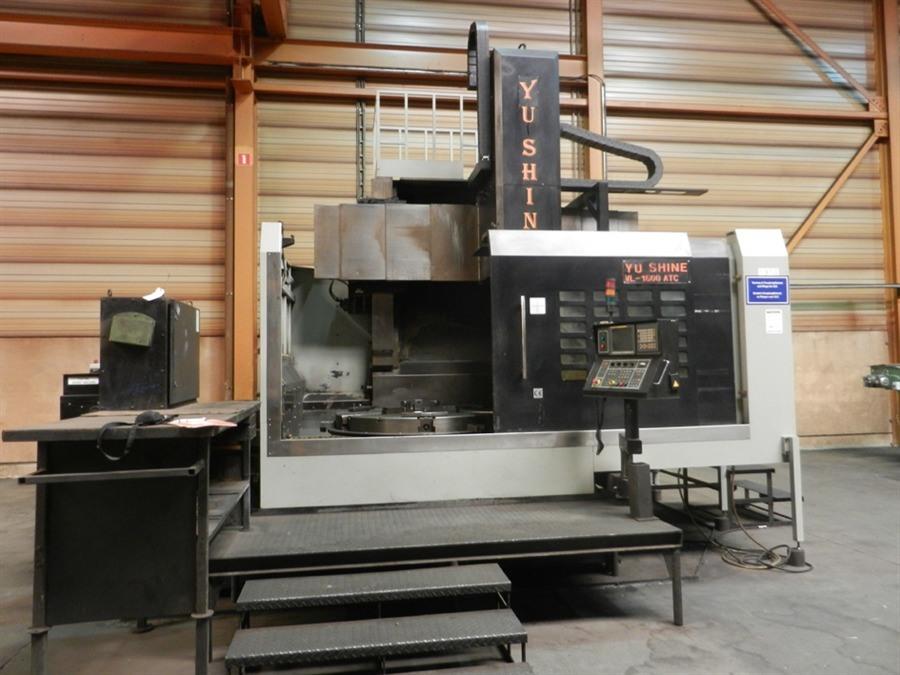

Type VL-1600 ATC
Taiwan Quality!!!

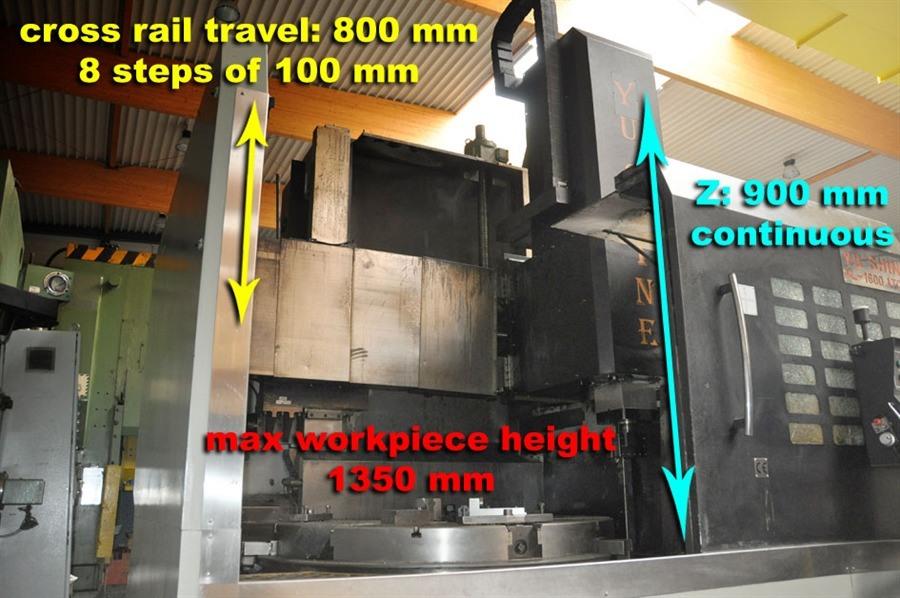

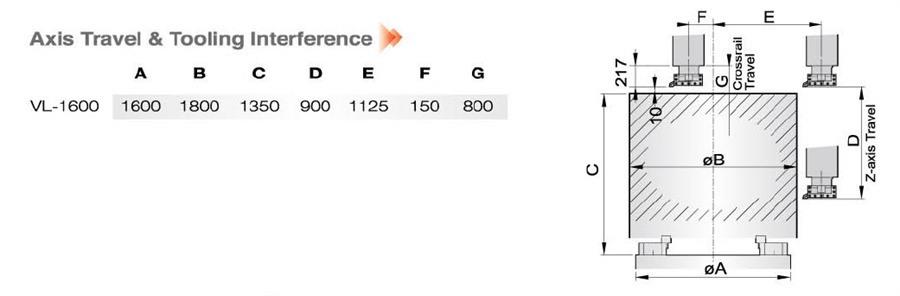

X-travel: 1675 mm
Z-travel: 900 mm

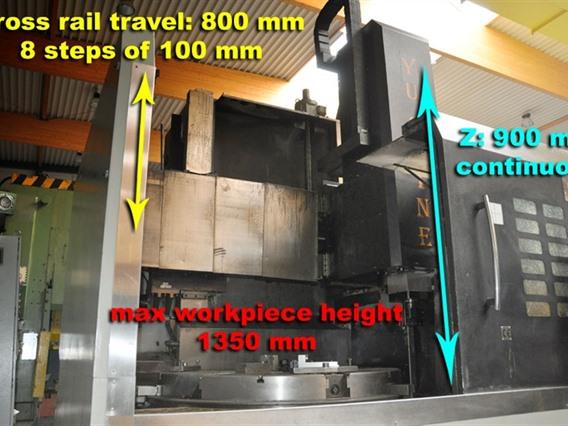

Y-travel: 800 mm (in 100 mm increments)
max workpiece height: 1350 mm
max load on table: 8 ton
X feedrate: 12 000 mm/min
Z feedrate: 10 000 mm/min
cutting feedrate: 0,01 > 50 mm/rev

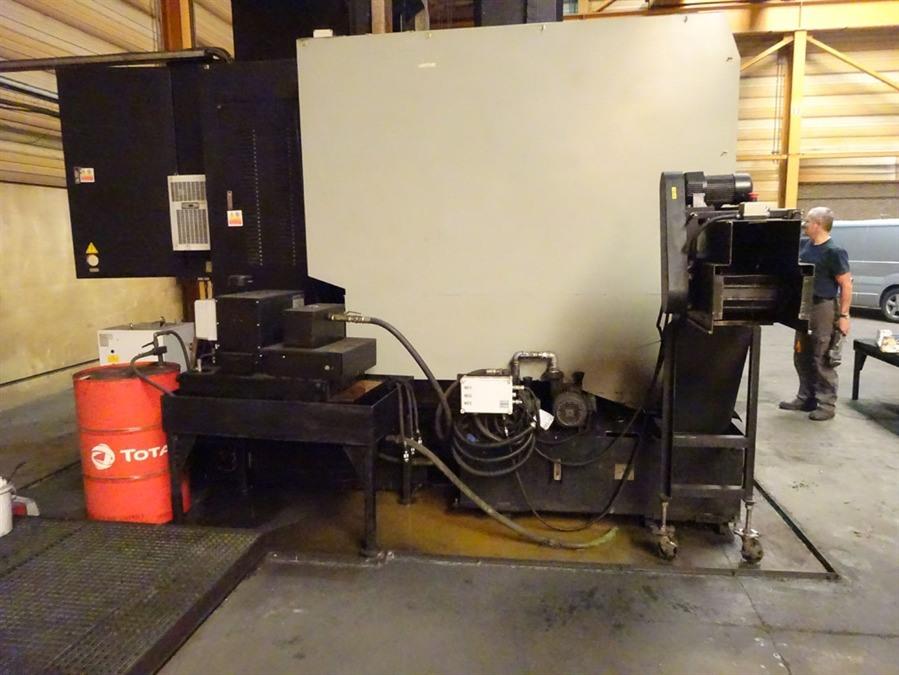

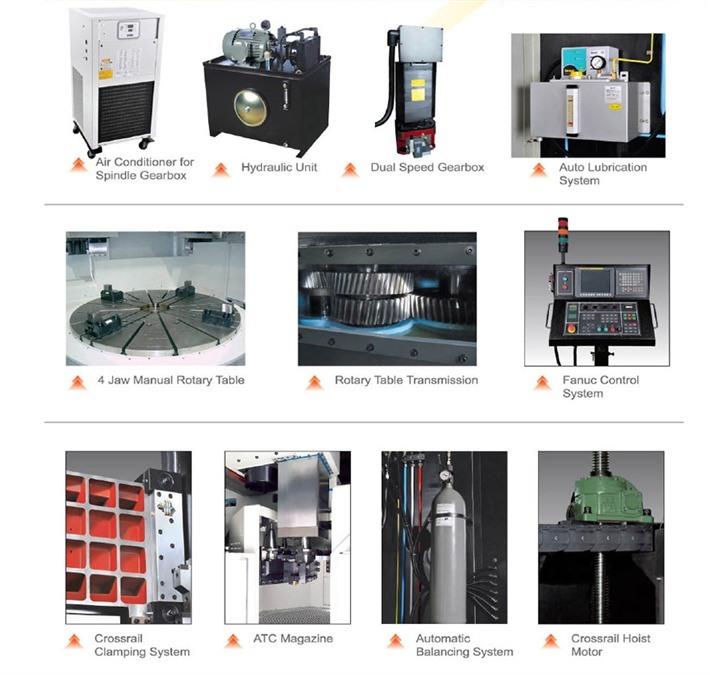

- chip conveyor
- 6 jaw hydraulic chuck
- auto balancing system

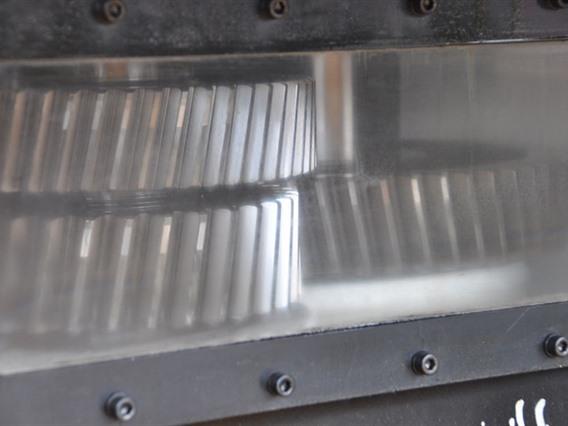

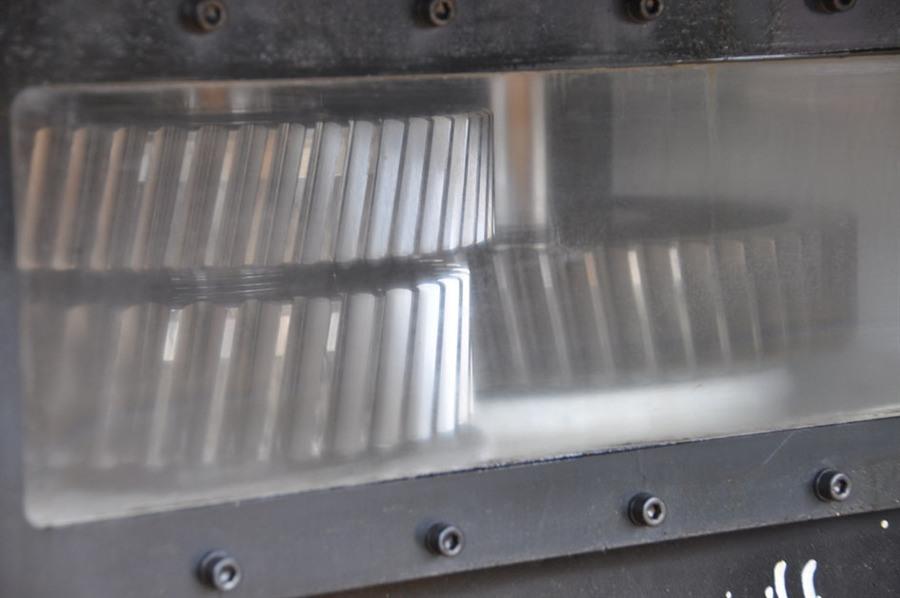

- airco for spindle gearbox

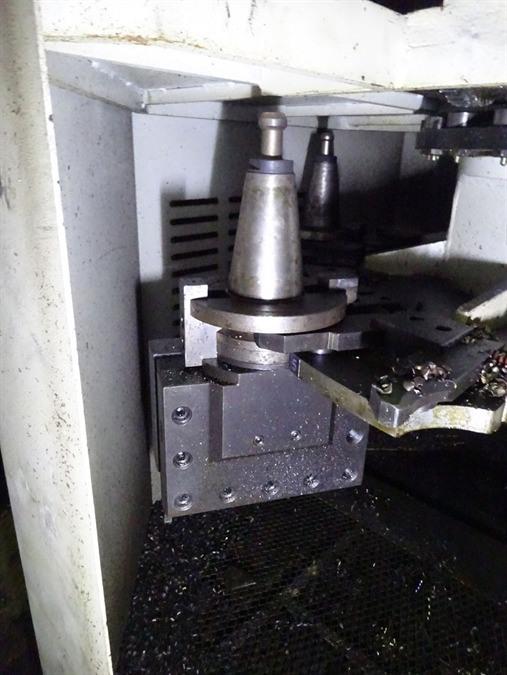

- atc magazine
- clamping system for crossrail
- oil/water separator
- hydraulic chuck dia 1200 mm
- high pressure cooling through spindle (20 bar)

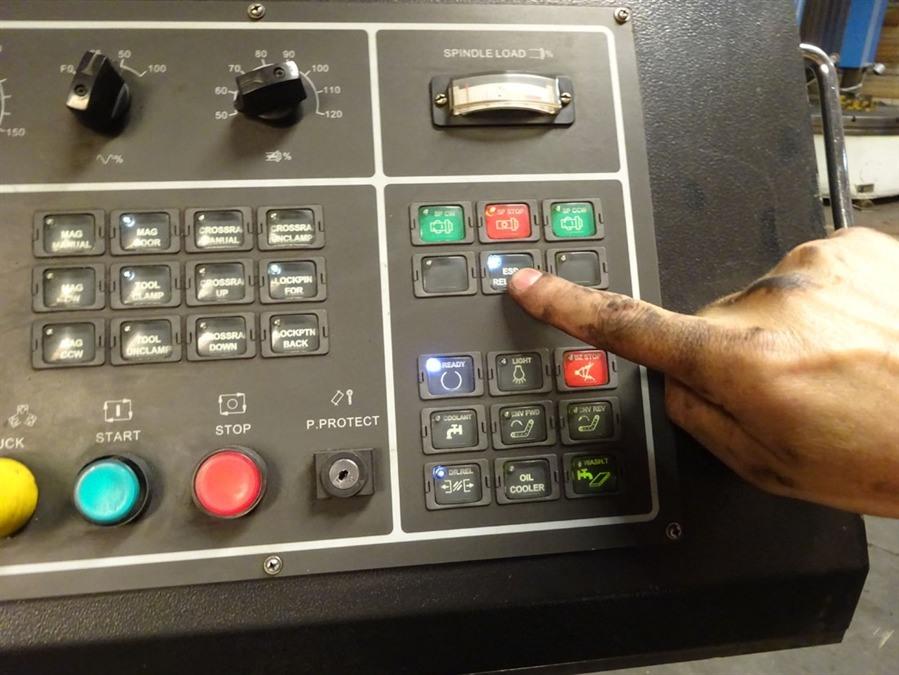

- manual guide i for Fanuc Oi
- Type/Model: dia 2100 x 1350 mm CNC
- Stocknumber: A.12 8478
- Main category: [A] Lathes
- Sub category: [A.12] Vertical turning machines conventional & CNC
- Brand: VTL
