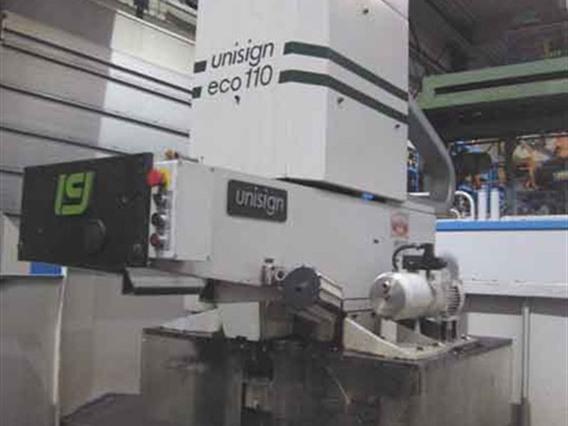

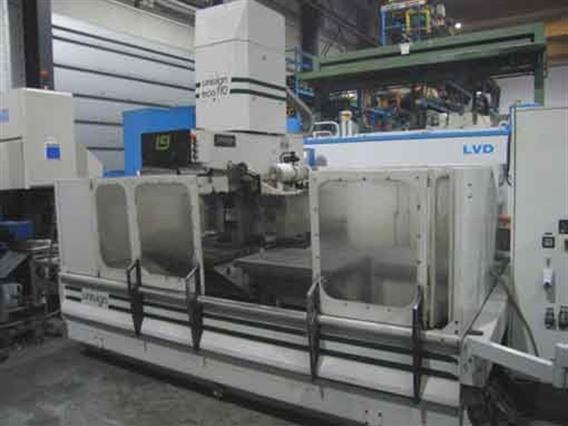

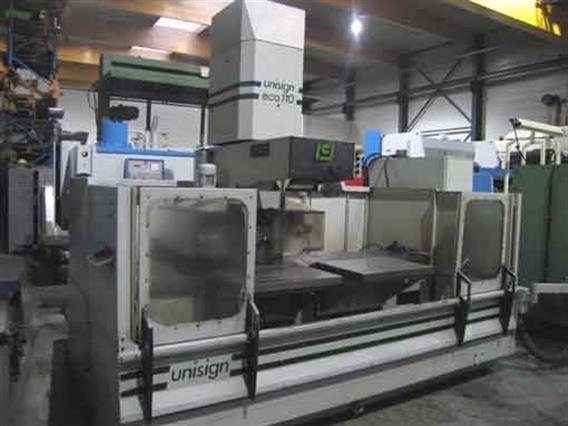

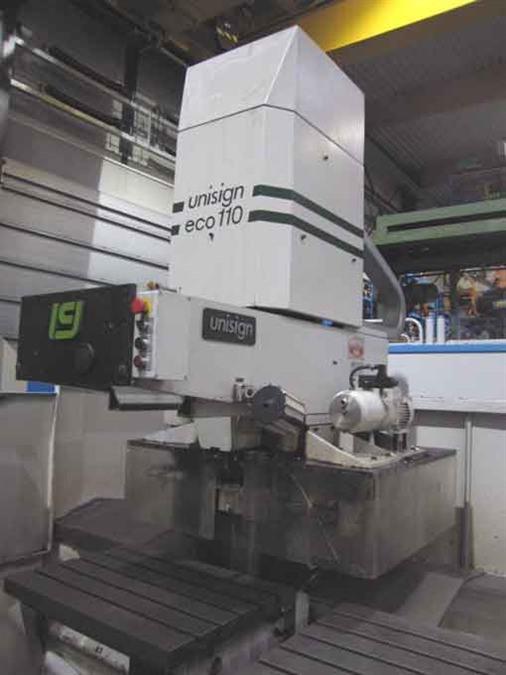

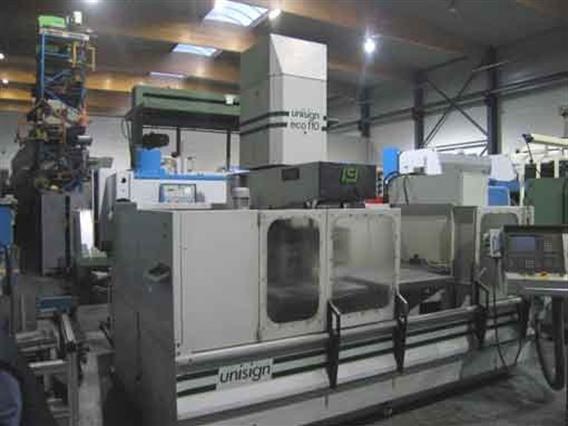

Unisign ECO 110 CNC X:1800 - Y:550 - Z:500 mm

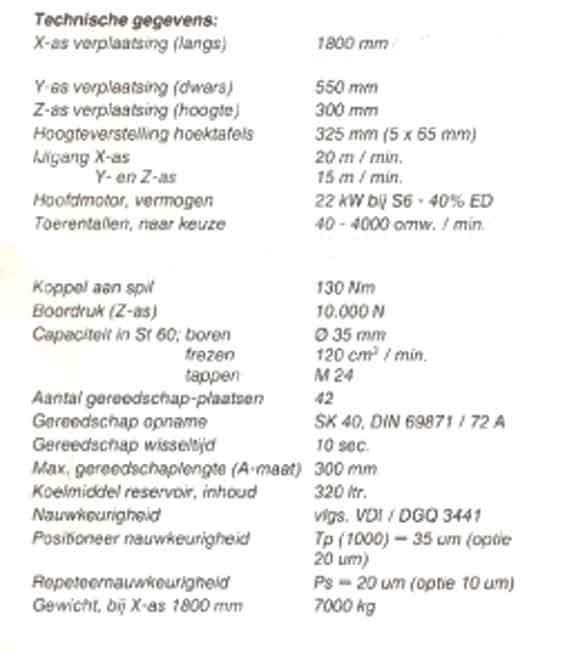

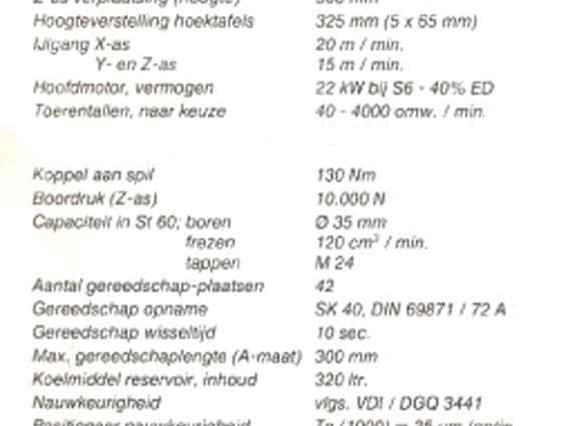

Technical information
- X-axis1800 mm
- Y-axis550 mm
- Z-axis300 mm
- Admission in spindle (ISO)ISO 40
- Power on the spindle7 kW
- Drilling-capacitydia 35 mm
- Tapping-capacityM 24

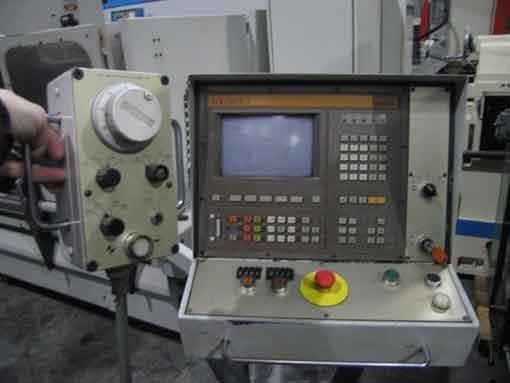

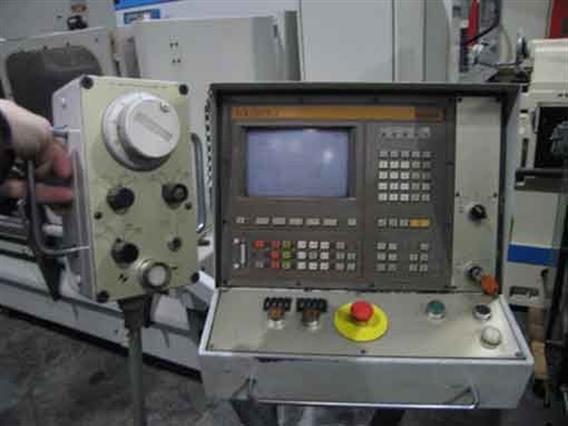

- Control Siemens Sinumerik 810M
- ToolchangerYes
- Number of toolholders42 tools
- Number of rotations40 - 4000 rpm
- Power principal motor 22 kW

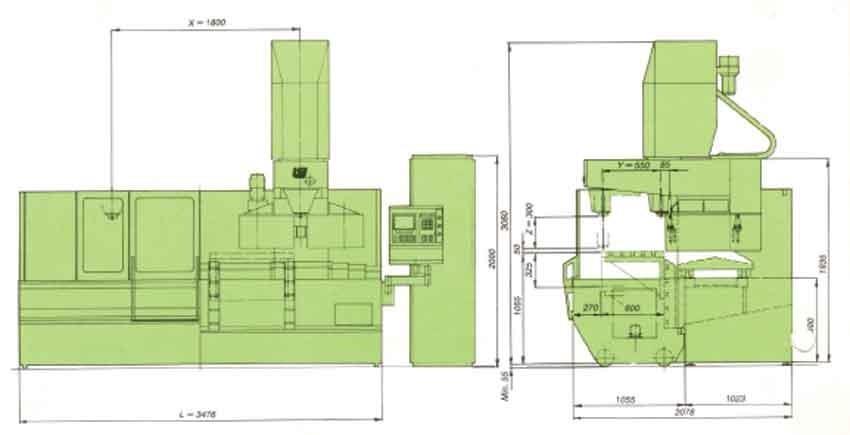

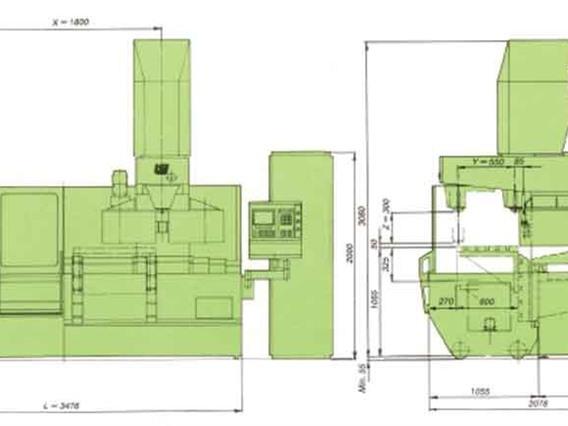

- Length4000 mm
- Depth2100 mm
- Height1940 mm
- Weight7 000 kg
Additional info

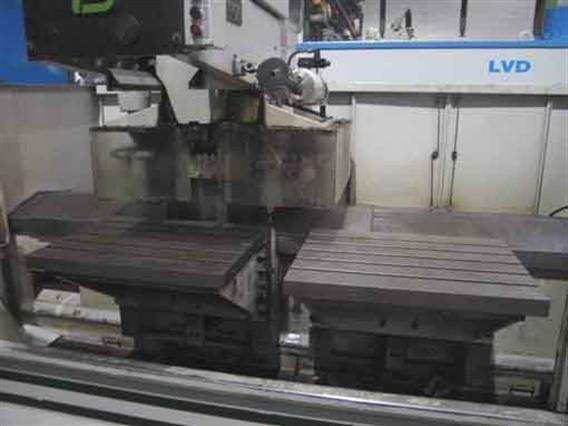

- Height adjustable cornertables over 325 mm
Ideal for long pieces
Big Coordinates field
Powerfull Main motor: 22kW
Quick axle movement up to 20 m/min rapid speed
Toolstorage for 42 tools
Fast, reliable tool changing system
Excellent loadingspossibilities, also with a crane
- Type/Model: ECO 110 CNC X:1800 - Y:550 - Z:500 mm
- Stocknumber: D.01 3151
- Main category: [D] Machining centres
- Sub category: [D.01] Vertical machining centers
- Brand: Unisign
