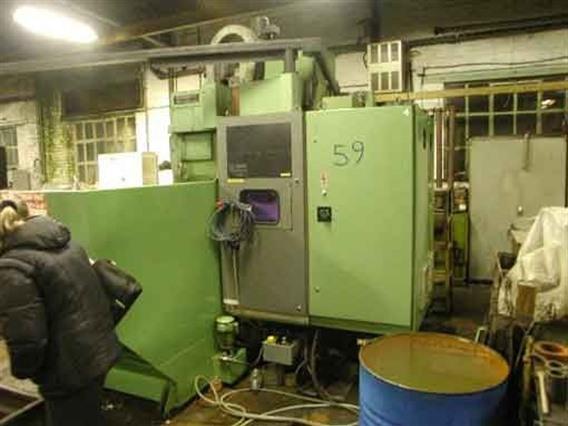

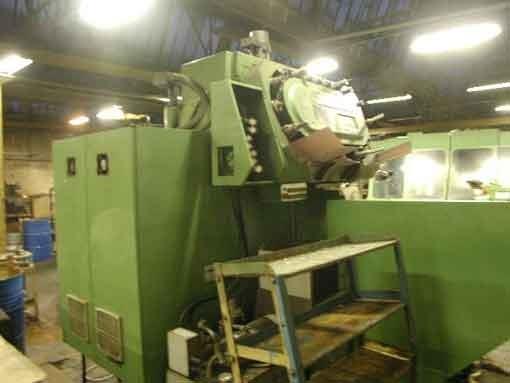

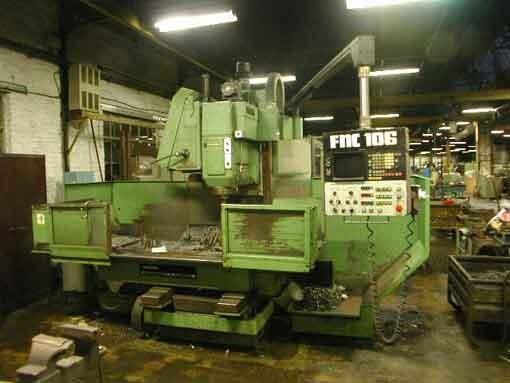

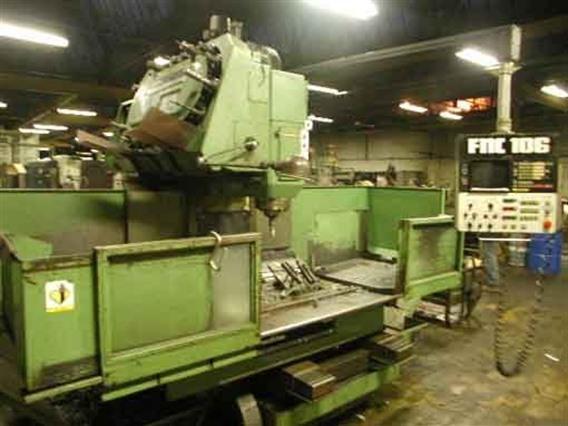

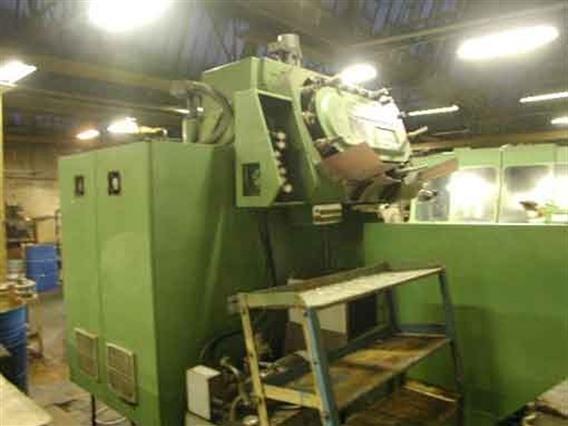

Vertical machining centers Makino FNC 106
Technical information
- X-axis1050 mm
- Y-axis600 mm
- Z-axis560 mm
- Table dimensions1050 x 600 mm
- Max weight on the table1500 kg
- Depth of throat (uprights-spindlecenter)650 mm
- Admission in spindle (ISO)DIN 2080 M 50
- Power on the spindle7,5 kw
- Control Fanuc 6 M
- Number of toolholders20 / 30
- Length3540 mm
- Depth3625 mm
- Height3015 mm
Additional info
Stocknumber: D.01 1693 *04
