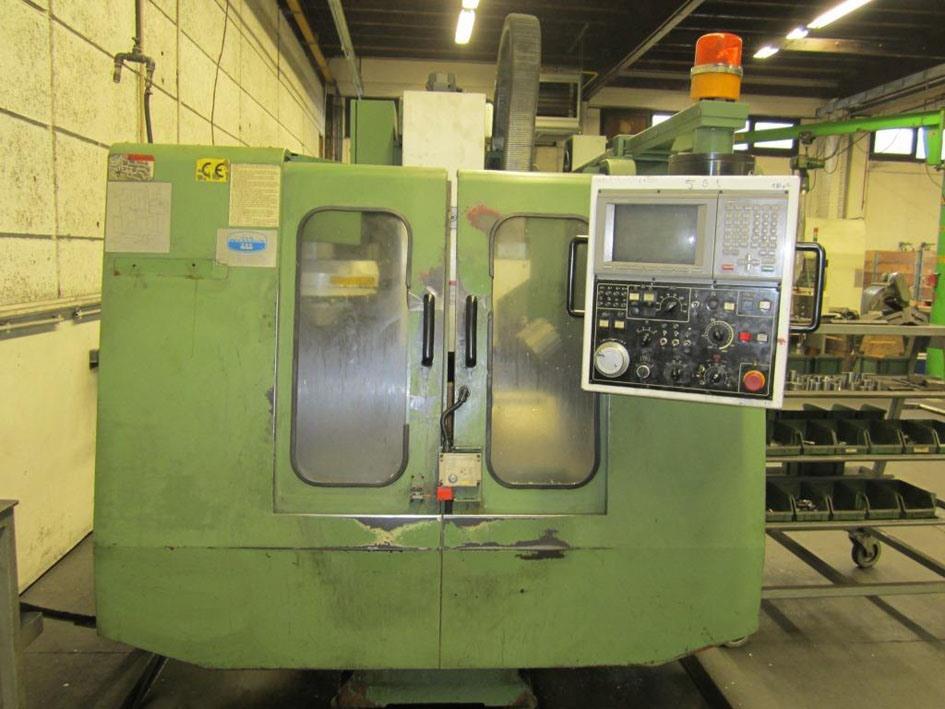

Vertical machining centers Hartford HV35 X: 500 - Y: 400 - Z: 510mm

Technical information

X-axis510 mm
Y-axis400 mm
Z-axis400 mm

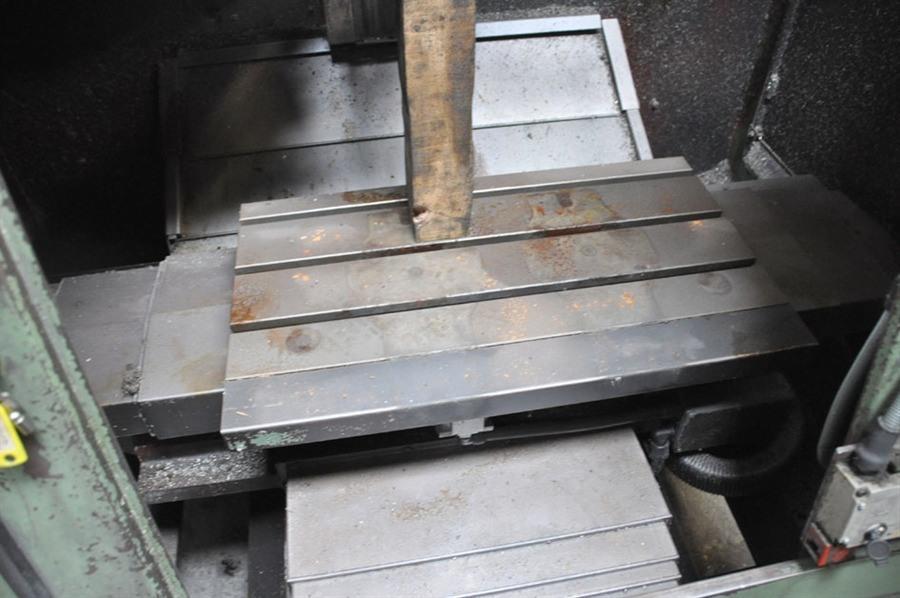

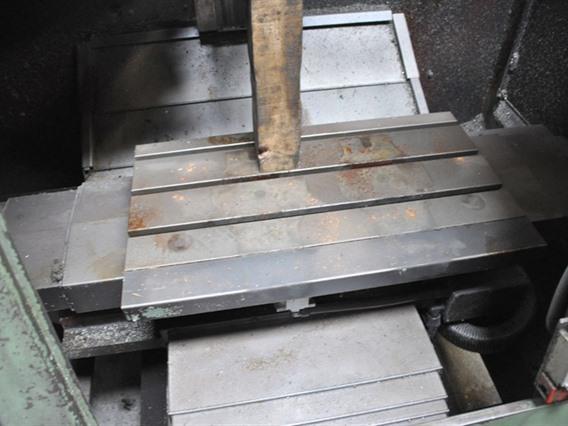

Table dimensions810 x 400 mm
Depth of throat (uprights-spindlecenter)120>520 mm
Admission in spindle (ISO)ISO 40
Power on the spindle7,4 kW

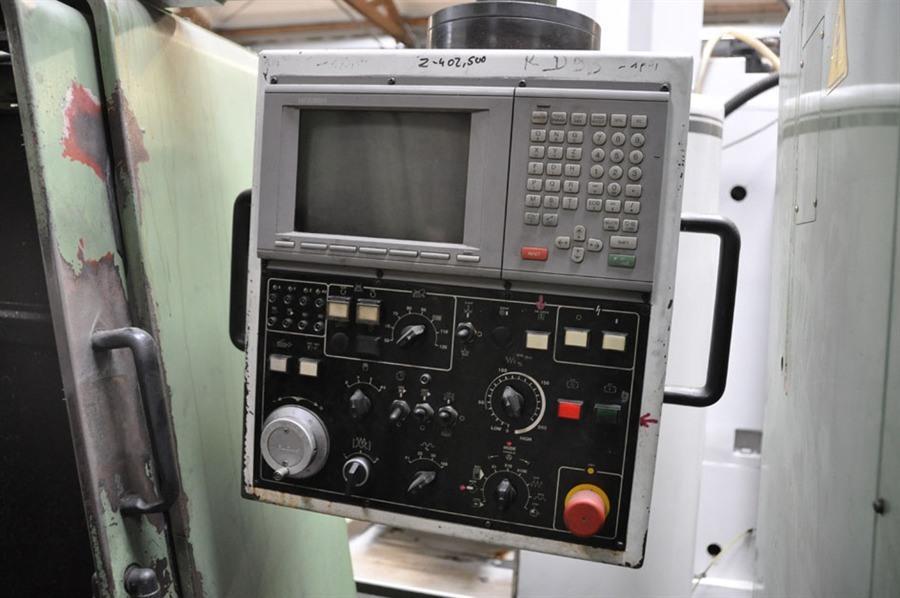

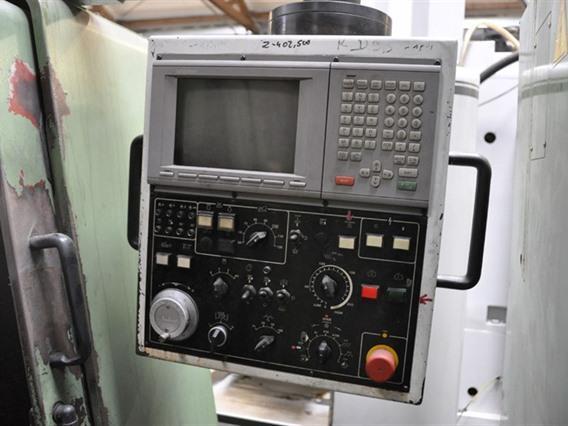

Control Mitsubishi
Number of axes3

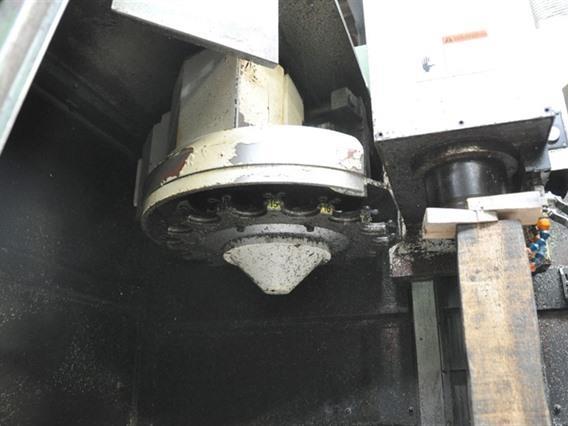

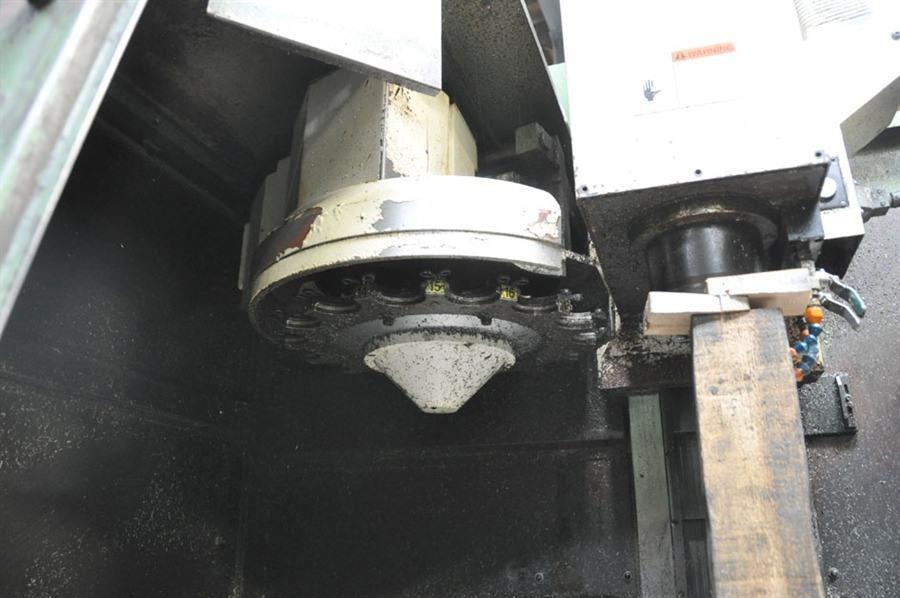

Toolchangeryes
Number of toolholders16x
Number of rotations8000 rpm
Power principal motor 18 kVa
Length1820 mm
Depth2285 mm
Height2450 mm
Weight4500 kg

Additional info

Type/Model: X: 500 - Y: 400 - Z: 510mm
Stocknumber: D.01 8121
Main category: [D] Machining centres
Sub category: [D.01] Vertical machining centers
Brand: Hartford HV35

Stocknumber: D.01 8121

Sold
Sold
Sold
Sold

Hartford HV35 X: 500 - Y: 400 - Z: 510mm
