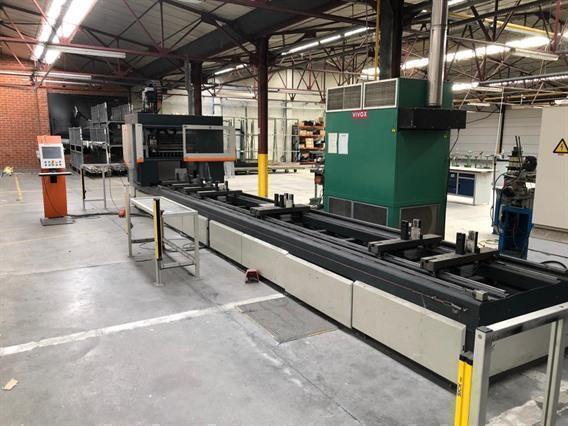

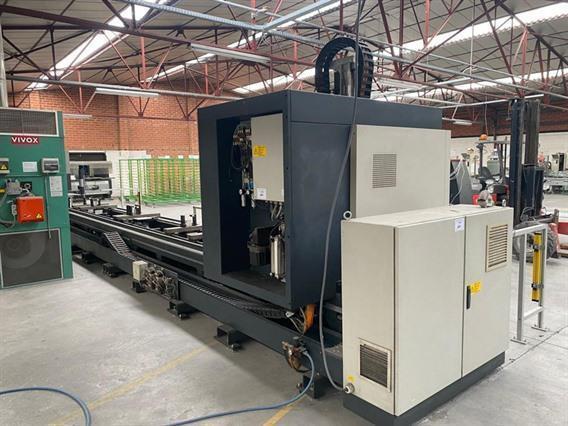

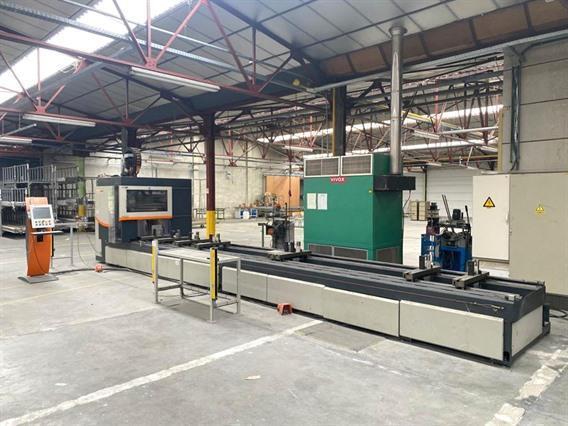

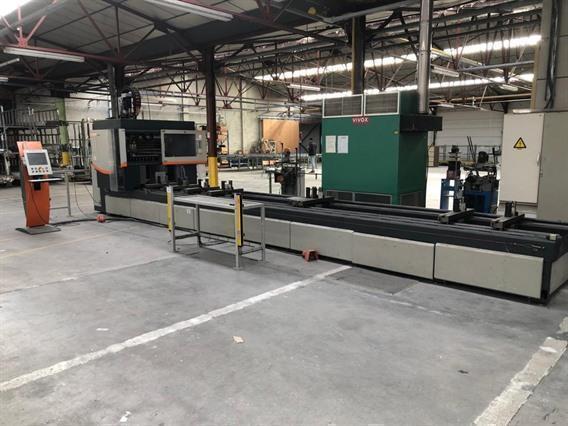

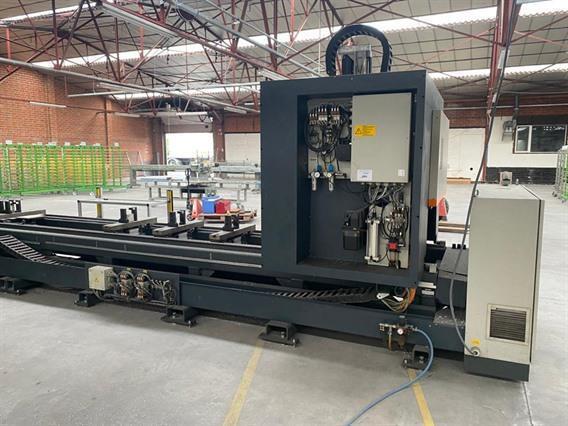

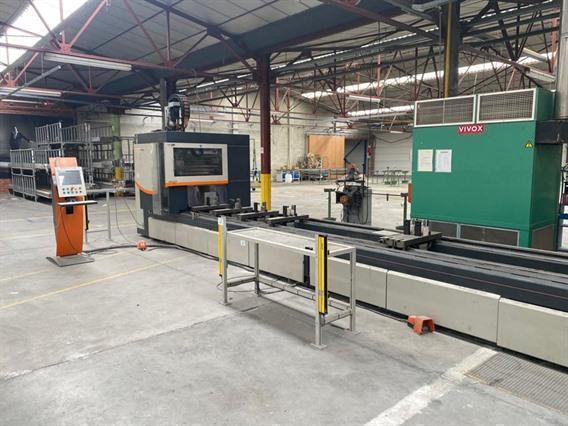

Elumatec SBZ 140 - X: 7900 - Y: 850 - Z: 650 mm
Technical information
- X-axis7900 mm
- Y-axis850 mm
- Z-axis650 mm
- Admission in spindle (ISO)HSK-63 F
- Power on the spindle6 kW
- Toolchangeryes
- Number of toolholders8 positions
- Number of rotationsmax 21 000 rpm

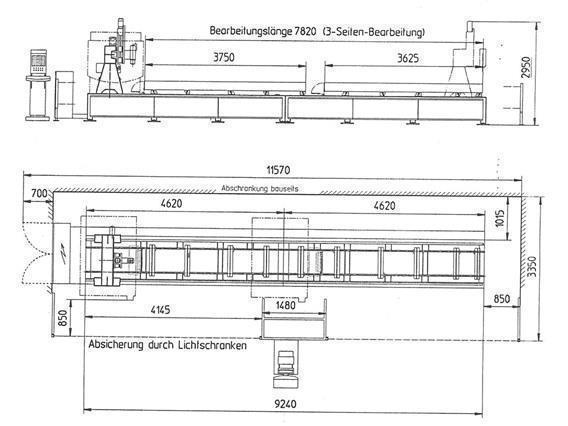

- Length11 400 mm
- Depth3350 mm
- Height2700 mm
- Weight4,9 ton
Additional info

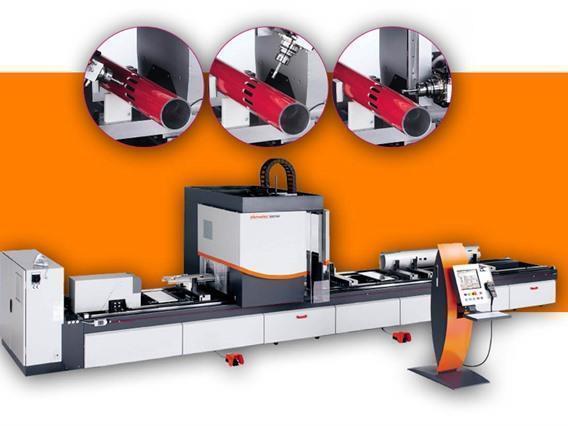

- - 4 axes industrial profile machining center - type SBZ 140
- Can machine up to 5 sides of a profile
- Machiningpossibilities: drilling, machining & thread tapping
- Max machininglength with profile end processing: 7480 mm
- Max machininglength without profile end processing: 7600 mm

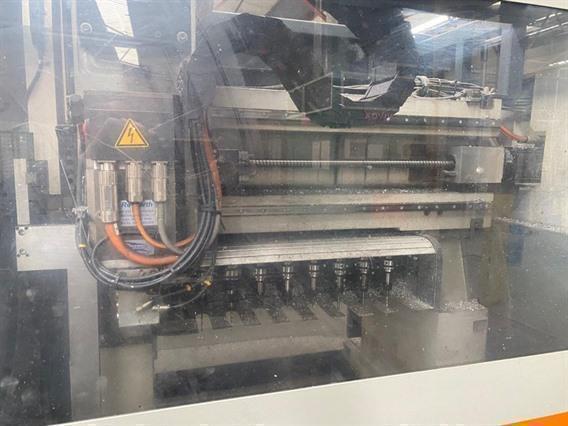

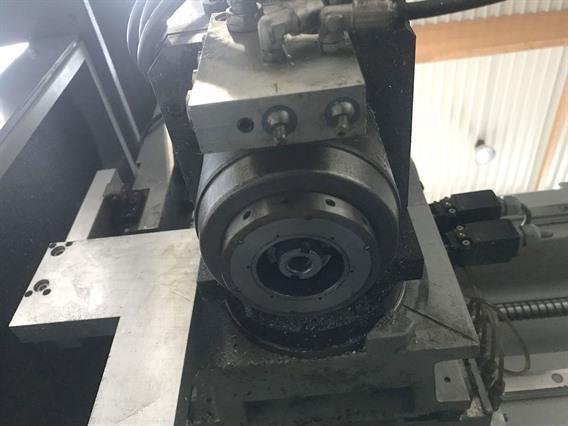

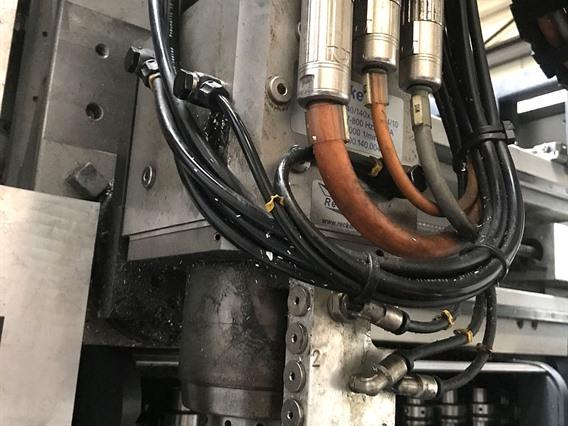

- The axis controlled milling head is able to process the profile infinitely at any position between 0° and 180° with all available tools

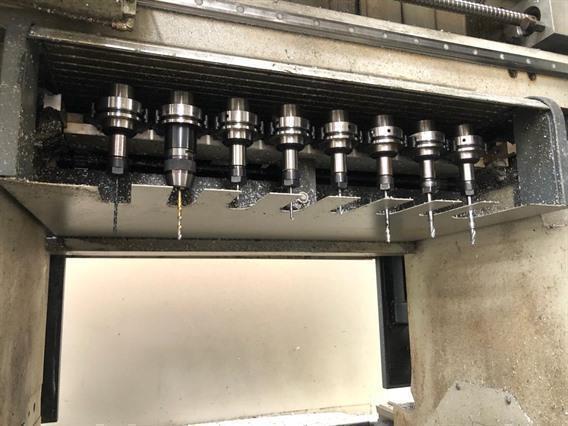

- 8 tools

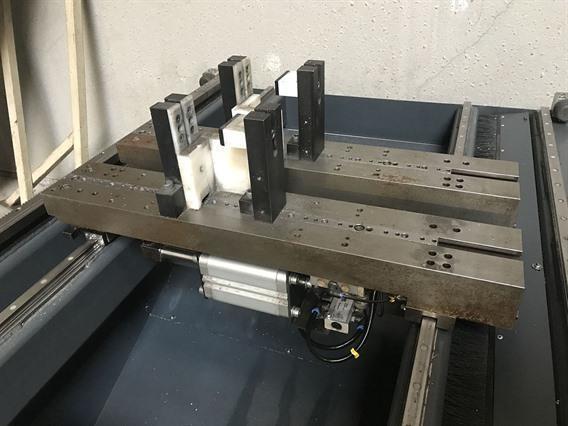

- 8 movable clamps

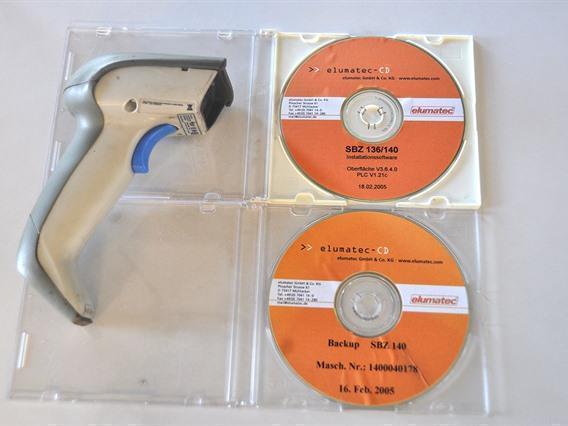

- barcode reader
> automatic profile measuring system
> 2 extra clips complete material

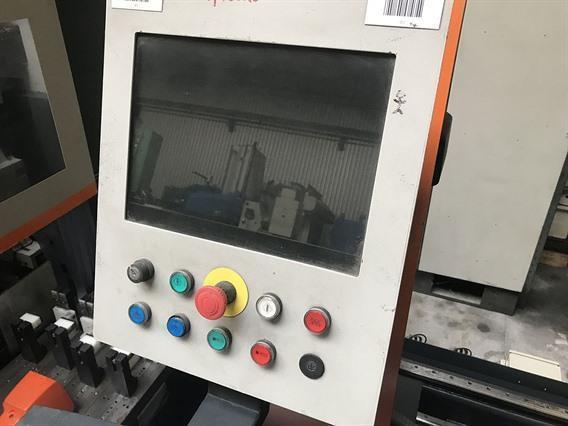

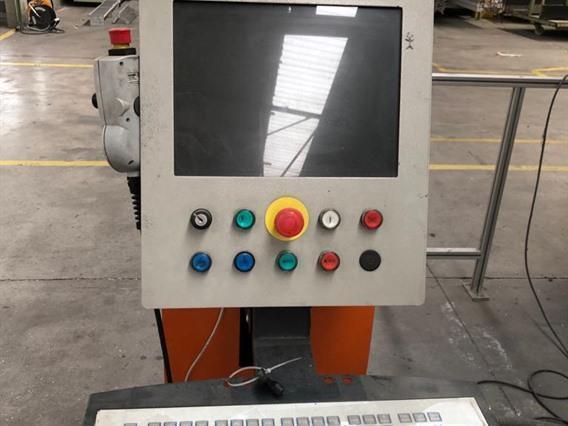

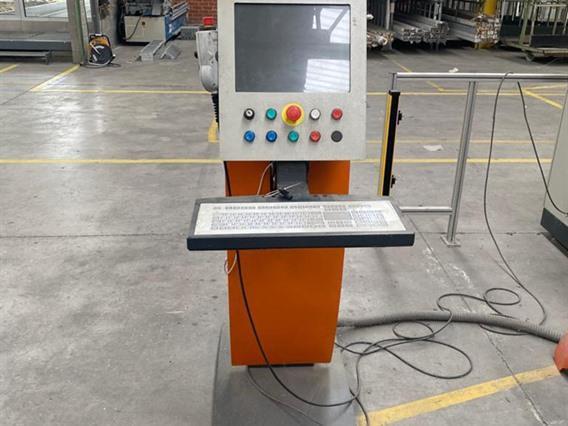

> remote control console for SBZ 140
> 8x adjustable clamping material
> automatic clamping position detection
> automatic positioning of terminal equipment

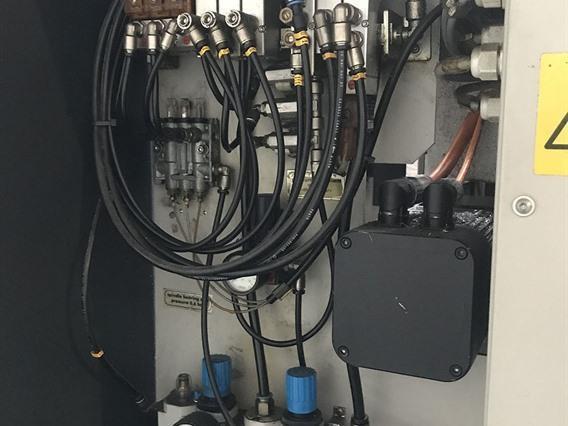

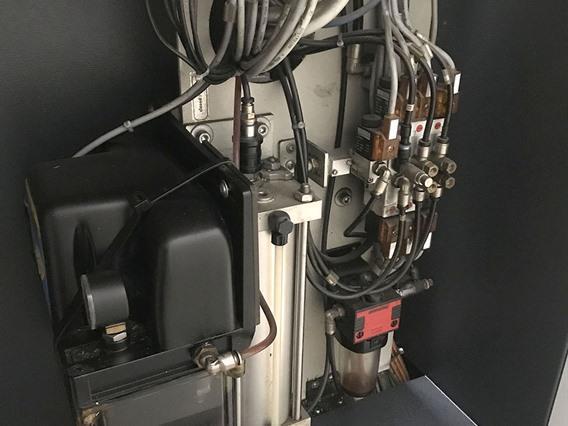

> micro-dosing system (tool lubrication)
> safety cover
> safety light
> central chip removal
> 2x pneumatic zero attack
> separate clamping system (shuttle)
- Angling: +90° & -90°
Newprice was 189 000 euro
- Type/Model: SBZ 140 - X: 7900 - Y: 850 - Z: 650 mm
- Stocknumber: D.01 12853
- Main category: [D] Machining centres
- Sub category: [D.01] Vertical machining centers
- Brand: Elumatec
