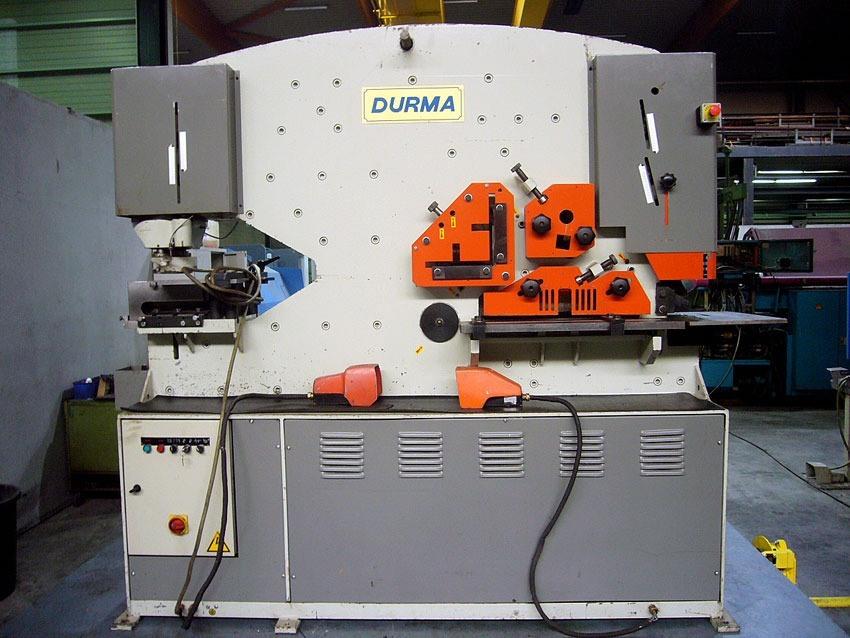

Universal ironworker Durma IW 110/180 BTD

Product added to your favorites

Technical information

Punchingcapacity110 Ton
Dia x sheetthickness60 mm in 15 mm
Max course80 mm
Strokes/min28 str / min
Depth of throat610 mm
Max hole dia.160 mm
Work level1260 mm
Max cutting-thickness in plate20 mm
Blade length605 mm
Angle 45° in flange L-profile70 x 70 x 7 mm
Work level1085 mm
Work level1305 mm
Max material -thickness by notching13 mm
Max wide by notching52 mm
Electric motor (power)11 kW
Length 2560 mm
Depth 700 mm
Height2250 mm
Weight3750 kg

Additional info

Shear capacity: 600 x 15 mm / 400 x 20 mm Angle Shear: 152 x 152 x 13 mm
Type/Model: IW 110/180 BTD
Stocknumber: P.13 5319
Main category: [P] Shears, Universal Punching machines, Cutting-to-length machines & Slitting lines, Lockformers & Metal band sawing machines
Sub category: [P.13] Universal ironworker
Brand: Durma

Stocknumber: P.13 5319
