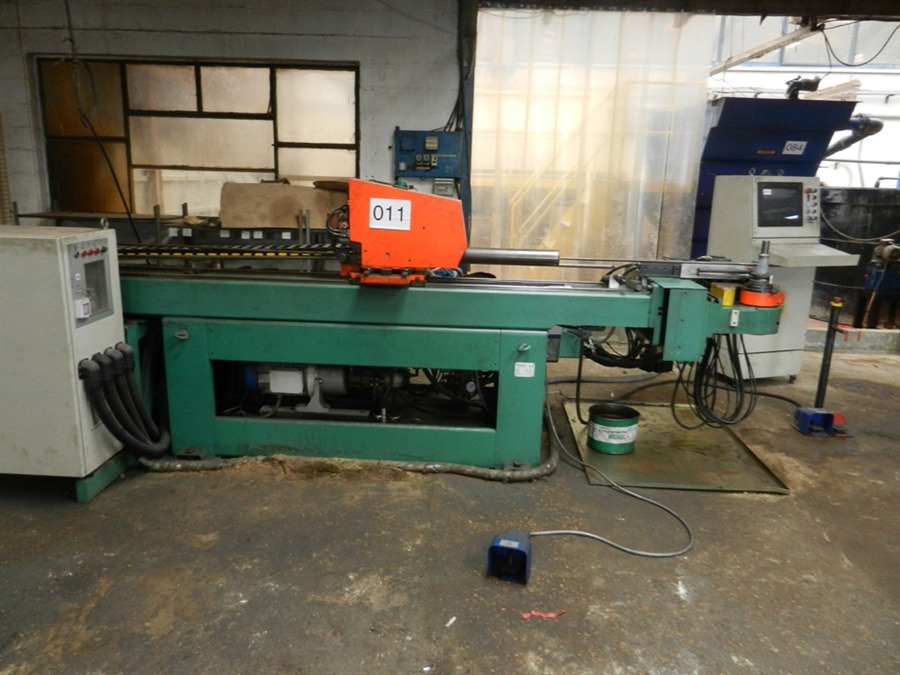

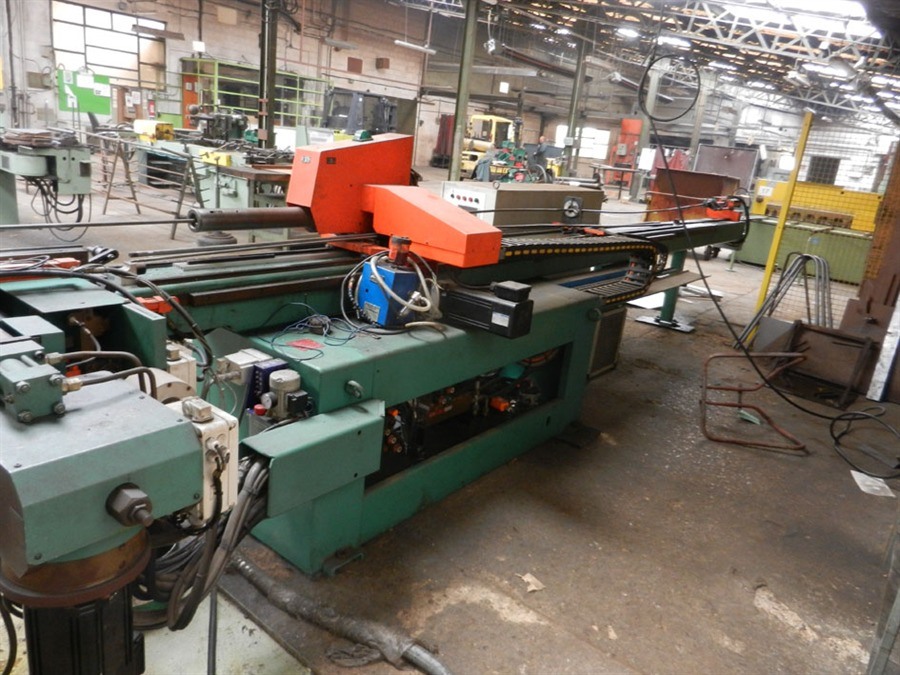

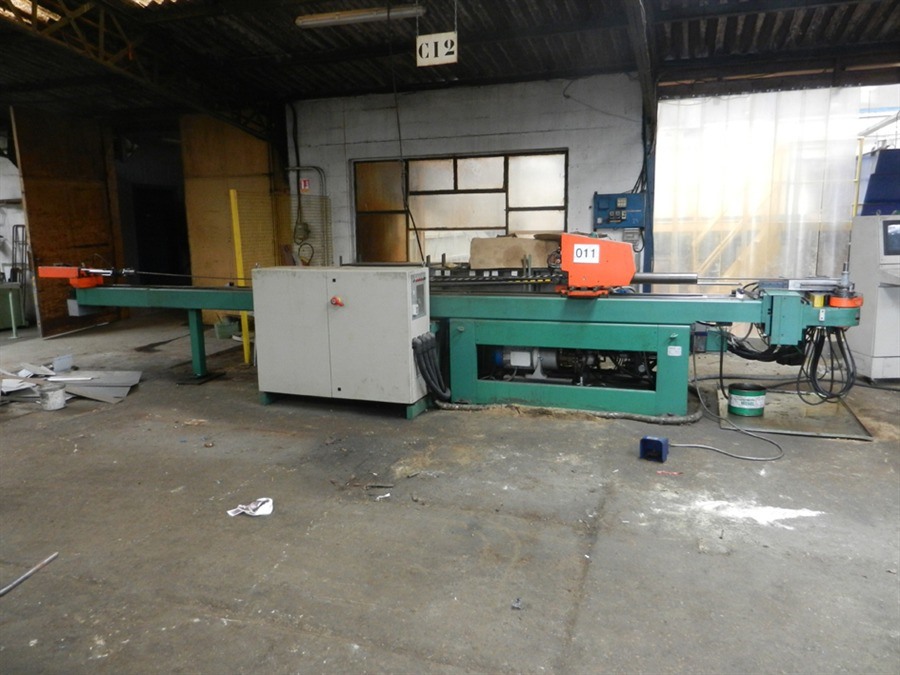

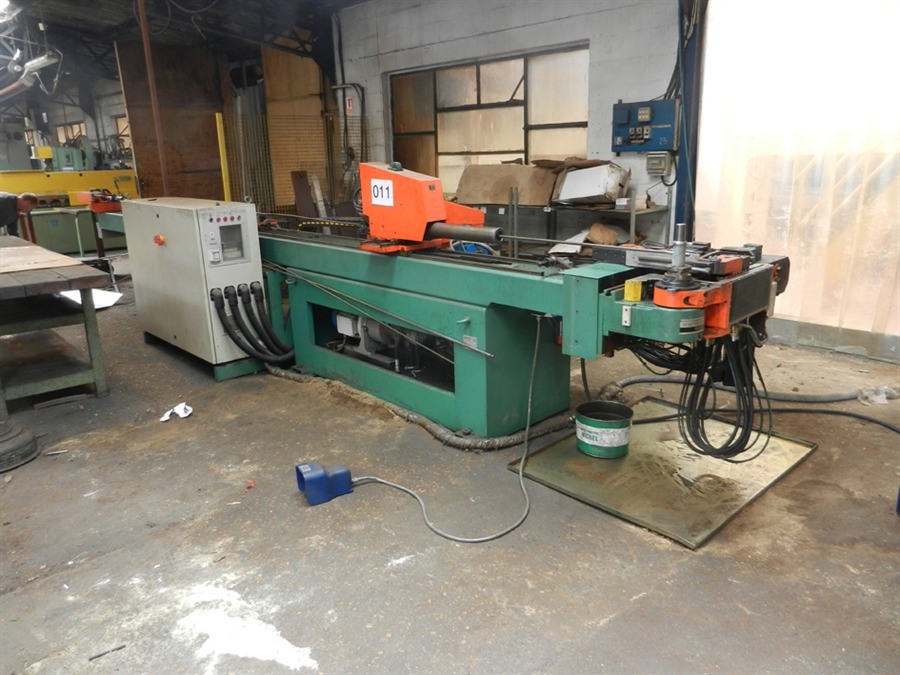

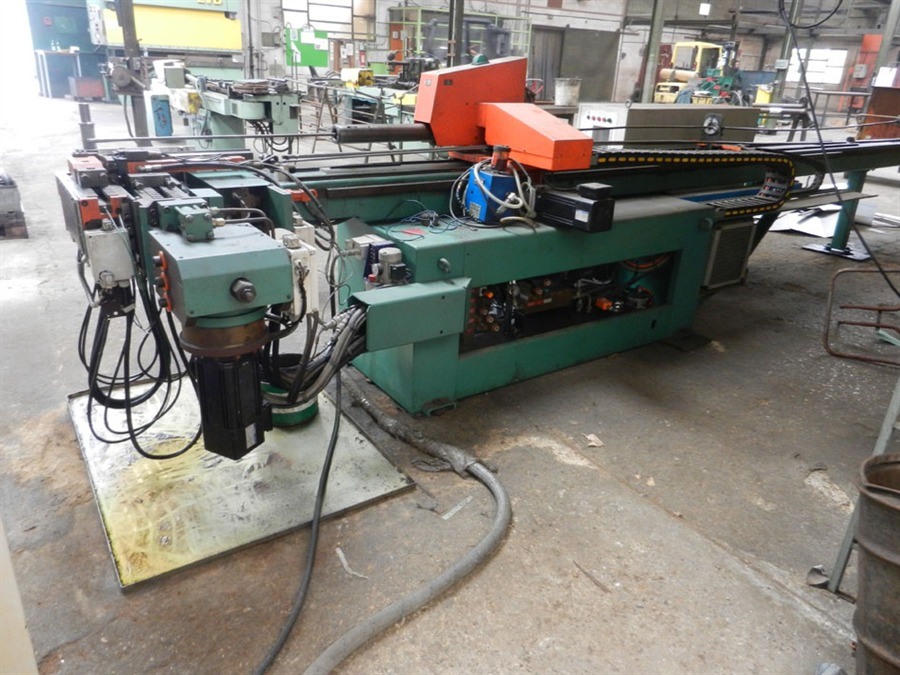

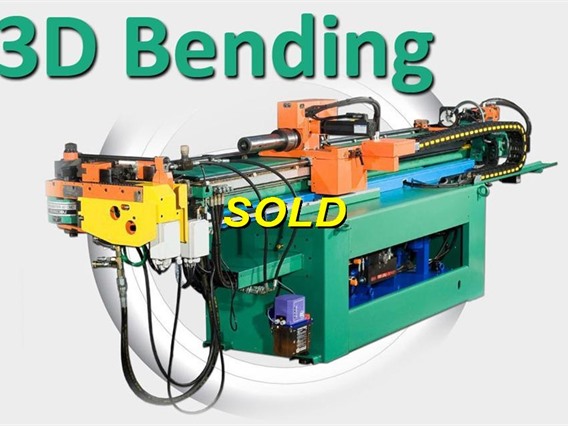

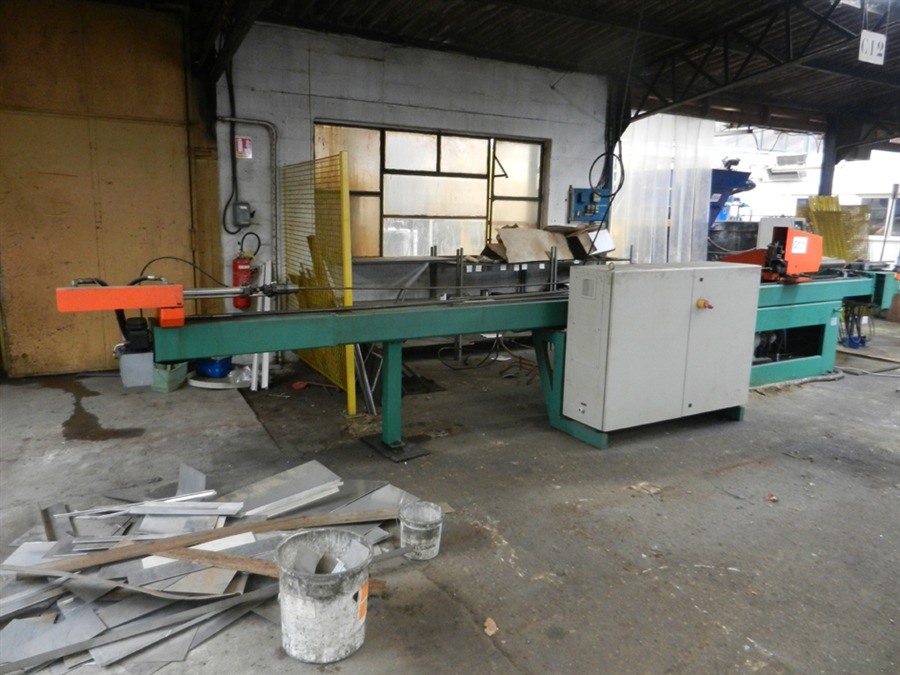

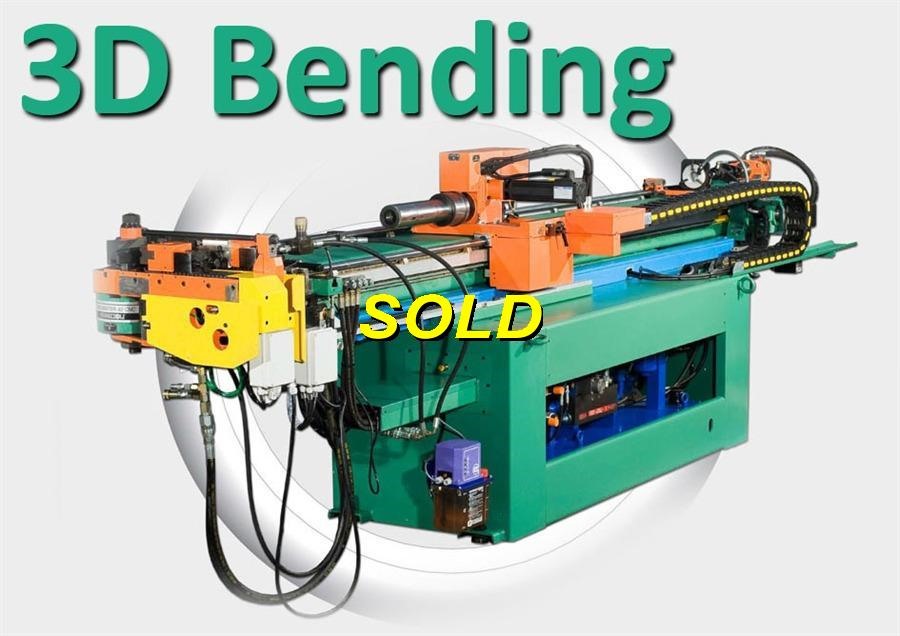

Pedrazzoli Bend Master 42 MR Vario
Technical information
- Capacity42 x 2,5 mm
- Max dia tube x thickness42 x 2,5 mm
- Driven axesCNC
- Motor power20 kW
- Length7500 mm
- Depth1800 mm
- Height1500 mm
- Weight3750 kg
Additional info
- Curvatubi BME 42 WRV
> min internal bending radius with standard shaft: 25 mm
> max bend radius with slide: 270 mm
> max angle: 187°
> standard shaft dia: 40 mm
> max bend die height (multiradius): 134 mm
> horizontal head stroke: 380 mm
> total installed power: 20 kW

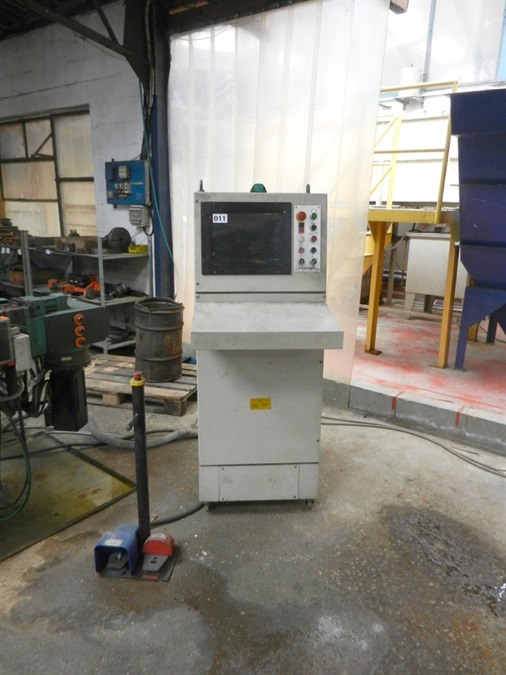

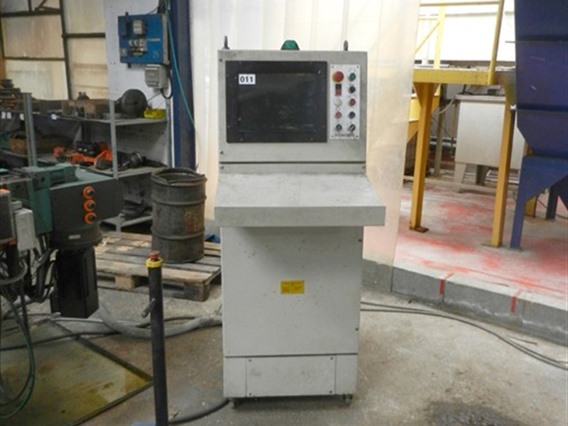

> control: Pedrazzoli control IMS

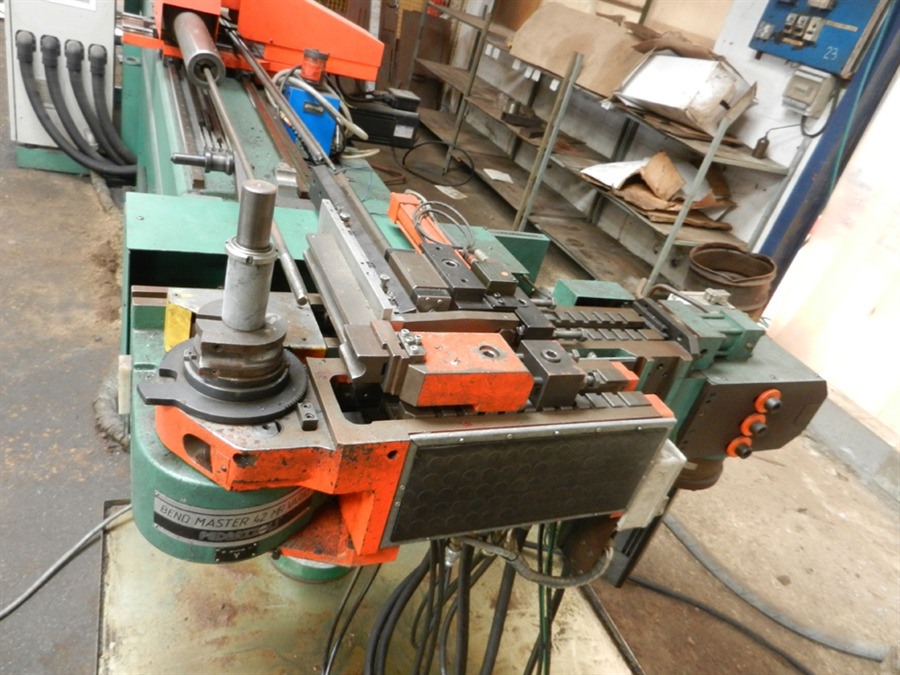

- horizontal & vertical movement of head
- can only bend clockwise
- multi-radius bending (different radii and variable radius bends)
- punching, hitch feeding, auto unloading
Standard equipment:

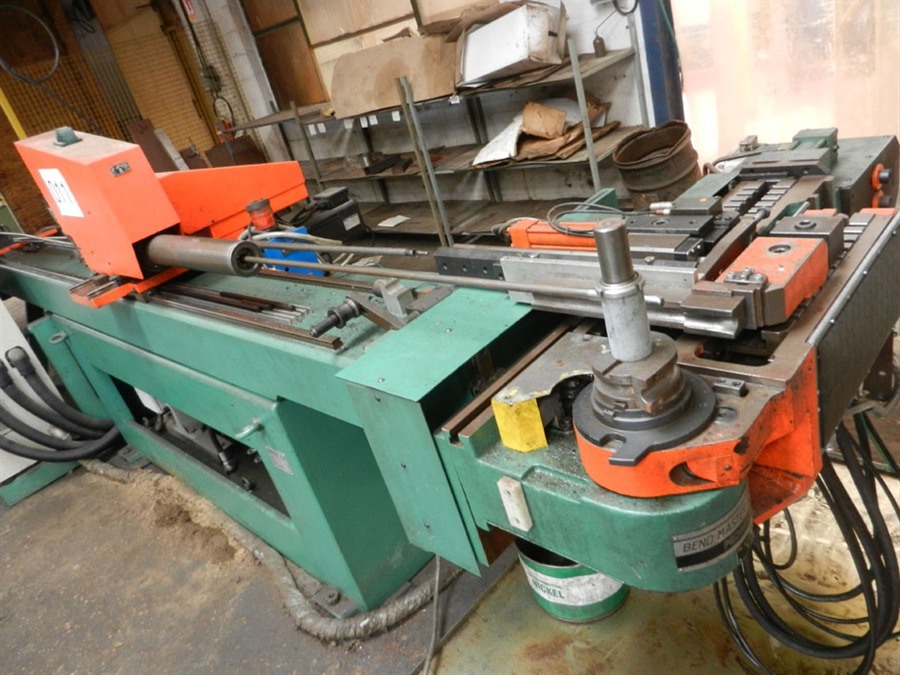

- mandrel bending device
- anticipated mandrel extraction
- mandrel & centralized lubrication
- die return unit
- Type/Model: Bend Master 42 MR Vario
- Stocknumber: Q.01 7365
- Main category: [Q] Bending machines, Straightening machines & Reducing machines
- Sub category: [Q.01] Tube bending machines
- Brand: Pedrazzoli
