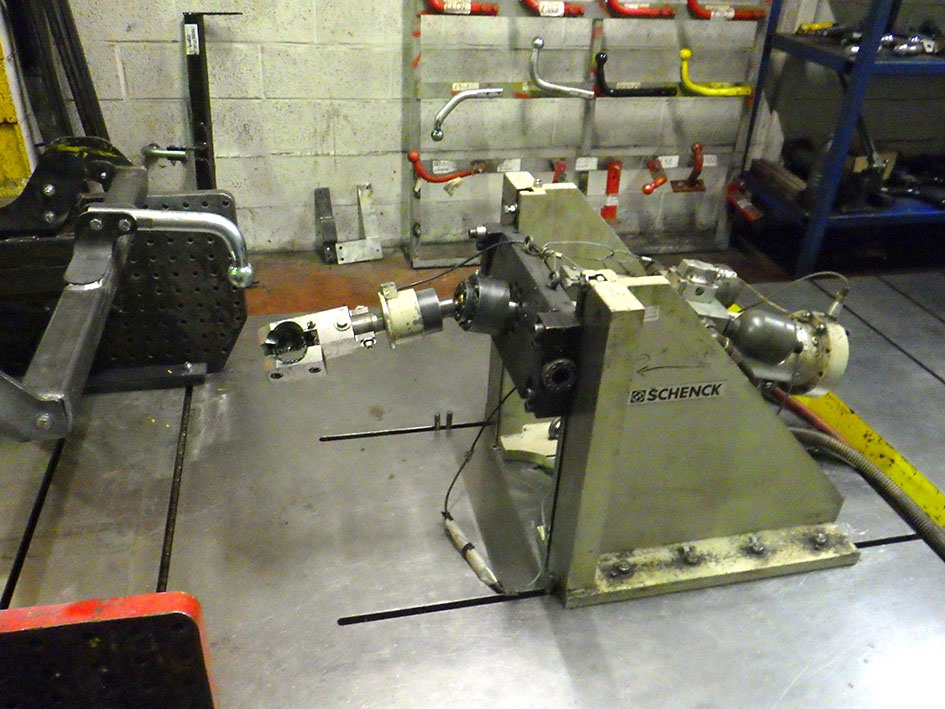

Tension and pressure testing gauge Schenck Fatigue test rig
Additional info

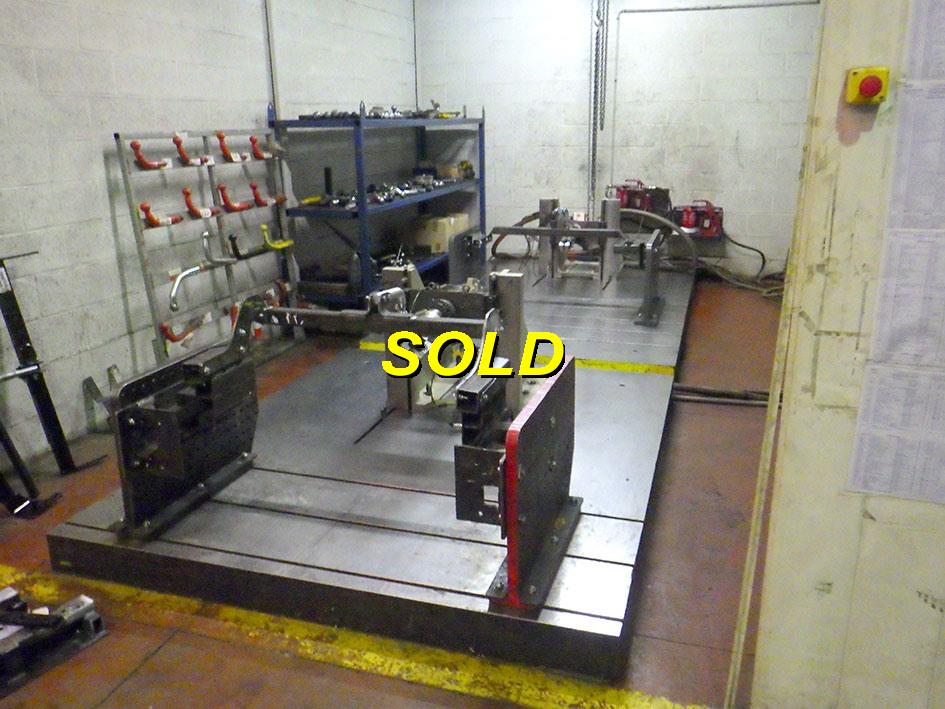

- Two test rigs connected to one control unit.

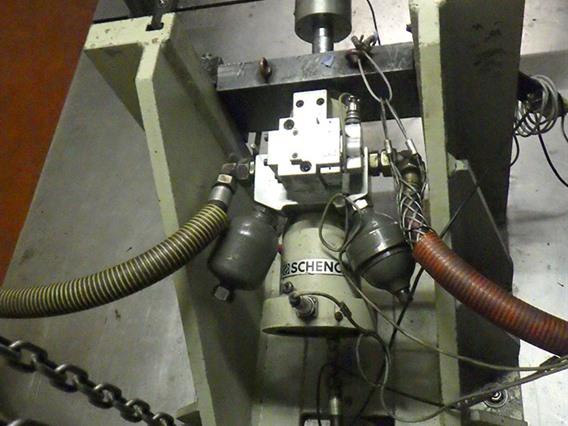

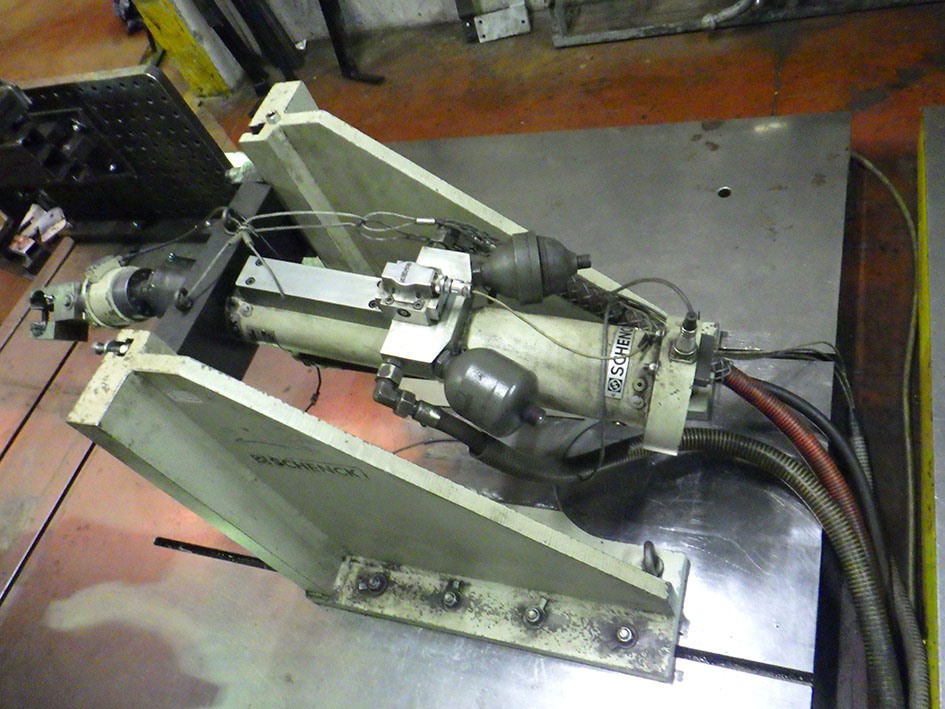

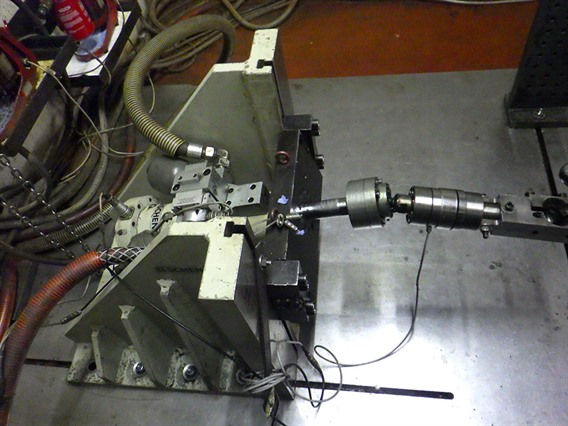

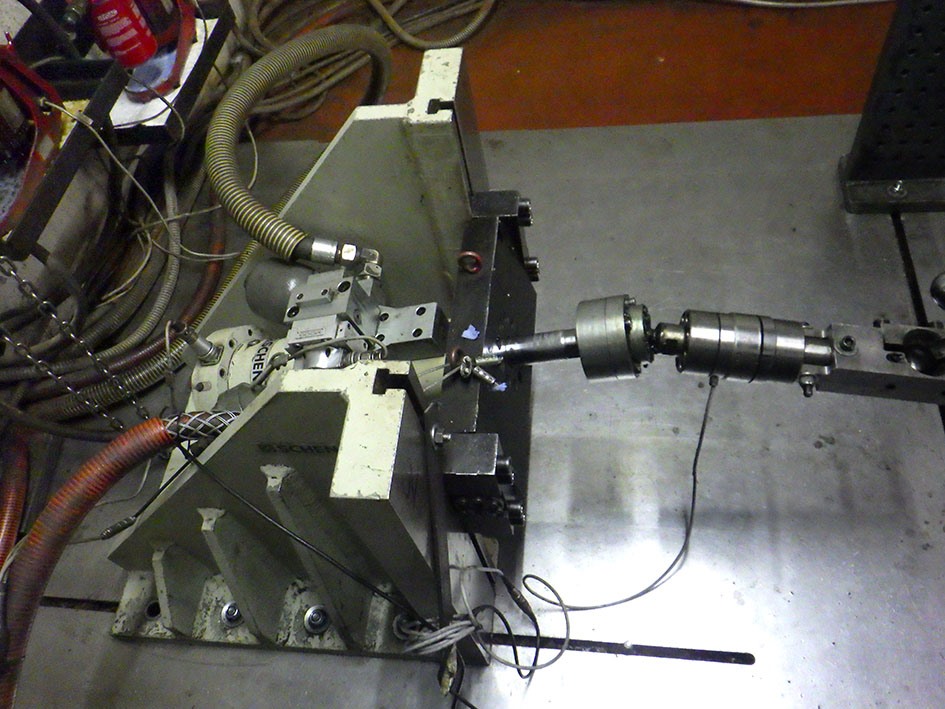

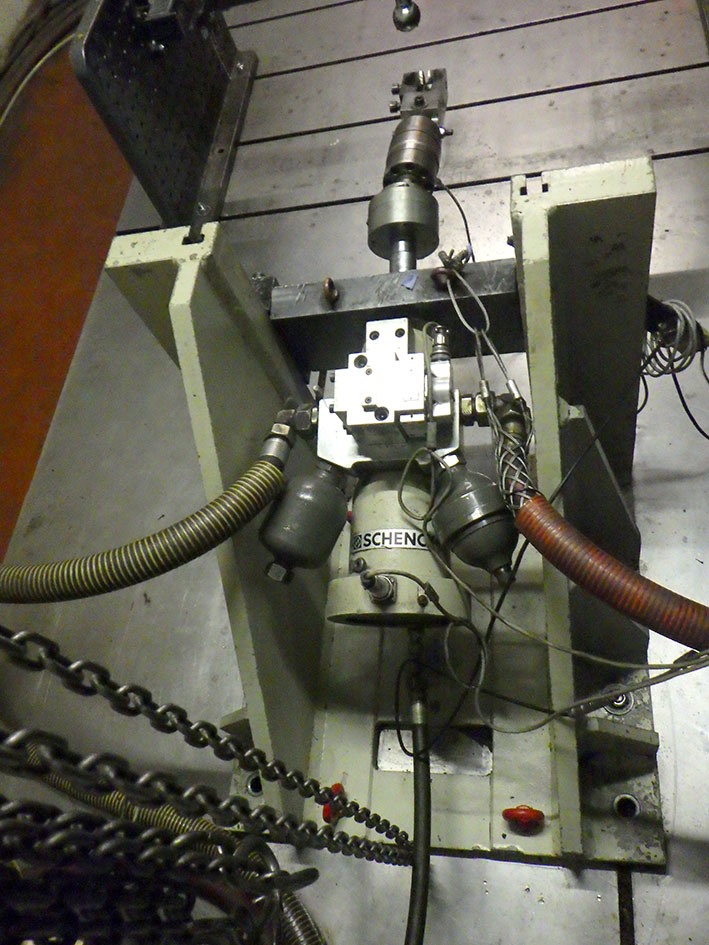

Linear actuator Hydropuls PL 25 N
- static force: +- 25 kN
- dynamic force: +- 20 kN
- stroke: 250 mm
- very high resistance to lateral forces

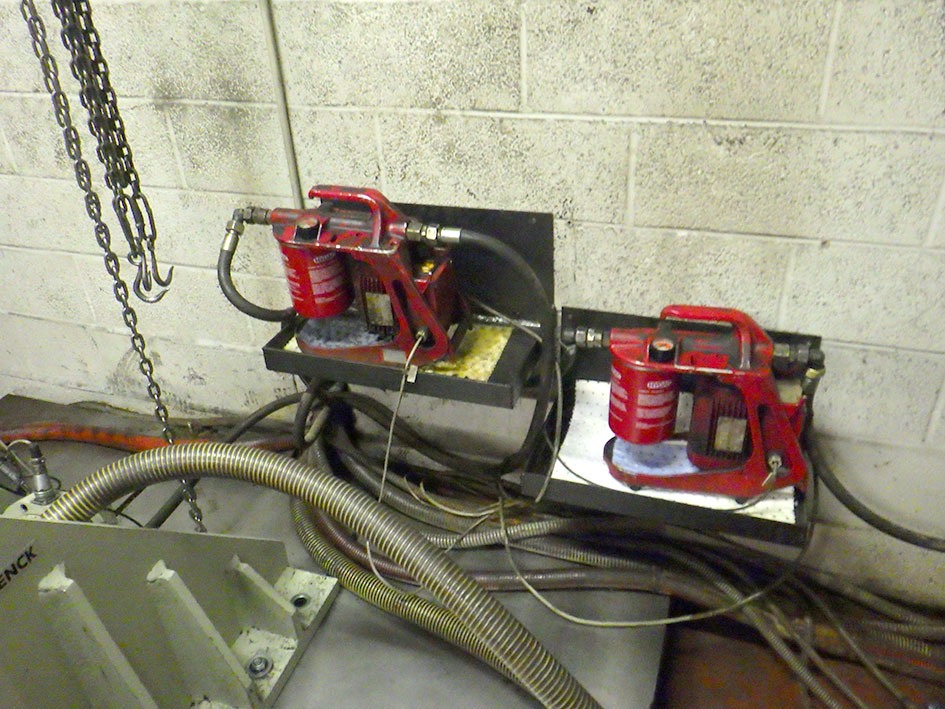

2 stage servo valves for a pressure drop of 70 bar

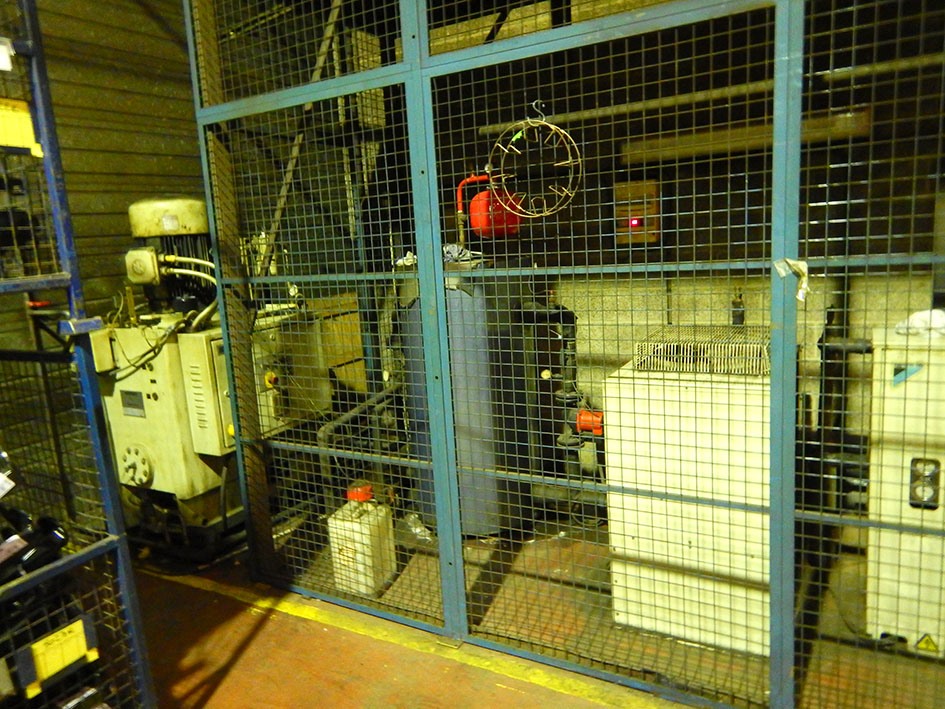

Hydraulic unit 280 bar (80 l/min)

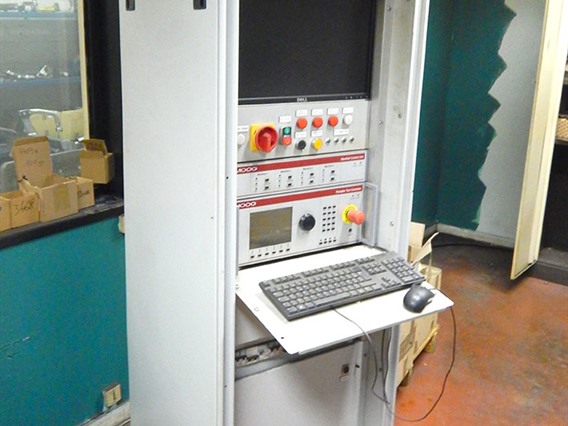

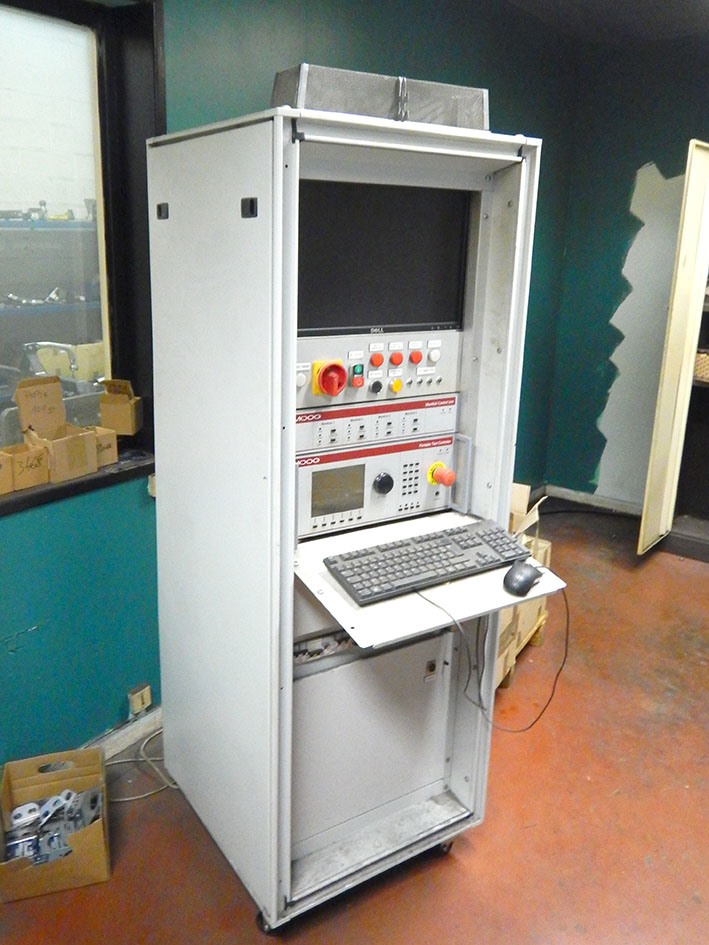

Hydropuls Serie 56 control unit

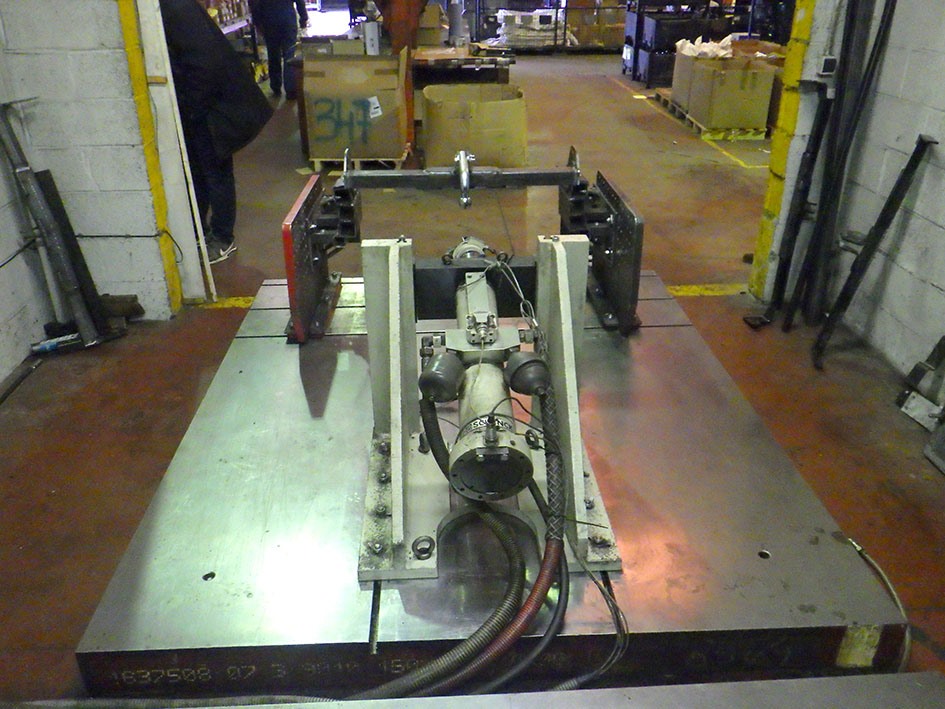

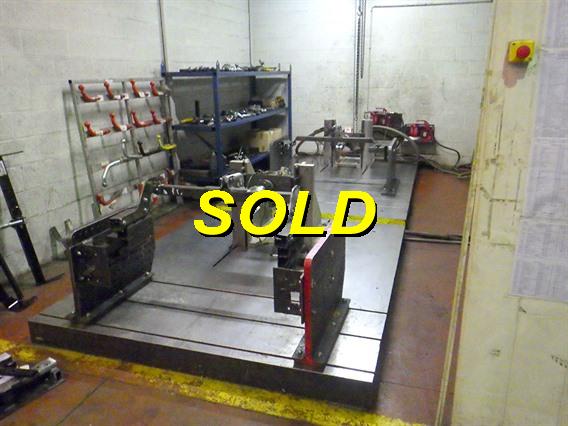

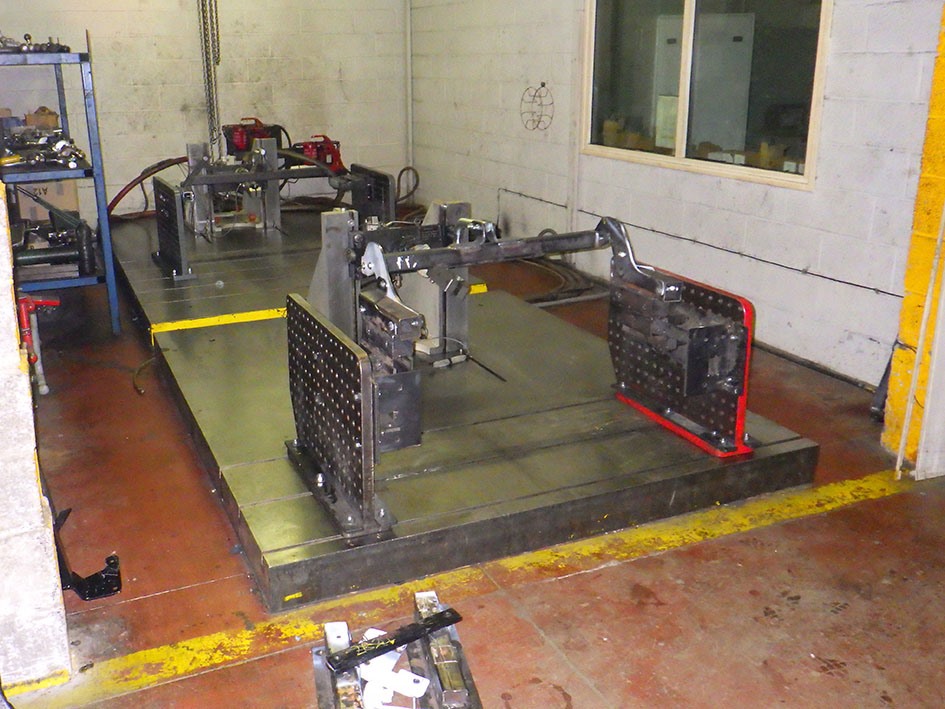

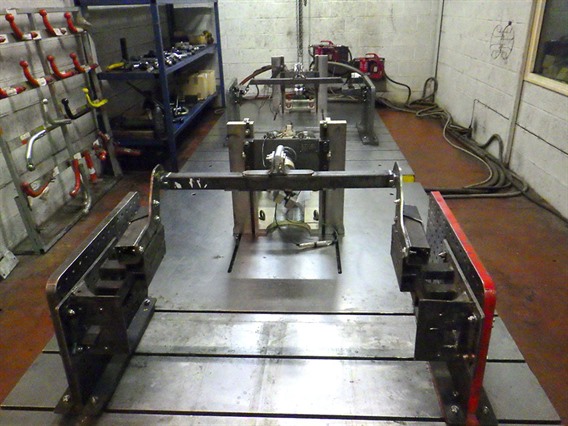

2 T-slot tables (each 3000 x 2000 x 400 mm)

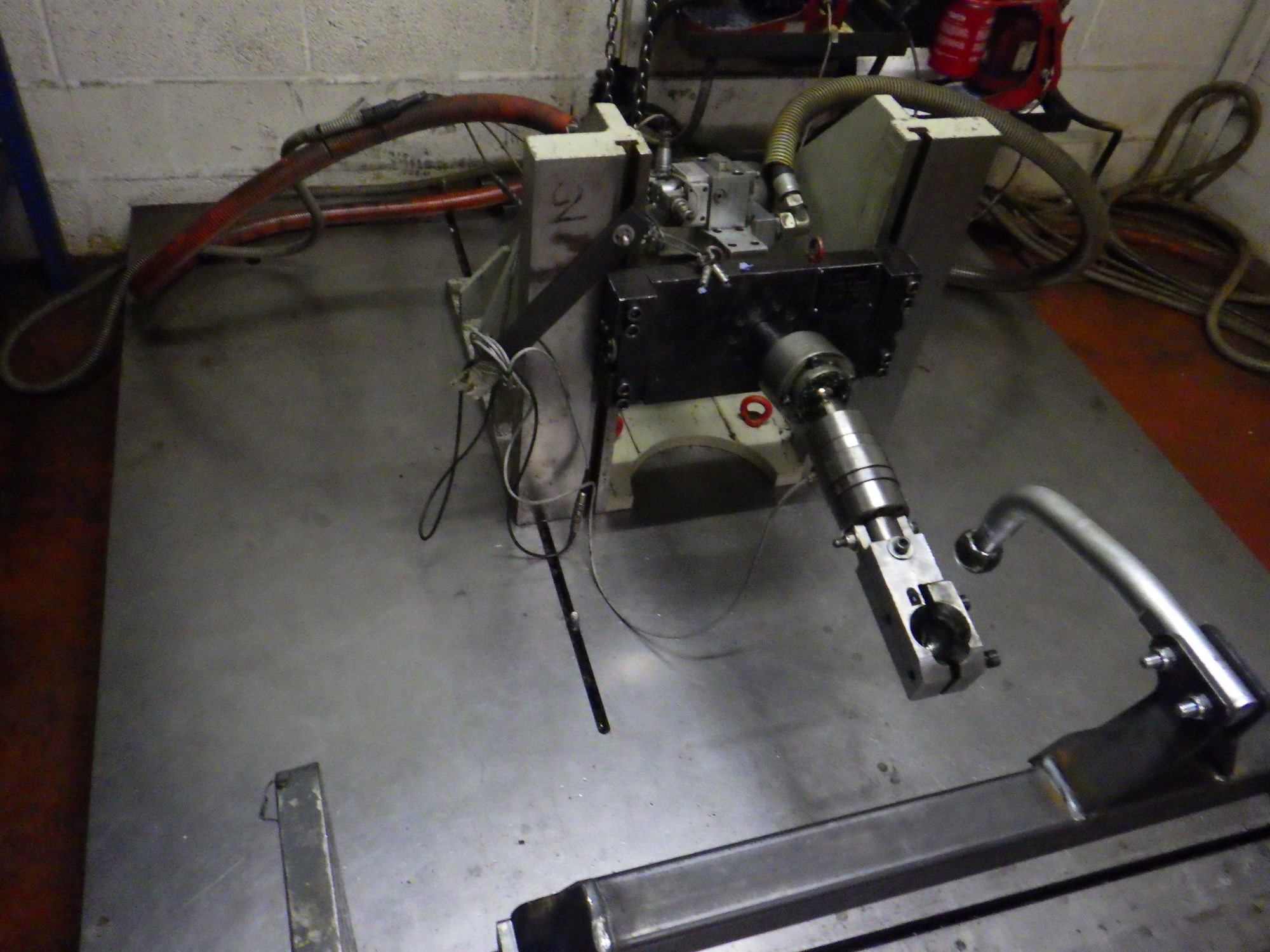

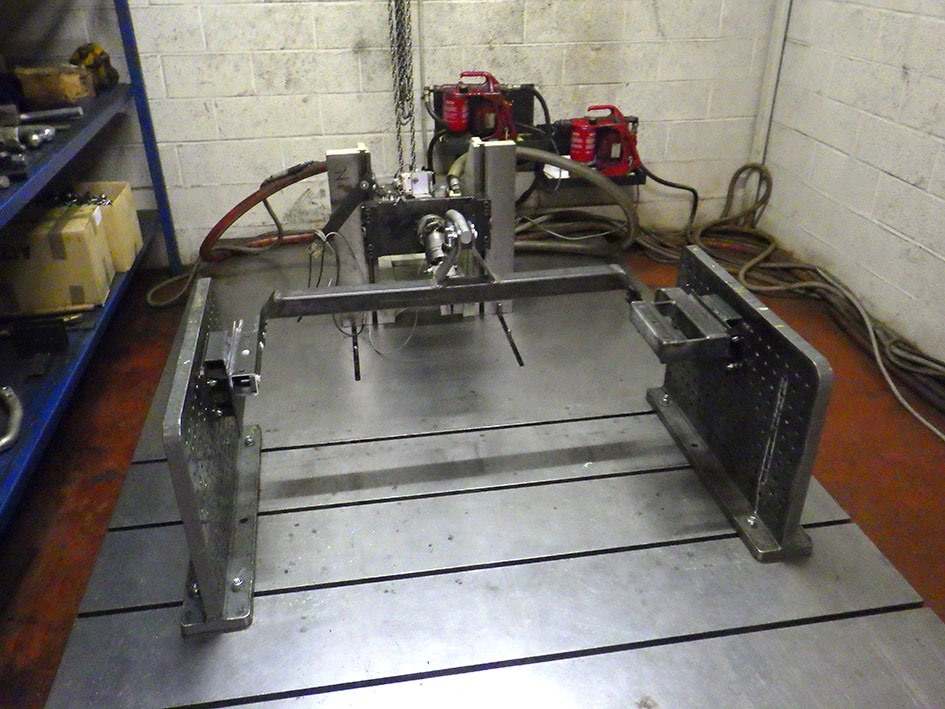

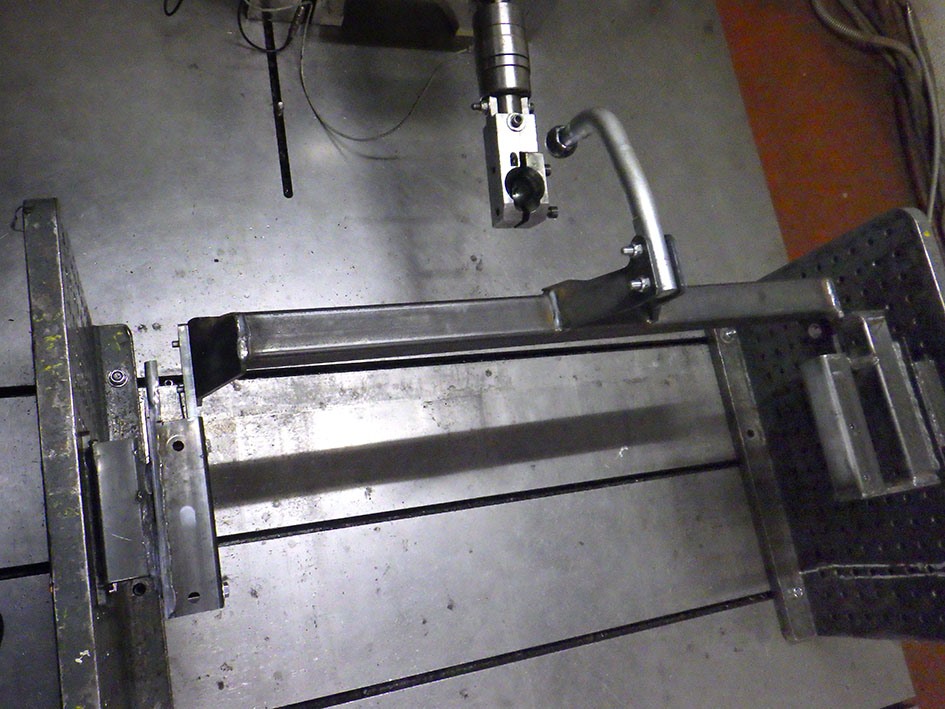

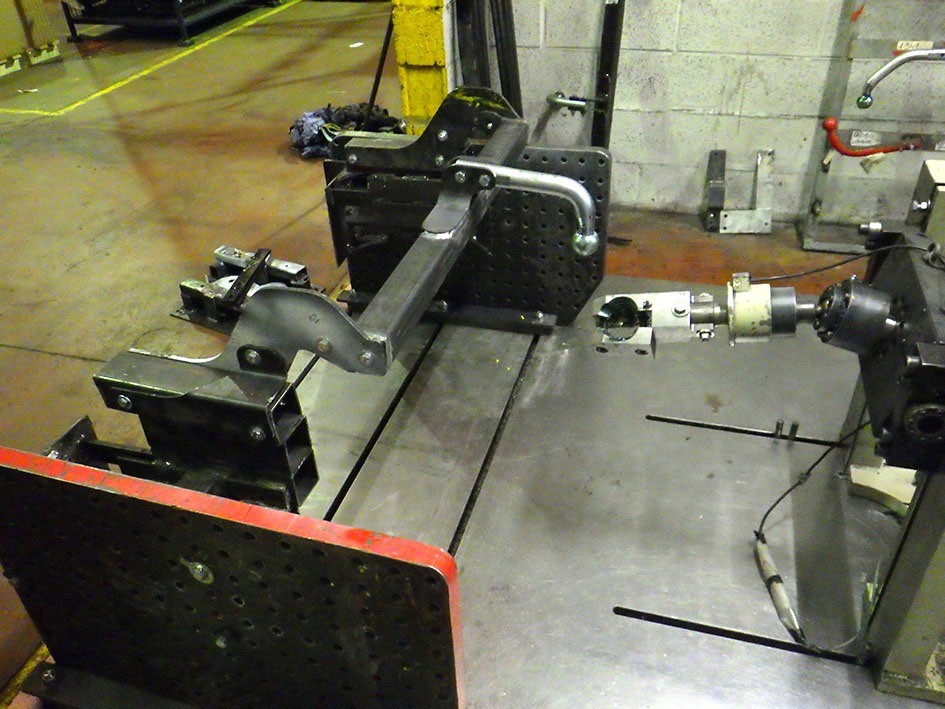

Previously used to test tow bars.
Testbank - Trekbank - Vibratie bank - Tension rig
- Type/Model: Fatigue test rig
- Stocknumber: W.12 10733
- Main category: [W] Measuring and Testing equipment, Balancing machines
- Sub category: [W.12] Tension and pressure testing gauge
- Brand: Schenck
