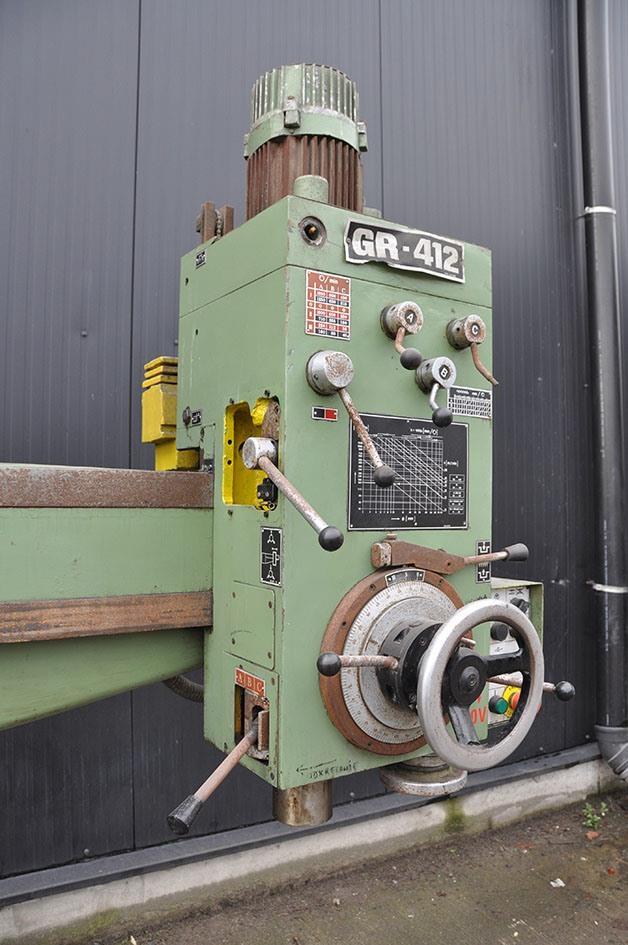

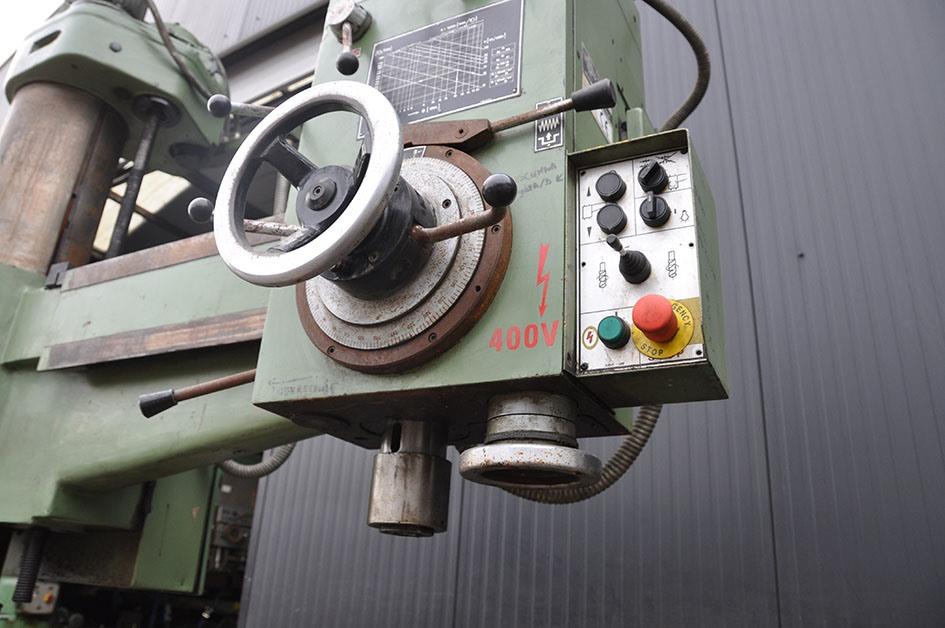

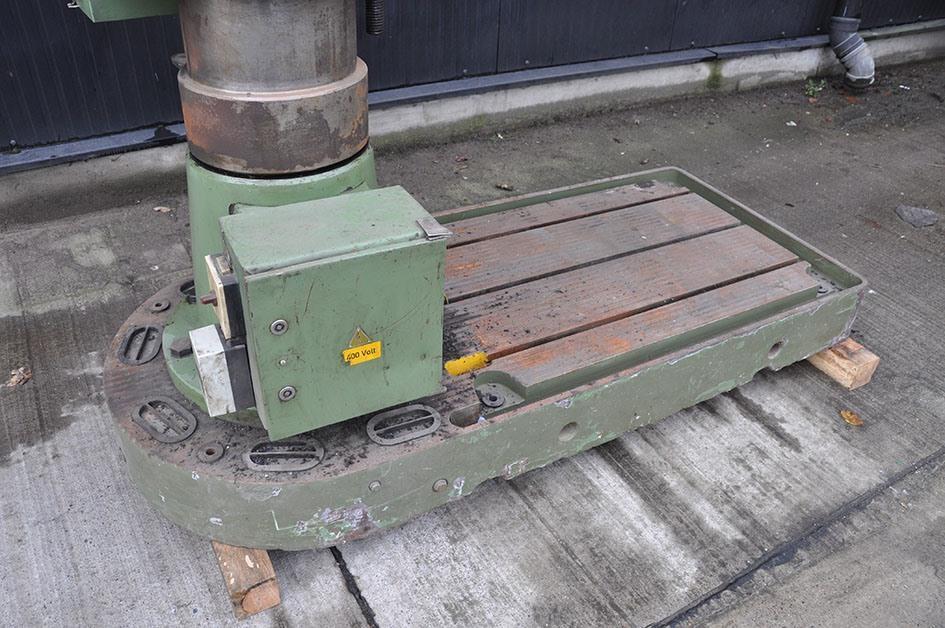

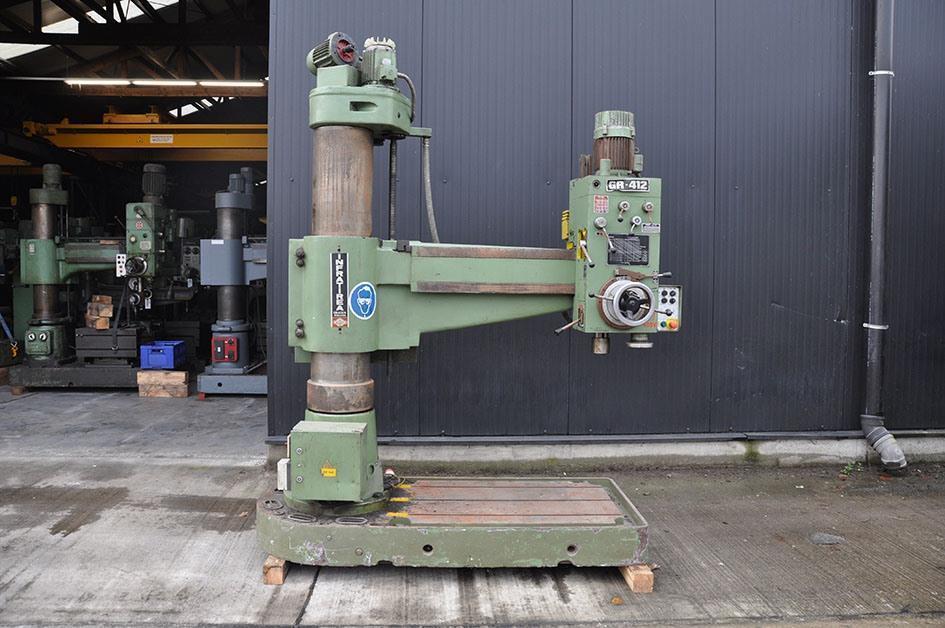

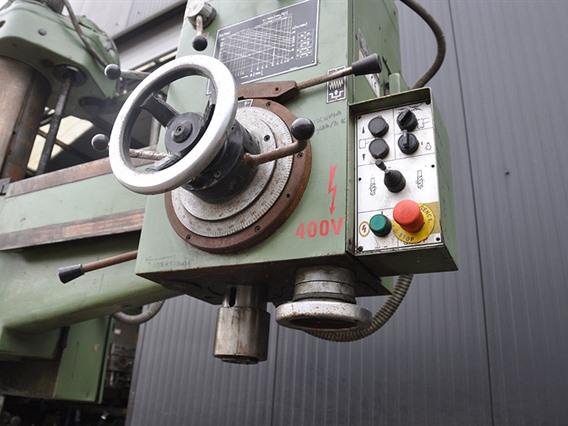

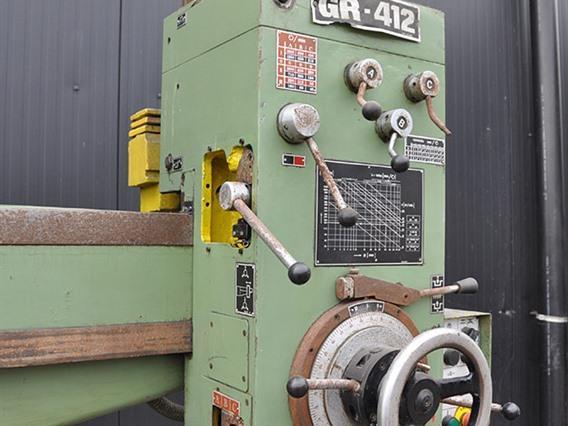

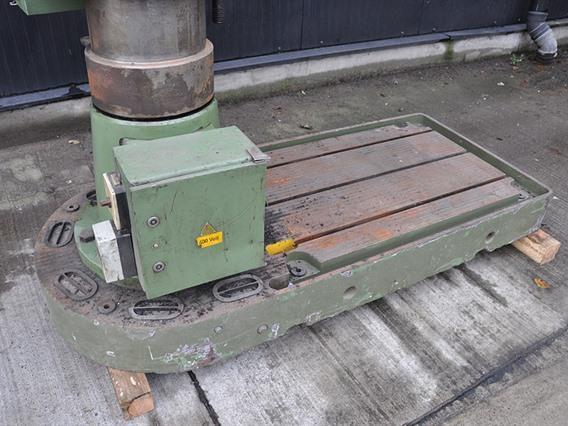

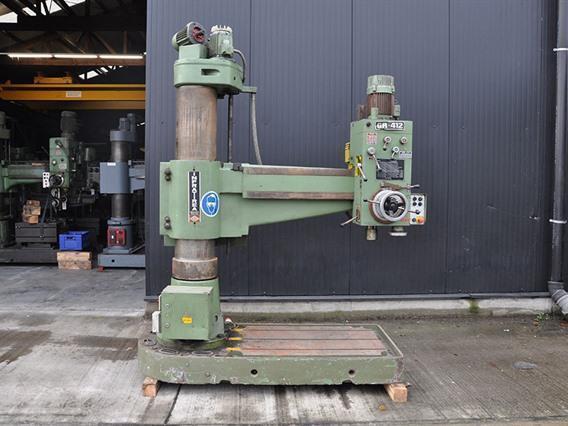

Infratirea GR-412 Mk4

Product added to your favorites

» Request a personalised quote

Technical information

Admission in drilling-spindle (morse)Mk4
Max drilling capacity40 mm
Base dimensions (1) Table dim (2) 1950 x 900 mm
Longitudinal travel drilling-head (X-axis)900 mm
Height-travel arm (Y-axis)730 mm
Min dist. round column--drillingsp (X-axis)350 mm
Max dist.round column -- drillingspindle1250 mm
Max drilling-depth320 mm
Speeds40 > 1800 rpm
Power on the spindle3 kW
Height2800 mm
Cooling system3500 kg

Additional info

Type/Model: GR-412 Mk4
Stocknumber: C.02 10206
Main category: [C] Drilling machines
Sub category: [C.02] Radial drilling machines
Brand: Infratirea

» Request a personalised quote

Stocknumber: C.02 10206

Download all pictures in ZIP
