Waldrich-Coburg N°2 - heavy duty portal&gantry milling

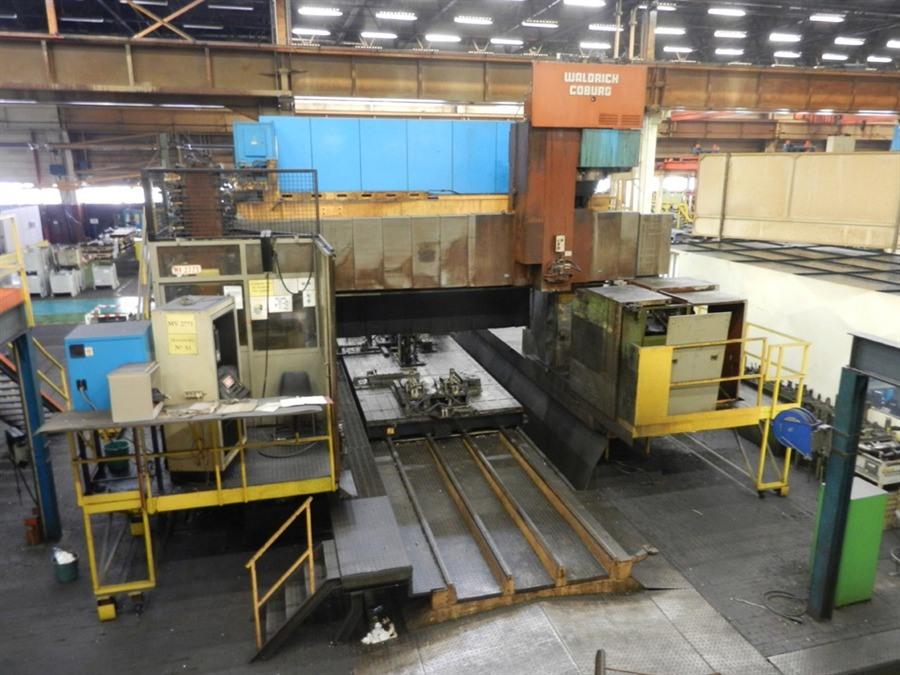

Portal & Gantry milling machine & CNC Waldrich-Coburg N°2 heavy duty portal&gantry milling

Technical information

Passage beween uprights3300 mm
Longitudinal travel X-axe6250 mm
Cross travel Y-axe4600 mm
Travel (height) Z-axe1500 mm
Dimensions Clamping space - table5200 x 2600 mm
Max height of workpiece1950 mm
Power on spindle44 kW
Type of milling headISO 90
ControlAllen Bradley
ACCESSORIES & TOOLINGyes
Toolchangeryes

Additional info

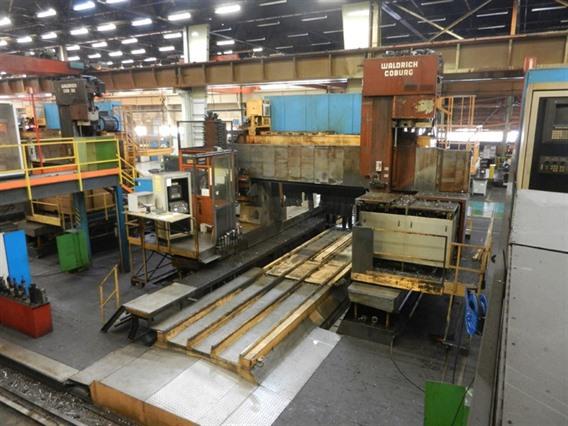

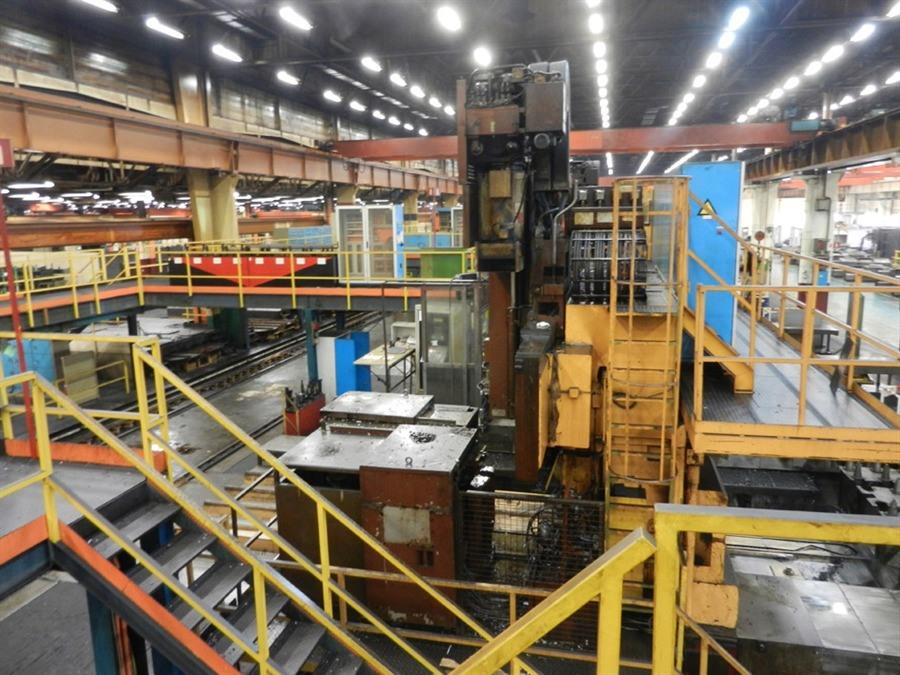

movable portal with fixed table
spindledia: 170 mm

toolstorage > 2 parts:

1) pick and place toolstorage of ISO 90 for vertical spindle - 30 tools

2 ) classic toolstorage of ISO 60 - 46 tools

max weight on table: 50 ton

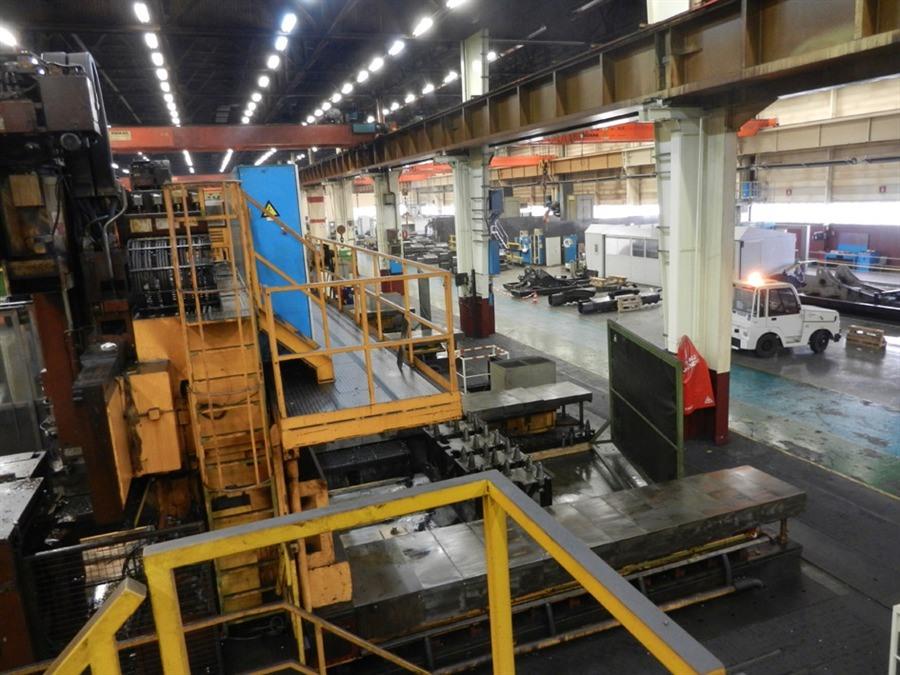

automatic table pallet changing (2 tables)

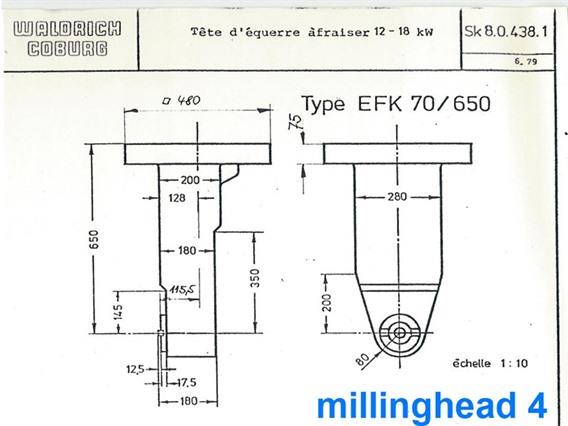

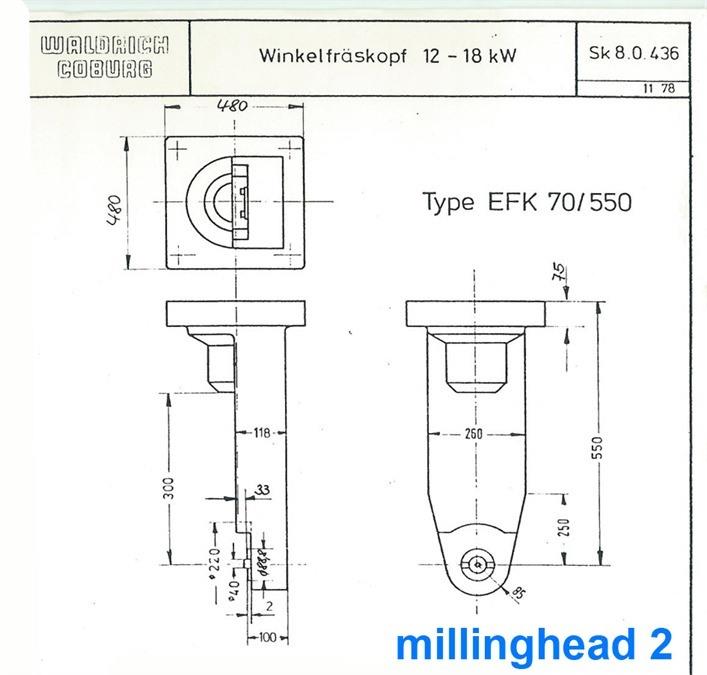

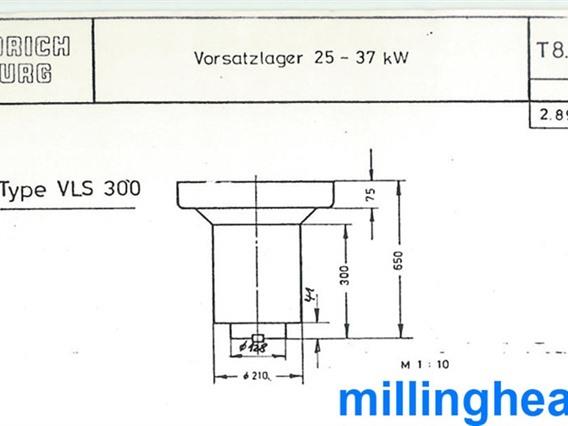

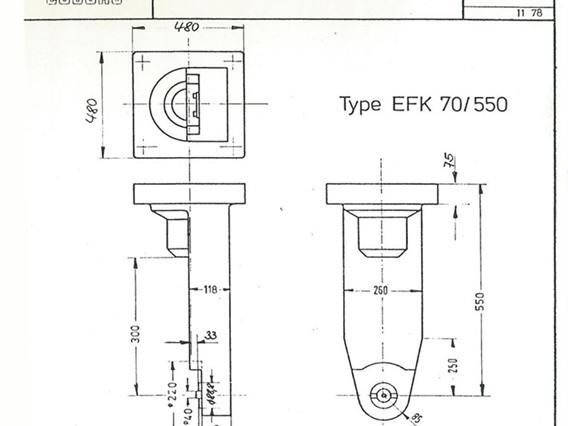

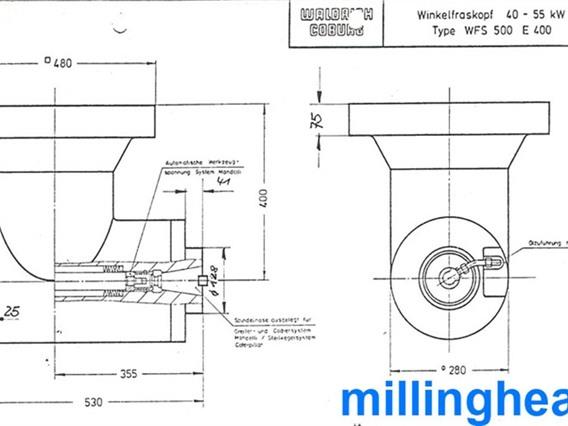

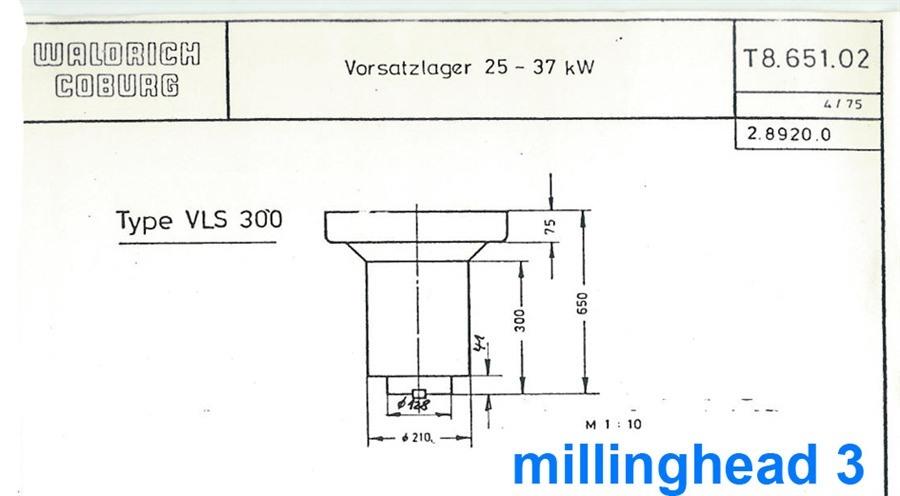

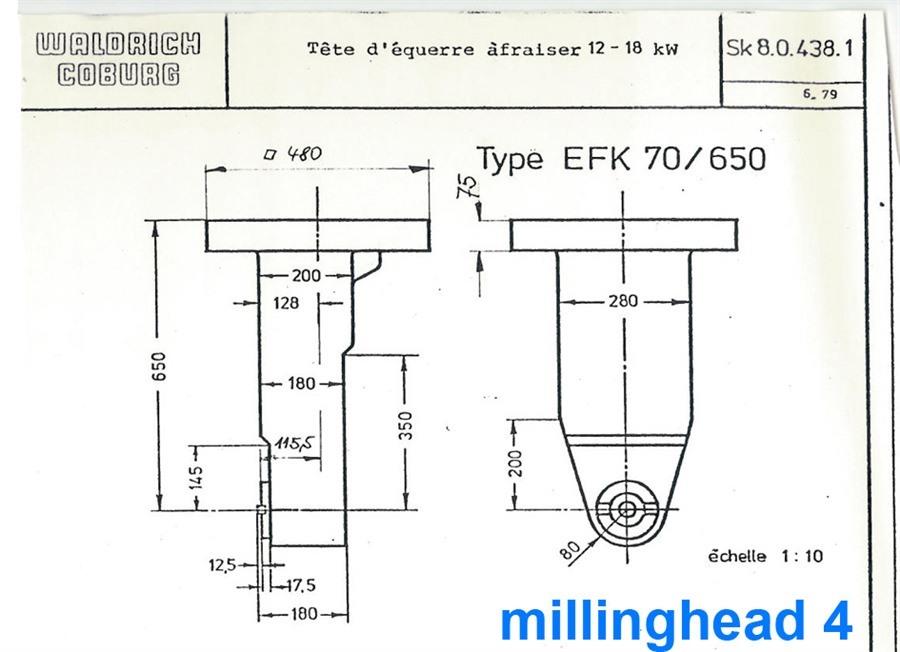

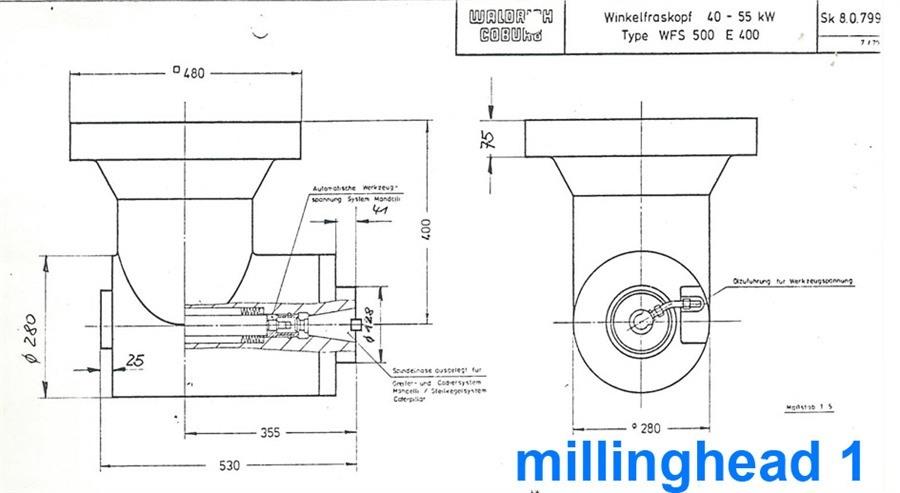

automatic changing of 4 different millingheads (full indexing) + 4 in reserve

full hydrostatic guidingsystem

Optional:

automatic loading trolley for supplying the 3 Waldrich-Coburg machines and 2 Burkhardt-Weber machines
Type/Model: heavy duty portal&gantry milling
Stocknumber: B.06 7559
Main category: [B] Milling machines
Sub category: [B.06] Portal & Gantry milling machine & CNC
Brand: Waldrich-Coburg N°2

Stocknumber: B.06 7559
