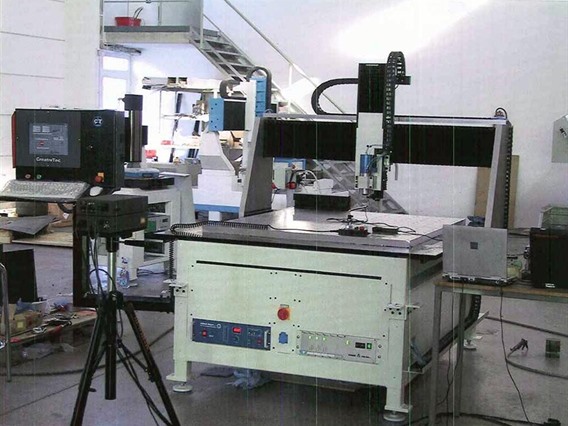

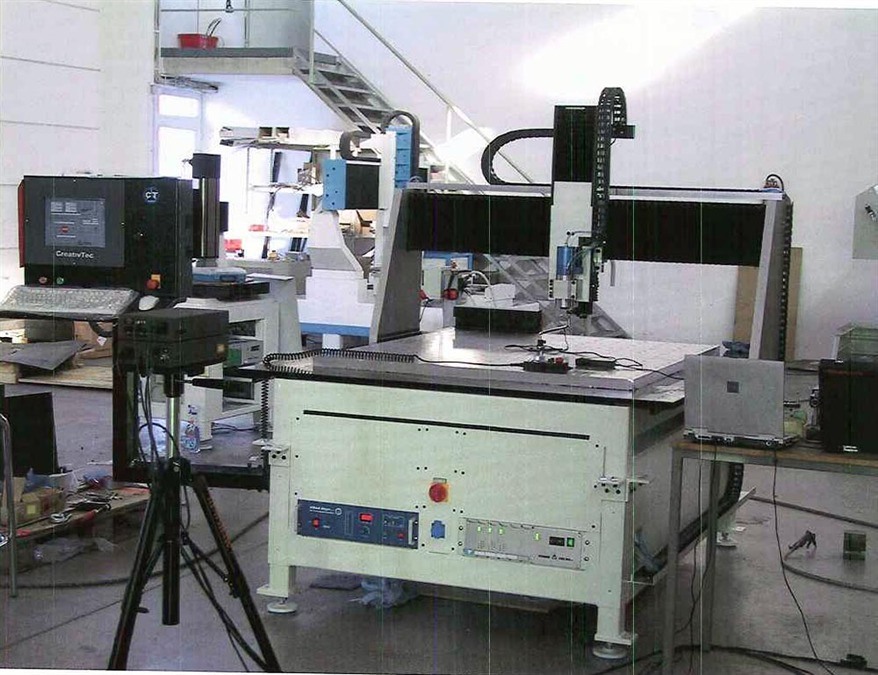

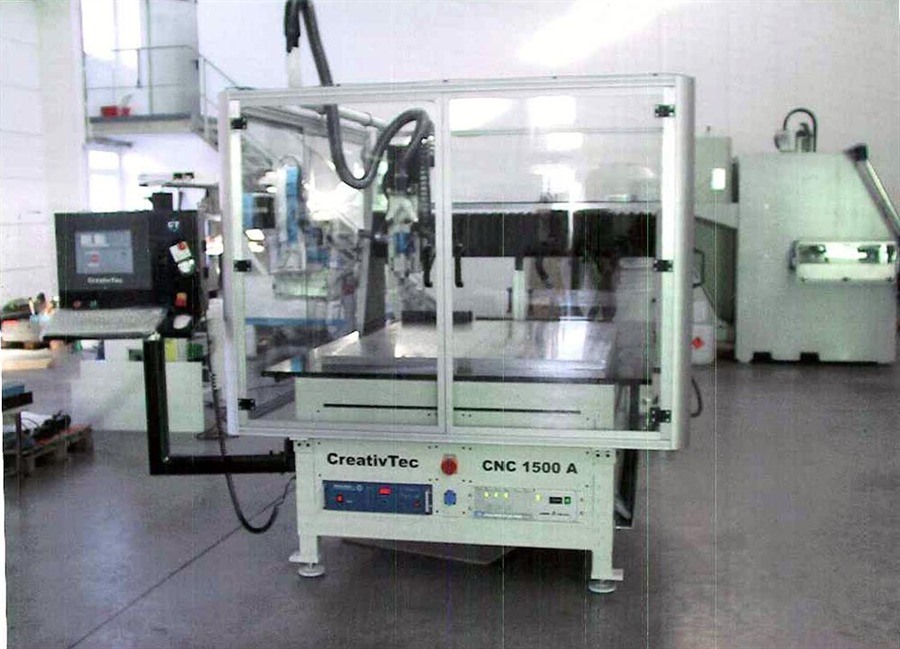

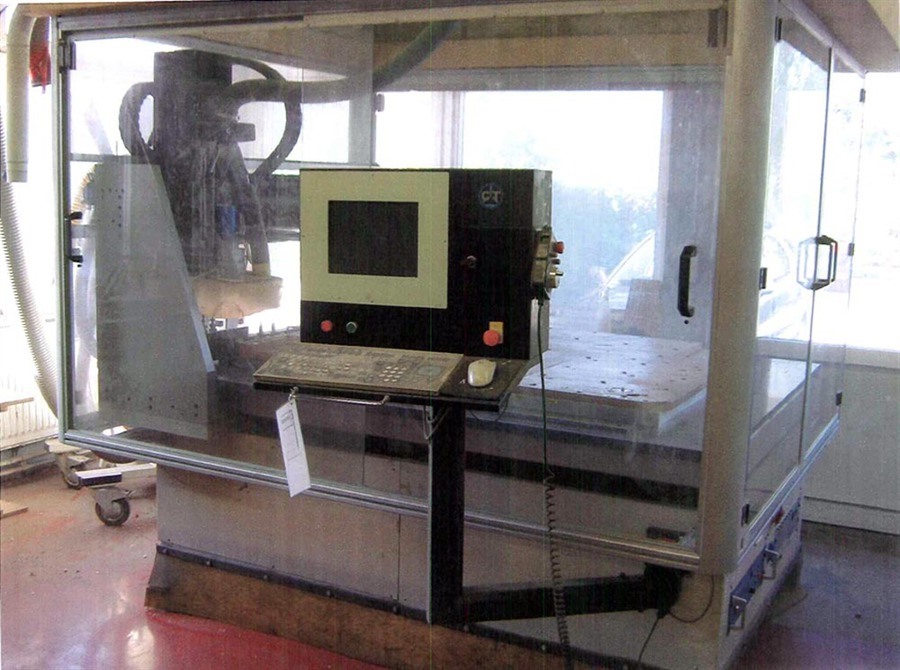

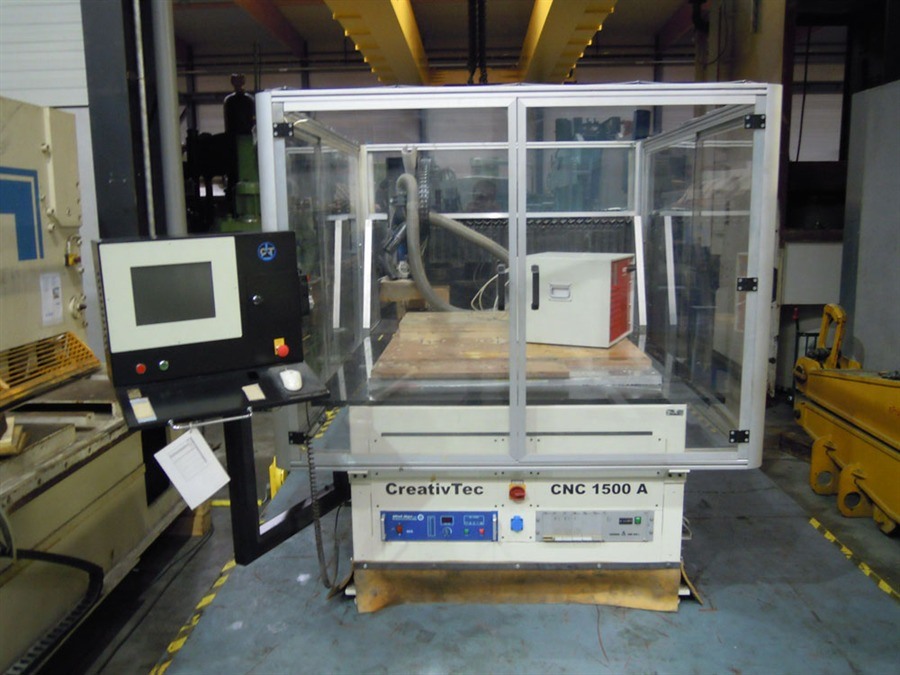

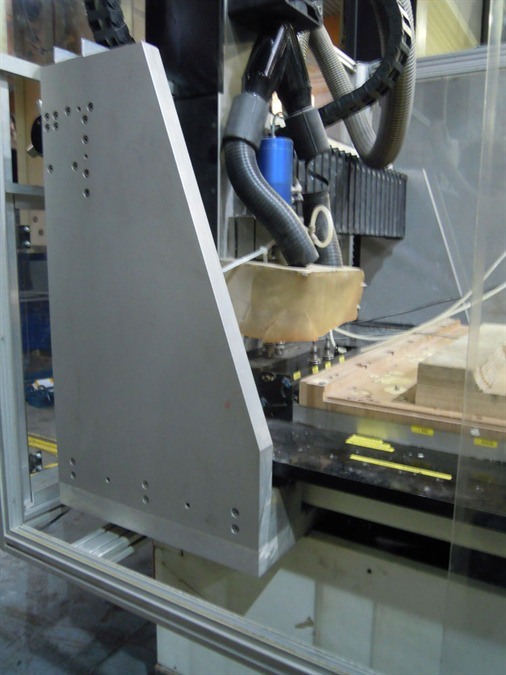

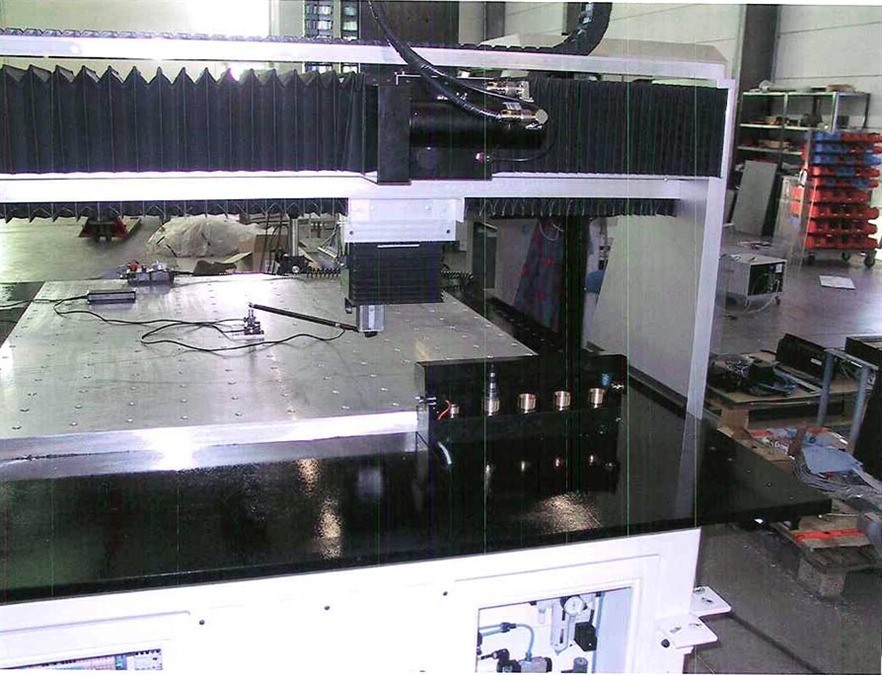

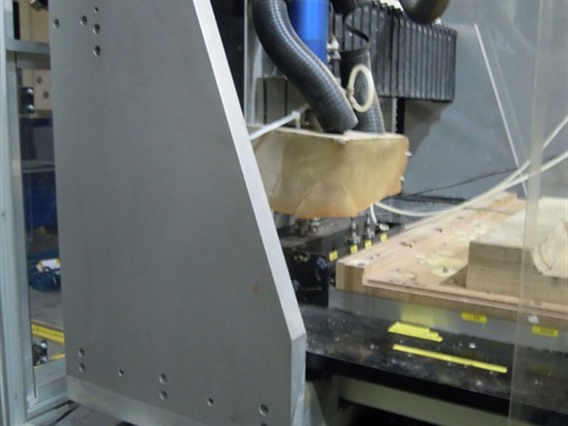

Portal & Gantry milling machine & CNC Koerner - Creativ Tec CNC 1500 A

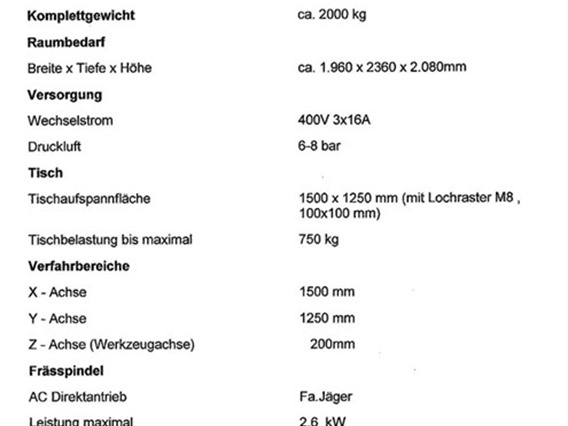

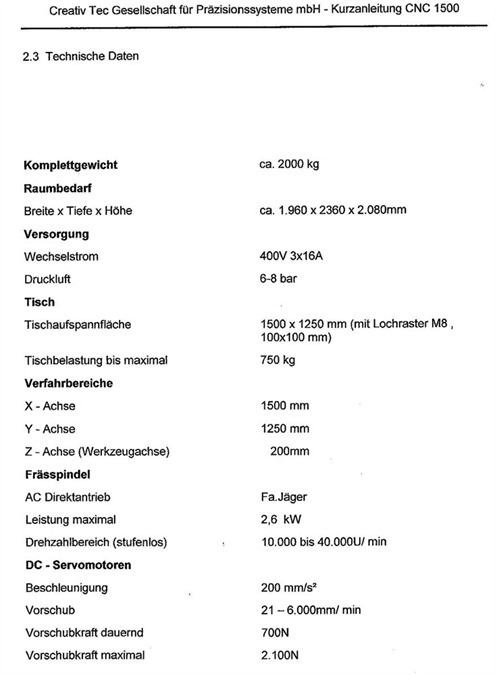

Technical information
- Longitudinal travel X-axe1500 mm
- Cross travel Y-axe1250 mm
- Travel (height) Z-axe200 mm

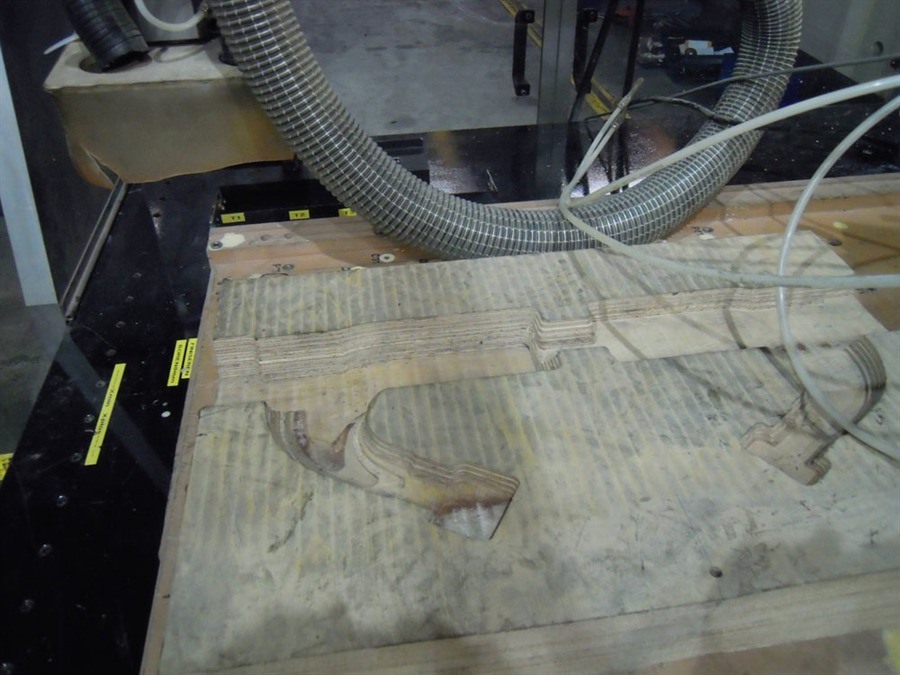

- Dimensions Clamping space - table1500 x 1250 mm
- Power on spindle2.6 kW

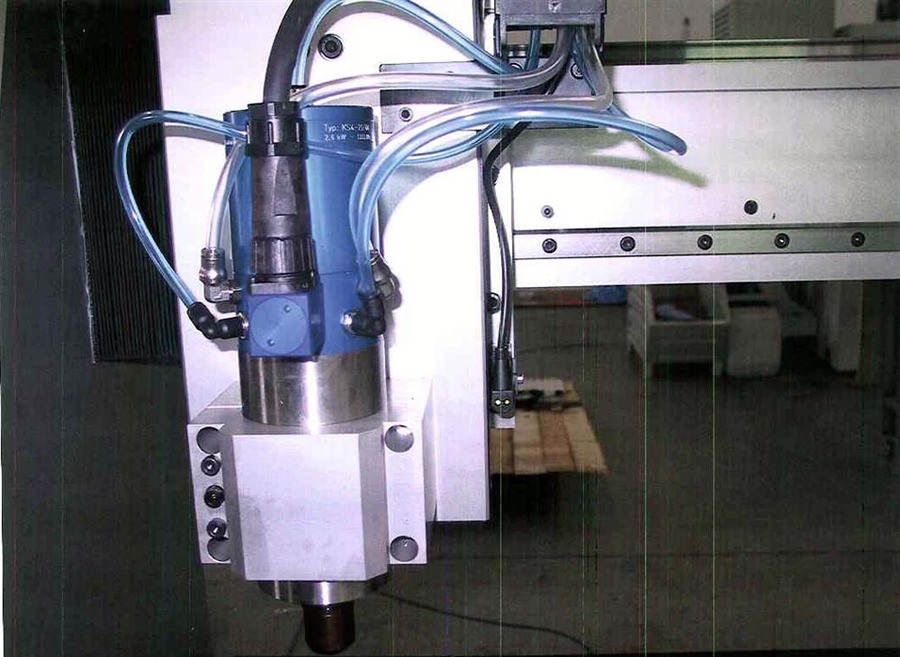

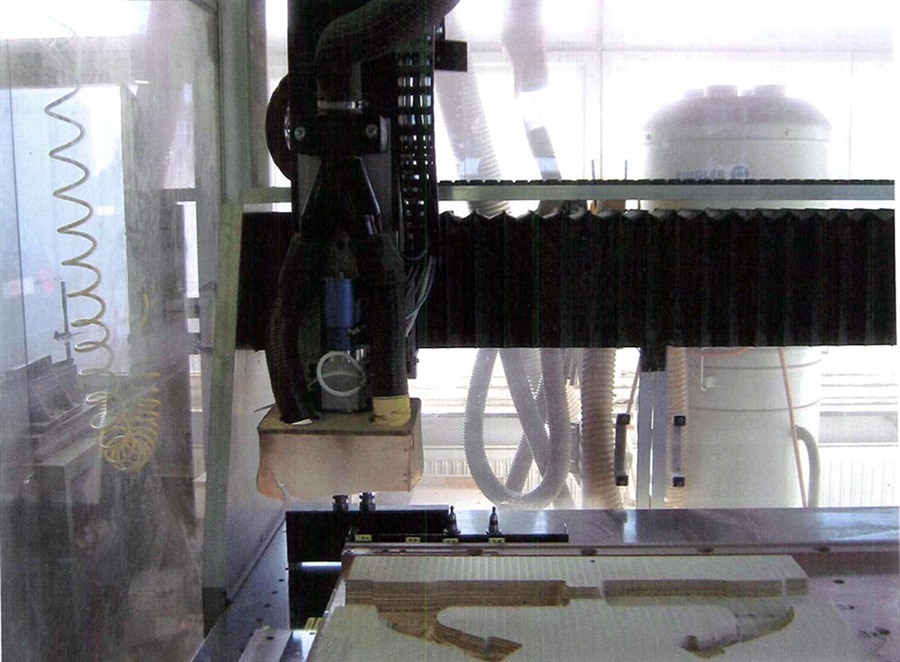

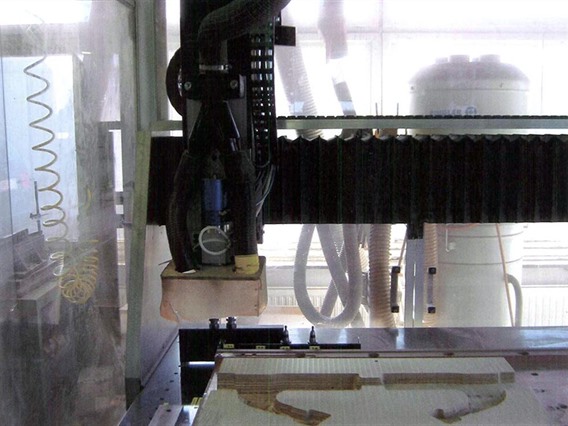

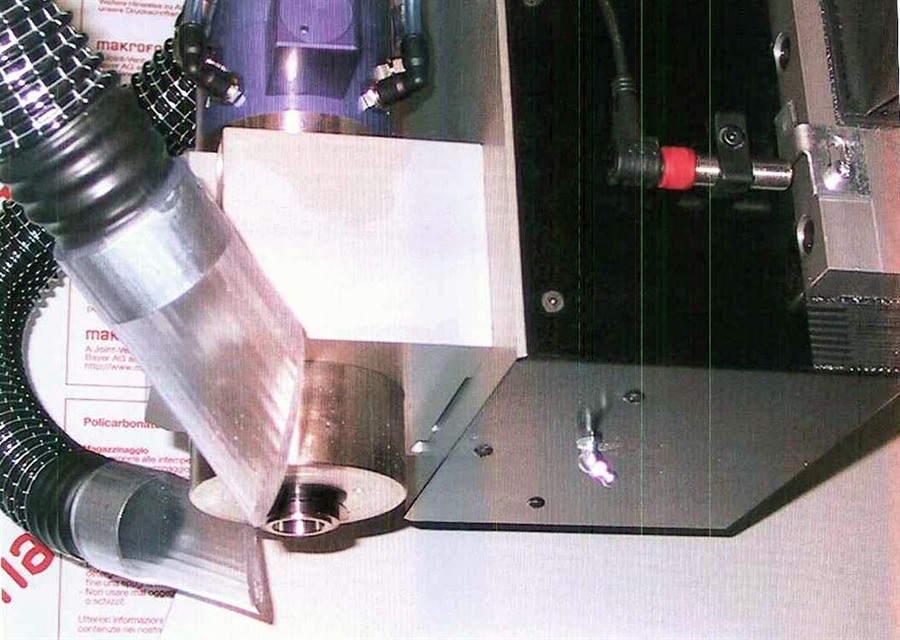

- Type of milling headAlfred Jäger high speed spindle
- Max speedrange40 000 rpm

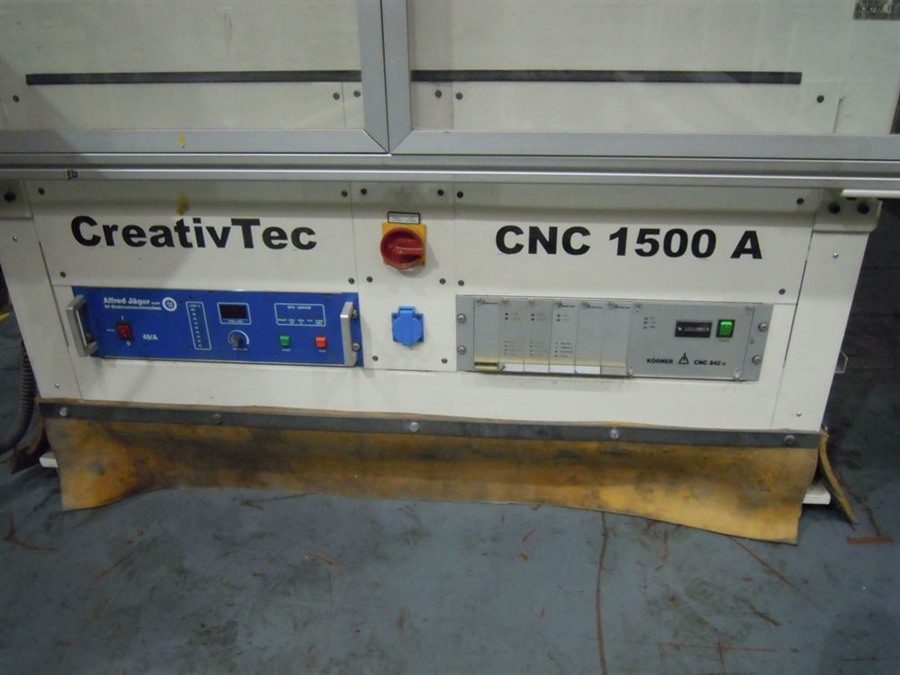

- ControlKoerner CNC 842 TI
- Length1960 mm
- Depth2360 mm
- Height2080 mm
- Weight2000 kg

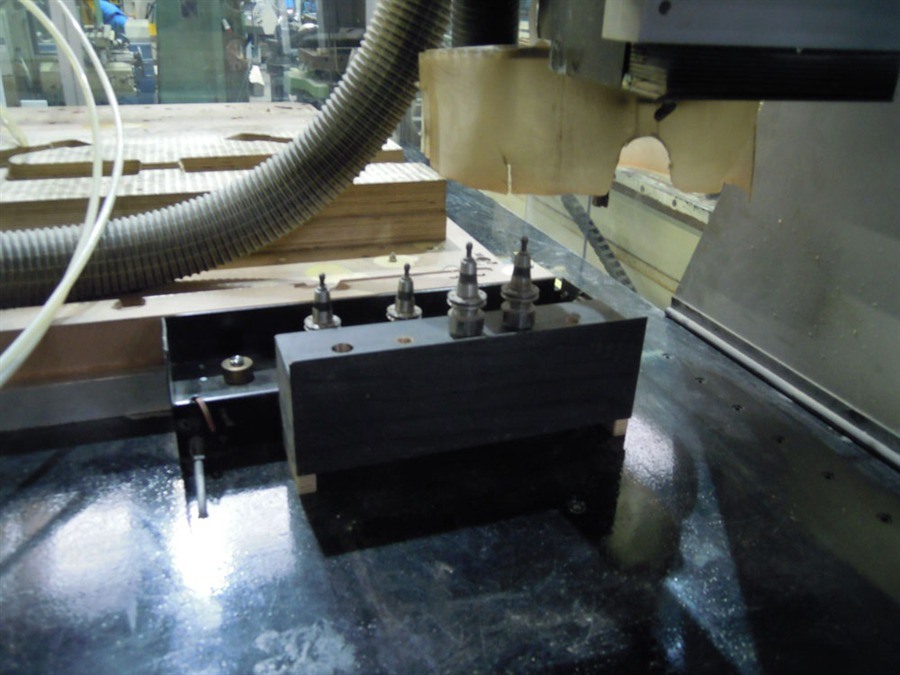

- ToolchangerYes
- Number of tools4 positions
