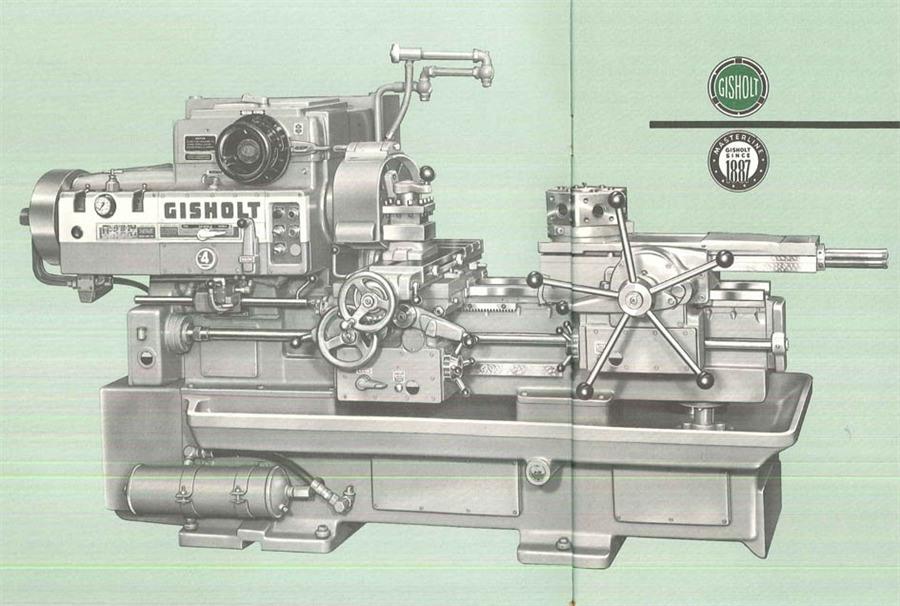

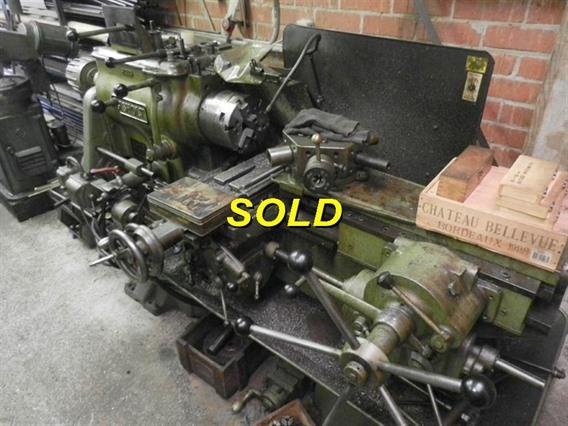

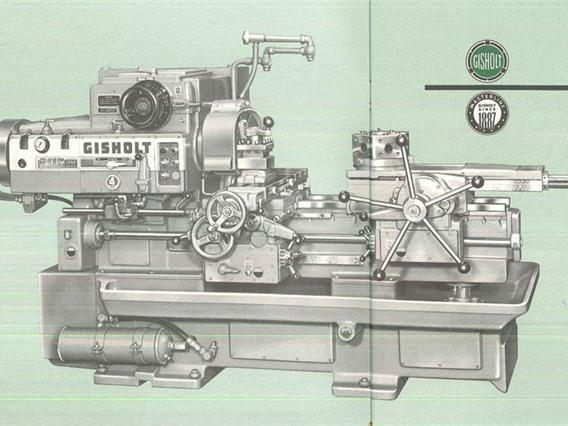

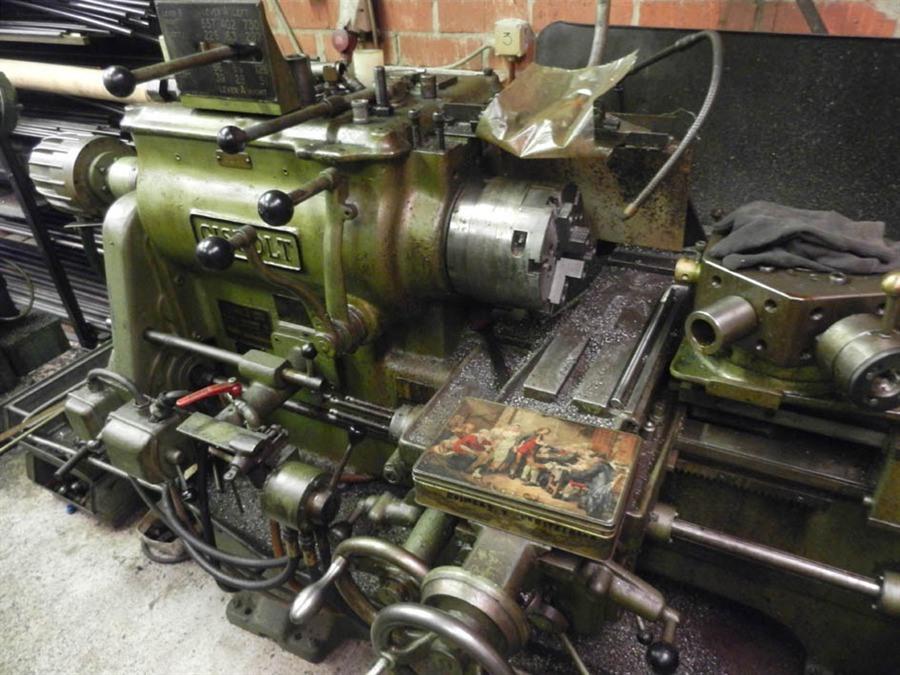

Gisholt No 3 turret lathe
Additional info
- longitudinal travel: 543 mm
swing over way: 495 mm
swing over carriage: 427 mm
swing over cross-slide: 270 mm
swing over ram: 178 mm
angle of tracer: 45°
max tracer piston travel: 6
max tracer radius change: 105 mm
chuck: 254, 305 mm
speeds: 40 - 2000 rpm
power: 15-25 hp
- Type/Model: turret lathe
- Stocknumber: A.13 7933
- Main category: [A] Lathes
- Sub category: [A.13] Other turning machines
- Brand: Gisholt No 3
