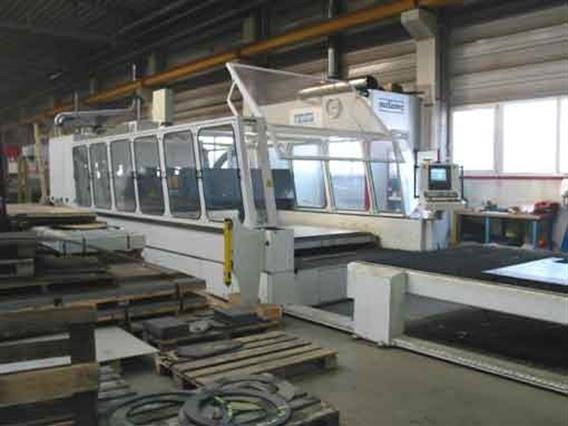

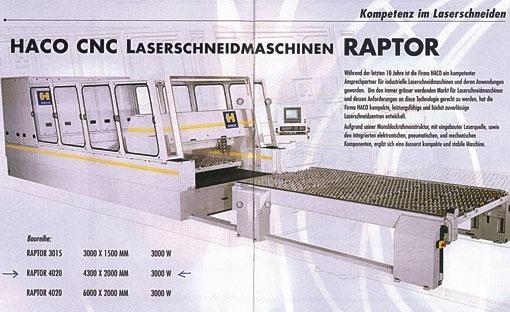

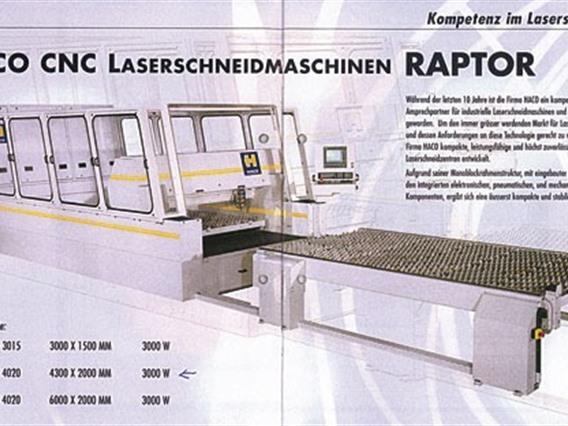

Laser cutting machines Haco Raptor 4020- 3kW

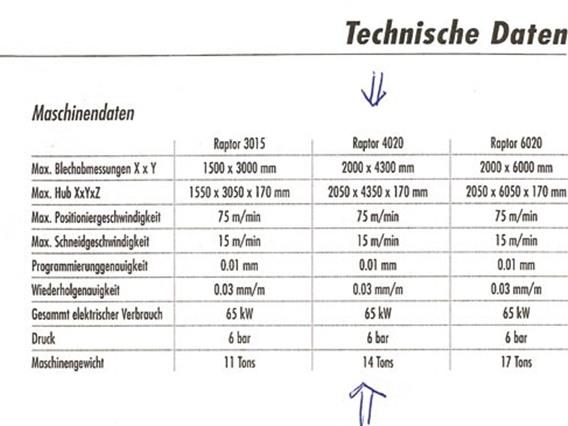

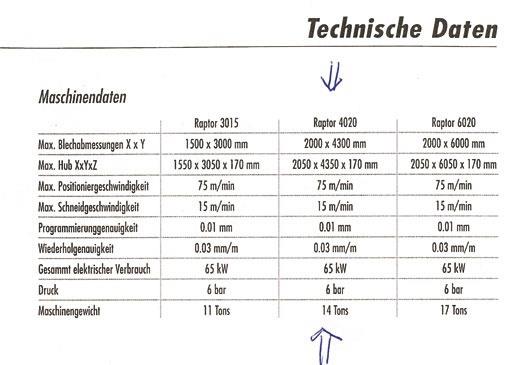

Technical information
- Workpiece dimensions4300 x 2000 mm

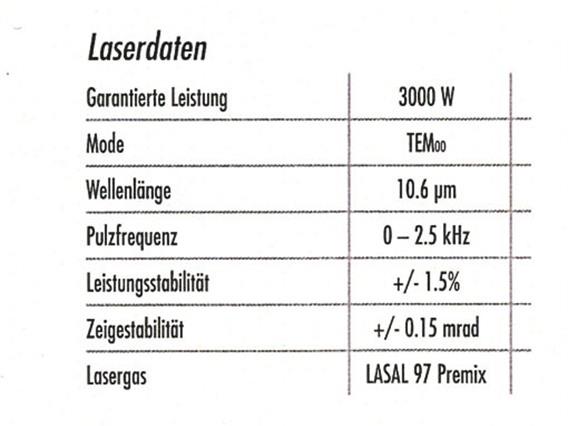

- Type of LaserHaco resonator
- Power3000 W

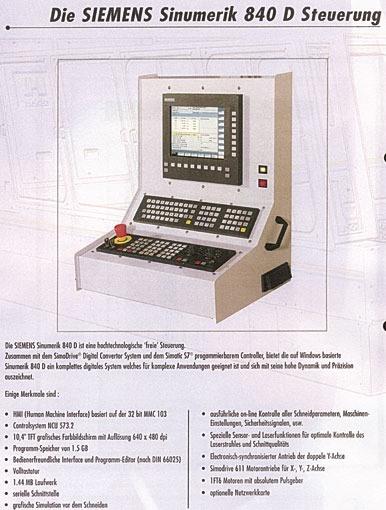

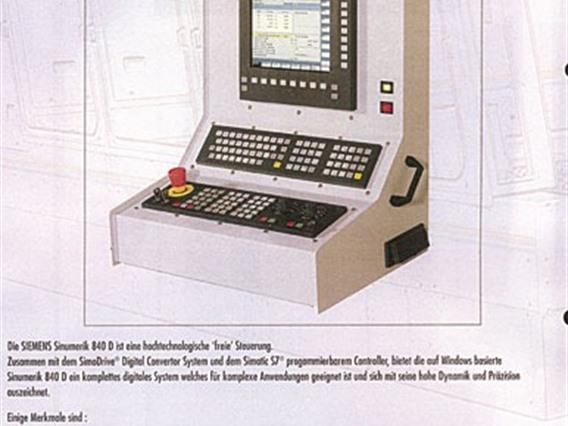

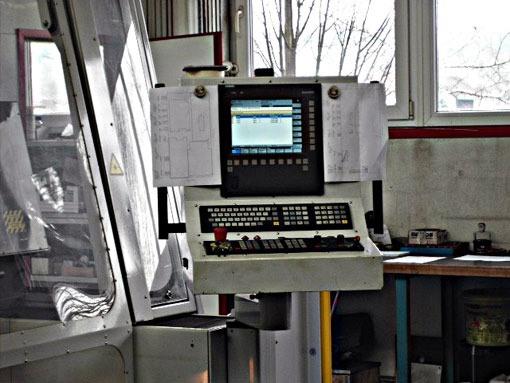

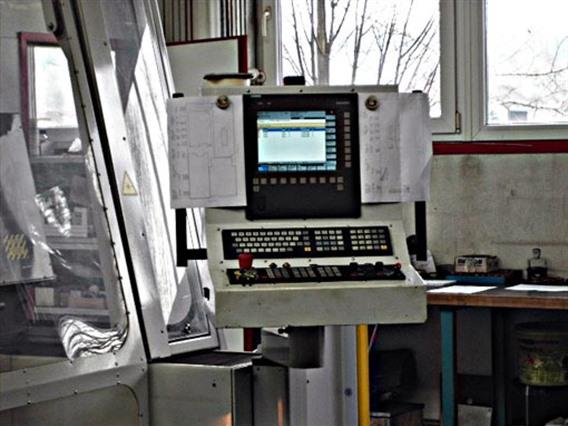

- ControlSiemens Sinumerik 840D
- Longitudinal travel X-axis4350 mm
- Cross travel Y-axis2050 mm
- Hight travel Z-axis100 mm
- Travel speed75 m/min
- Max cuttingspeed15 m/min
- Max cuttingthickness in steel20 mm
- Motor Power65kW

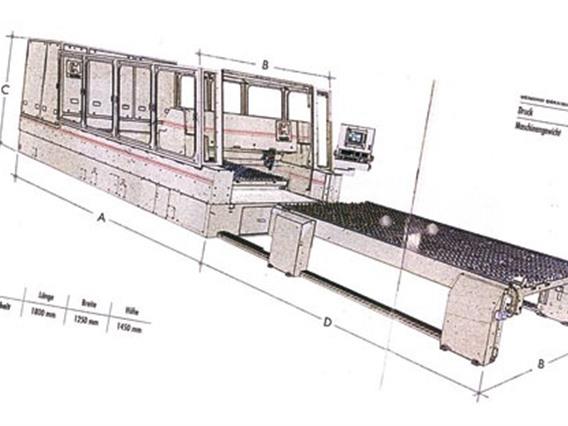

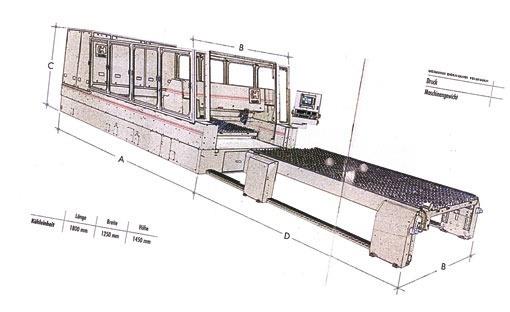

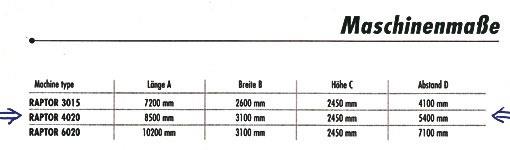

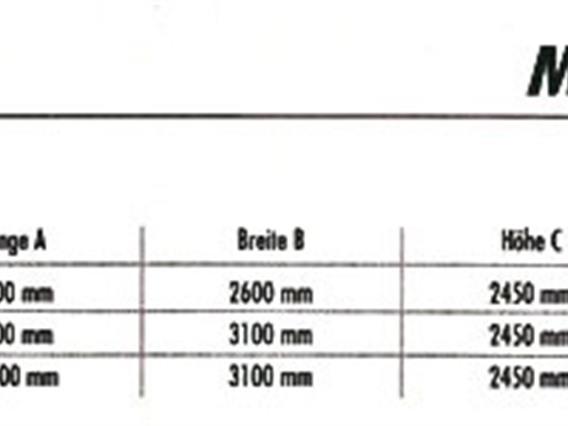

- Length13900 mm
- Depth3100 mm
- Hight2450 mm
- Weight14000 kg

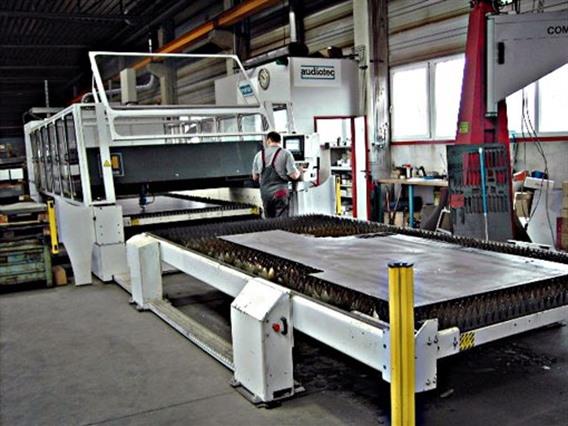

- Shuttle table+
- Resonator timer3700 cutting hours
Additional info
- The Raptor laser cutting machine is a high quality machine with many standard features which improve and speed up your laser cutting production.

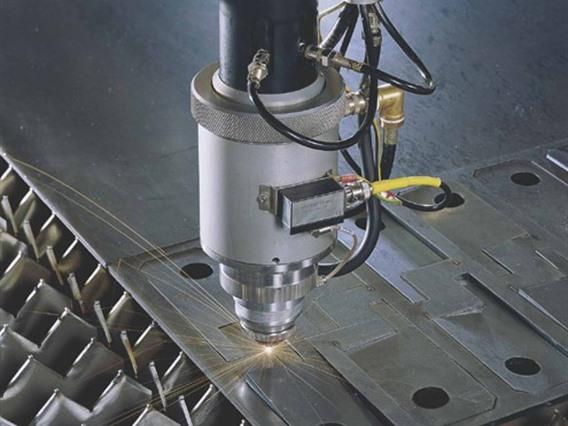

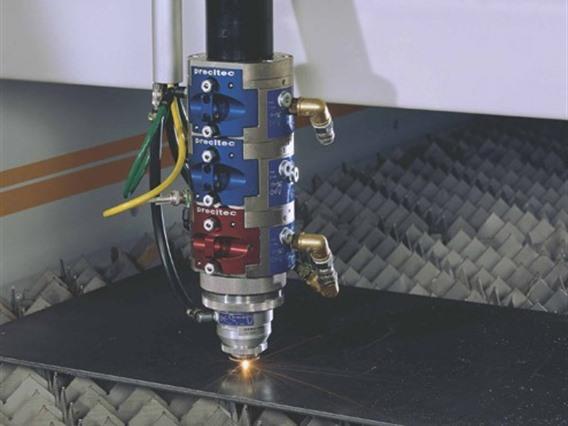

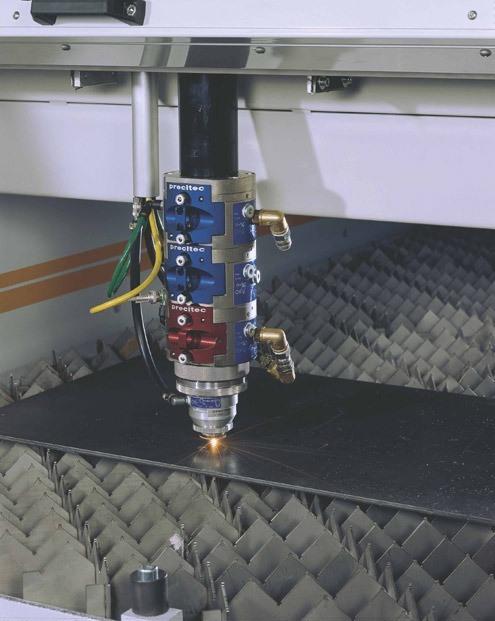

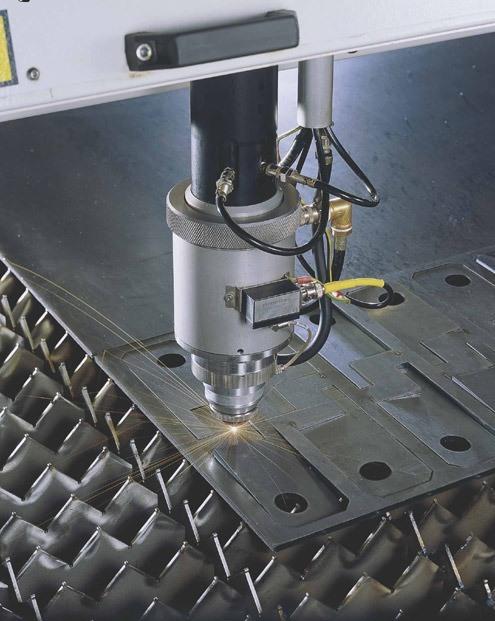

-Precitec quick change cutting head or auto focal cutting head;

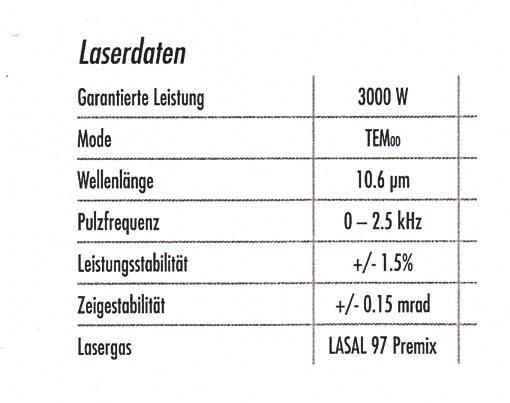

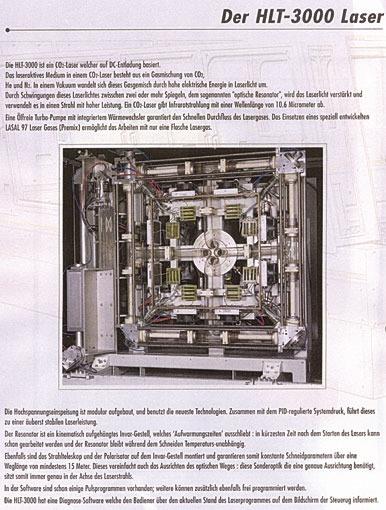

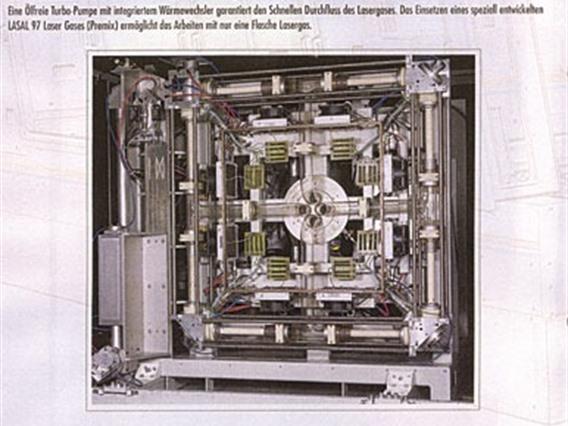

-HACO HLT-3000 resonator, CO2, fast axial flow, oil free turbo pump, HV discharge;
-LASAL 97 premix laser gases

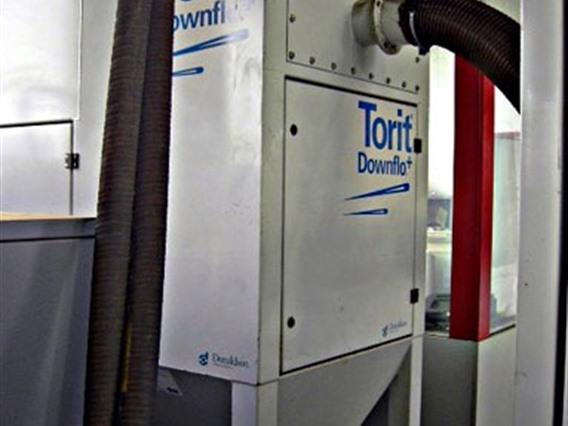

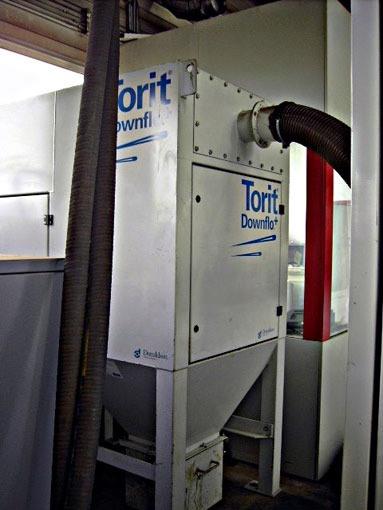

- Aspirating system.

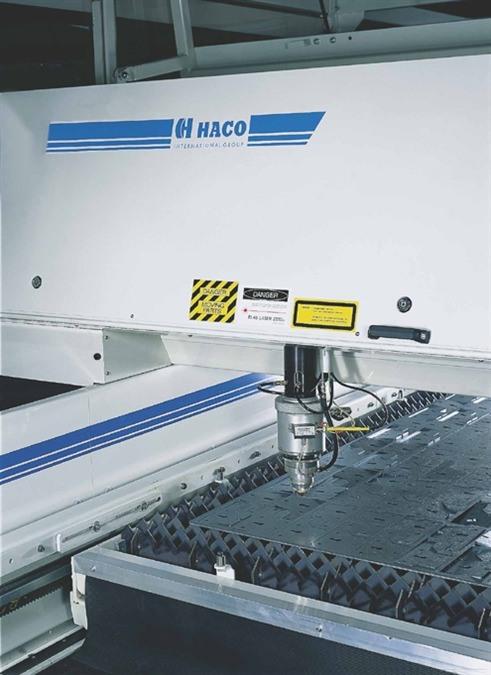

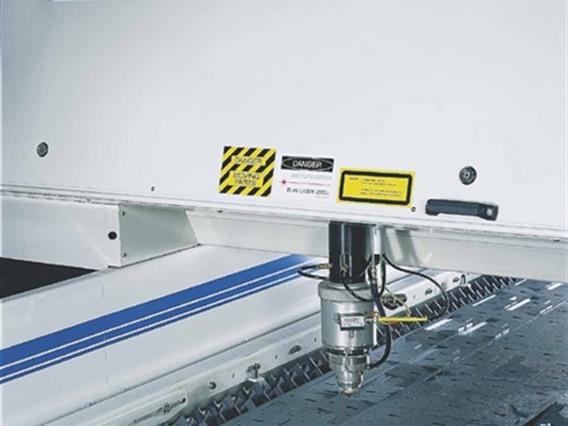

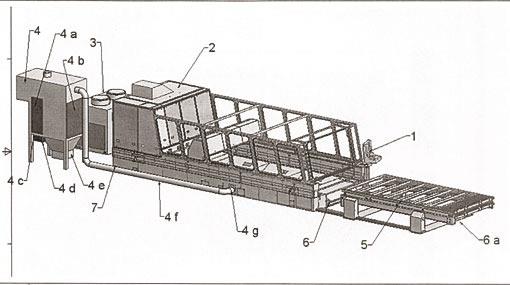

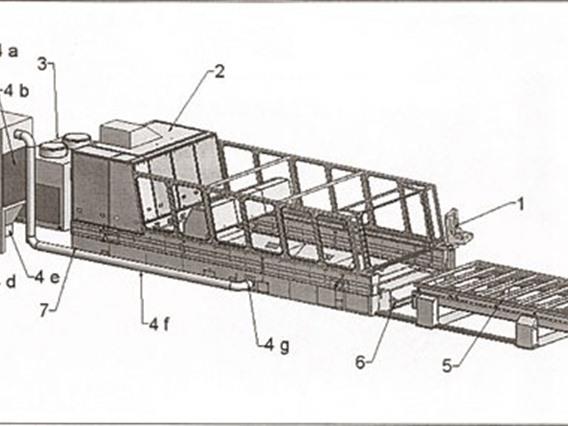

Mounted on the stable monobloc structure, the linear guide-ways for the X-, Y- and Z-axis guarantee very precise movements of the laser cutting head.
The static structure also encloses the cutting table with scrap conveyor system, fume extraction chambers, as well as the Resonator Unit and optical way.

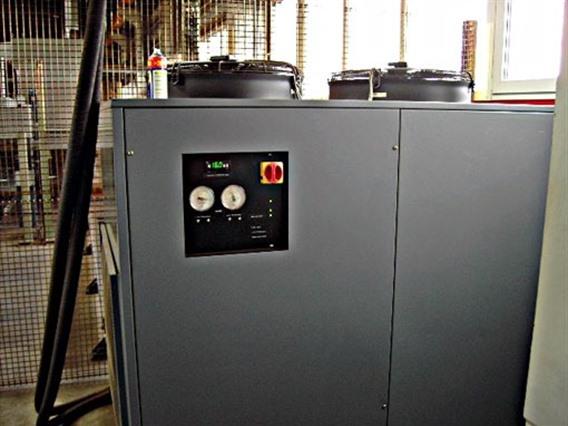

The Cooling Unit (Chiller Unit) is separated from the machine as to eliminate vibrations on the machine frame.
- Type/Model: Raptor 4020- 3kW
- Stocknumber: O.12 3295 *09
- Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
- Sub category: [O.12] Laser cutting machines
- Brand: Haco
